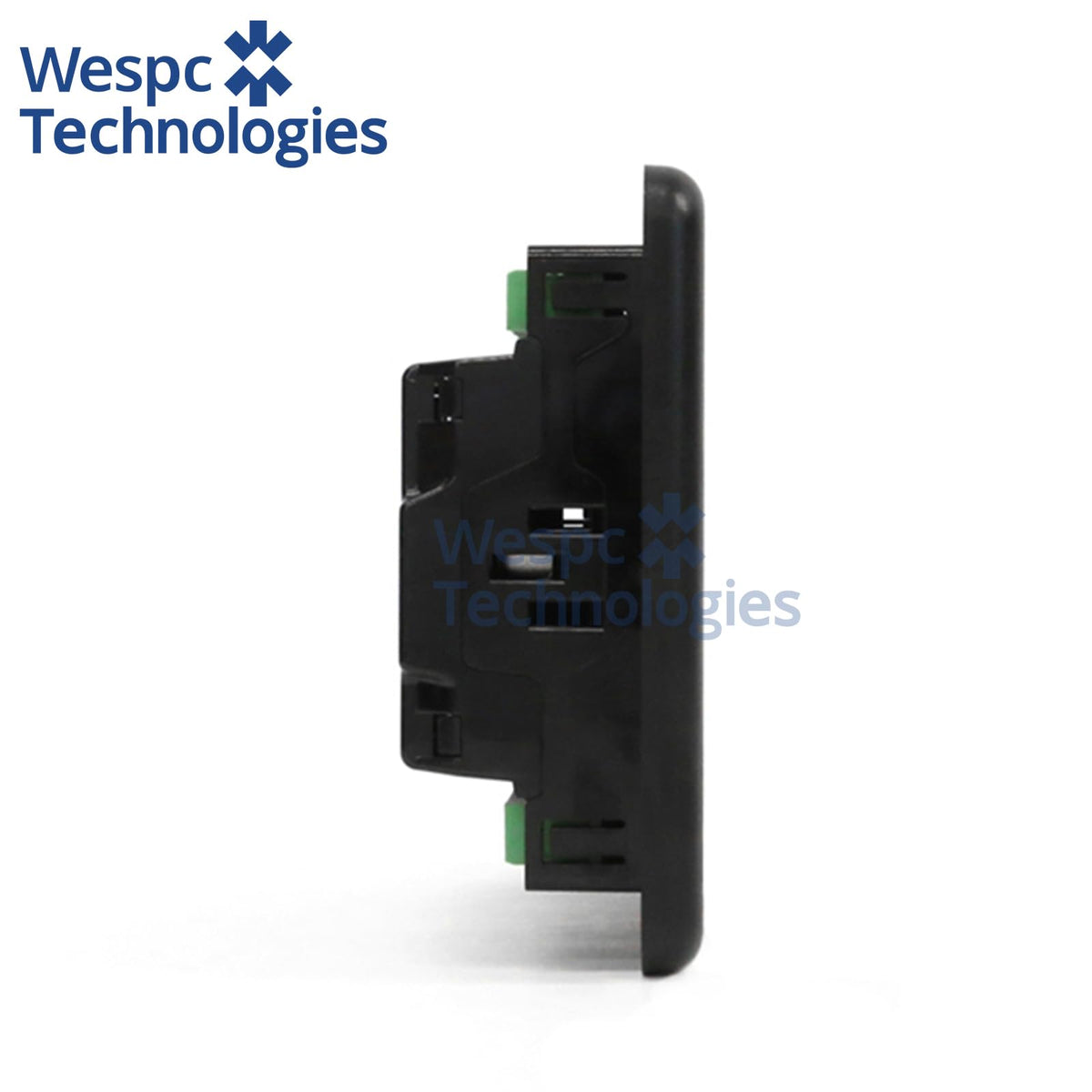

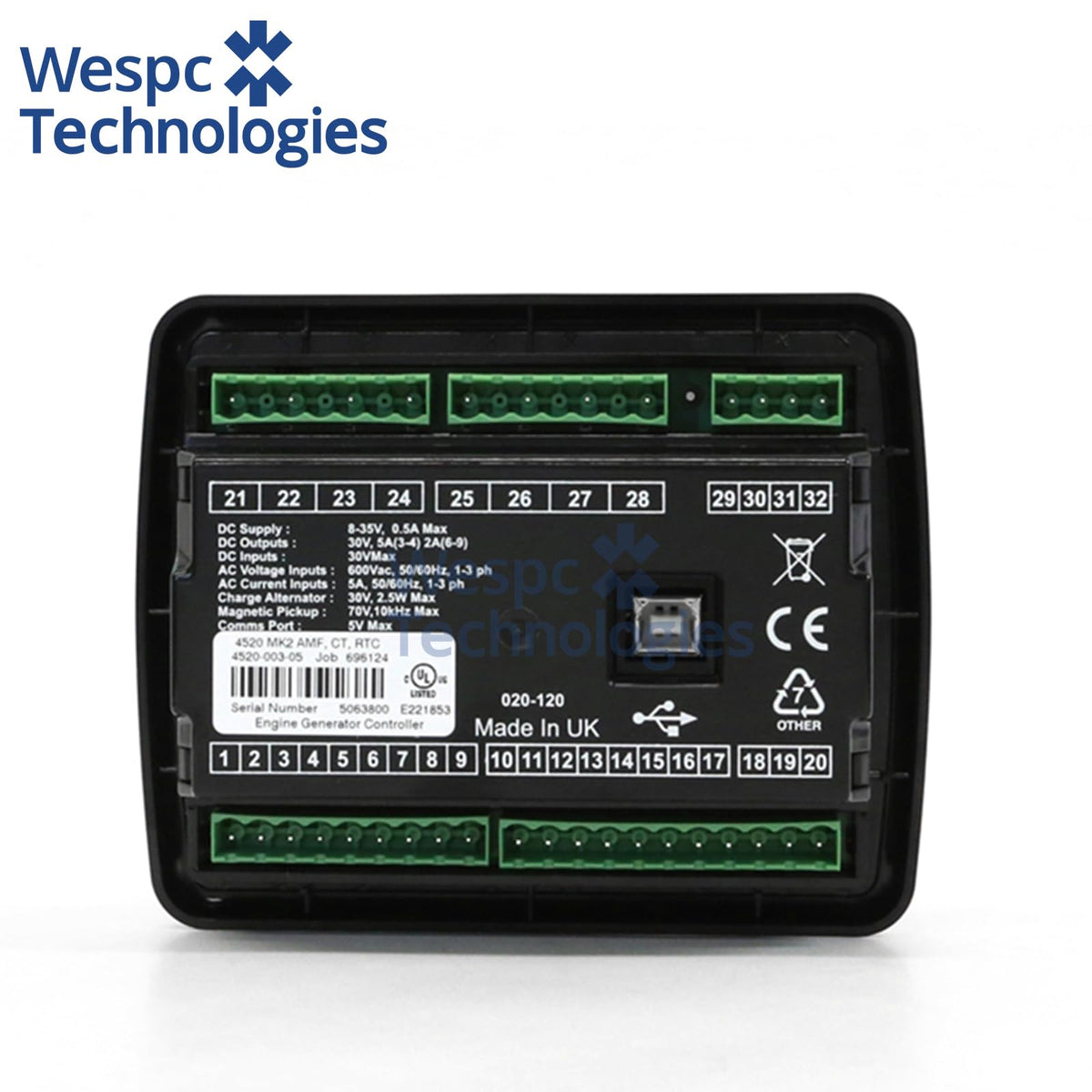

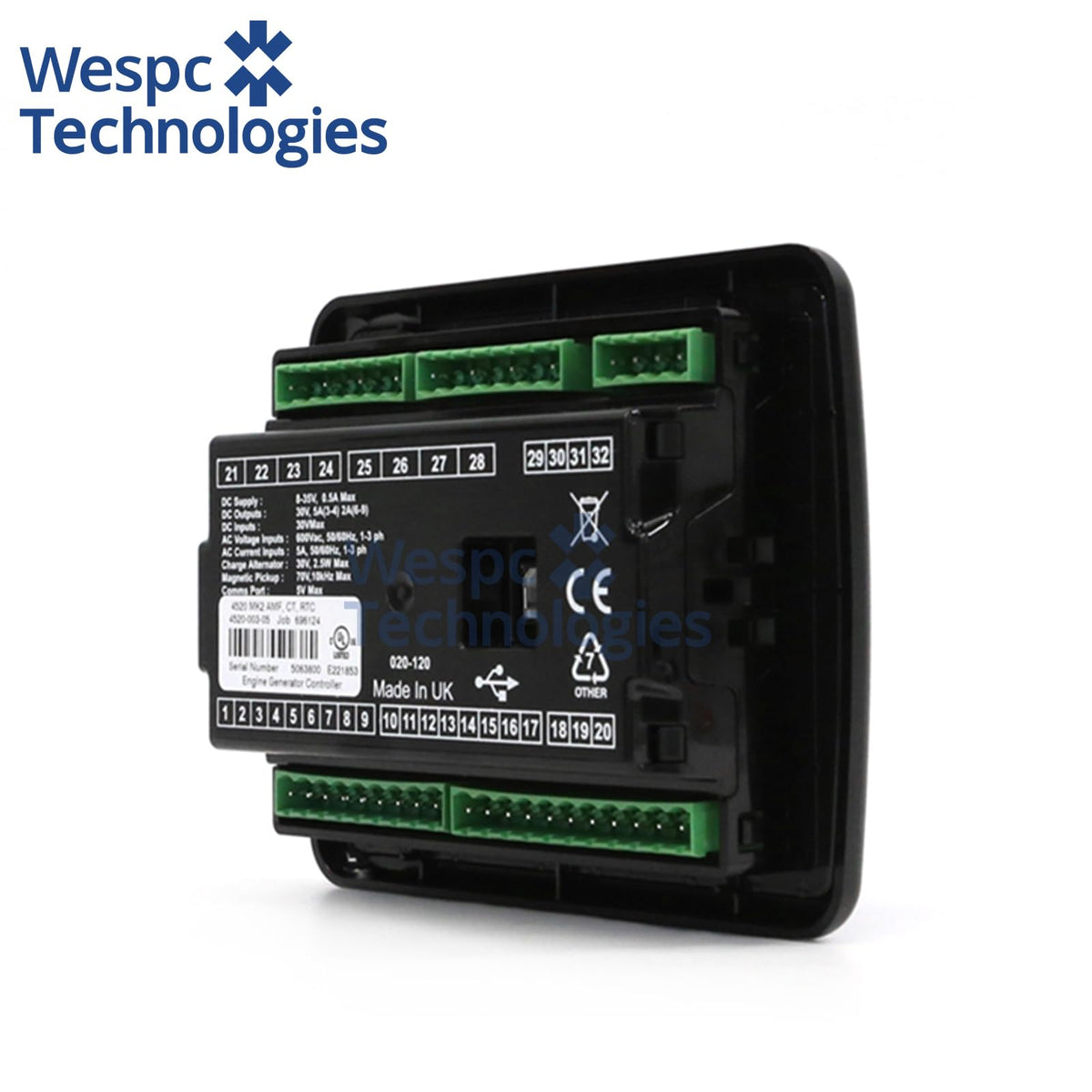

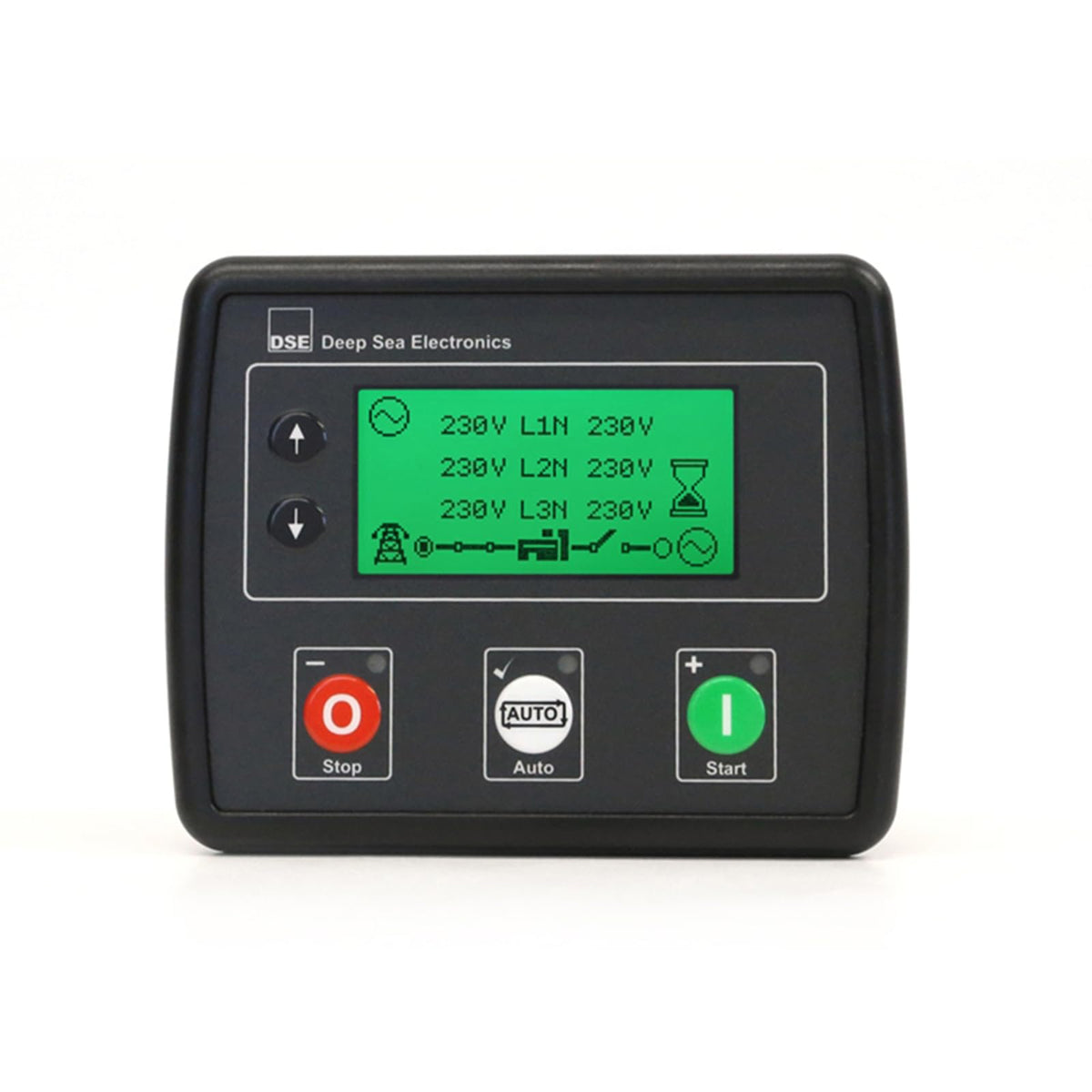

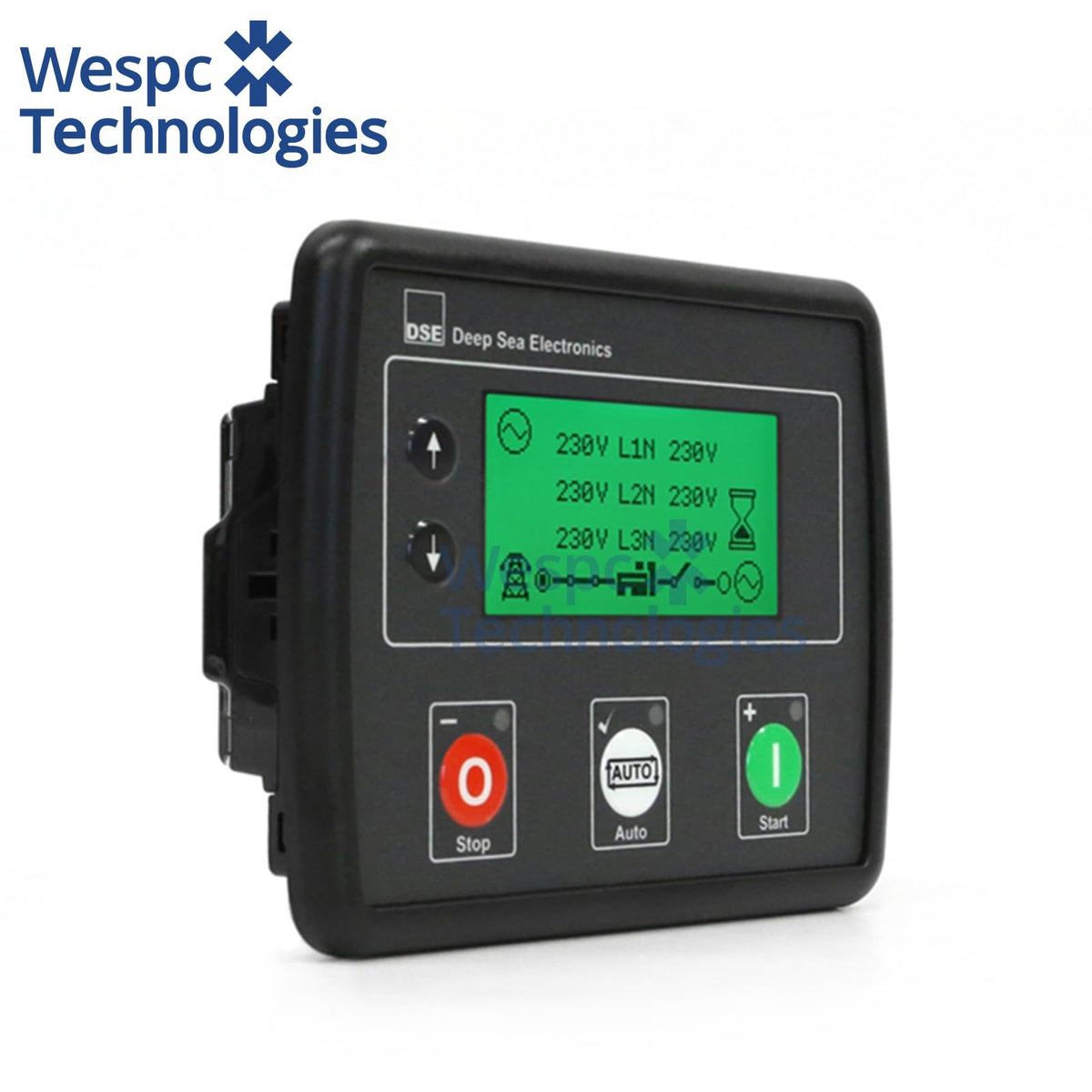

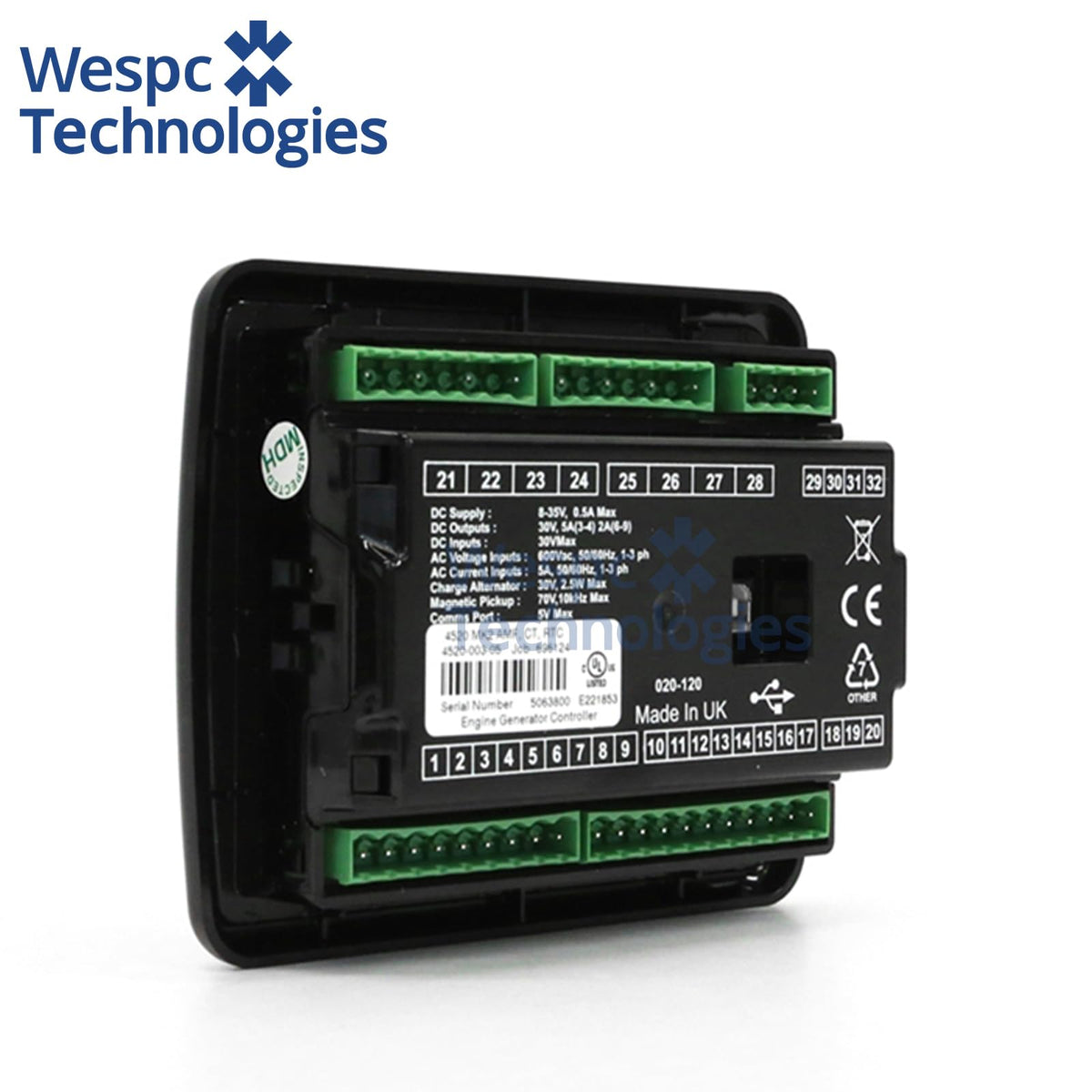

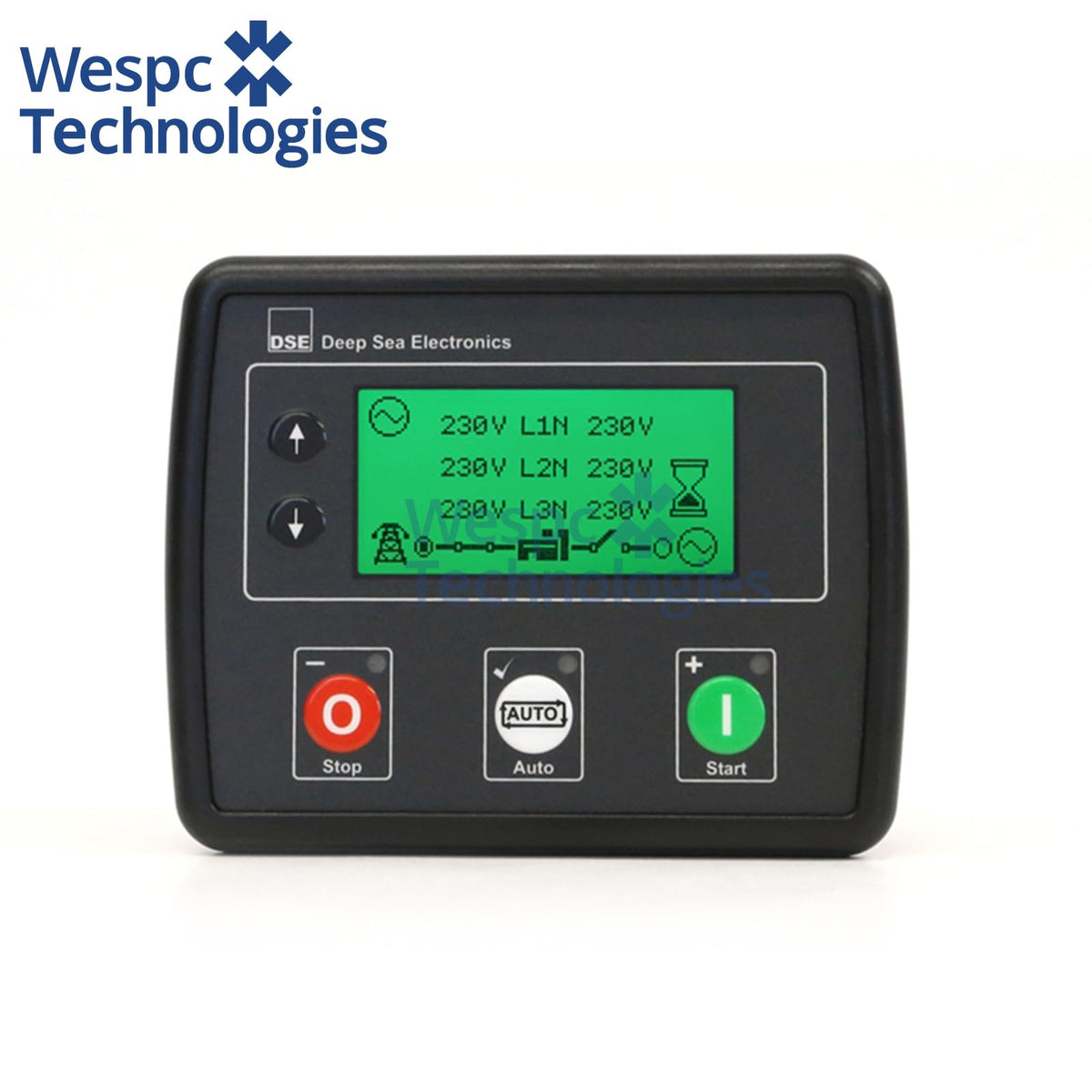

Original DSE4520 MKII Auto Mains Failure AMF Generator Controller
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
85 mA at 12 V, 96 mA at 24 V
MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V
MAINS (UTILITY)
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL)
10 A short term, 5 A continuous, at supply voltage
OUTPUT B (START)
10 A short term, 5 A continuous, at supply voltage
DIMENSIONS
OVERALL
140 mm x 113 mm x 43 mm
5.5’’ x 4.4” x 1.7”
PANEL CUT-OUT
118 mm x 92 mm
4.6’’ x 3.6”
MAXIMUM PANEL THICKNESS
8 mm(0.3")
STORAGE TEMPERATURE RANGE
-40 °C to +85 °C
OPERATING TEMPERATURE RANGE
-30 °C to +70 °C
WEIGHT: 0.26kg
Warranty: 12 months genuine factory warranty
