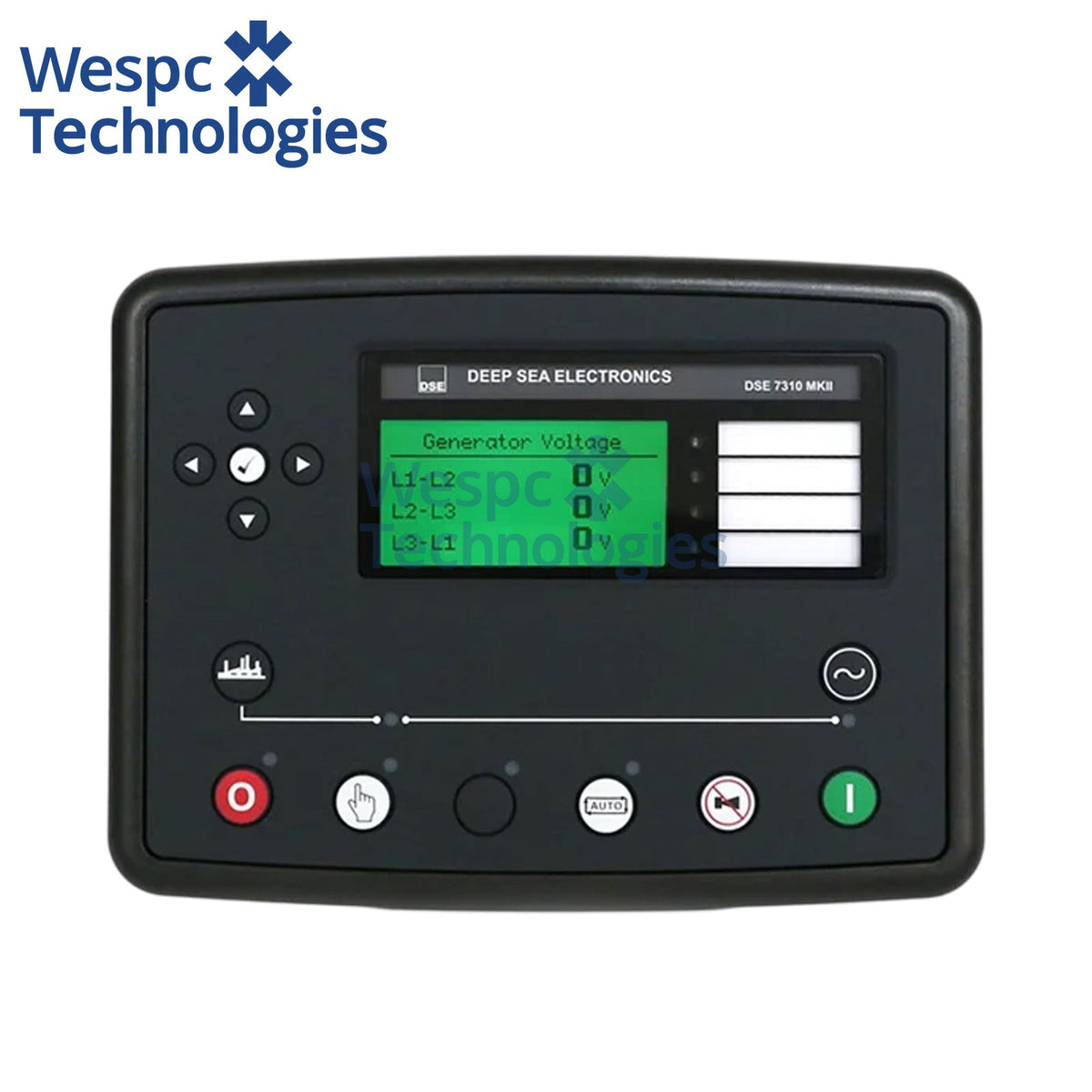

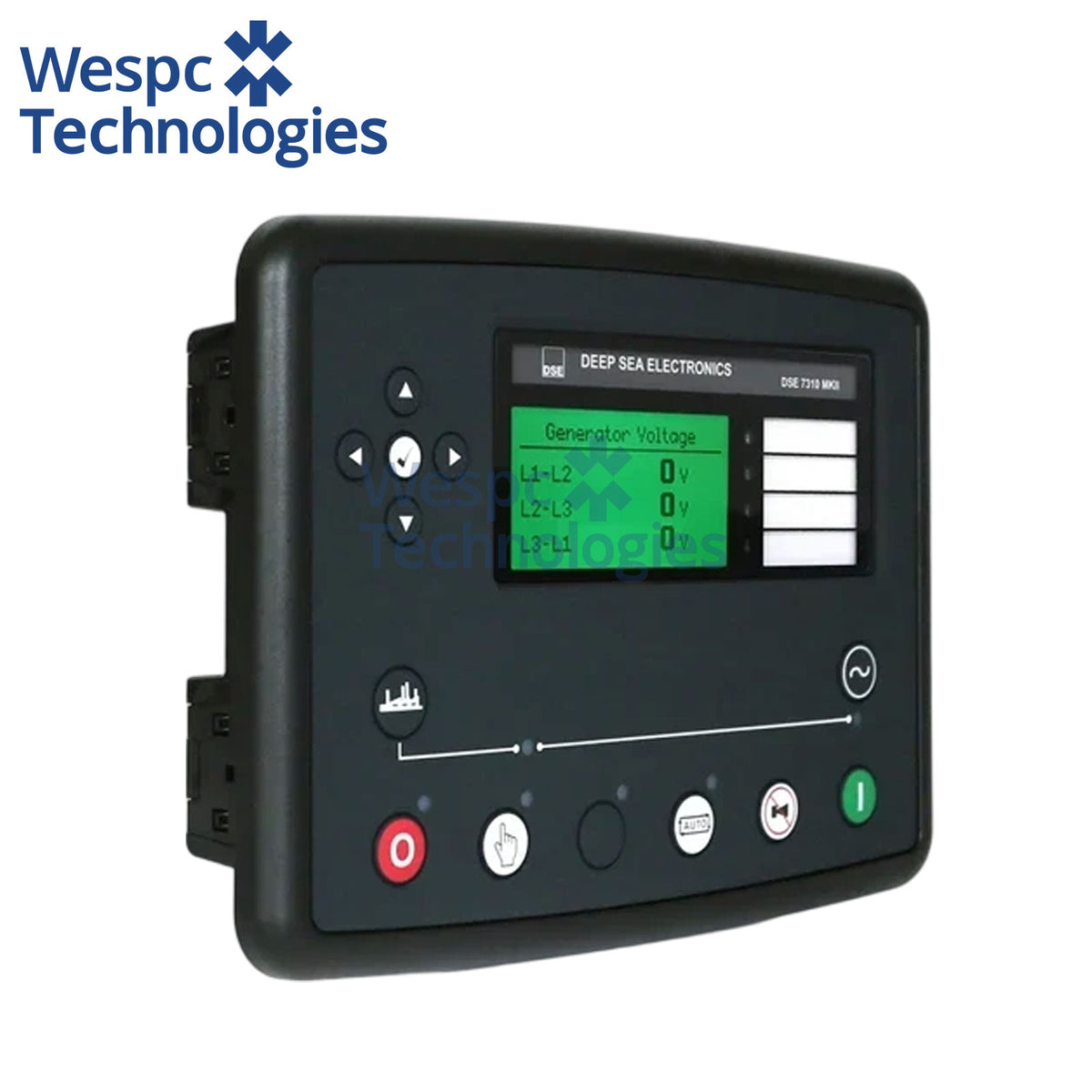

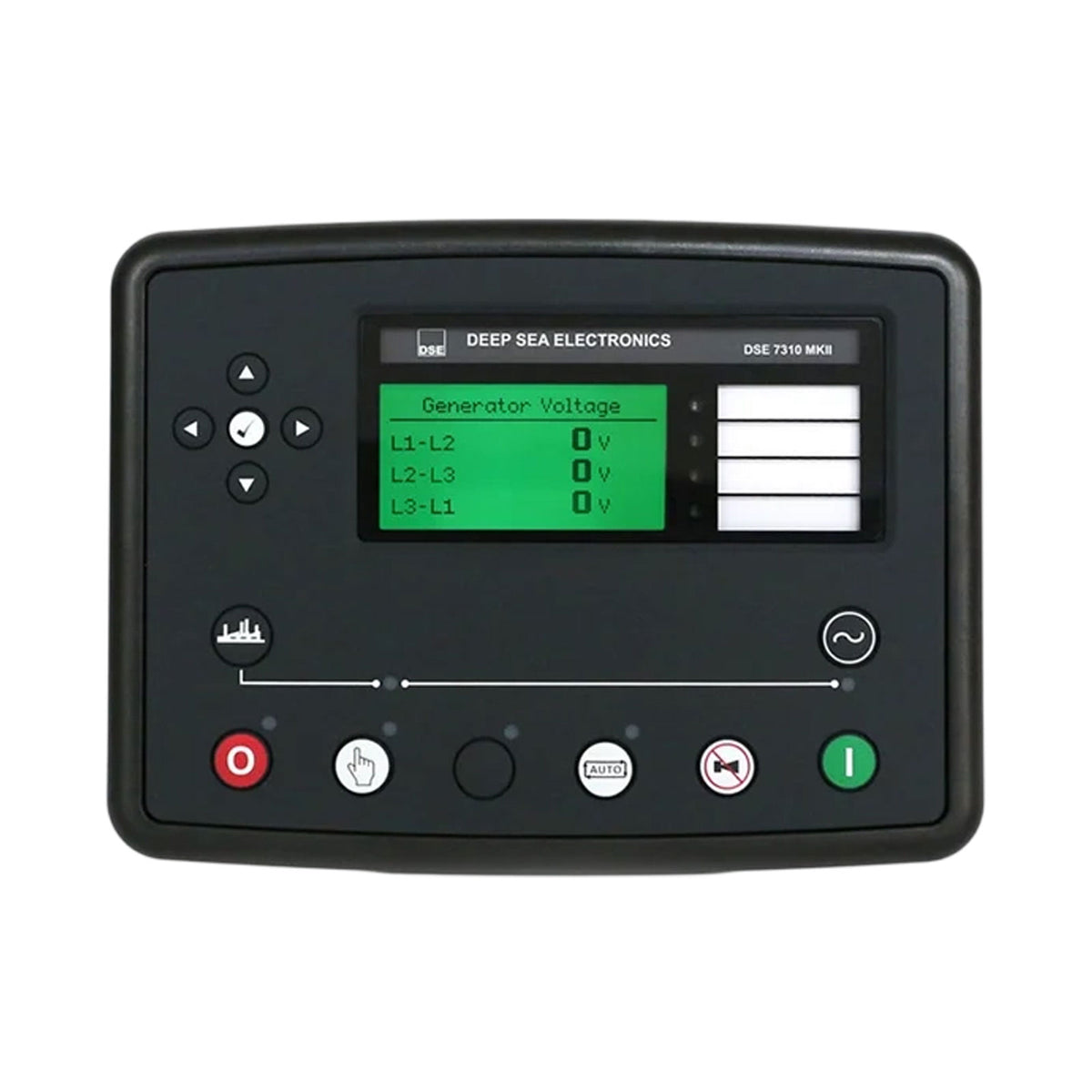

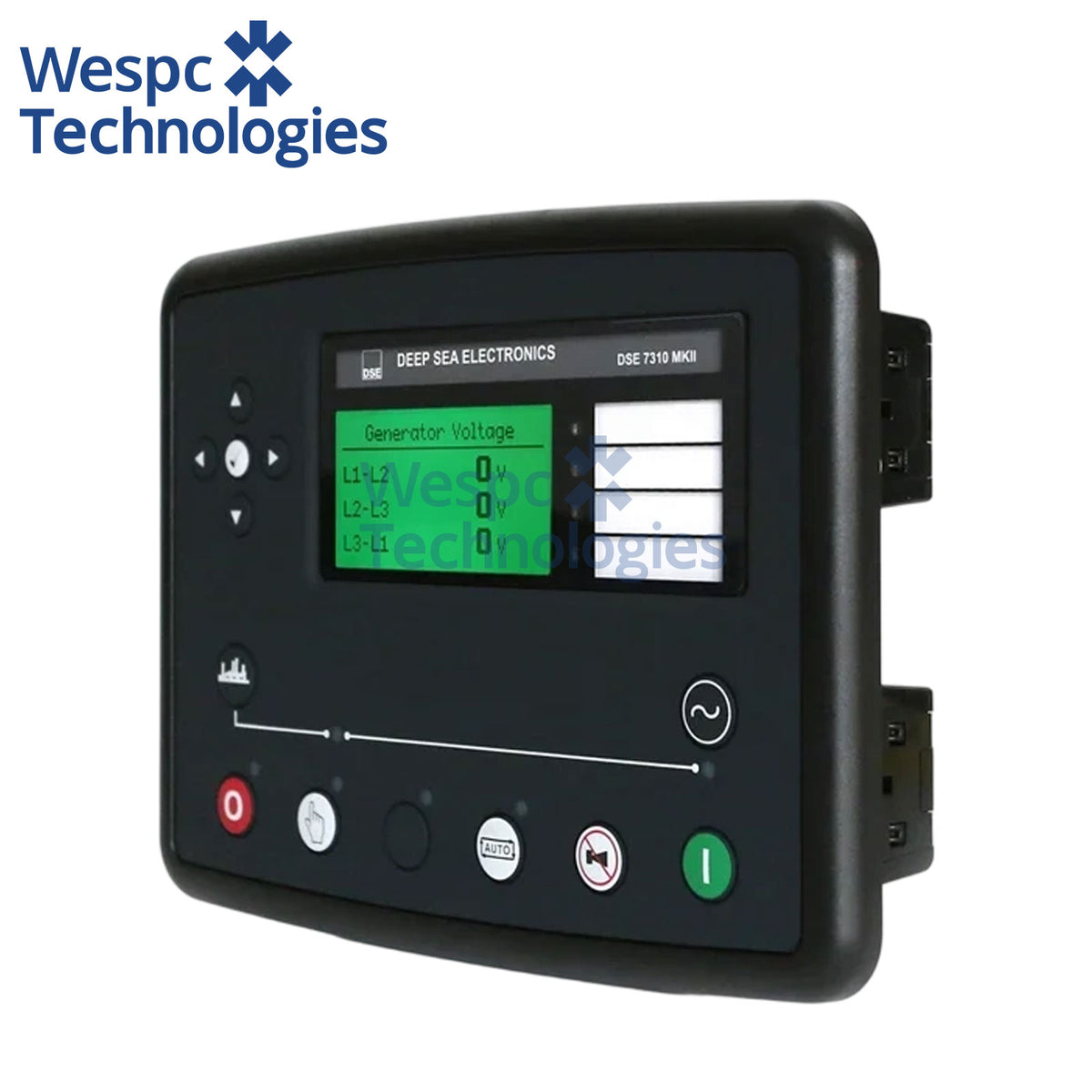

The DSE7310 MKII is an auto start control module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.

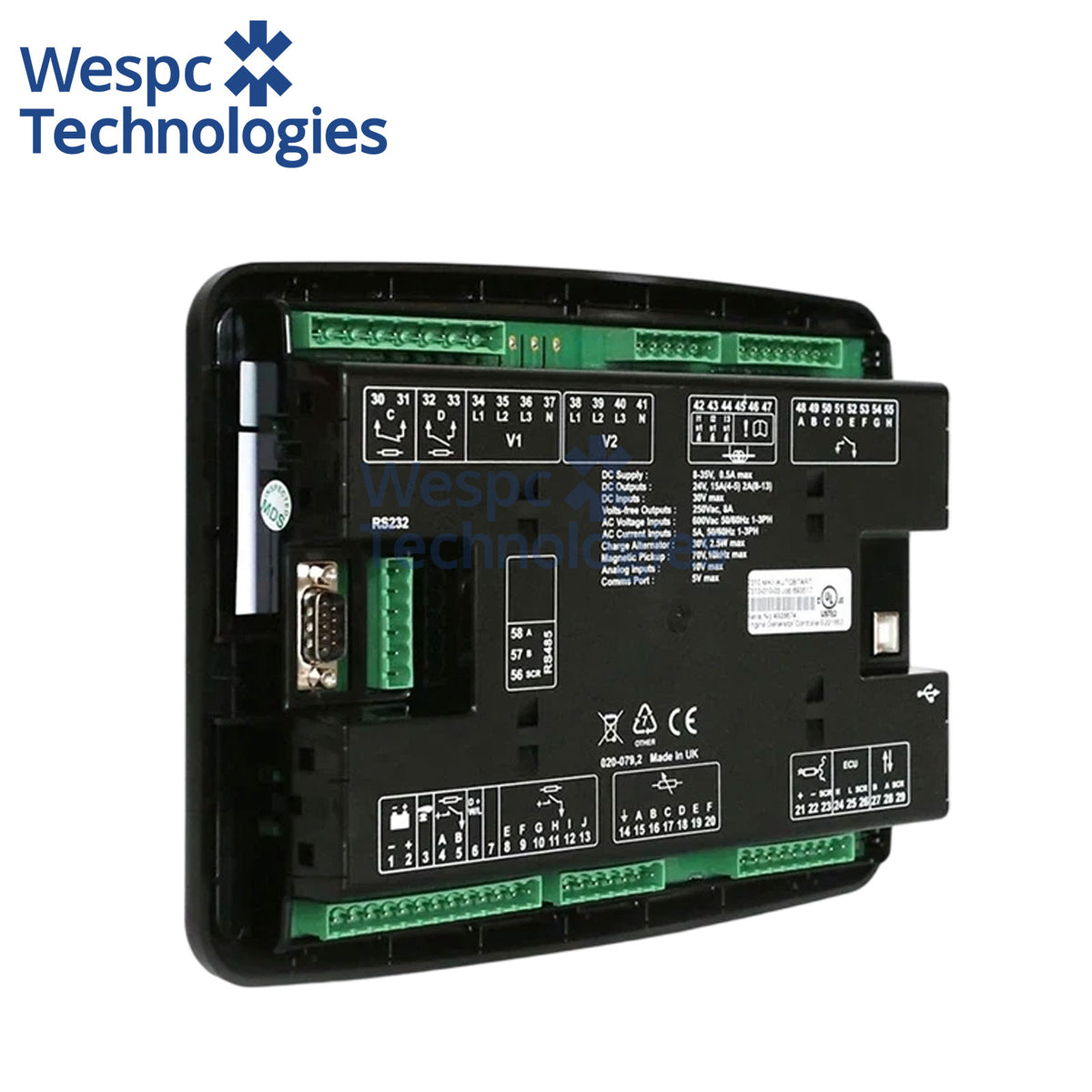

The module include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion. The DSE7310 MKII is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements. The extensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality.
It can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7310-03 - 7310 MKII Autostart Control Module
Net Weight
0.88kg
Warranty
12 months genuine factory warranty
