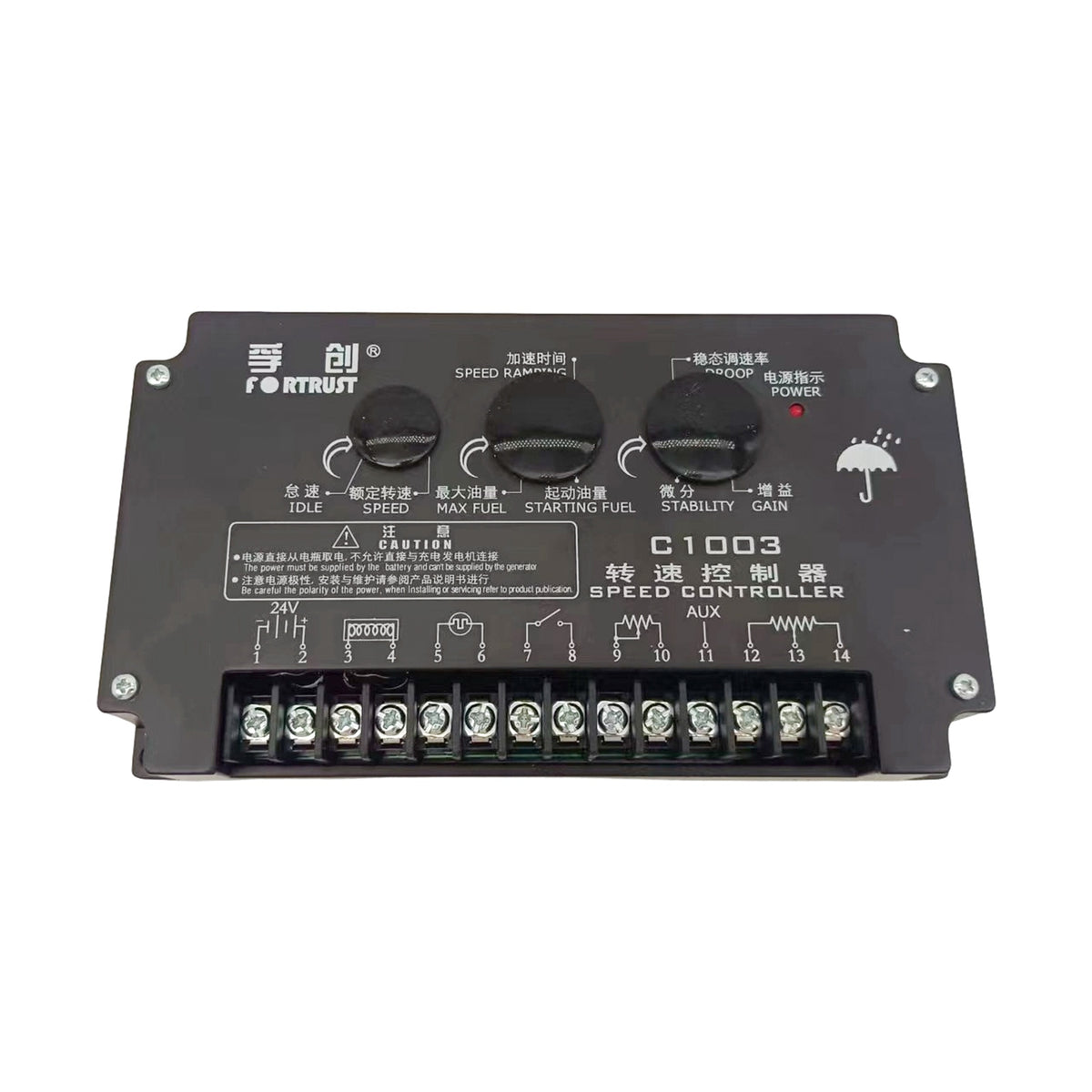

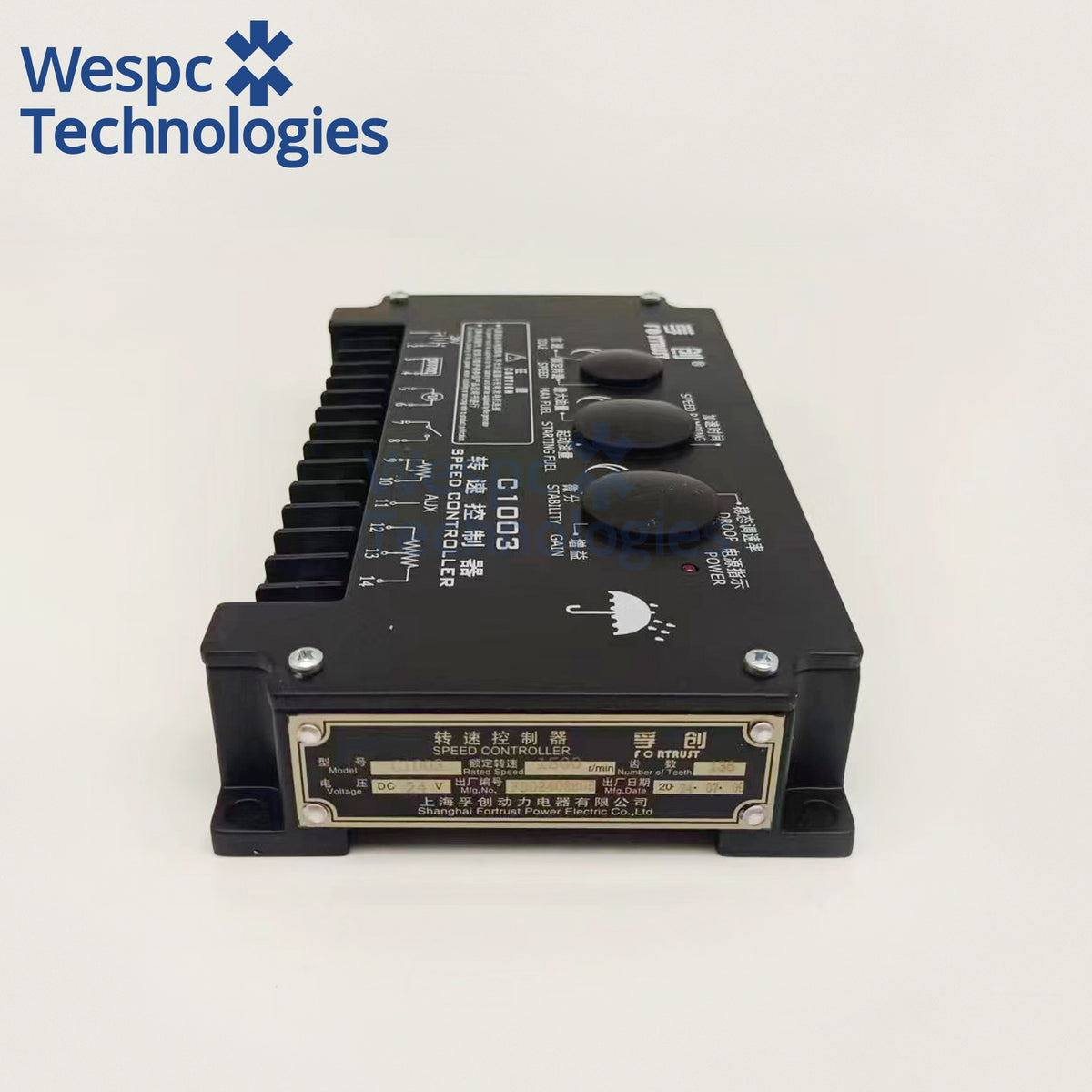

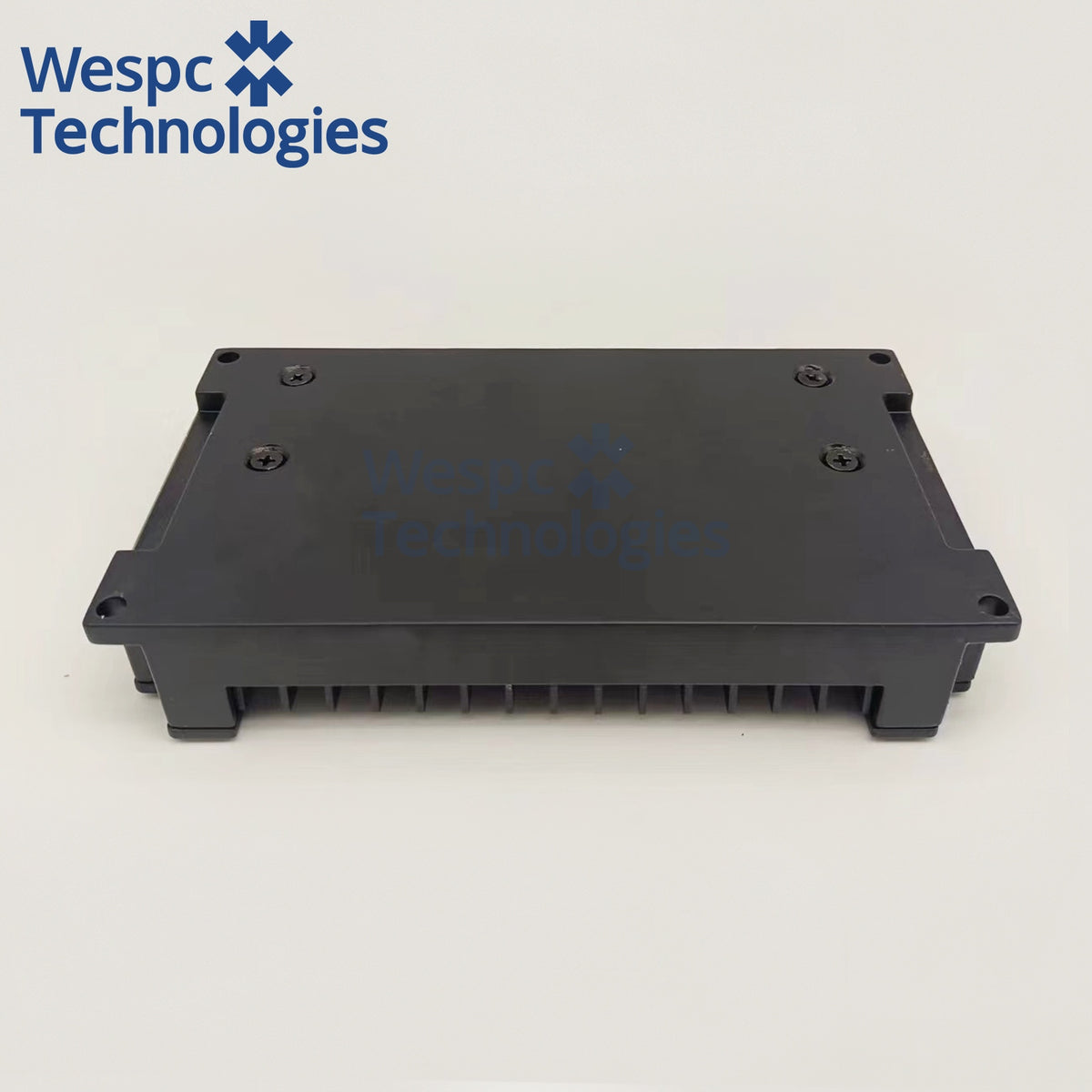

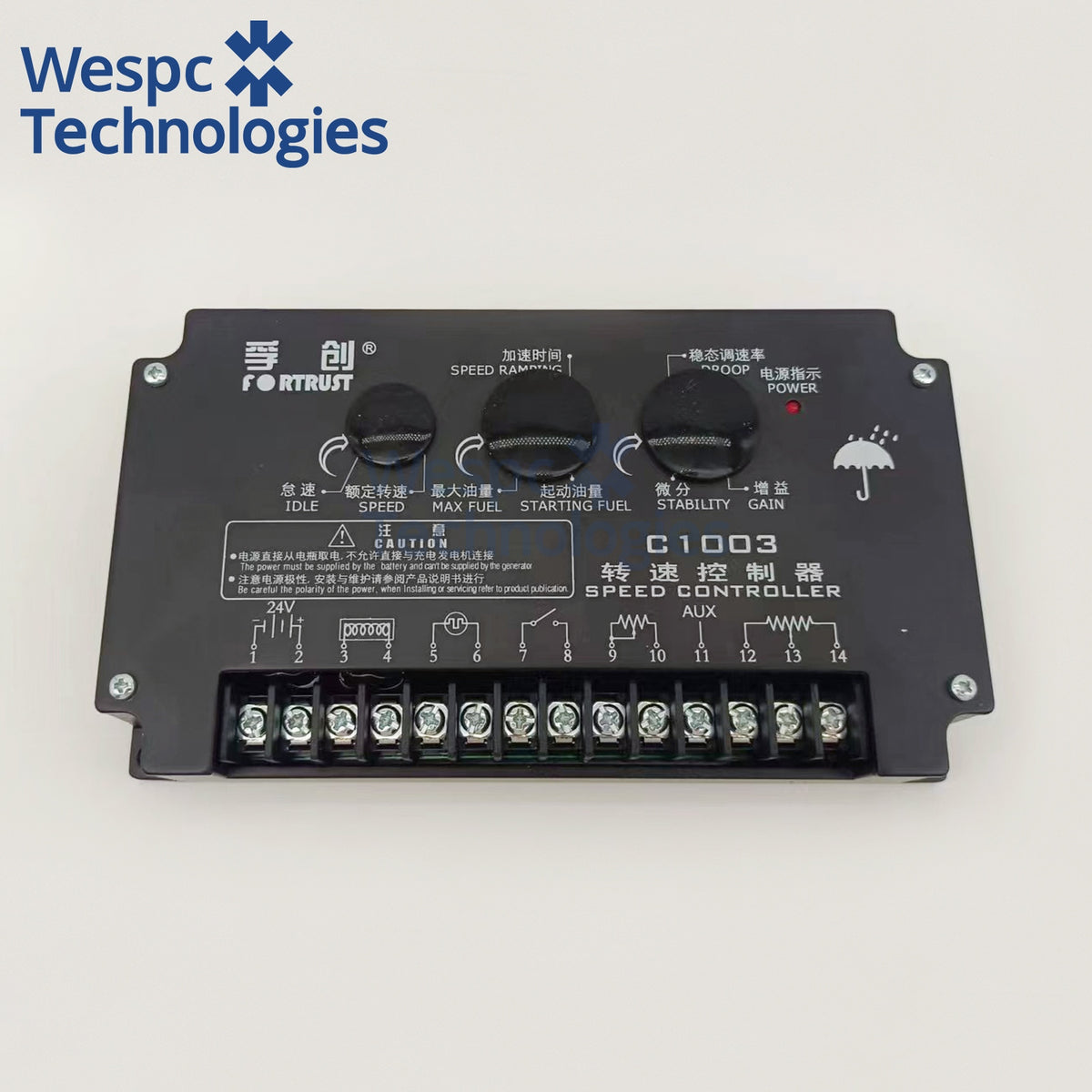

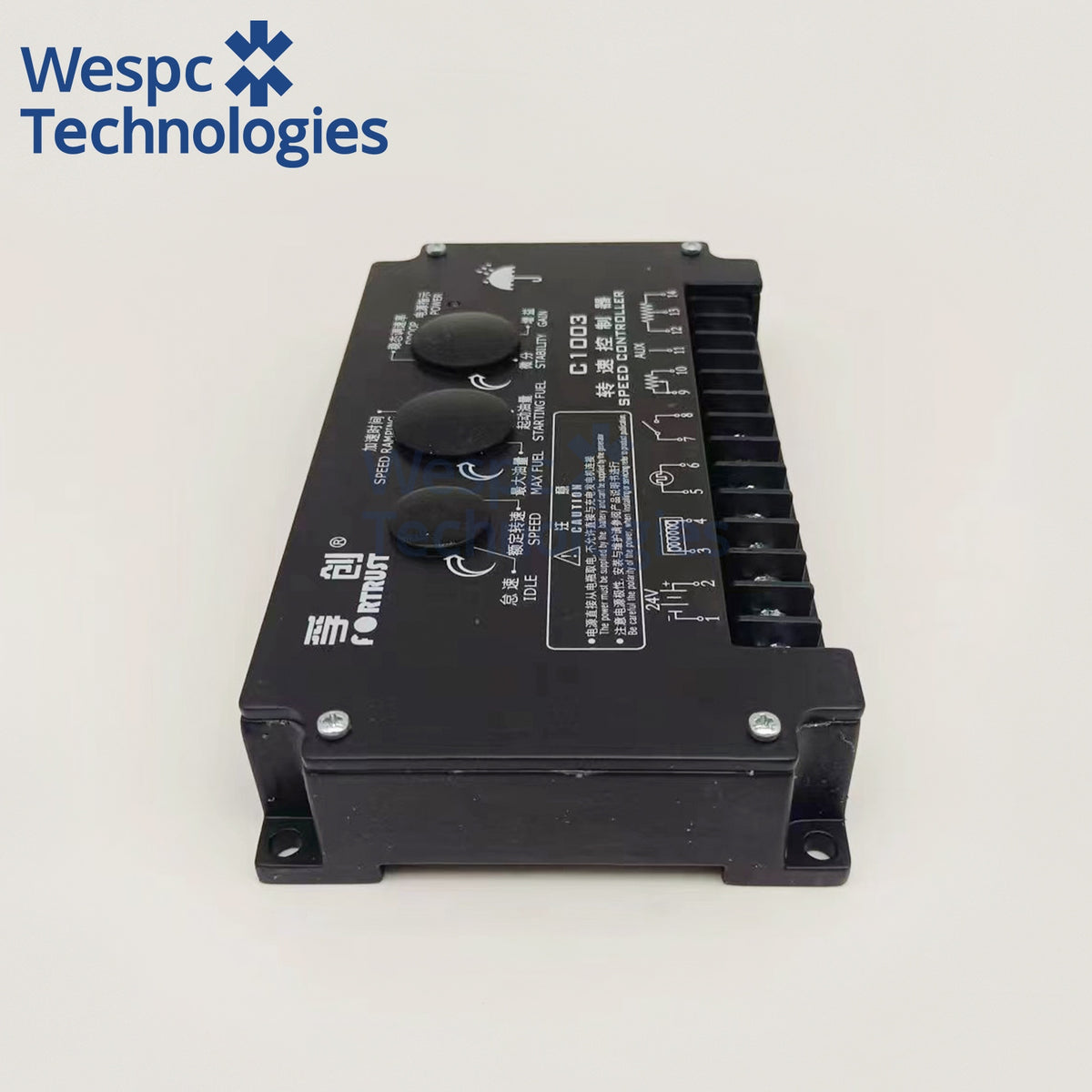

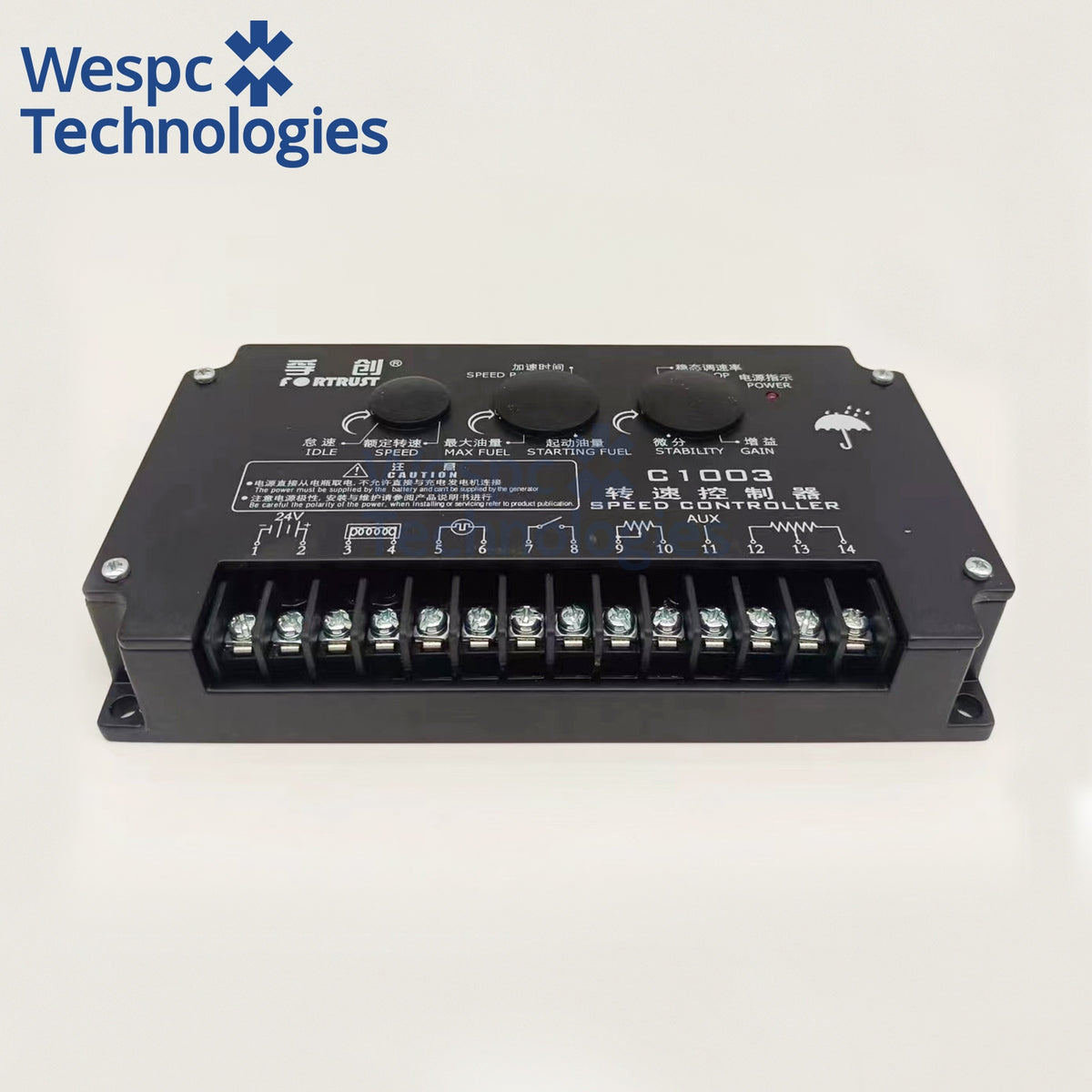

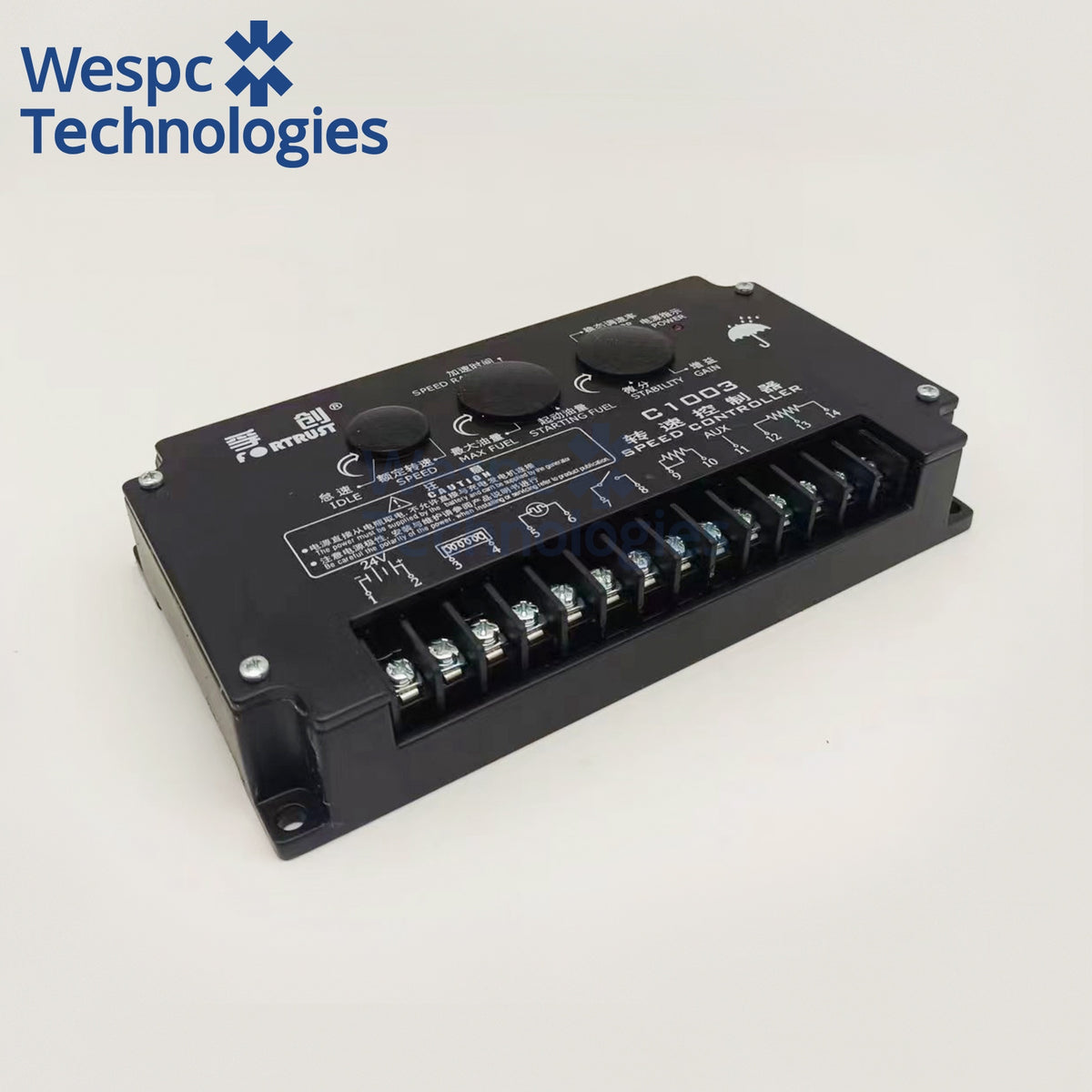

Original Fortrust C1003 Diesel Engine Electronic Speed Governor Controller

• Model: C1003
• Brand: Fortrust (孚创)
• Product Type: Electronic Speed Governor Controller
• Power Supply Voltage:  DC 24V (Range: 18V ~ 32V)
• Power Consumption:  < 0.1A (excluding actuator)
• Control Frequency:  1000 ~ 13000 Hz
• Speed Fluctuation Rate:  ≤ ±0.25%
• Steady-state Speed Regulation Rate: 0 ~ 5%, adjustable
• Transient Speed Regulation Rate: ≤ 10%
• Ambient Temperature：-40°C ~ +80°C
• Ambient Humidity：< 95%
• Protection Class: IP44
• Net Weight: 0.62kg
• Warranty:12 months genuine factory warranty

Basic Functions

• Power Indicator Light: Indicates whether the speed controller is properly powered.
• Adjustable Starting Fuel: Adjusts exhaust smoke condition during engine starting.
• Maximum Fuel Limiting: Limits the maximum fuel injection quantity of the fuel pump, preventing engine overload operation.
• Speed Control & Speed Trim: Adopts dual closed-loop control for precise speed regulation, support remote speed adjustment.
• Adjustable Ramp-up Time: Adjusts the speed ramp-up time from idle to rated condition.
• High/Low Speed Switching: Switches between idle condition and rated condition.
• Adjustable Steady-state Speed Regulation Rate (Speed Droop): Steady-state droop rate adjustable within range.
• Paralleling Function: Supports multiple gensets running in parallel via manual or automatic paralleling.
• Full-range Speed Control: Enables continuous and smooth speed adjustment within a certain range.
• Auto Shutdown Protection: Automatically shuts down the engine when the speed signal is lost or the controller loses power.
