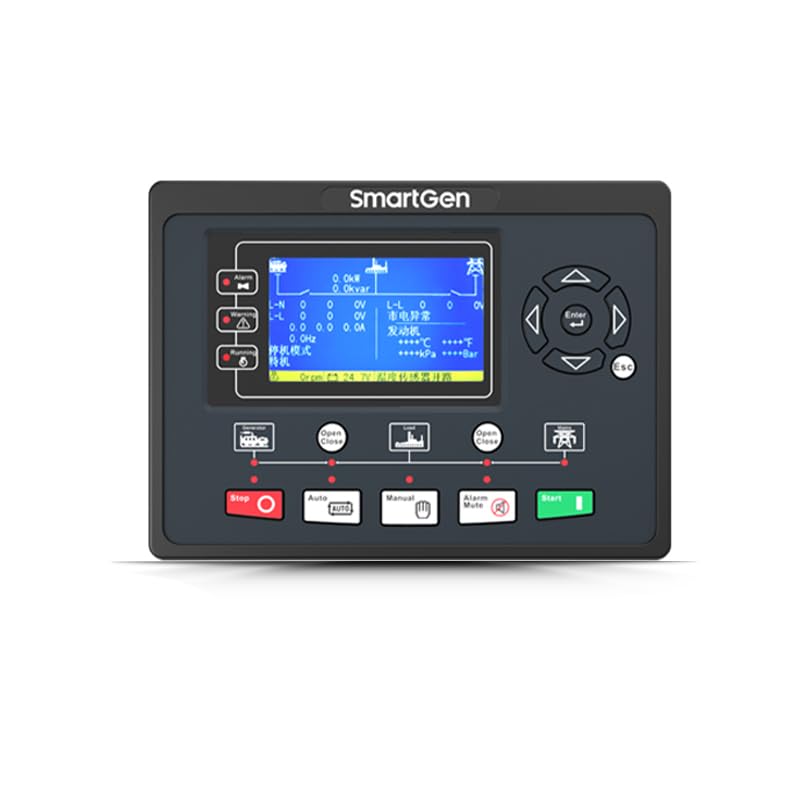

Original Genuine HGM9320 CAN Replace HGM6320 HGM6410 Generator Genset Controller for SmartGen ATS AMF Module HGM9320CAN

Overview:
HGM9320 CAN series genset controllers are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.

HGM9320 CAN series genset controllers adopt 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The majority of parameters can be set using front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 port. It can be widely used in a number of automatic genset control system with compact structure, simple connections and high reliability.

Product Specifications

• Model: HGM9320CAN
• Brand: SmartGen (Genuine Original)
• Core Function: AMF Automatic Mains Failure ATS Controller with J1939 CAN Bus
• Power Supply: DC8V ~ DC35V (12V/24V dual compatible)
• LCD Screen: 4.3" TFT 480×272 color display, multi-language
• Communication: CAN J1939, RS485 Modbus, USB, GSM expandable
• I/O Ports: 8DI + 8 Relay Outputs + 5 Analog Sensors
• Protection Grade: IP55 Front Panel
• Overall Size: 237×172×45mm; Cutout: 214×156mm
• Working Temp: -25℃ ~ +70℃
• Net Weight: 0.85 KG
• Warranty: 12 Months Original Factory Warranty
• Certifications: CE, ISO9001, EMC
