Original Genuine Mebay DC92D Replaced by DC92D MK3 Auto AMF ATS Generator Controller Genset Control Module

Genuine Mebay DC92D  Replaced by DC92D MK3  Auto AMF ATS Generator Controller Genset Control Module(DC92D)
Overview:
This series of controllers is designed for the start, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and has parameter setting functions.

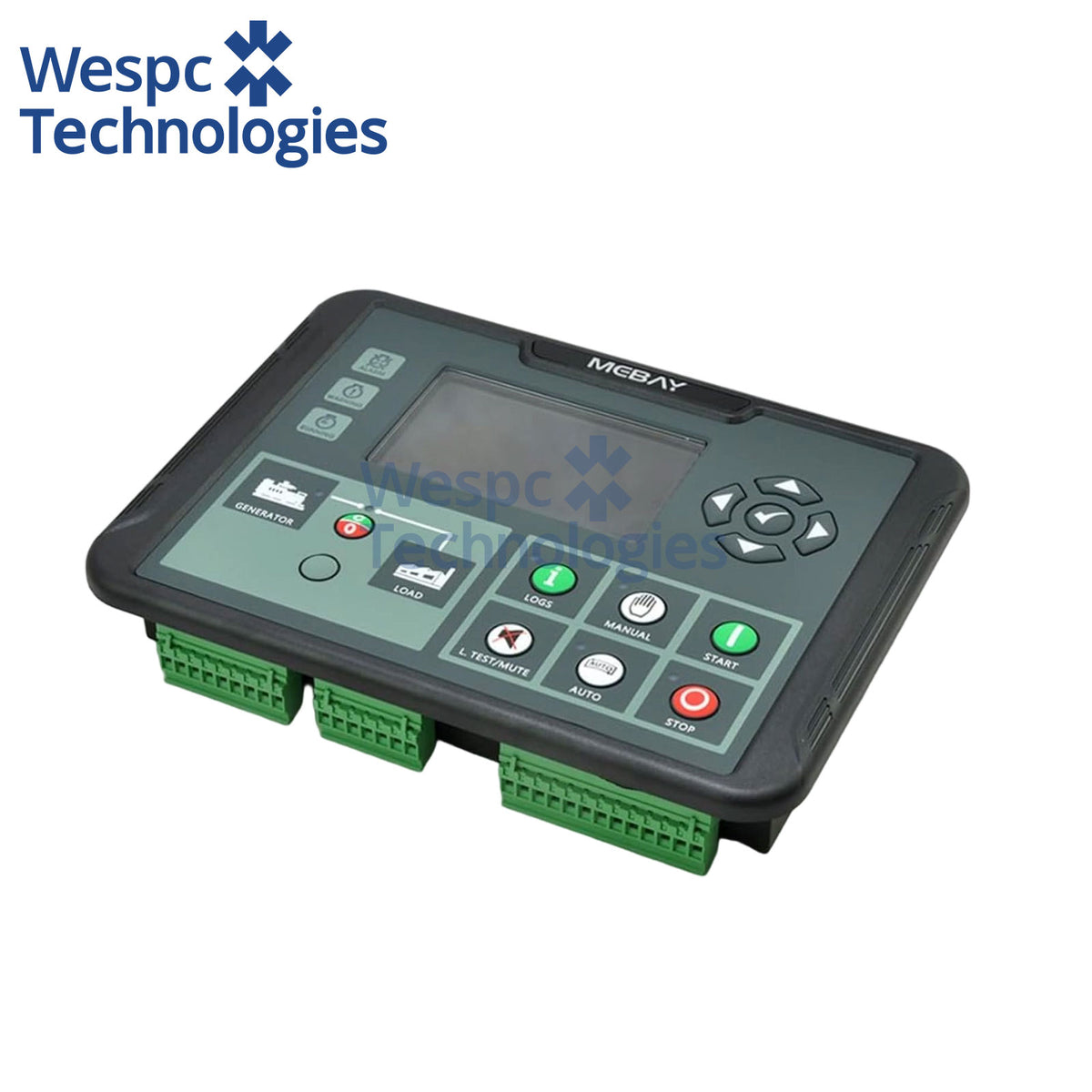

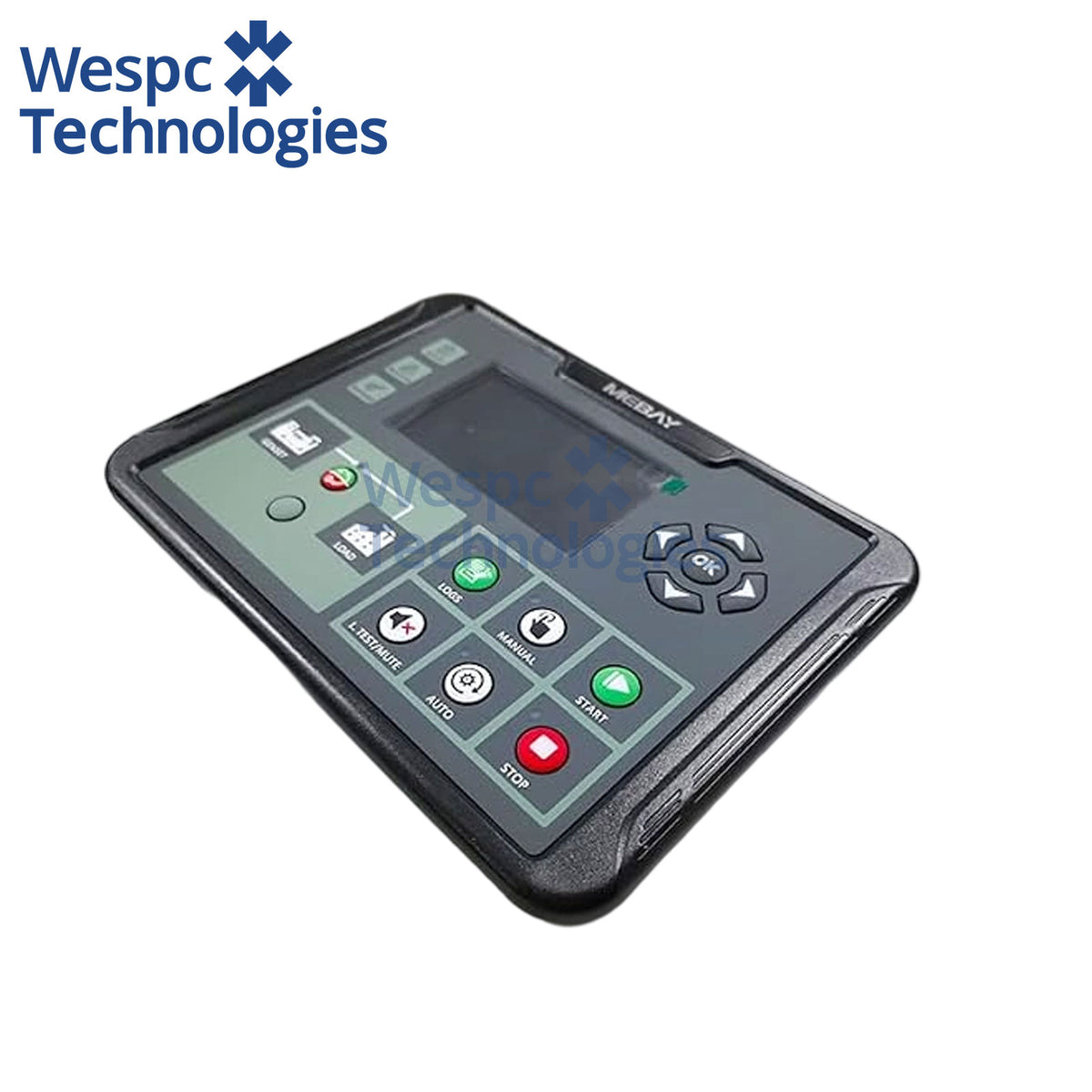

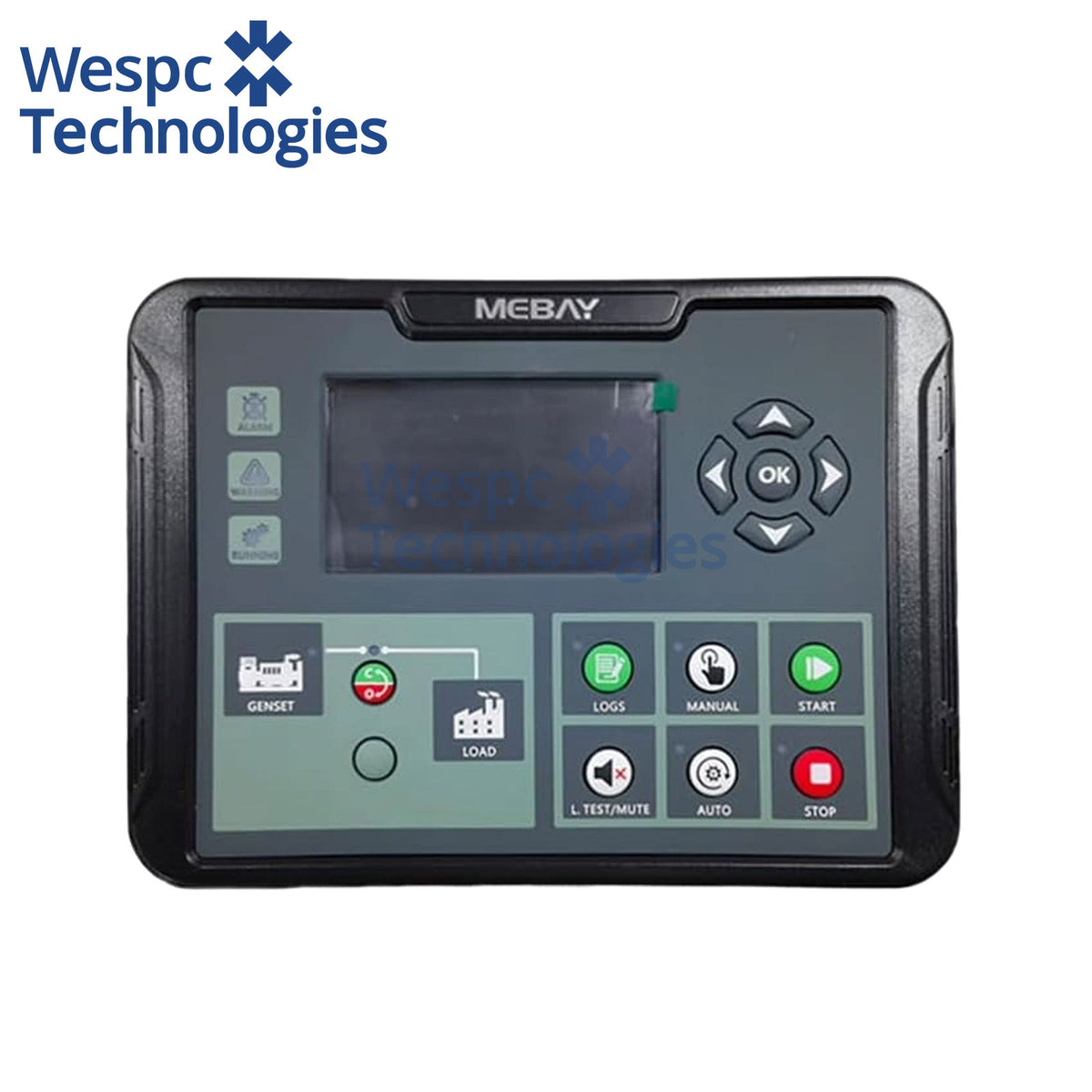

This controller uses a 4.3-inch TFT color large-screen LCD to display the relevant parameters of the generator set, a new and original UI design, and the parameters are displayed through analog pointers and digital displays. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective parking when the generator set is not working properly.

Wide Application Range

Large silent single diesel generator control cabinet, data center backup AMF genset, commercial building peak shaving standby power, marine large single auxiliary generator set, mine off-grid industrial power supply, municipal emergency power station, generator repair shops and large power distribution engineering projects without remote centralized cloud monitoring requirements.

Product Specifications

• Brand: Mebay
• Model: DC92D MK3
• Core Function: Flagship AMF auto mains failure single genset controller with built-in CAN J1939 ECU reading, substitute DeepSea DSE7320 base model, only USB local debugging (No RS485 remote communication)
• DC Power Supply: DC9V~36V universal wide voltage for 12V/24V generator batteries
• AC Sampling: Dual-way mains+generator three-phase voltage simultaneous monitoring, auto 50/60Hz frequency recognition
• Communication Interfaces: Front USB Type-B local debug port + CAN J1939 ECU bus (No rear RS485 Modbus)
• Display: 4.3-inch colorful TFT multi-language LCD dashboard
• Panel Cutout Size: 220 × 160 mm, overall dimension 241 × 177 × 45 mm
• Weight: 1kg
• Front Panel Protection Grade: IP54 dustproof & waterproof with silicone sealing gasket
• Operating Temperature: -25℃ ~ +65℃
• Warranty: 12 months genuine factory warranty
• Certifications: CE, ISO9001, EMC EN55032 IEC61000-4

Common Equipment Failures Solved

• Generator cannot auto start after mains power loss: Mains voltage sampling wiring loose, AMF delay start parameter misconfigured
• Laptop cannot connect controller for parameter modification: Use SG72A USB communication adapter, install official Mebay configuration software
• Onboard relay burned when driving glow plug: Onboard contact capacity limited to 16A, install external Hongfa HAT700BI 70A heavy relay for current amplification
• Need mobile APP remote cloud monitoring: DC92D MK3 without RS485 port, upgrade to DC92DR MK3 model with isolated RS485 Modbus communication
• No engine ECU data displayed on CAN J1939 port: CAN-H/CAN-L wiring reversed, engine ECU communication protocol mismatch
• Frequent low oil pressure / high water temperature alarm: SGPT110 pressure sensor damaged or threshold parameter misadjustment
• Old DSE7320 base panel damaged and need replacement: DC92D MK3 same mounting size and terminal definition, direct swap without cabinet wiring modification
