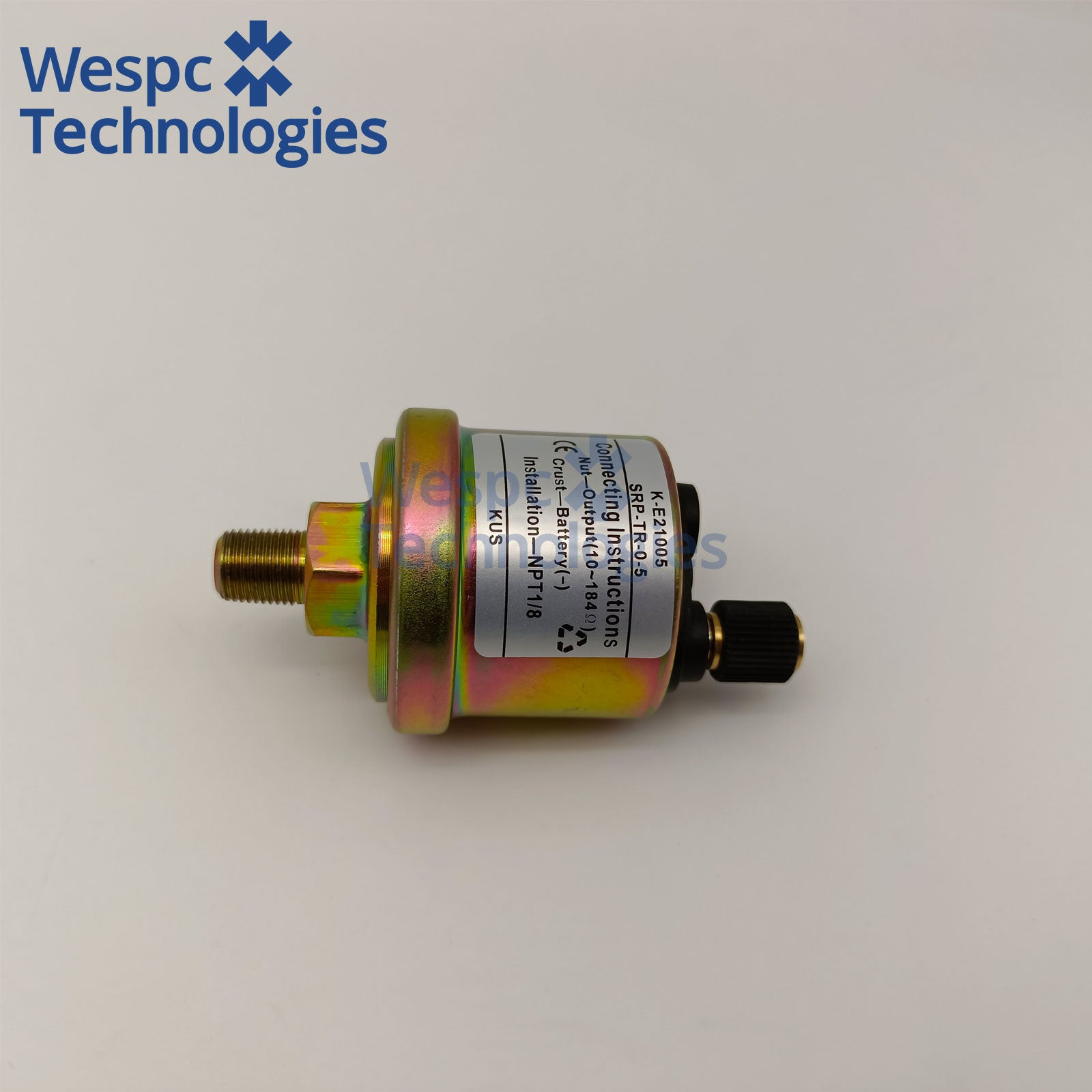

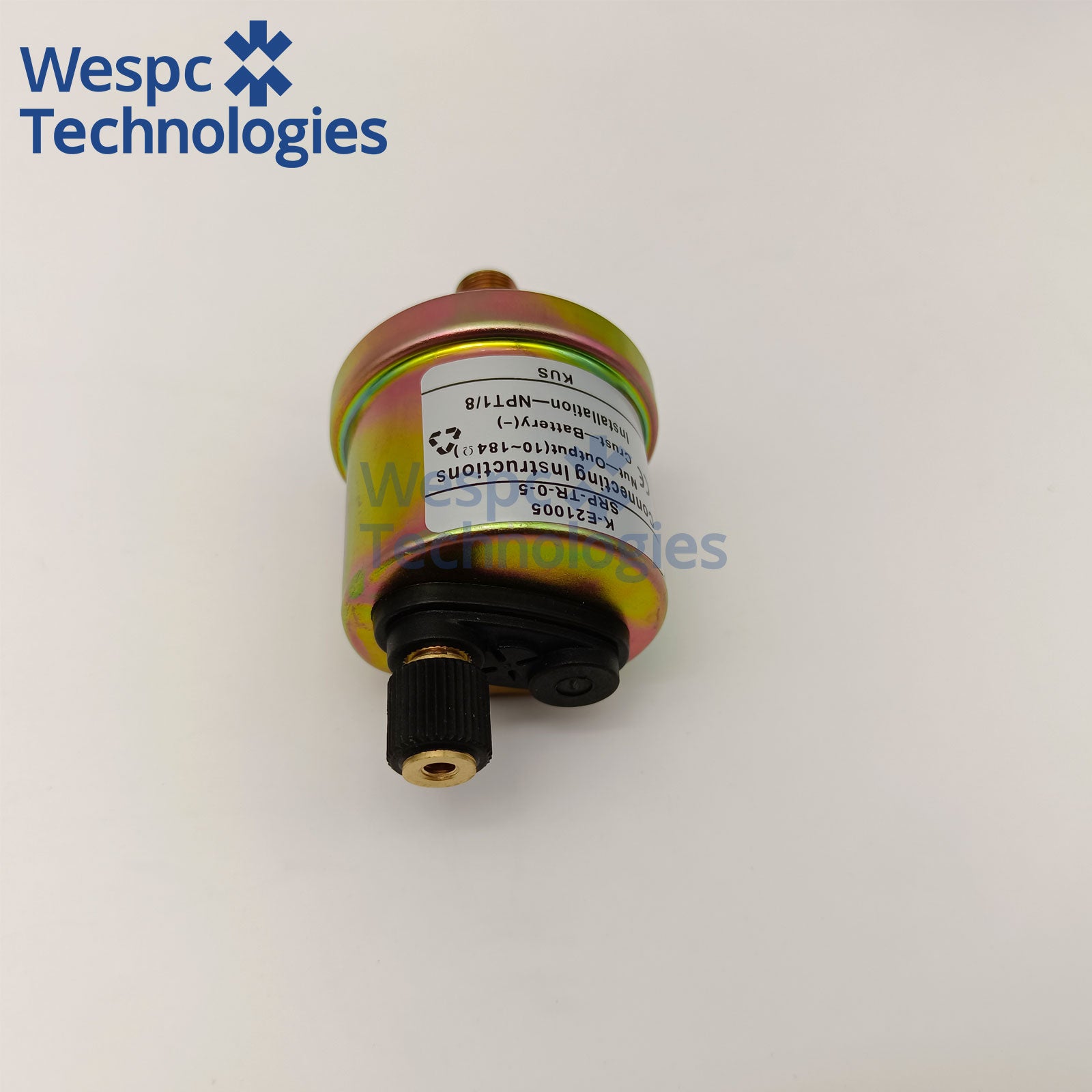

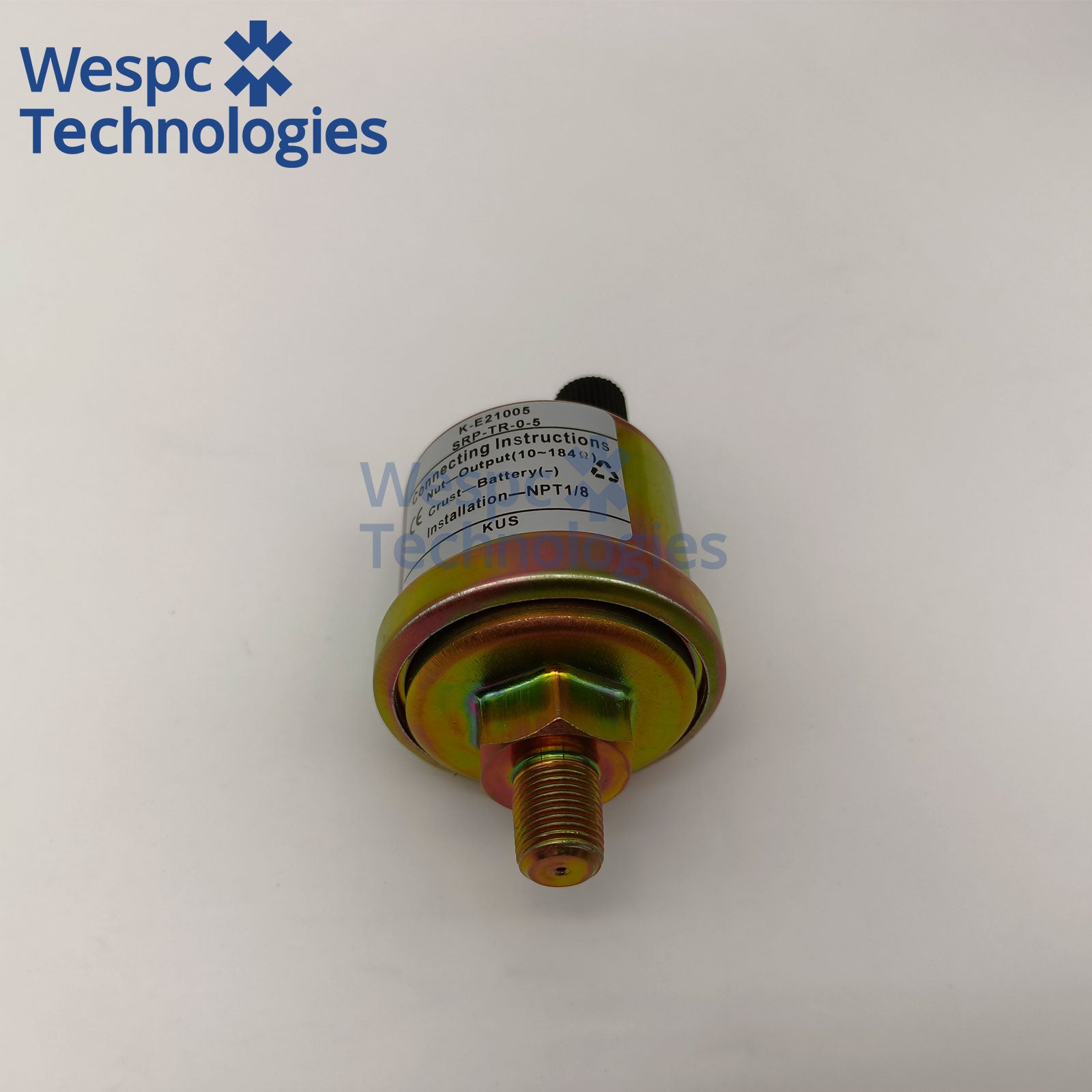

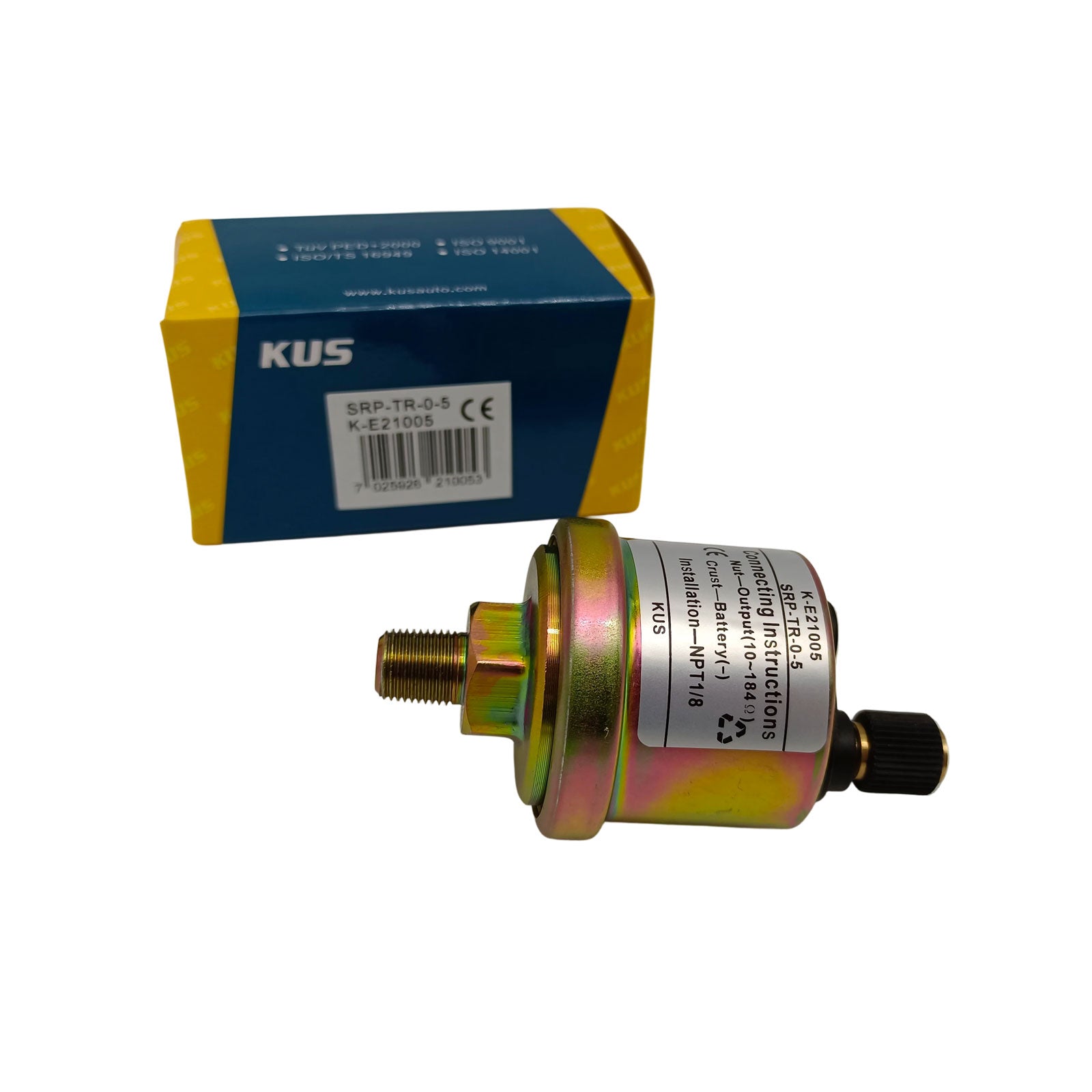

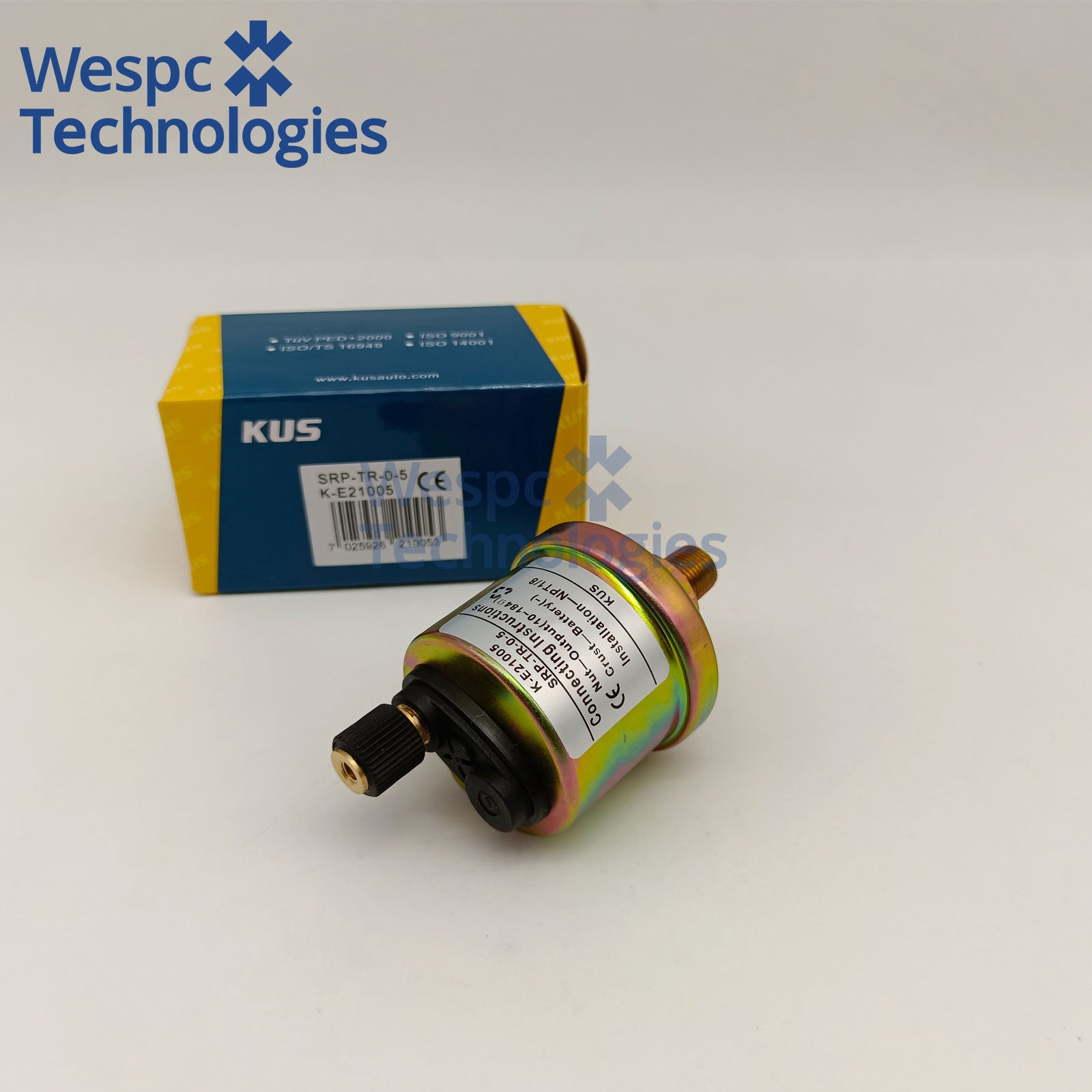

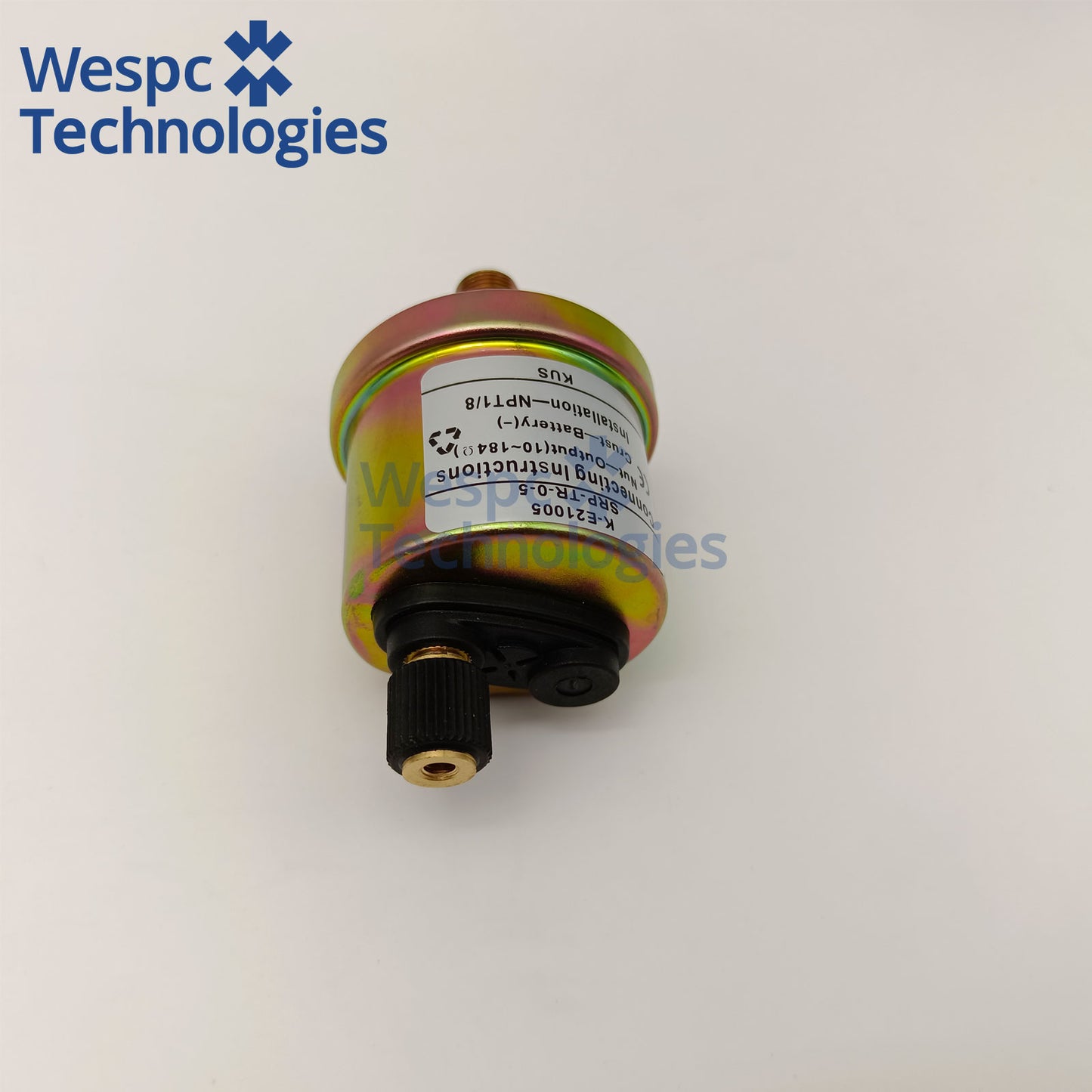

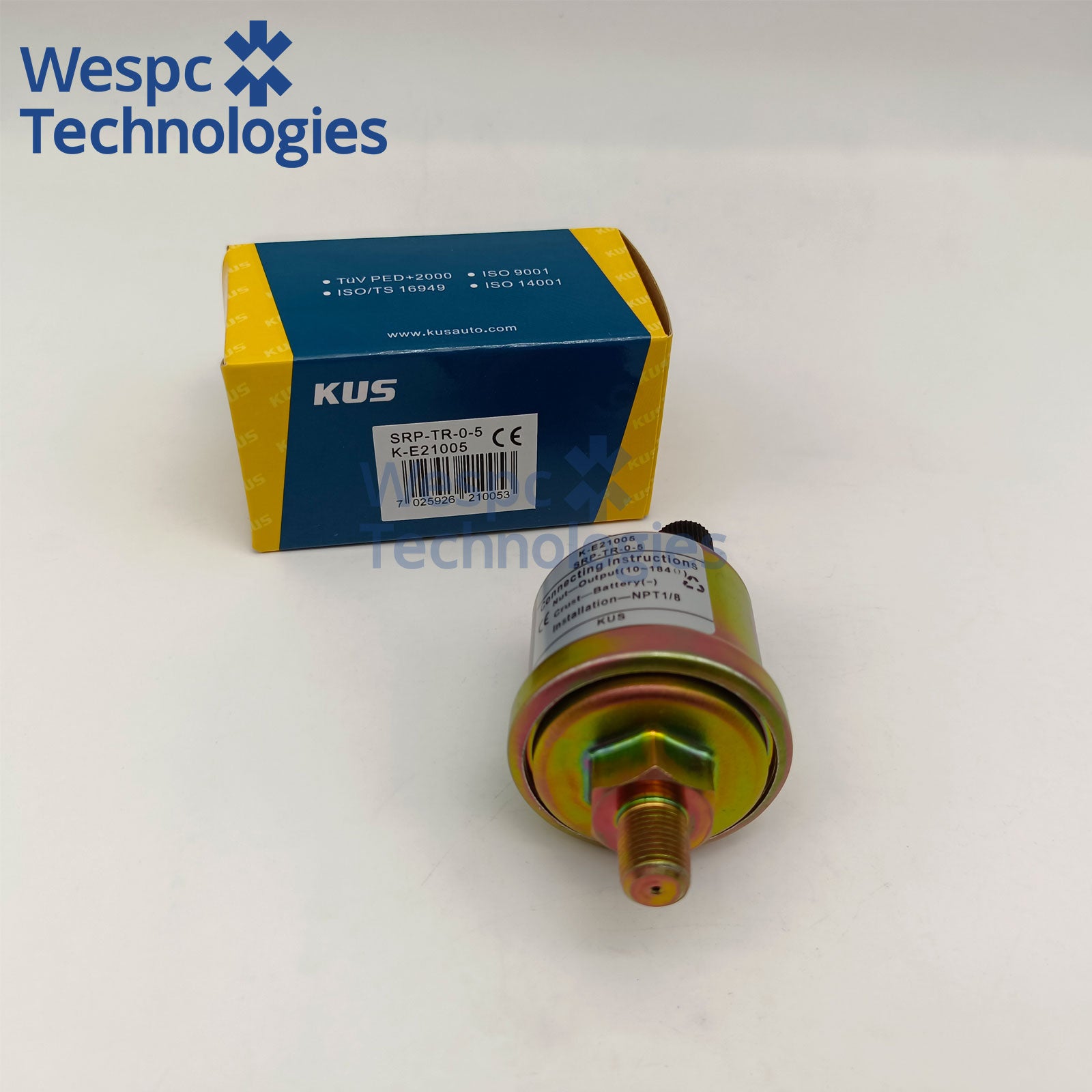

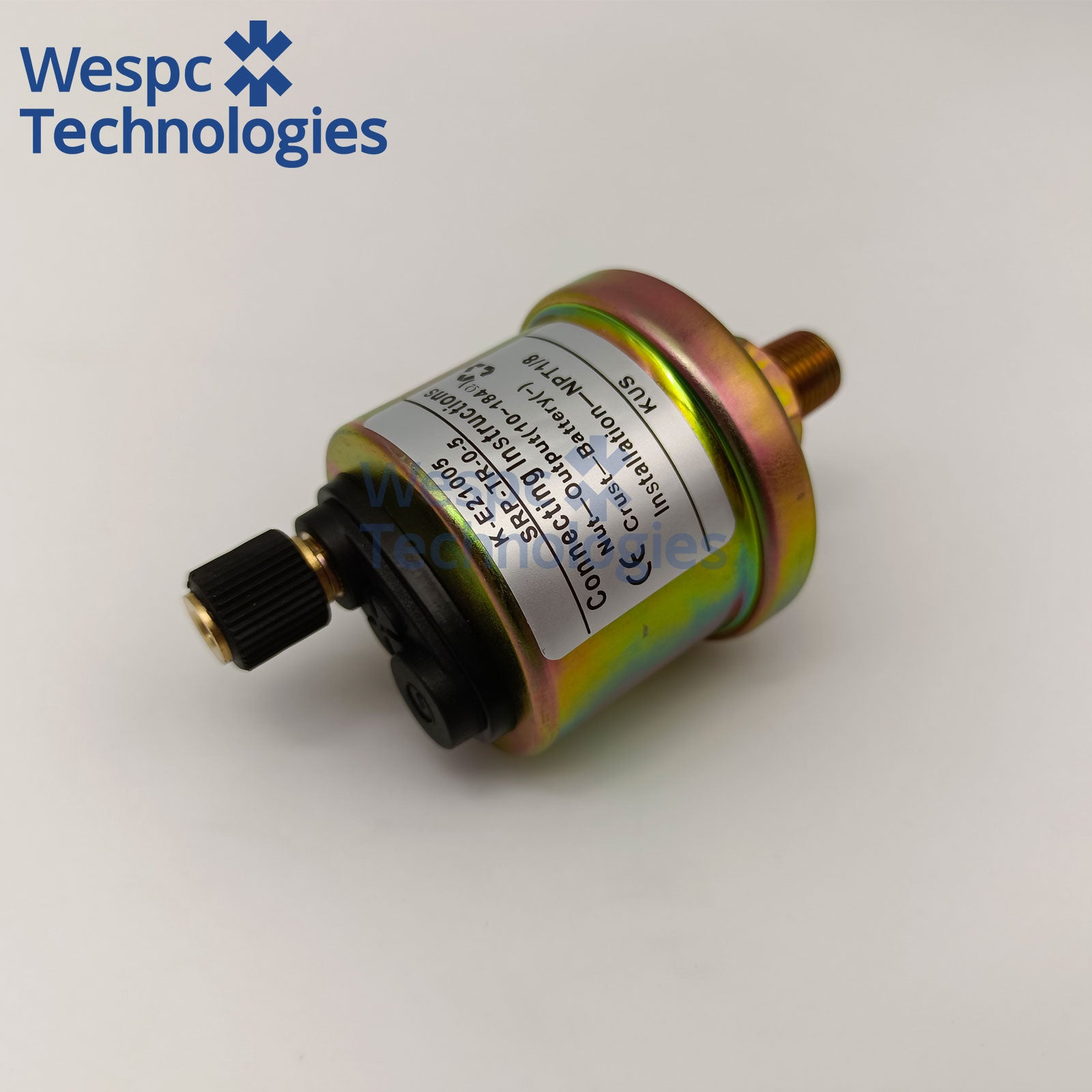

Original KE21005 KUS Oil Pressure Sensor VDO 360-081-029-004C Generator parts Thread NPT1/8

Original KE21005 KUS Oil Pressure Sensor VDO 360-081-029-004C Generator parts Thread NPT1/8

$34.00 USD
$0.00 USD $34.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

KE21005 Original KUS Oil Pressure Sensor VDO 360-081-029-004C Generator parts Thread NPT1/8

Range 0-5 BAR, mounting thread NPT1/8, 10~184 ohm output, no alarm, single terminal

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
It is largely applied to many fields, such as the engine pipe of vehicles and ships, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects, etc.
Protection rank: IP66

Product Specifications

  • Model: Original Genuine KUS KE21005 Single M4 Pin Oil Pressure Sender (0–5Bar, No Alarm, 1/8NPT Thread)
  • Pressure Range: 0 ~ 5 Bar
  • Resistance Output: 10Ω ~ 184Ω Linear Resistance Signal
  • Alarm Function: No built-in low pressure alarm switch
  • Power Supply: DC6 ~ 24V Universal 12V/24V Generator Battery
  • Mount Thread: 1/8-18NPT Male Thread
  • Terminal: Single M4 Screw Terminal (Shell as Ground Return)
  • Housing: Colorful Zinc-Plated Metal IP66 Fully Sealed Anti-Oil & Waterproof
  • Warranty: 12 Months Genuine KUS Factory Warranty

Core Electrical & Mechanical Specifications

  1. Pressure Measuring Range: 0 bar ~ 5 bar
  2. Resistance Output Characteristic: 10Ω ~ 184Ω linear change
  3. Supply Voltage: DC 6V ~ 24V universal for 12V / 24V generator systems
  4. Rated Load Power: Gauge circuit max <5W
  5. Mount Thread: 1/8-18NPT external male thread with rubber sealing washer
  6. Working Temperature: -25℃ ~ +120℃
  7. Housing Material: Colorful zinc-plated solid metal shell, anti-rust & anti-lubricant corrosion
  8. Vibration Standard: Light industrial genset anti-shock certification
  9. Measurement Accuracy: ±3% full scale
  10. Installation Torque: Max 25 N·m to prevent thread deformation

Wide Application Range

  1. OEM matching for small light-duty diesel & marine gensets: basic oil pressure display only, no overspeed/low oil safety protection
  2. Failed original single-pin sender replacement: blank gauge, fluctuating pressure reading, oil leakage
  3. Power rental & small generator repair shop stock for mini silent gensets, light boat engines
  4. Retrofit simple pressure monitoring system for small generator units without safety auto-stop function

Genuine KUS Original Core Advantages

  1. KUS proprietary internal resistance sensing core, stable linear resistance output, accurate gauge reading without random fluctuation
  2. Single terminal simple structure, fewer wiring points, lower failure rate for basic gauge circuits
  3. Color zinc-plated one-piece sealed metal housing, resistant to high-temperature engine oil corrosion, no oil leakage after long service
  4. Standard 1/8-18NPT universal thread, fits most small US/European engine oil block mounting holes without conversion joint
  5. Strict factory high-low temperature & vibration aging test, stable performance under harsh small cabin environments
  6. Perfect matching with KUS/VDO analog oil pressure gauges, no blank display or reading offset
  7. 12-month official KUS factory warranty, complete single-wire wiring diagram provided

Common Equipment Failures Solved

  • Cheap aftermarket sensor coil inductance unstable, oil pressure gauge pointer jumps irregularly
  • Inferior housing corroded & oil leakage, risk of engine oil shortage and bearing wear
  • Incompatible third-party sender causes blank gauge or severe reading deviation
  • Original KUS KE21005 damaged, need genuine single-pin 0–5Bar sender direct replacement without wiring modification
  • Small generator system only requires simple oil pressure reading, no low oil auto-shutdown safety protection demand
