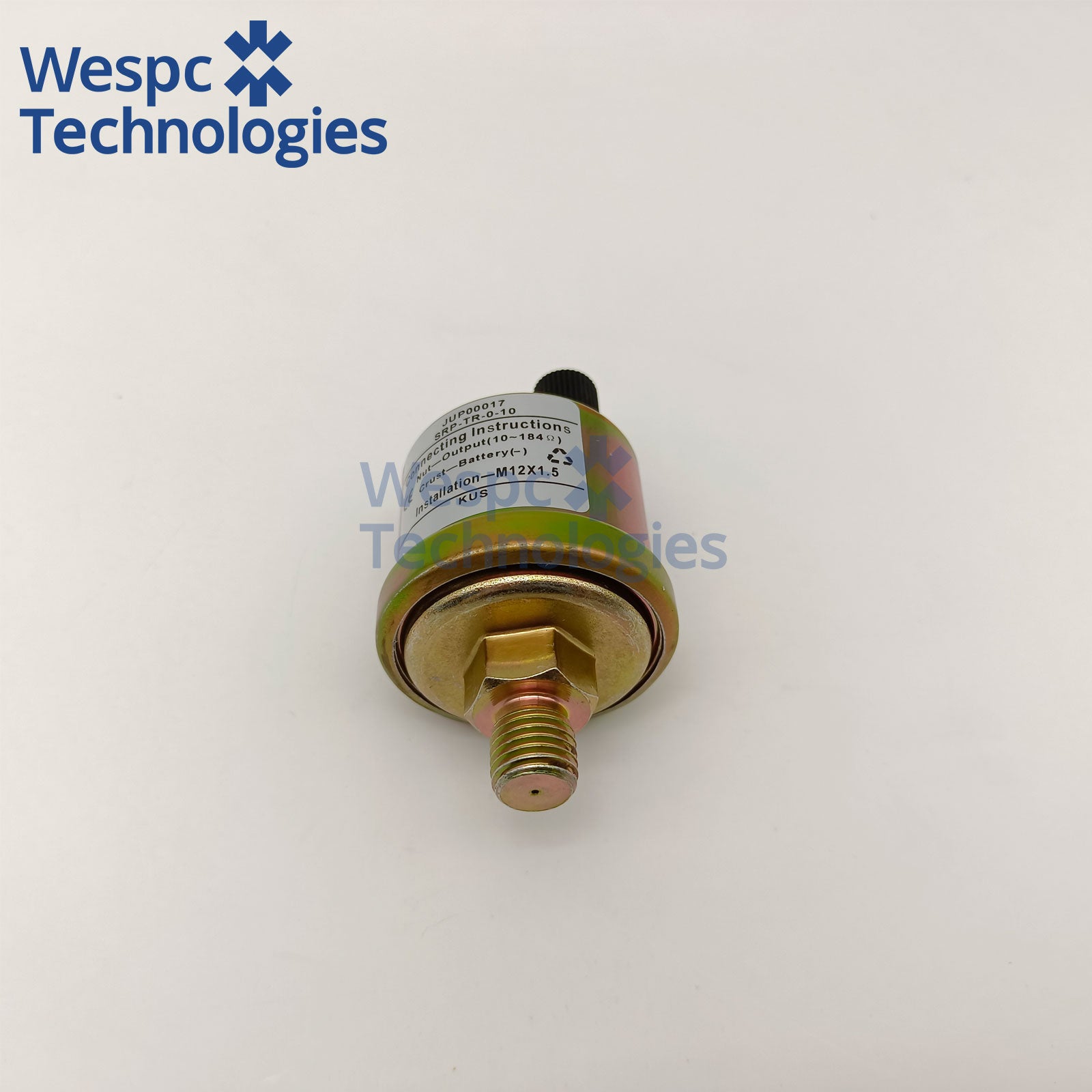

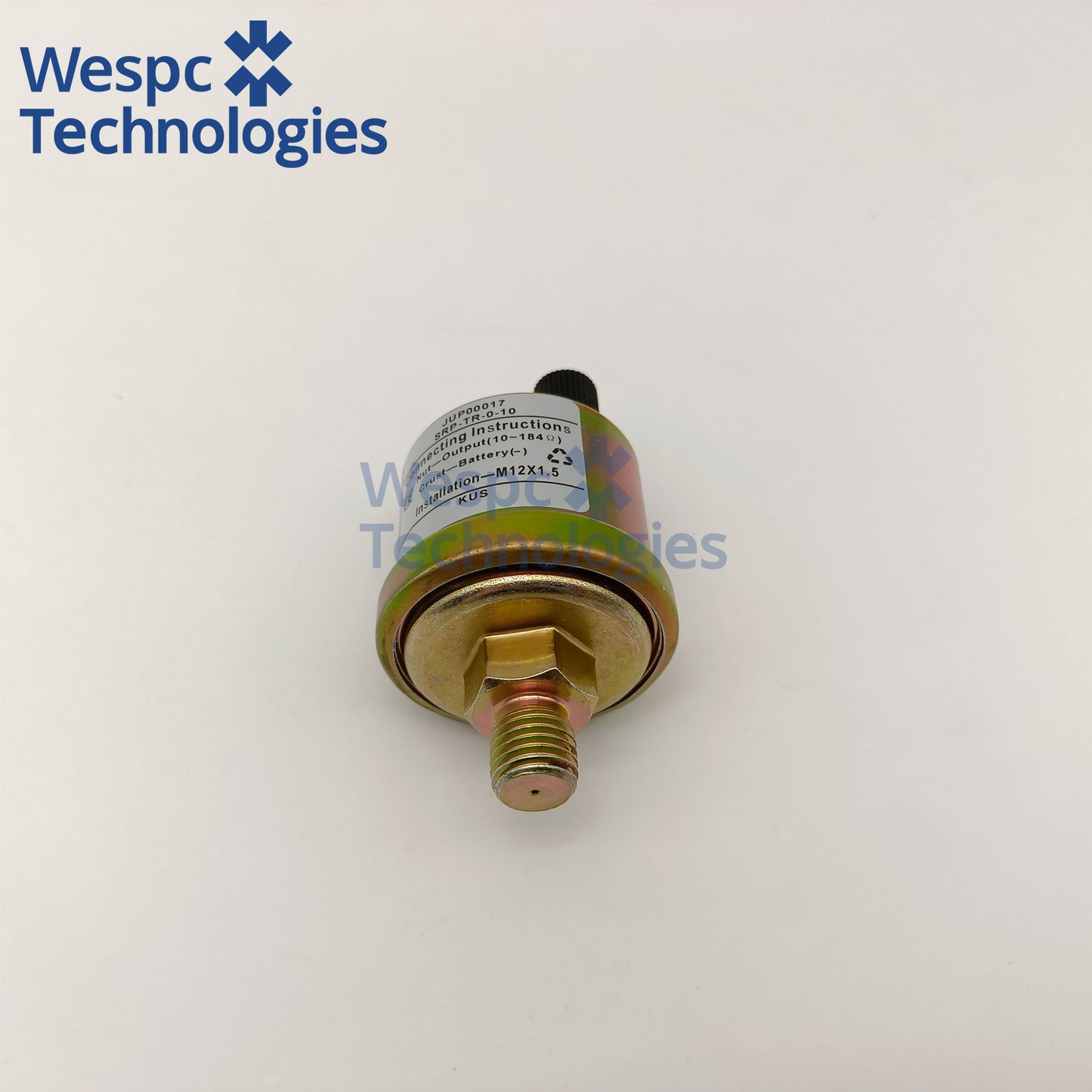

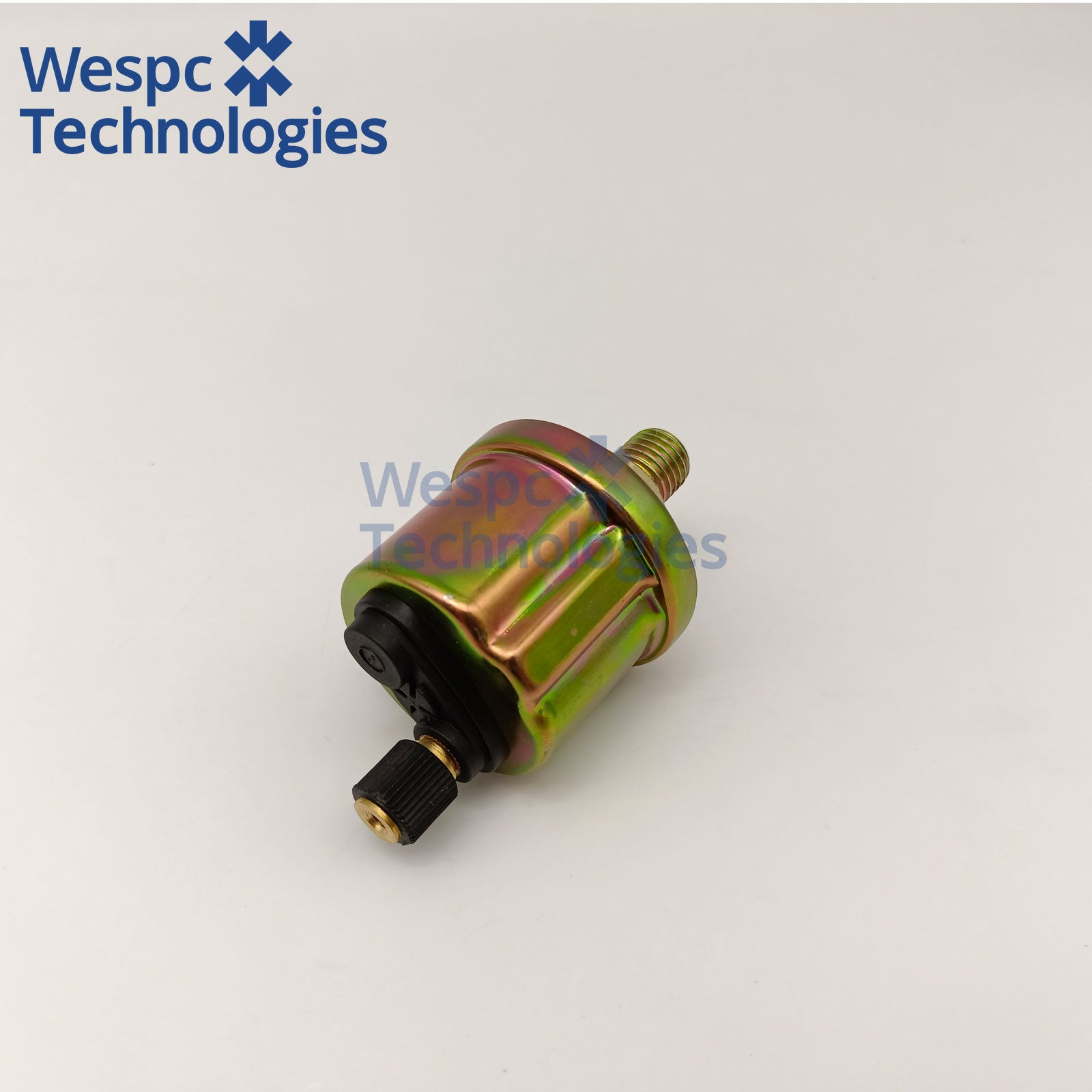

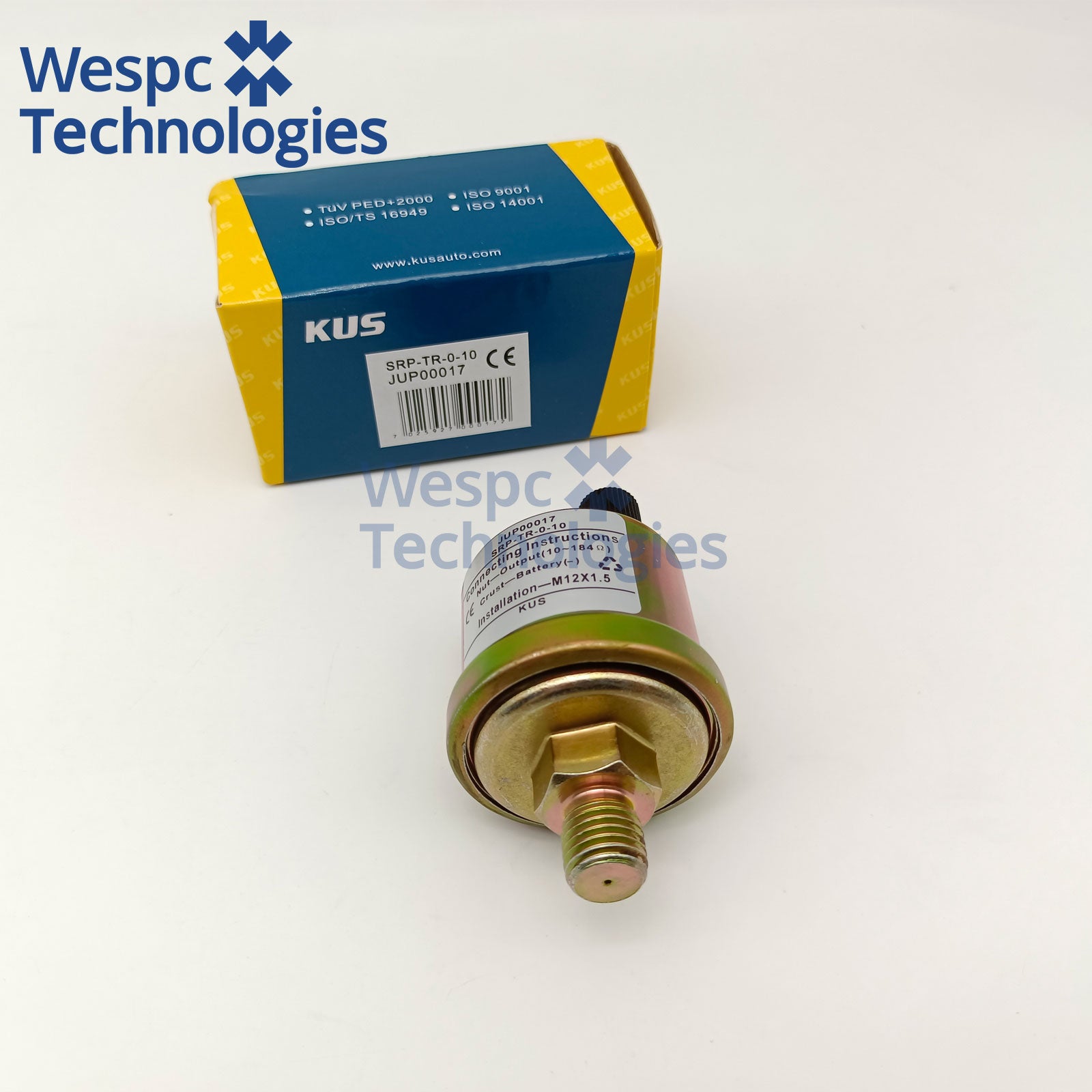

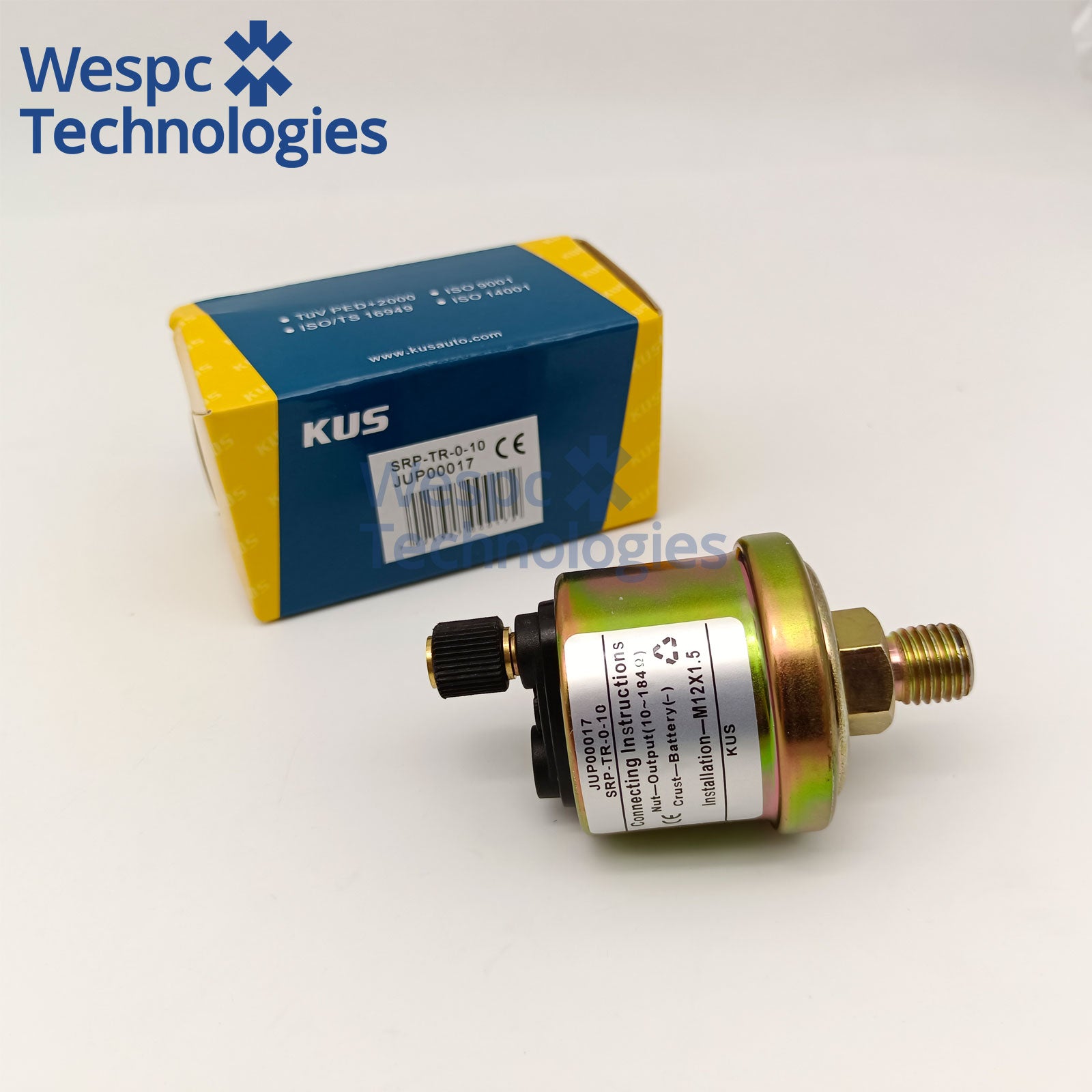

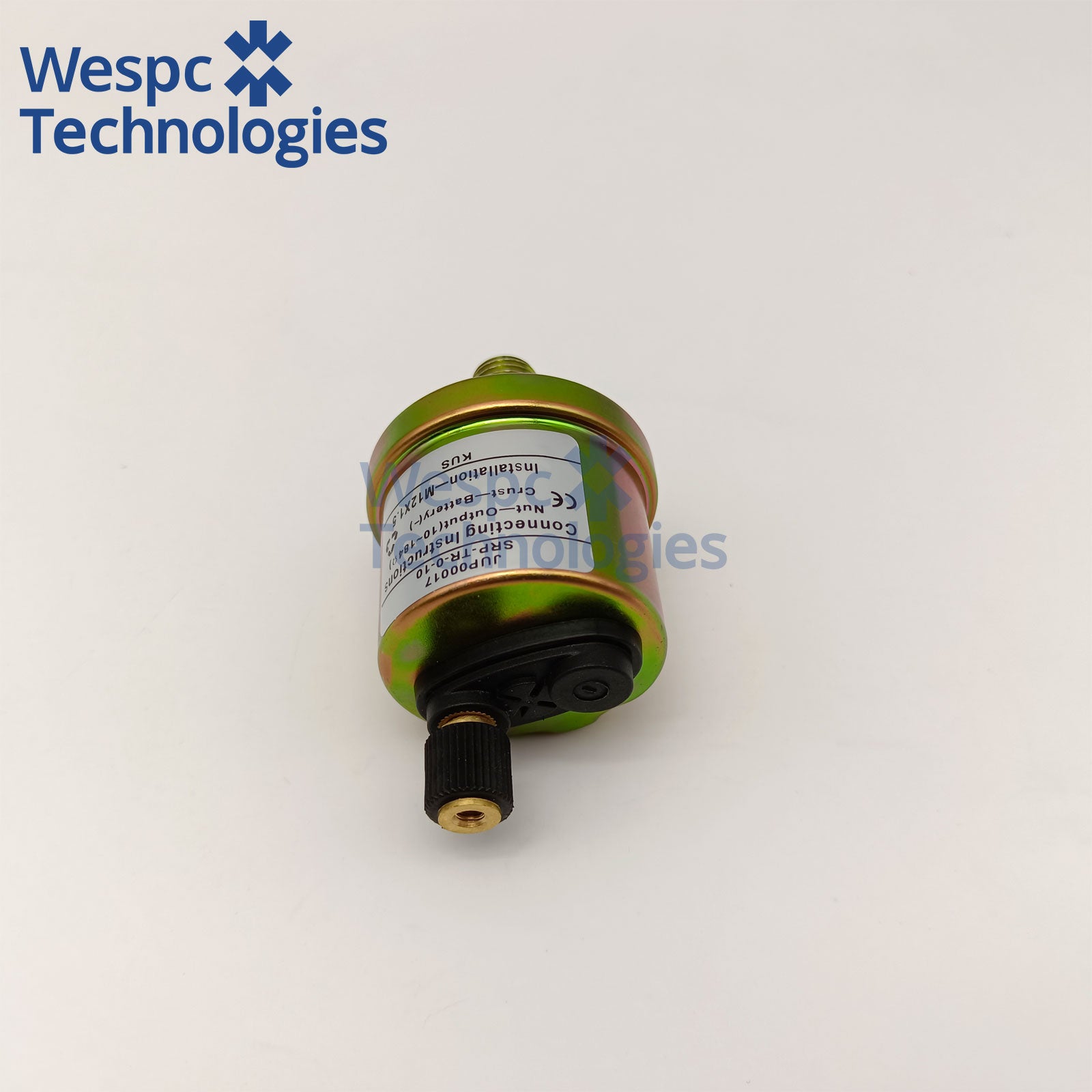

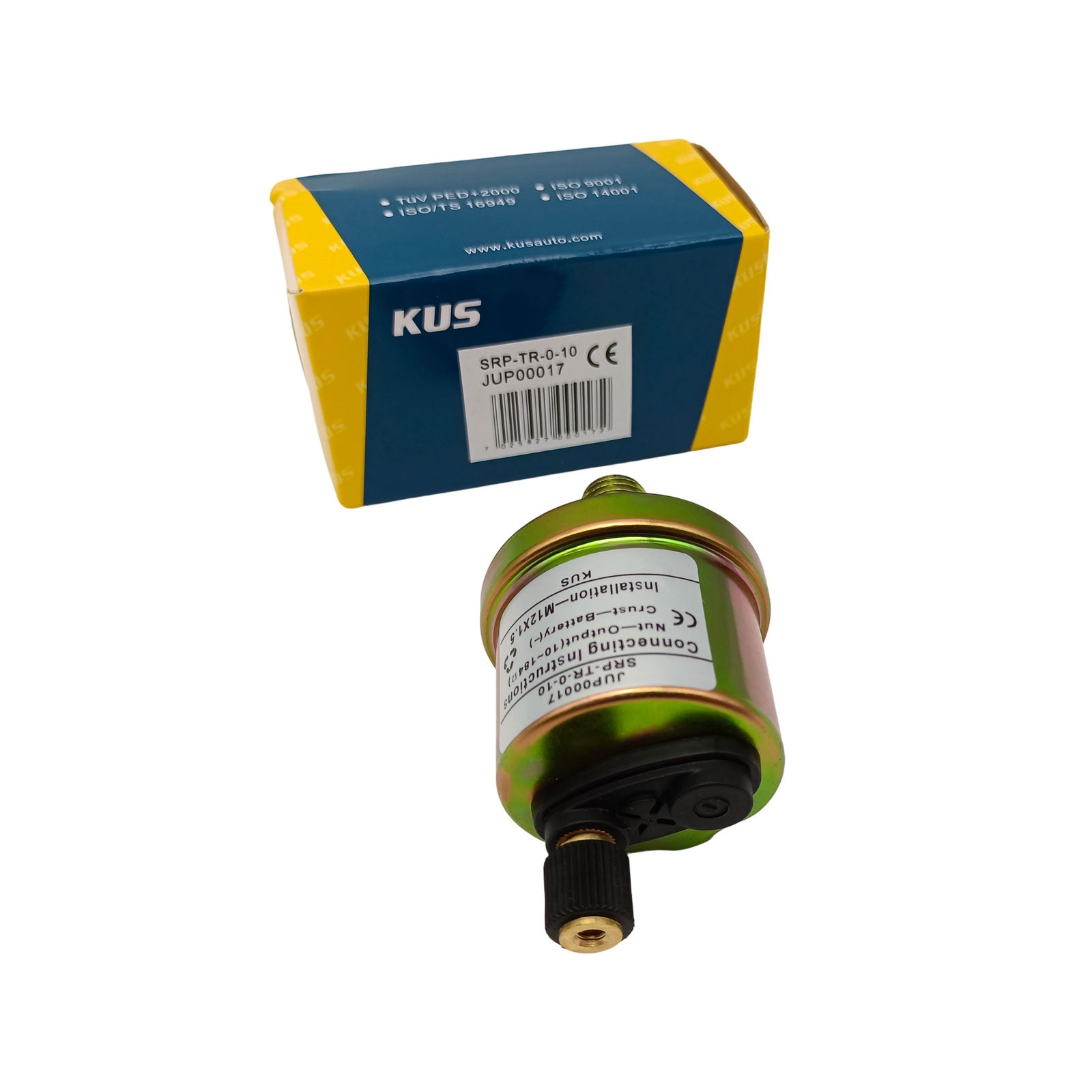

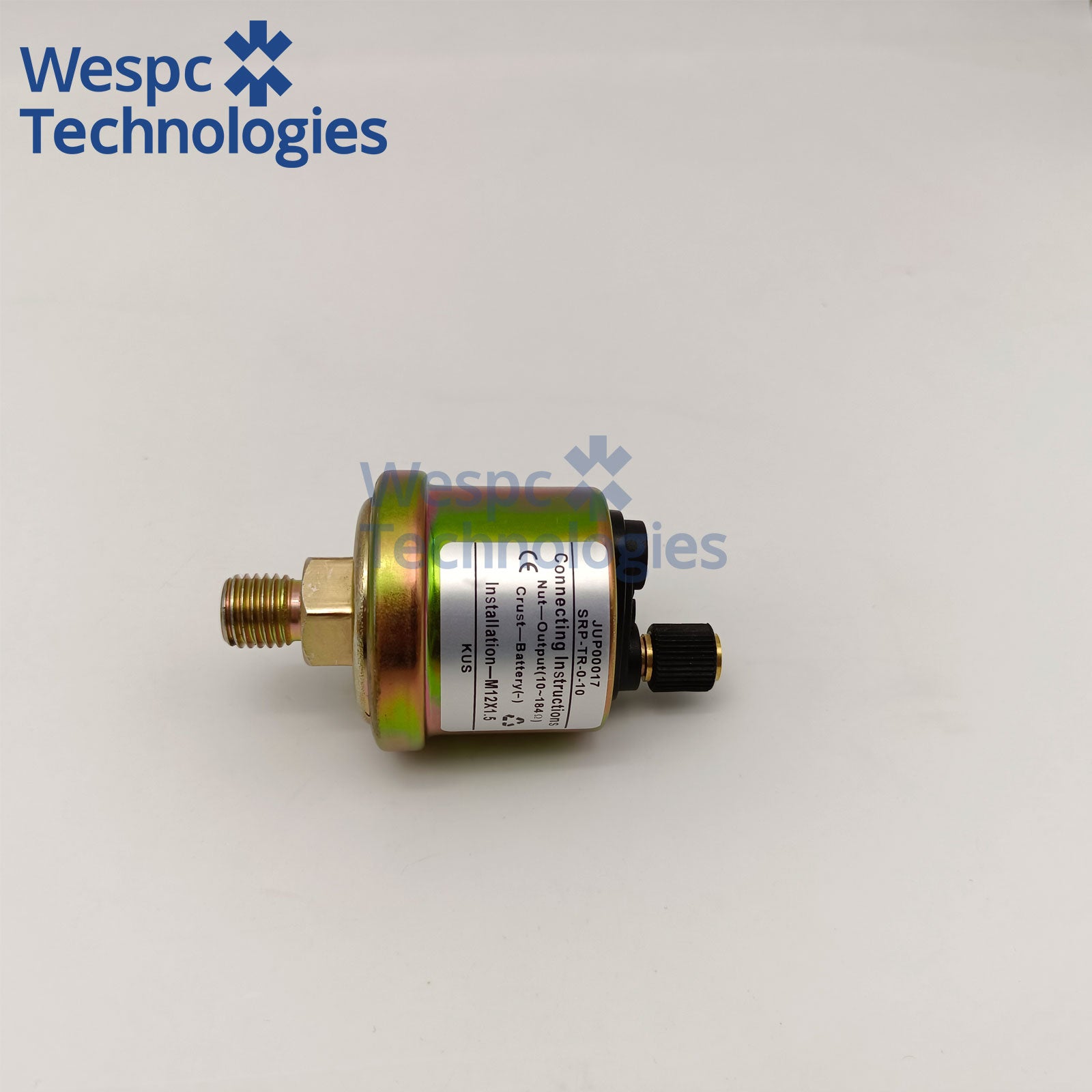

Original KUS Genuine JUP00017 Oil Pressure Sensor VDO 360-081-029-013C and 360-081-029-013K M12×1.5 Dual Thread

KUS Genuine JUP00017 VDO 360-081-029-013C and 360-081-029-013K Oil Pressure Sensor M12×1.5

Mileage 0-10 BAR, mounting thread M12x1.5, VD0 connector type A, 10~184 ohm output, no alarm, single terminal

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
It is largely applied to many fields, such as the engine pipe of vehicles and ships, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects, etc.
Protection rank: IP66


Product Specifications

• Model: Genuine KUS JUP00017 Dual Terminal Coolant Temperature Sender (With 98℃ Overheat Alarm, M16×1.5 Thread)
• Alarm Trigger Temp: 98°C (±3°C tolerance)
• Power Supply: DC6 ~ 24V Universal 12V/24V Generator Battery
• Mount Thread: M16×1.5 Solid Brass Metric Male Thread
• Connection: Dual 6.3mm Flat Spade Terminals (Separate Temp Signal + Alarm Output)
• Working Temp: -40℃ ~ +85℃
• Protection Rating: IP65 Anti-Oil, Dust & Splash Water
• Warranty: 12 Months Genuine KUS Factory Warranty

Core Electrical & Mechanical Specifications

1. Power Supply: DC 6V ~ 24V universal for 12V / 24V generator systems
2. Alarm Switch Rated Power: 1.2W ~ 3W DC
3. Temperature Working Range: -25℃ ~ +120℃ (max continuous 1 hour)
4. Signal Stable Response Time: ≥3 minutes after power on
5. Housing Material: Solid brass, anti-rust & anti-coolant chemical corrosion
6. Vibration Standard: Industrial heavy-duty genset anti-shock certification
7. Temperature Alarm Accuracy: ±3℃ full scale
8. Terminal Size: 6.3mm standard automotive flat spade connector
9. Installation Torque: Max 30 N·m to avoid thread deformation

Wide Application Range

1. OEM original matching spare part for large marine & heavy-duty industrial diesel generator temperature safety monitoring system
2. Replacement for failed original M16×1.5 dual spade temperature sender: blank gauge, fluctuating temperature reading, coolant leakage, missing high-temp fault alarm
3. Power rental & marine engine repair shop stock for large Cummins/Perkins marine generator sets and heavy construction machinery
4. Safety monitoring system retrofit for large silent generator units, add 98℃ overheat automatic shutdown protection function

Common Equipment Failures Solved

• Cheap aftermarket sensor unstable coil resistance, water temperature gauge pointer jumps irregularly, DSE controller triggers false overheat shutdown
• Inferior plastic housing cracks under long-term heavy vibration, coolant seepage leads to complete loss of temperature signal
• Poor sensing head design, weak signal at idle speed below 500RPM, blank temperature gauge during low-speed operation
• Original KUS JUP00017 damaged, need genuine M16×1.5 dual-spade temperature sensor direct plug-and-play replacement without wiring harness modification
• Large marine/genset system requires real-time temperature monitoring and overheat safety shutdown, single-terminal non-alarm sender cannot meet dual-signal demand
