Original KUS JUP00018 VDO 360-081-030-052C Oil Pressure Sensor M18×1.5 Metric Thread Dual 6.3mm Spade Pin with Alarm

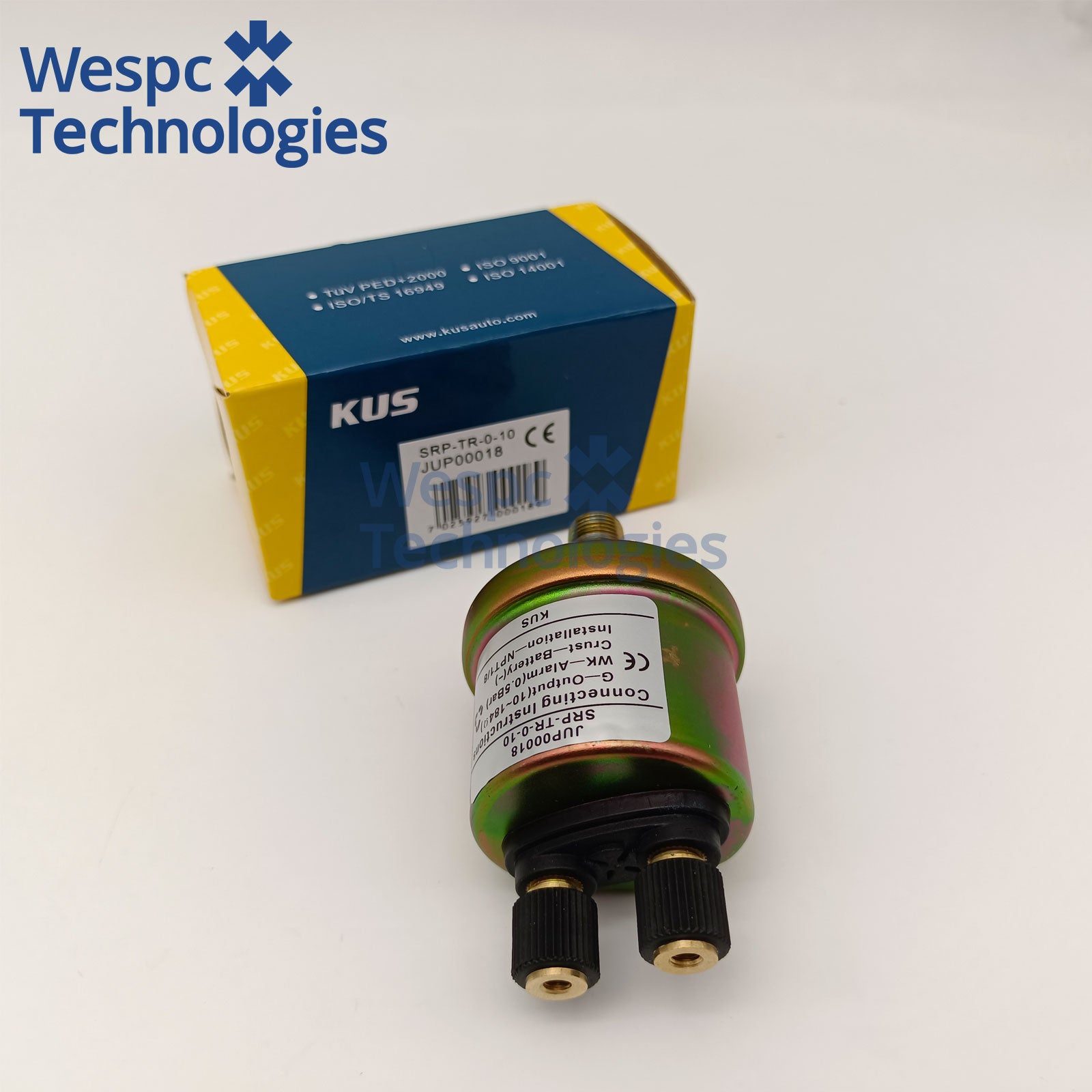

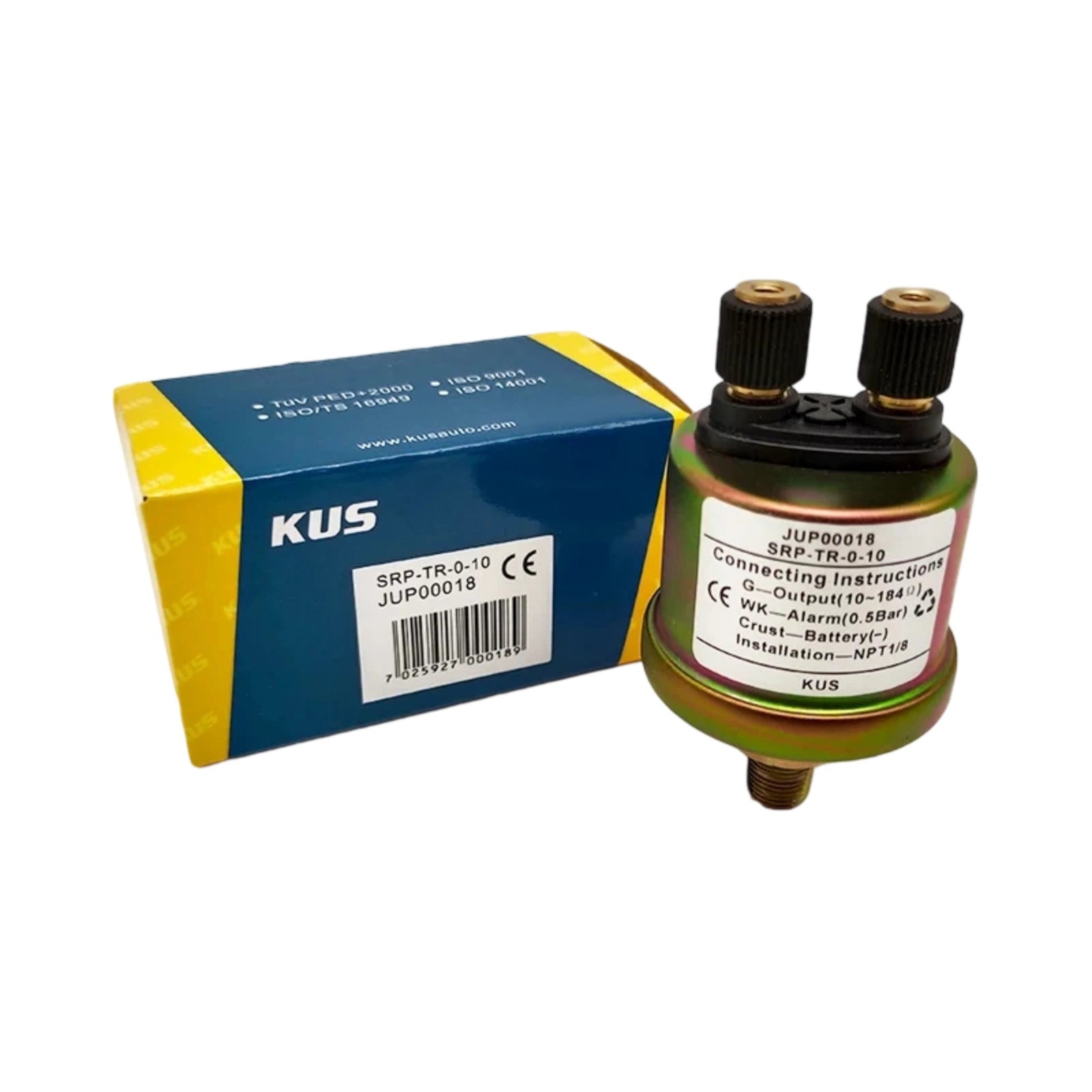

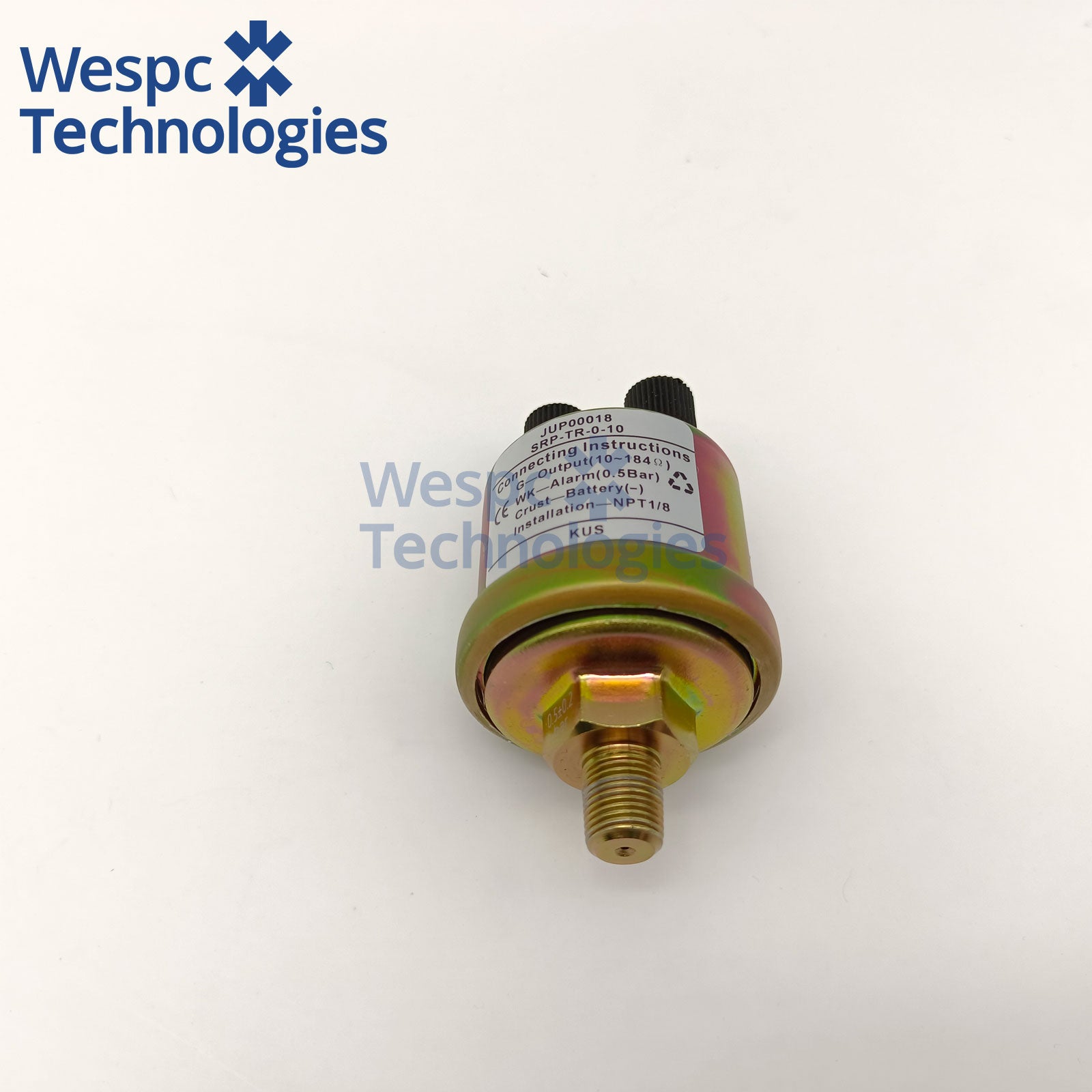

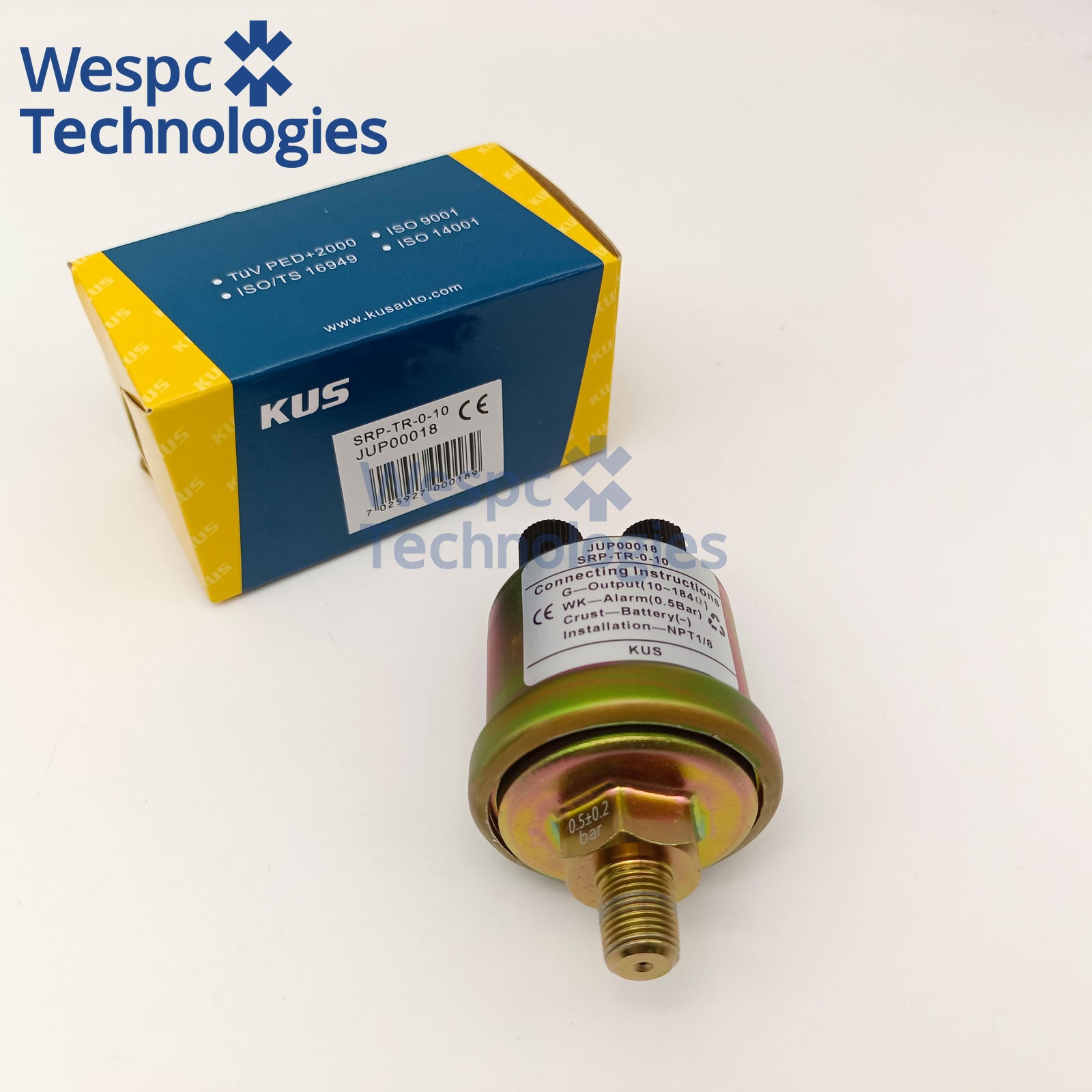

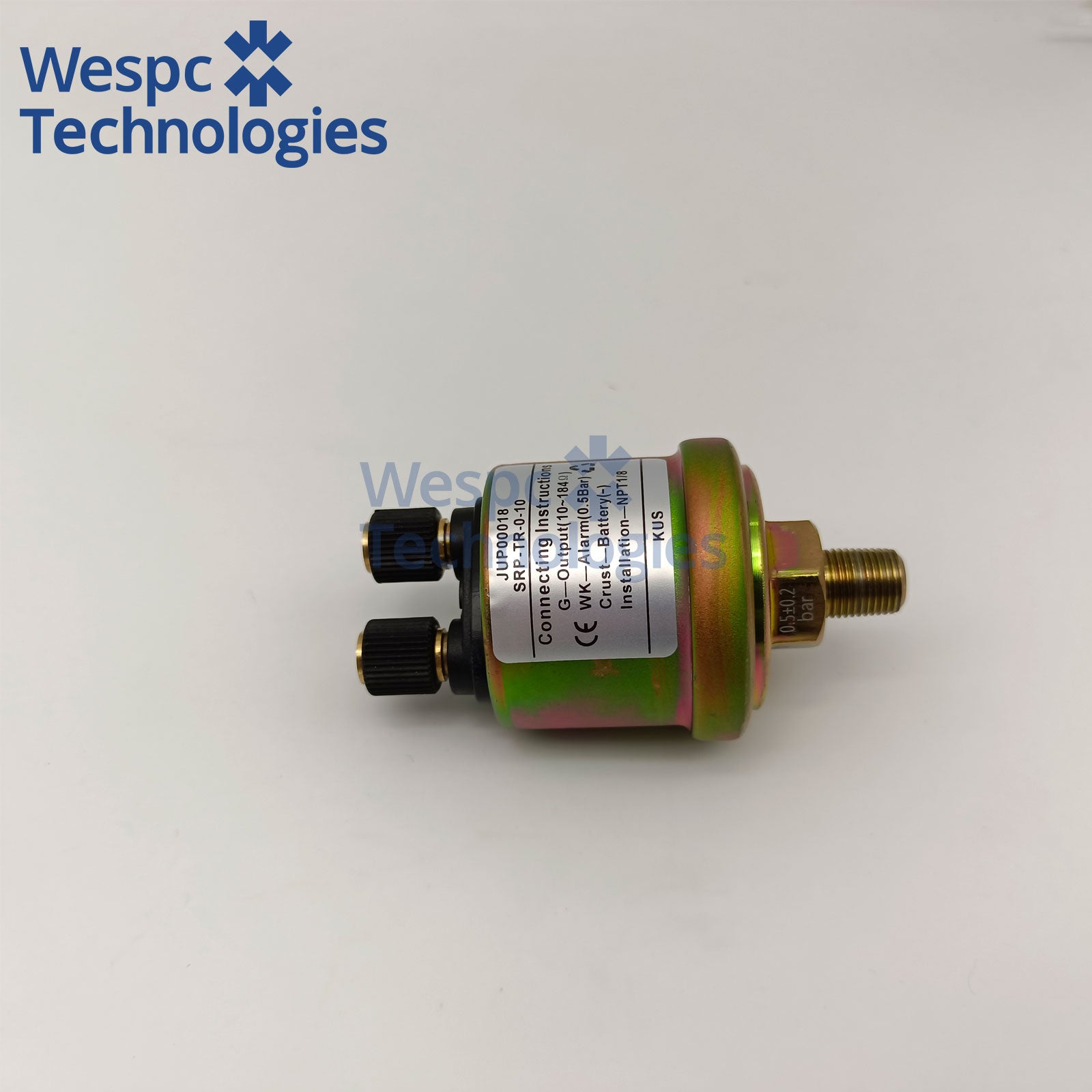

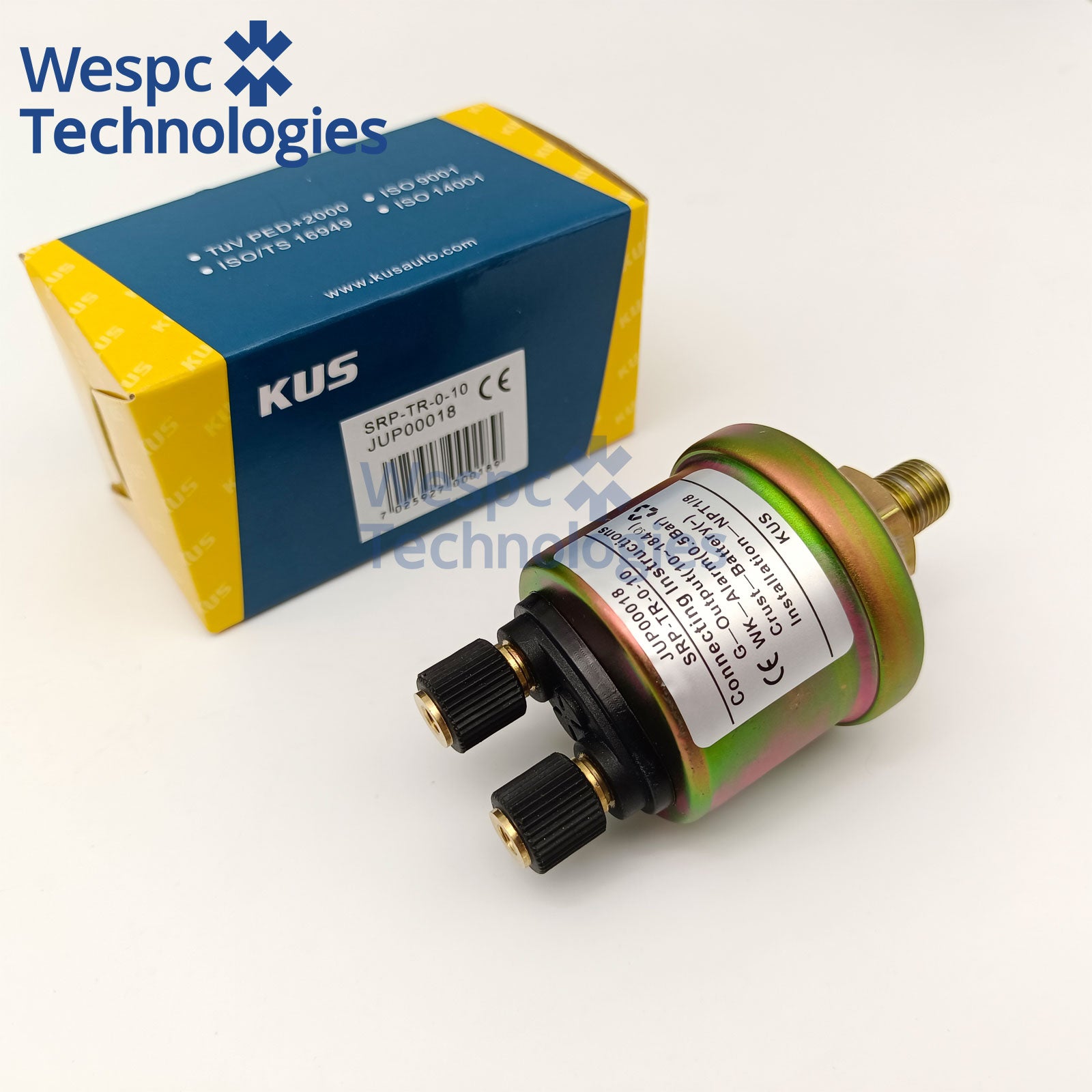

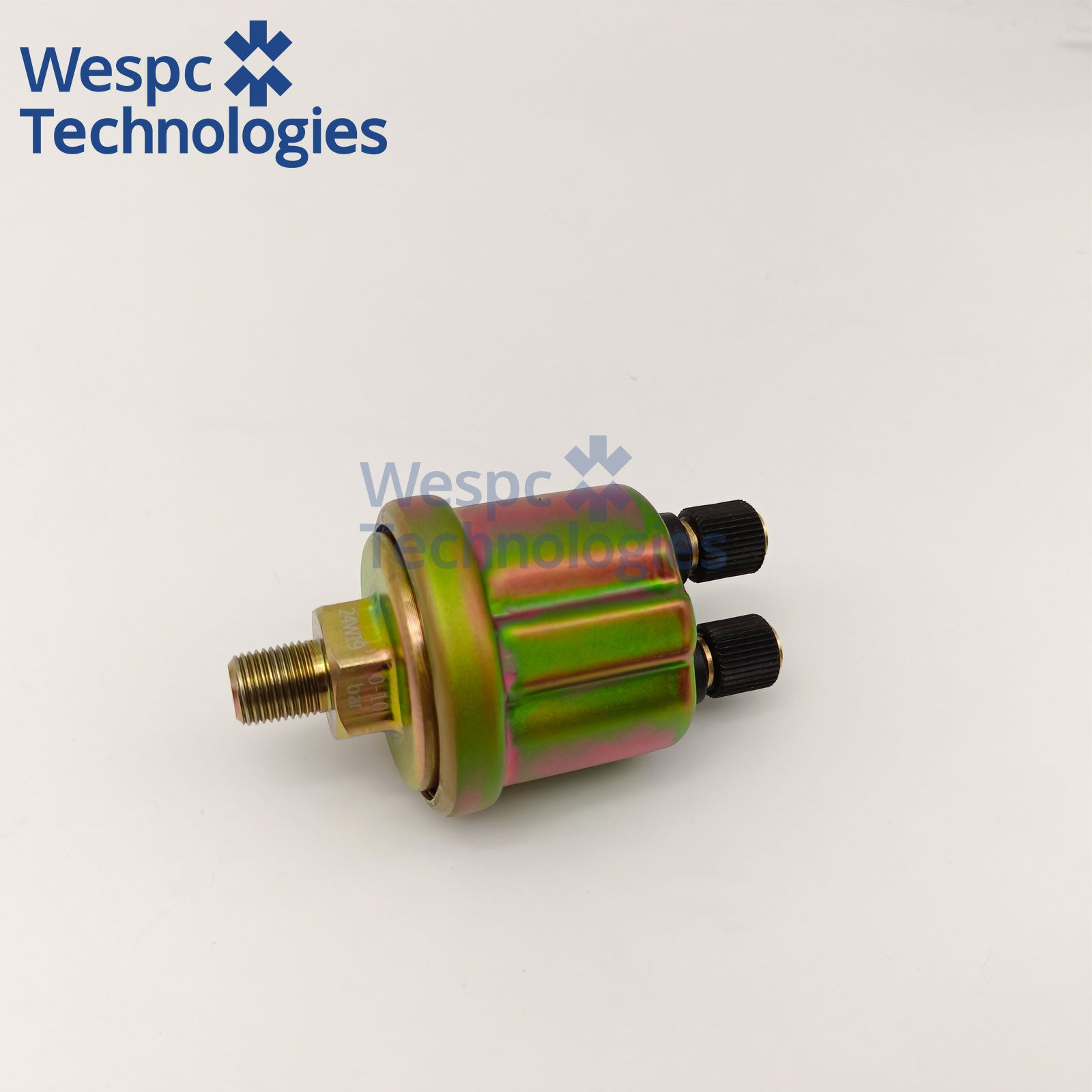

Original JUP00018 VDO 360-081-030-052C Oil Pressure Sensor with Alarm 0.5bar

Range 0-10 BAR, mounting thread NPT1/8, VD0 connector type A, 10~184 ohm output, 0.5Bar alarm, double terminals

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
It is largely applied to many fields, such as the engine pipe of vehicles and ships, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects, etc.
Protection rank: IP66

Product Specifications

• Model: Genuine KUS JUP00018 Dual Terminal Coolant Temperature Sender (With 98℃ Overheat Alarm, M18×1.5 Thread)
• Alarm Trigger Temp: 98°C (±3°C tolerance)
• Power Supply: DC6 ~ 24V Universal 12V/24V Generator Battery
• Mount Thread: M18×1.5 Solid Brass Metric Male Thick Thread
• Connection: Dual 6.3mm Flat Spade Terminals (Separate Temp Signal + Alarm Output)
• Working Temp: -40℃ ~ +85℃
• Protection Rating: IP67 Anti-Oil, Dust & Splash Water
• Warranty: 12 Months Genuine KUS Factory Warranty

Core Electrical & Mechanical Specifications

1. Power Supply: DC 6V ~ 24V universal for 12V / 24V heavy generator systems
2. Alarm Switch Rated Power: 1.2W ~ 3W DC
3. Temperature Working Range: -25℃ ~ +120℃ (max continuous 1 hour)
4. Signal Stable Response Time: ≥3 minutes after power on
5. Housing Material: Solid brass, anti-rust & anti-coolant chemical corrosion
6. Vibration Standard: Heavy-duty industrial marine anti-shock certification
7. Temperature Alarm Accuracy: ±3℃ full scale
8. Terminal Size: 6.3mm standard automotive flat spade connector
9. Installation Torque: Max 32 N·m to avoid thread deformation

Compatible Equipment, Controllers & Temp Gauges

Applicable Diesel Engines

Large Cummins, Perkins, Volvo marine main engines, heavy stationary industrial diesel generators, mining heavy machinery with M18×1.5 coolant sensor port

Compatible Analog Water Temp Gauges

All KUS and VDO standard resistance-type coolant temperature meters for heavy marine & industrial use

Wide Application Range

1. OEM original matching spare part for heavy marine main engines & large industrial diesel generator temperature safety monitoring system
2. Replacement for failed original M18×1.5 dual spade temperature sender: blank gauge, fluctuating temperature reading, coolant seepage, missing high-temp fault alarm
3. Marine engine overhaul & heavy power rental shop stock for large Cummins/Perkins marine generator sets and mining construction machinery
4. Safety monitoring system retrofit for large silent generator units, add 98℃ overheat automatic shutdown protection function

Common Equipment Failures Solved

• Cheap aftermarket sensor unstable coil resistance, water temperature gauge pointer jumps irregularly, DSE controller triggers false overheat shutdown
• Inferior plastic housing cracks under long-term heavy vibration, coolant seepage leads to complete loss of temperature signal
• Poor sensing head design, weak signal at idle speed below 500RPM, blank temperature gauge during low-speed heavy load operation
• Original KUS JUP00018 damaged, need genuine M18×1.5 dual-spade temperature sensor direct plug-and-play replacement without wiring harness modification
• Large marine/heavy genset system requires real-time temperature monitoring and overheat safety shutdown, single-terminal non-alarm sender cannot meet dual-signal demand
