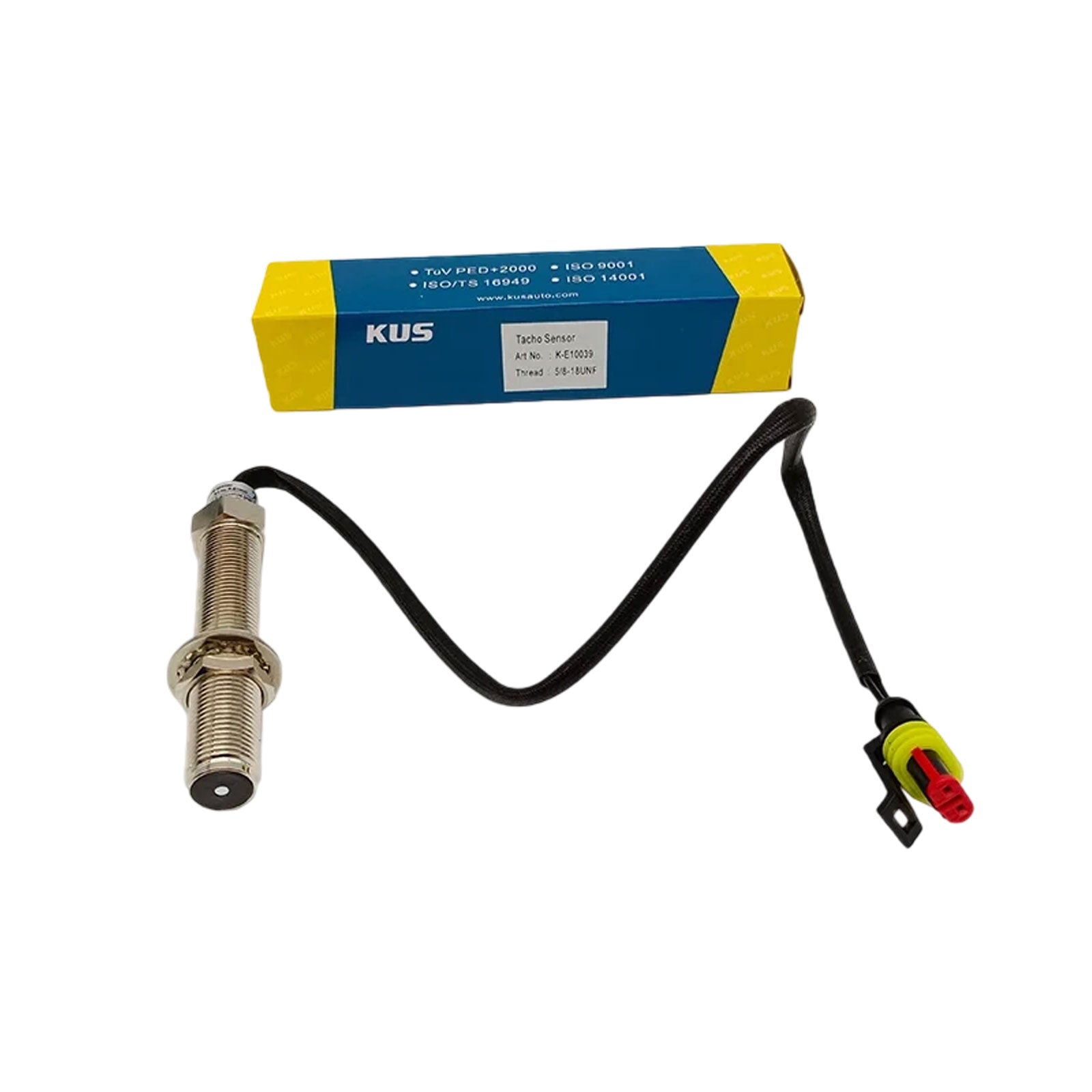

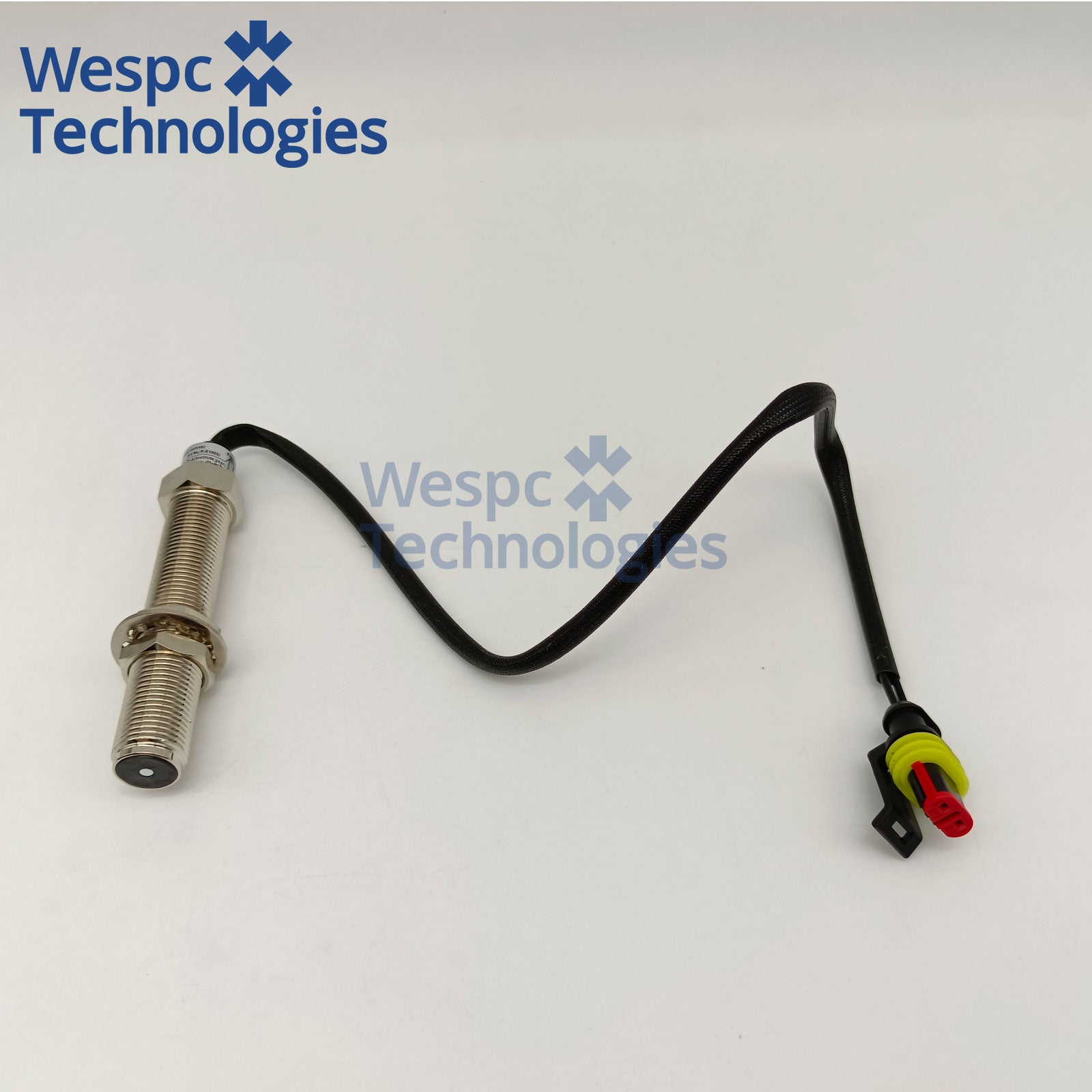

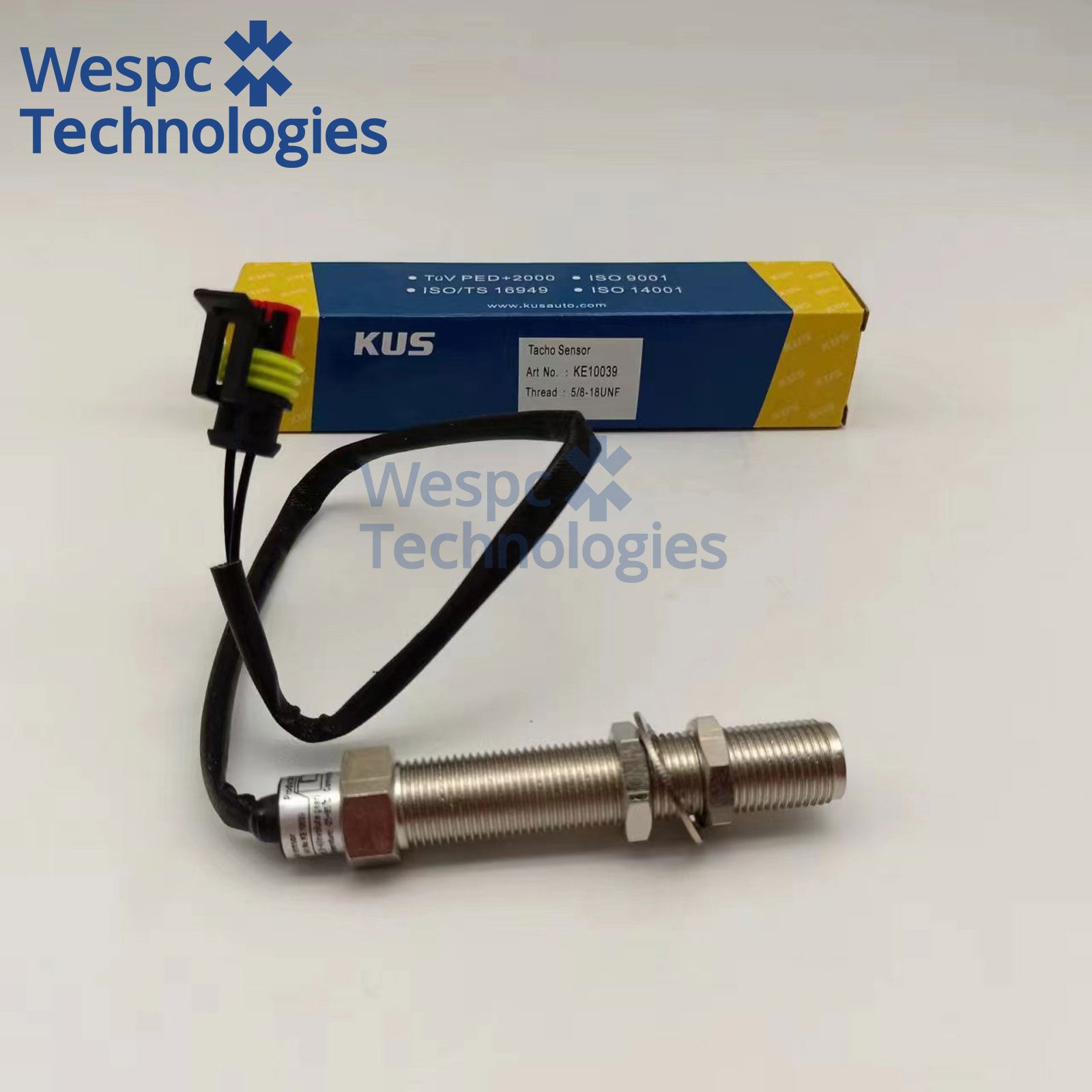

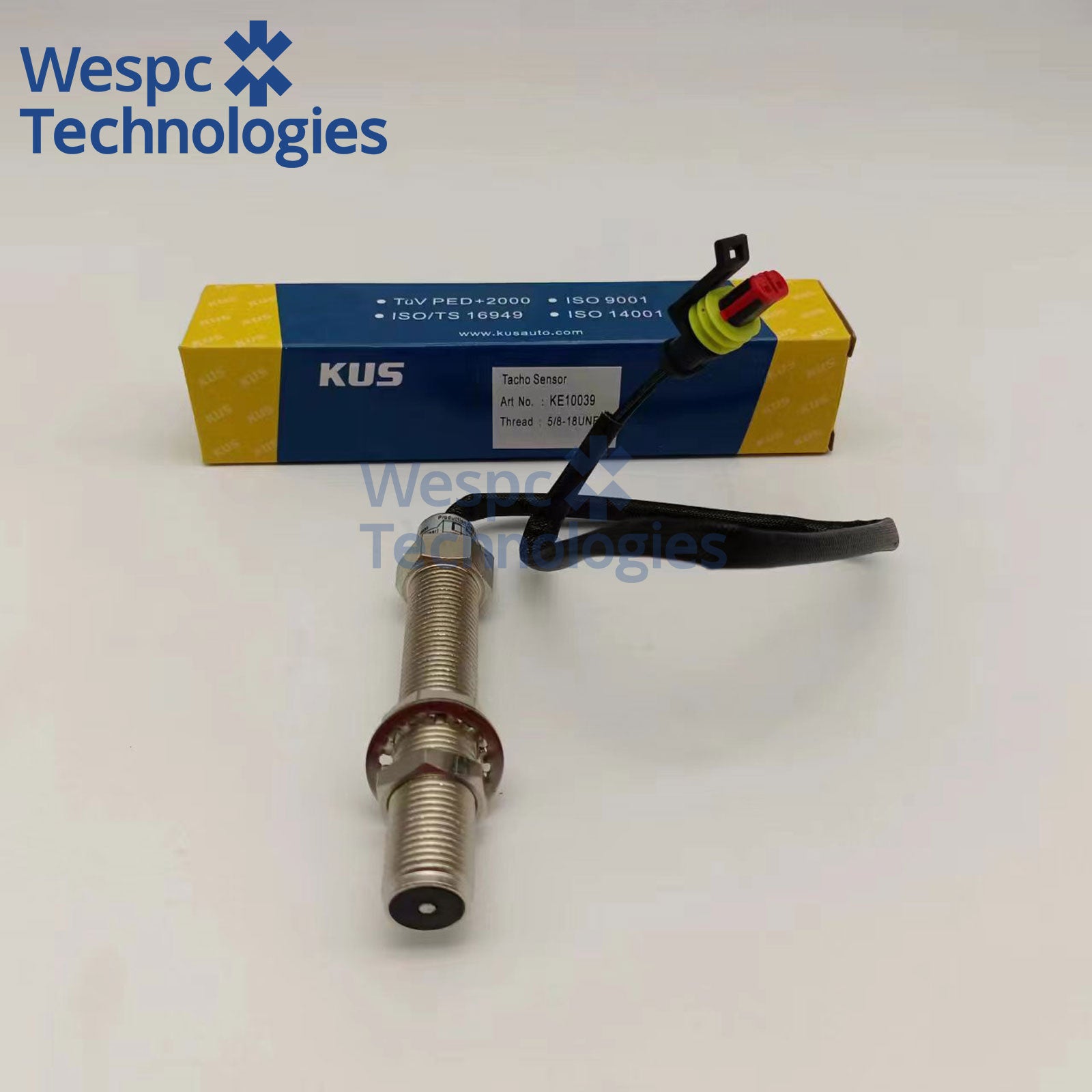

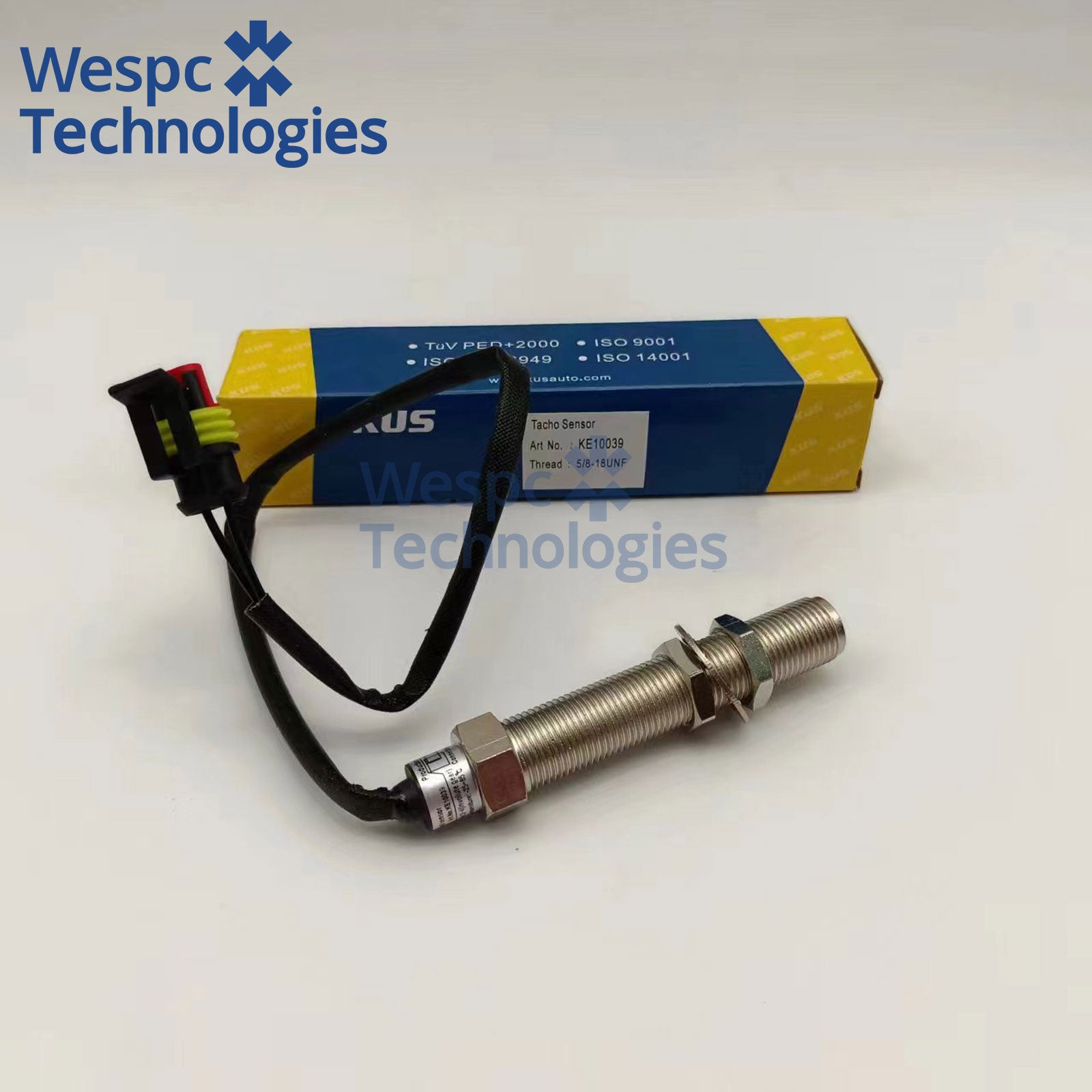

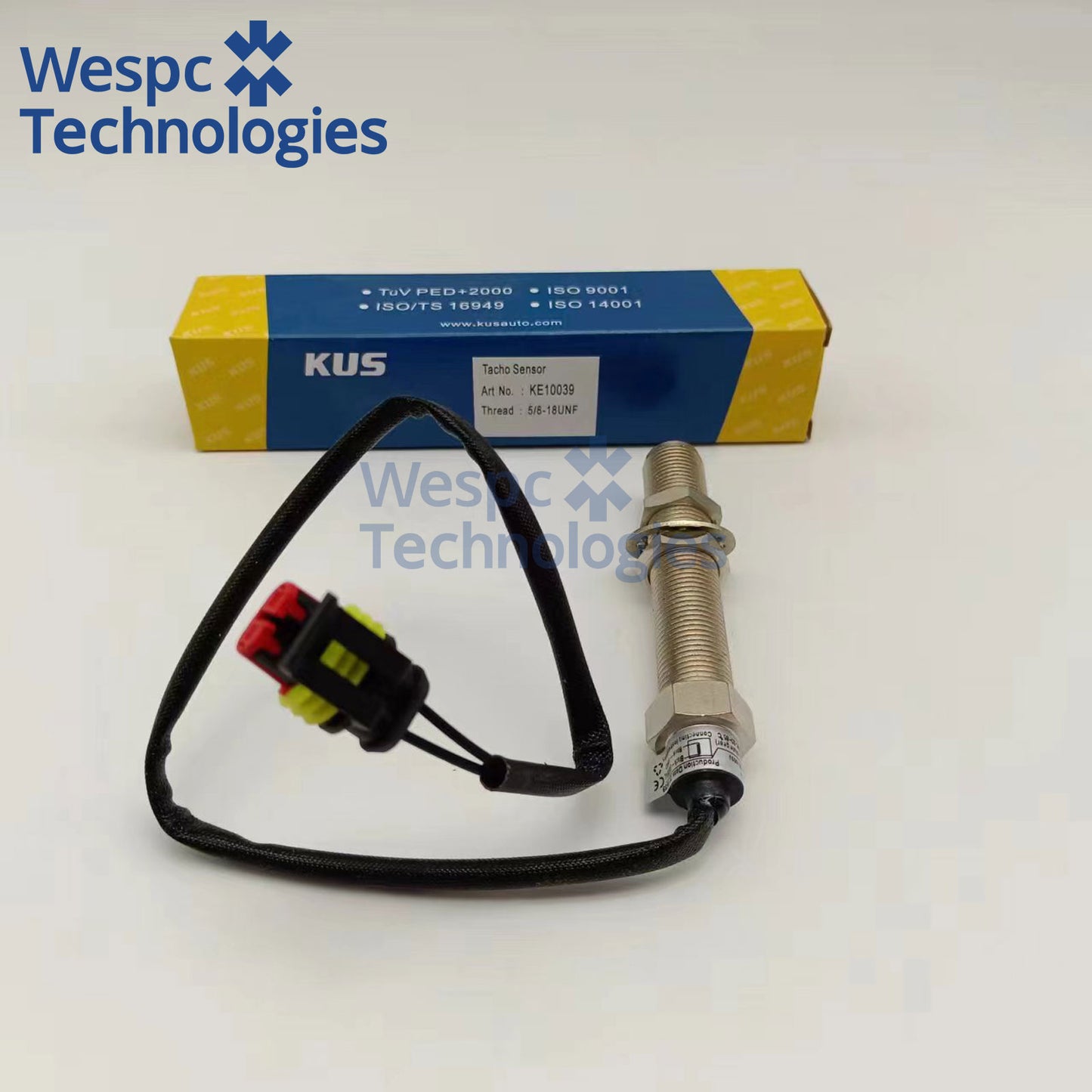

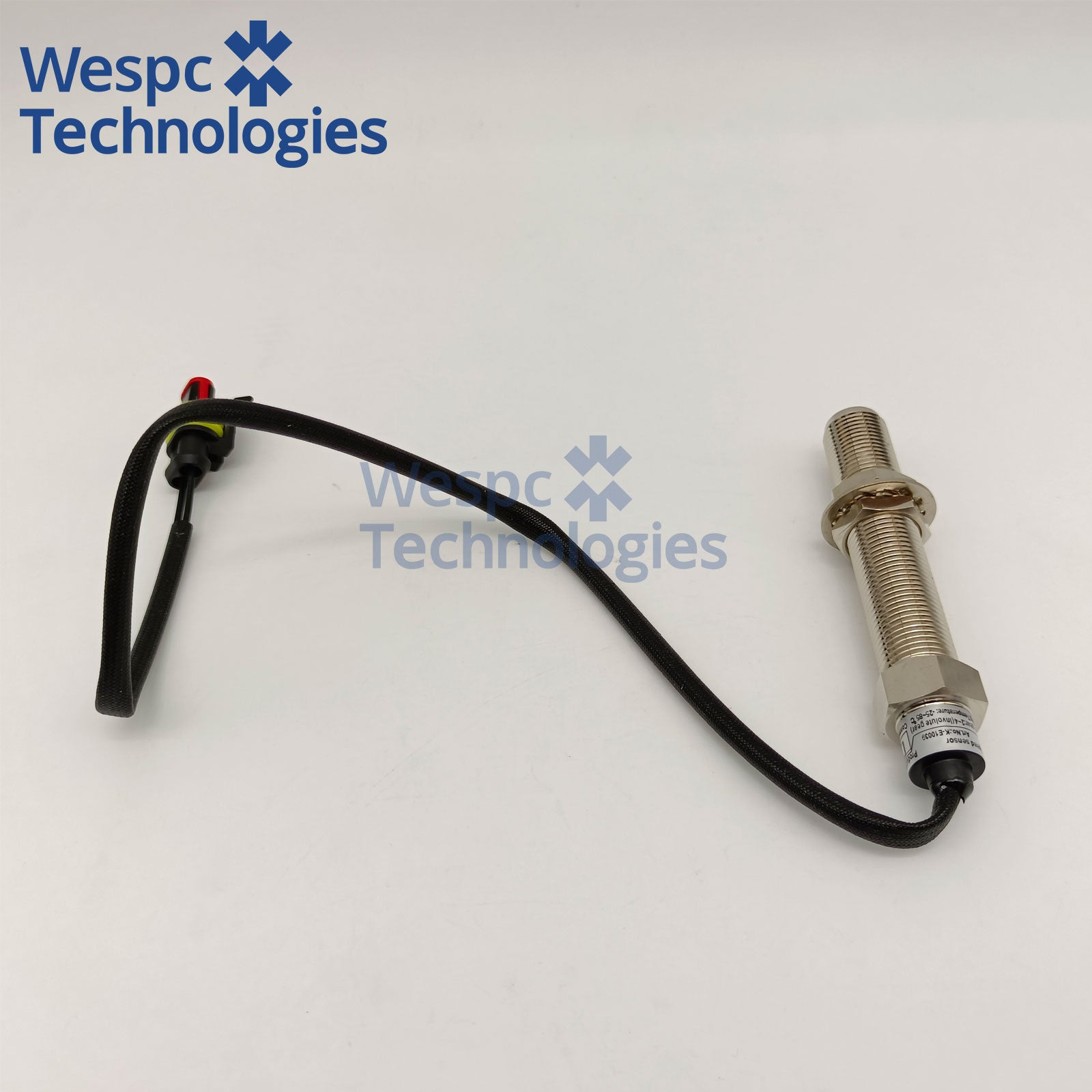

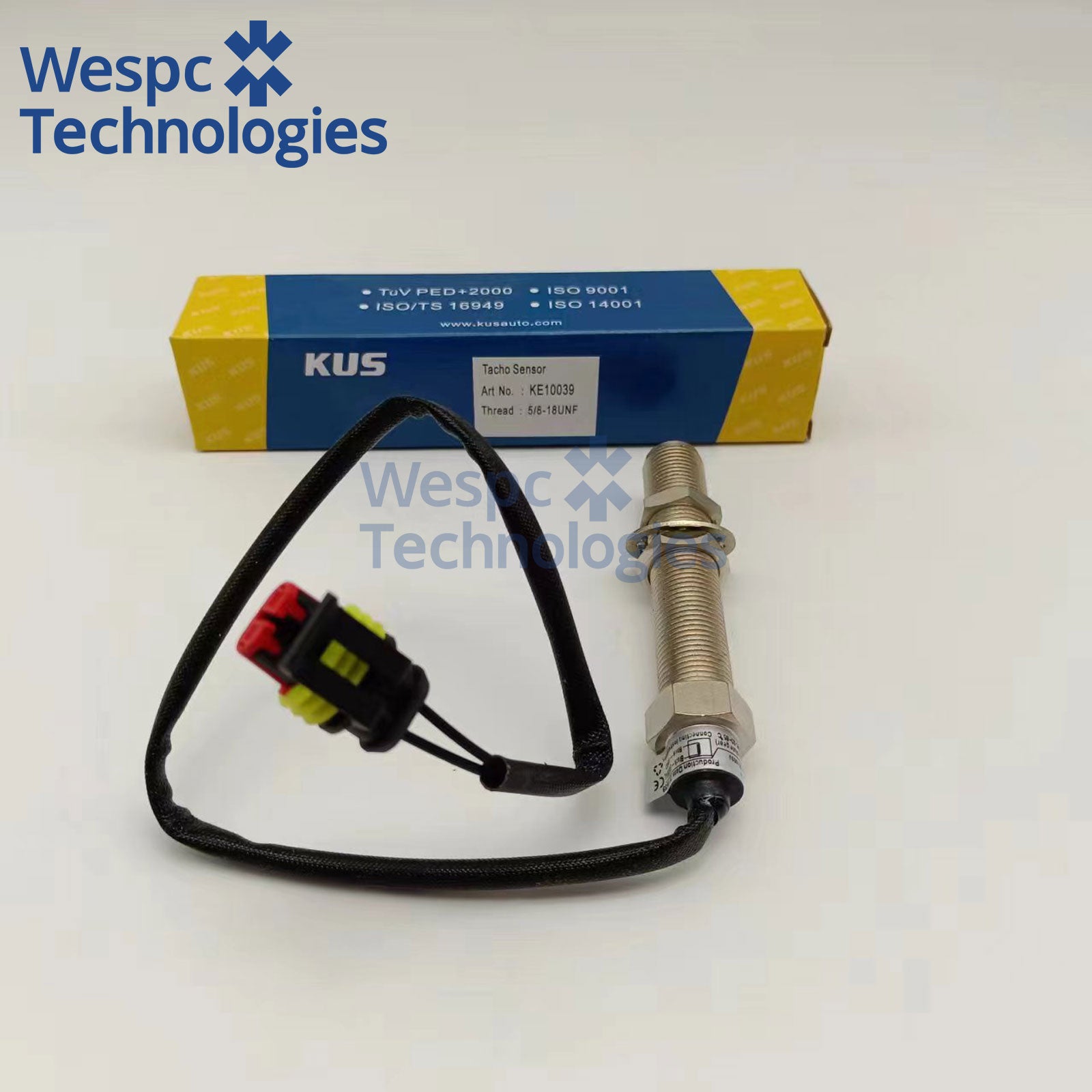

Original KUS KE10039 Magnetoelectric Tacho Speed Sensor 5/8-18UNF 2-Wire Waterproof Plug Passive RPM Pickup Sender

Original KUS KE10039 Magnetoelectric Tacho Speed Sensor 5/8-18UNF 2-Wire Waterproof Plug Passive RPM Pickup Sender

$37.00 USD
$0.00 USD $37.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
KE10039 Magnetoelectric Tacho Sensor Original KUS 5/8-18UNF

Used for measuring gear rotation speed. Its main advantages include stable signal output, wide range of operational temperature, small size, and simple assembly process.
It covers a wide range of measurements, including zero rotation speed. The shell appearance, material and thread fitting can be customized as requires.
Protection rank: IP65

Operating temperature : -40~85℃
Output signal : Sine wave
Inductance distance : ≤1mm
Tooth module : 2~6
Connection method : Two wires connection

Product Specifications

  • Model: Original Genuine KUS KE10039 Passive Magnetoelectric Tacho Speed Sensor (5/8"-18UNF Thread)
  • Sensing Type: Variable Reluctance Magnetoelectric Passive Pickup
  • Mount Thread: 5/8"-18 UNF Stainless Steel Male Thread
  • Connection: 2-Pin Waterproof Quick Plug Integrated Harness
  • Output: AC Sine Wave RPM Signal
  • Air Gap: Recommended 0.5~1mm, Max Allowable ≤1mm
  • Working Temp: -40℃ ~ +85℃
  • Protection: IP65 Anti-Oil, Dust & Splash Water
  • Warranty: 12 Months Genuine KUS Factory Warranty

Core Electrical & Mechanical Specifications

  1. Power Requirement: Passive, No External Power Supply
  2. Signal Output: AC sine wave, voltage amplitude rises with RPM speed
  3. Minimum Detectable Speed: ≥300 RPM stable signal output
  4. Thread Material: 304 Stainless Steel, Anti-rust & anti-oil corrosion
  5. Locking Fitting: Two matching stainless steel lock nuts for gap adjustment
  6. Cable Length: Standard 300mm integrated wire harness
  7. Connector: PA66 waterproof plastic plug, anti-vibration pull resistance
  8. Mechanical Service Life: ≥1 million hours continuous operation
  9. Installation Torque: Max 32 N·m (avoid thread deformation)

Wide Application Range

  1. OEM original matching for marine & industrial diesel gensets, complete RPM monitoring + overspeed protection system
  2. Old 5/8UNF magnetic speed sensor replacement: tachometer no reading, RPM value random jump, controller false overspeed alarm
  3. Power rental & generator repair shop stock for Perkins/Cummins marine generator sets, construction machinery
  4. Retrofit speed monitoring system for silent generator units, add overspeed auto-shutdown safety function

Common Equipment Failures Solved

  • Cheap aftermarket sensor coil inductance unstable, RPM gauge pointer jumps irregularly, controller triggers false overspeed shutdown
  • Inferior plastic housing crack under vibration, oil/water ingress leads to complete signal loss
  • Incorrect air gap design, signal too weak at low speed, no RPM display below 500RPM
  • Original KUS KE10039 damaged, need genuine 5/8UNF magnetoelectric speed sensor direct plug-and-play replacement
  • Marine/genset system requires real-time RPM monitoring and overspeed safety protection, single-wire Hall active sensor cannot match DSE controller magnetic pickup input port
