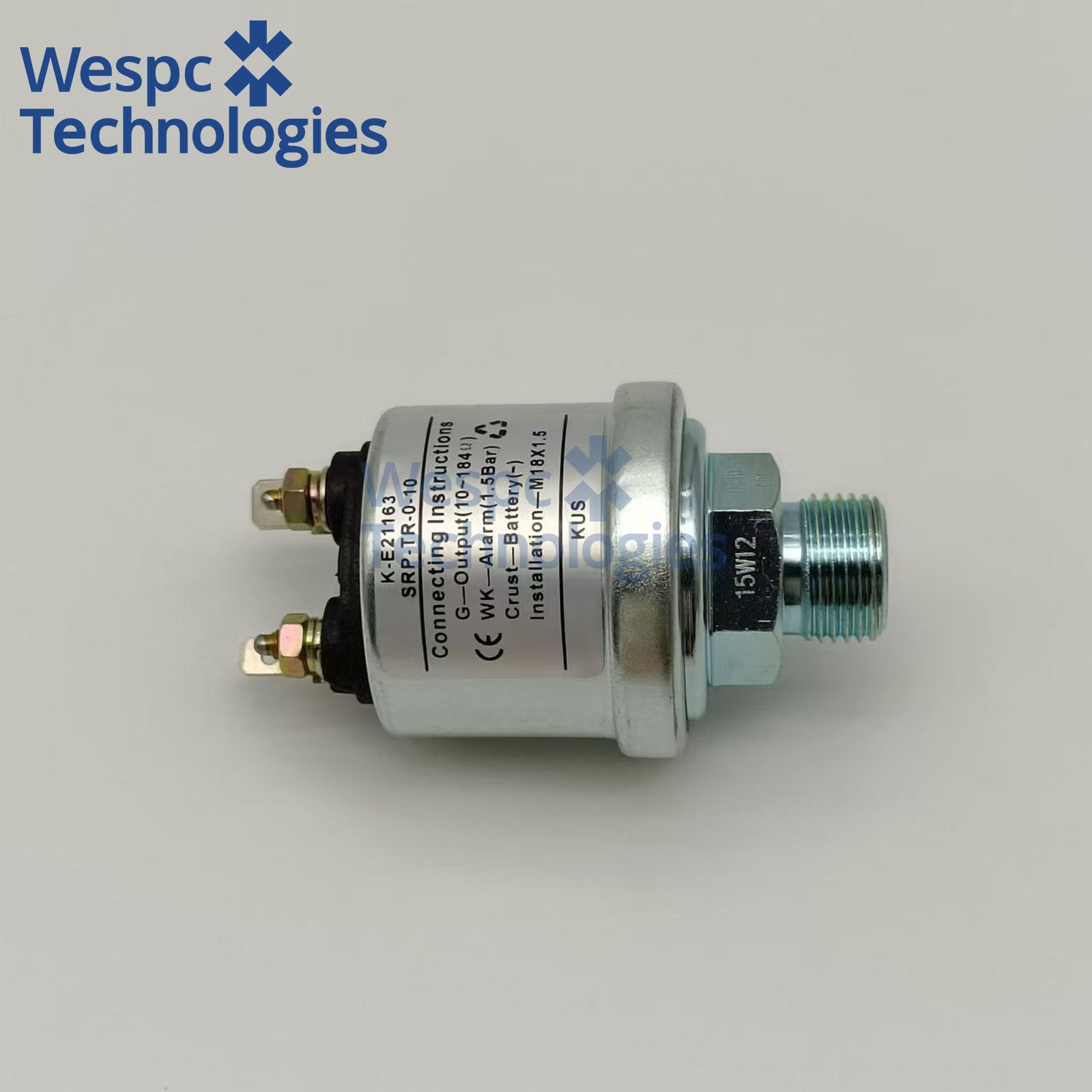

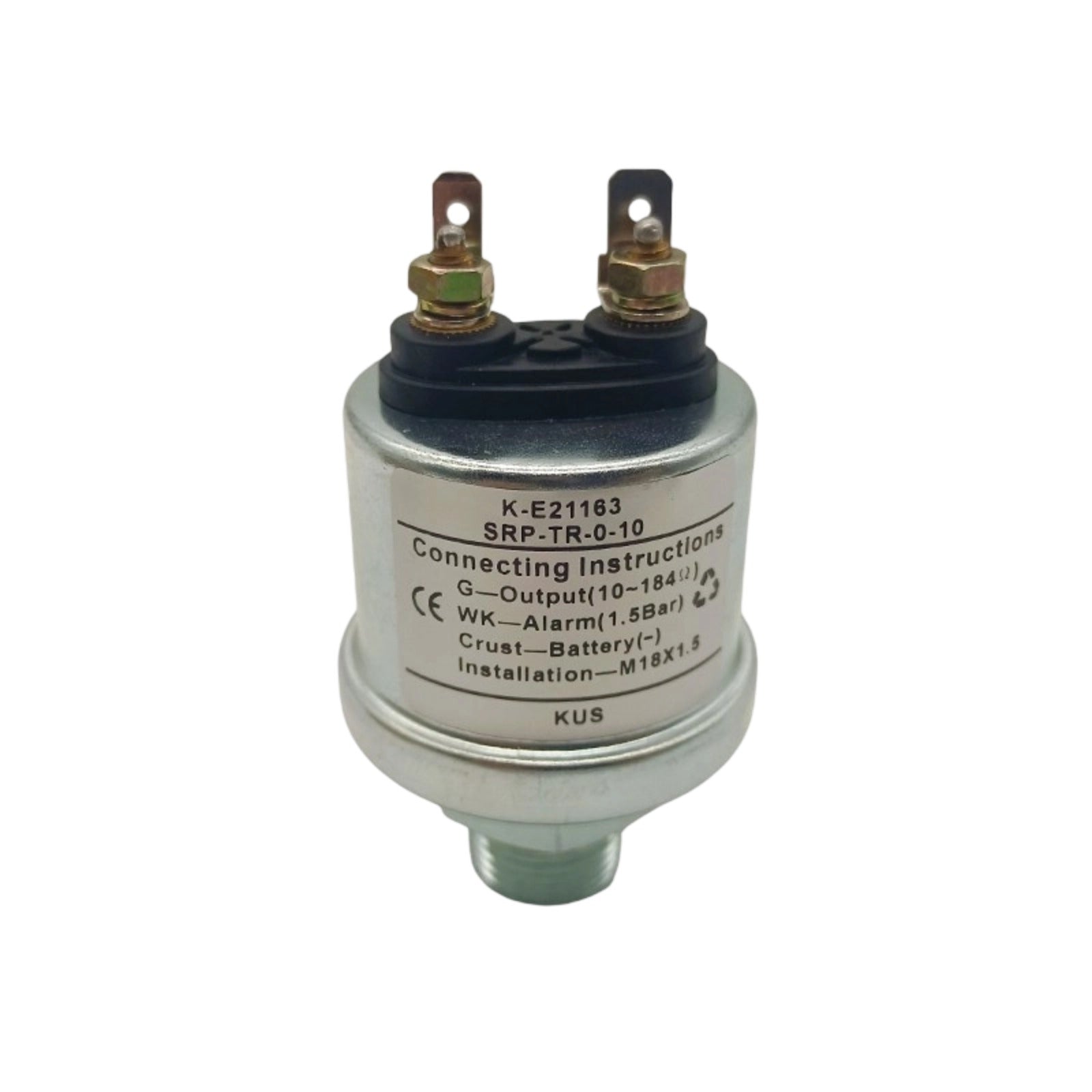

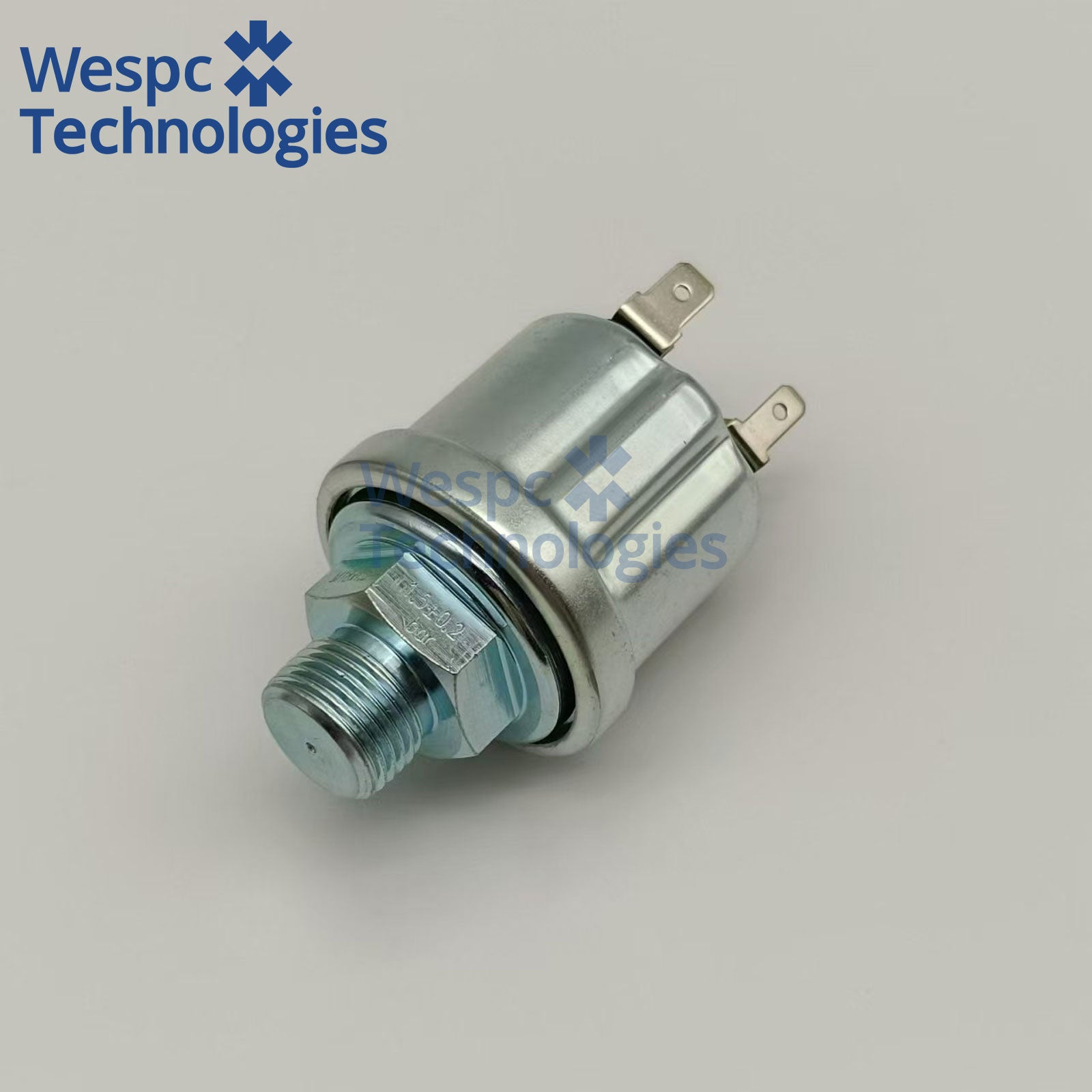

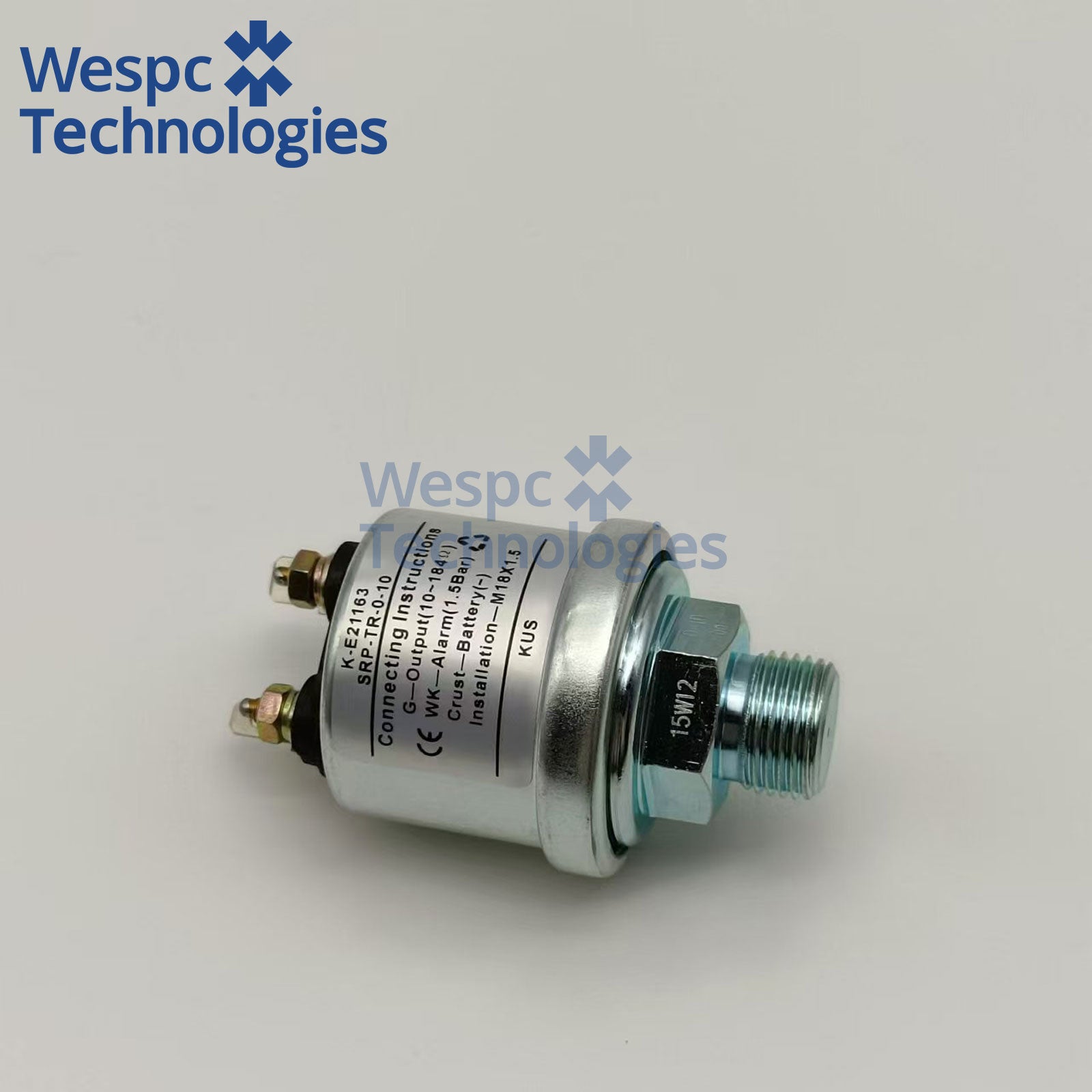

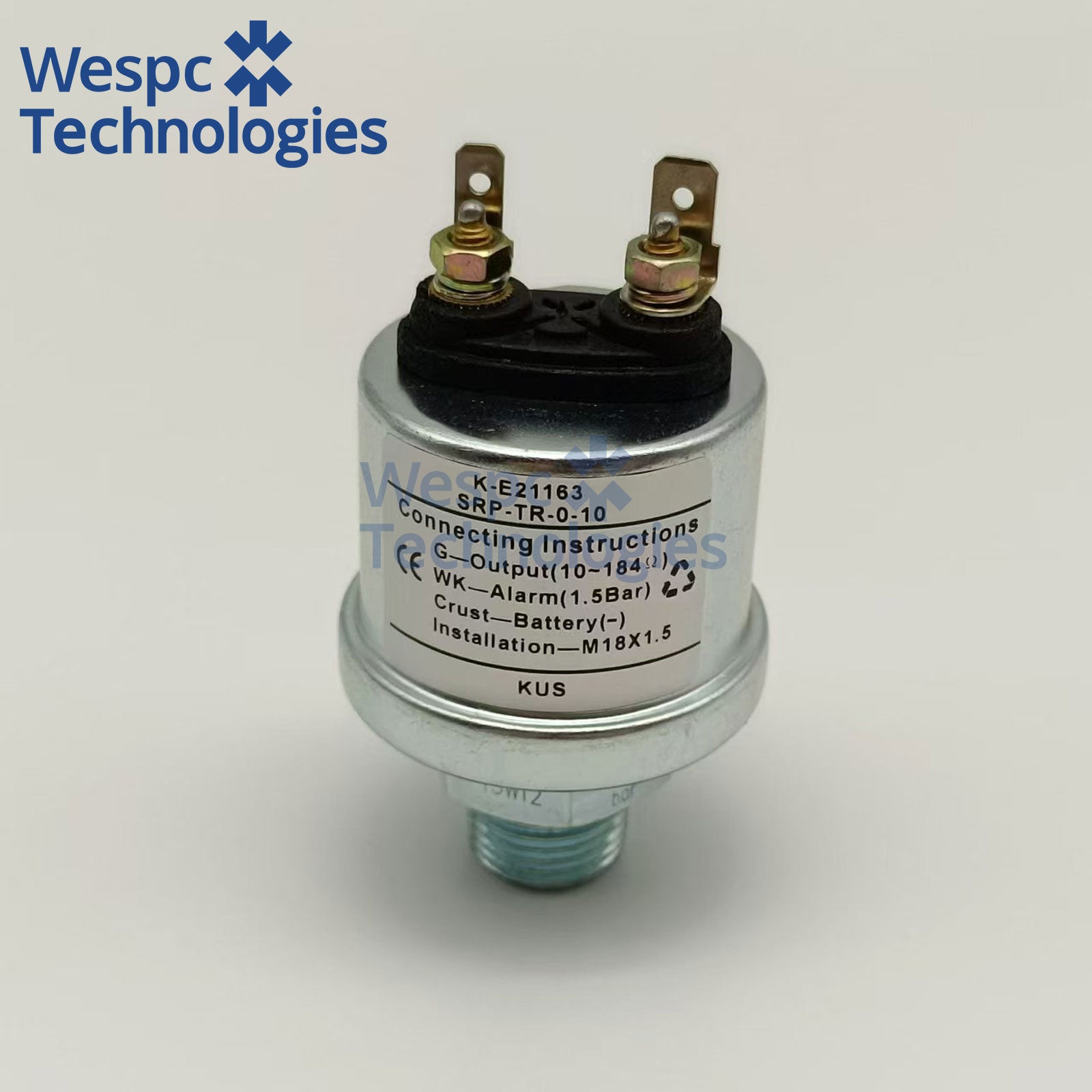

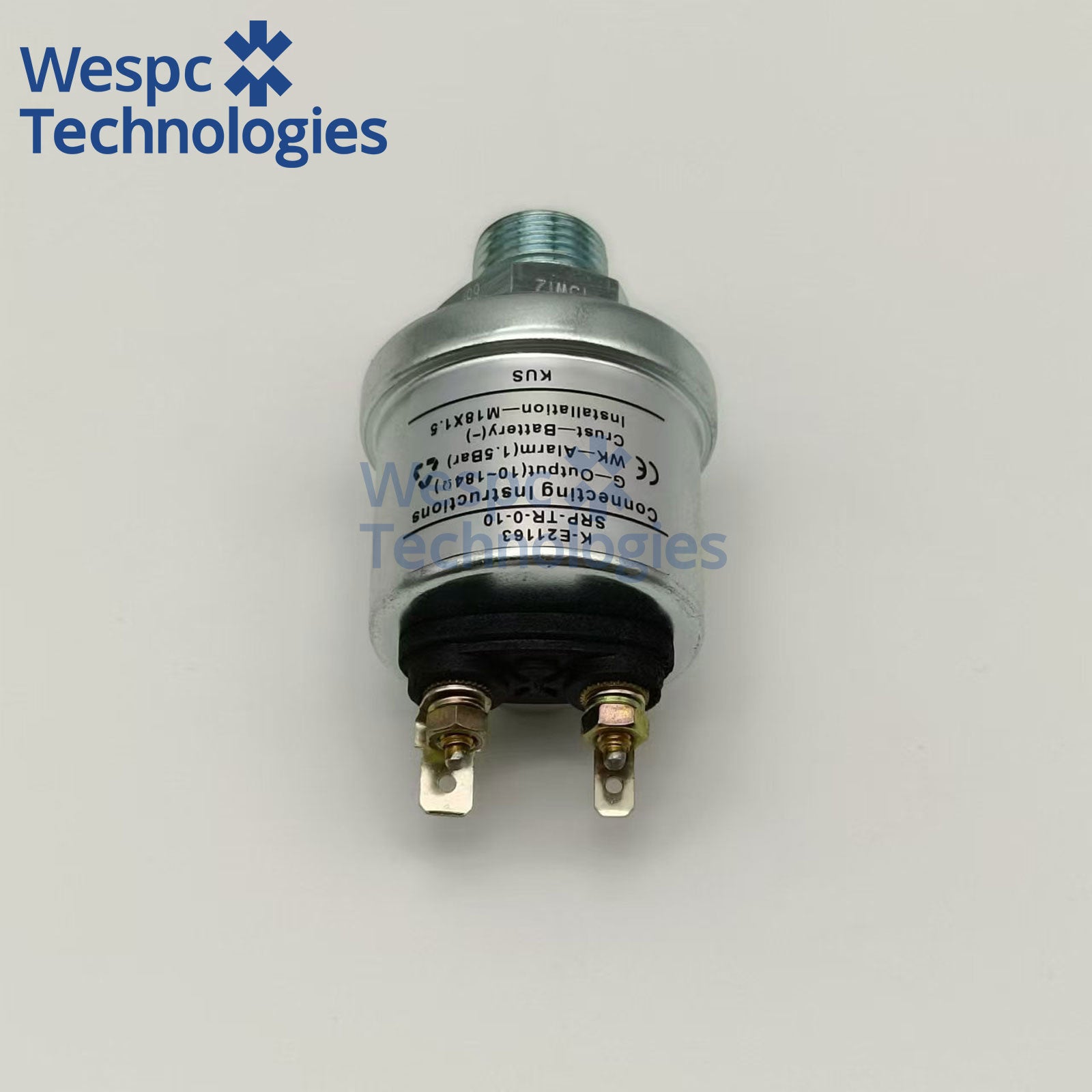

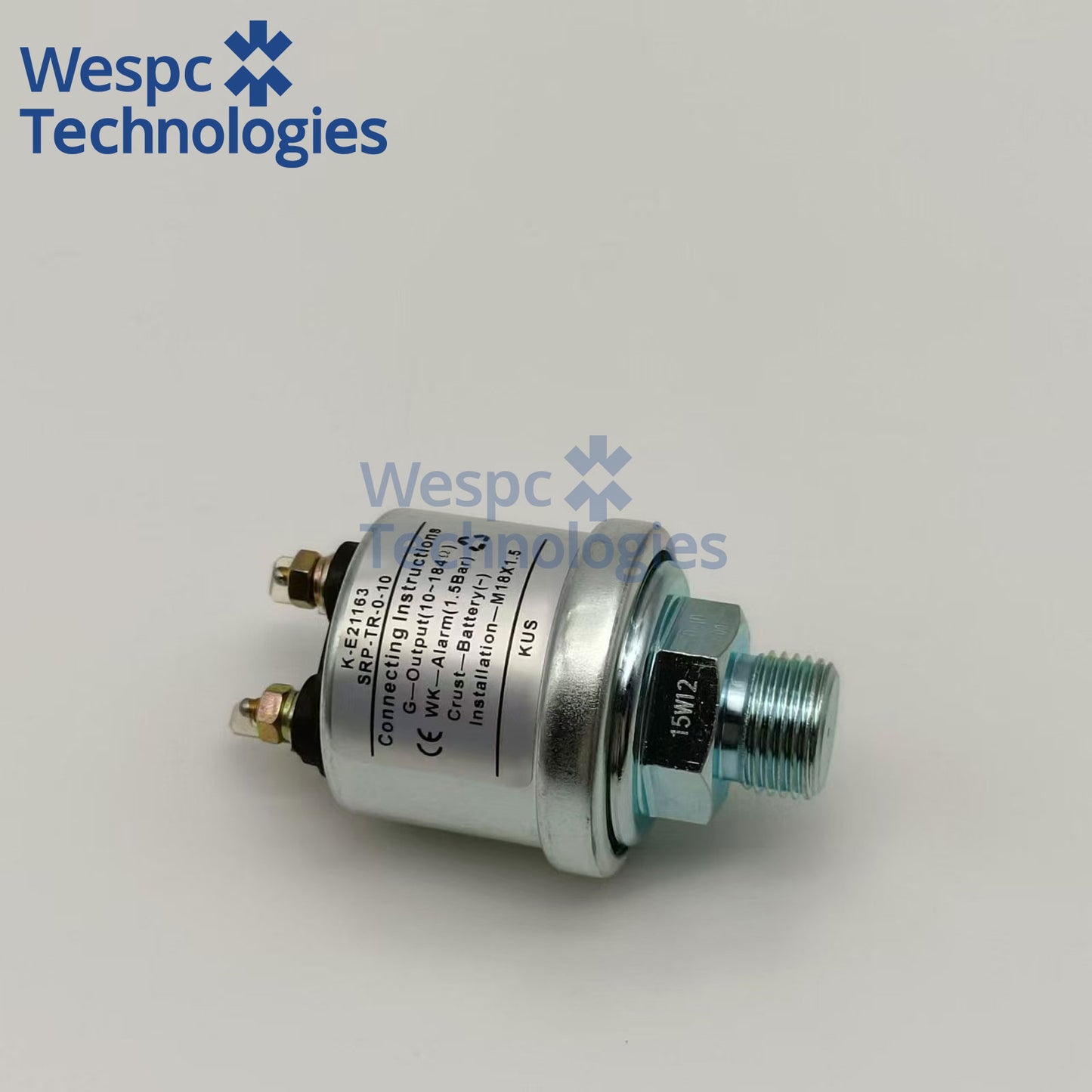

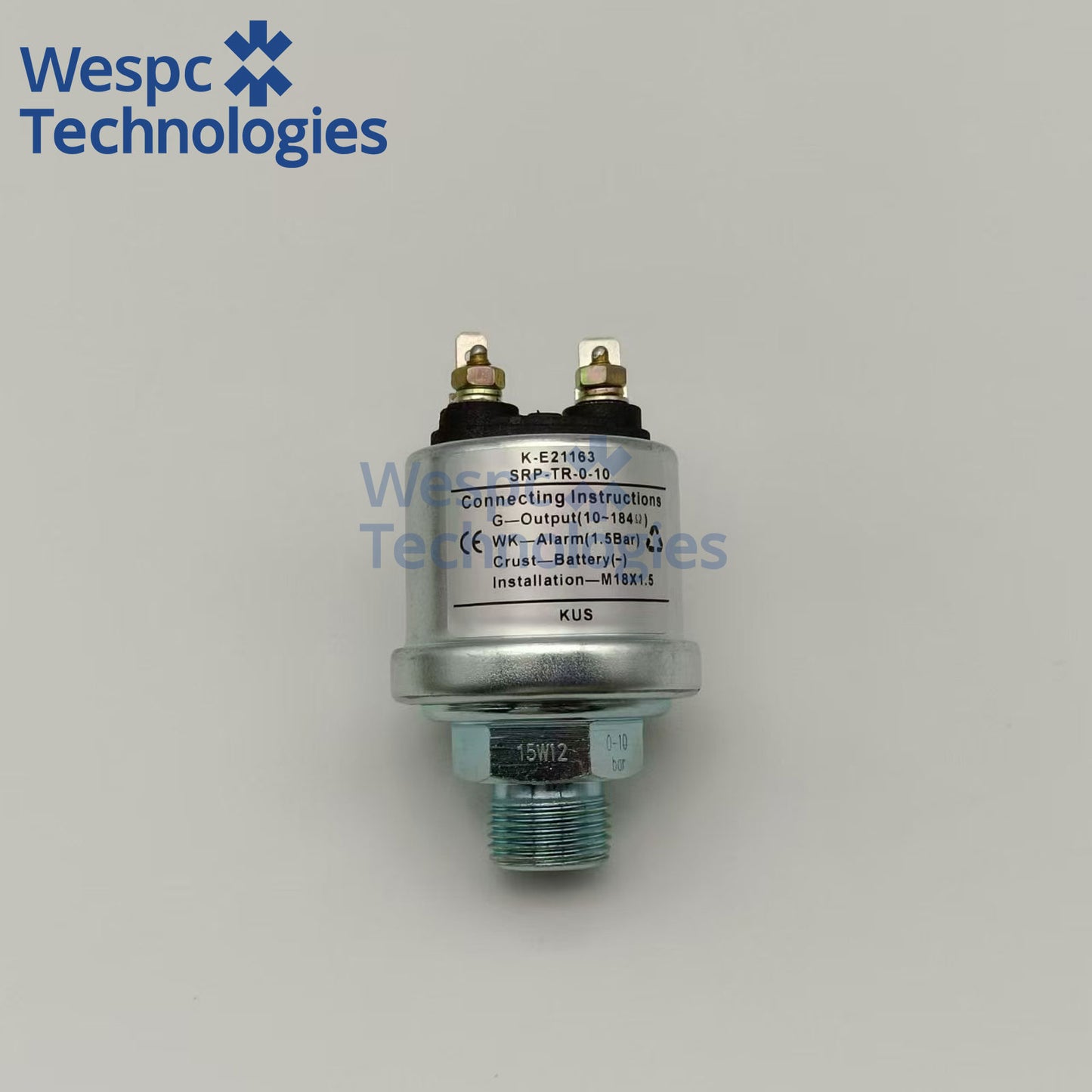

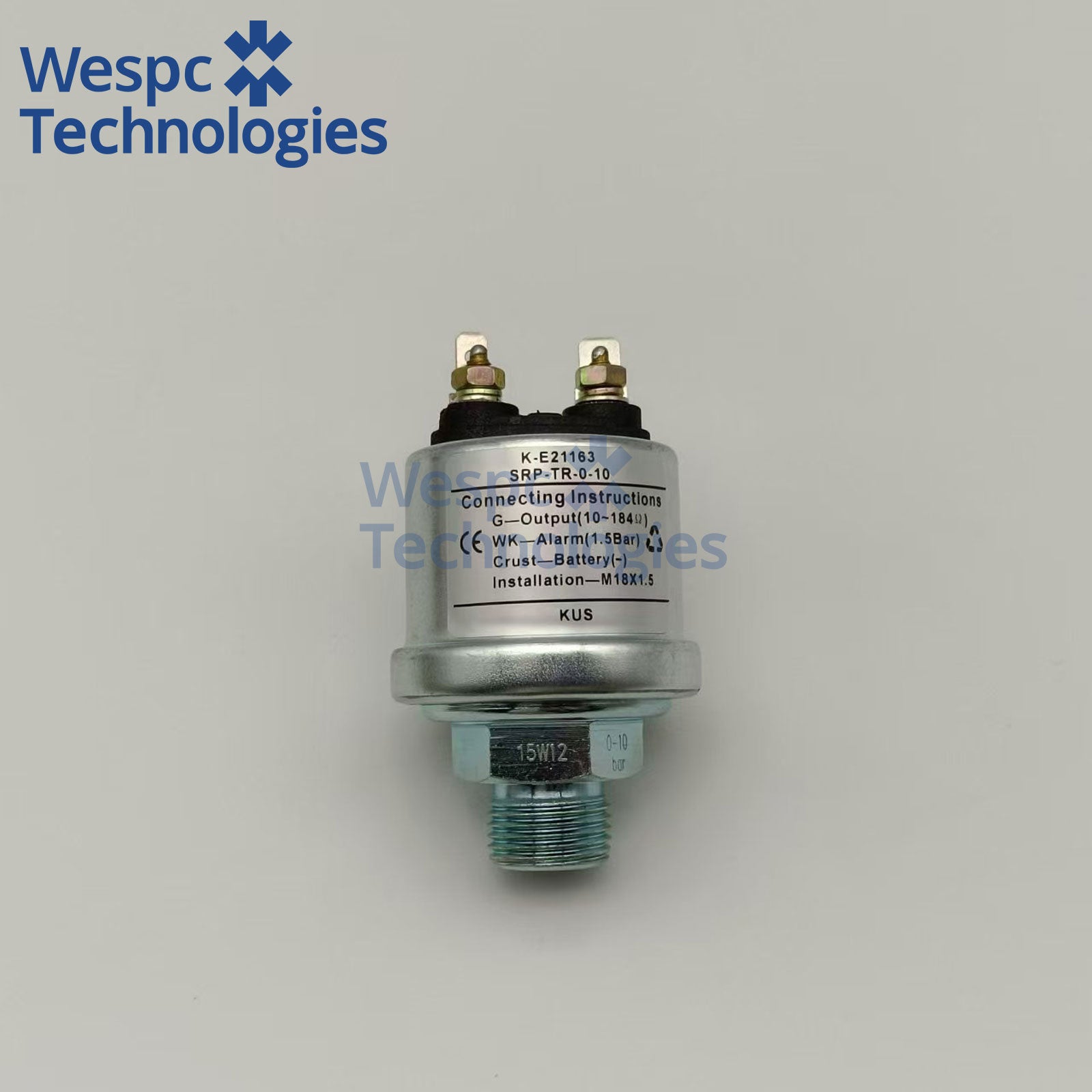

Original KUS KE21163 Mechanical Oil Pressure Sensor 1.5Bar M18×1.5 Metric Thick Thread Dual M4 Screw Terminal with Alarm

It is largely applied to many fields, such as the engine pipe of vehicles and ships, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects, etc.

Protection rank: IP66

Full Model Marking

• Brand: KUS Original
• Part No.: KE21163
• Measuring Range: 0 ~ 10 Bar
• Resistance Output: 10Ω (0bar) ~ 184Ω (10bar) linear signal
• Alarm Trigger Point: 1.5 Bar low oil pressure cut-off switch (tolerance ±0.1Bar)
• Mount Thread: M18×1.5 Solid Thick Metric Male Thread
• Terminal Definition: G=Gauge Signal / WK=Alarm Switch, Dual M4 screw terminals
• Protection Grade: IP66 fully sealed anti-oil, dust & splash water
• Max Continuous Short-Term Working Temp: 120℃

Core Electrical & Mechanical Specifications

1. Pressure Measuring Range: 0 bar ~ 10 bar
2. Resistance Output Characteristic: 10Ω ~ 184Ω linear change
3. Low Pressure Alarm Threshold: 1.5 Bar (±0.1Bar tolerance, circuit open below threshold)
4. Supply Voltage: DC 6V ~ 24V universal for 12V / 24V heavy generator systems
5. Rated Load Power: Gauge circuit max <5W; alarm switch max 3A DC24V
6. Mount Thread: M18×1.5 external thick metric thread with thick rubber sealing washer
7. Working Temperature: -25℃ ~ +120℃
8. Housing Material: Color zinc-plated solid thick metal shell, anti-rust & anti-high-temperature lubricant corrosion
9. Vibration Standard: Ultra-heavy industrial marine genset anti-shock certification
10. Measurement Accuracy: ±3% full measuring range
11. Max Installation Torque: 26 N·m to avoid thread sliding & deformation

Full Model Marking

• Brand: KUS Original
• Part No.: KE21163
• Measuring Range: 0 ~ 10 Bar
• Resistance Output: 10Ω (0bar) ~ 184Ω (10bar) linear signal
• Alarm Trigger Point: 1.5 Bar low oil pressure cut-off switch (tolerance ±0.1Bar)
• Mount Thread: M18×1.5 Solid Thick Metric Male Thread
• Terminal Definition: G=Gauge Signal / WK=Alarm Switch, Dual M4 screw terminals
• Protection Grade: IP66 fully sealed anti-oil, dust & splash water
• Max Continuous Short-Term Working Temp: 120℃

Core Electrical & Mechanical Specifications

1. Pressure Measuring Range: 0 bar ~ 10 bar
2. Resistance Output Characteristic: 10Ω ~ 184Ω linear change
3. Low Pressure Alarm Threshold: 1.5 Bar (±0.1Bar tolerance, circuit open below threshold)
4. Supply Voltage: DC 6V ~ 24V universal for 12V / 24V heavy generator systems
5. Rated Load Power: Gauge circuit max <5W; alarm switch max 3A DC24V
6. Mount Thread: M18×1.5 external thick metric thread with thick rubber sealing washer
7. Working Temperature: -25℃ ~ +120℃
8. Housing Material: Color zinc-plated solid thick metal shell, anti-rust & anti-high-temperature lubricant corrosion
9. Vibration Standard: Ultra-heavy industrial marine genset anti-shock certification
10. Measurement Accuracy: ±3% full measuring range
11. Max Installation Torque: 26 N·m to avoid thread sliding & deformation

Wide Application Range

1. OEM matching spare part for M18×1.5 thick thread ultra-heavy marine main engines & super large industrial diesel gensets, complete dual-function pressure monitoring + exclusive 1.5Bar low oil auto-shutdown safety system
2. Replacement for failed original KE21163 oil pressure sender: blank pressure gauge, irregular fluctuating pressure reading, oil seepage from thick thread housing, low oil alarm protection failure
3. Large marine overhaul & heavy mining power rental shop dedicated stock for ultra-large Cummins/Volvo marine generator sets and heavy construction machinery
4. Safety monitoring system retrofit for super heavy-duty generator units, add factory standard 1.5Bar low lubrication pressure automatic shutdown protection function

Common Equipment Failures Solved

• Cheap aftermarket sender unstable diaphragm & coil resistance, oil pressure gauge pointer jumps irregularly, DSE controller triggers false low-oil shutdown
• Inferior thin housing cracks under long-term heavy engine vibration, lubricant leakage leading to slow pressure loss and incomplete sensor signal
• Mismatched 0.8Bar/1.4Bar low alarm senders trigger protection too late, engine bearing & crankshaft damage under insufficient lubrication on large heavy units
• Original KUS KE21163 damaged, need genuine M18×1.5 dual M4 1.5Bar alarm oil sender direct plug-and-play replacement without wiring harness modification
• Ultra-large marine/mining heavy genset system requires dedicated 1.5Bar low oil auto-shutdown protection; standard 0.8/1.4Bar pressure sensors cannot meet large engine safety demand
