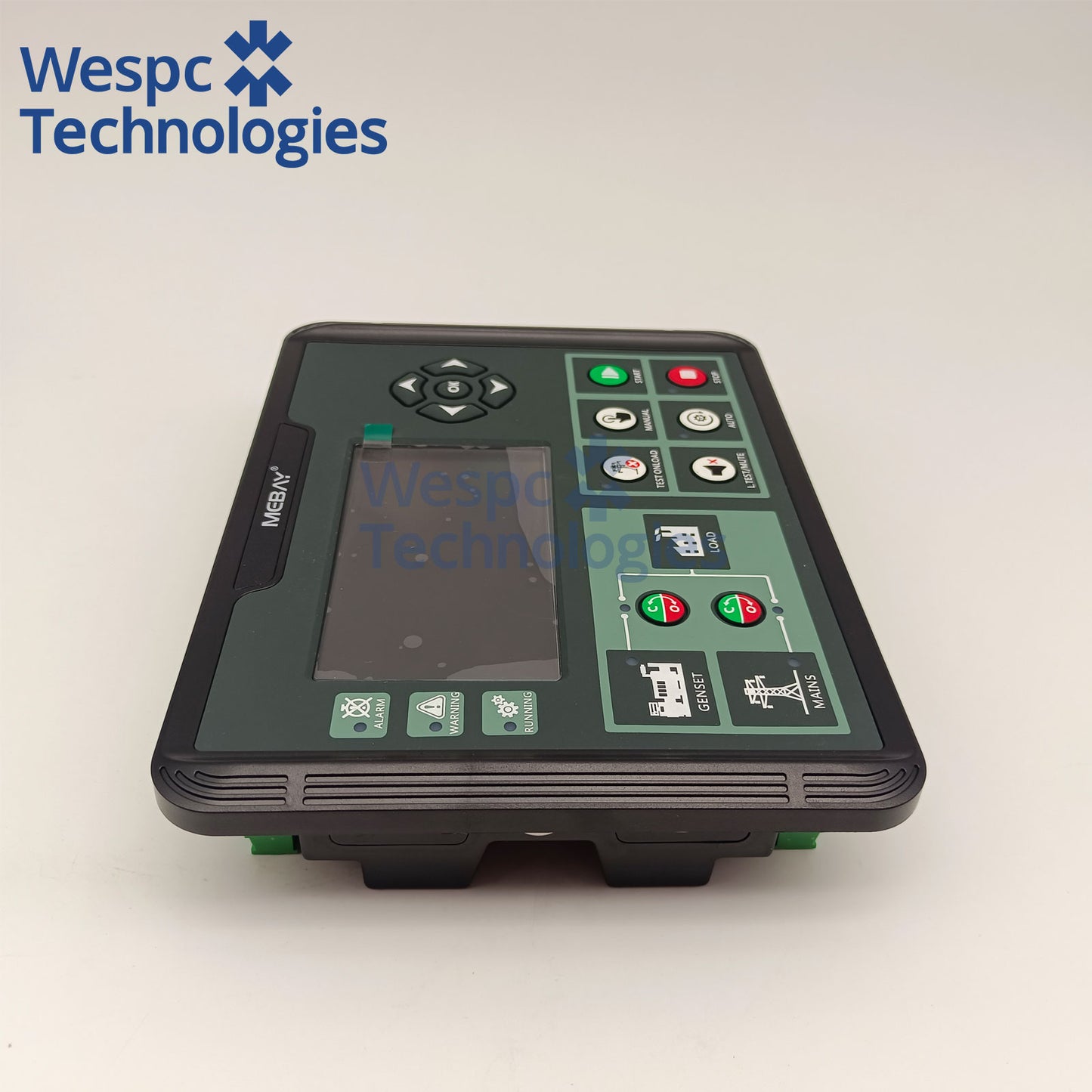

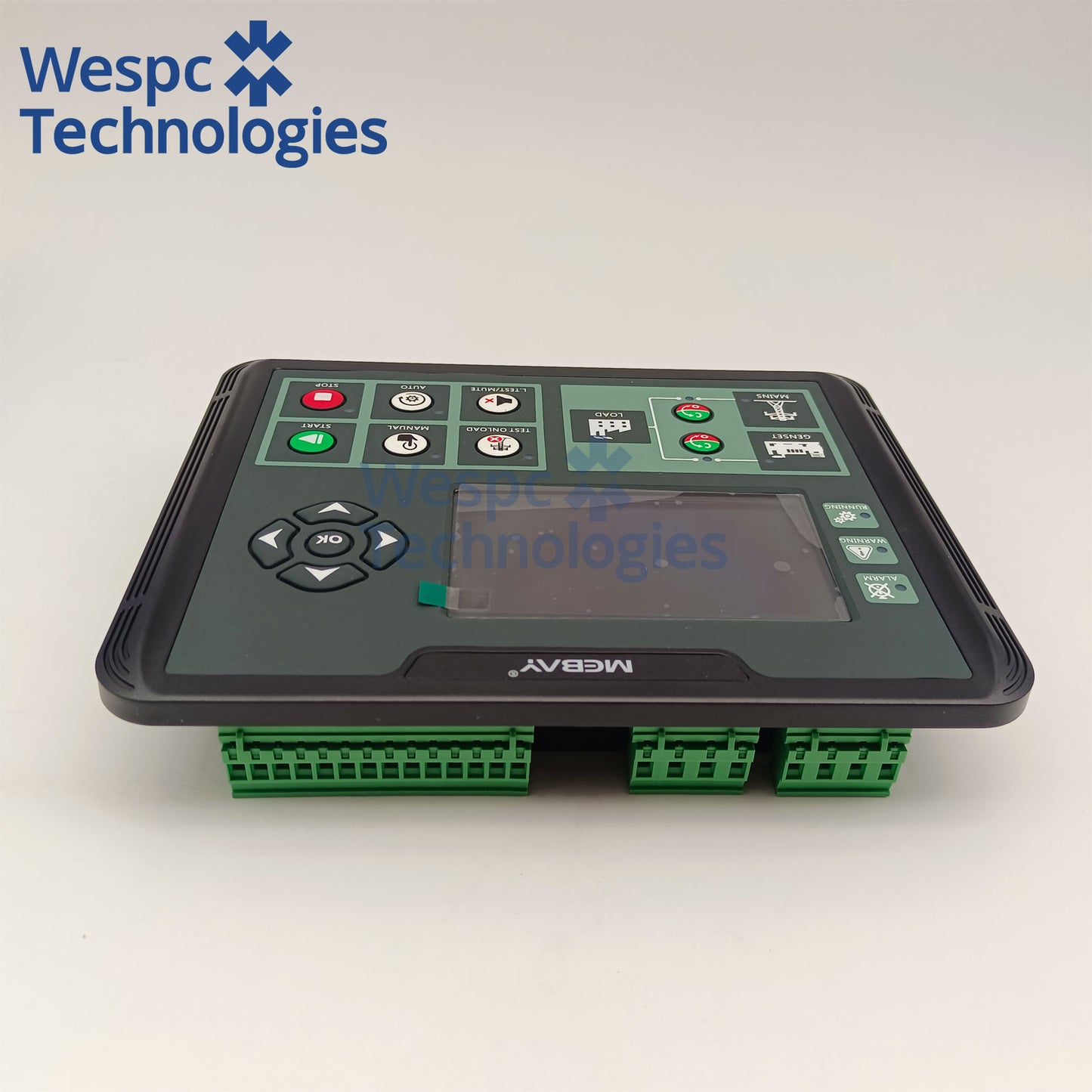

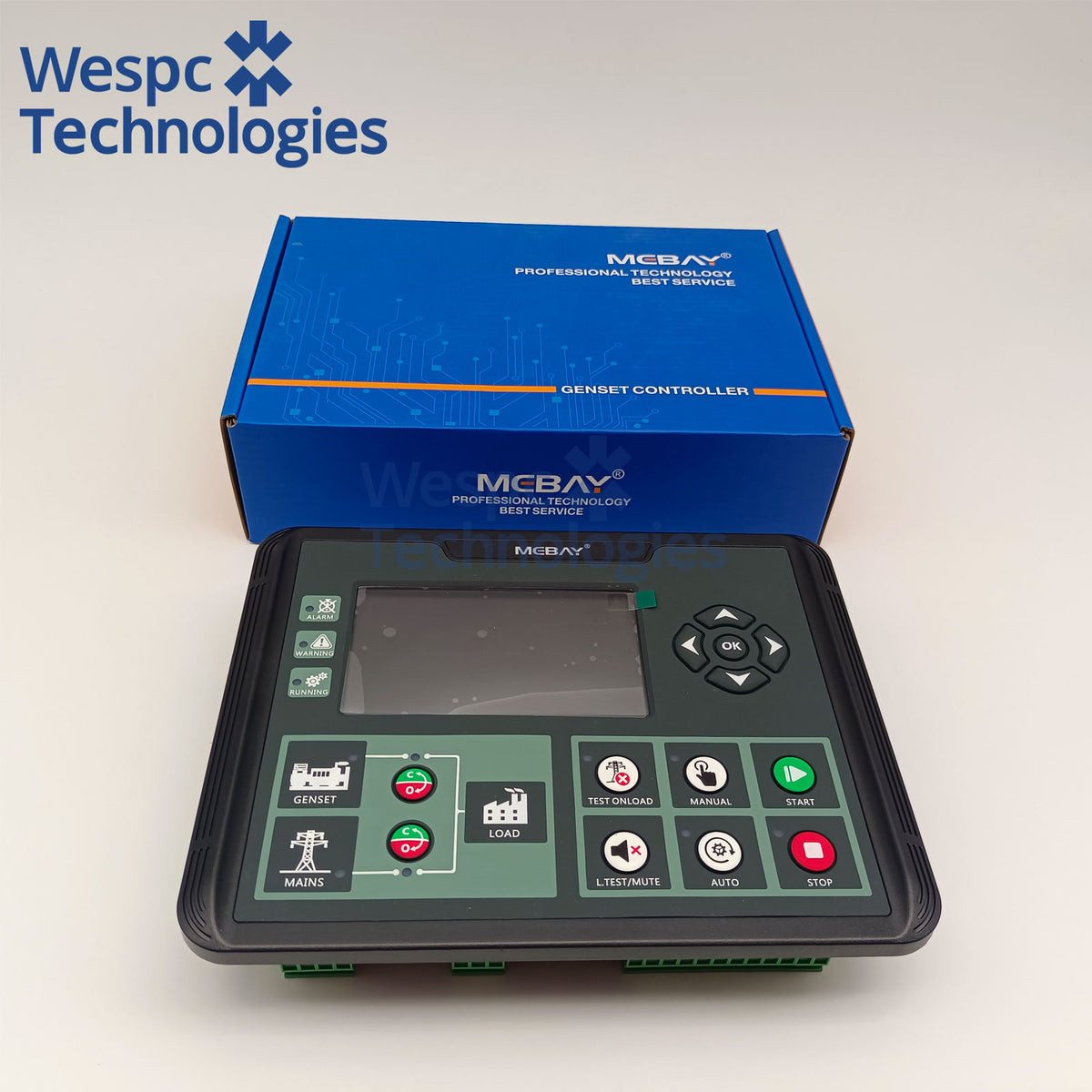

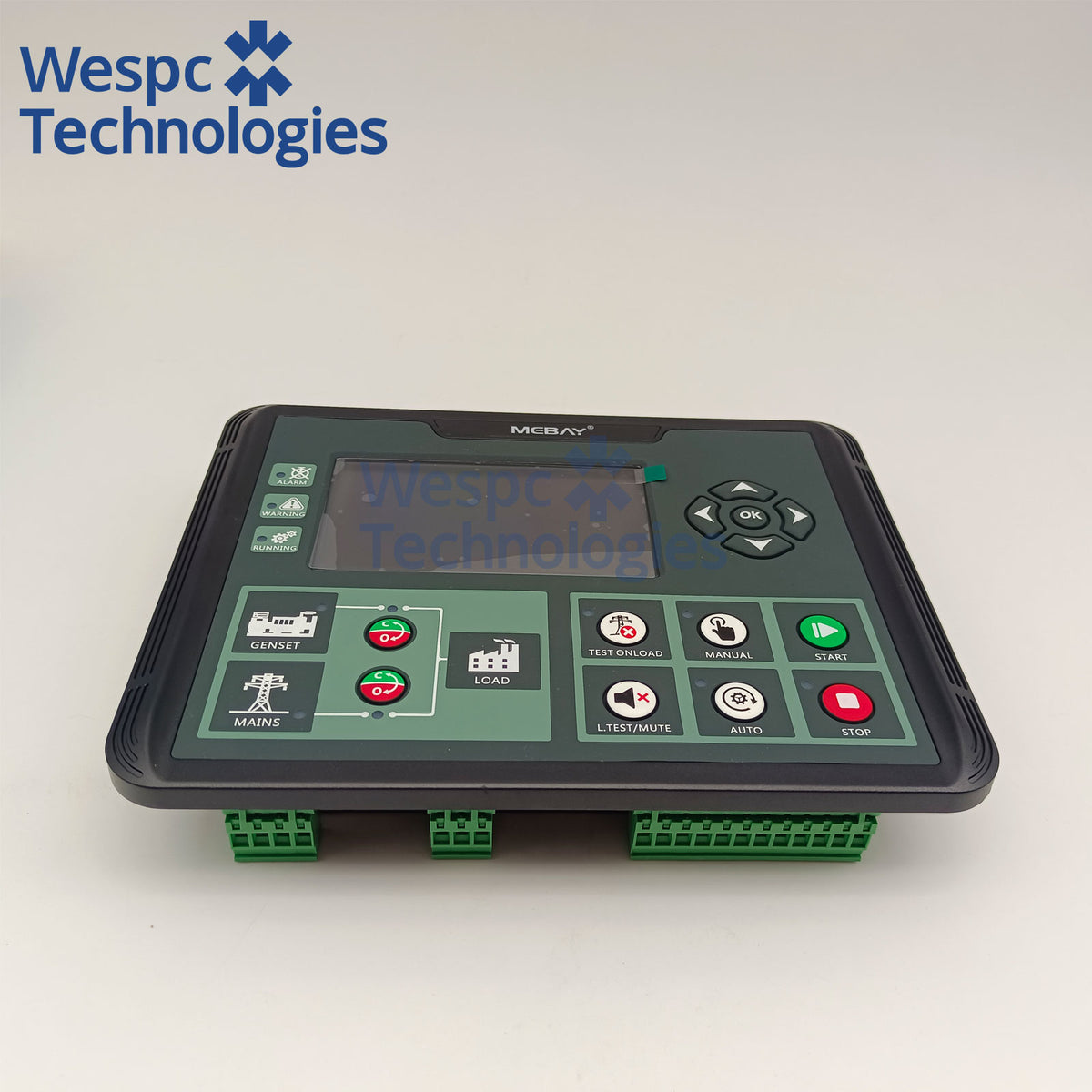

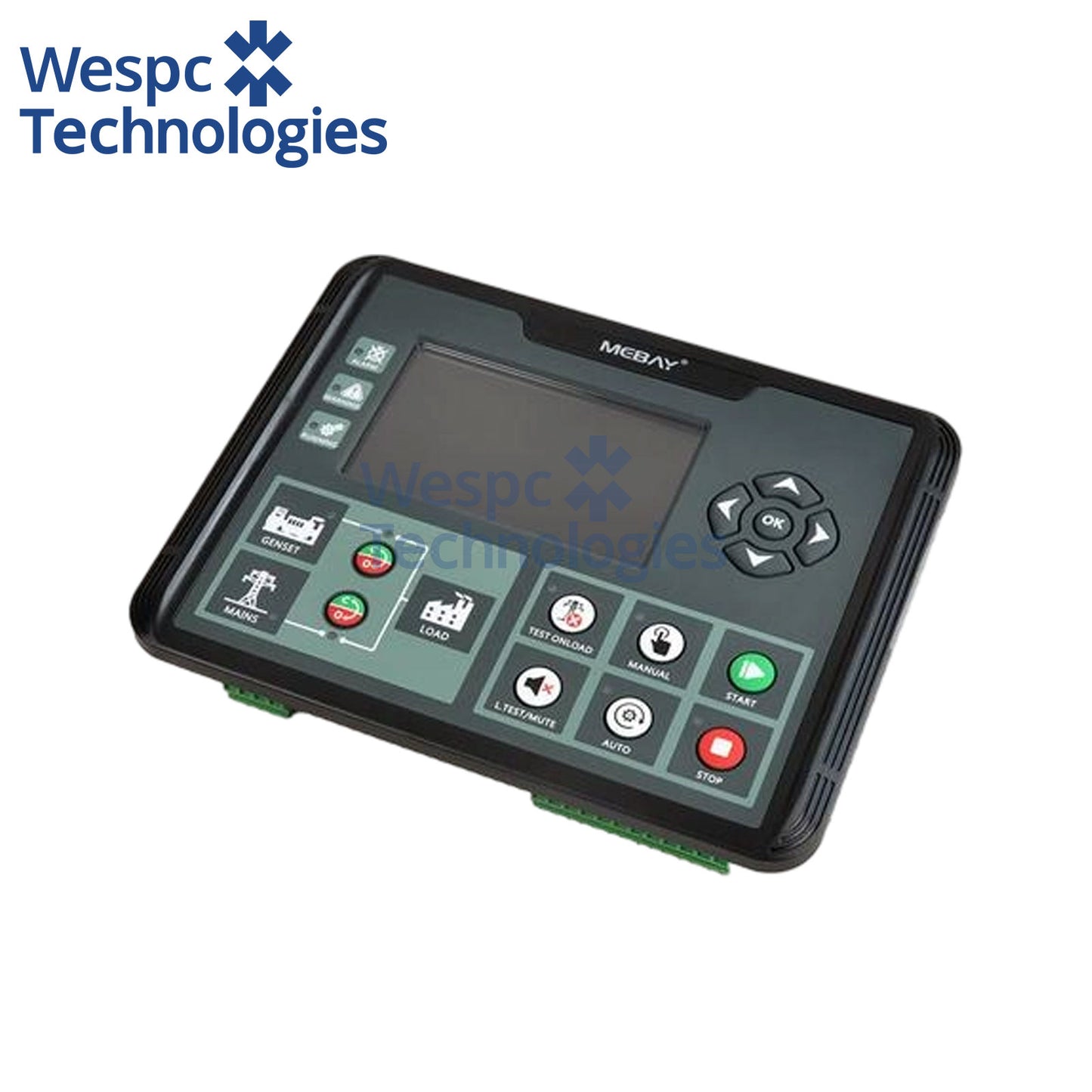

Original Mebay DC62DR Replaced by DC62DR MK3 Genset Control Module DC62DR AMF Function Silicone Panel
Overview：
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Overview：
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Wide Application Range
Medium & large silent single diesel generator control cabinet, data center backup AMF genset, commercial building peak shaving standby power, communication base station automatic transfer power equipment, marine single auxiliary generator set, mine off-grid industrial power supply, municipal emergency power equipment, generator repair shops and power distribution engineering projects requiring remote centralized cloud monitoring.
Product Specifications
- Brand: Mebay
- Model: DC62DR
- Core Function: AMF auto mains failure single genset controller with RS485 remote communication, substitute imported DeepSea DSE6110
- DC Power Supply: DC8V~36V universal wide voltage for 12V/24V generator batteries
- AC Sampling: Dual-way mains+generator three-phase voltage simultaneous monitoring, auto 50/60Hz frequency recognition

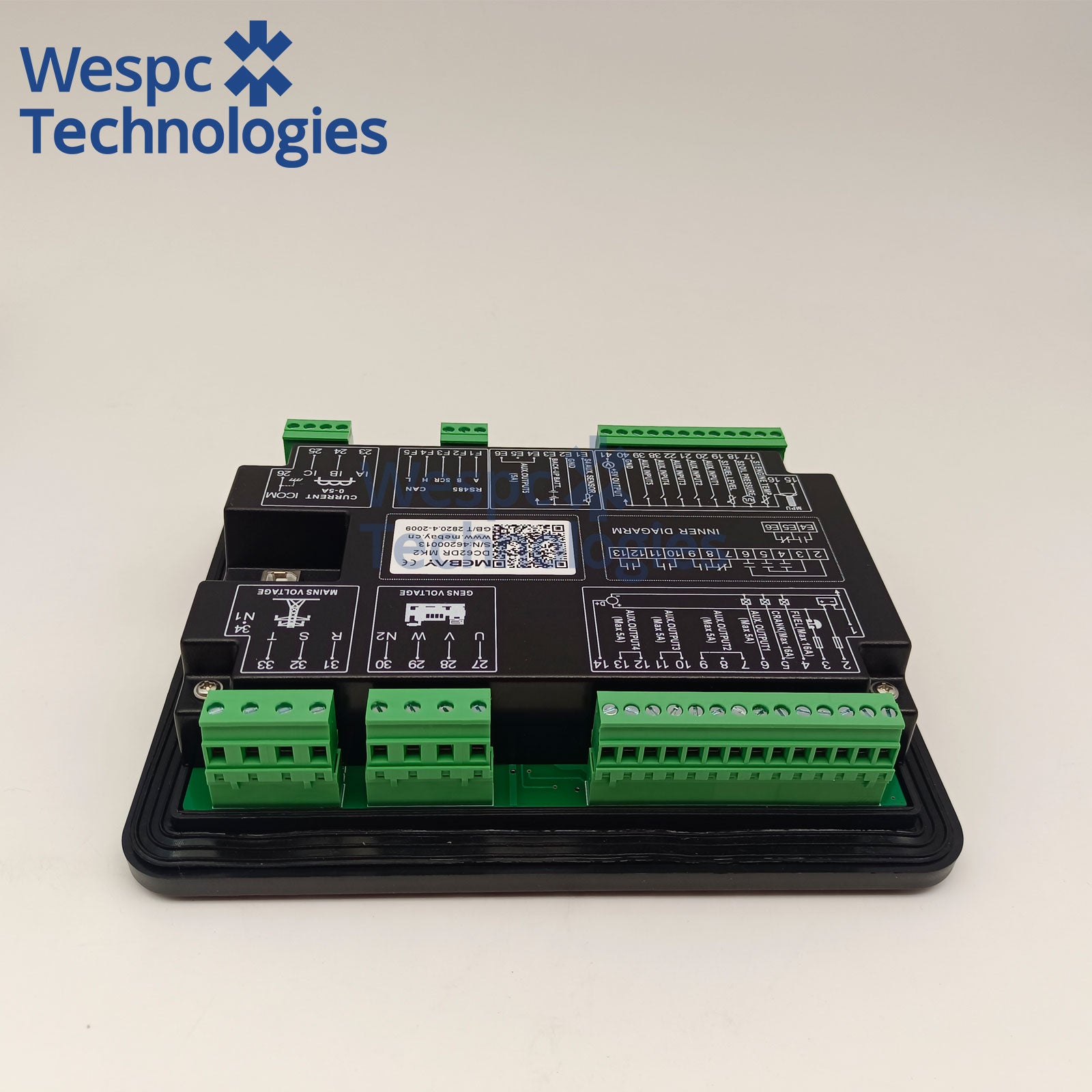

- Communication Interfaces: Front USB local debug + rear isolated RS485 Modbus RTU for SCADA/cloud remote monitoring

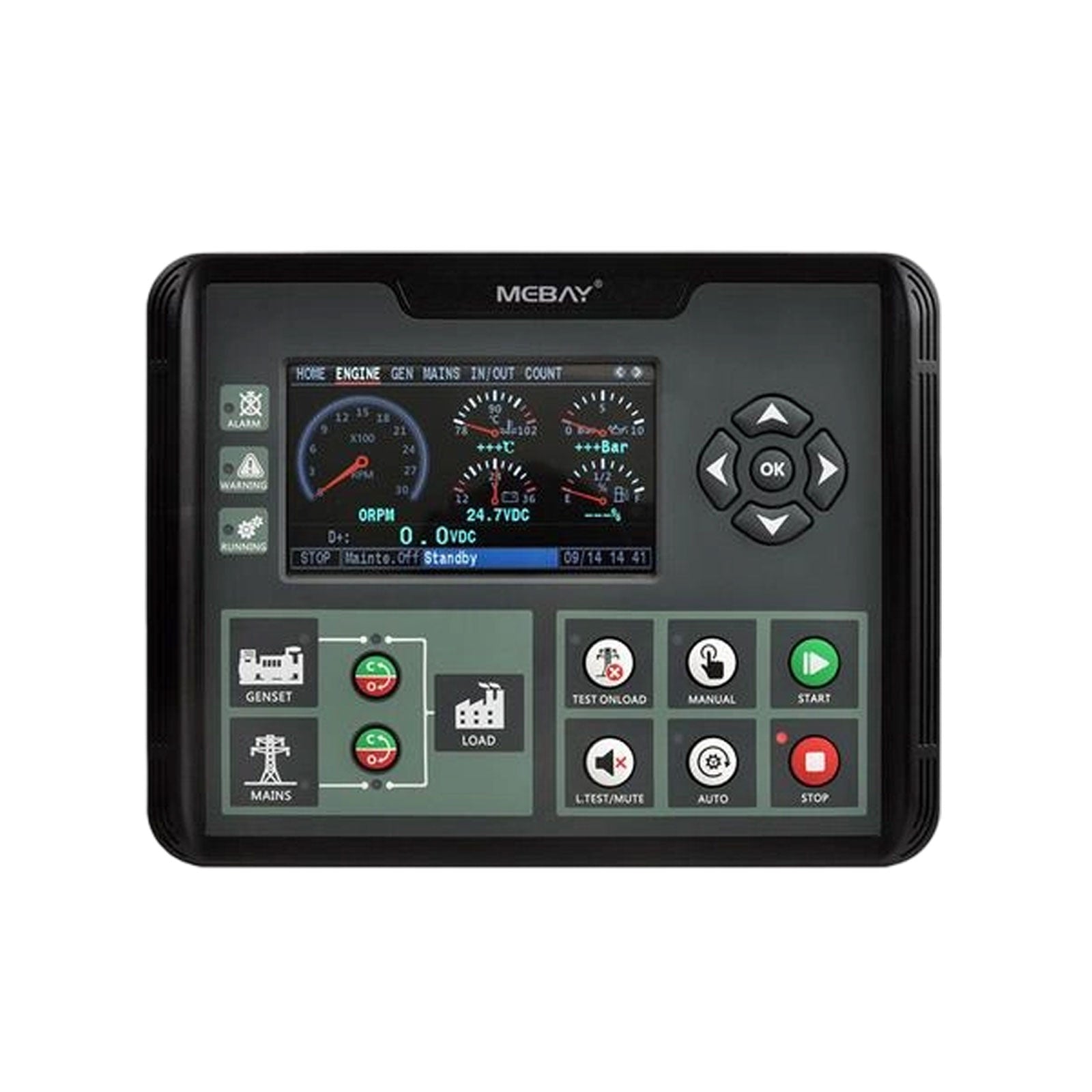

- Display: 4.3-inch colorful TFT multi-language LCD dashboard
- Panel Cutout Size: 186 × 142 mm, overall dimension 210 × 160 × 50 mm
- Weight: 0.9kg
- Front Panel Protection Grade: IP54 dustproof & waterproof with silicone sealing gasket
- Operating Temperature: -20℃ ~ +65℃
- Warranty: 12 months genuine factory warranty
- Certifications: CE, ISO9001
Common Equipment Failures Solved
- Generator cannot auto start after mains power loss: Mains voltage sampling wiring loose, AMF delay start parameter misconfigured
- DT1000 cloud platform cannot receive genset running data: RS485 bus wiring loose or reversed, Modbus address parameter mismatch
- Onboard relay burned when driving glow plug: Onboard contact capacity limited to 5A, install external Hongfa HAT700BI 70A heavy relay for current amplification
- Laptop cannot connect controller via RS485 communication: Use SG72A USB-RS485 adapter, confirm RS485 A/B wiring no reversal and matching baud rate
- Frequent low oil pressure / high water temperature alarm: SGPT110 pressure sensor damaged or threshold parameter misadjustment
- Old DSE6110 panel damaged and need replacement: DC62DR MK3 same mounting size and terminal definition, direct swap without cabinet wiring modification
