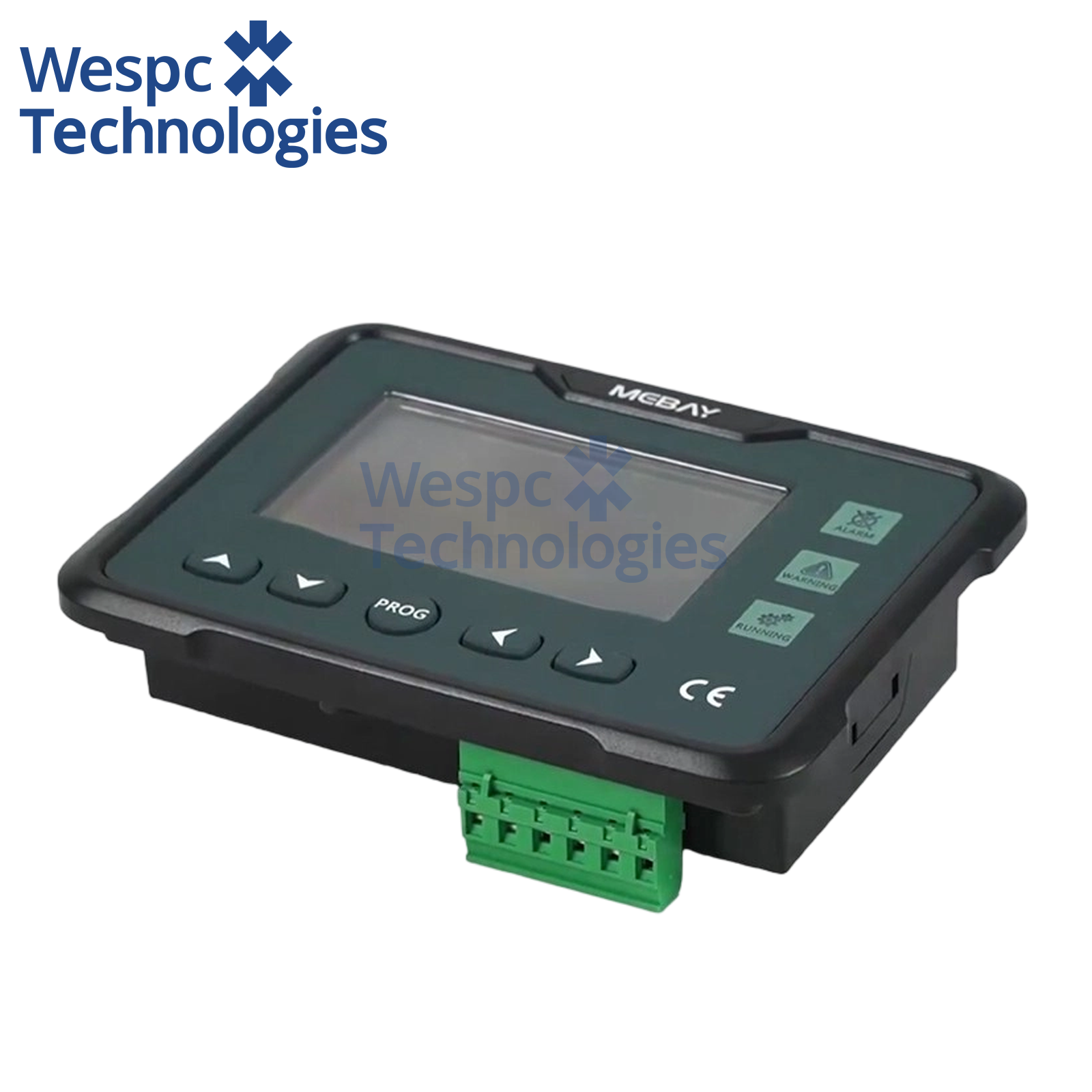

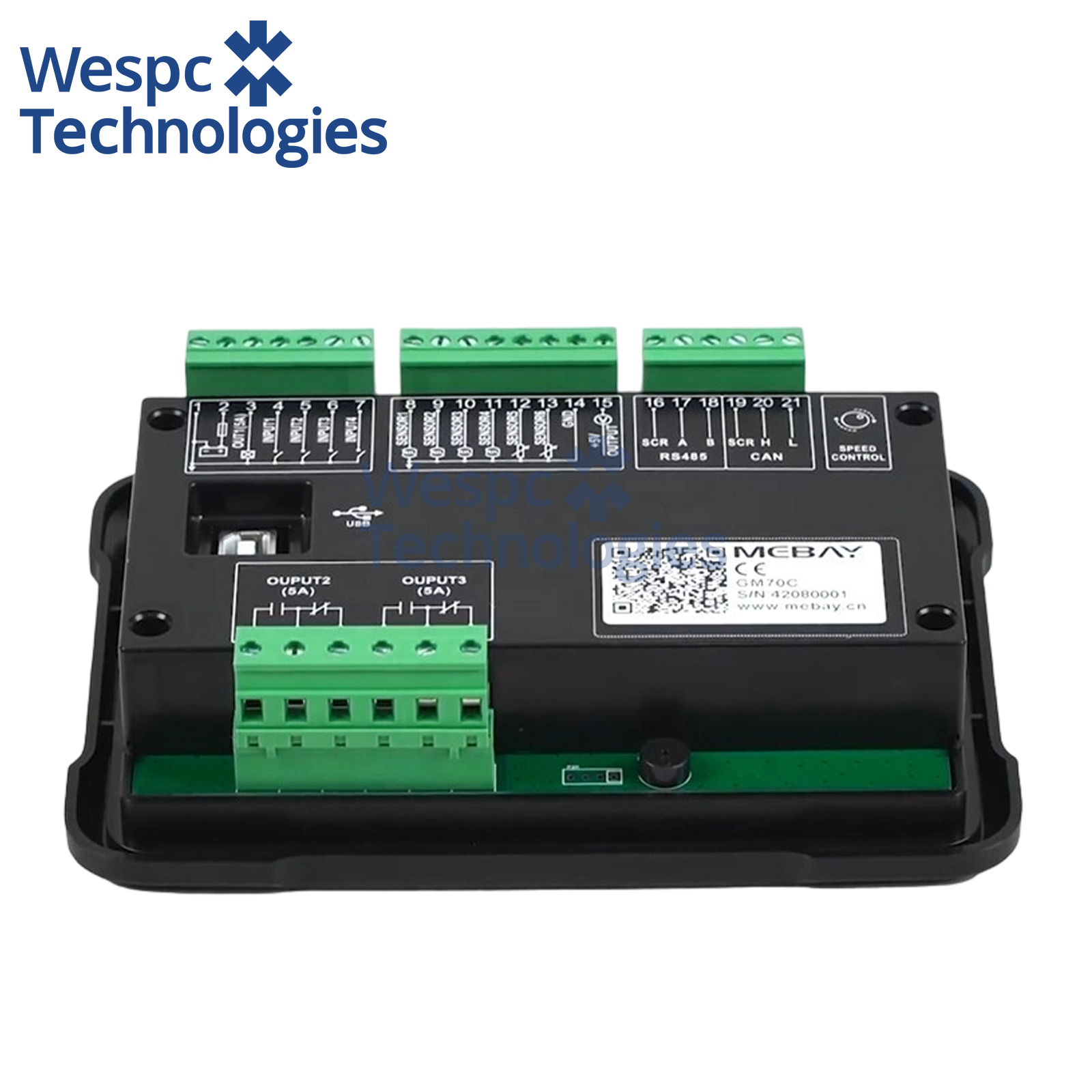

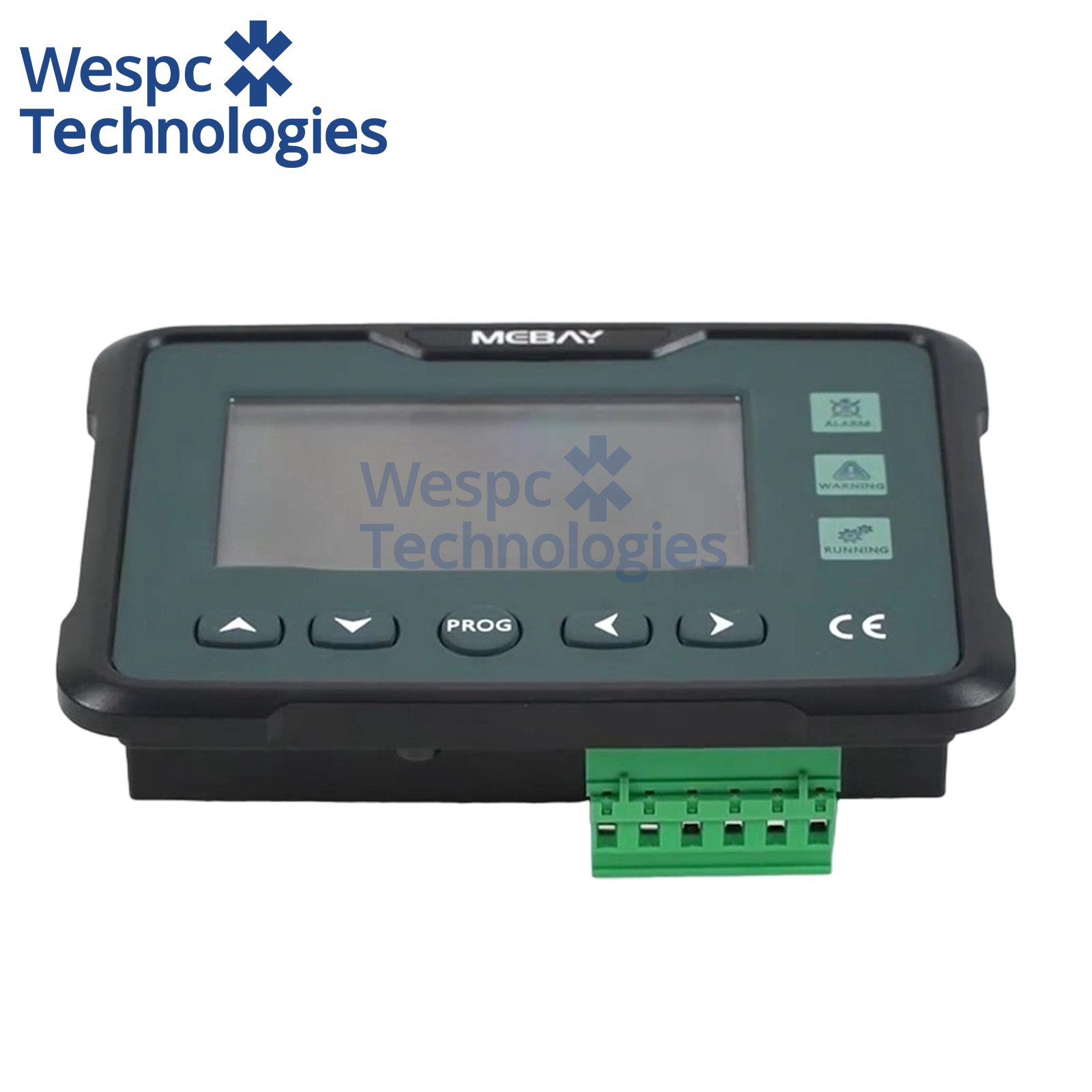

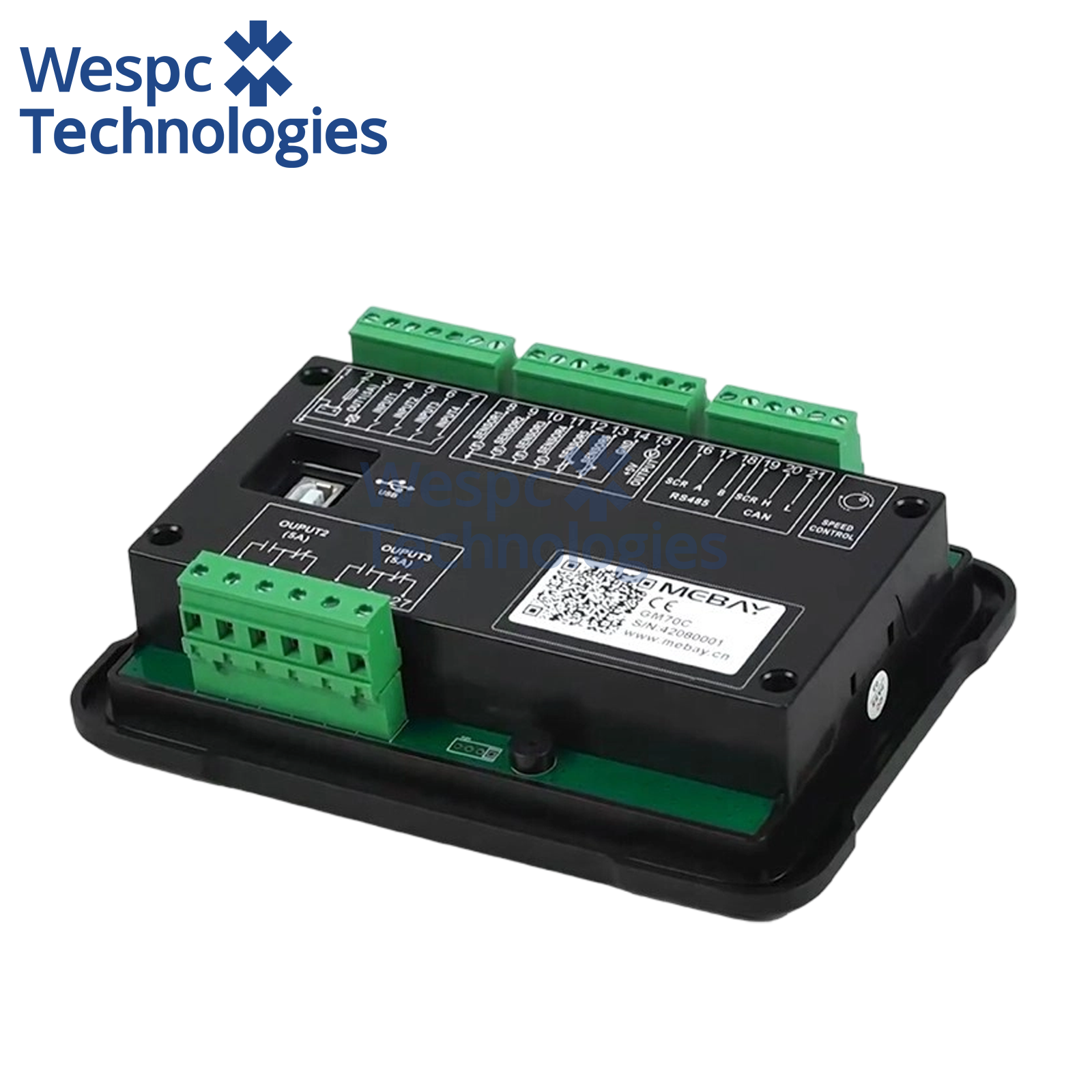

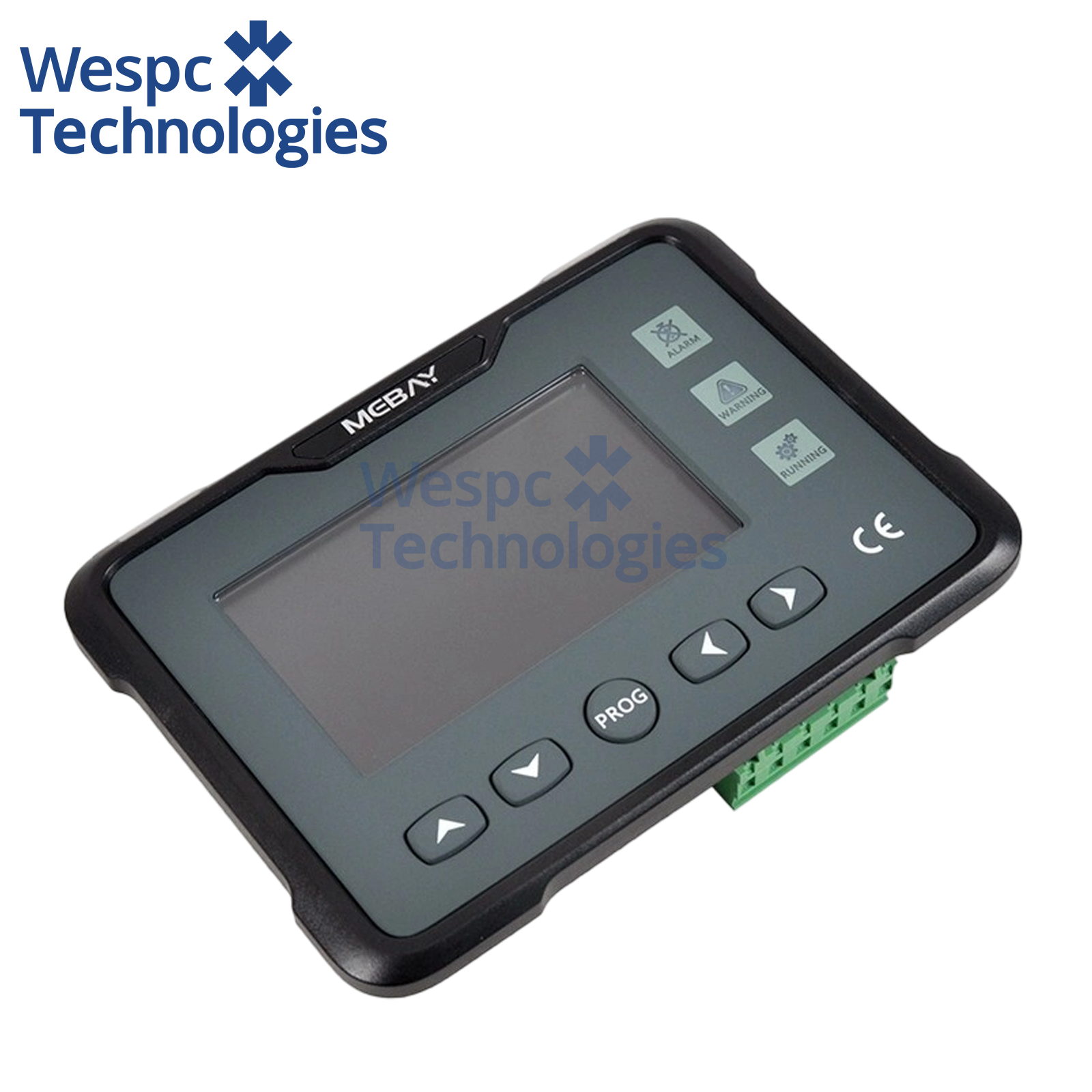

Original Mebay GM70CW 4.3 Inch Color LCD Engine Monitor CAN J1939 Genset Water Pump Diesel Engine Control Module Replacement Spare Part
Original Mebay GM70CW 4.3 Inch Color LCD Engine Monitor CAN J1939 Genset Water Pump Diesel Engine Control Module Replacement Spare Part
No se pudo cargar la disponibilidad de retiro
Original Mebay Digital Diesel Engine Water Pump Gauge GM70CW Oil Pressure Gauge

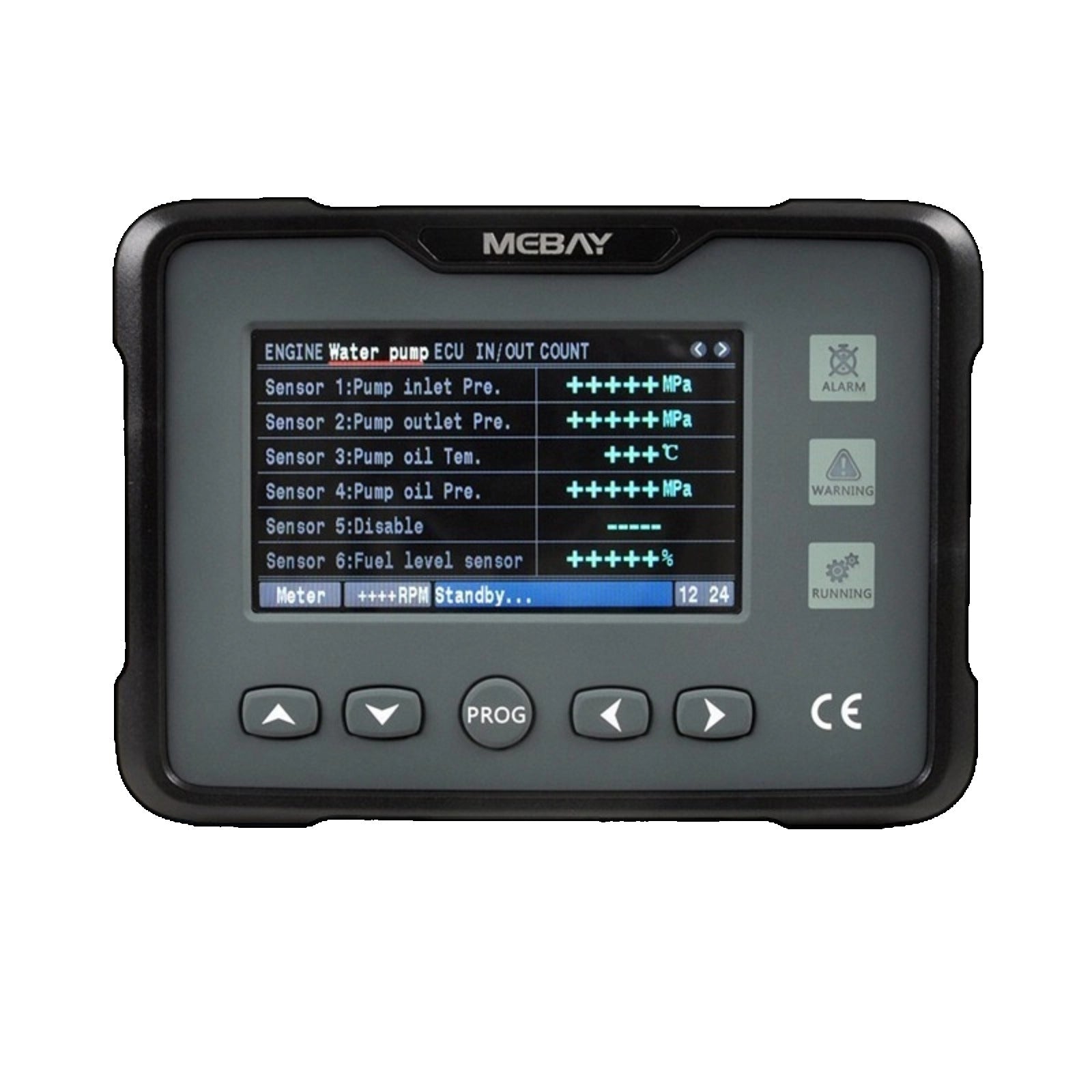

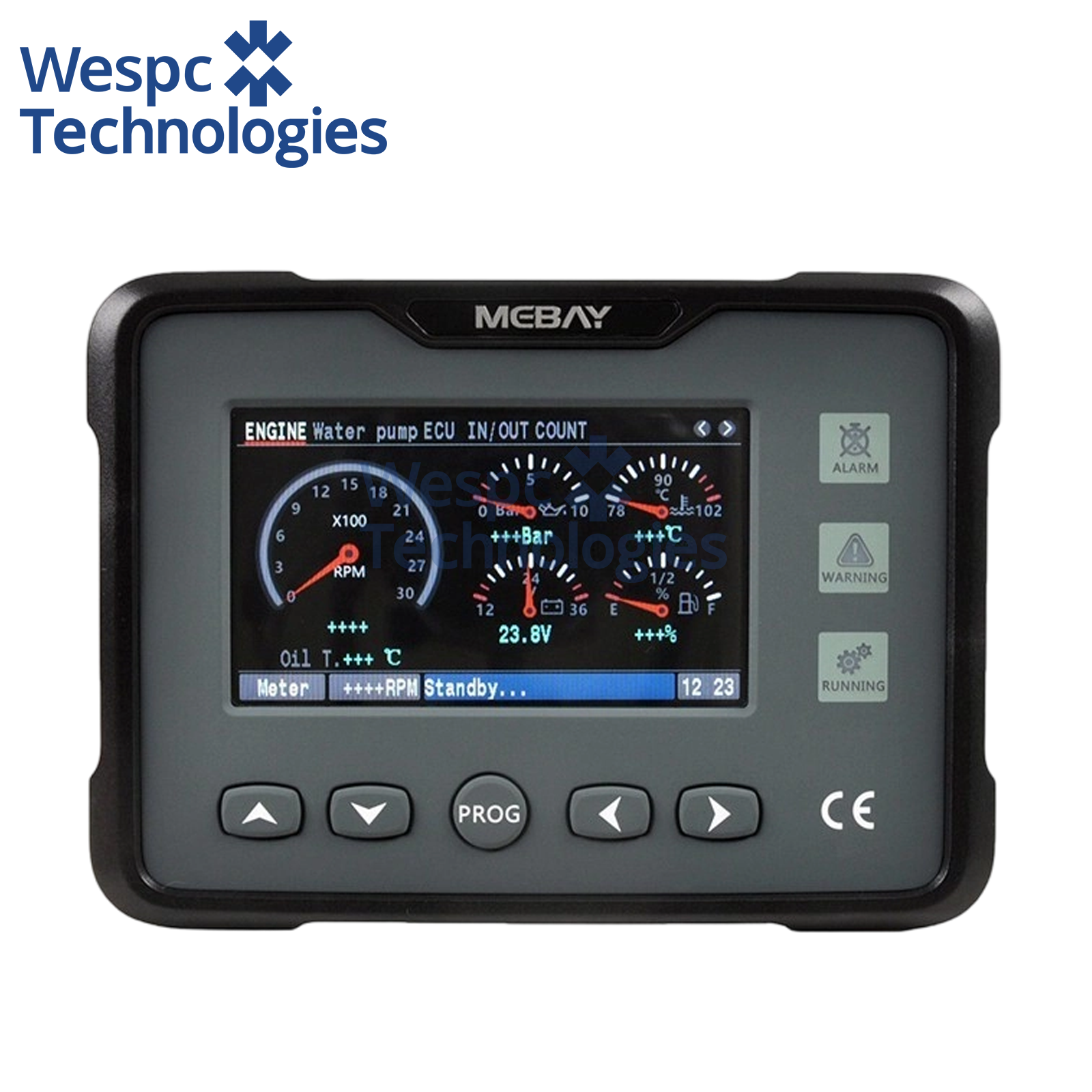

Diesel engine driven water pump meter, 4.3 inch color LCD screen, CAN interface, RS485 interface, USB interface, can set the main engine or auxiliary engine working mode, alarm protection output, water level + water pressure + fuel level sensor input. Speed can be adjusted by panel buttons and rotary encoder.
|
Options |
Parameters |
|
Working voltage |
DC8V----36V Continuous |
|
Power consumption |
Standby:24V:MAX 1W |
|
Working:24V:MAX 3W |
|
|
MAX Accumulating Time |
99999.9Hours（Min Store time:6min） |
|
Programmable Relay output 1 |
Max 5Amp DC+VE Supply voltage |
|
Programmable Relay output 2 |
250V/5 AMP Non-contact normally Open/Closed output |
|
Programmable Relay output 3 |
|
|
Switch value input |
Available if connecting with Battery - |
|
Working condition |
-25-65℃ |
|
Storage condition |
-40-85℃ |
|
Protection Level |
IP65:when waterproof rubber gasket is added between meter and its panel |
|
Insulation strength |
Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
|
Overall dimension |
175mm*128mm*39mm |
|
Panel cutout |
152mm*112mm |
|
Weight |
0.5Kg |
