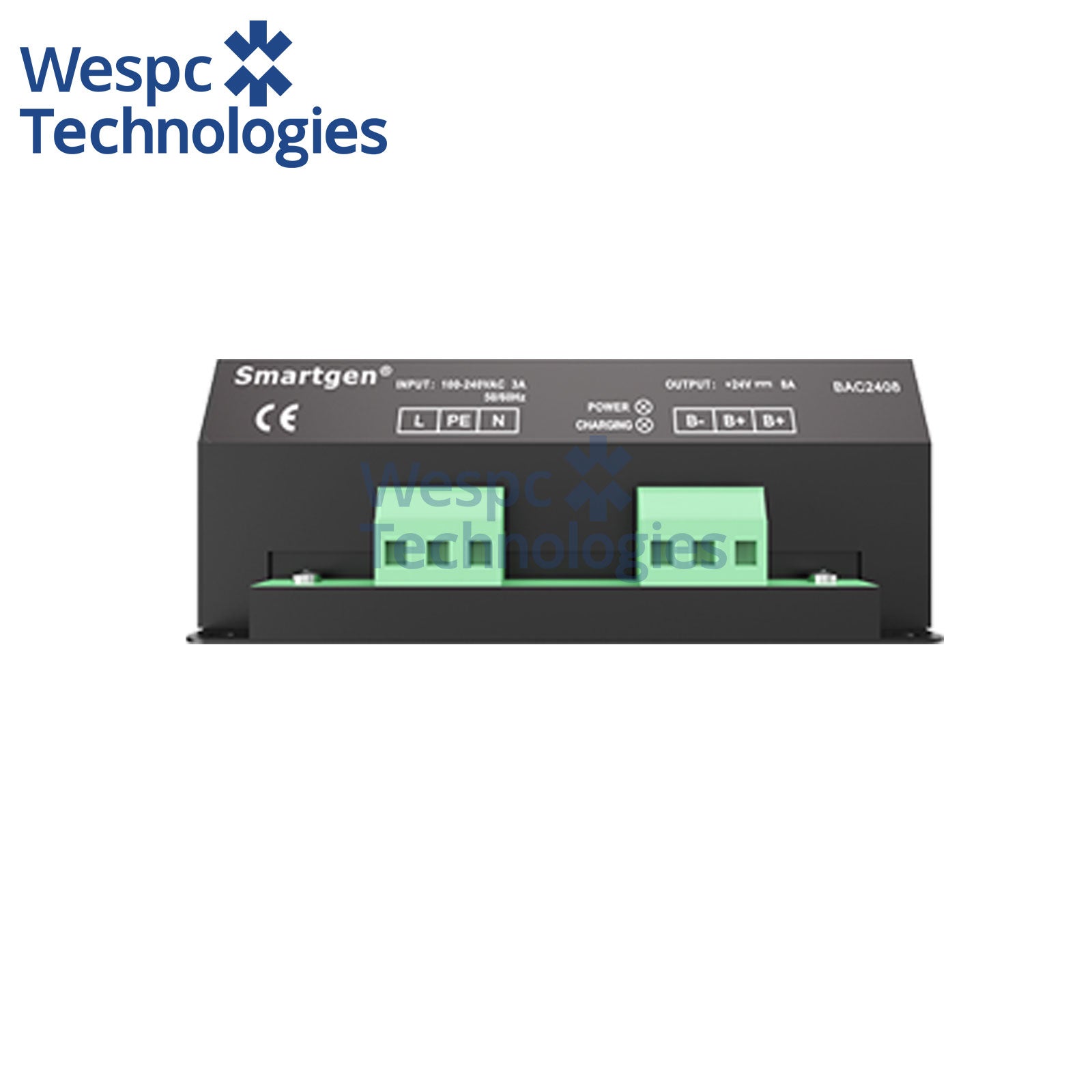

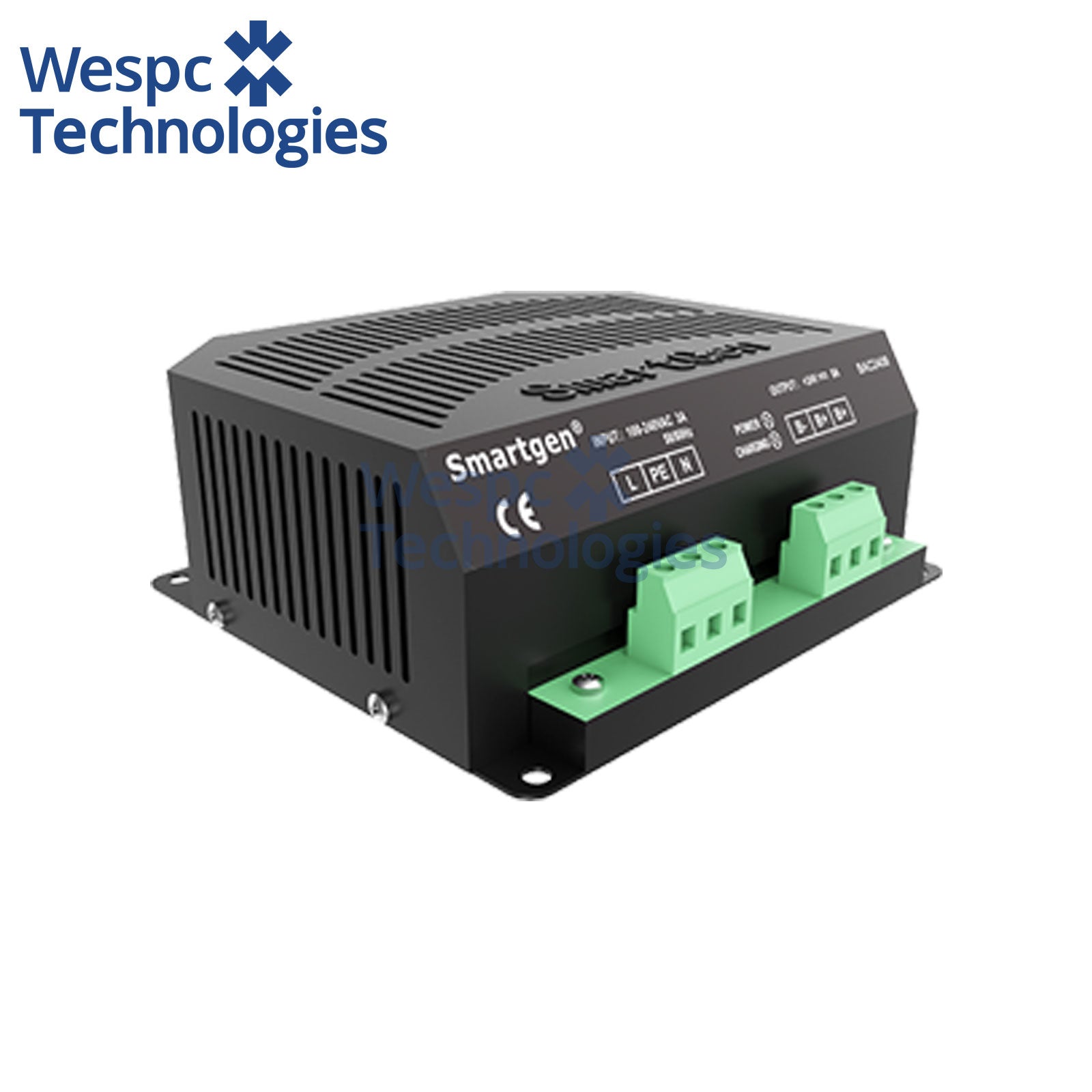

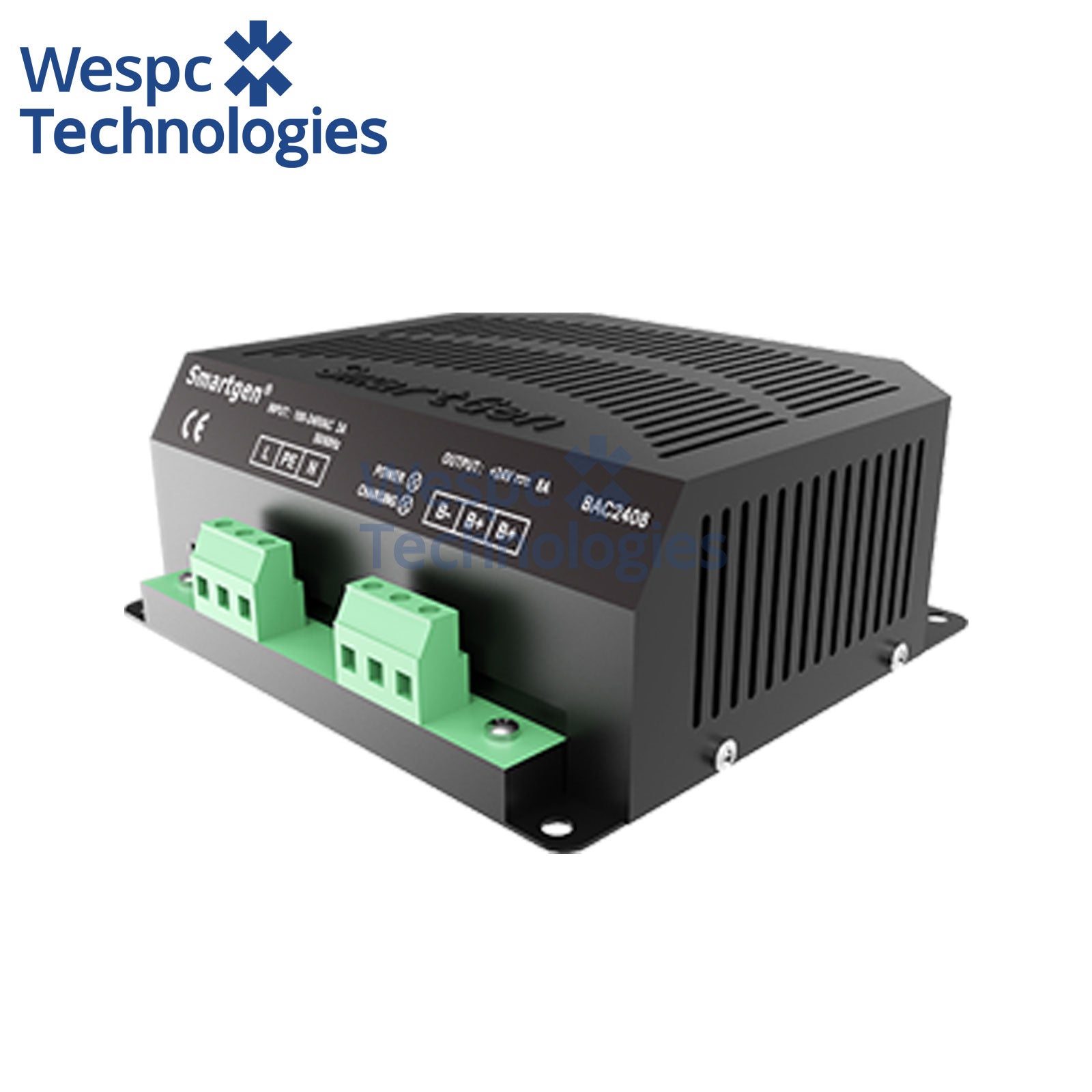

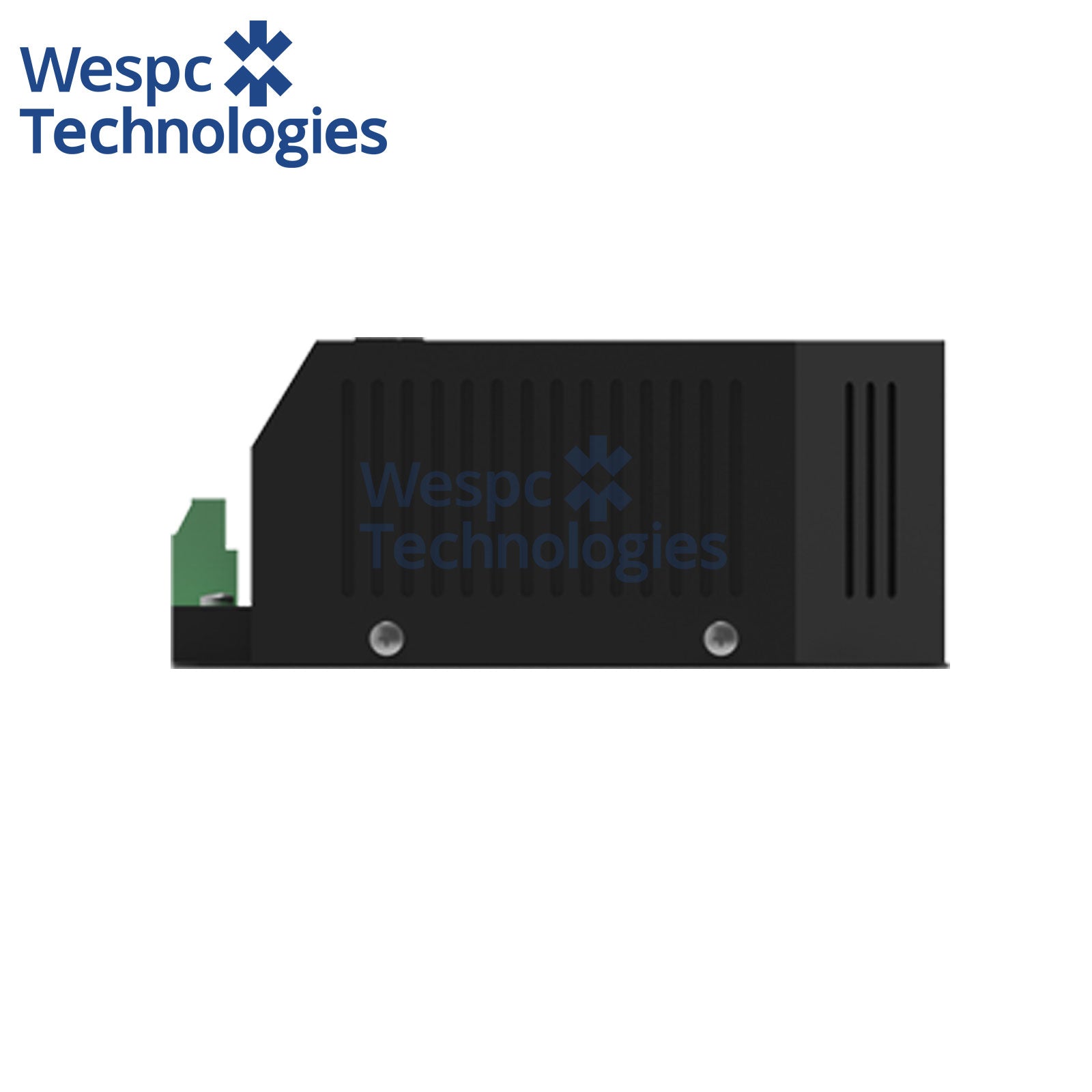

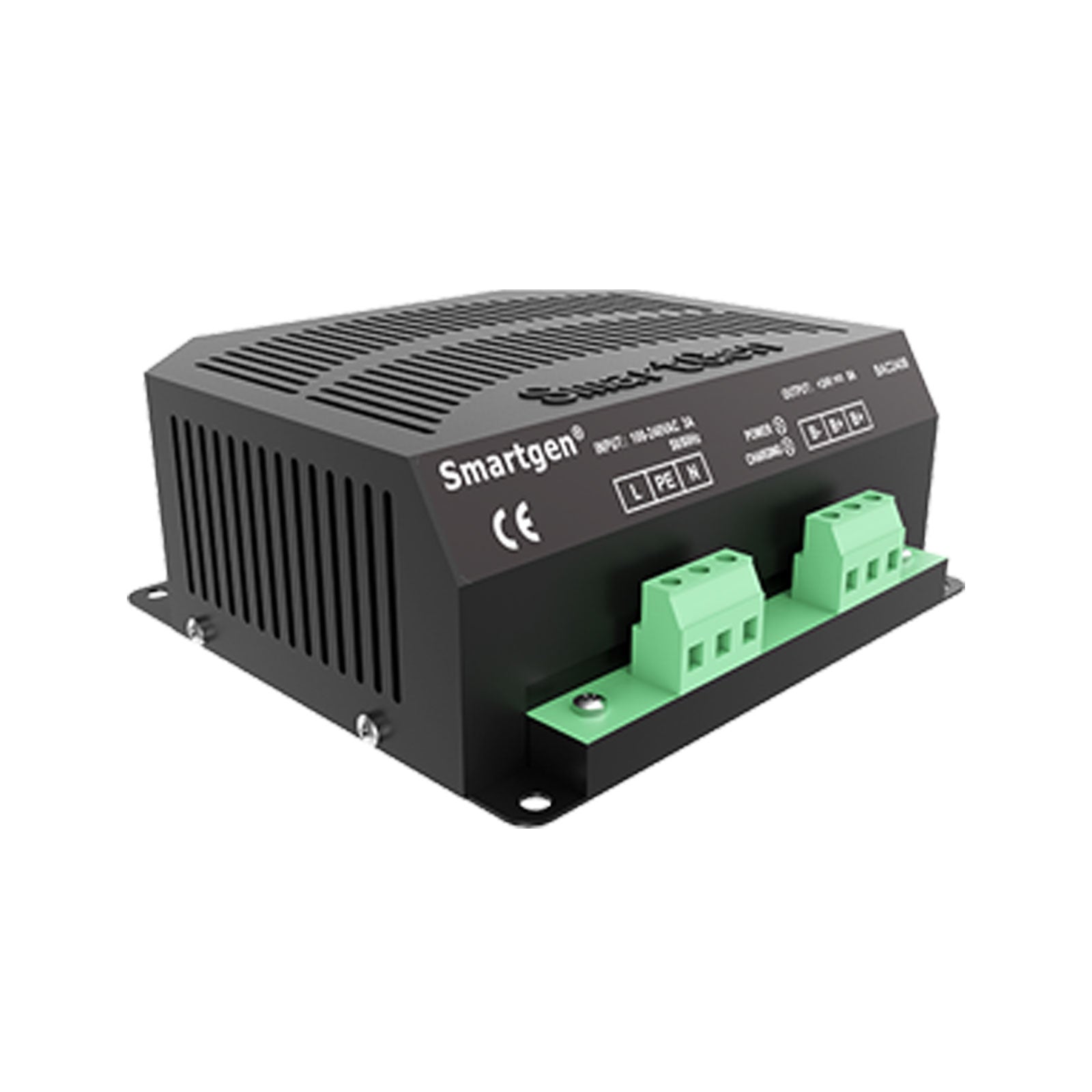

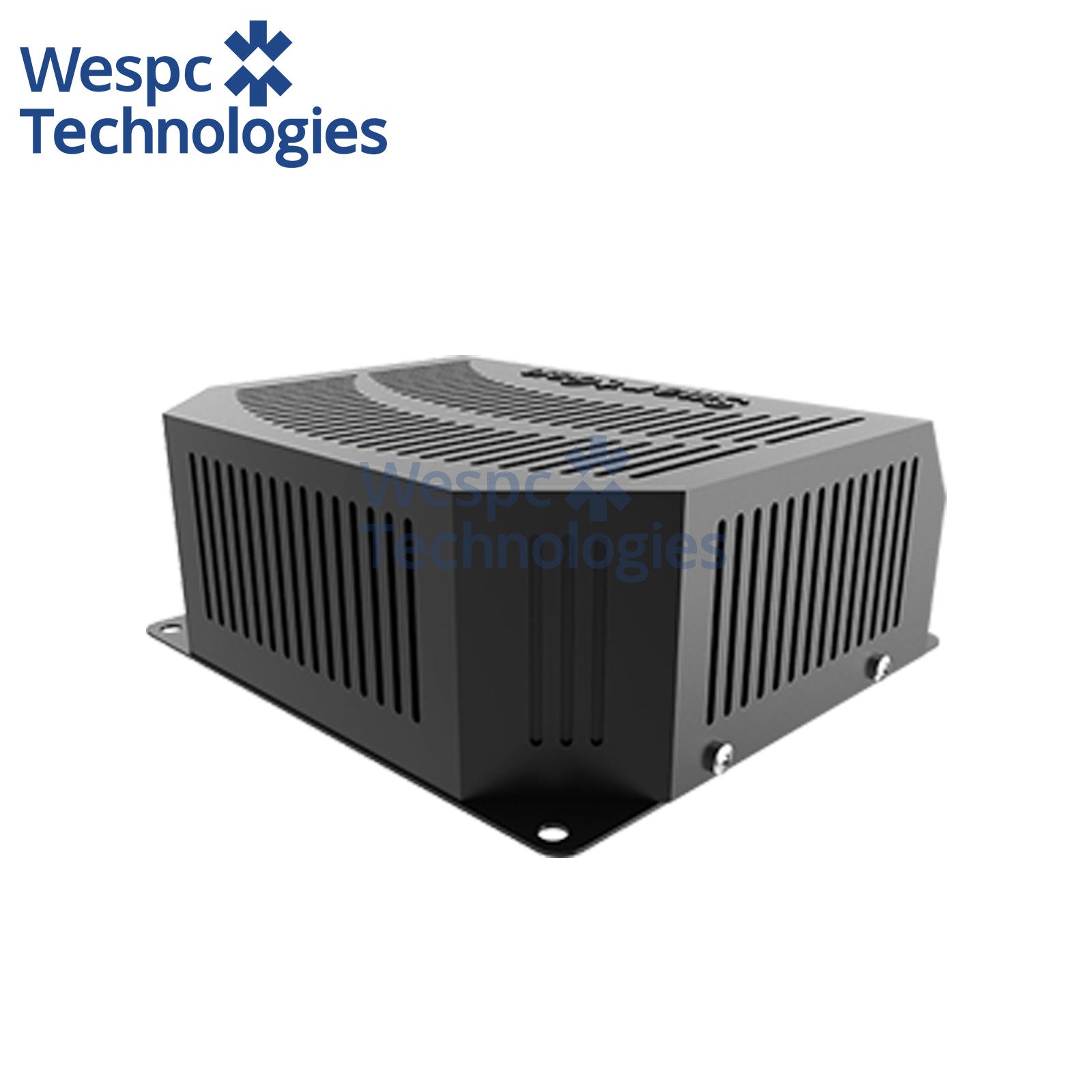

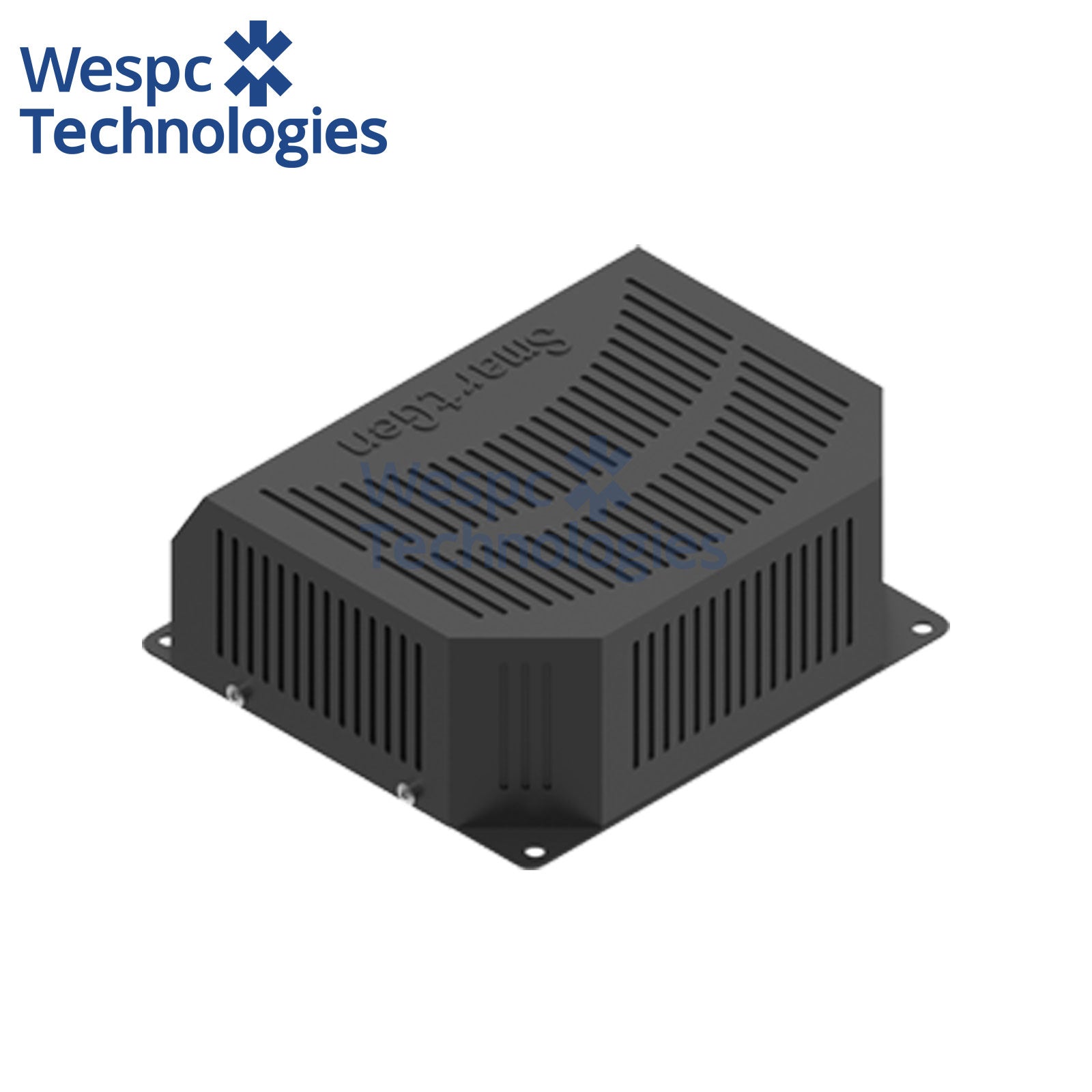

SmartGen BAC2408 8A 24V intelligent Floating Battery Charger Original Diesel Generator Auto Power
Module
BAC2408
Floating charge, two-stage charge, Power factor compensation, 24V8A
Working PowerRange : AC(100~240)V
Overall Dimension : 145.5*131*55
Installation Dimension : 130*120
Working Temperature : (-30~+55)°C
weight : 0.9kg
Fit with up-to-date power supply device, float charger BAC2408 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS
Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in PFC circuit can calibrate the power factor above 0.99;
Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly;
Suitable for 24V storage battery and the rated current is 8A;
LED display: Power indication (Green light) and charging indication (Red light).
