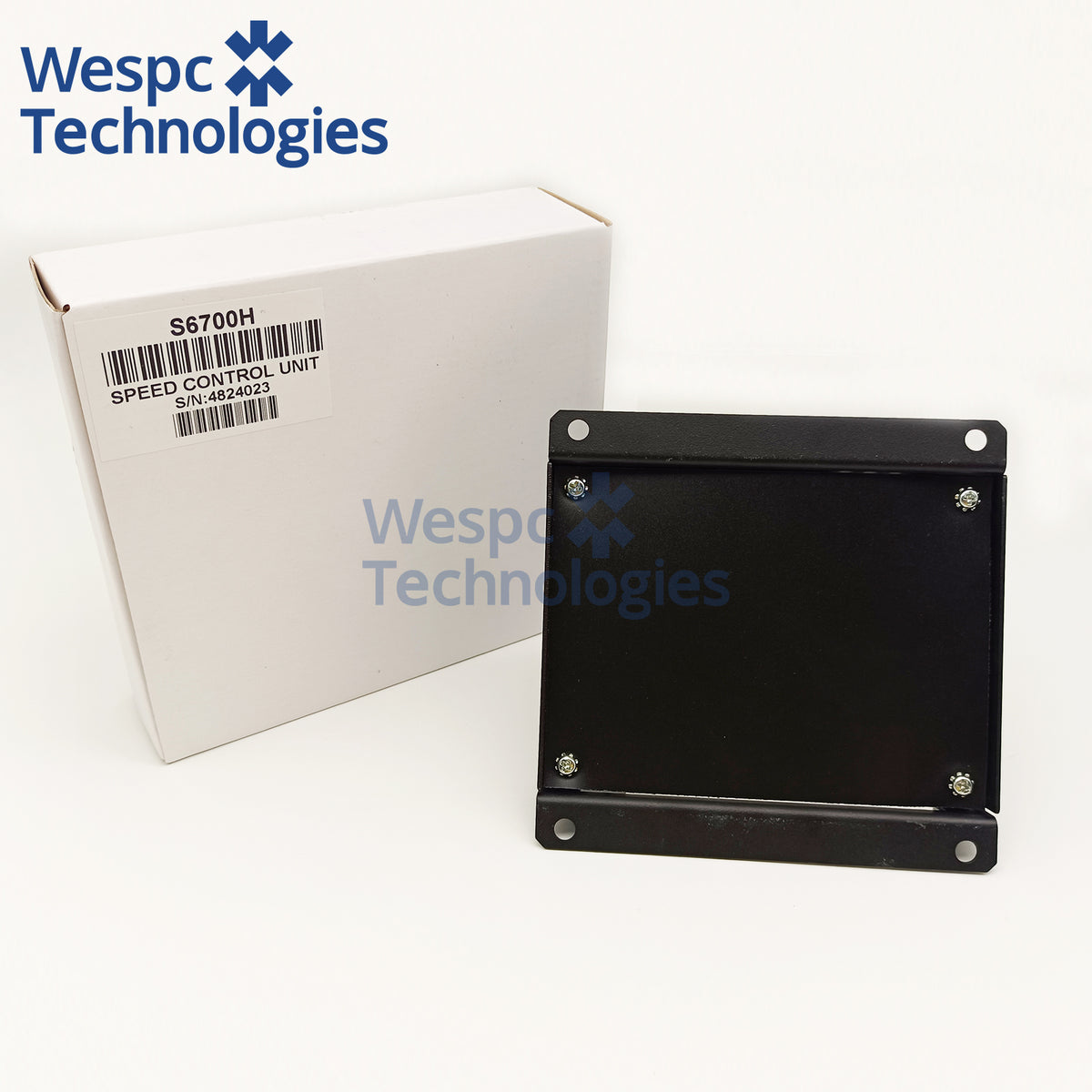

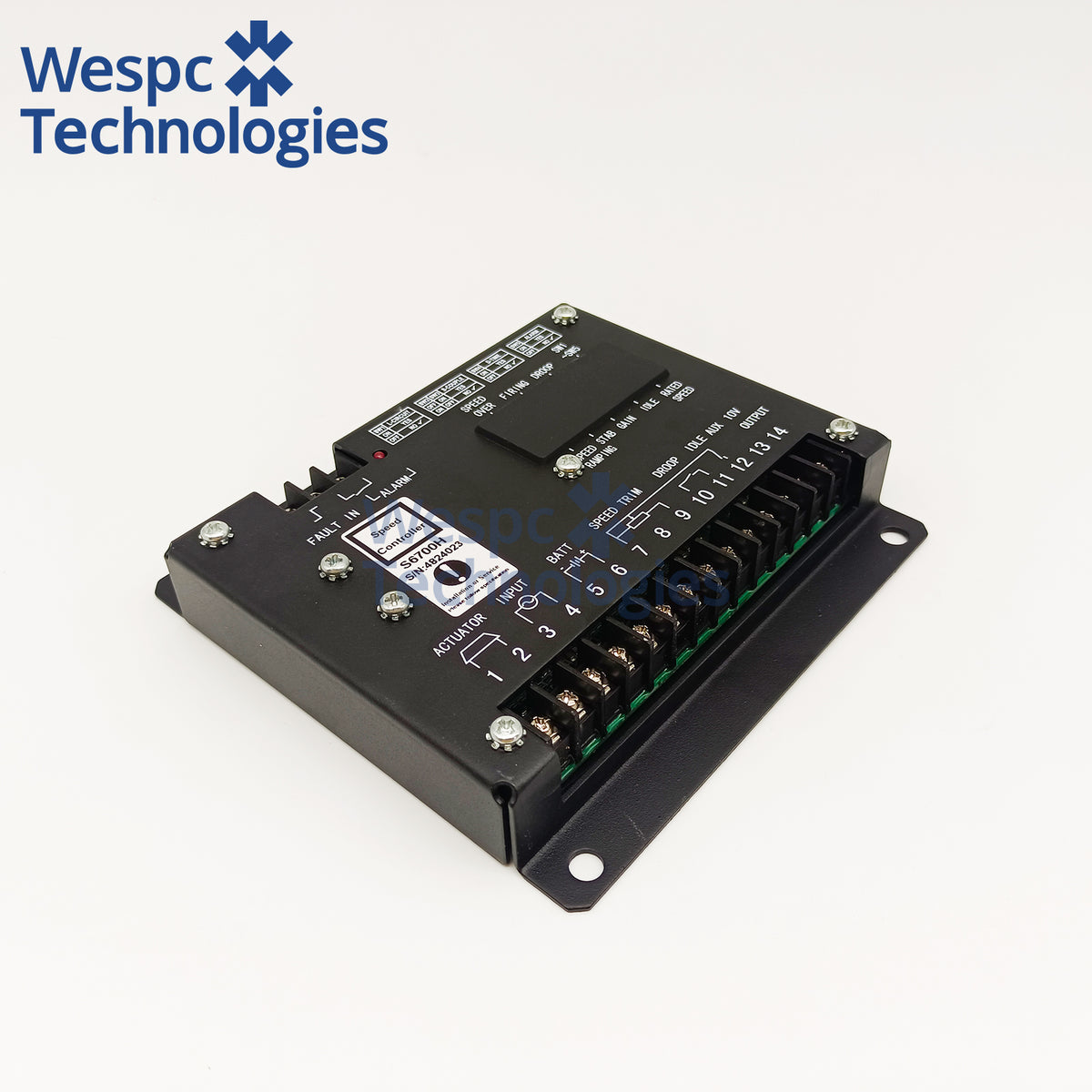

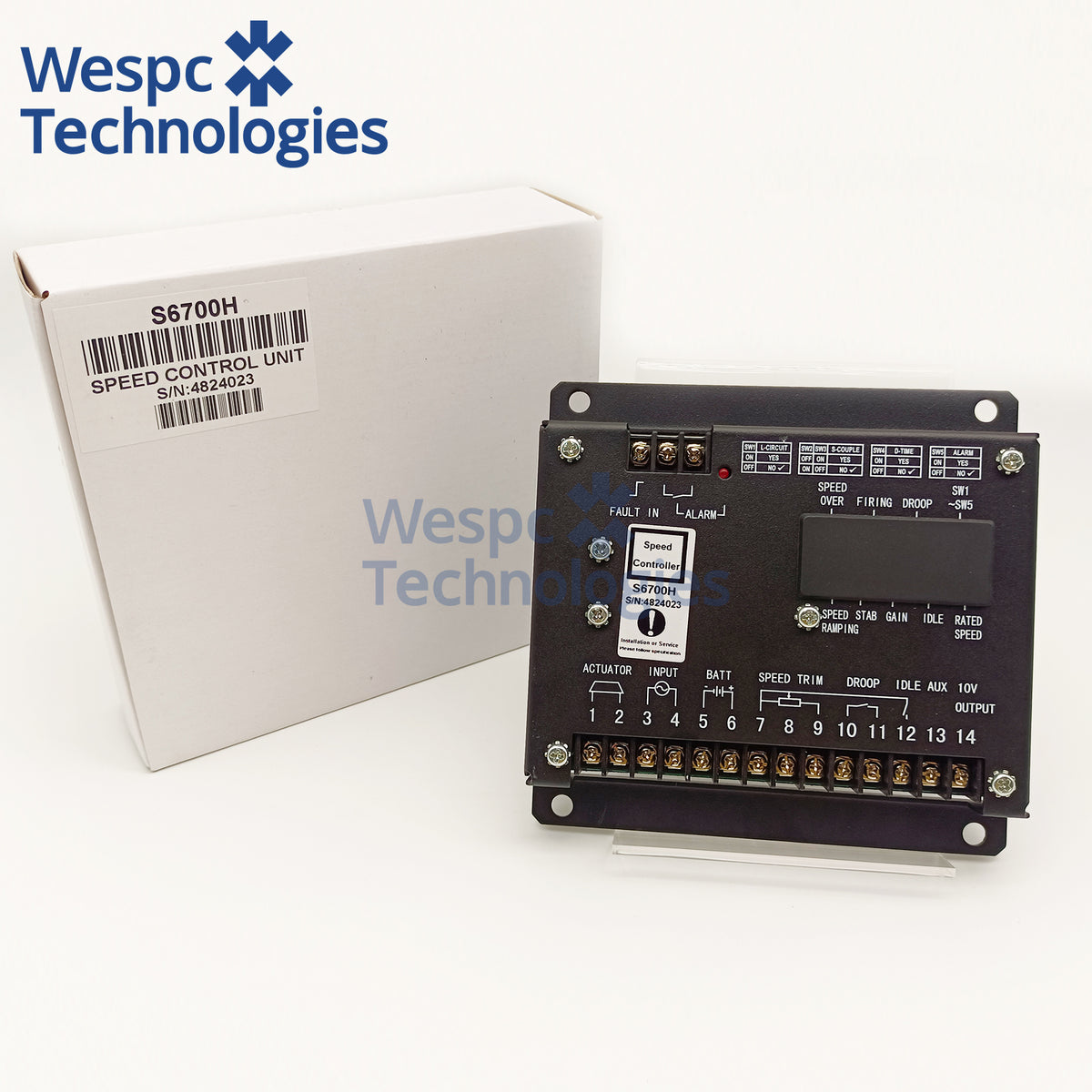

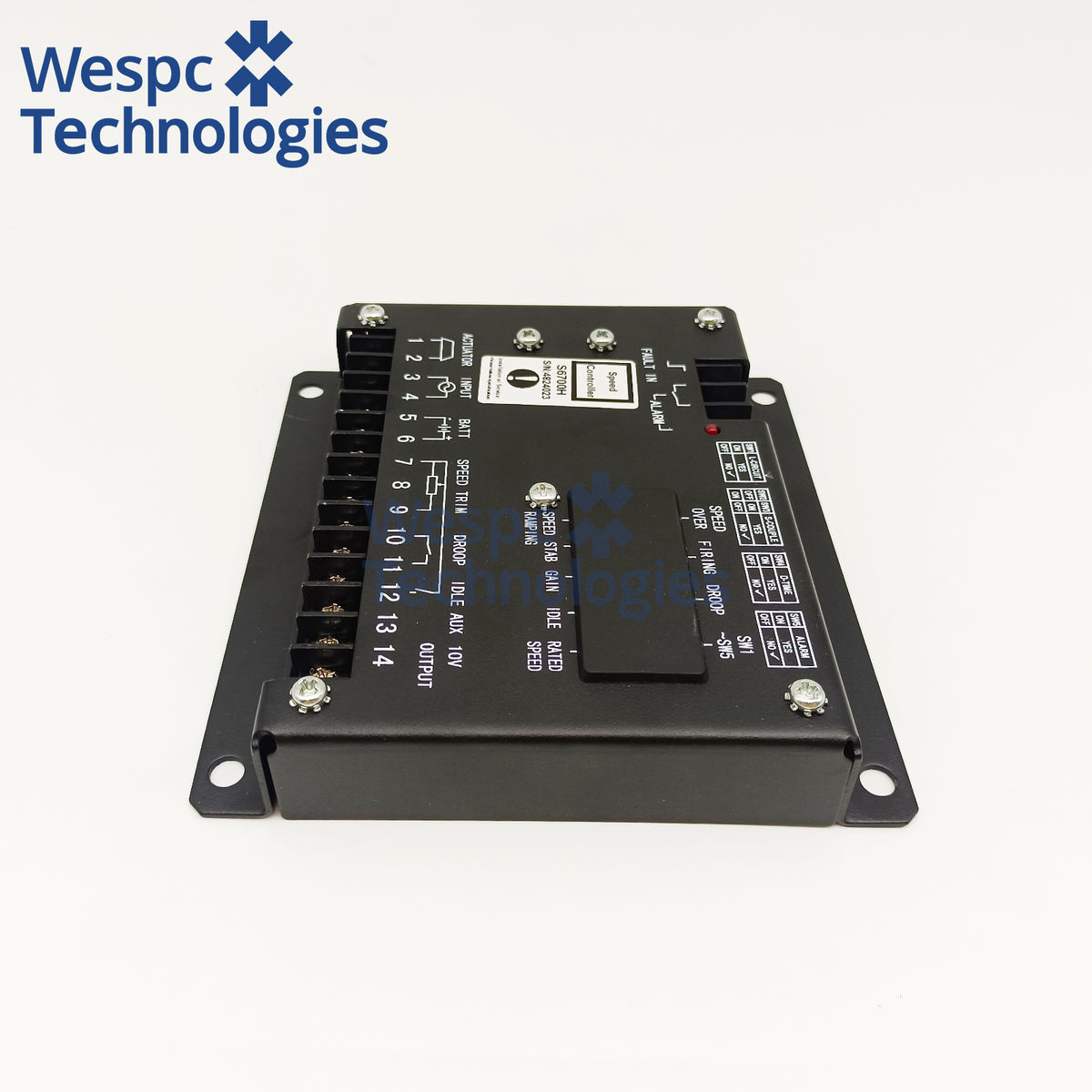

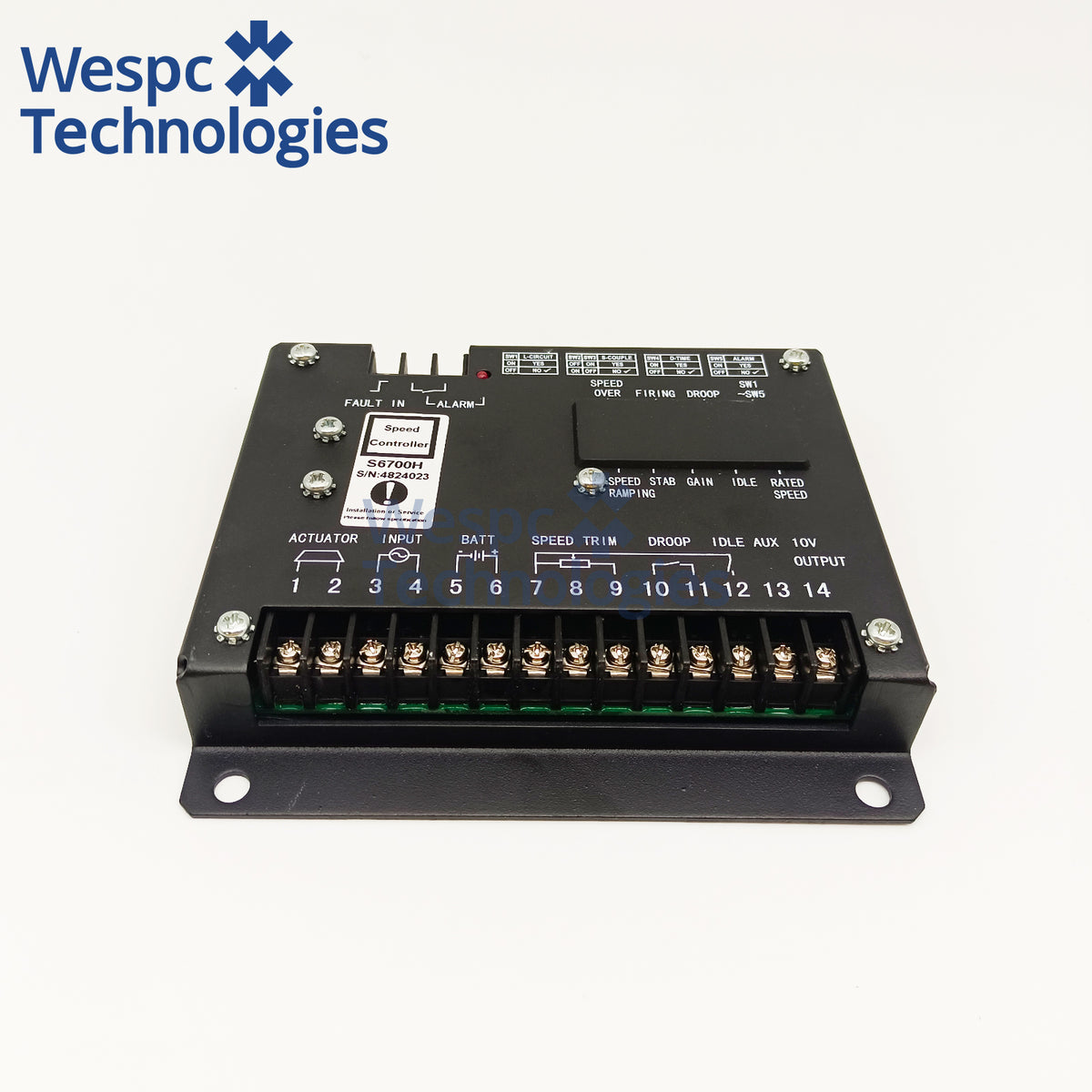

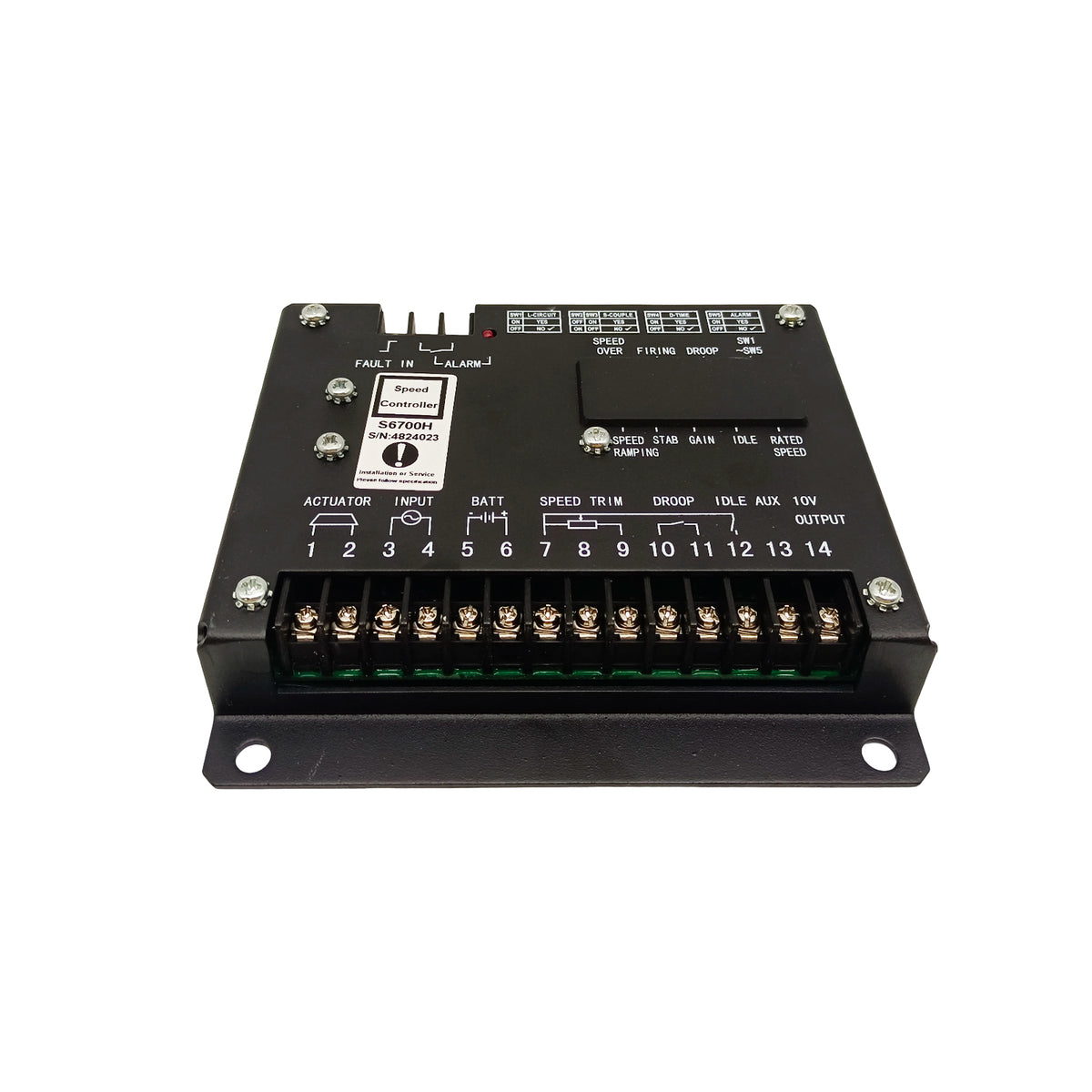

S6700H Speed Controller 24V Electronic Governor Compatible For Cummins Diesel Generator Governor

Specifications

• Model: S6700H Aftermarket Replacement
• Supplier: Wespc
• Type: Electronic Speed Governor
• Supply Voltage: 24VDC
• Actuator Output Current: 2.5A~10A continuous
• Speed Sensor Input: 1~20V AC magnetic pickup signal
• Speed Adjust Range: ±100RPM
• Operating Temperature: -40℃ ~ +80℃
• Relative Humidity: 95% non-condensing

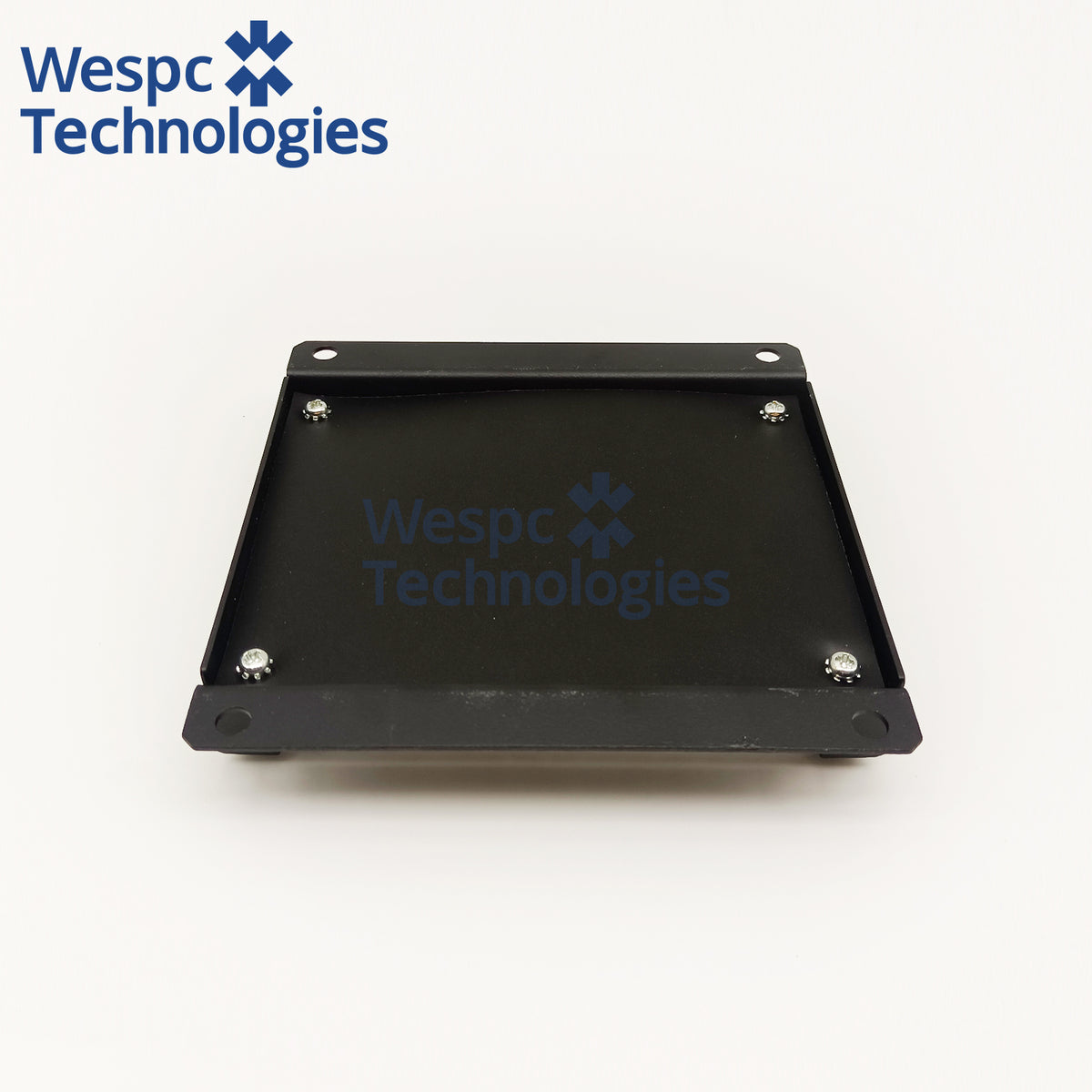

• Mounting: Panel mounting with fixing holes
• Control Algorithm: Closed-loop PID control
• Net Weight: 0.6kg
• Warranty: 12 months factory warranty
