TK15H DC8-120V 50A Battery Coulometer Battery Tester Coulometer Voltmeter

TK15H DC8-120V 50A Battery Coulometer Battery Tester Coulometer Voltmeter

$32.00 USD
$0.00 USD $32.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color
ships from

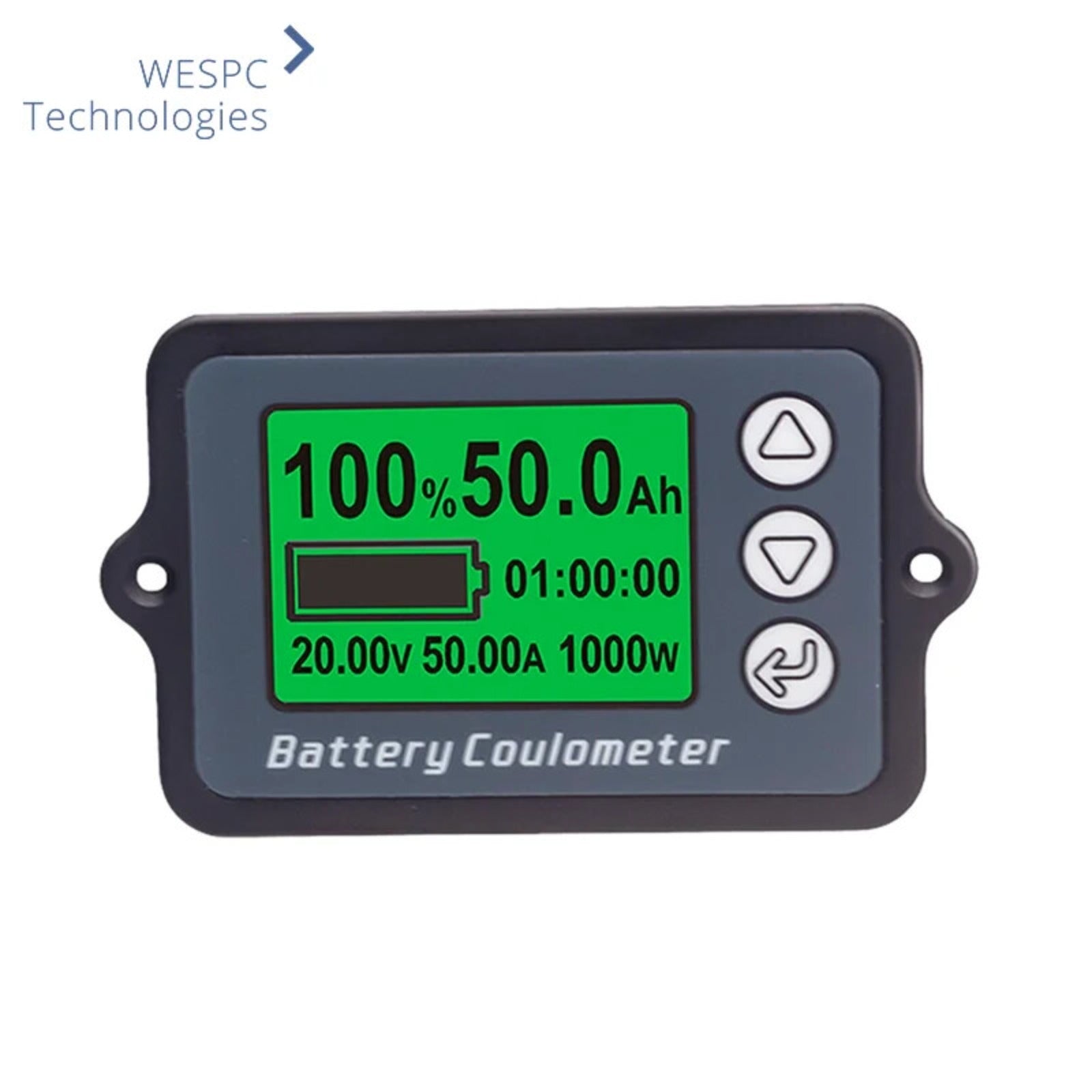

TK15H DC8-120V 50A Battery Coulometer for LiFePO/Lead Professional Precision Battery Tester Coulometer Voltmeter





Overview:


TK15 is a kind of high precision current type battery capacity tester(also known as coulometer)，which can test the voltage，current and capacity of battery to help users know the state of battery in time. TK15 has memory function. It is suitable for mobile and portable equipment、e-bike、balance car、cleaning machine、instrument、ups and so on.

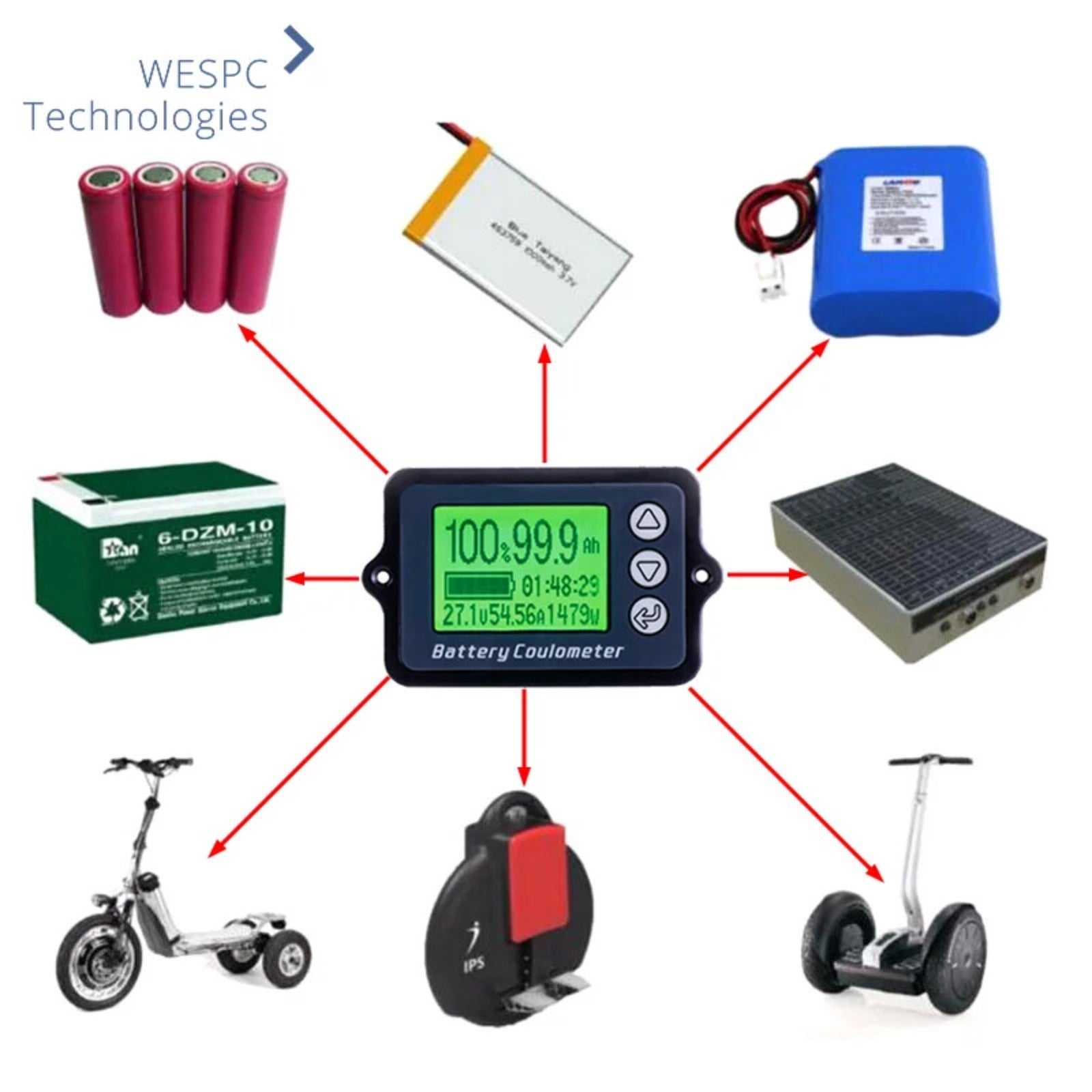

Application:

TK15 is suitable for lithium battery，lithium iron phosphate battery ,lead-acid battery and nickel-metal hydride battery, which working voltage is from 8V to 120V.

Desciption:

  • Type: Battery tester

  • Model: TK15

  • Operating voltage range: DC8-120V

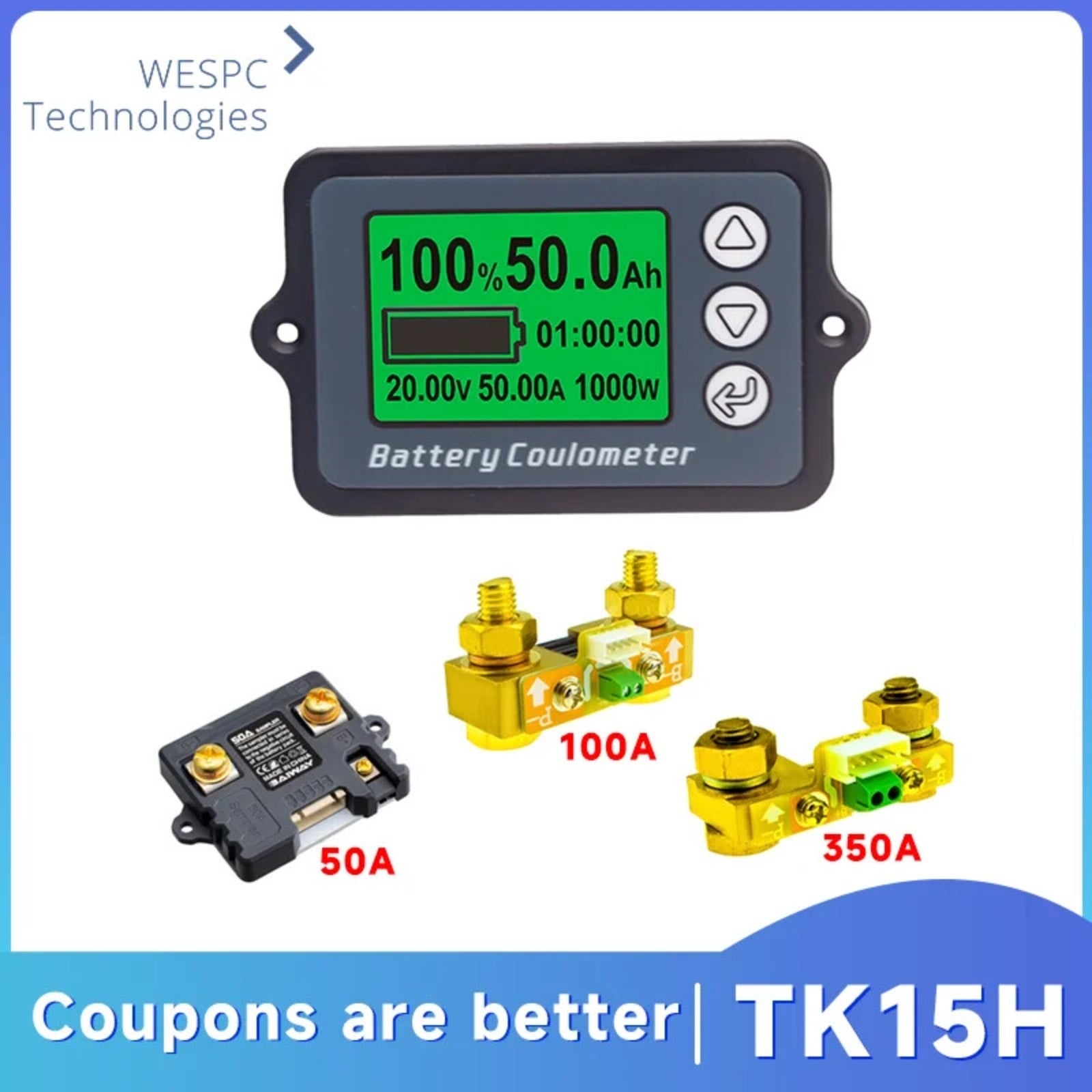

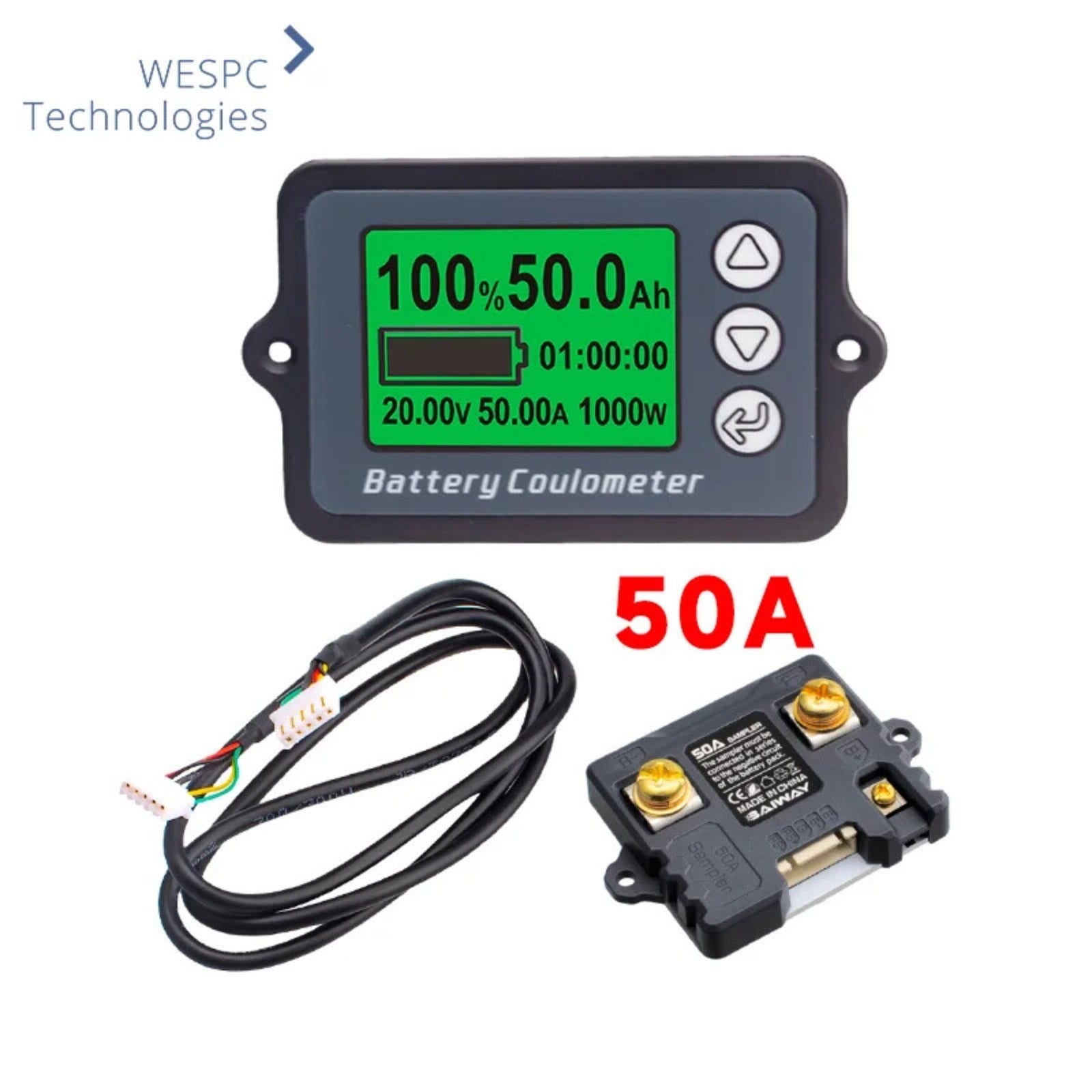

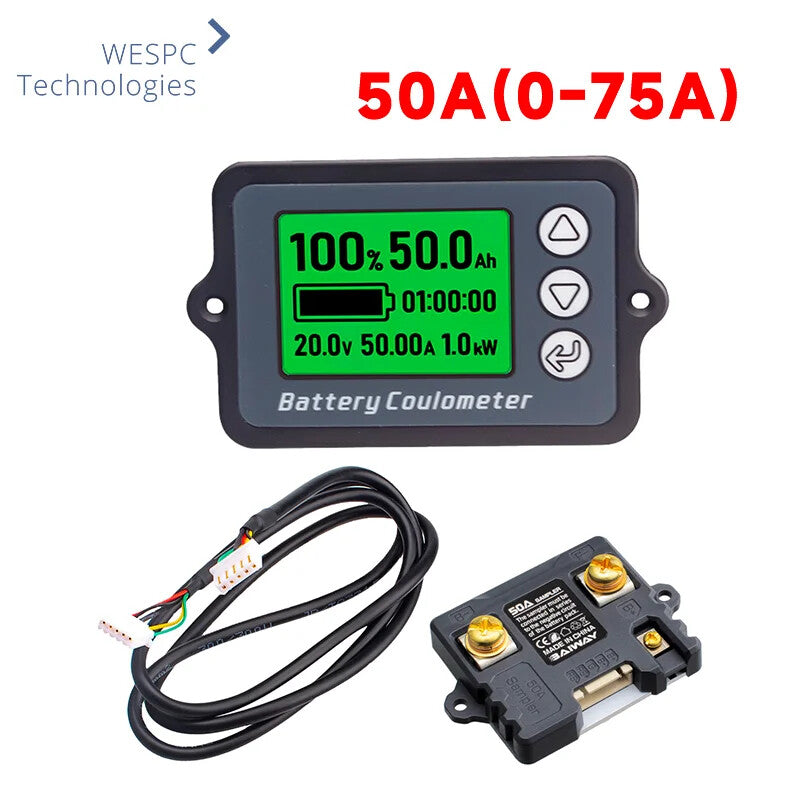

  • Current: 50A(0-75A)/100A(0-150A)/350A(0-500A)

  • Overall Size: 66x40x10mm

  • Display area size: 32x23mm

  • External normal Sampler Size:23x18x5mm

Technical Parameters:

  • Working power consumption: 8.0mA (Max:10.0mA)

  • Standby power consumption: 0.5mA (Max:0.8mA)

  • Sleep power consumption: 50uA (Max:60uA)

  • Voltage acquisition accuracy: +/-1.0%

  • Current acquisition accuracy: +/-1.0%

  • Using ambient temperature rang: 0-35C

  • Backlight on current: 40mA (Max:50mA)

  • Backlight off current: 30mA (Max: 40mA)

  • Battery capacity setting value: 0.-590A

Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer.

Features:

  • 1.The empty and full voltage of battery can be adjusted

  • 2.The backlight automatic open when using

  • 3.Automatic memory function when power down

  • 4.Fast response rate

  • 5.Low power consumption, automatic wake-up

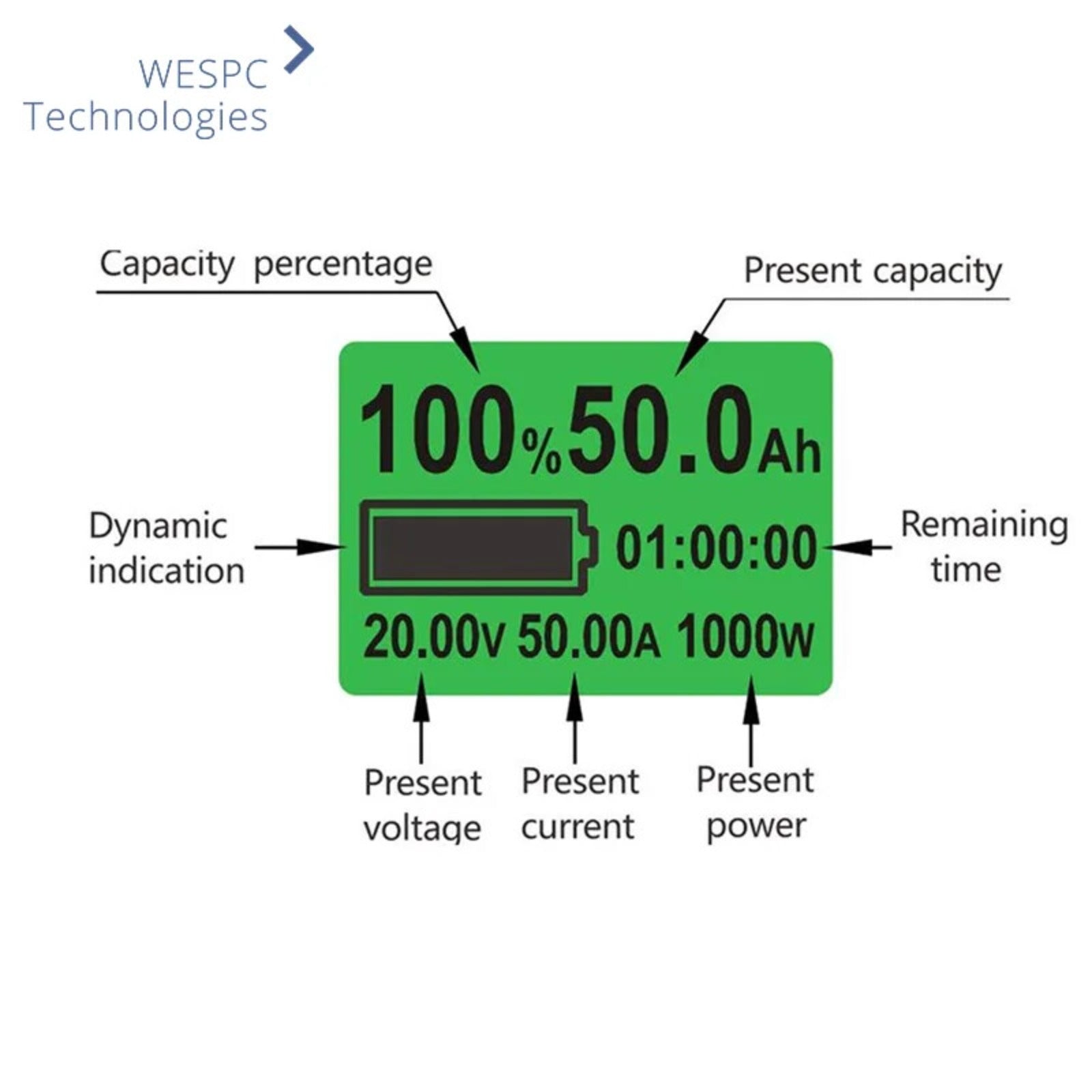

Display:

  • 1.Residual capacity of battery (Ah or mAh)

  • 2.Capacity percentage and totem pole display

  • 3.Battery voltage

  • 4.Battery current

  • 5.Powe output

  • 6.Remaining time of charge and discharge

Sketch：

Wiring Diagram
