Oil Pressure Sensor 185246190 for Perkins 403D-11 403D-15 403C-15 404C-22 404C-22T 404D-22
Oil Pressure Sensor 185246190 for Perkins 403D-11 403D-15 403C-15 404C-22 404C-22T 404D-22
Precio habitual
$45.67 USD
Precio habitual
$45.67 USD
Precio de oferta
$45.67 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

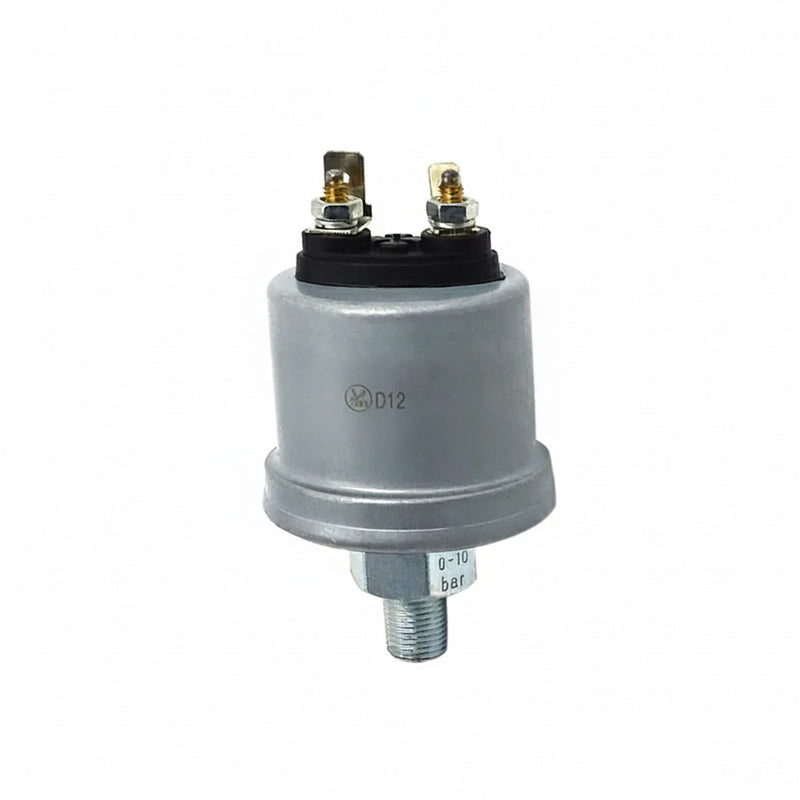

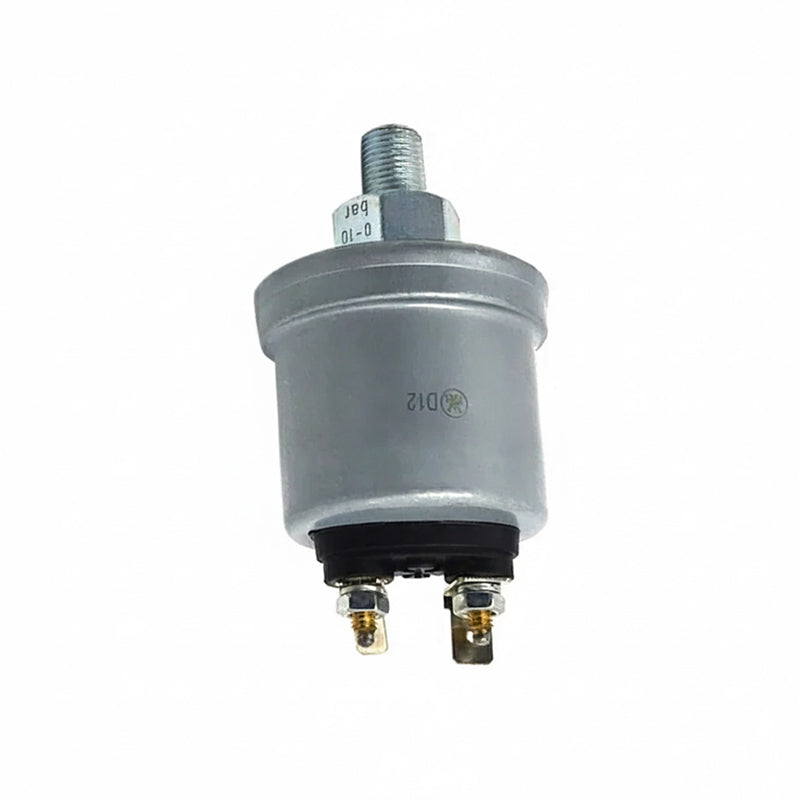

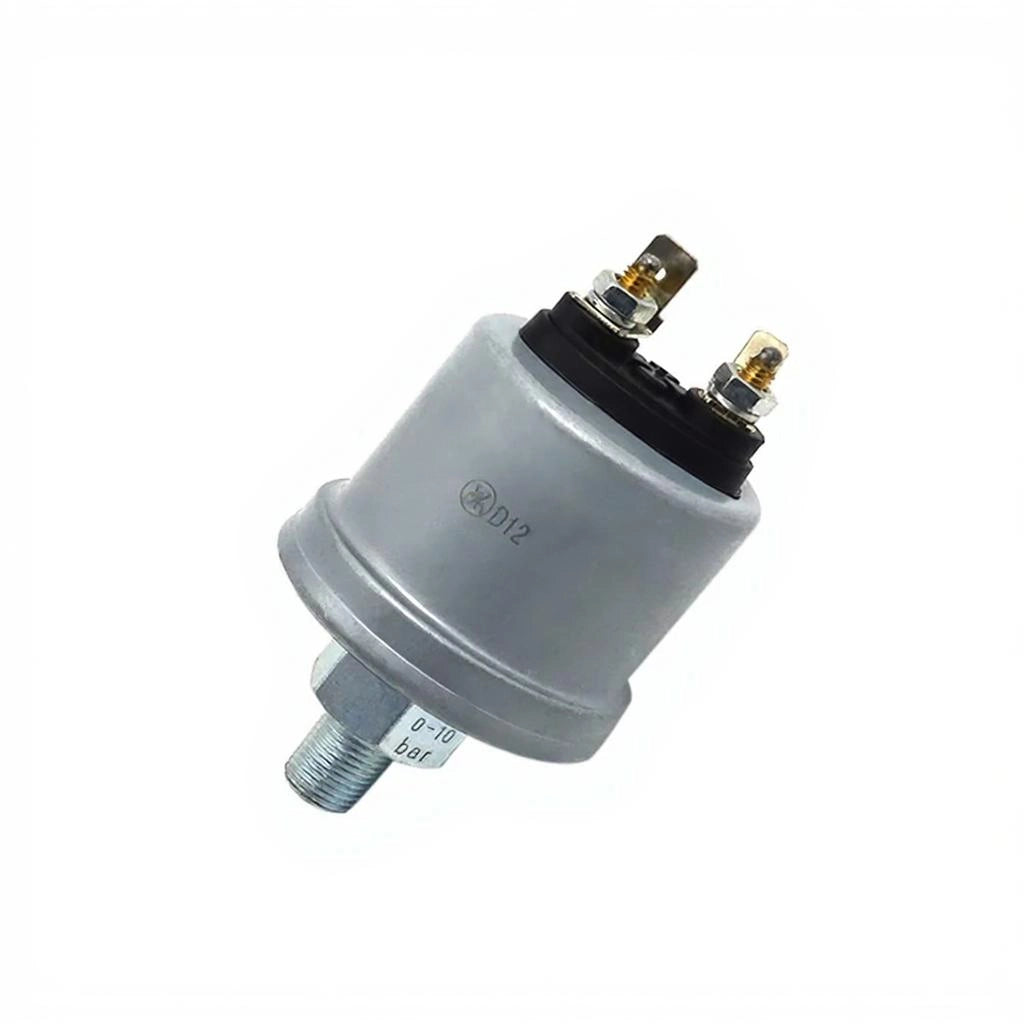

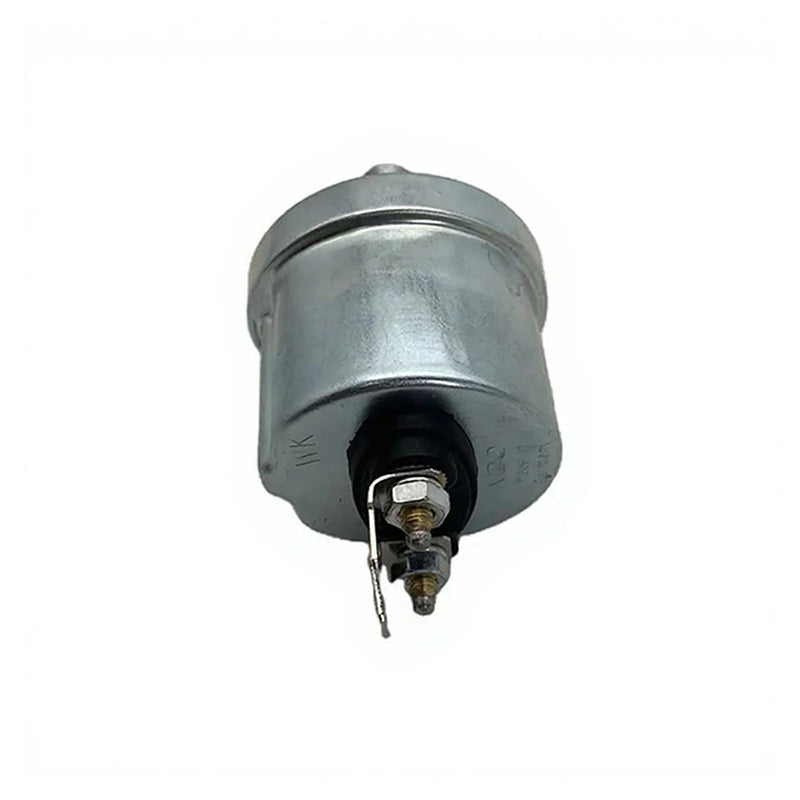

WESPC Oil Pressure Sensor 185246190 for Perkins 403D-11 403D-15 403C-15 404C-22 404C-22T 404D-22
Application:
The 185246190 sensor threads into the oil gallery of Perkins 400 Series electronic engines—403D-11, 403D-15, 403C-15, 404C-22,404C-22T, 404D-22 and 404D-22T—and sends a 0-10 bar pressure signal to the ECU and the dash display. It is therefore found on FG Wilson P13.5-P22 and Olympian GEP13.5-22 generator sets, JCB 8025/8030 mini-excavators, Atlas AR30-AR40 loader cranes, Manitou 25-40 kVA forklift power-packs and a wide range of irrigation, compressor and mobile-light-tower installations.
Technical specifications:
The unit is a 2-pin, 1/8″-27 NPTF threaded pressure sender calibrated 0 bar = 10 ± 3 Ω and 10 bar = 184 ± 8 Ω, with a 52 ± 4 Ω trip point at 0.8 ± 0.3 bar that triggers the low-oil-pressure warning lamp. Working temperature span is −40 °C to +150 °C; proof pressure 20 bar; vibration resistance 50 g; ingress protection IP67. The brass sensor body is nickel-plated 360 brass, the diaphragm is laser-welded 316L stainless steel 0.08 mm thick, and the internal thick-film resistor is over-moulded in high-temperature PPS to prevent oil ingress. Response time is <5 ms, and life cycle testing shows ±3 % accuracy after 2 million pressure cycles from 0-10 bar.
Material & performance features:
The sensing element is a strain-gauged thick-film ceramic chip bonded to the stainless diaphragm, giving excellent linearity and immunity to the 15 W-40, 10 W-30 and 5 W-30 CK-4 oils used in 400 Series engines. The PPS moulding and fluorosilicone O-ring resist bio-diesel dilution, glycol coolant splash and high sulphur content fuels. The sensor meets EN 61000-6-2/6-3 EMC, SAE J1455 vibration and ISO 16750-4 thermal shock, and is fully RoHS and REACH compliant. Field data show <0.5 % drift per year on standby generator sets operating 200 h yr⁻¹.
Interchange part numbers:
TPN473, 96043SMP, 622-137, 622-331, 622-333, VDO 360-081-011-001C, Dorman 7-0133, KMP 185246190.
The 185246190 sensor threads into the oil gallery of Perkins 400 Series electronic engines—403D-11, 403D-15, 403C-15, 404C-22,404C-22T, 404D-22 and 404D-22T—and sends a 0-10 bar pressure signal to the ECU and the dash display. It is therefore found on FG Wilson P13.5-P22 and Olympian GEP13.5-22 generator sets, JCB 8025/8030 mini-excavators, Atlas AR30-AR40 loader cranes, Manitou 25-40 kVA forklift power-packs and a wide range of irrigation, compressor and mobile-light-tower installations.
Technical specifications:
The unit is a 2-pin, 1/8″-27 NPTF threaded pressure sender calibrated 0 bar = 10 ± 3 Ω and 10 bar = 184 ± 8 Ω, with a 52 ± 4 Ω trip point at 0.8 ± 0.3 bar that triggers the low-oil-pressure warning lamp. Working temperature span is −40 °C to +150 °C; proof pressure 20 bar; vibration resistance 50 g; ingress protection IP67. The brass sensor body is nickel-plated 360 brass, the diaphragm is laser-welded 316L stainless steel 0.08 mm thick, and the internal thick-film resistor is over-moulded in high-temperature PPS to prevent oil ingress. Response time is <5 ms, and life cycle testing shows ±3 % accuracy after 2 million pressure cycles from 0-10 bar.
Material & performance features:
The sensing element is a strain-gauged thick-film ceramic chip bonded to the stainless diaphragm, giving excellent linearity and immunity to the 15 W-40, 10 W-30 and 5 W-30 CK-4 oils used in 400 Series engines. The PPS moulding and fluorosilicone O-ring resist bio-diesel dilution, glycol coolant splash and high sulphur content fuels. The sensor meets EN 61000-6-2/6-3 EMC, SAE J1455 vibration and ISO 16750-4 thermal shock, and is fully RoHS and REACH compliant. Field data show <0.5 % drift per year on standby generator sets operating 200 h yr⁻¹.
Interchange part numbers:
TPN473, 96043SMP, 622-137, 622-331, 622-333, VDO 360-081-011-001C, Dorman 7-0133, KMP 185246190.
