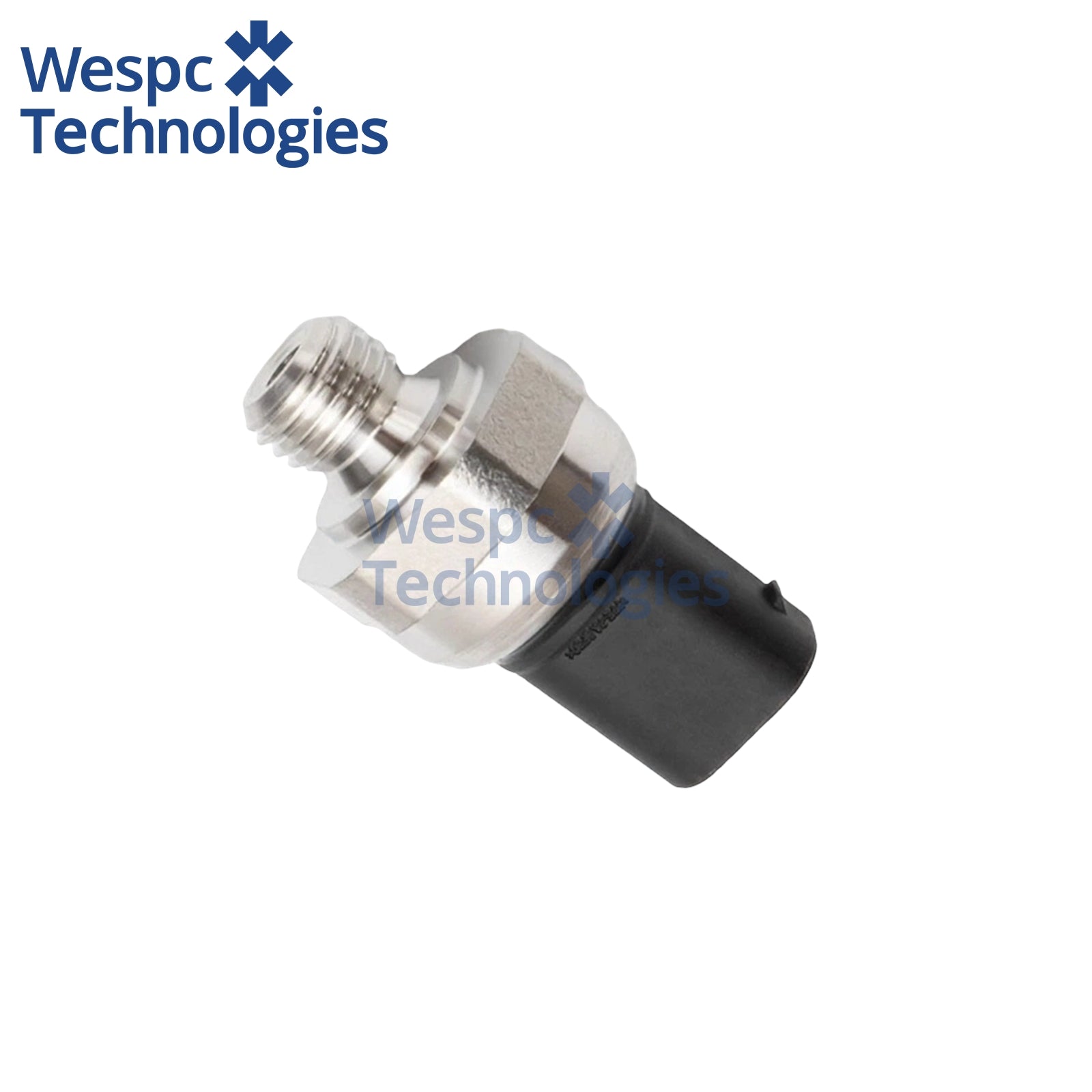

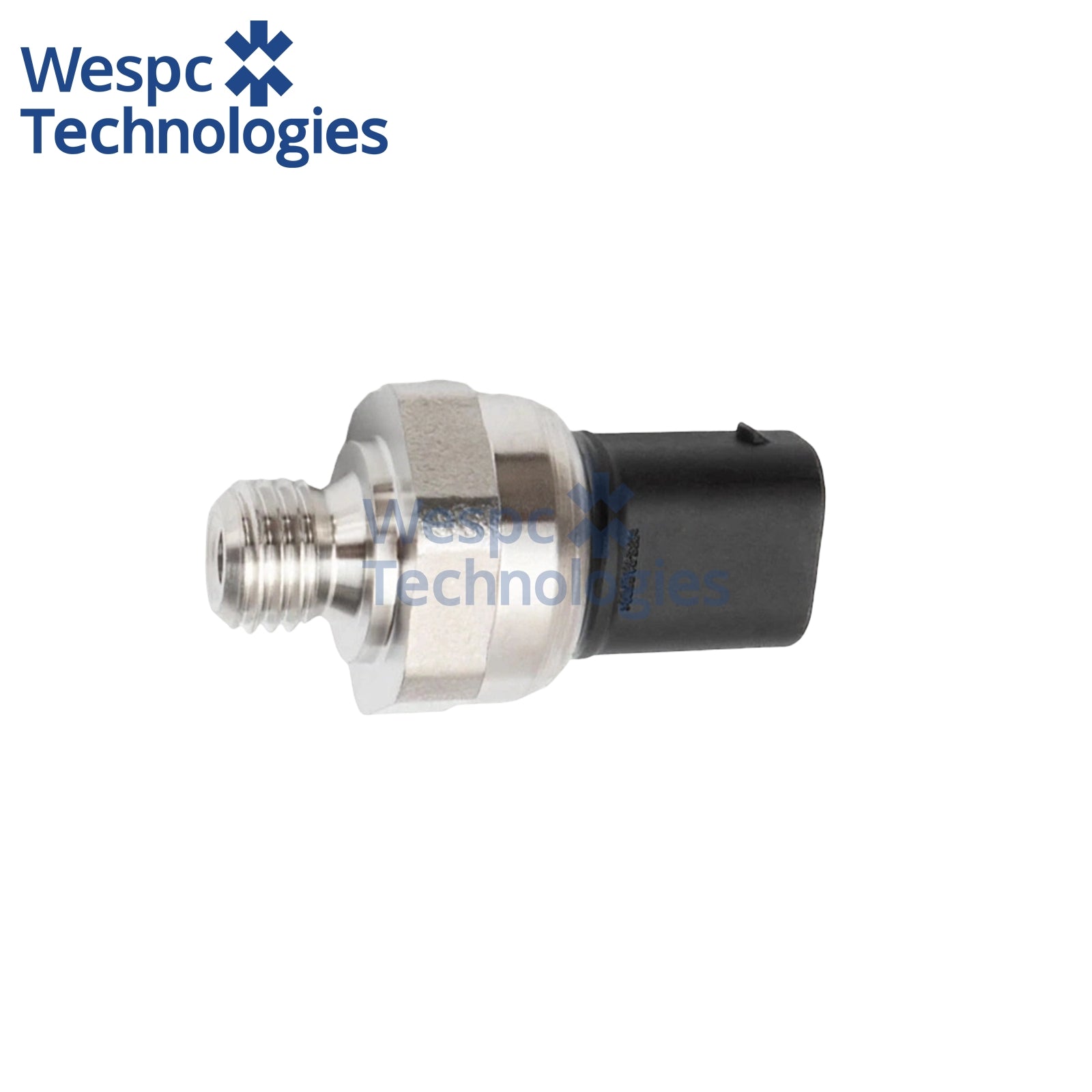

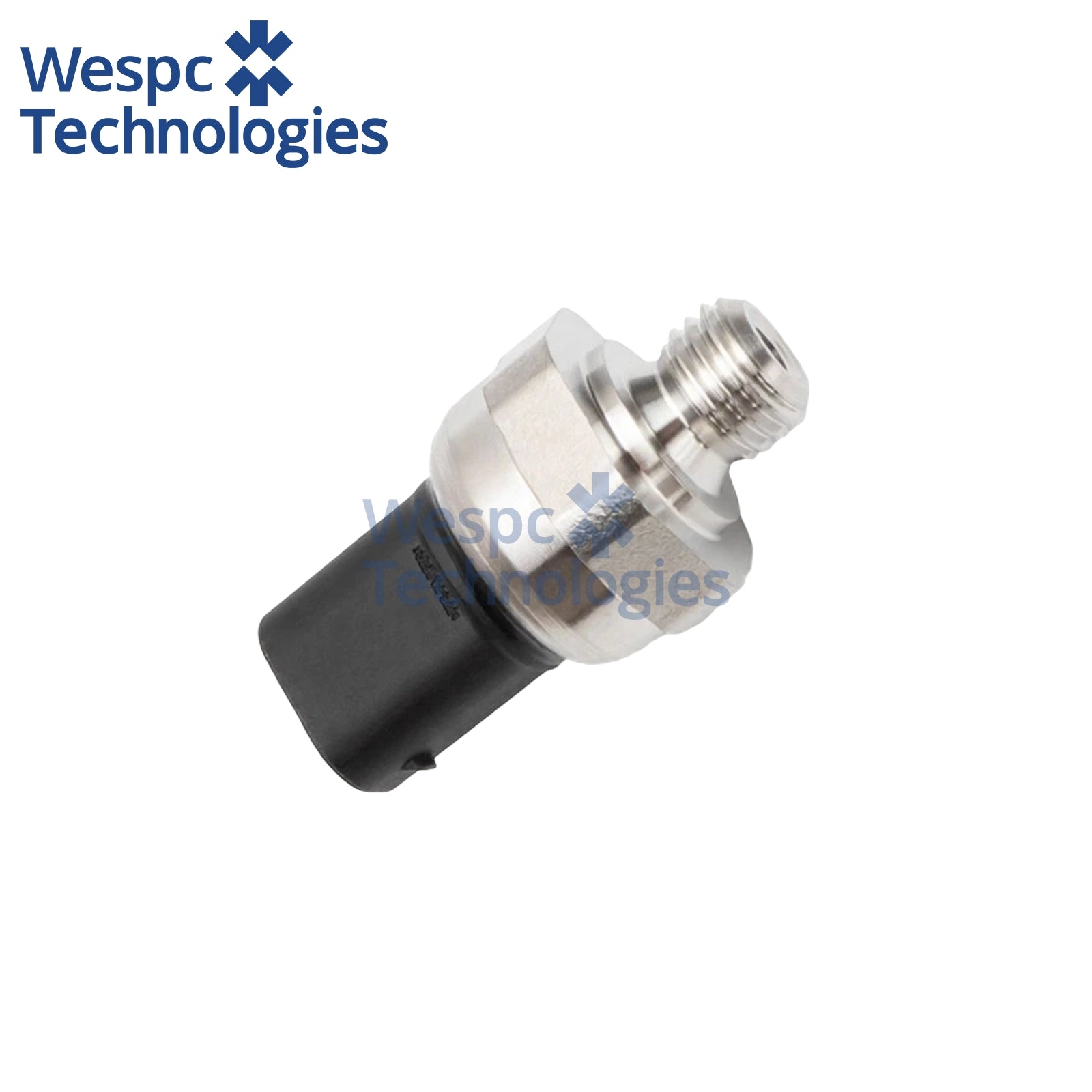

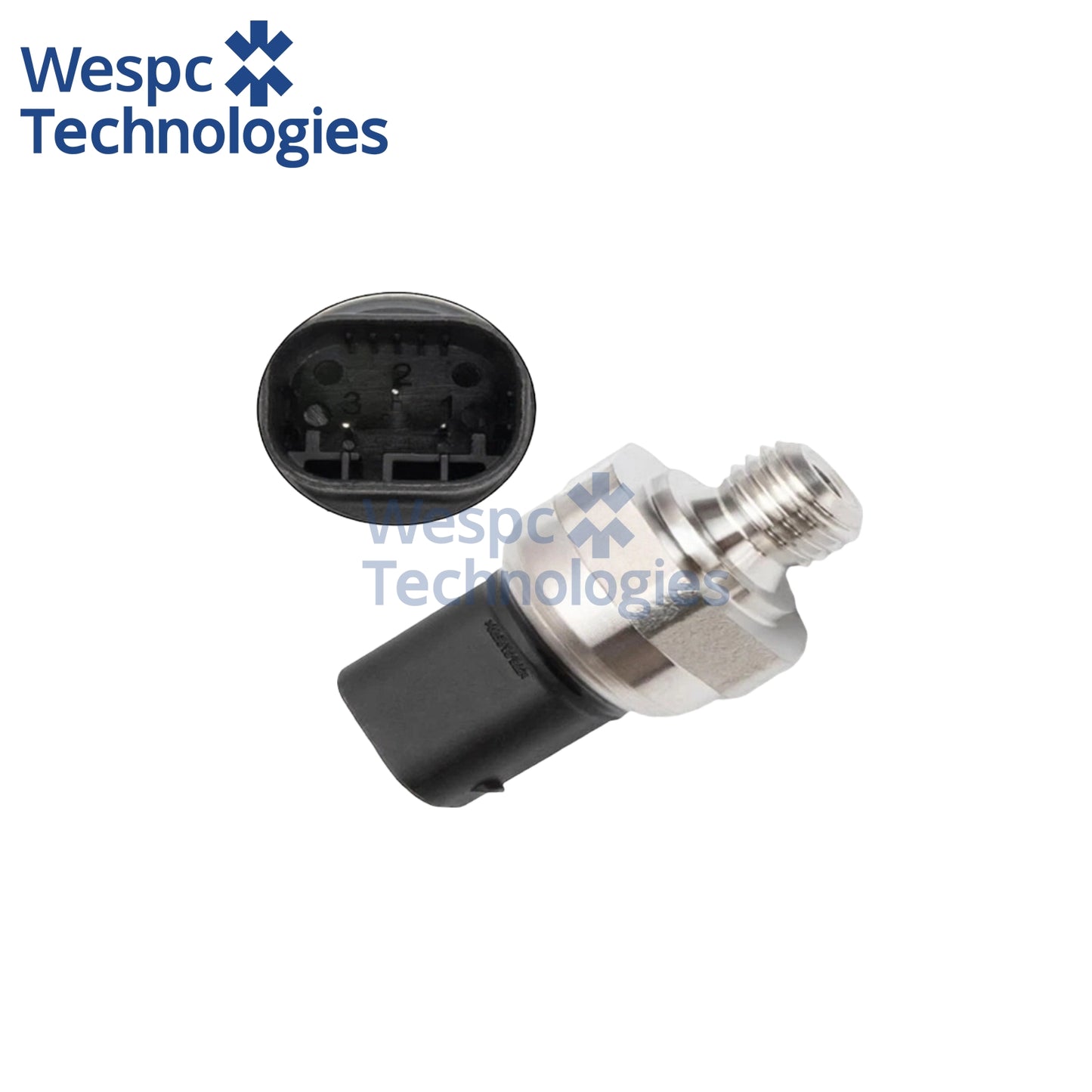

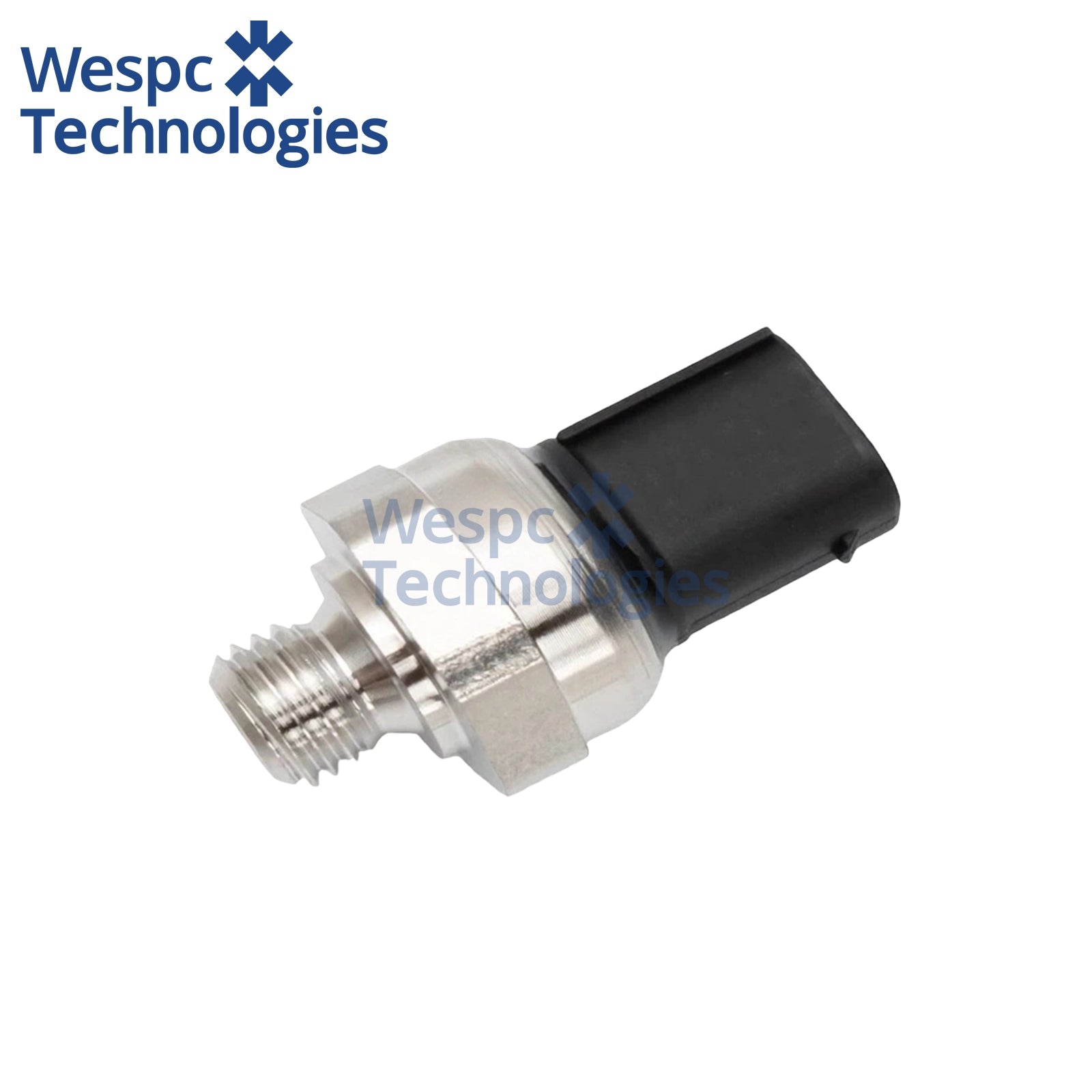

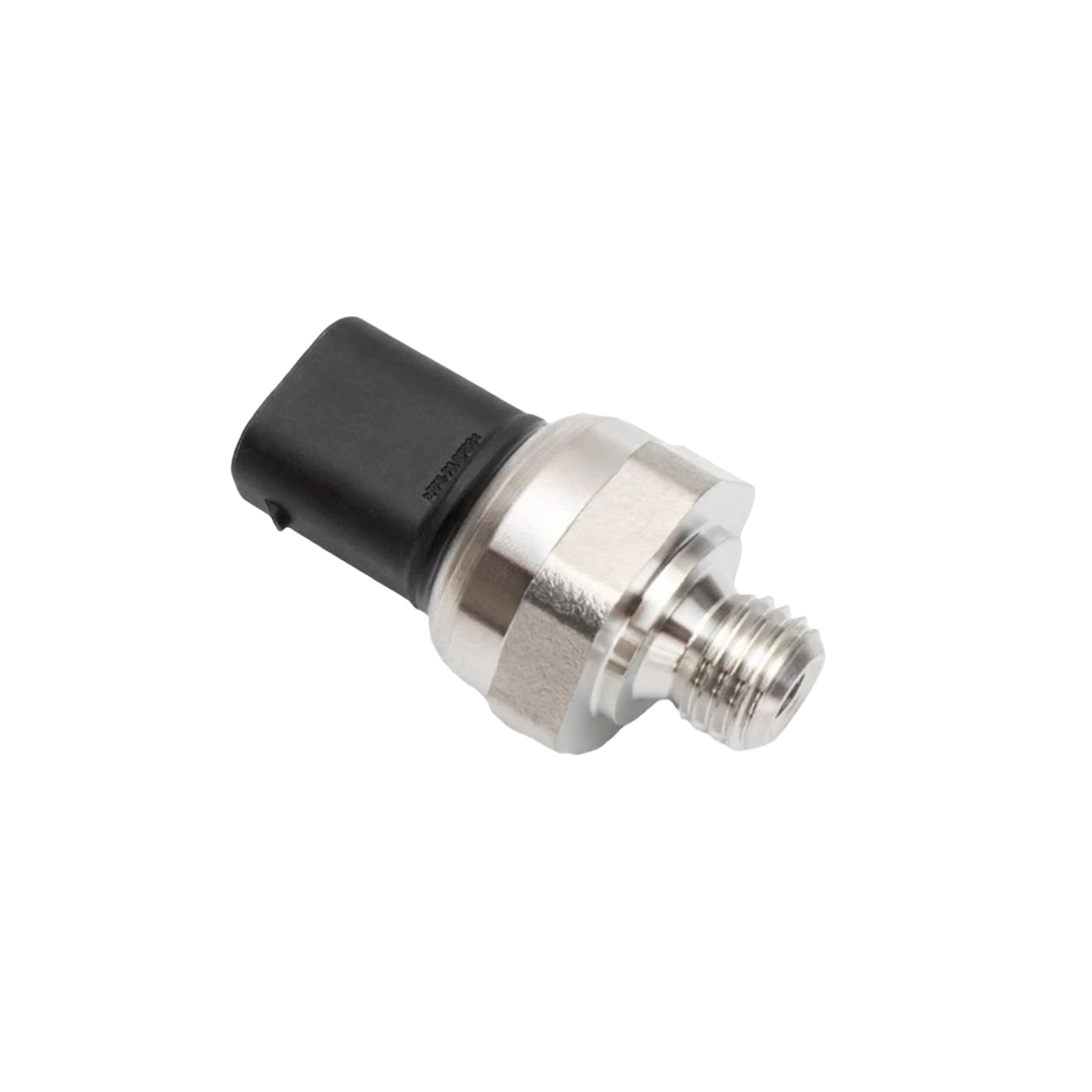

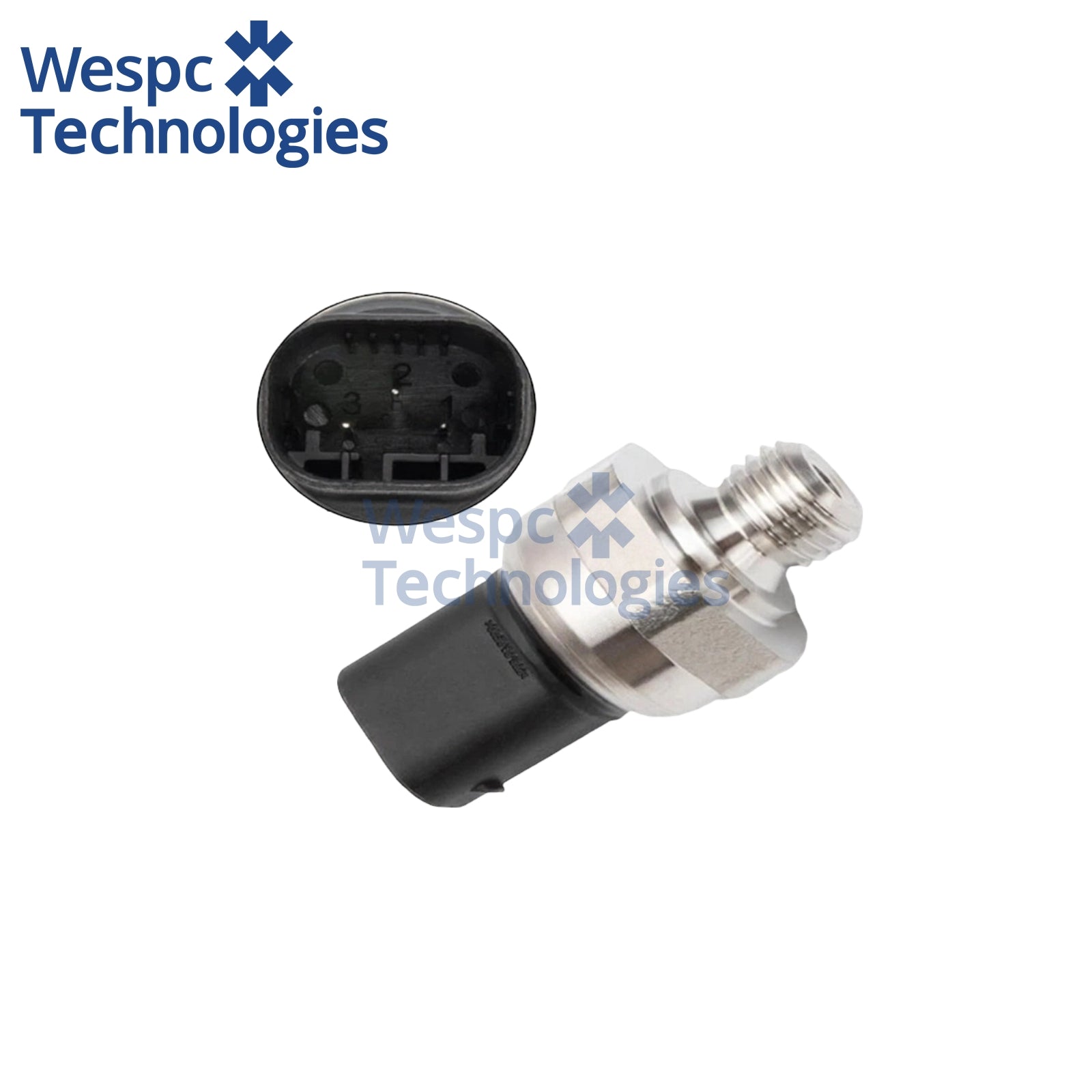

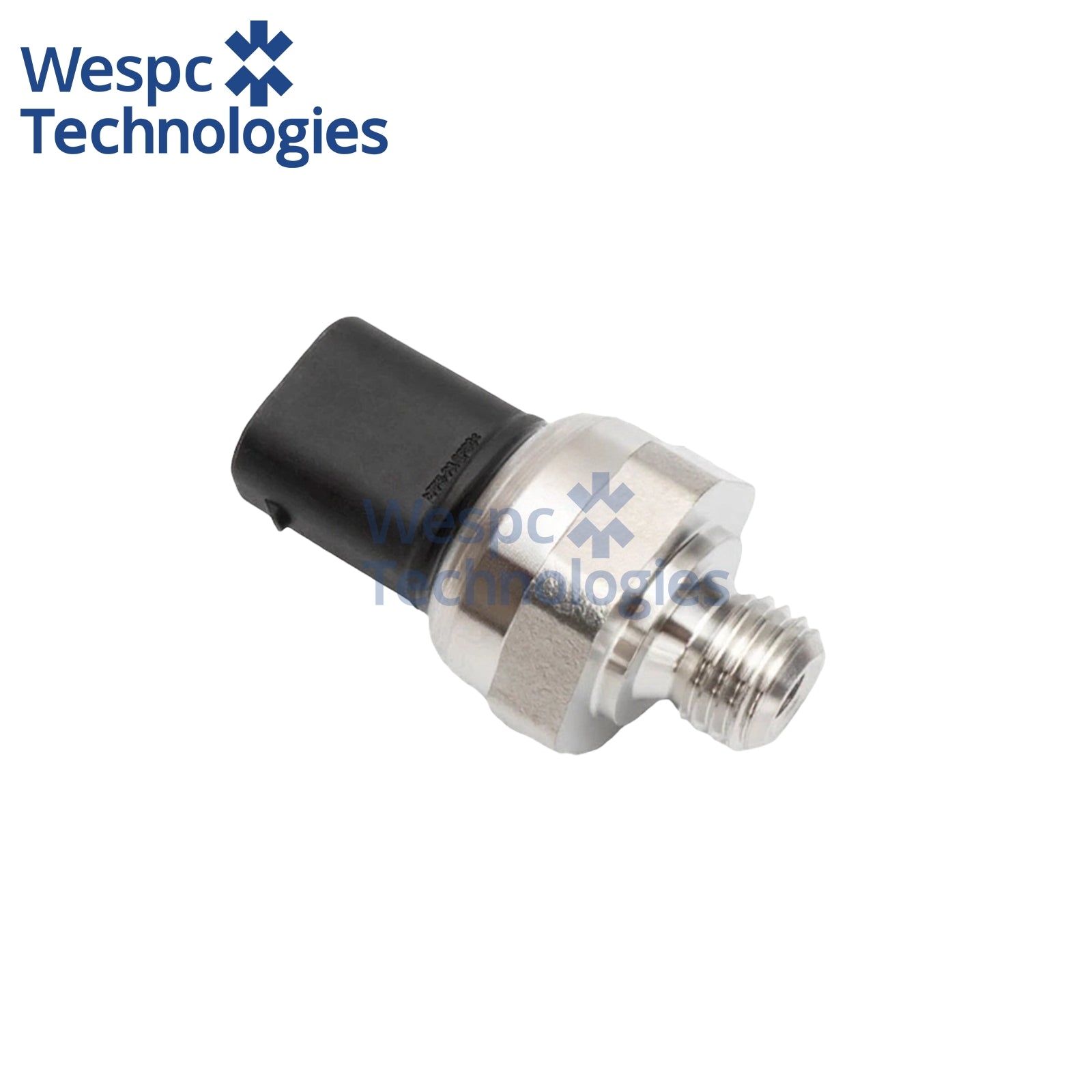

Exhaust pressure sensor probe for Mercedes A-Class B C S 91535028 0091535028
Application:
The exhaust-pressure sensor probe 91535028 / A0091535028 is a differential-type sensor that measures the pressure drop across the diesel particulate filter (DPF). It is installed on the following Mercedes-Benz platforms
Passenger cars:
A-Class (W169, W176), B-Class (W245, W246), C-Class (W203, W204, W205), E-Class (W211, W212), S-Class (W221, W222), CLA (C117), CLS (C218, C257), GLK (X204), GLE/GL (X166, W166), ML (W164, W166), R-Class (W251), SLK (R171, R172)
Commercial vans:
Sprinter (W906, W907) and Vito/Viano (W639, W447)Engines covered include the 3.0 L OM642 V6 CDI, 2.1 L OM651 four-cylinder CDI, 2.0 L OM654 and 2.7 L OM612/OM647 derivatives used from 2003-present. Typical power ratings range 80 kW (109 hp) to 195 kW (265 hp). The probe is mounted on the DPF canister and connected by two 4 mm stainless steel pipes (upstream and downstream of the filter element). The ECM uses the differential signal to calculate soot load, trigger active regeneration and illuminate the DPF warning lamp when the measured ΔP exceeds 180 mbar (threshold varies by software).
