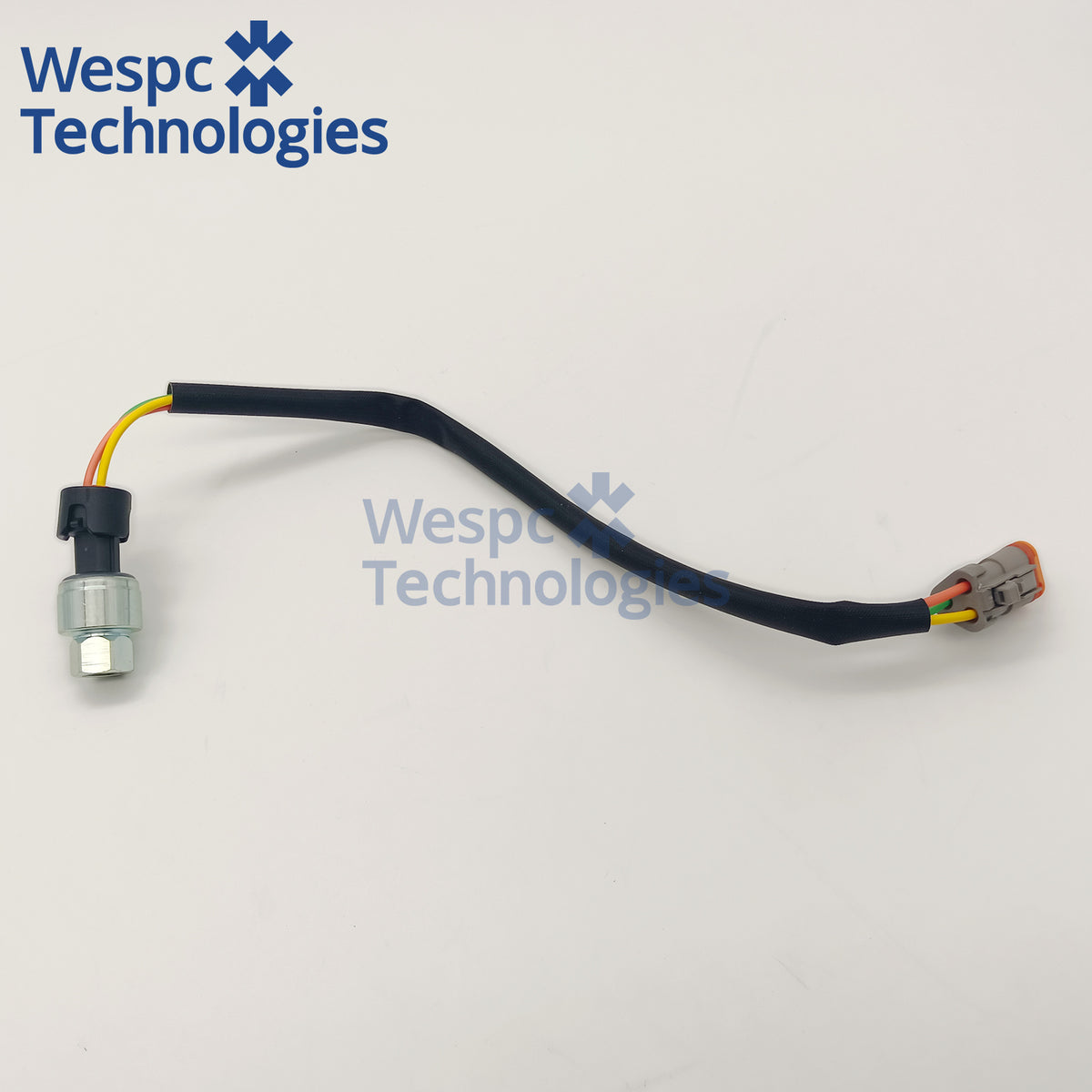

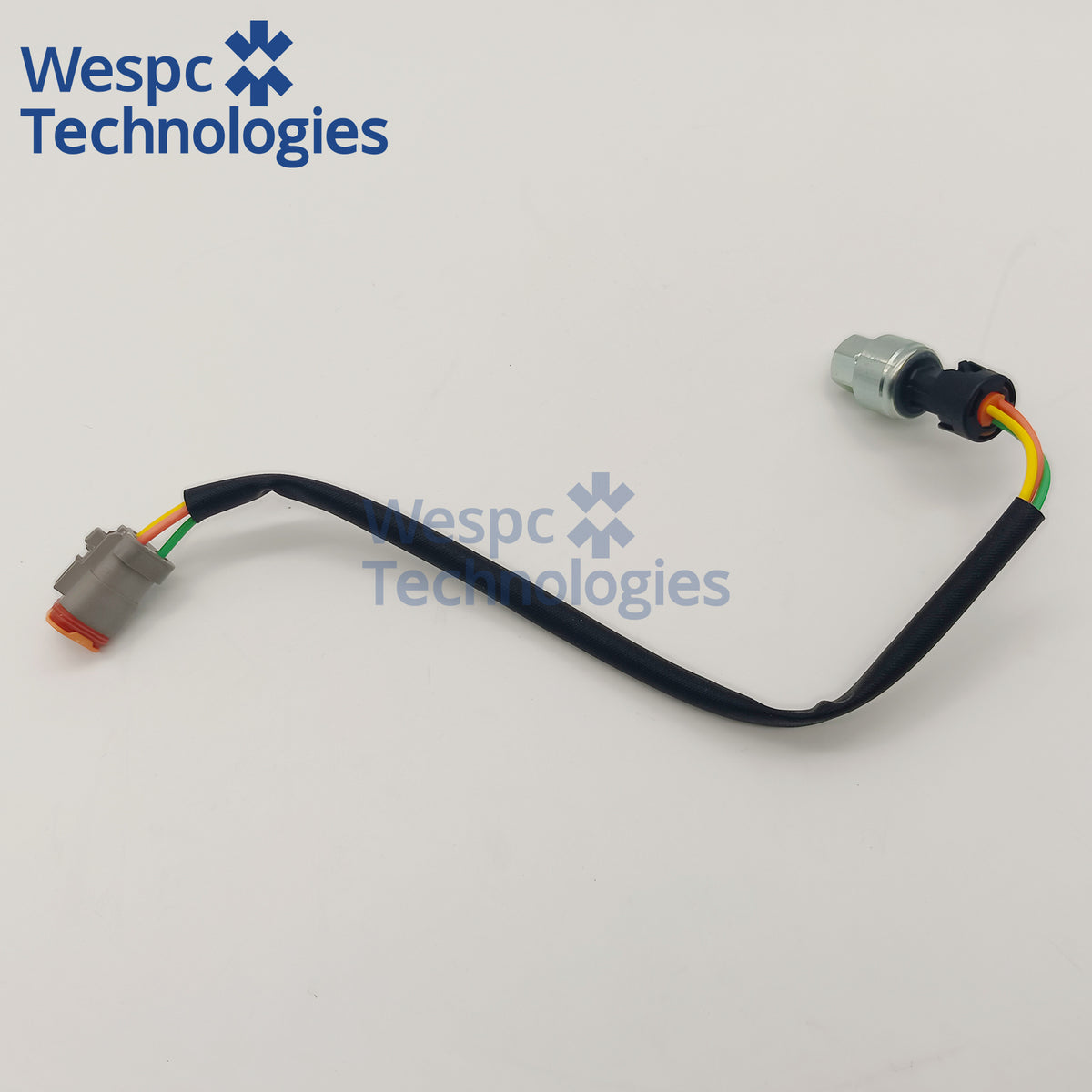

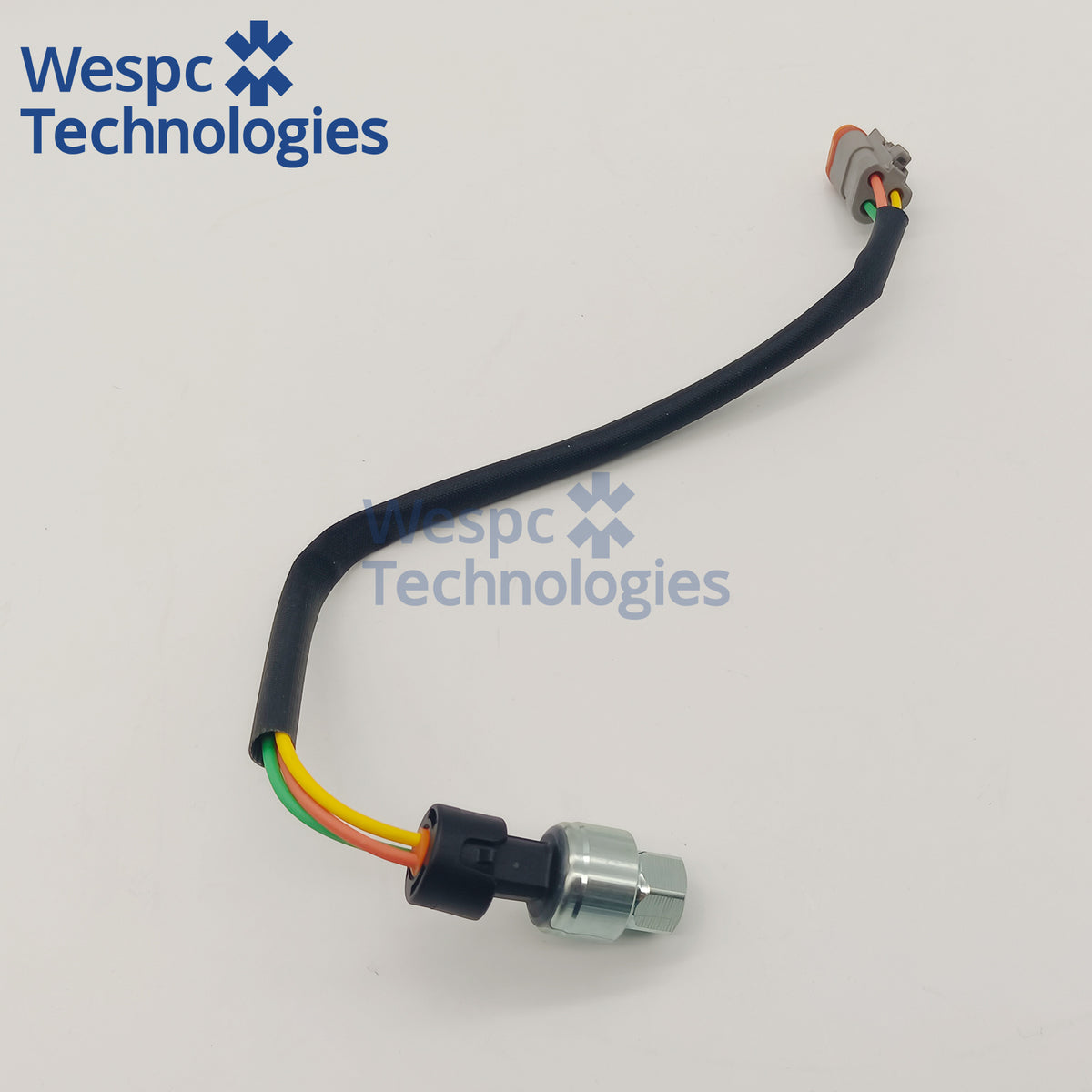

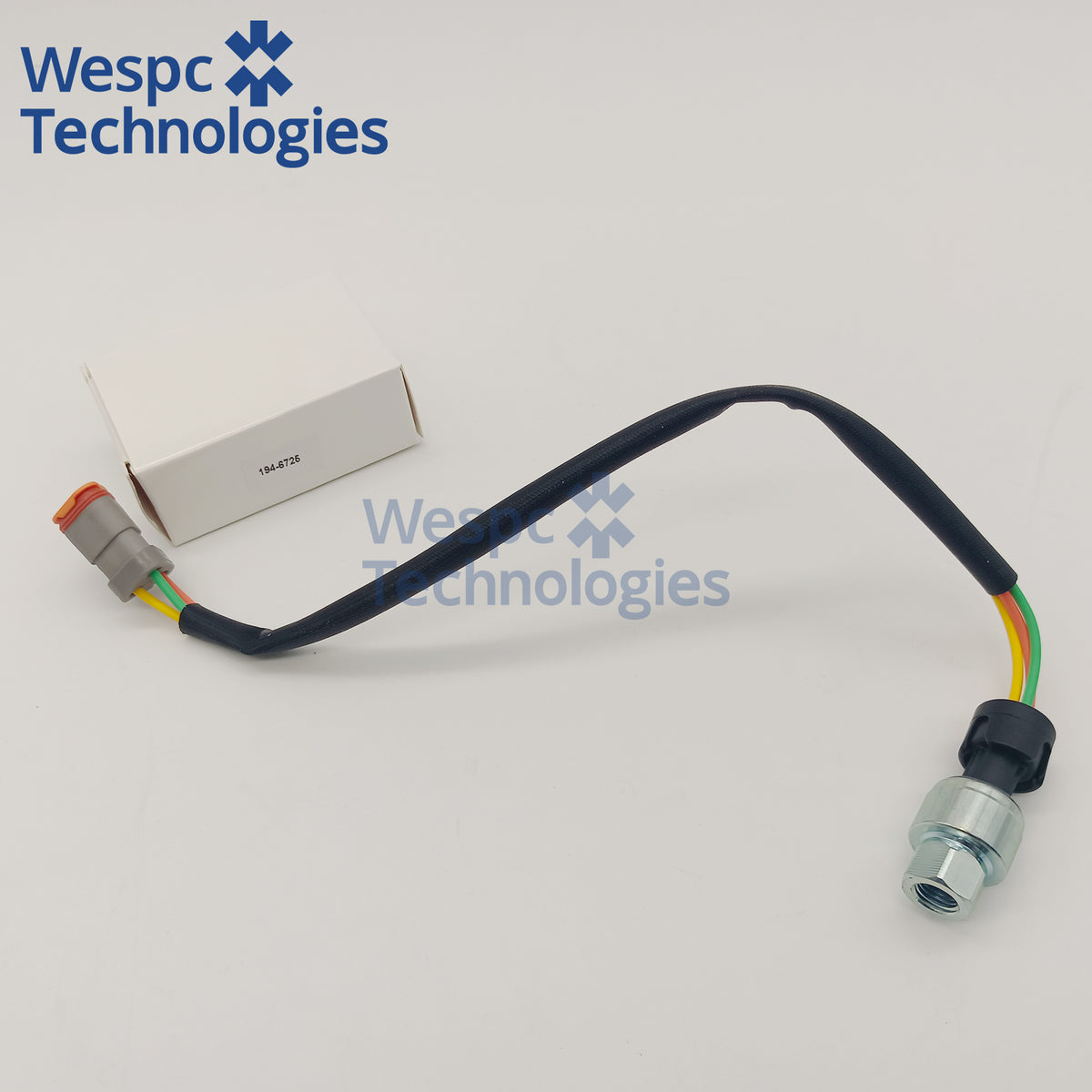

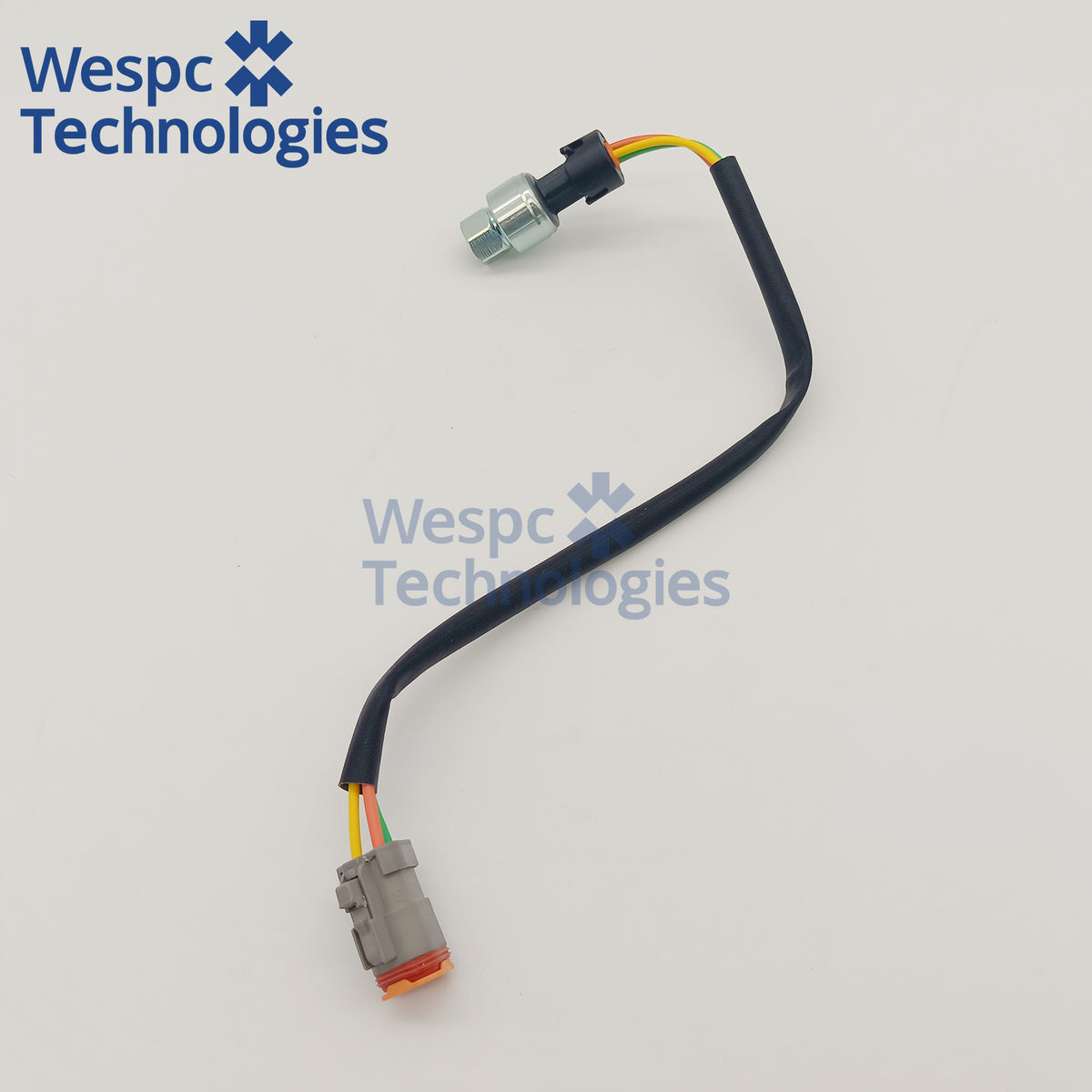

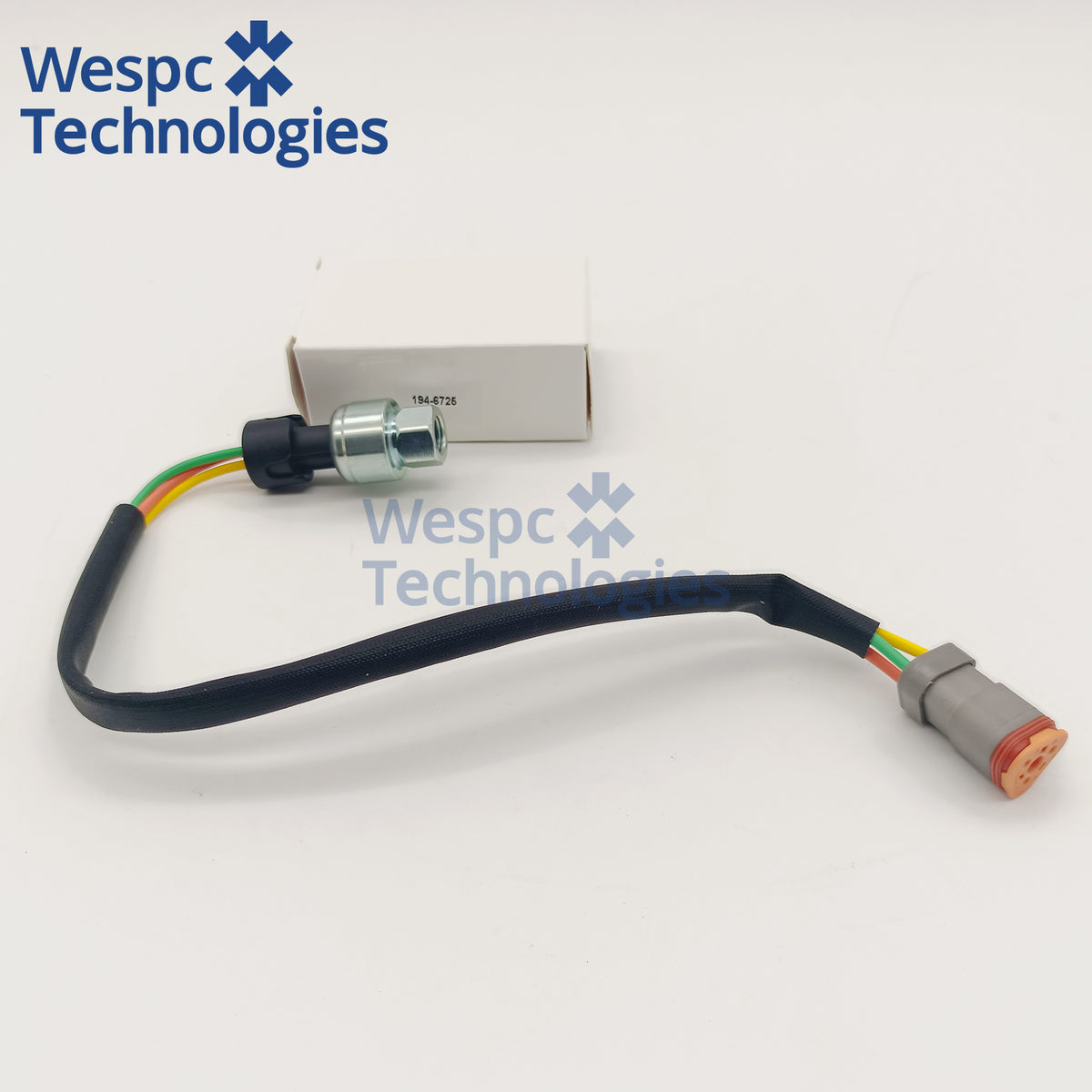

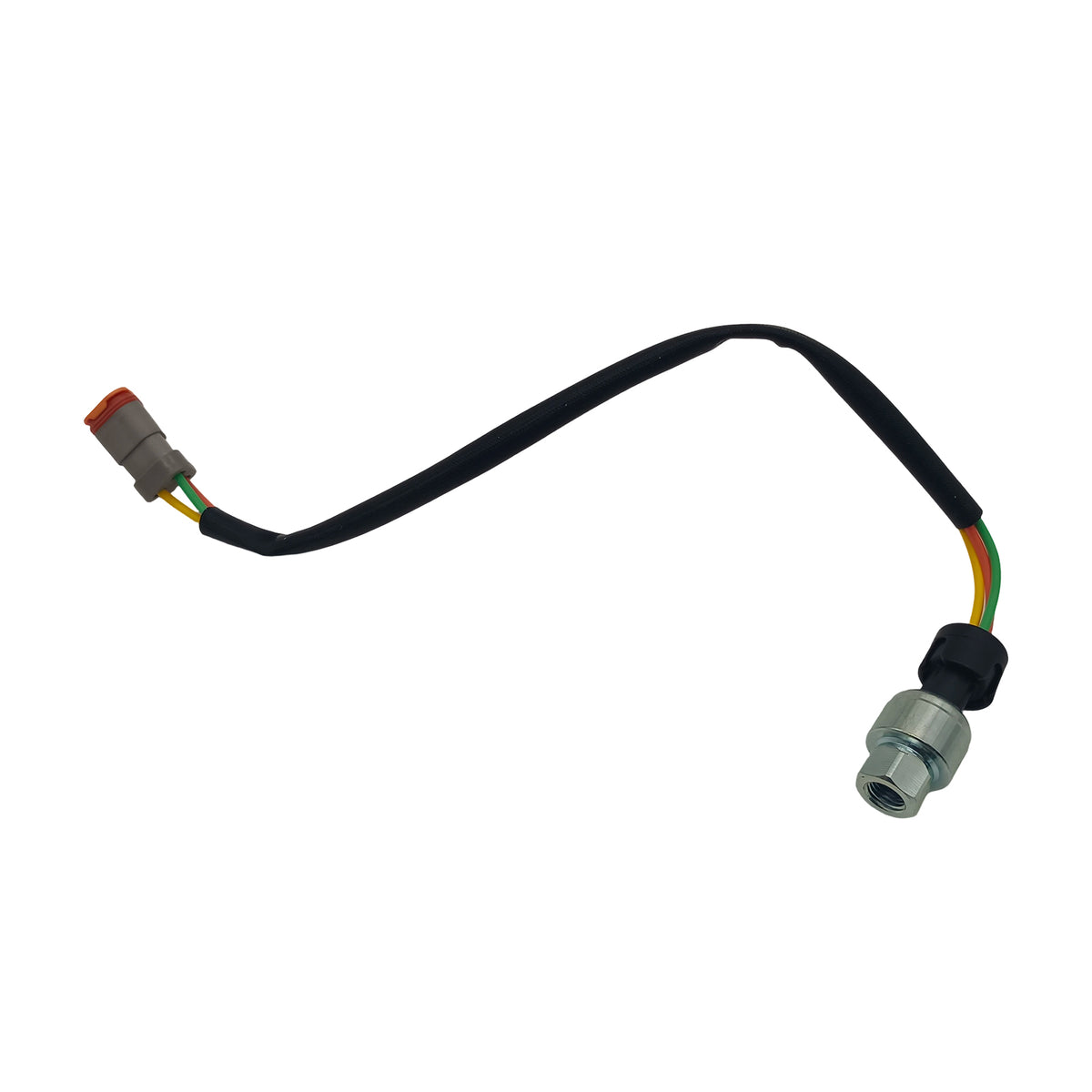

194-6725 Oil Pressure Sensor For C15 ACERT C32 Engine Excavator & Genset

Product Specifications

• Part Number: 194-6725, 1946725, CA1946725, cross ref:904-7027
• Product Type: Engine Lubricating Oil Pressure Sensor / Pressure Transducer
• Sensor Element: Strain Gauge Diaphragm
• Connector: 3 Pin Sealed Waterproof Plug
• Supply Voltage: 5V DC from ECM
• Pressure Measuring Range: 0 ~ 1135 kPa
• Working Temp Range: -40℃ ~ +135℃
• Compatible Engine: CAT C12, C15 ACERT, C32, 3126B,3126E,3406E,3412E,3508,3512,3516
• Compatible Machines: CAT 322C,325C,329D,336D,345C,345D Excavator, 966H Wheel Loader, Mining Truck, Industrial Genset
• Dimension: 9*5.5*3.5cm
• Net Weight: 0.085kg
• Warranty: 12 months factory warranty
