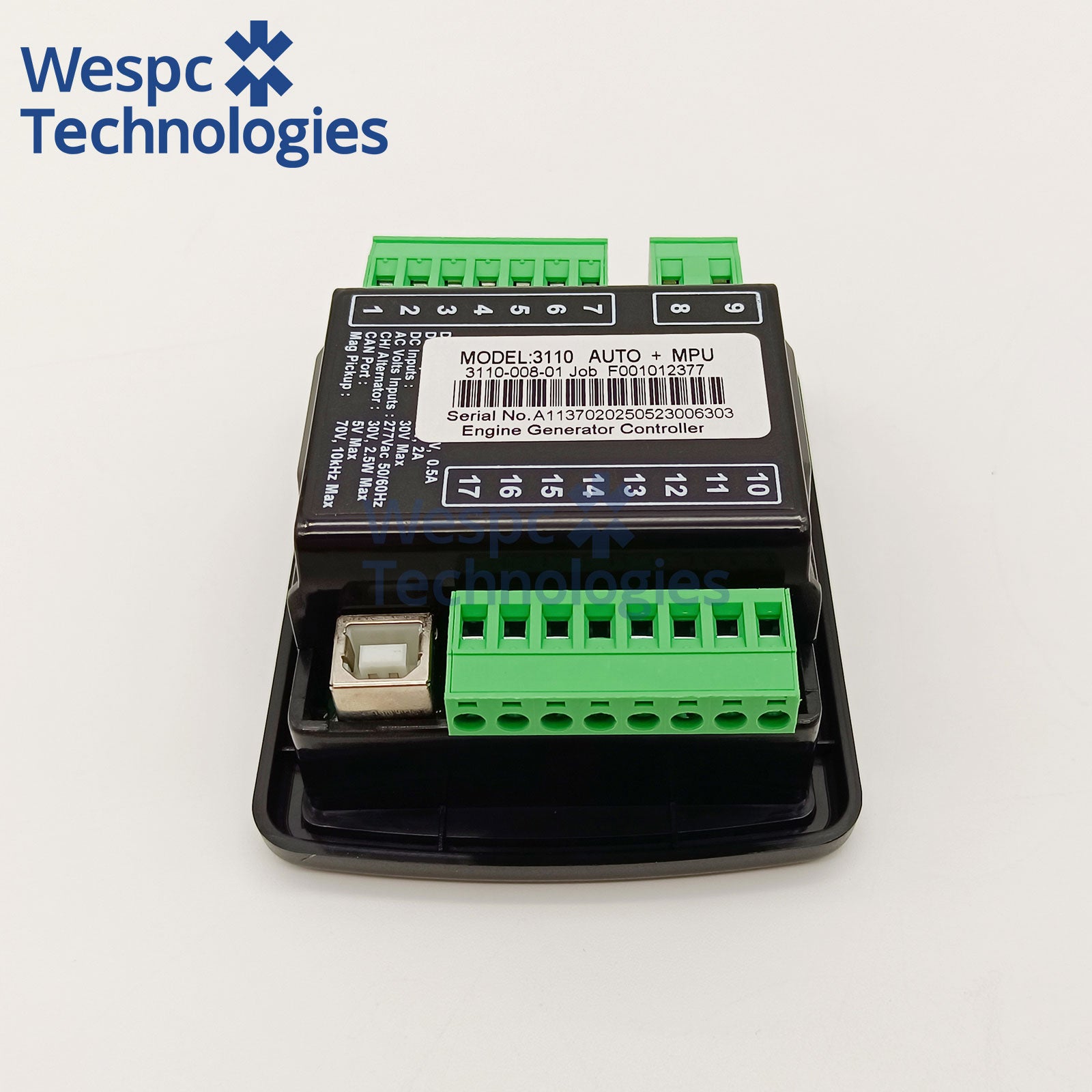

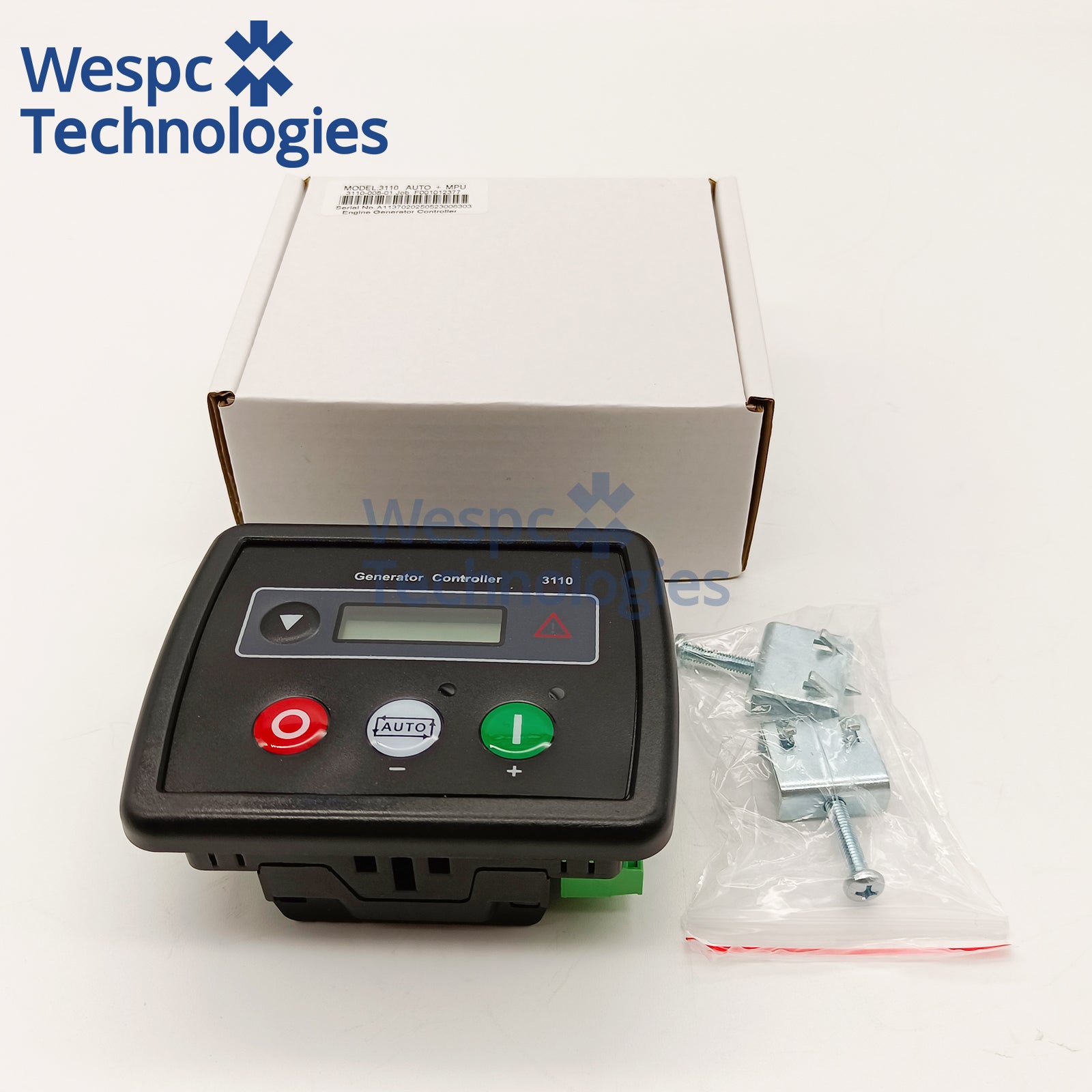

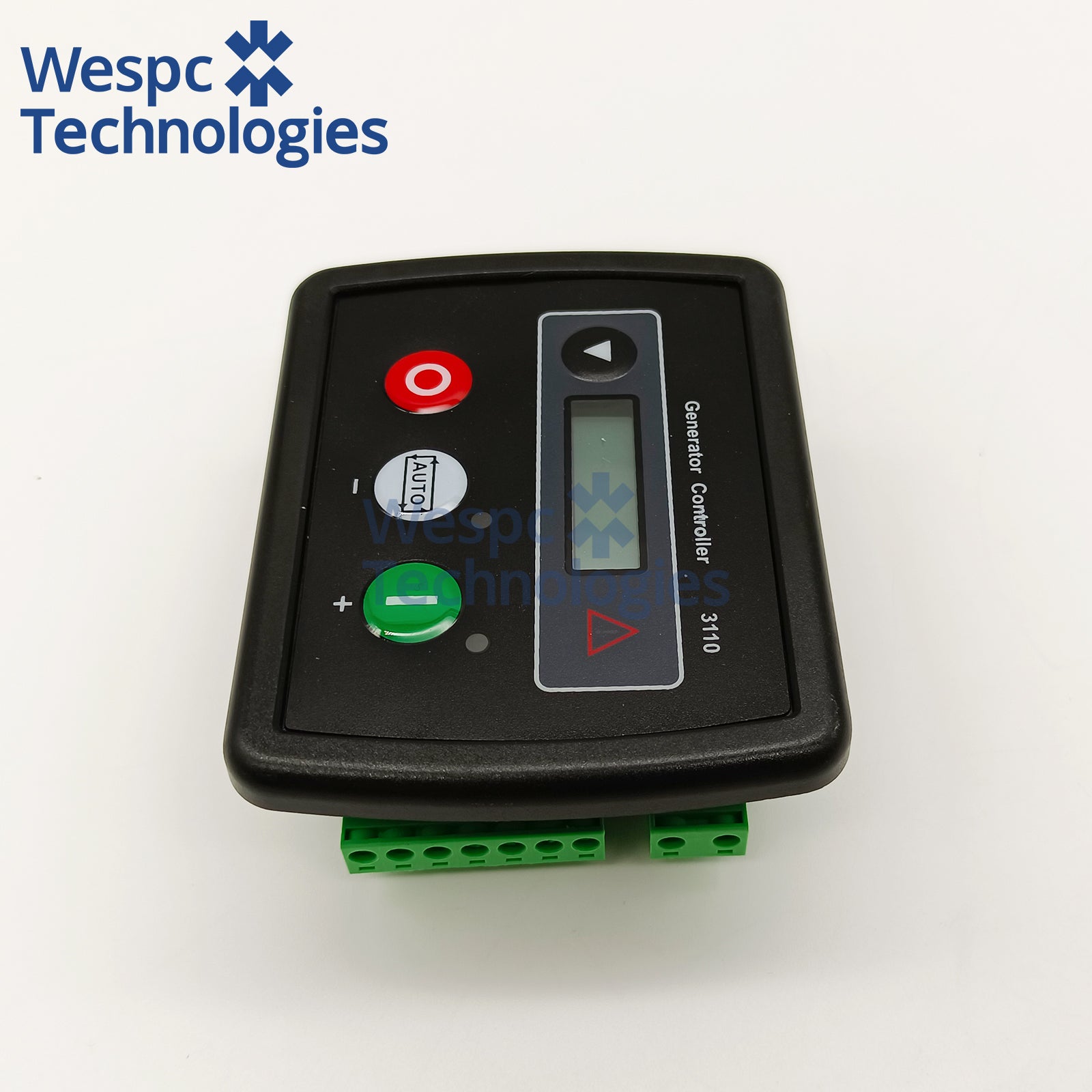

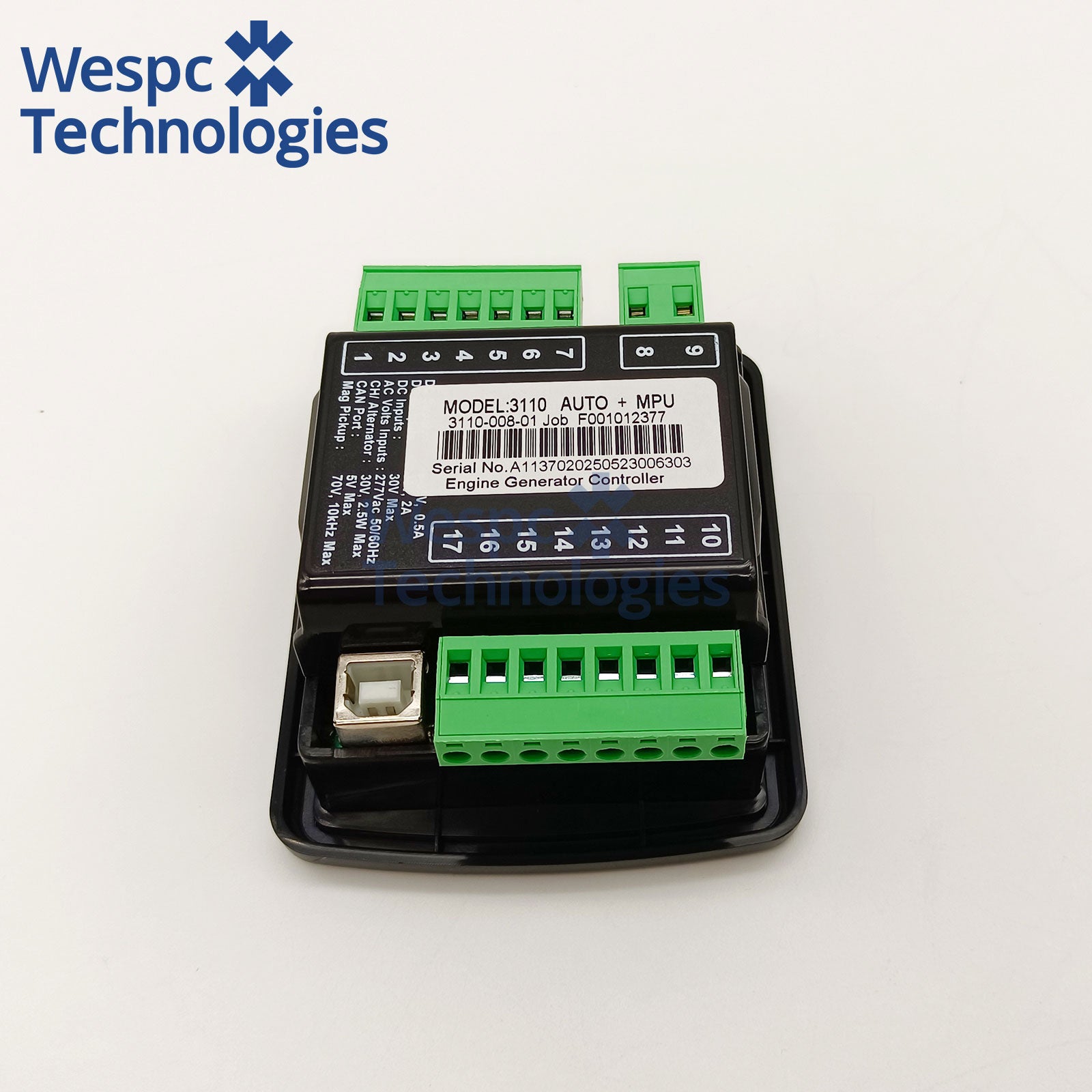

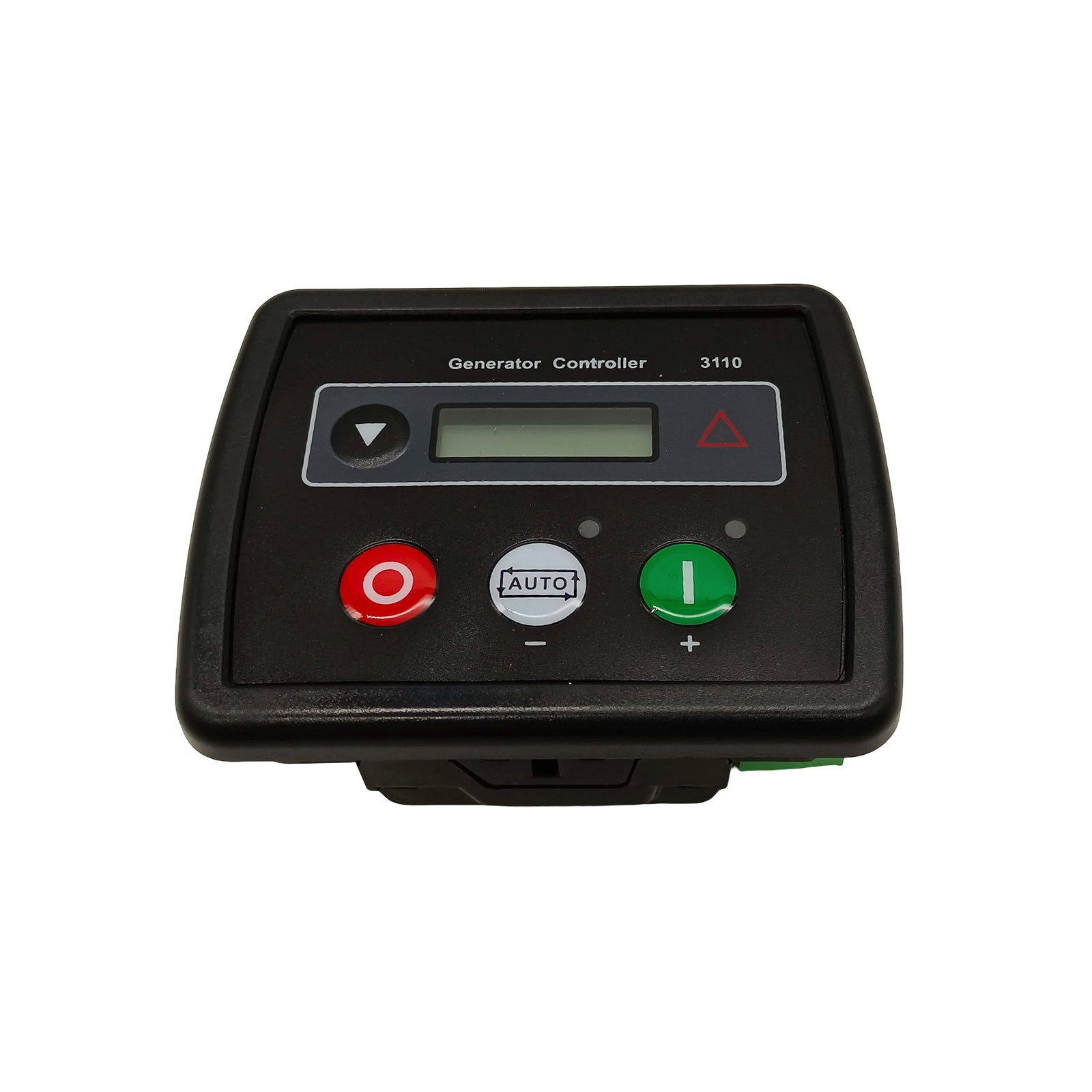

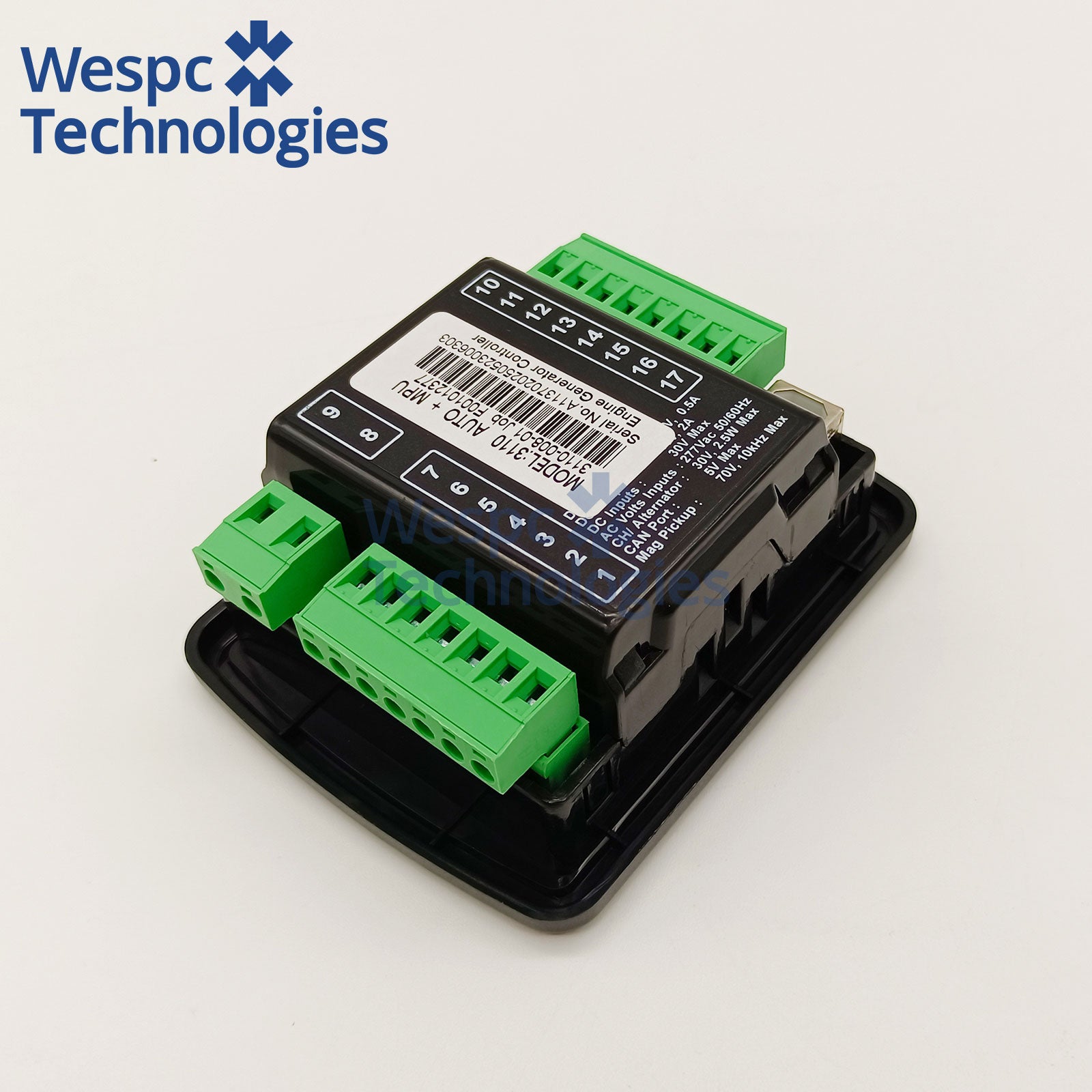

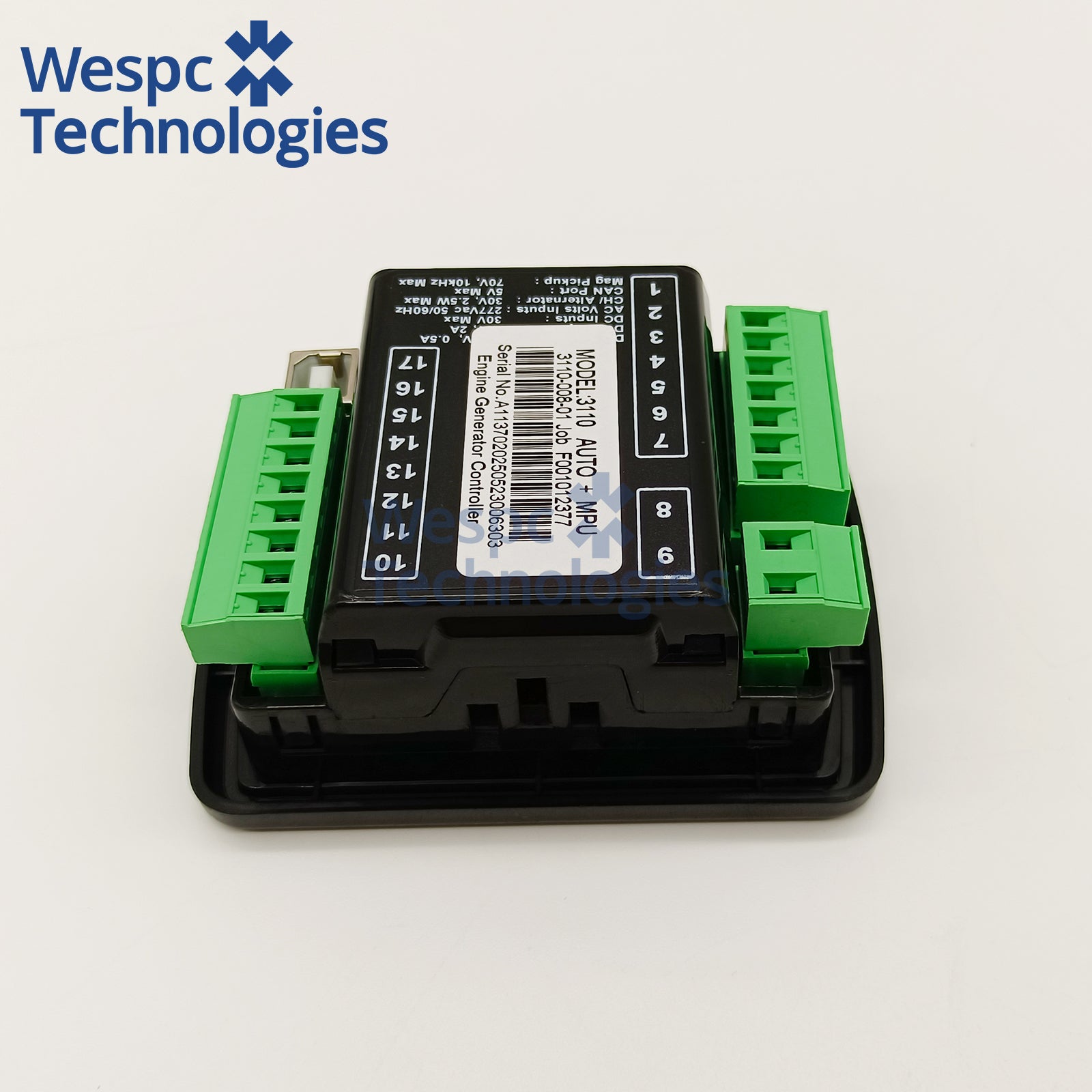

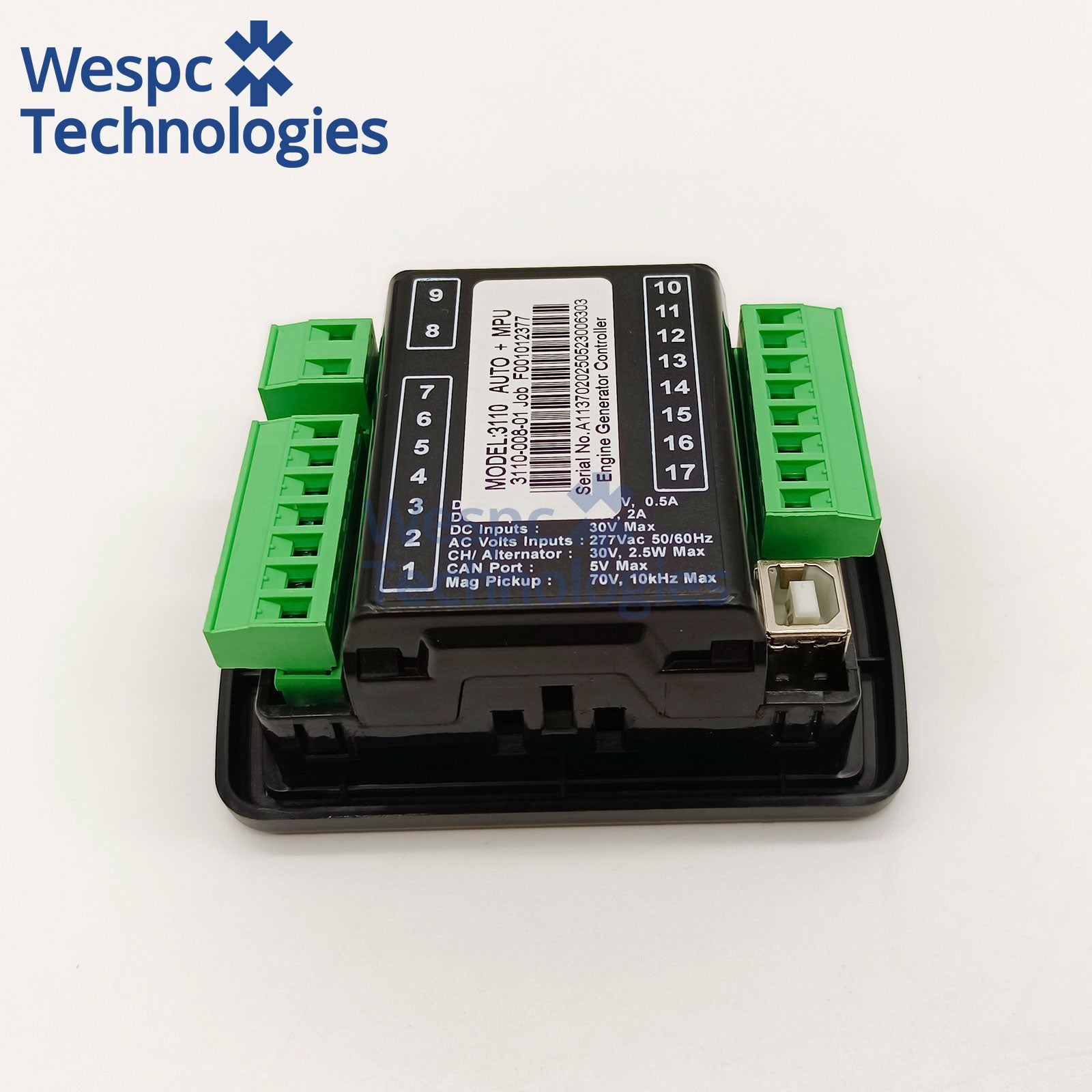

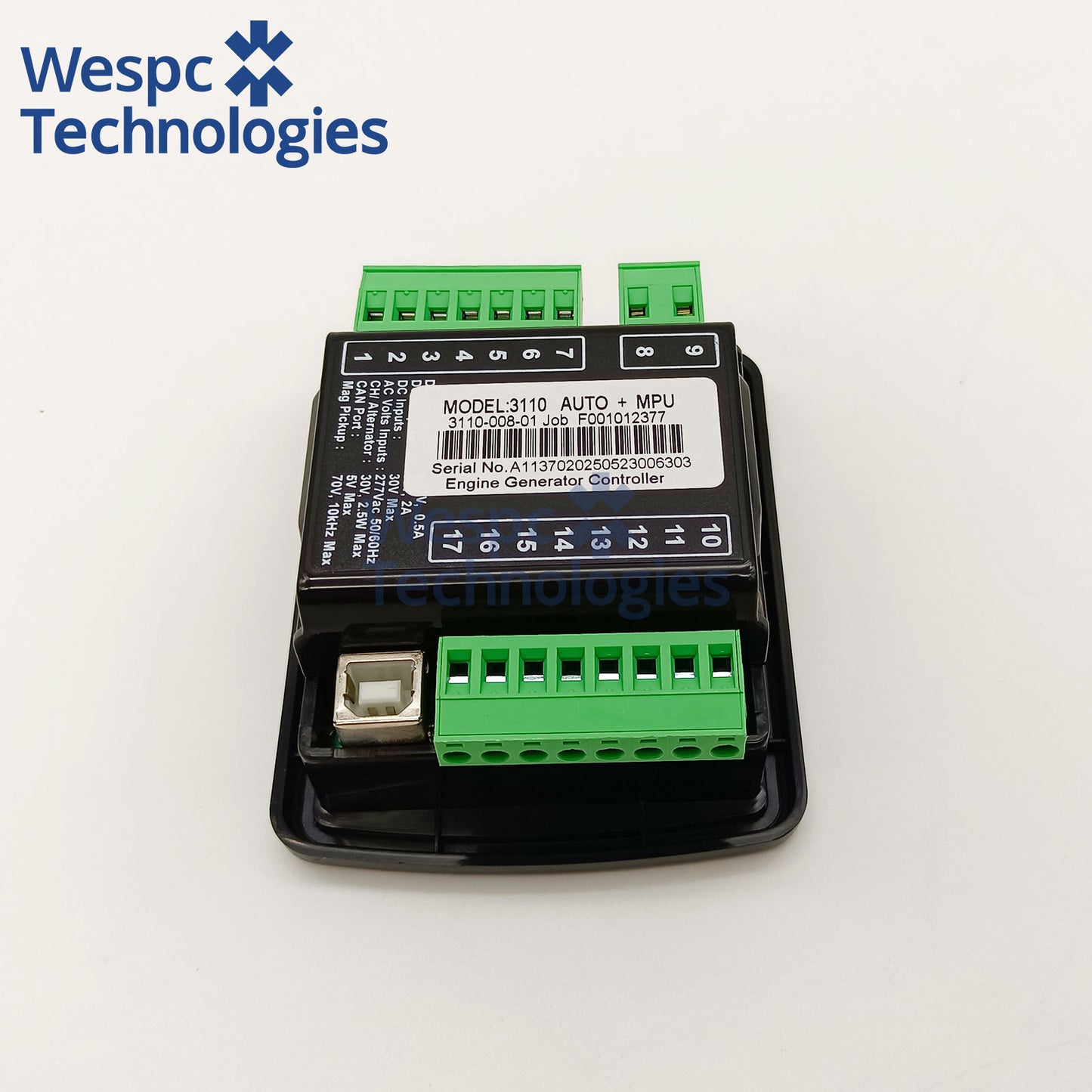

3110 Manual Auto+MPU Start Engine Generator Controller Control Board
3110 Manual Auto+MPU Start Engine Generator Controller Control Board
Regular price
$86.80 USD
Regular price
$0.00 USD
Sale price
$86.80 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
3110 Manual Auto+MPU Start Engine Generator Controller Control Board
Specifications
- Supply Voltage: 8V~35V DC, supports 0V transient dropout for 50ms during cranking
- Working Current: 76mA(12V), 61mA(24V); Standby Current: 43~45mA
- Input Ports: 6 digital negative inputs + 1 emergency stop input + 1 MPU speed input(0.5–70V peak,5Hz–10kHz)
- Output Ports: 4 positive configurable digital outputs

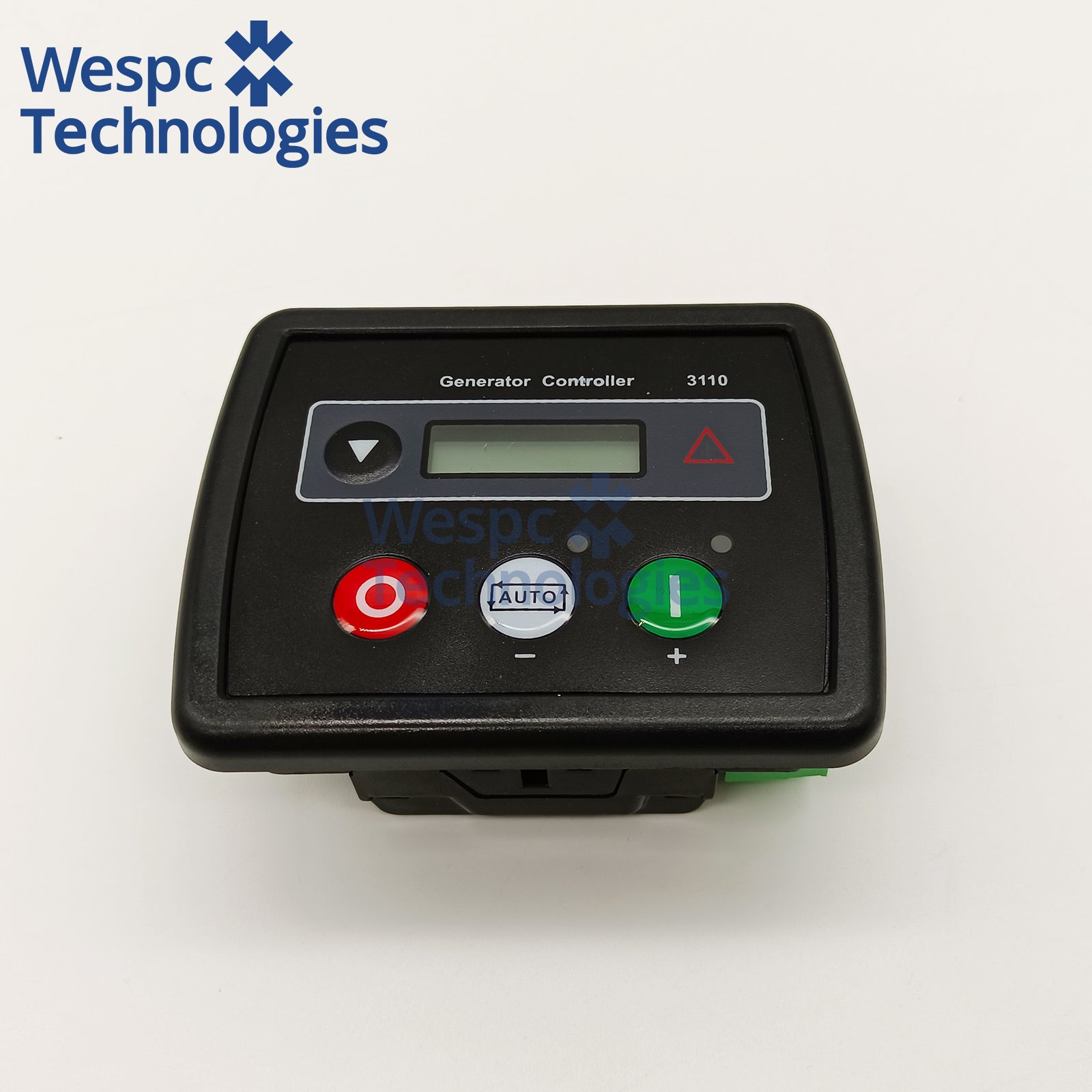

- Display: Backlit icon LCD + LED fault indication
- Monitor Items: Generator voltage, frequency, battery voltage, engine RPM, total running hours
- Protection: Low oil pressure, high coolant temp, overspeed/underspeed, over/under voltage, over/under frequency, fail to start/stop protection with auto alarm & shutdown
- Operation Mode: Manual Start / Auto Start
- Parameter Setup: Front panel buttons + DSE PC configuration software
- Two Versions: MPU for mechanical engines, CAN for electronic control engines
- Product Size: 98×79×40mm; Panel cutout: 80×68mm
- Front Protection: IP65
- Working Temperature: -30℃ ~ +70℃
- EMC Standard: BS EN 61000-6-2
Key Features
- Dual Manual & Auto Start Mode: Supports both manual operation and automatic genset start-stop, ensuring reliable emergency power supply during mains power failure.
- Full Real-Time Data Monitoring: Built with a clear backlit LCD screen to display generator voltage, frequency, battery voltage, engine speed, running hours, and system fault status in real time.
- Complete Engine Protection System: Equipped with multi-protection functions including low oil pressure, high coolant temperature, overspeed, overvoltage, undervoltage, overfrequency, and underfrequency protection. It triggers automatic alarm and shutdown to protect the generator unit from damage.
- Flexible Parameter Configuration: All working parameters can be easily adjusted via front panel buttons or professional PC software, supporting quick debugging, modification, and daily maintenance.
- Strong Environmental Adaptability: Adopts high-quality industrial electronic components, featuring strong anti-interference performance, low failure rate, stable output, and long service life even in harsh working environments.
Application Scenarios
Ideal for standby generators, portable diesel gensets, industrial power equipment, commercial emergency power systems, and generator daily repair and replacement projects. It is a cost-effective and high-reliability aftermarket generator control solution for global genset maintenance users.
Specifications
- Supply Voltage: 8V~35V DC, supports 0V transient dropout for 50ms during cranking
- Working Current: 76mA(12V), 61mA(24V); Standby Current: 43~45mA
- Input Ports: 6 digital negative inputs + 1 emergency stop input + 1 MPU speed input(0.5–70V peak,5Hz–10kHz)
- Output Ports: 4 positive configurable digital outputs
- Display: Backlit icon LCD + LED fault indication
- Monitor Items: Generator voltage, frequency, battery voltage, engine RPM, total running hours
- Protection: Low oil pressure, high coolant temp, overspeed/underspeed, over/under voltage, over/under frequency, fail to start/stop protection with auto alarm & shutdown
- Operation Mode: Manual Start / Auto Start
- Parameter Setup: Front panel buttons + DSE PC configuration software
- Two Versions: MPU for mechanical engines, CAN for electronic control engines
- Product Size: 98×79×40mm; Panel cutout: 80×68mm
- Front Protection: IP65
- Working Temperature: -30℃ ~ +70℃
- EMC Standard: BS EN 61000-6-2
Key Features
- Dual Manual & Auto Start Mode: Supports both manual operation and automatic genset start-stop, ensuring reliable emergency power supply during mains power failure.
- Full Real-Time Data Monitoring: Built with a clear backlit LCD screen to display generator voltage, frequency, battery voltage, engine speed, running hours, and system fault status in real time.
- Complete Engine Protection System: Equipped with multi-protection functions including low oil pressure, high coolant temperature, overspeed, overvoltage, undervoltage, overfrequency, and underfrequency protection. It triggers automatic alarm and shutdown to protect the generator unit from damage.
- Flexible Parameter Configuration: All working parameters can be easily adjusted via front panel buttons or professional PC software, supporting quick debugging, modification, and daily maintenance.
- Strong Environmental Adaptability: Adopts high-quality industrial electronic components, featuring strong anti-interference performance, low failure rate, stable output, and long service life even in harsh working environments.
Application Scenarios
Ideal for standby generators, portable diesel gensets, industrial power equipment, commercial emergency power systems, and generator daily repair and replacement projects. It is a cost-effective and high-reliability aftermarket generator control solution for global genset maintenance users.
