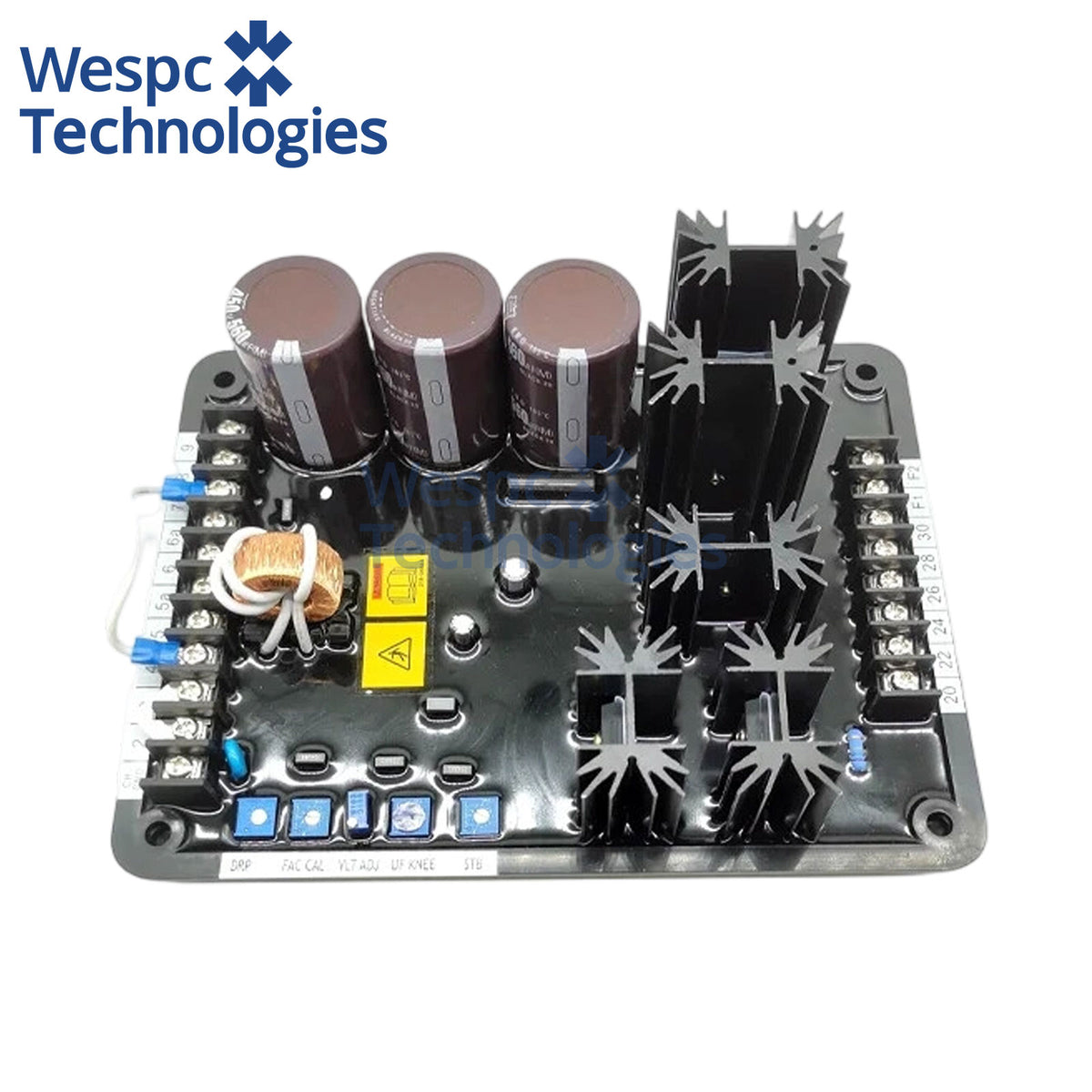

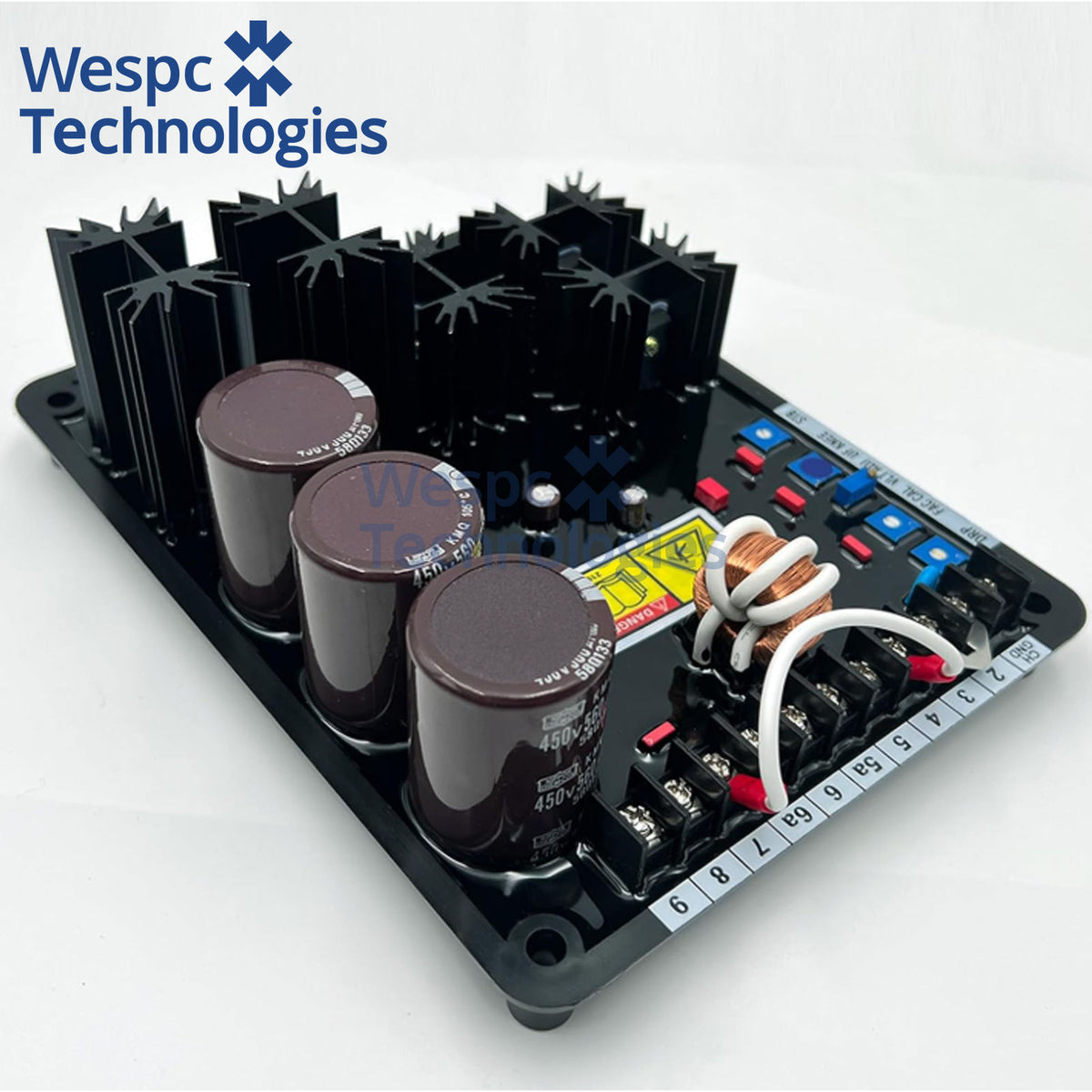

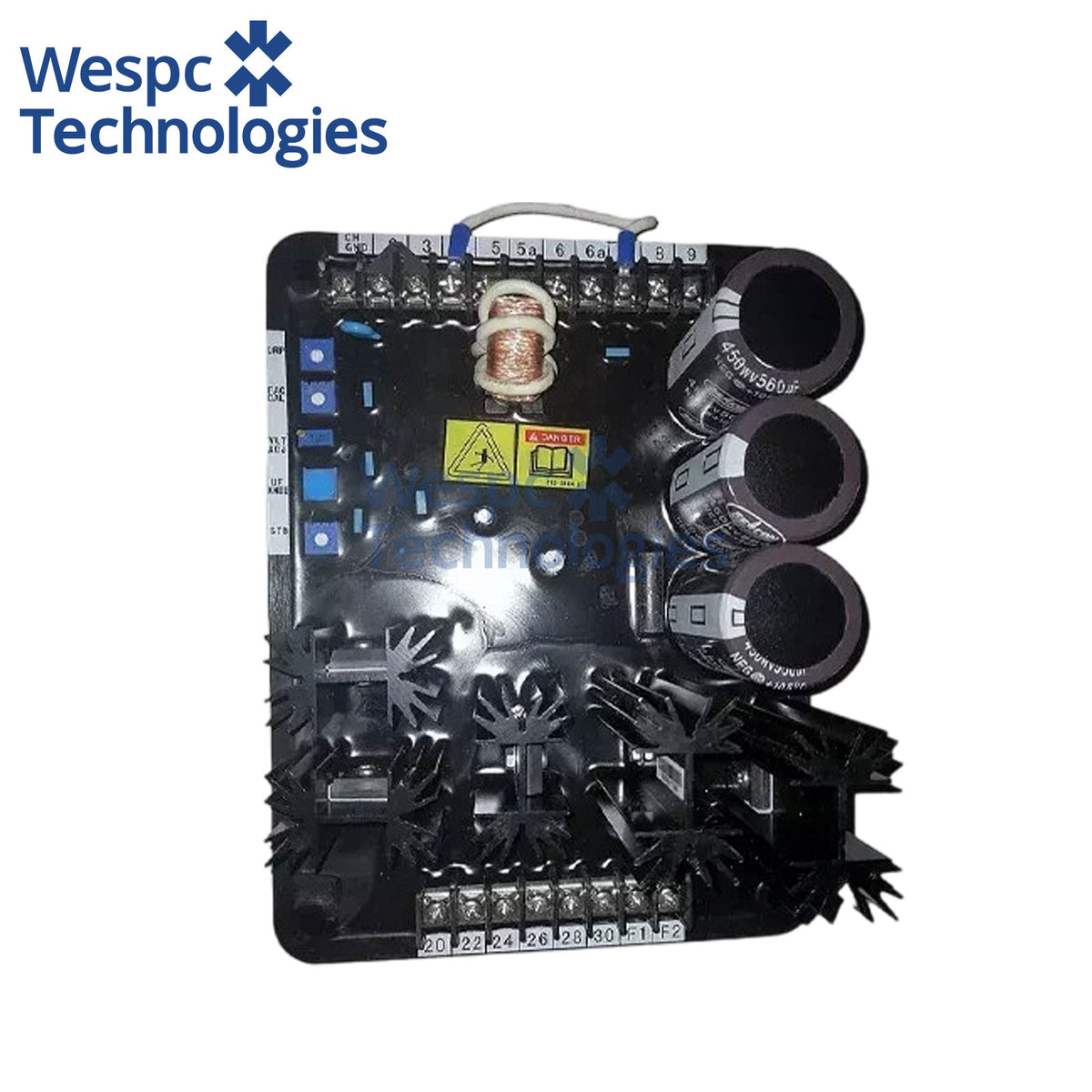

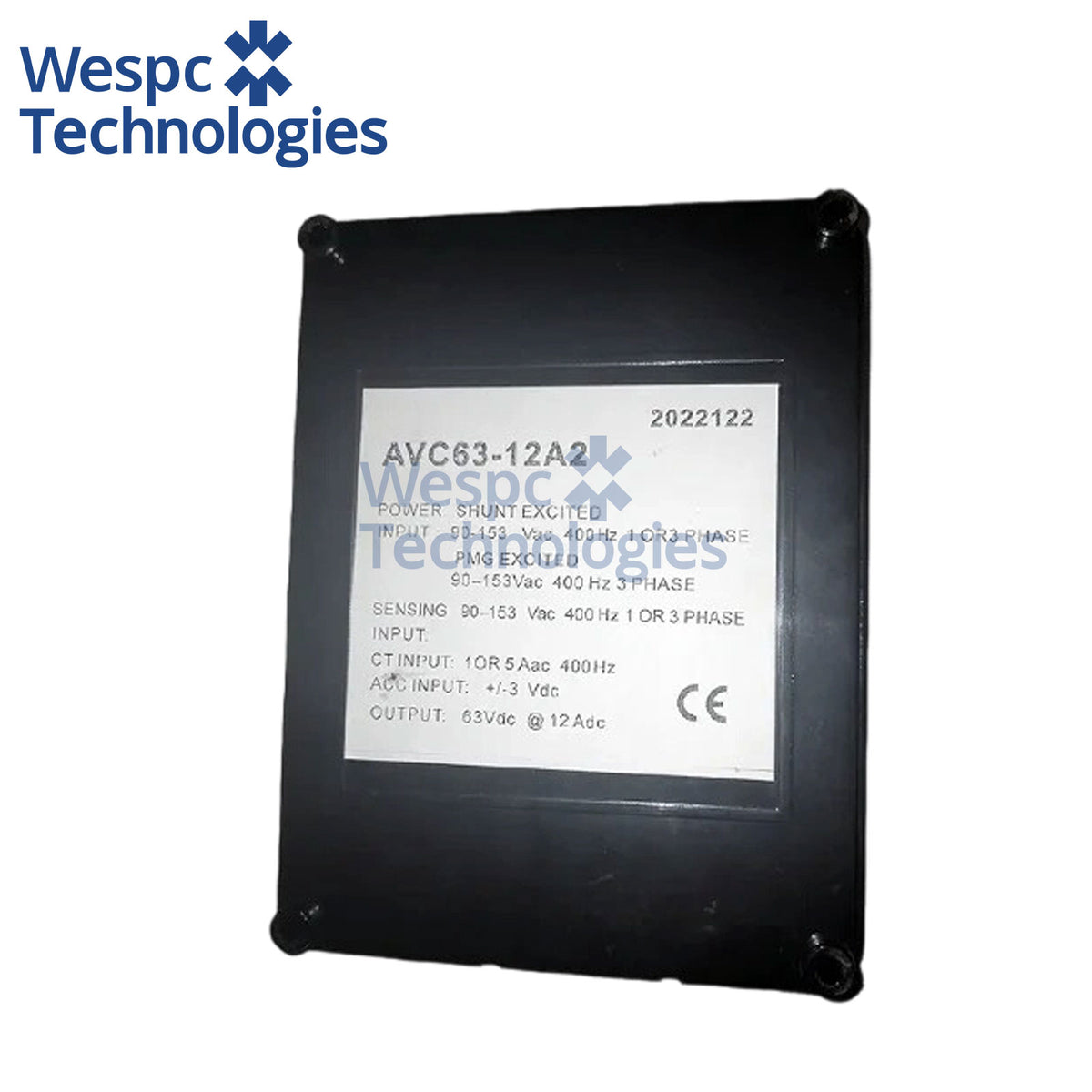

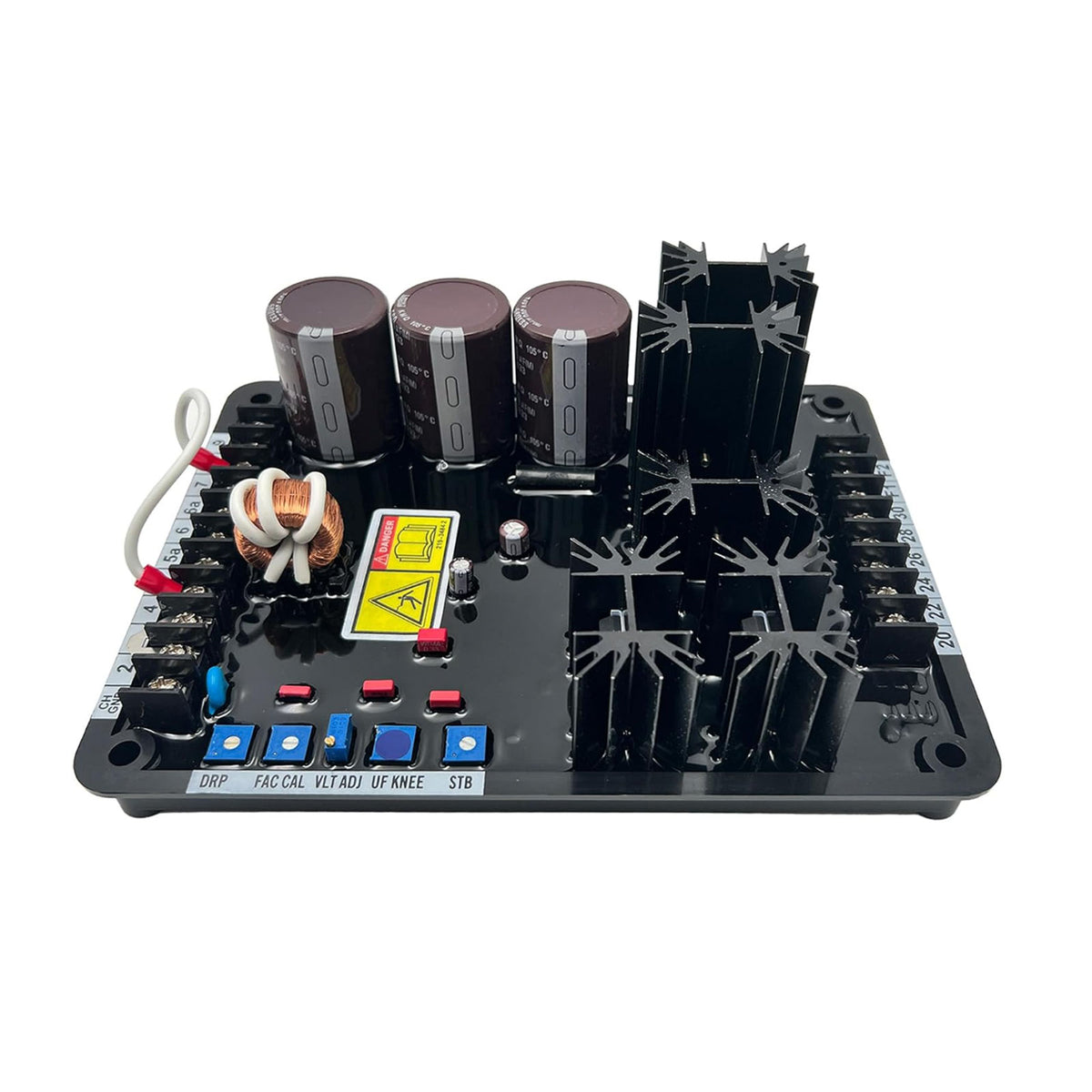

AVC63-12A2 AVR 400Hz Brushless Generator Automatic Voltage Regulator 120V Sensing Intermediate Frequency Excitation Regulator
AVC 63-12A2especially made for sensing input90 to 139 VAC and 400 HZ frequency, Output voltage range 12 Adc at 63 Vdc. Includes many features and alarms to keep voltage and stability constant and protect the generator in the event of an over excitation. High reliability, performance and durability the AVC 63-12 series will be the correct choice!
Specifications
Model: AVC63-12A2
Supplier: Wespc
Type: Potted analog automatic voltage regulator (AVR)
Rated Frequency: 400Hz
Sensing Voltage: 90~139VAC (120V class)
Regulation Accuracy: ±0.5% of set voltage
Max Continuous Excitation Output: 12A DC @63V DC
Forcing Excitation: 24A DC for 10 seconds
Minimum Exciter Field Resistance: 5.25Ω
Power Input: Shunt or PMG compatible
Temperature Drift: ±0.5% over 40℃ temperature variation
