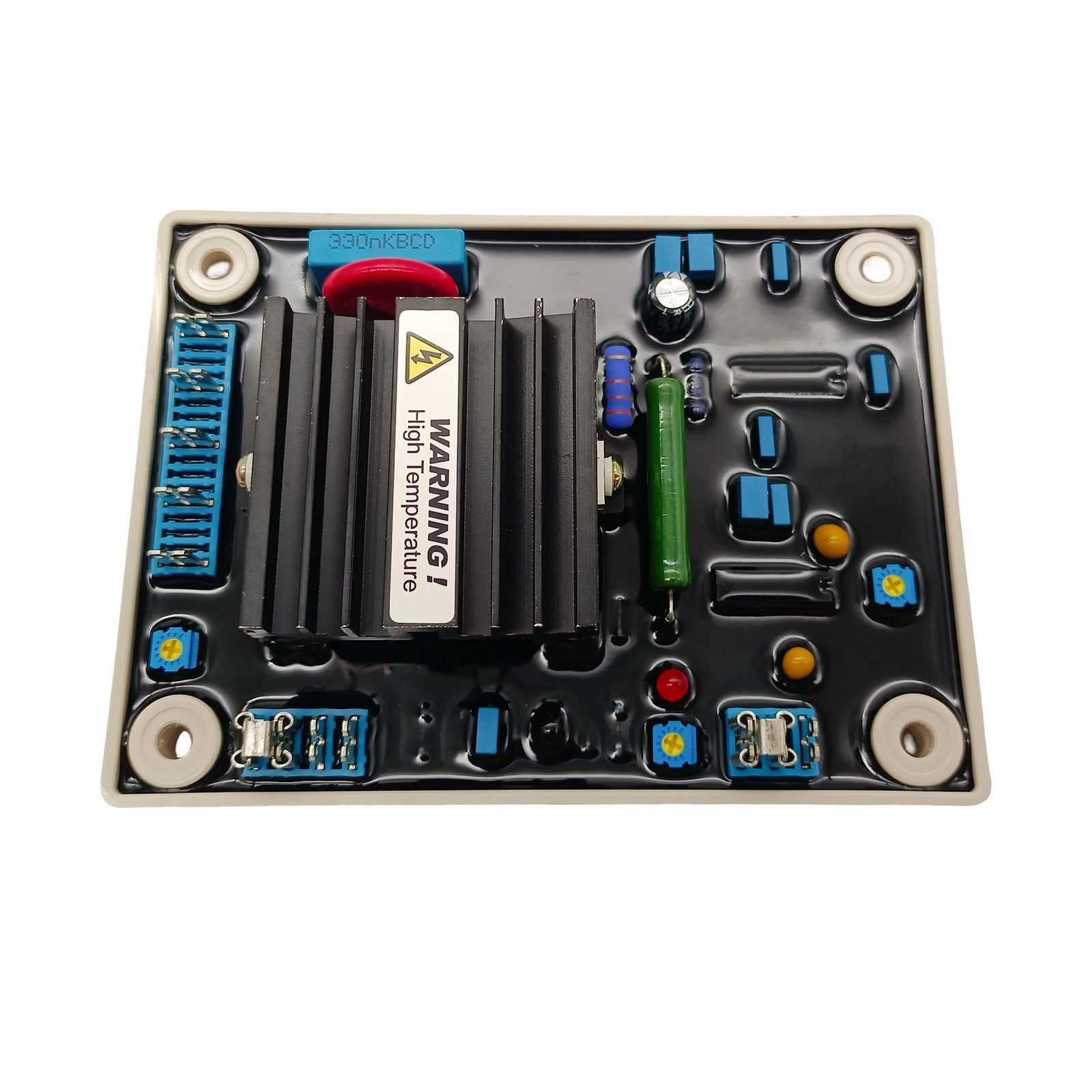

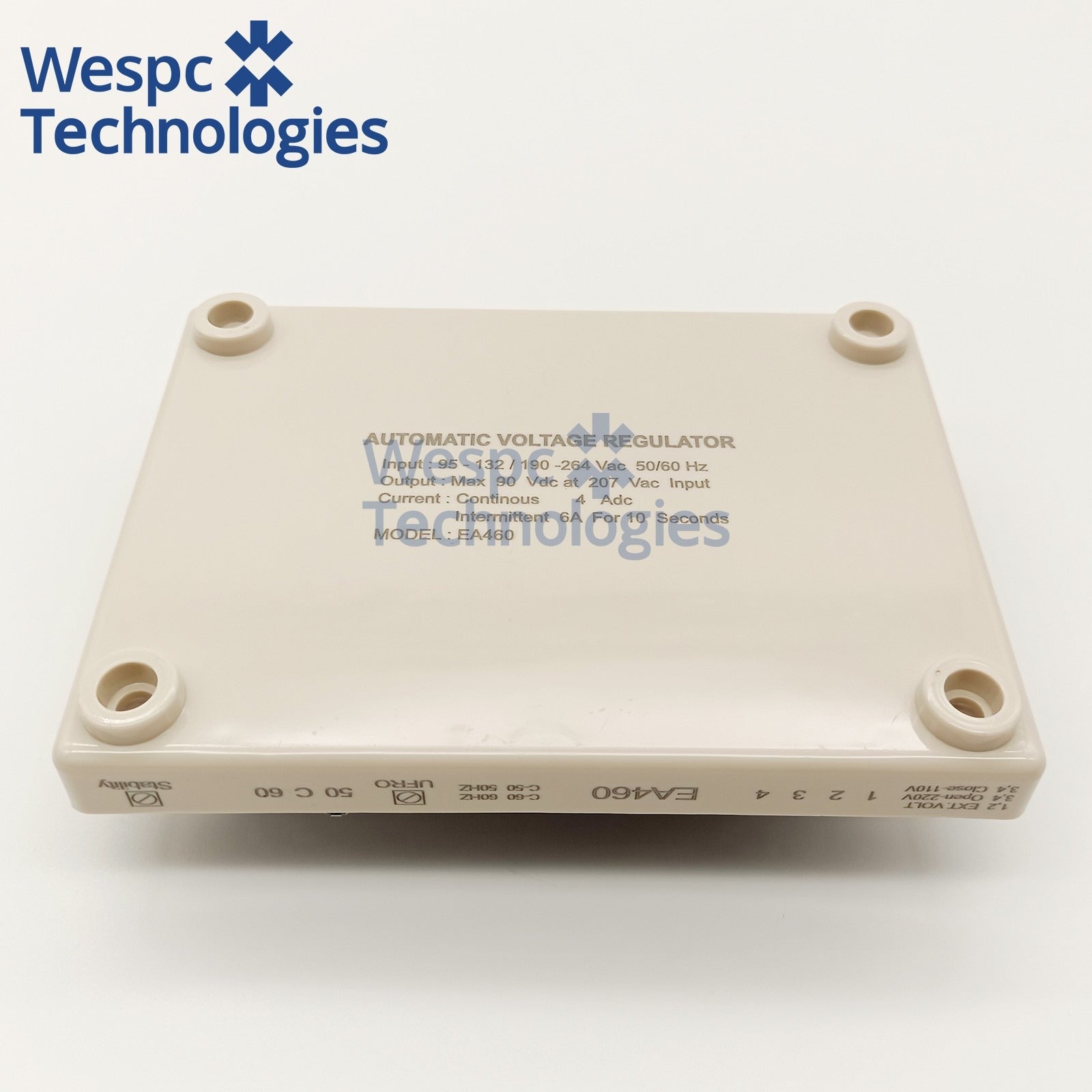

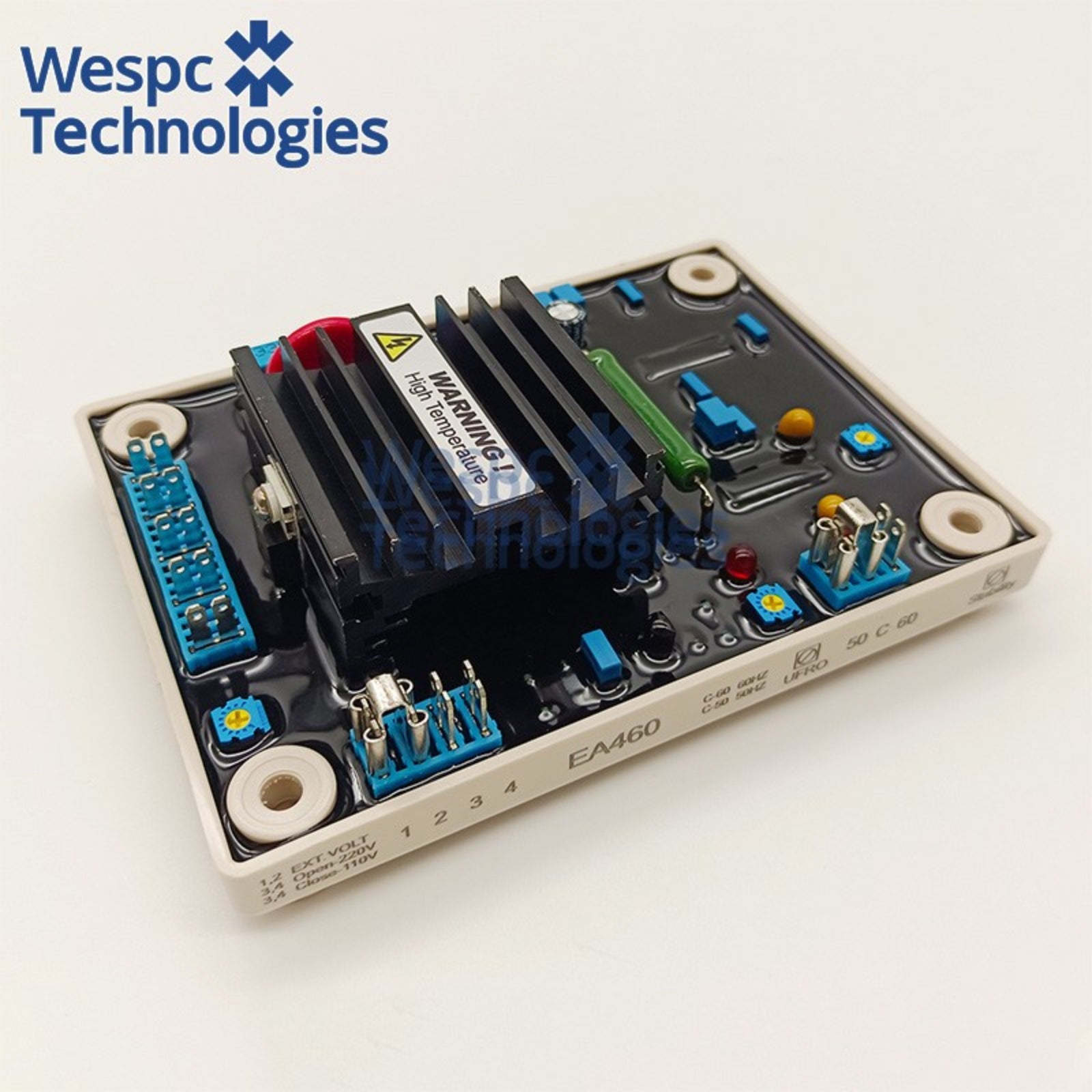

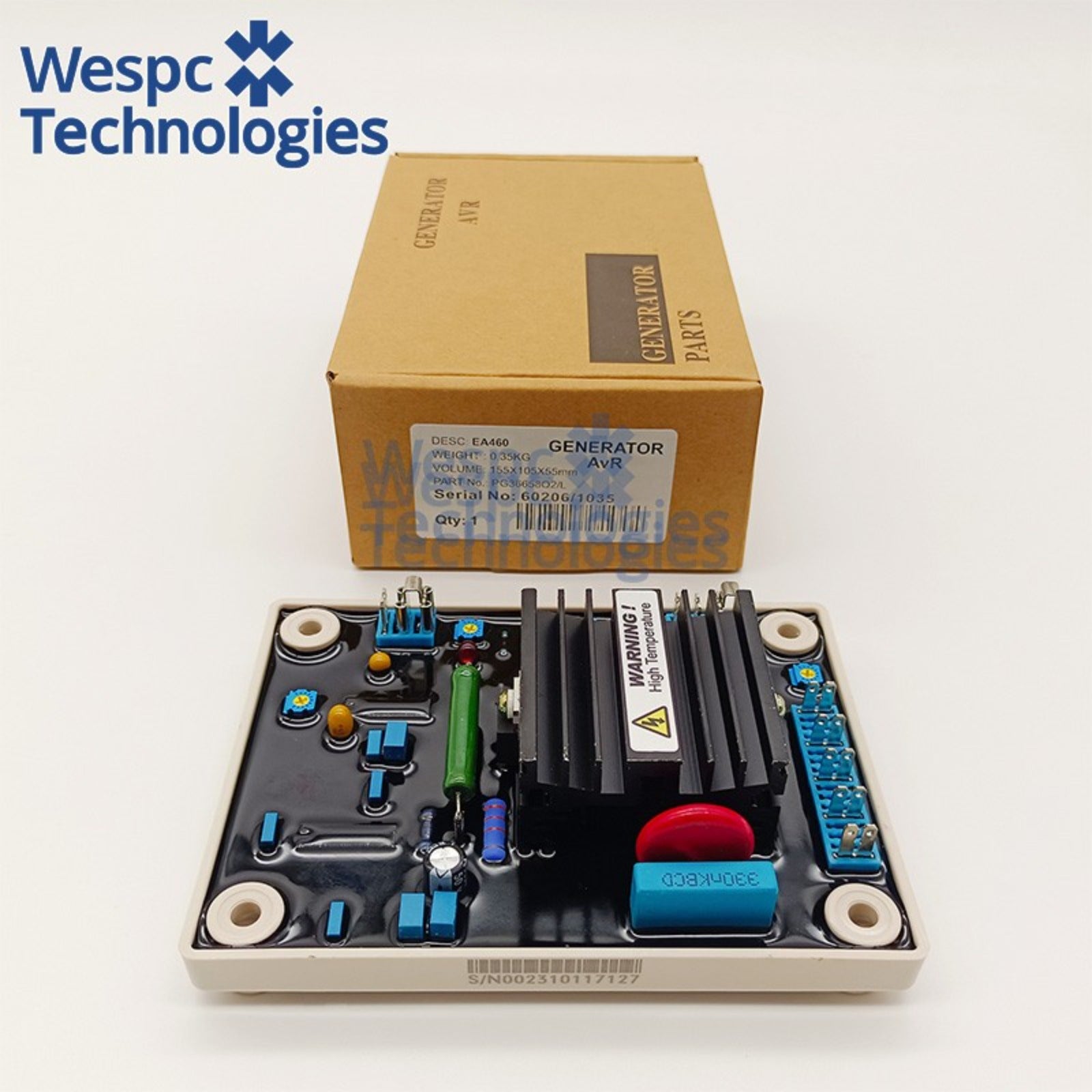

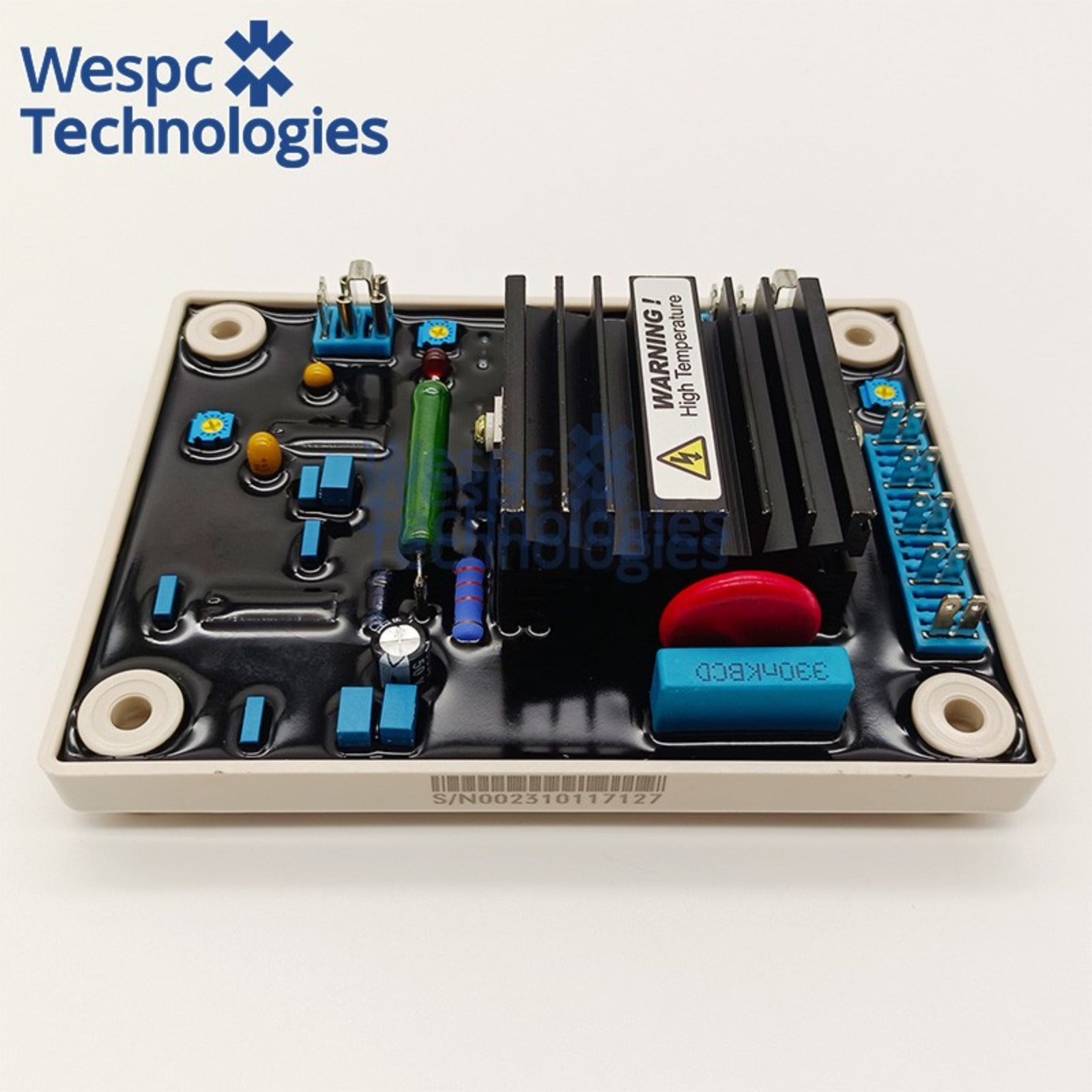

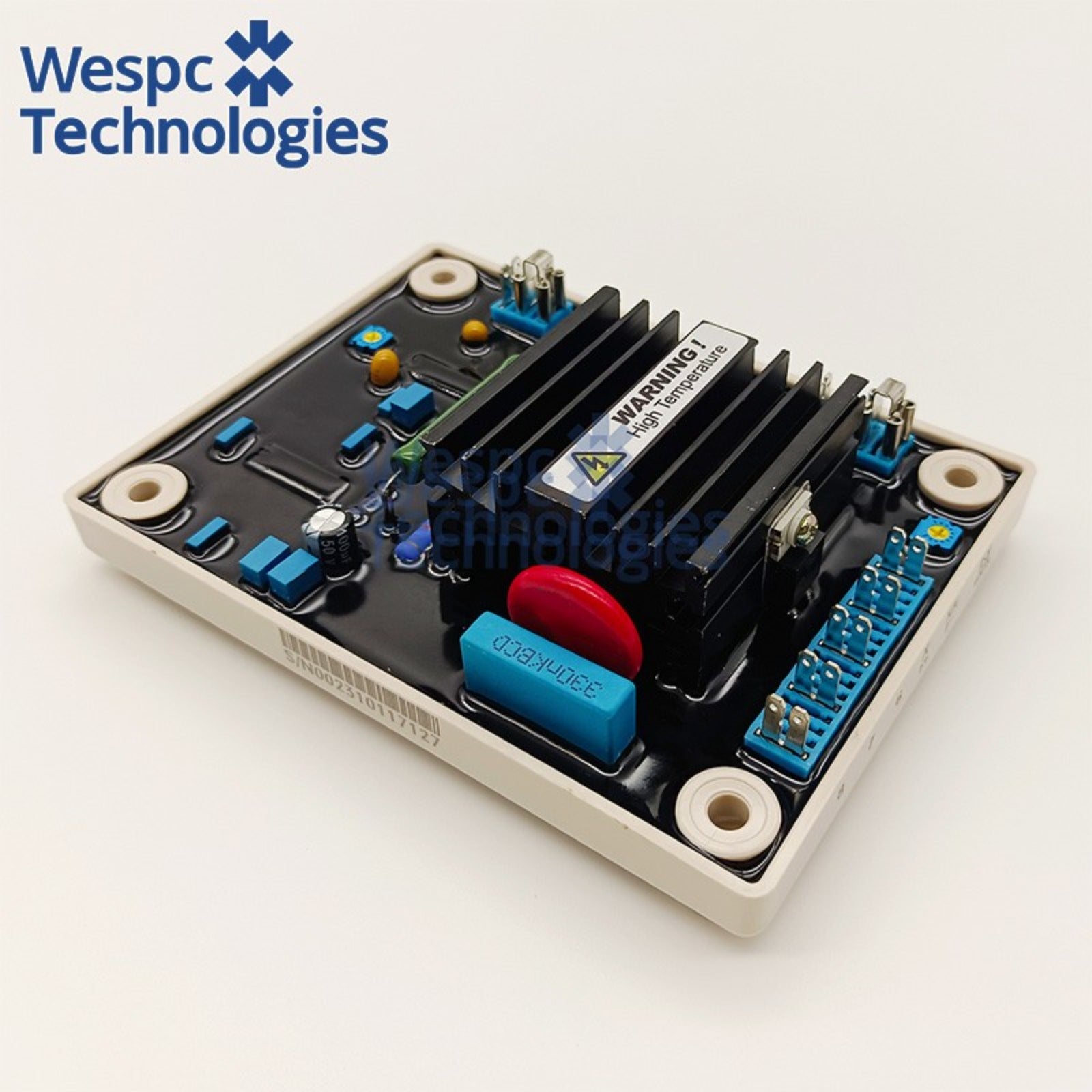

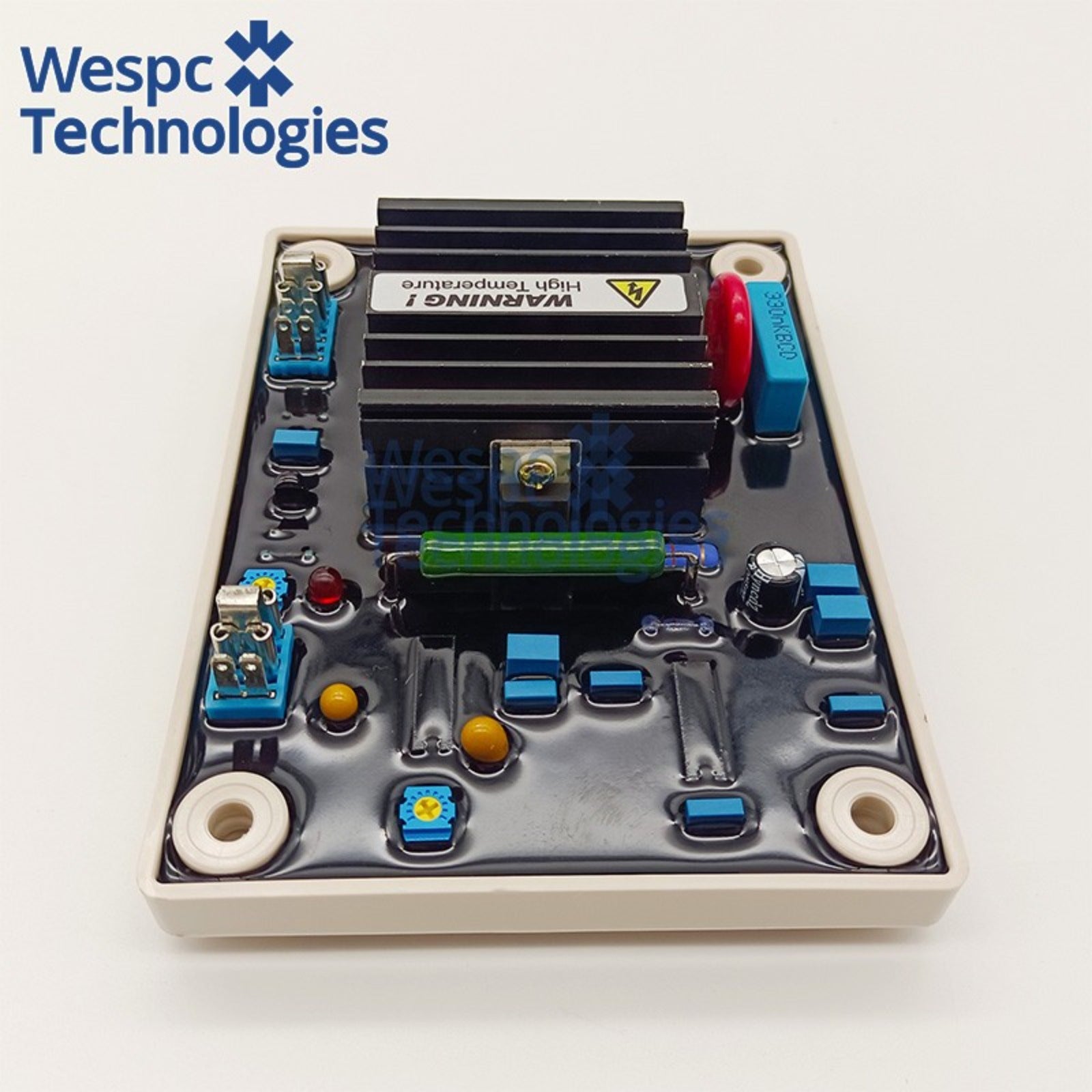

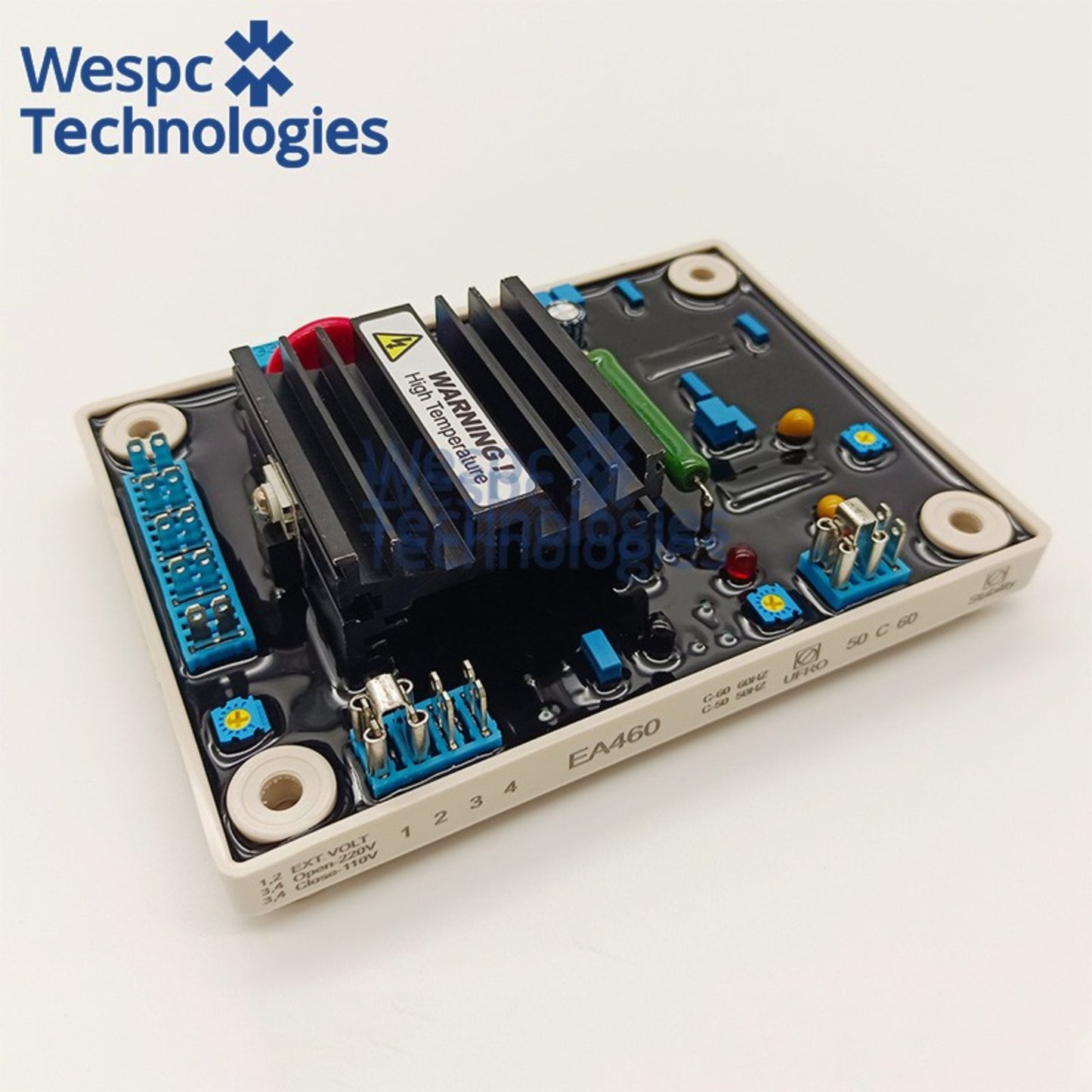

Avr EA460 Automatic Voltage Regulator Kutai Diesel Brushless Alternator Parts made in China
Feature:
1. LED INDICATOR: Automatic voltage regulator come with LED to indicate low frequency state, easy to observe
2. VARIOUS PROTECTION: Voltage regulator with over voltage protection function, low speed protection function, high voltage stability
3. CONNECTION METHOD: The AVR needs to be connected in parallel and can be used with the for kutai EP200 parallel module
4. SCRATCH RESISTANT ABS: AVR adopt excellent ABS material, possess impact resistance, scratch resistance, environmentally friendly
5. STABLE AND DURABLE: Automatic voltage regulator come with stable structure, excellent performance and long service life
Specification:
Item Type: Automatic Voltage Regulator
Model: EA460
Material: ABS
Voltage Input: 95-132 VAC, 190-264VAC single phase
Output Voltage: 90VDC maximum at 207VAC
Current: Continuous 4A, non continuous 6A within 10s
Resistance: Minimum 15Ω
Pressure Regulation Accuracy: <± 1.5% (engine speed variation within 4%)
Voltage Establishment: Residual magnetic voltage above 5V AC is required at the AVR input terminal
