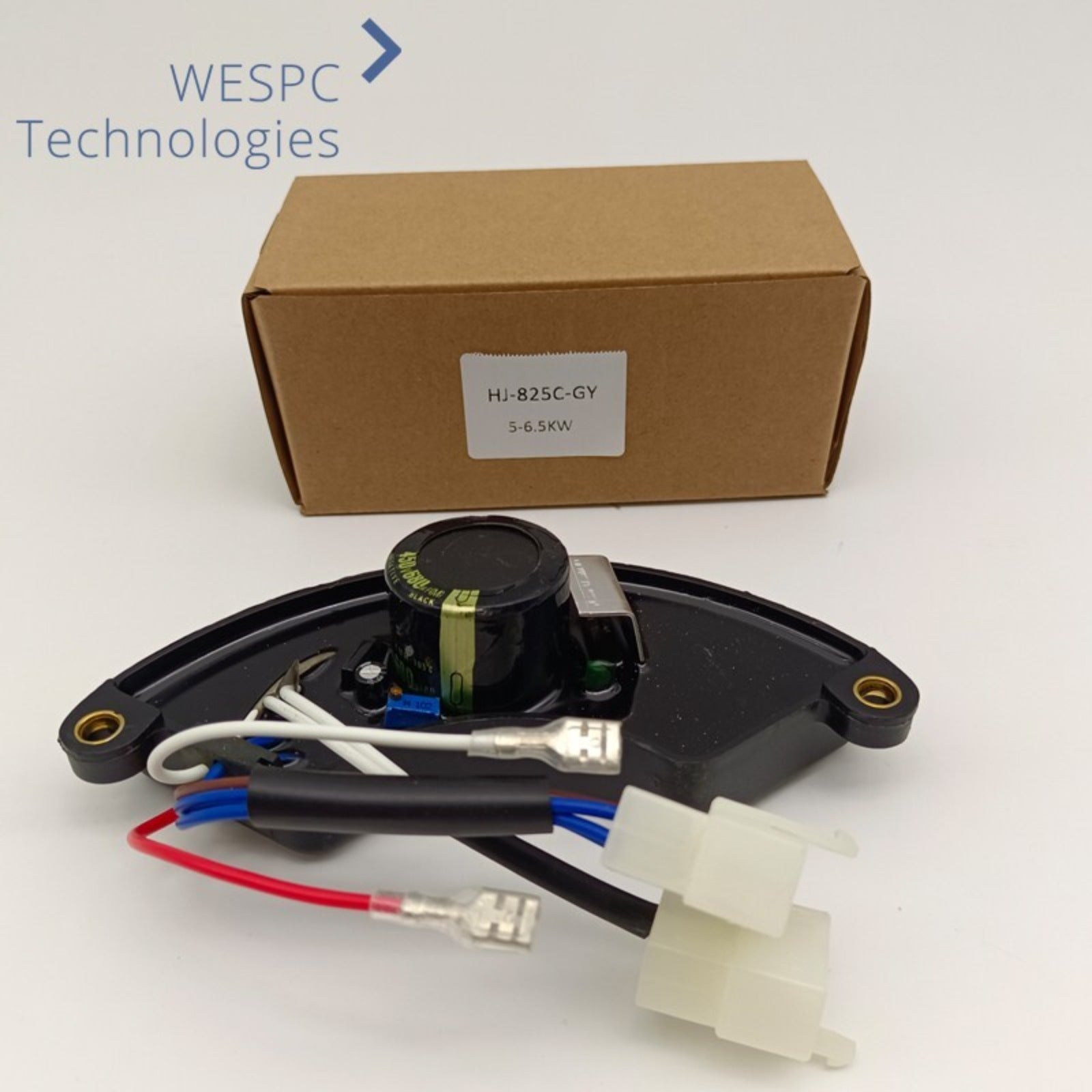

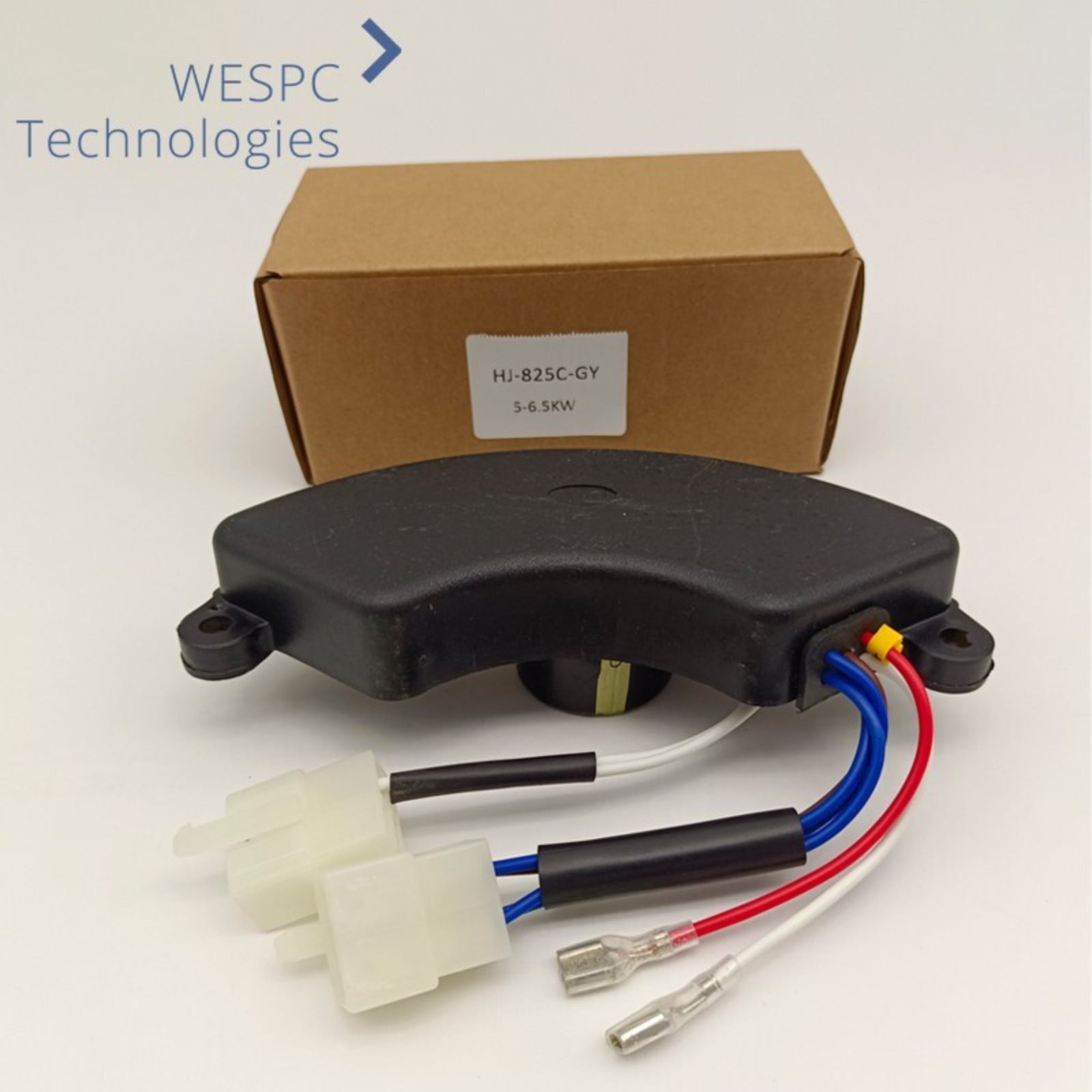

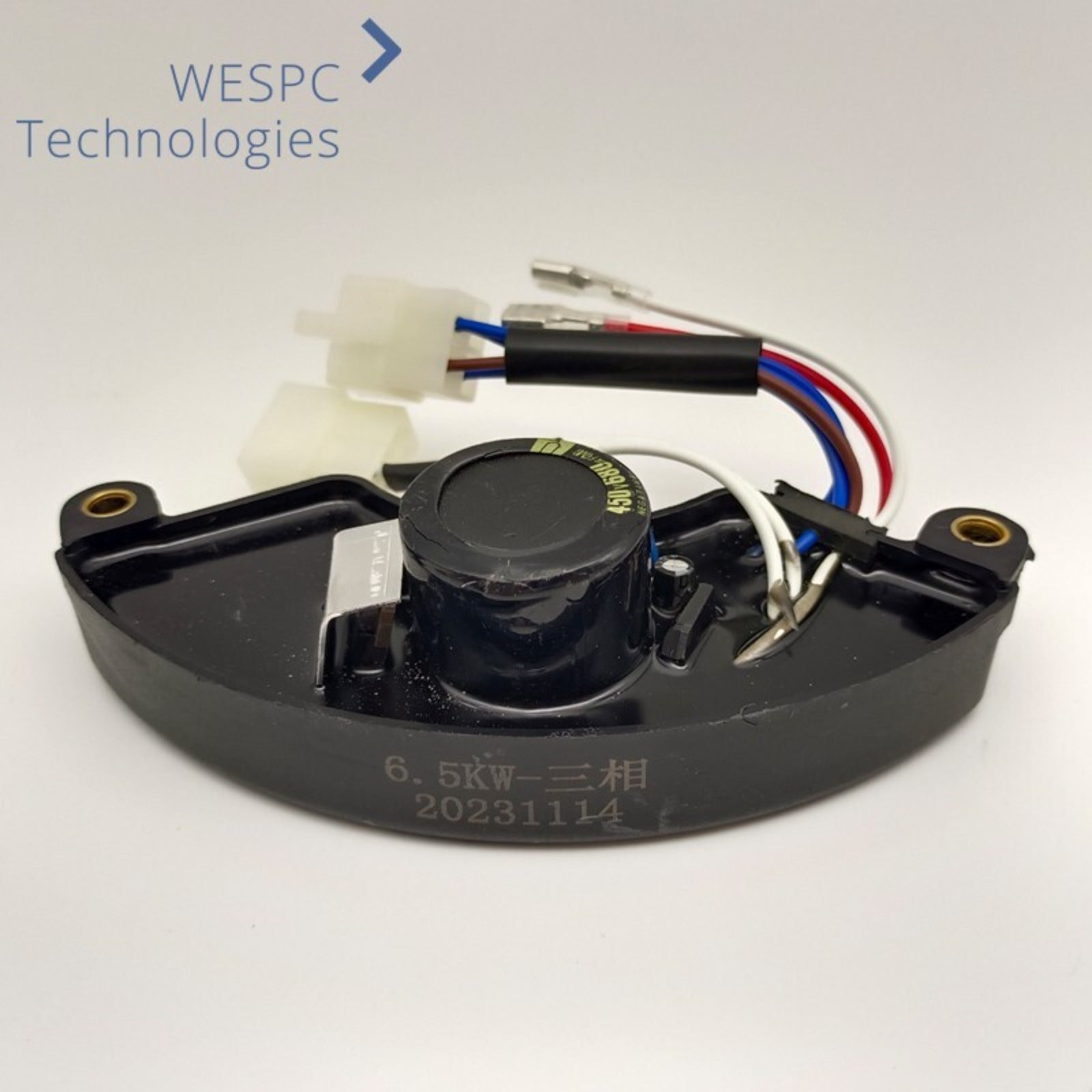

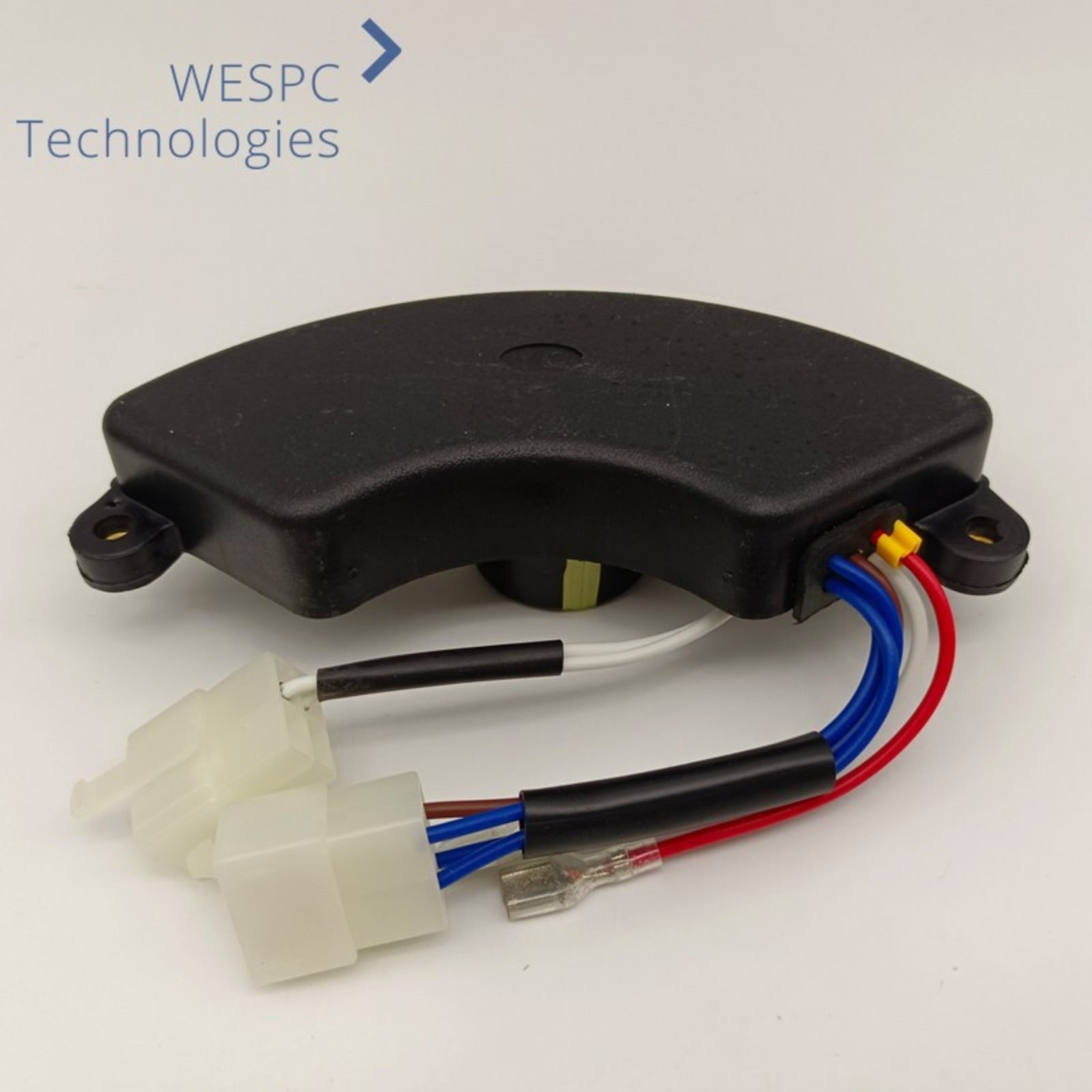

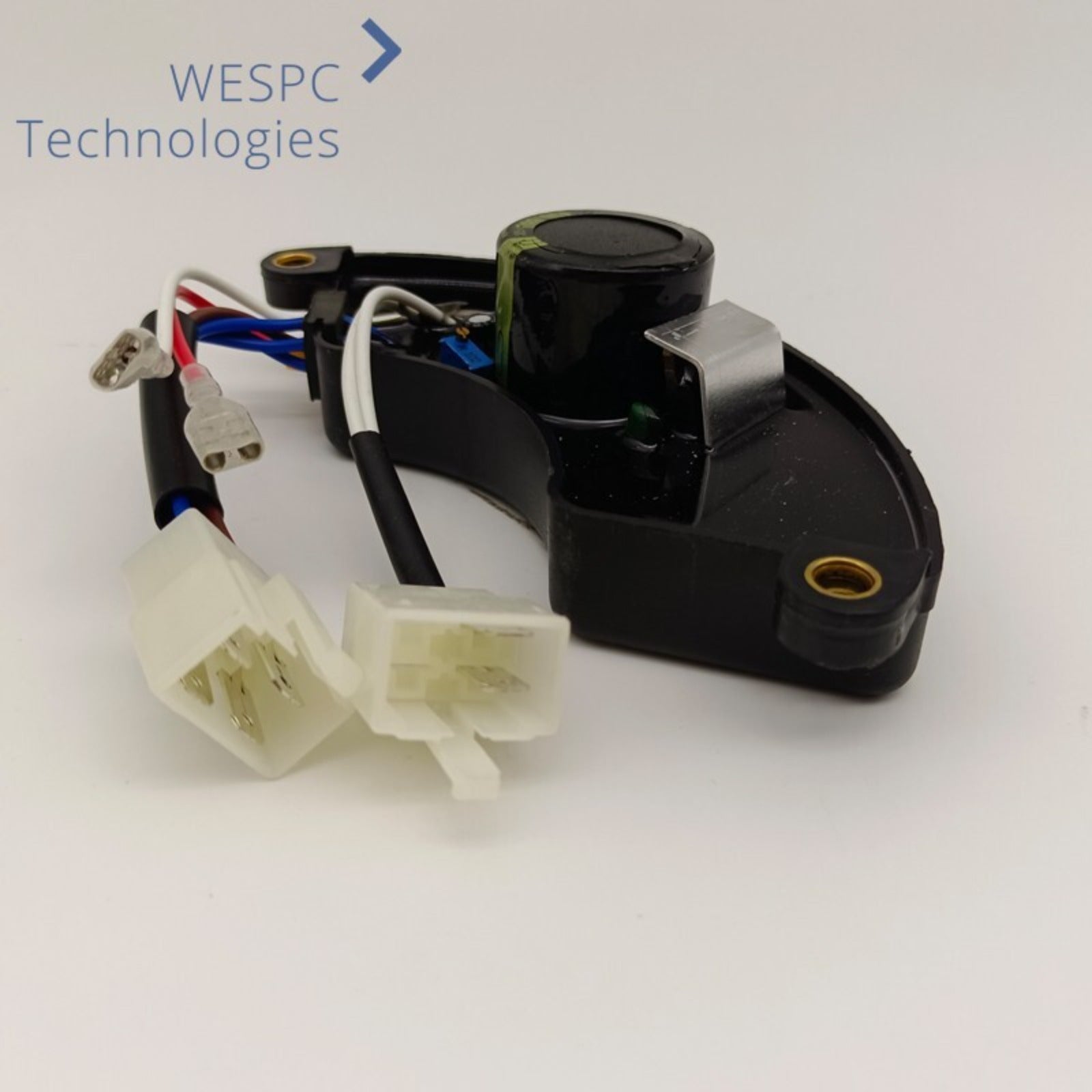

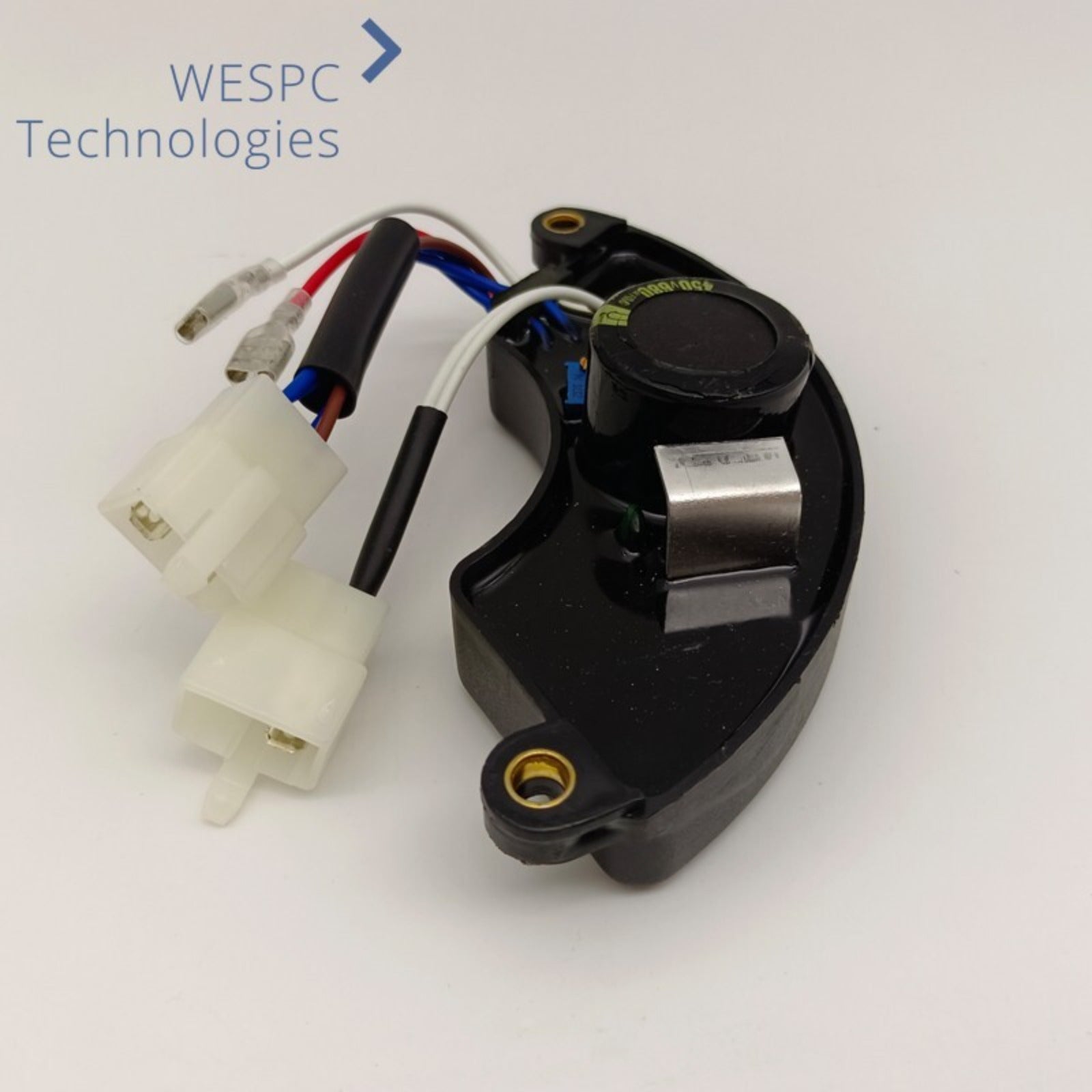

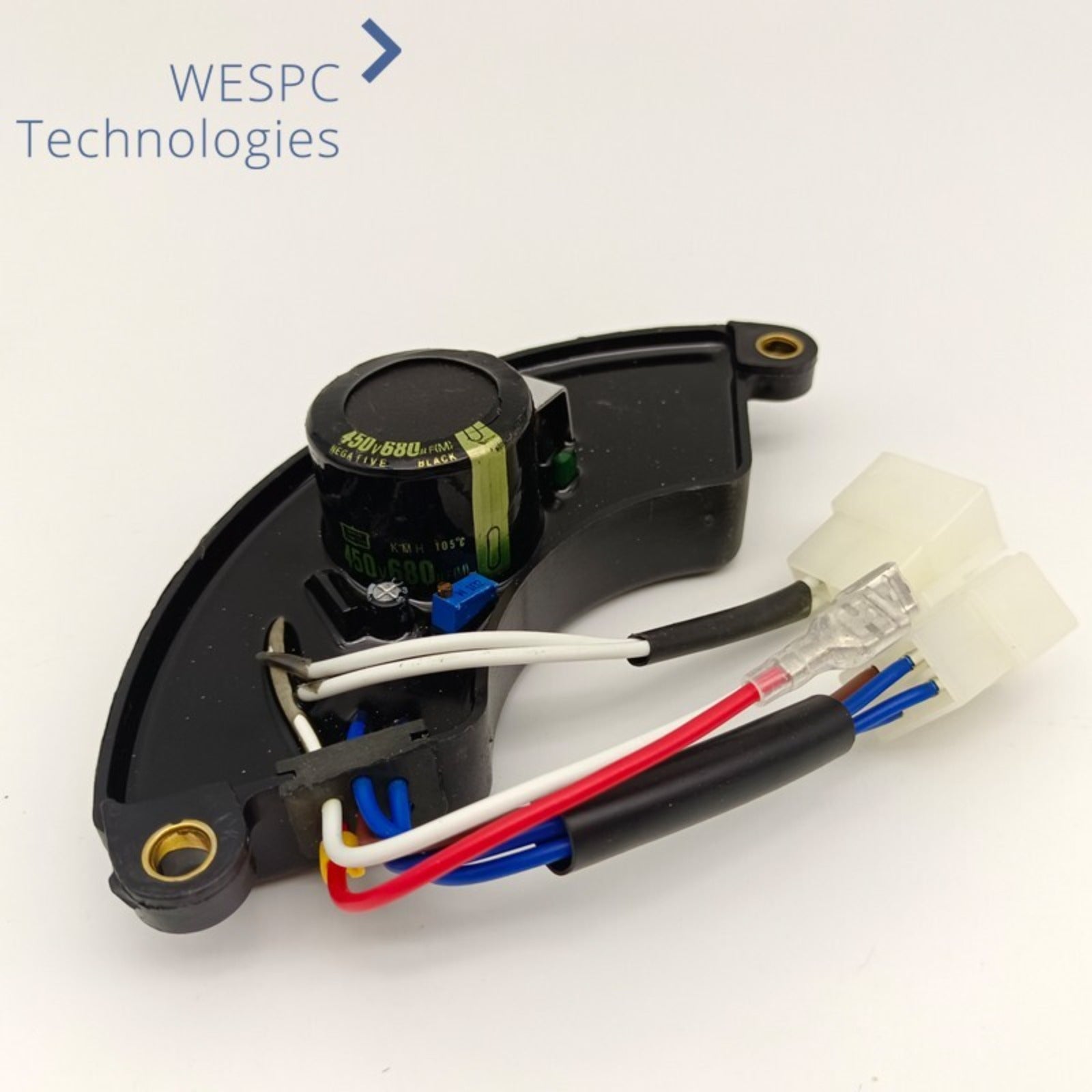

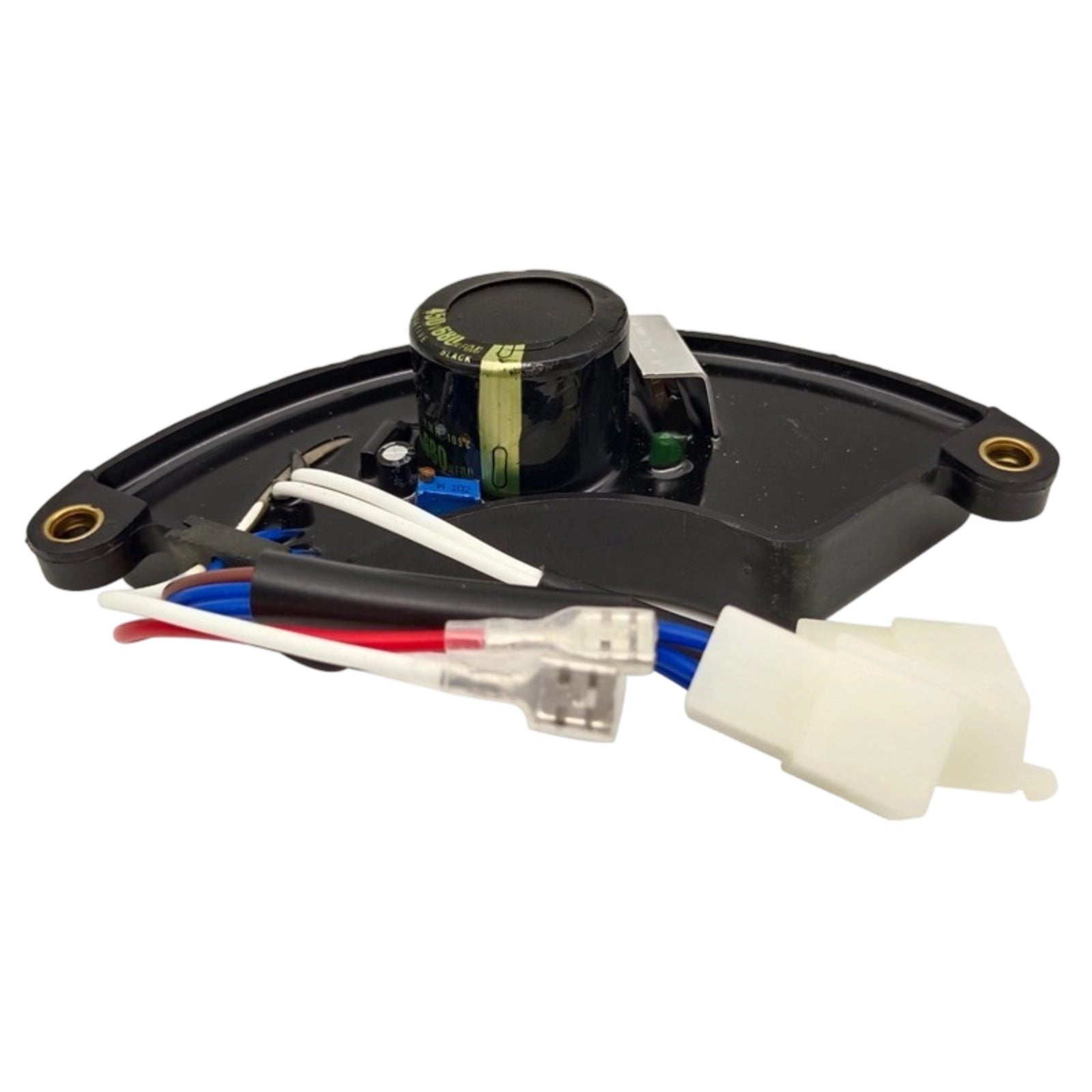

AVR Generator MCU HJ-825C-GY 5-6.5KW 8wires Digital Automatic Voltage Regulator

• Model: HJ-825C-GY Digital Automatic Voltage Regulator (AVR)
• Power Range: 5–6.5kW (Three-phase gasoline generator)
• Phase: Three Phase
• Wiring: 7 wires (3+2+1+1)
• Voltage Rating: 380V / 470UF
• Control Type: MCU digital control, precise regulation
• Regulation Accuracy: ±1% (stable output voltage)
• Protection: Overload, short circuit, overvoltage protection
• Design: Compact, rugged housing, vibration-resistant
• Installation: Plug-and-play, easy replacement
• Applications: 5–6.5kW three-phase gasoline generators, industrial/backup power
• Quality: 100% factory tested, industrial grade reliability

Specifications

• Part Number: HJ-825C-GY
• Type: Digital Automatic Voltage Regulator (AVR)
• Compatible Power: 5kW–6.5kW (Three-phase gasoline generator)
• Phase: 3 Phase
• Wire Count: 7 wires (3+2+1+1)
• Rated Voltage: 380V
• Capacitance: 470UF
• Control System: MCU digital microprocessor
• Voltage Regulation: ±1% (precision stabilization)
• Protection Features: Overload, short circuit, overvoltage, undervoltage
• Operating Temp: -20°C ~ +60°C
• Housing Material: High-strength ABS plastic, dustproof & waterproof
• Dimensions: Approx. 120×80×30mm
• Weight: Approx. 0.3kg
• Application: 5–6.5kW three-phase gasoline generator sets
• Warranty: 6 months
