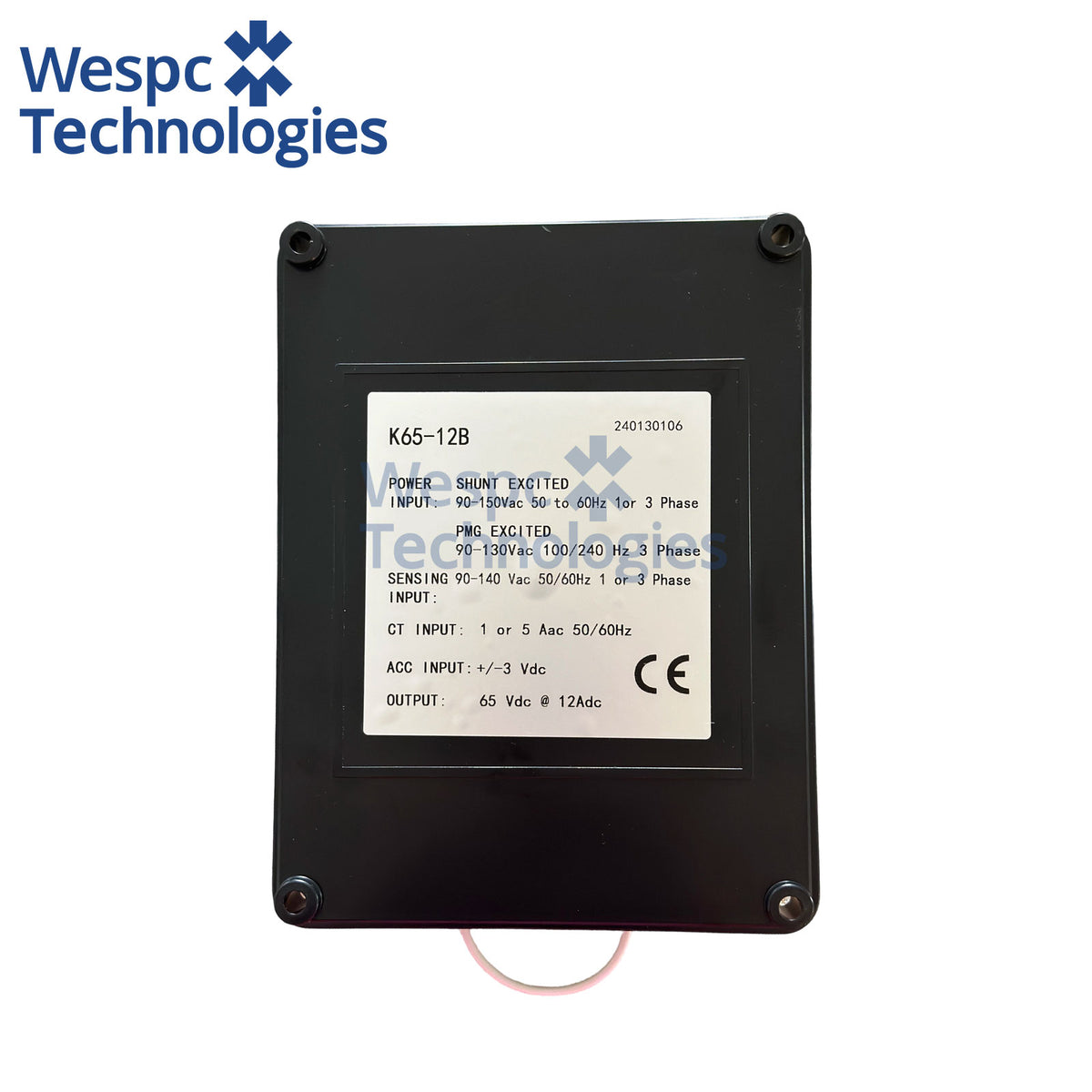

AVR K65-12B AVR Compatible Caterpillar VR6 Automatic Voltage Regulator

Specification

• Model: K65-12B (VR6 Series)
• Type: Automatic Voltage Regulator (AVR)
• Condition: Aftermarket Replacement (Non-original)
• Continuous Field Output: 12A DC
• Peak Forcing Current: 25A DC for 10s
• Max Field Voltage: 65V DC
• Regulation Accuracy: ±0.5%
• Response Time: <4 ms
• AC Power Input: 100–280VAC single phase / 63–105VAC three phase, 50–400Hz
• Sensing Input: 90–140VAC, single/three phase, 50/60Hz
• External Adjust: 10kΩ 2W potentiometer
• Features: Under-frequency Protection, Reactive Droop for Parallel, Fast Dynamic Response, Wide Operating Temperature, Anti-vibration Encapsulated Board
• Application: Caterpillar Brushless Diesel Generator / Alternator
• Compatible: Caterpillar VR6 K65-12B
• Warranty: 12 months factory warranty
