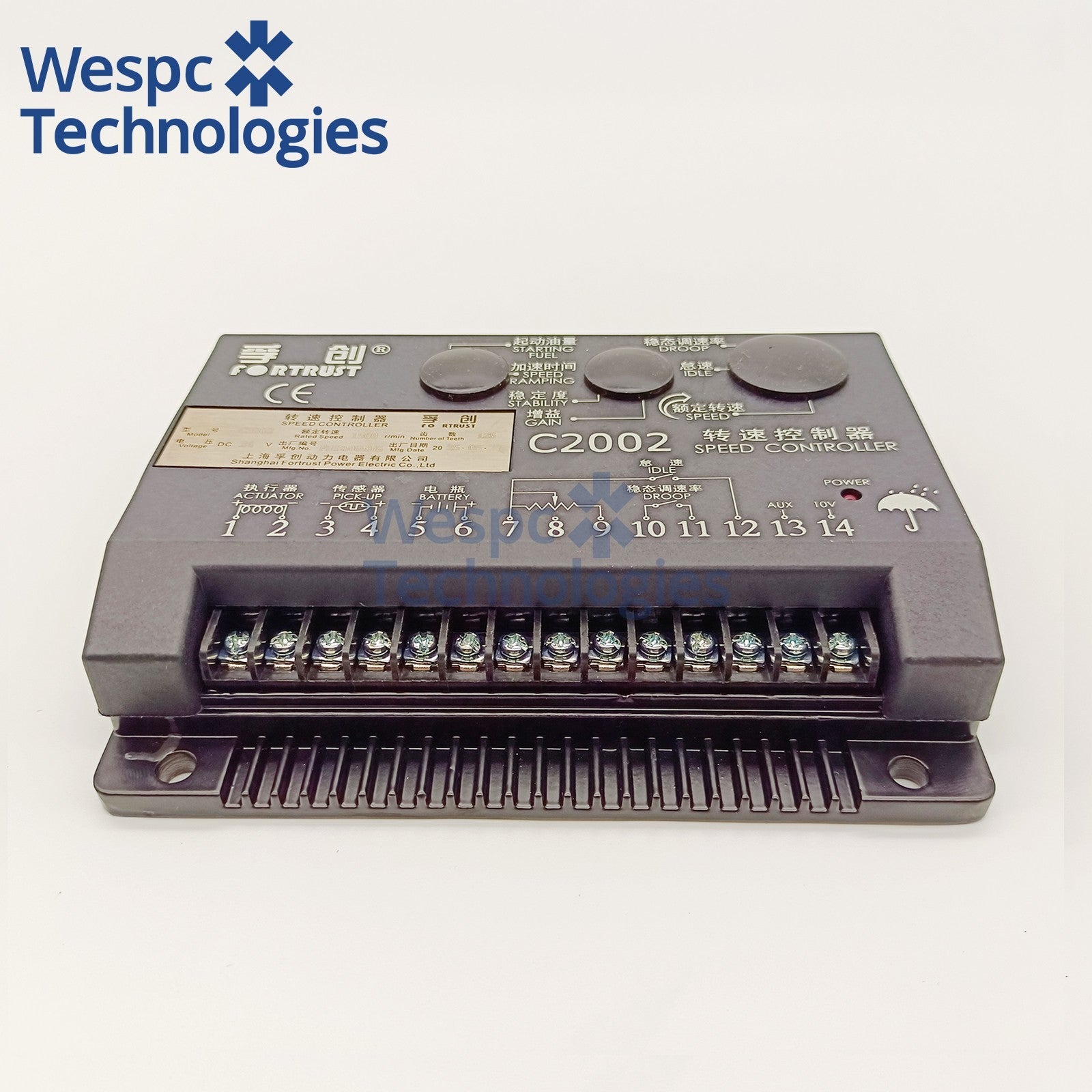

C2002 Diesel Speed Governor DC12V DC24V PID Closed Loop Speed Controller

$139.00 USD

~~$0.00 USD~~ $139.00 USD

Sale Sold out

Shipping calculated at checkout.

Color C2002 12V C2002 24V

Quantity

C2002 24V Speed Controller Generator Electronic Governor Speed Control Unit

Product Overview

· Genuine Fortrust C2002 analog single closed-loop electronic speed governor, two voltage options: DC12V / DC24V, specially for mechanical fuel pump diesel engines, cooperate with linear actuator A1000C-W and magnetic pickup sensor to stabilize engine RPM under variable load.

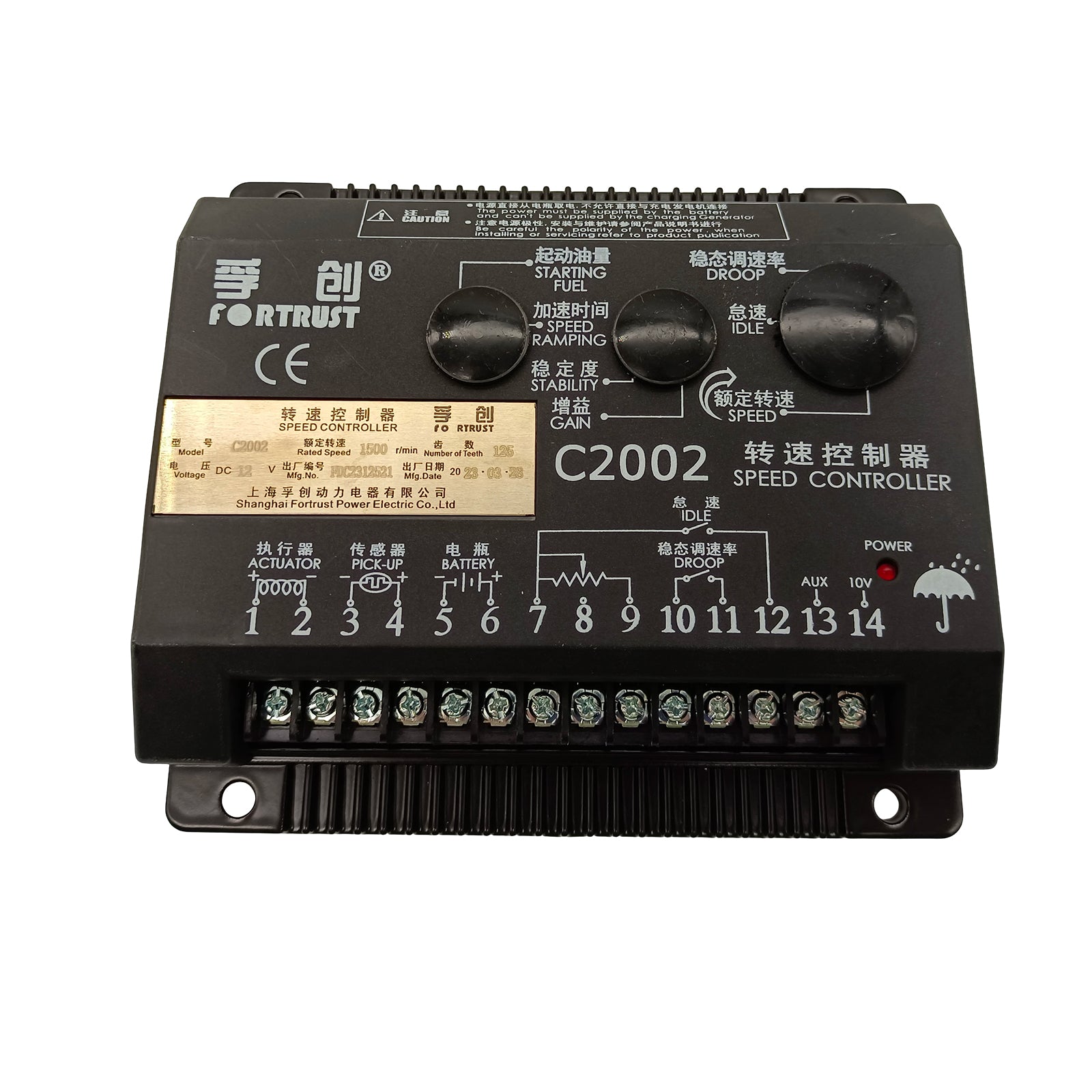

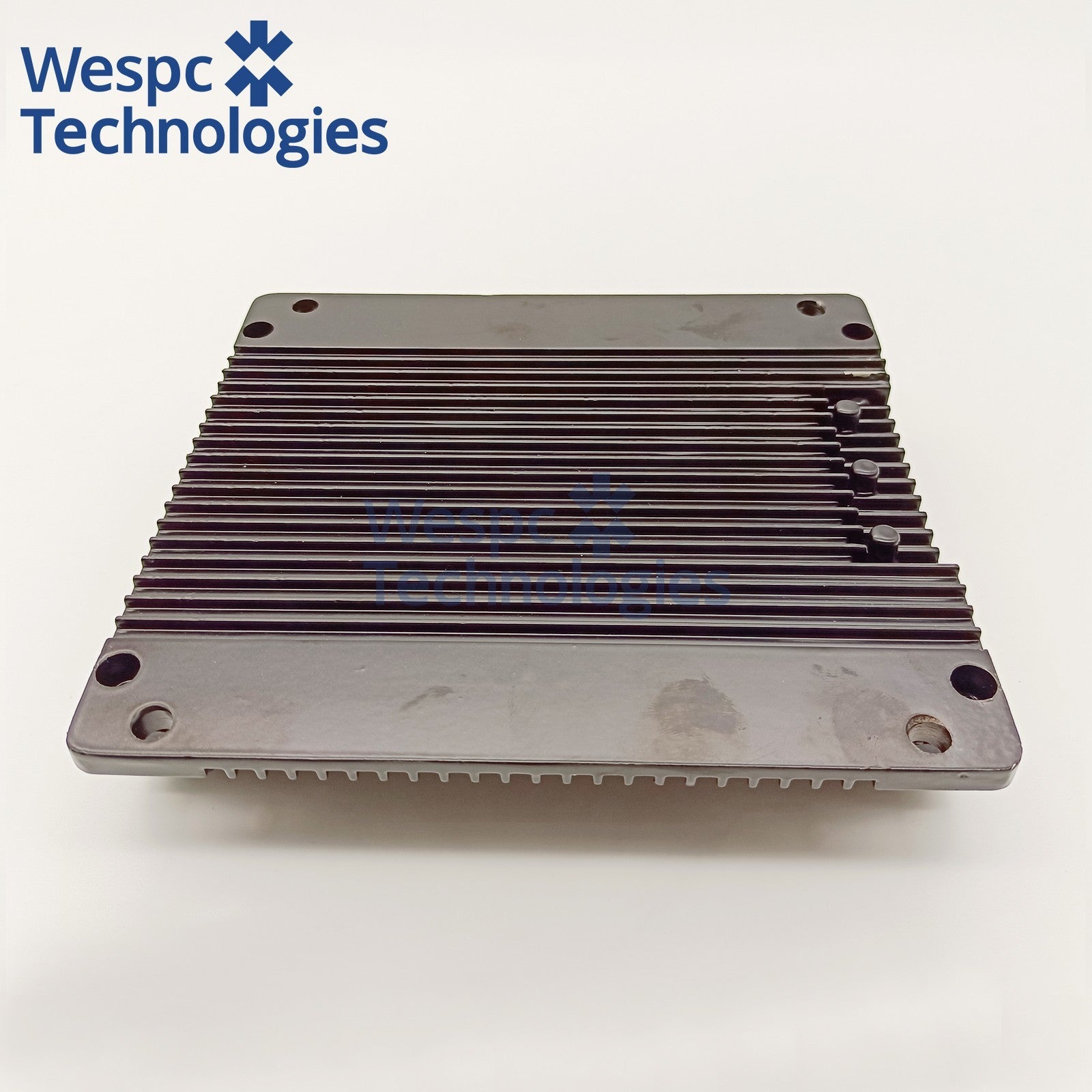

· All metal integrated heat dissipation shell, four front panel knobs: START FUEL start fuel, RAMP acceleration time, STAB stability, RATED nominal speed. Built-in multi-protection: loss speed sensor, actuator short-circuit overcurrent, over/under voltage protection, effectively prevent engine runaway risk.

· Wide operating temperature -40℃~+70℃, low static power consumption <0.1A (excluding actuator), support 50/60Hz generator frequency, widely used 20~1200kW silent/open-frame diesel gensets, water pump units, construction machinery diesel engines.

Voltage Version Difference

C2002 12V
- Input voltage range: DC 9V ~ 16V
- Internal low-voltage coil circuit
- Application: small portable gensets, light 12V engineering machinery, small marine auxiliary engines
C2002 24V
- Input voltage range: DC 18V ~ 32V
- Internal high-withstand voltage coil circuit
- Application: heavy-duty stationary gensets, trucks, large industrial 24V power units

Note: Appearance, mounting hole, terminal definition, adjustment parameters are fully identical, cannot cross voltage replacement, will cause insufficient driving force or burnt circuit board.
