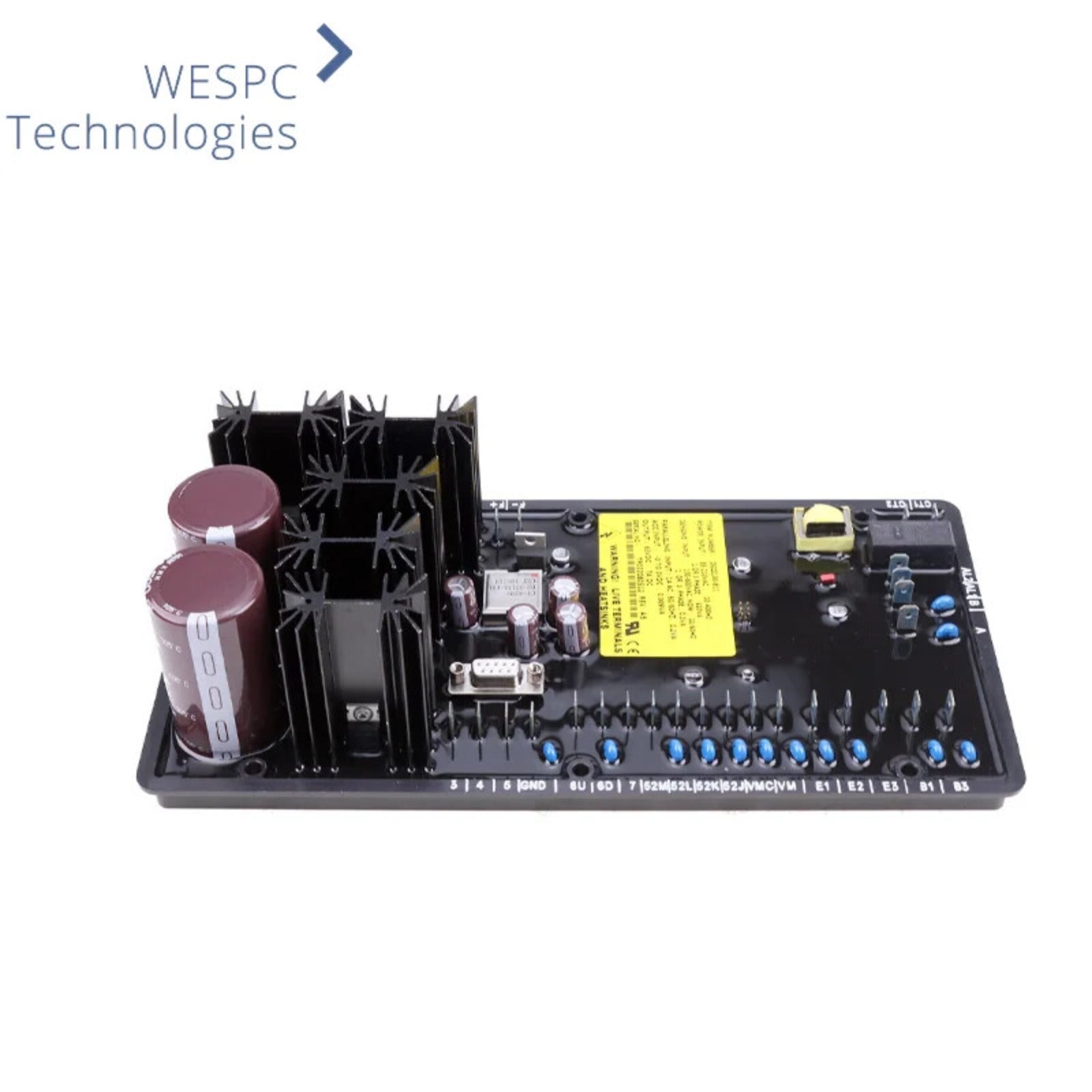

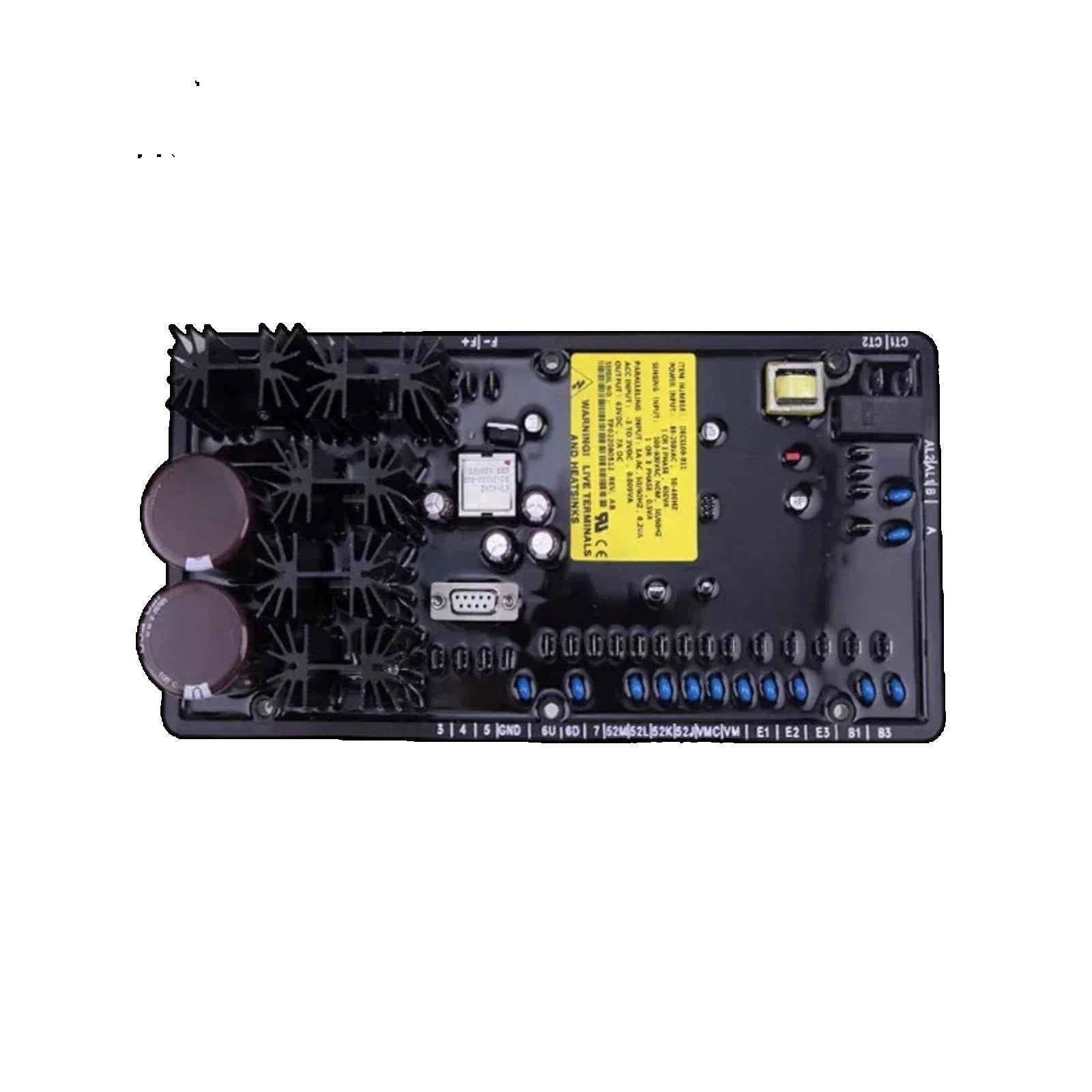

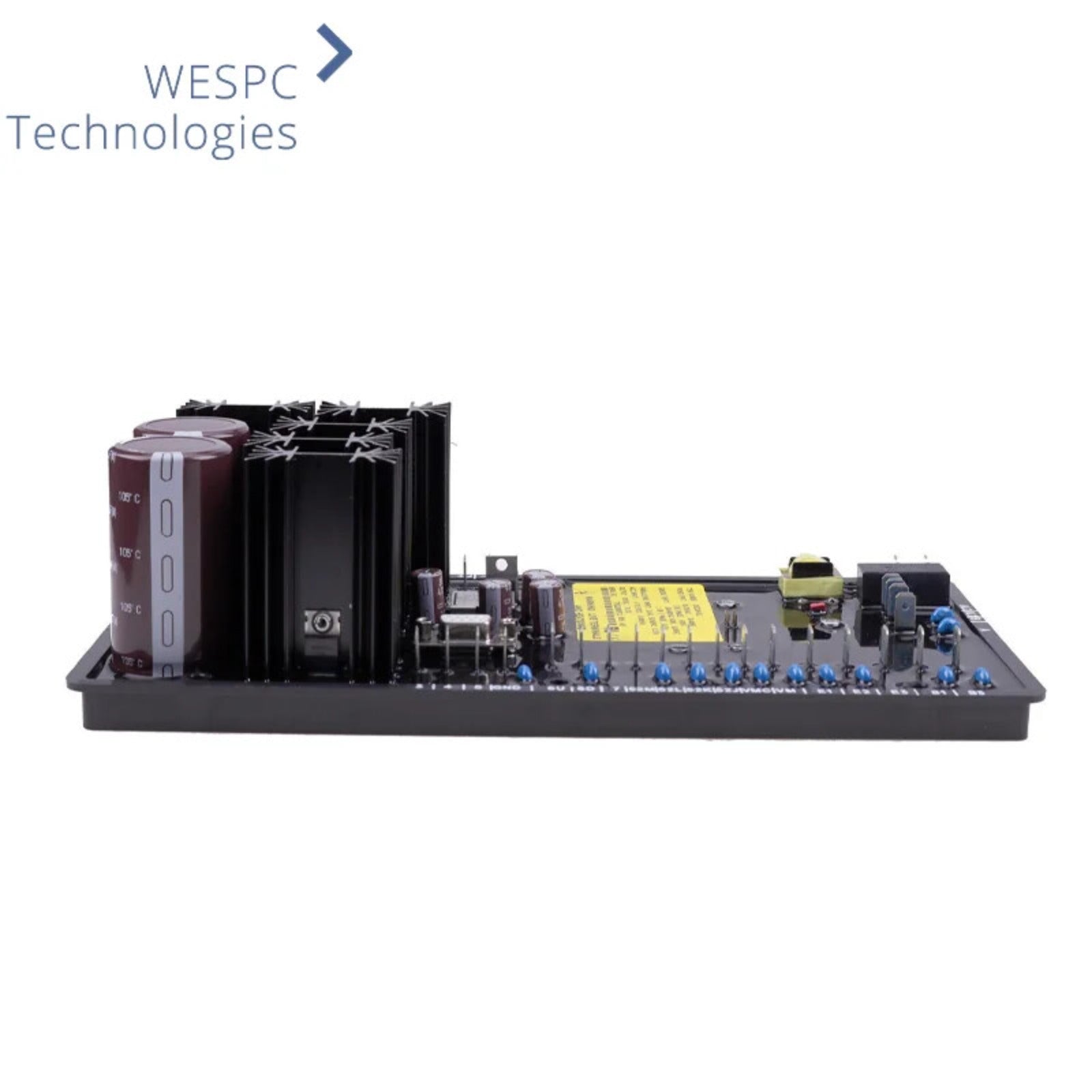

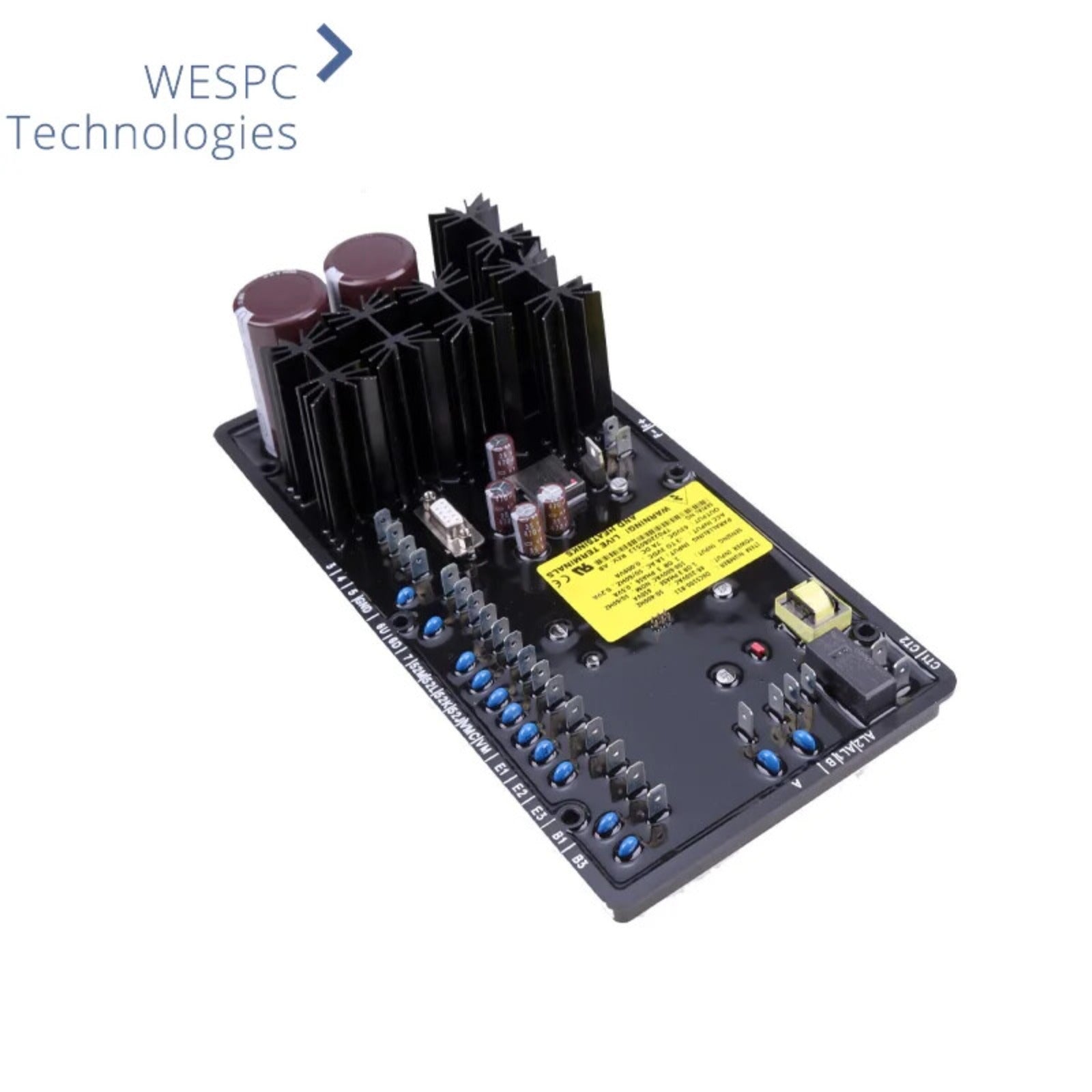

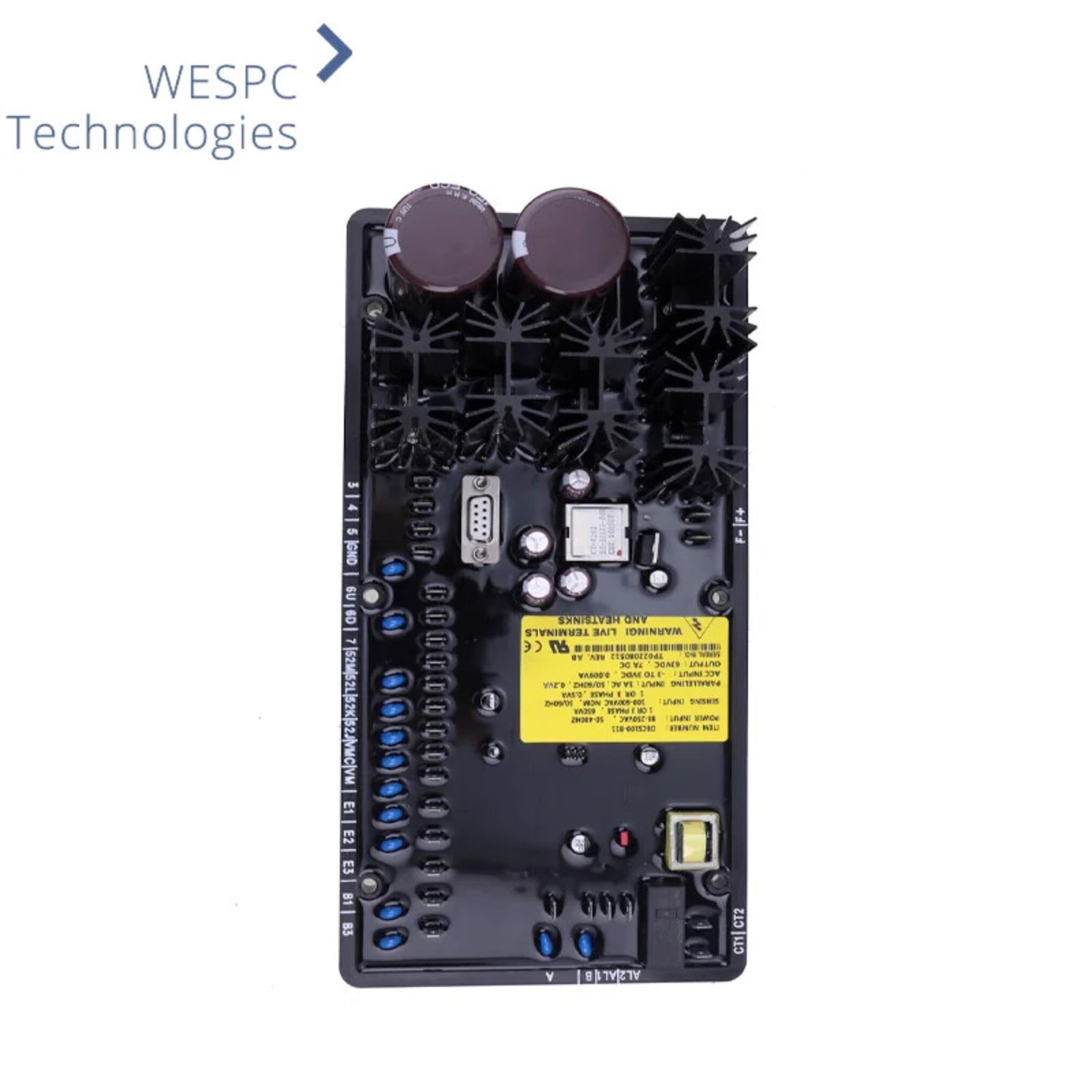

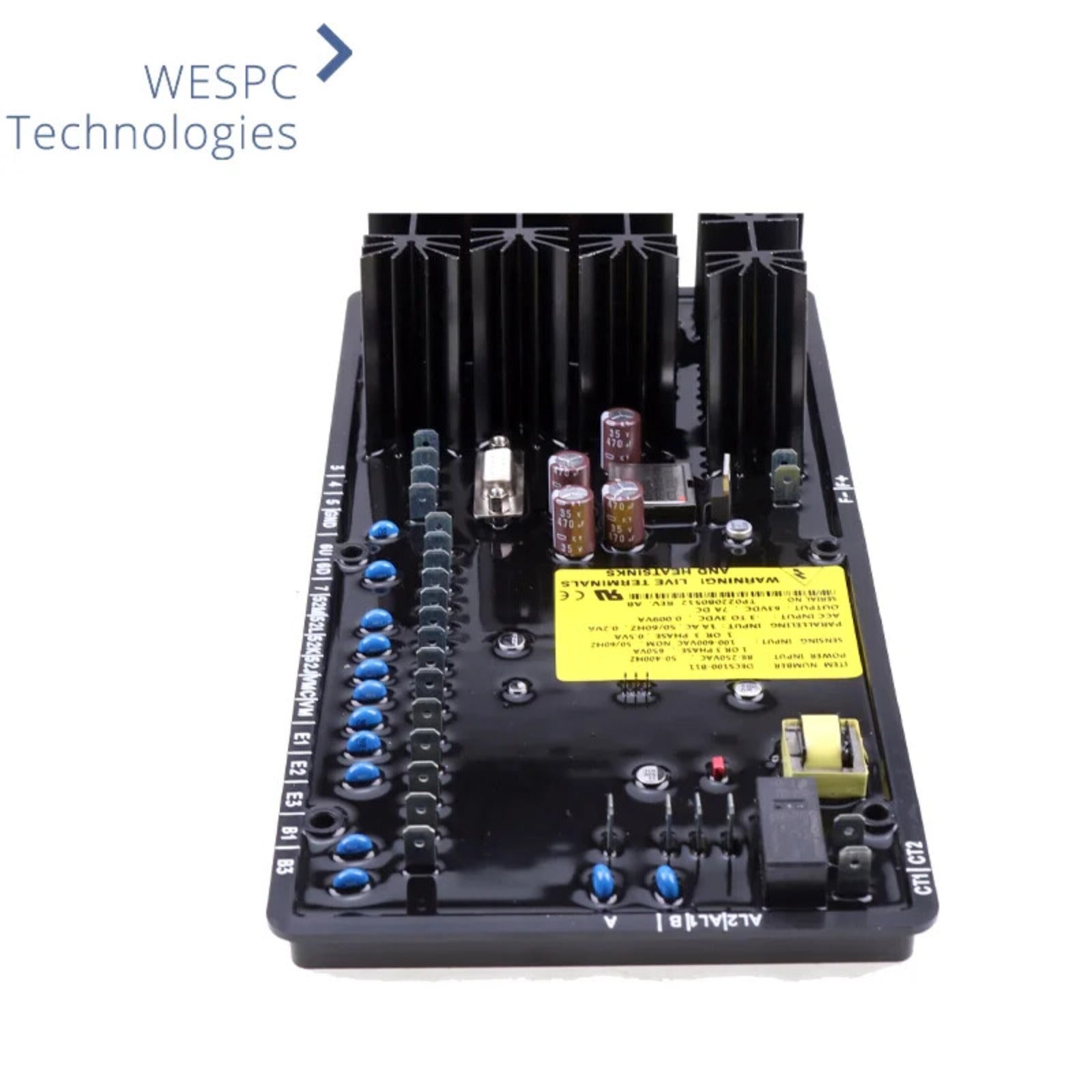

DECS100 B11 Digital Excitation AVR Generator Set Automatic Voltage Regulator

   AVR DECS100-B11 AC Voltage Regulation Stabilizer Excitation Control System For Diesel Generator Set DECS 100 B11

Product Description
The DECS-100 is a microprocessor-based regulation system designed to control the output of a brushless excited synchronous generator. The DECS-100 is perfect for paralleling applications where generator to generator and/or generator to utility paralleling occurs with VAR/PF control and Over- and Underexcitation Limiting. The DECS-100 offers high functionality, communications, and performance at an extremely affordable price. The DECS-100 is very rugged and offers an extremely robust mechanical design that is cURus recognized, CE compliant, and DNV certified.
Features
Microprocessor based
0.25% Voltage Regulation Accuracy
0.5% accuracy up to 40% THD (harmonics associated with 6 SCR load)
63Vdc @ 7Adc PWM output
0-3X V/Hz limiting
Soft Start capability
20 standard stability selections and one customizable selection
VAR/PF control
Overexcitation limiting
Underexcitation limiting
Voltage Matching
Manual Mode (Field current regulation)
Paralleling input from 1 or 5A CT secondaries
Nominal sensing inputs of 120, 240, 480 and 600Vac
Power Input from 50/60Hz shunt connections or PMGs operating at 50 to 400Hz
Five generator protection functions including Loss of Sensing transfer to manual
