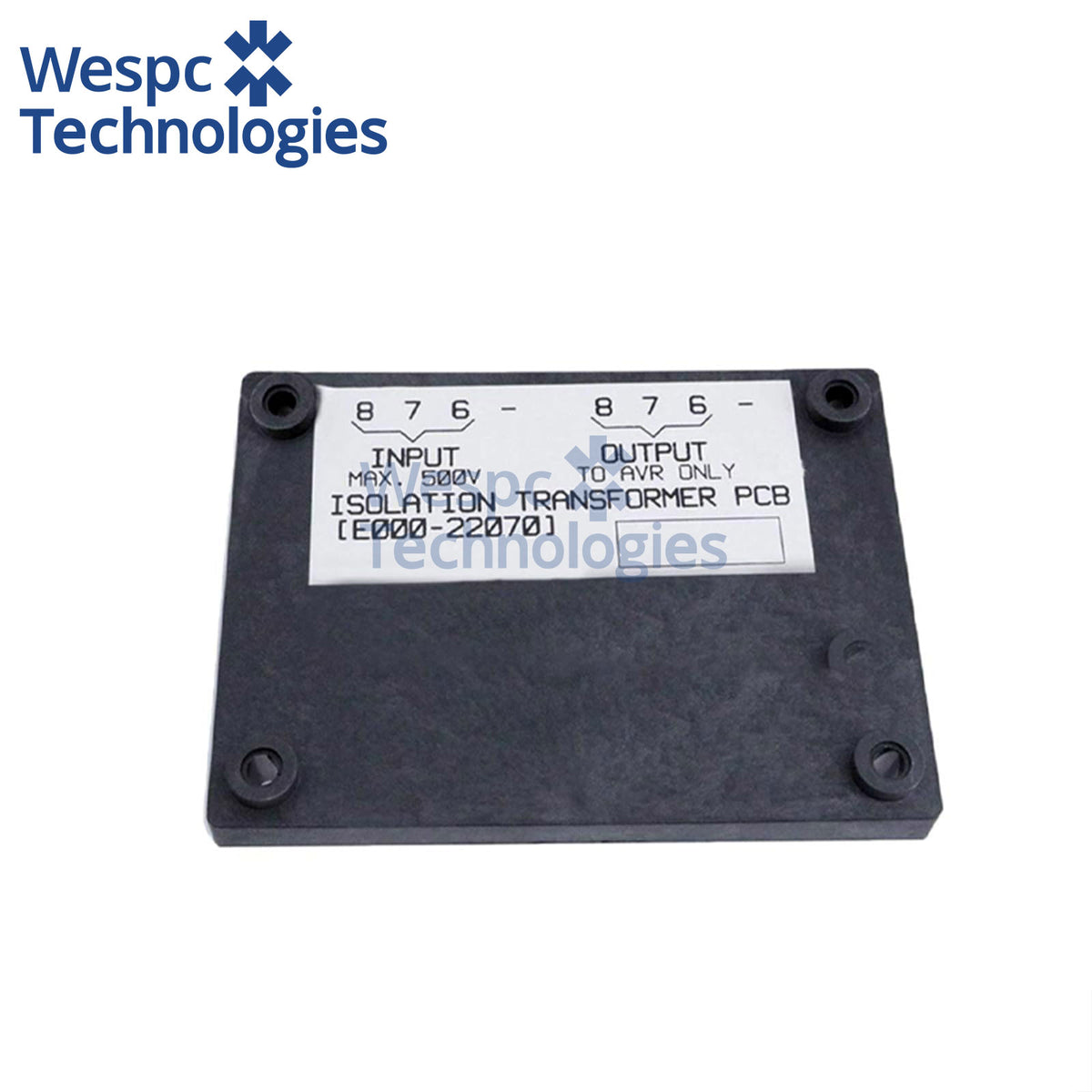

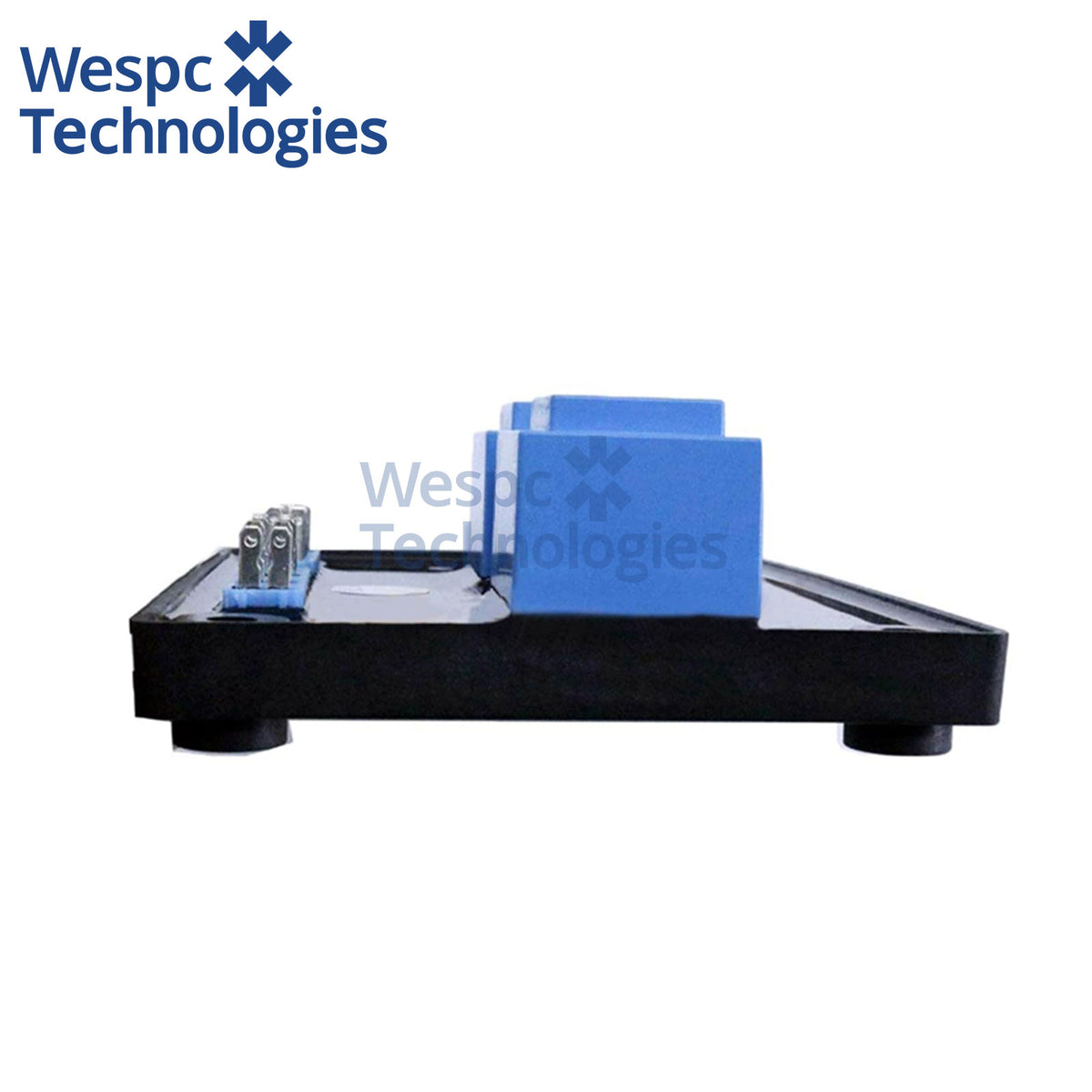

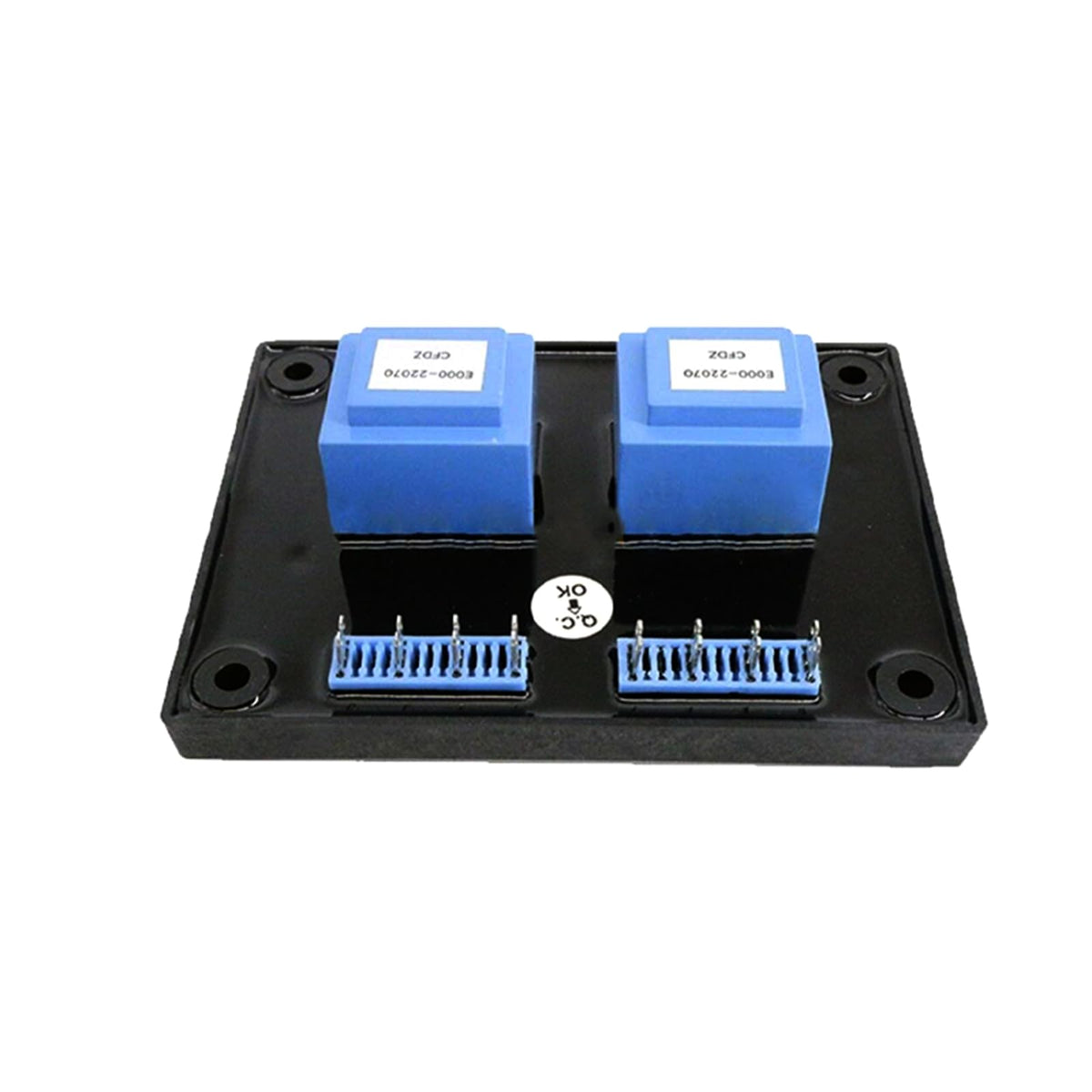

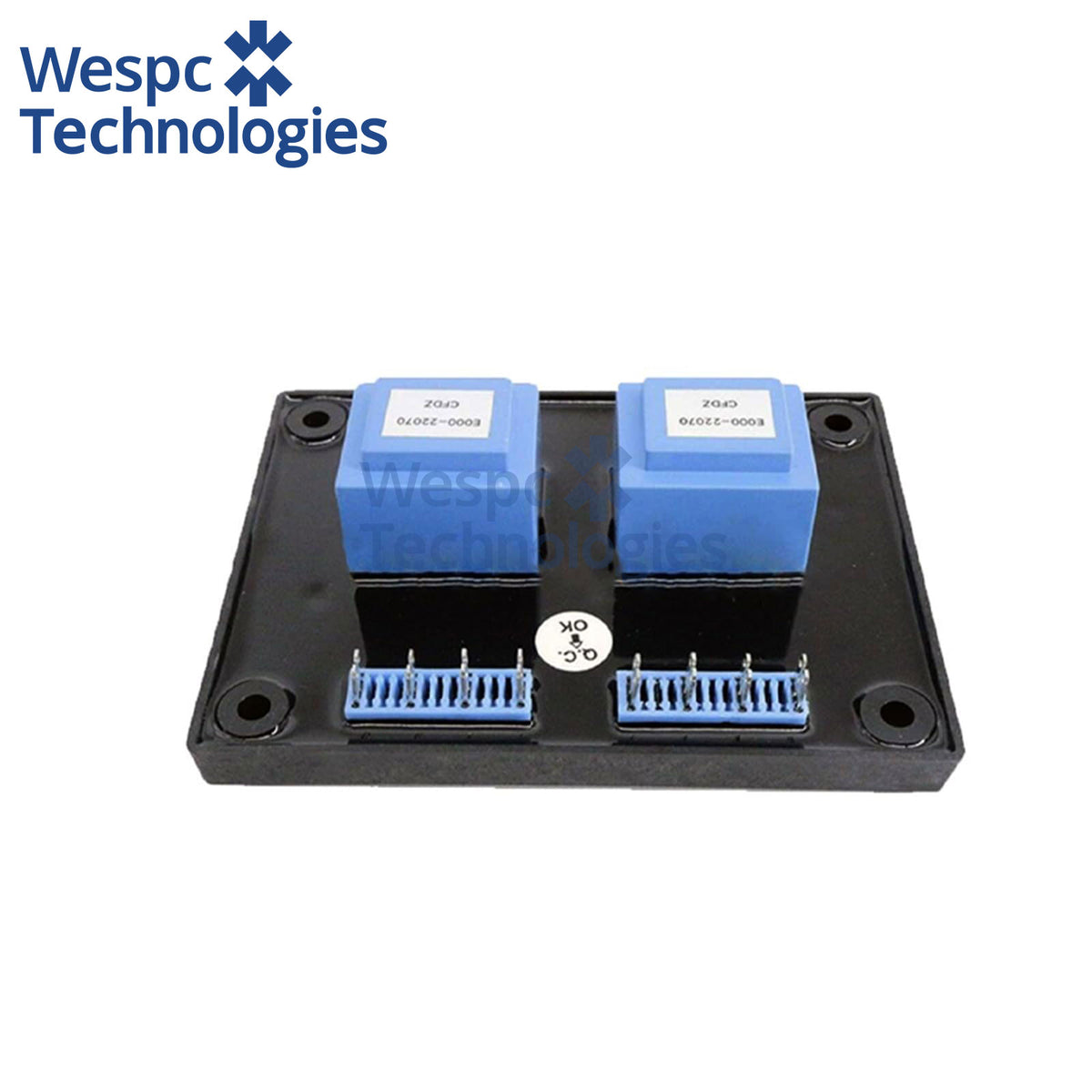

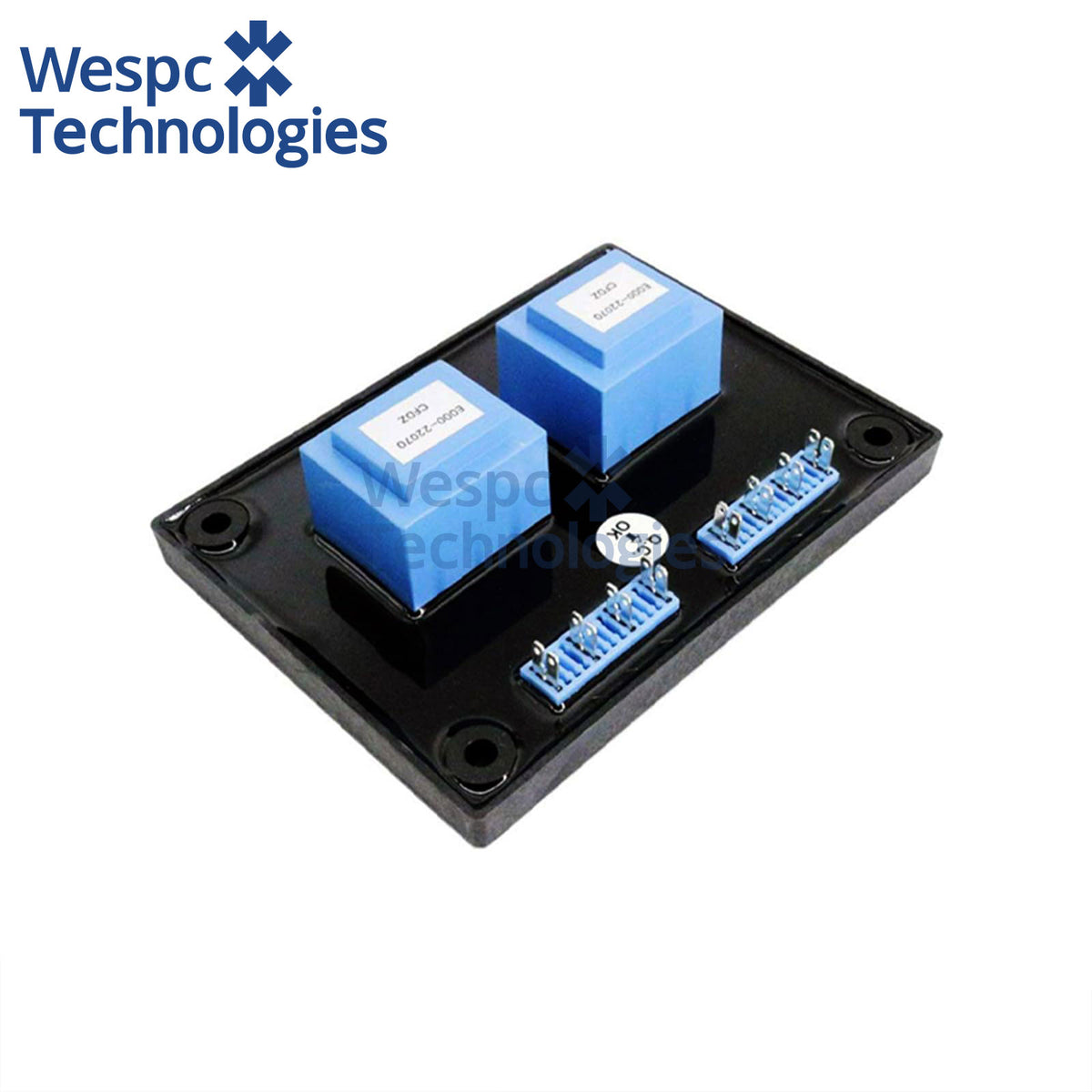

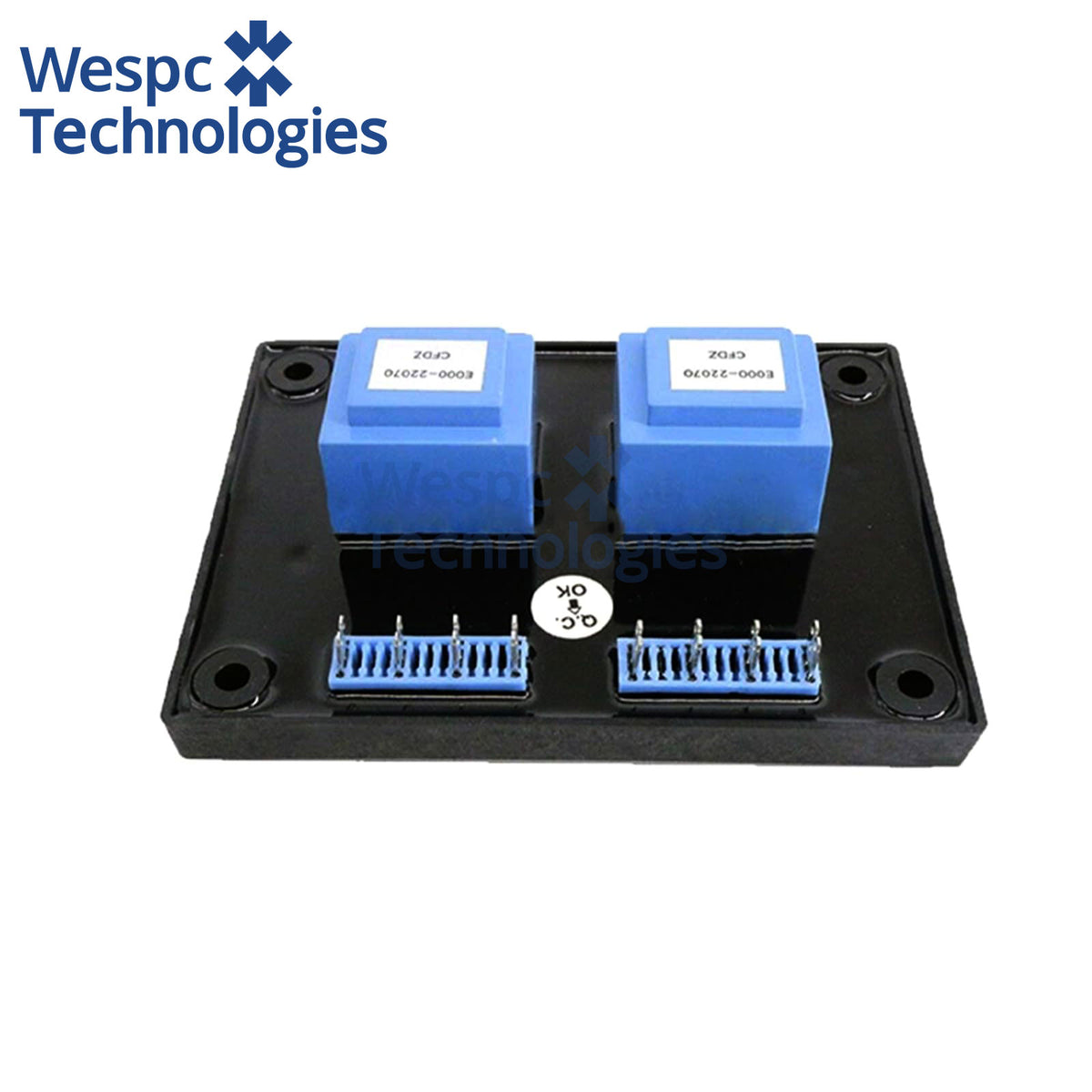

E000-22070 Isolation Transformer PCB For Stamford MX321 AVR PMG Alternator UC22 HC4 HC5 Max 500V

Specification

• Product: E000-22070 Isolation Transformer PCB
• Type: Three-phase isolation / step-down transformer for MX321 AVR sensing circuit
• Direct Replacement For: Stamford / Newage E000-22070
• Cross Reference: 450-42100 (for HC6 / HC7 / LV6 frames)
• Alternator Application: UC22/27, HC4, HC5 with MX321 AVR + PMG excitation
• Input Voltage: Three-phase, max 500 V
• Output: AVR-sensing voltage, jumper-selectable 95–132 V AC or 190–264 V AC
• Rated Current: 6 A
• Frequency: 50 / 60 Hz
• Mounting: PCB-mounted, drop-in to existing AVR compartment
• Function: Steps down main stator voltage for MX321 sensing; galvanic isolation
• Condition: New
• Warranty: 12 months factory warranty
