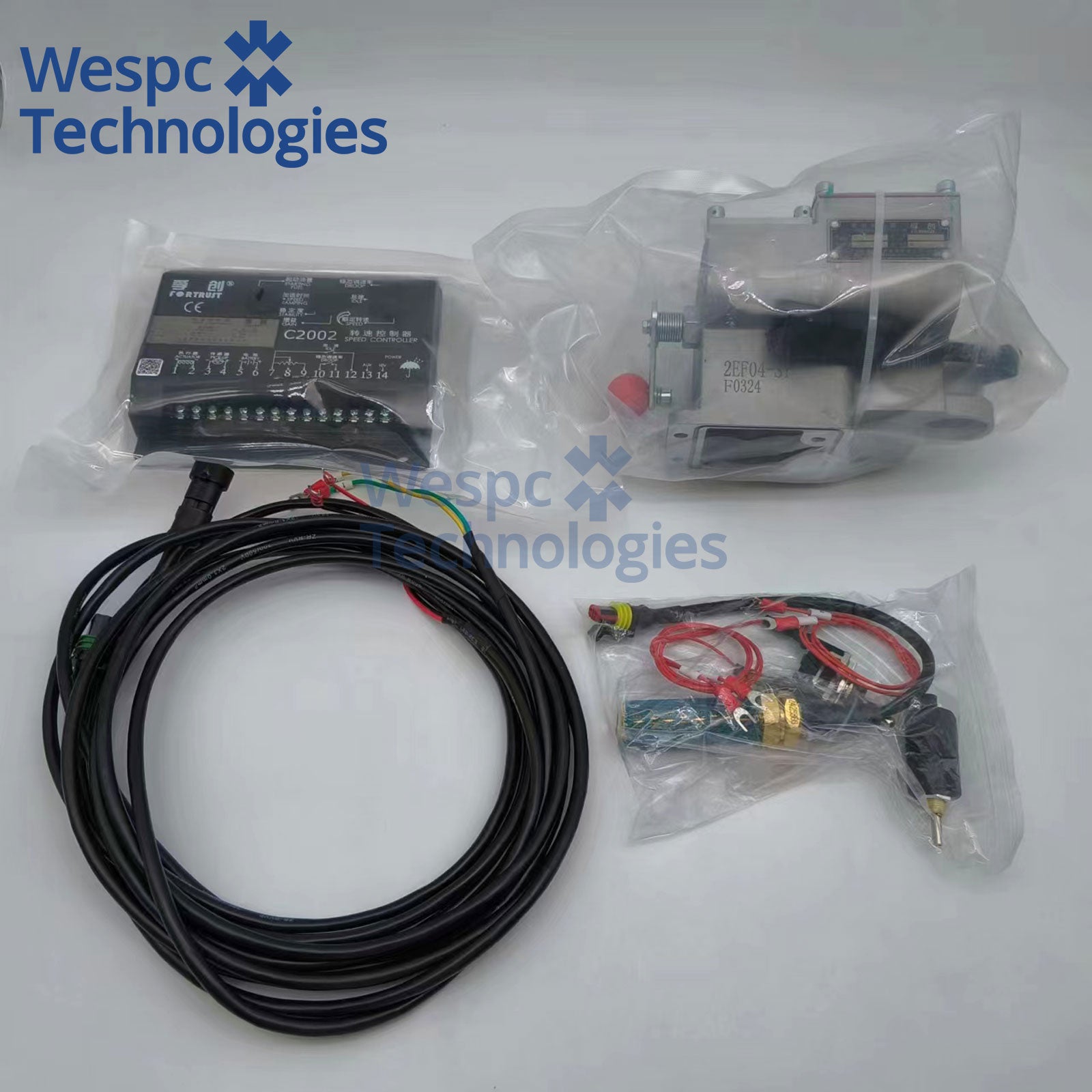

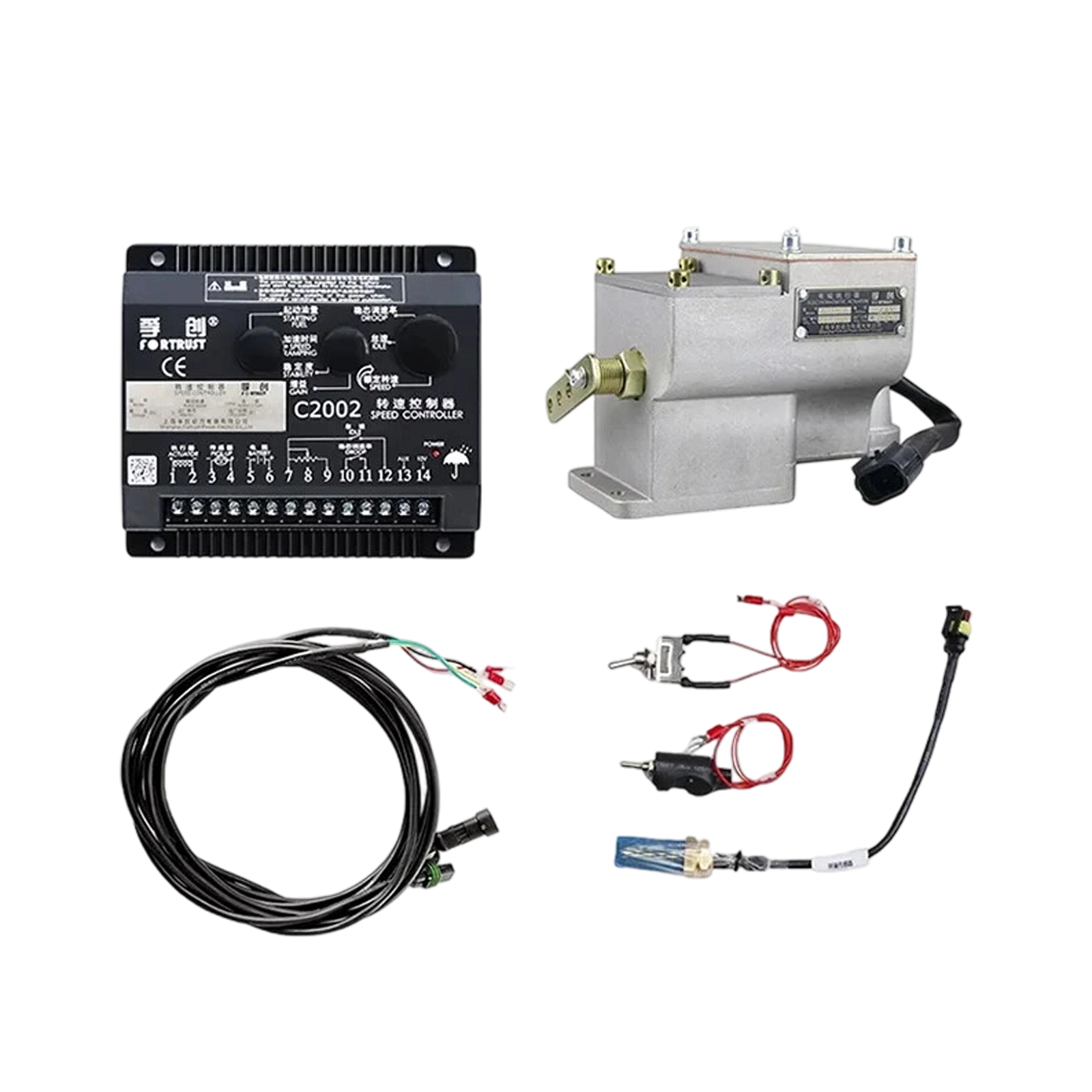

ESG2002A08A-W C2002 A08A Diesel Generator Tachometer Speed Controller Electromagnetic Actuator kit

Product Overview

1. ESG2002A08A-W: Dedicated closed-loop governor pre-calibrated for A08A-W actuator, single closed-loop magnetic pickup speed feedback, 3 independent pots (GAIN/IDLE/RAMP), built-in overspeed shutdown protection, wide DC 8–32V power supply for 12/24V diesel gensets.

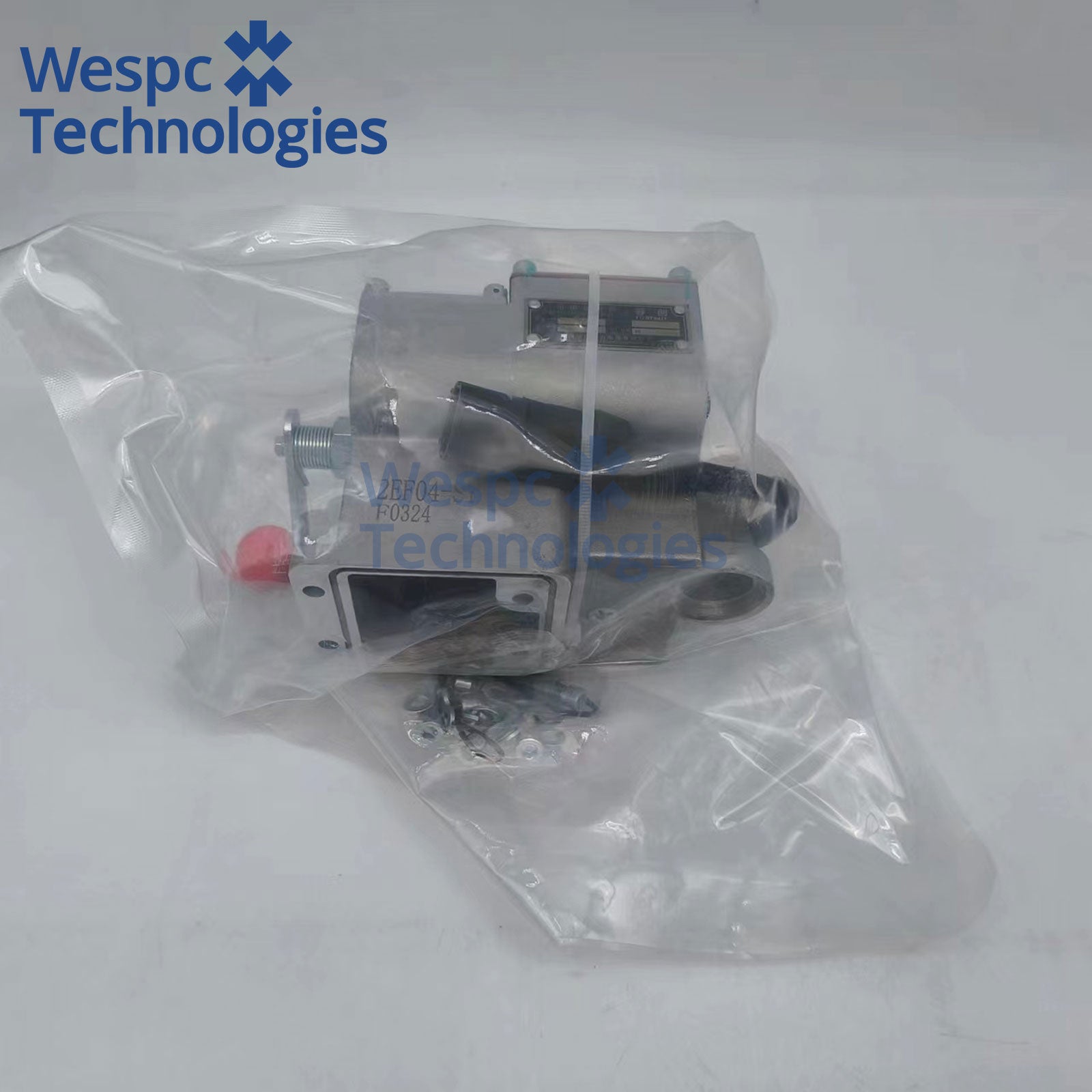

1. A08A-W Actuator: 0.8Nm internal pump-mounted fuel actuator, directly linked with fuel rack to adjust fuel supply according to controller output current.

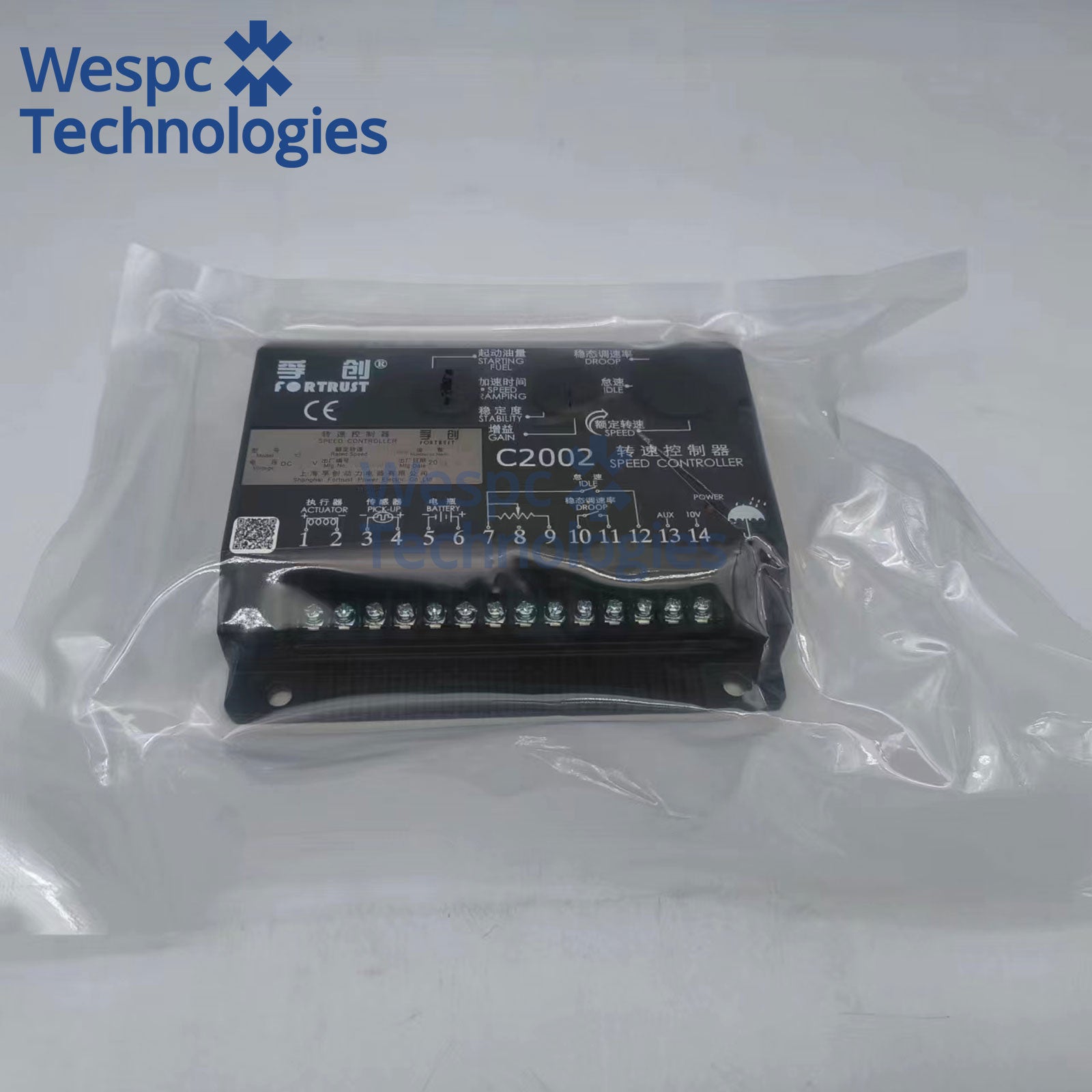

1. C2002 speed controller: C2002 is universal multi-function governor with extra droop parallel & start fuel adjustment.

Core Specs

• Controller Model: ESG2002A08A-W
• Matching Actuator: A08A-W (0.8 N.m internal type)
• Power Supply: DC 8V–32V (12V / 24V universal)
• Signal Input: Magnetic pickup 0.5–20V AC speed signal
• Adjustable Items: Stability Gain / Idle Speed / Acceleration Ramp
• Protection: Hardware overspeed trip protection
• Comparable Model: C2002 (general multi-pot governor, not interchangeable)
•

Key Features

1. Factory matched set ESG2002A08A-W + A08A-W, plug-and-play without complicated tuning.
2. Closed-loop real-time speed feedback, eliminate engine hunting & generator frequency fluctuation.
3. Wide voltage design, directly powered by engine storage battery.
4. Anti-vibration flame retardant housing, stable running in high-temperature engine compartment.
5. Clear distinction from C2002: C2002 supports genset parallel droop, while ESG2002A08A-W is simplified dedicated version for A08A-W actuator.
