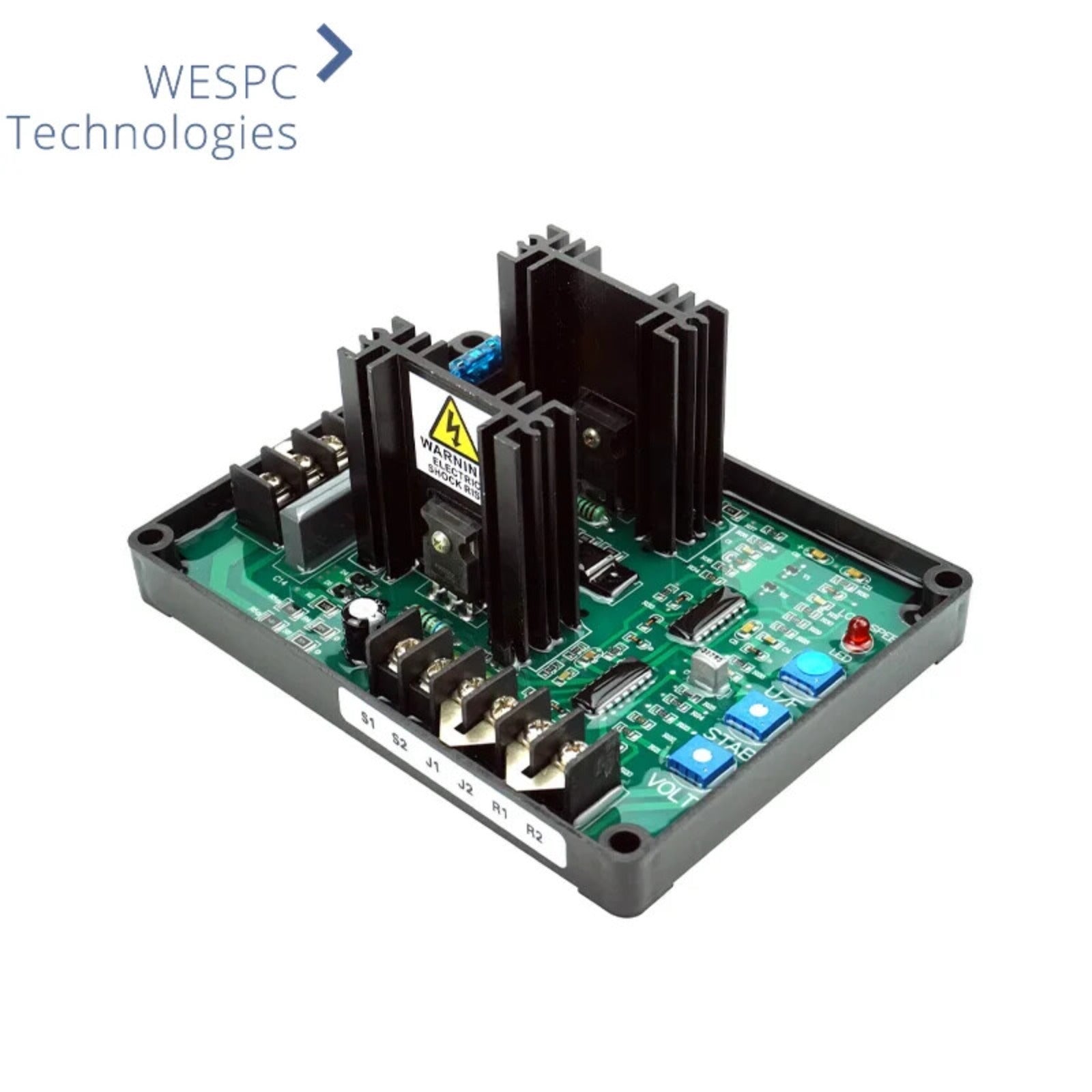

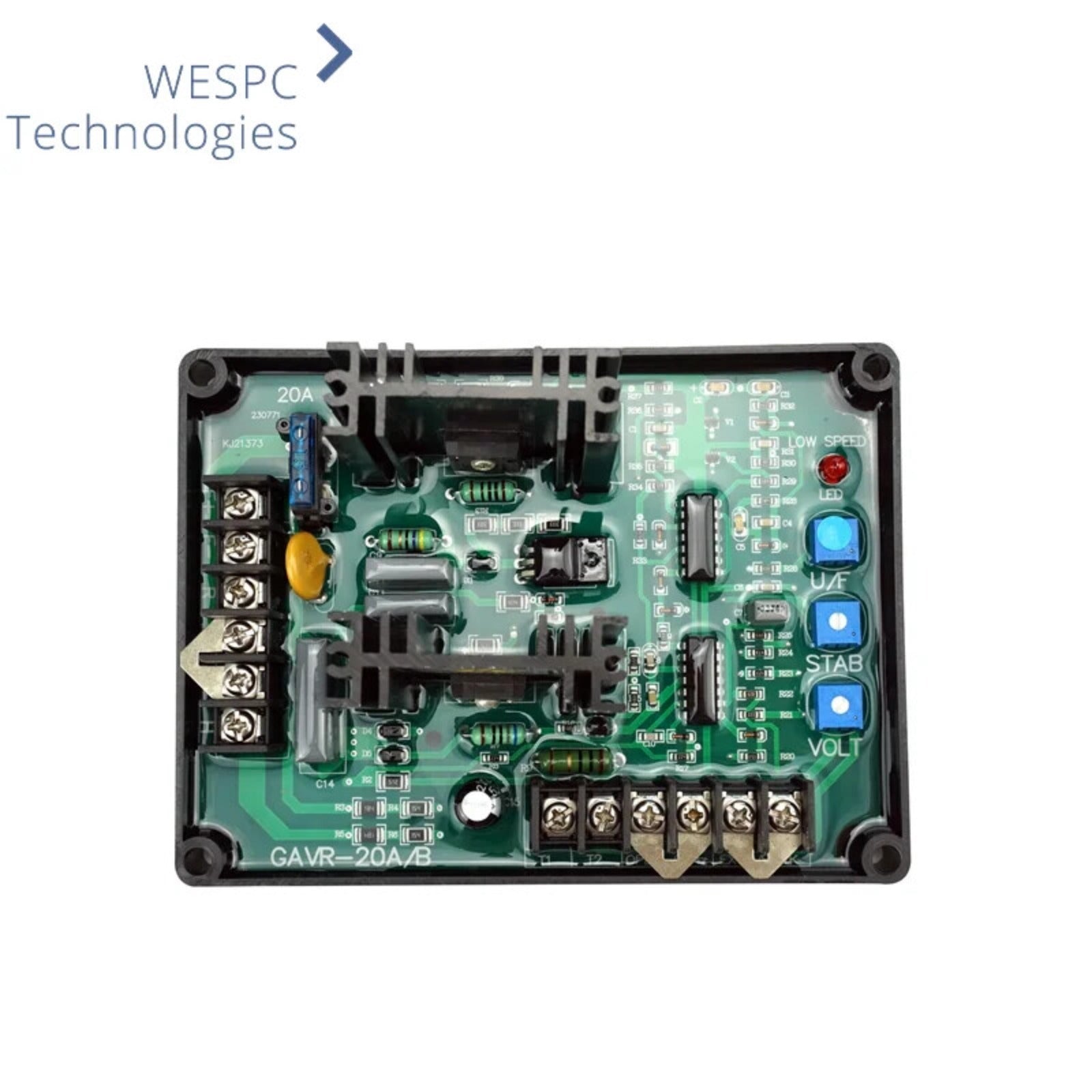

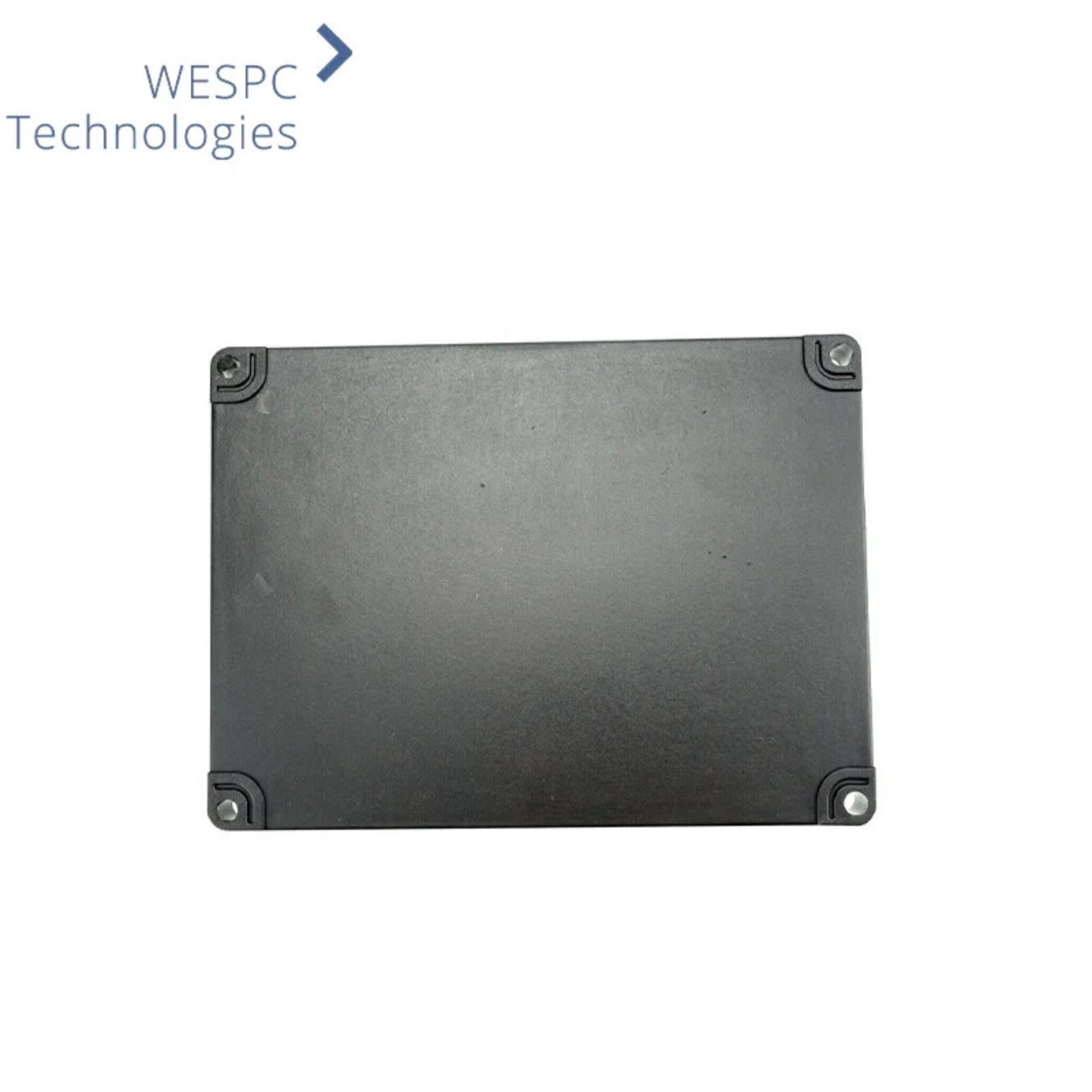

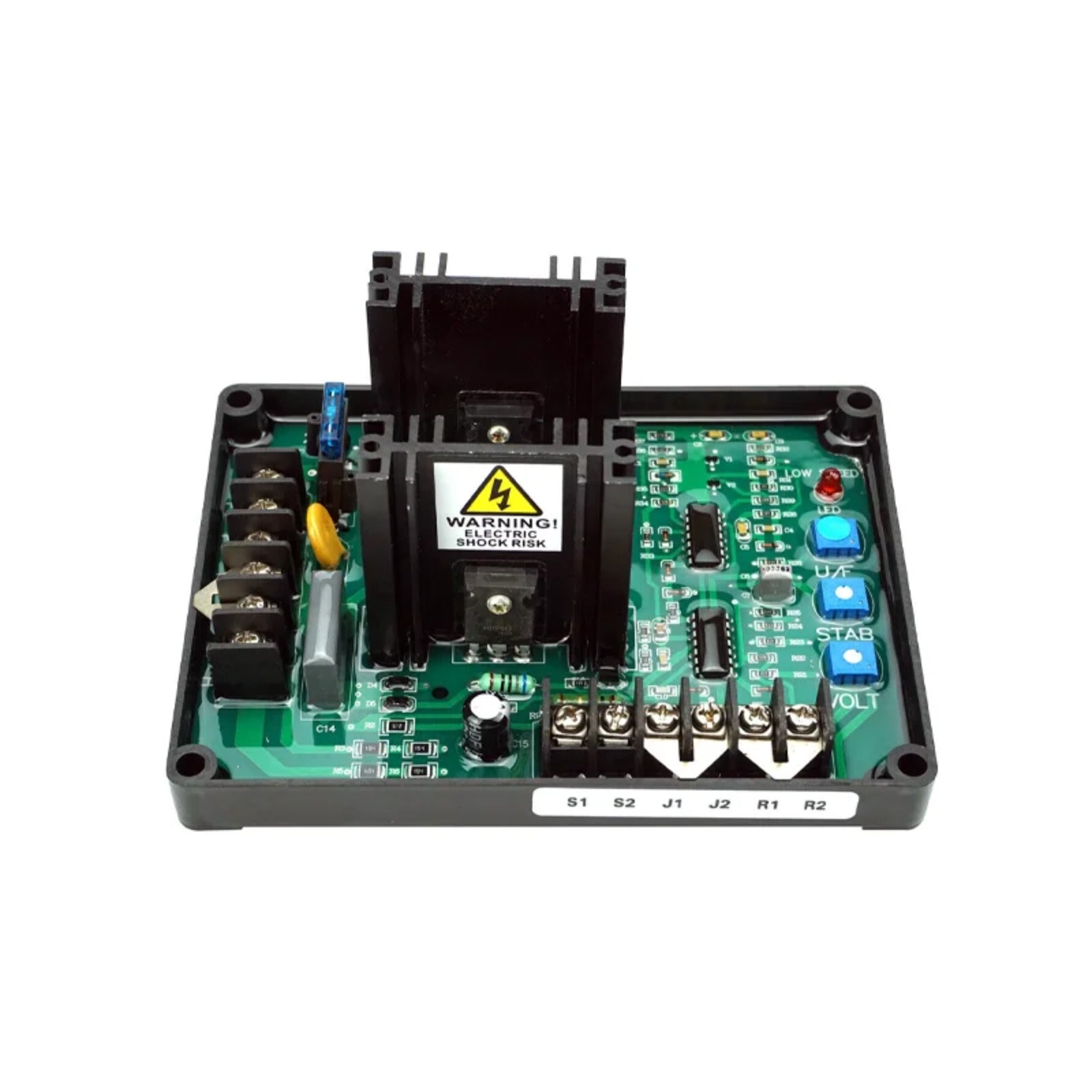

GAVR-20A AVR Automatic Voltage Regulator Stabilizer 20A Generator Parts



Universal GAVR-20A Generator AVR Automatic Voltage Regulator Stabilizer 20A For Brushless Generator Parts

Features:

l<±0.5% Regulation

l220/400 VAC Programmable Input

lRugged Compact Design

lWith Under Frequency Protection

lSoft Start Voltage Ramping

lEMI Suppression

lBuilt-in Hihg Capacity 15Amp Fuse



Specifications:

lSensing Input Voltage 220/400VAC,1phase2wire

lPower Input Voltage:180~240VAC,1phase2wire

lOutput Voltage: Max.90VDC@240VAC input

Current Continuous 6A

Intermittent 12A for 10SEE.

Resistance Min.10 Ω Max.100 Ω

lVolts Regulation: <±0.5%(with 4% engine governing)

lVoltage Build-up: Residualvolts at AVR terminal>5VAC

lExternal Volts Adjustment:±7%with 1K Ω 1watt trimmer

lSoft Start Ramp Time: 3sec.

lUnit Power Dissipation: Max.8Watt

lEMI Suppression: Internal Electromagnetic Interference Filtering

lThermal.Drift: 0.05%per℃ change in AVR ambient

lUnder Frequency Protection: 60Hz system presets knee point at 57Hz

l(Factory Settings) 50Hz system presets knee point at 47Hz
