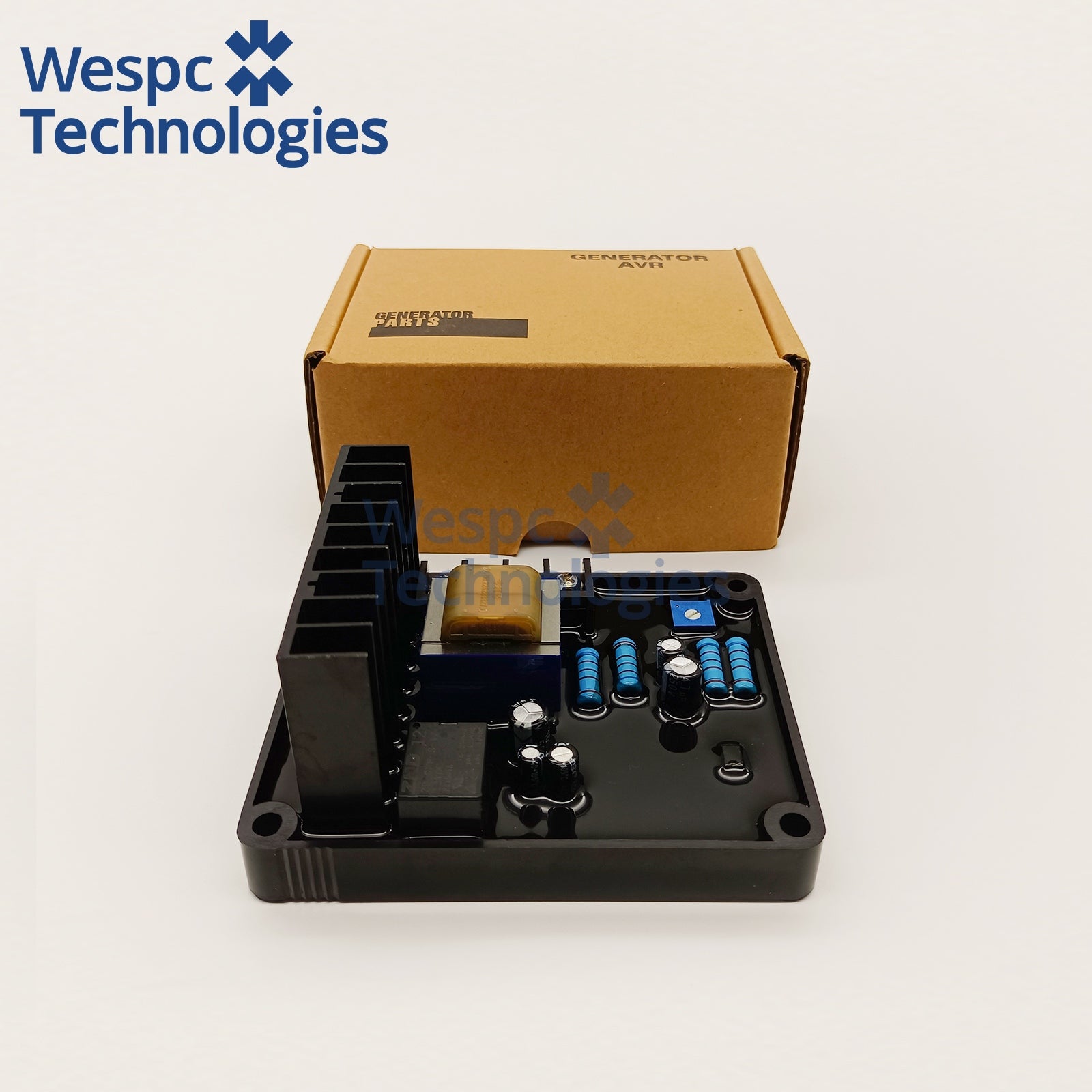

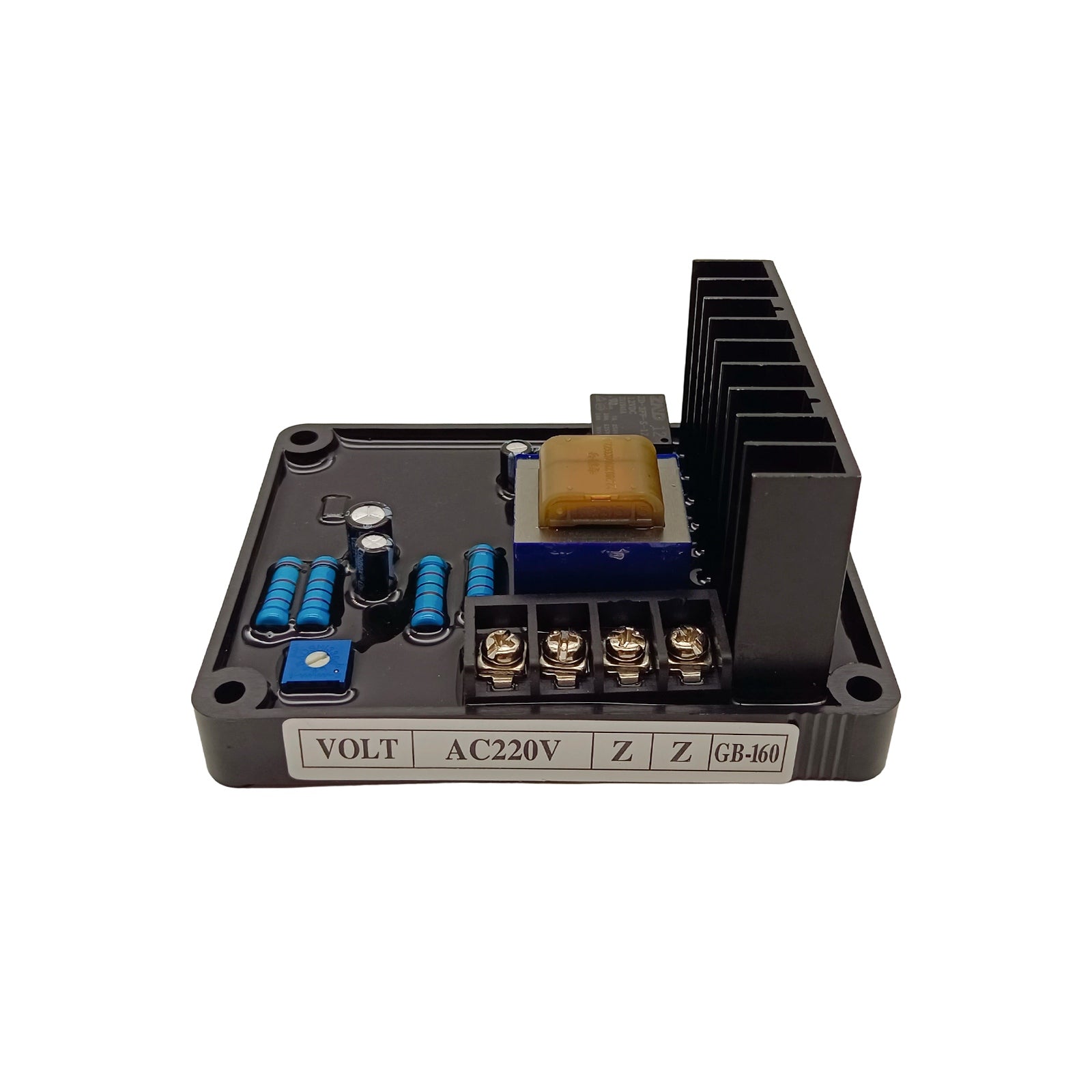

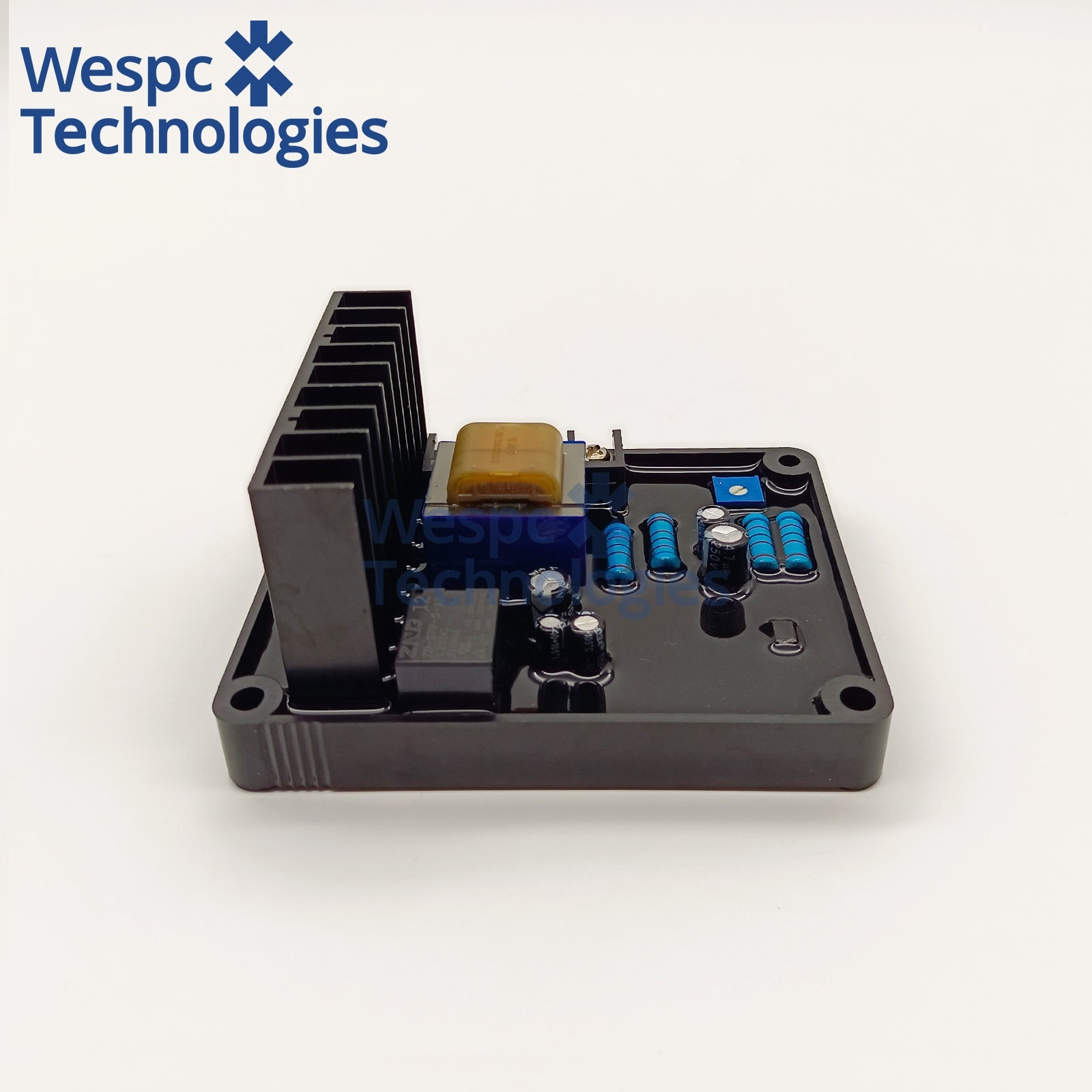

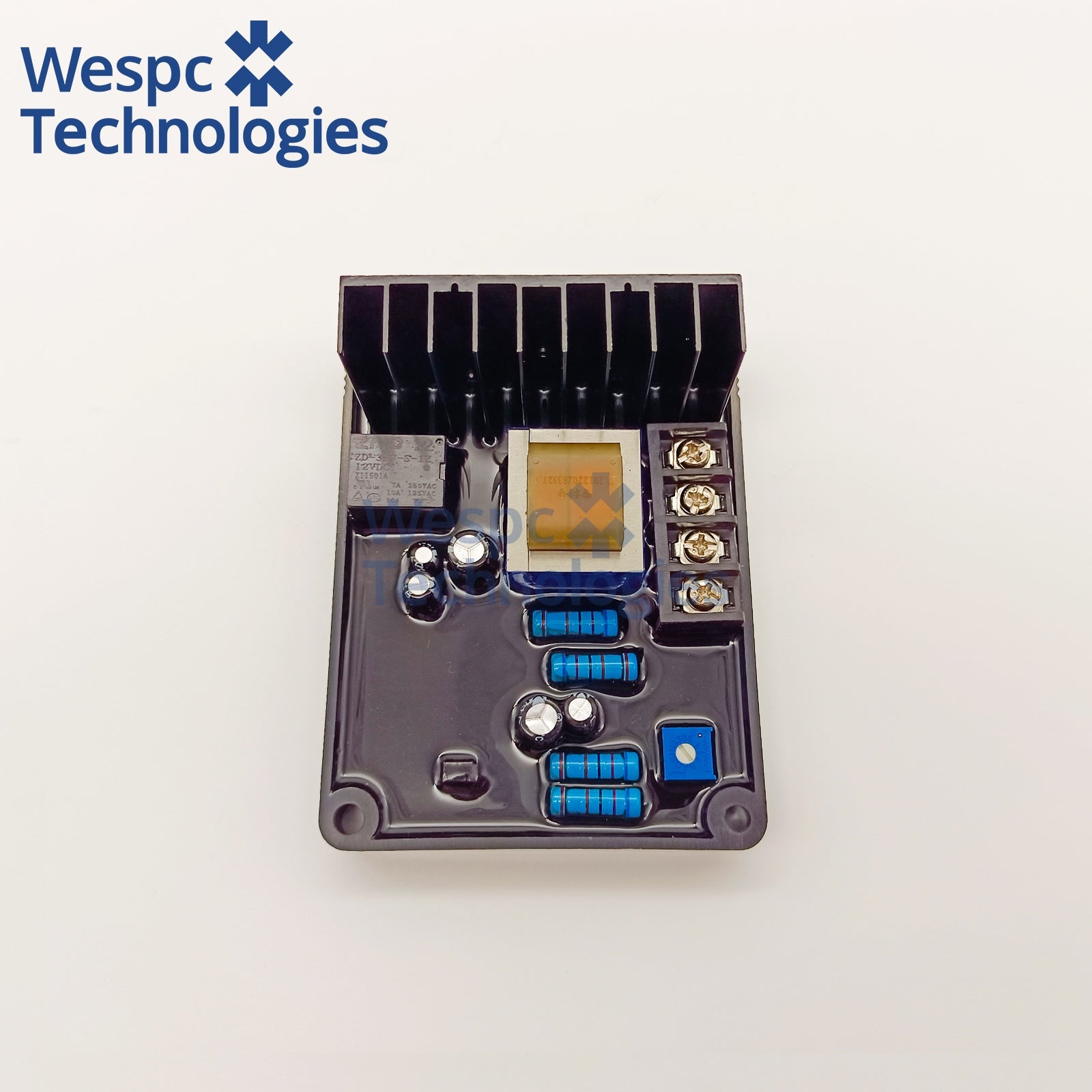

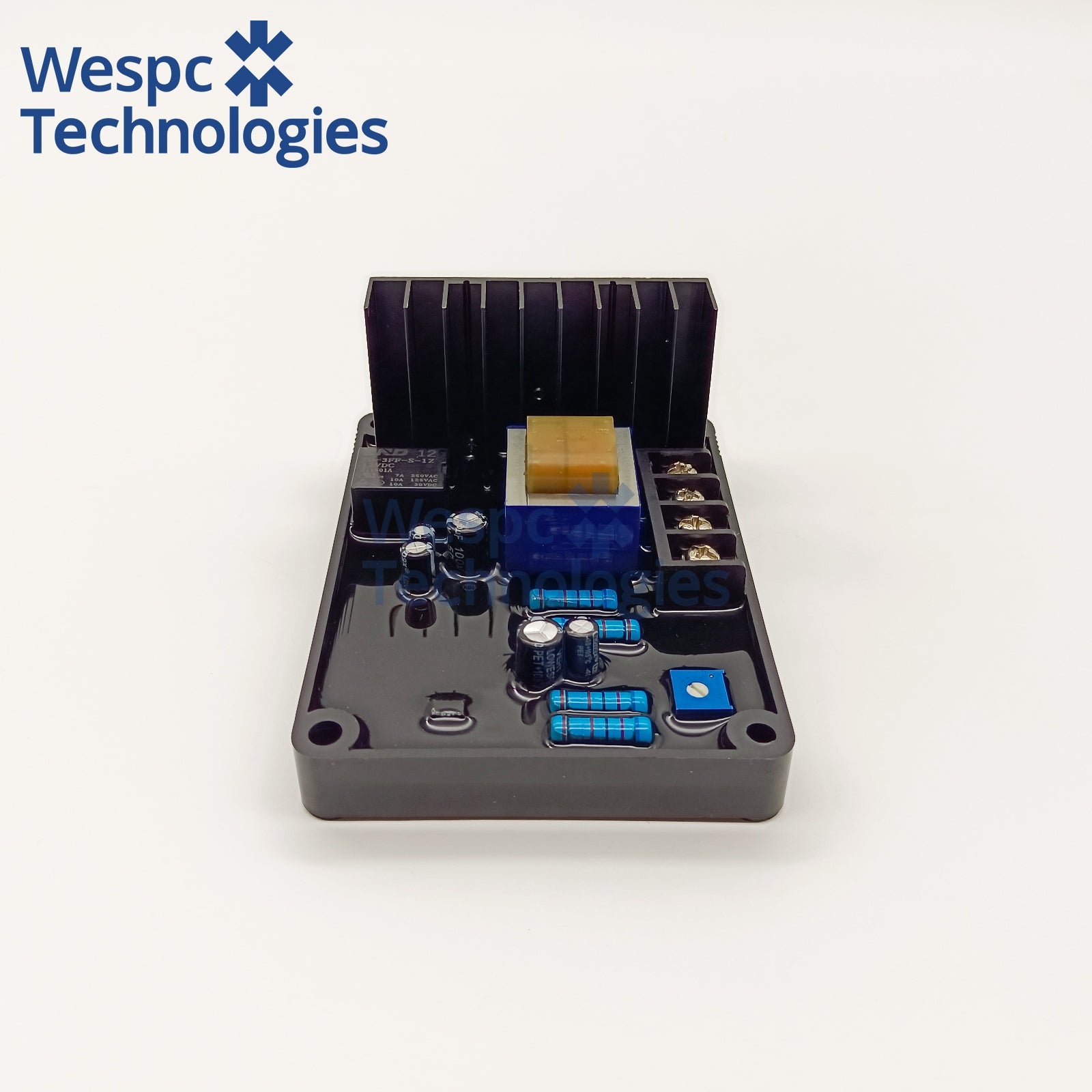

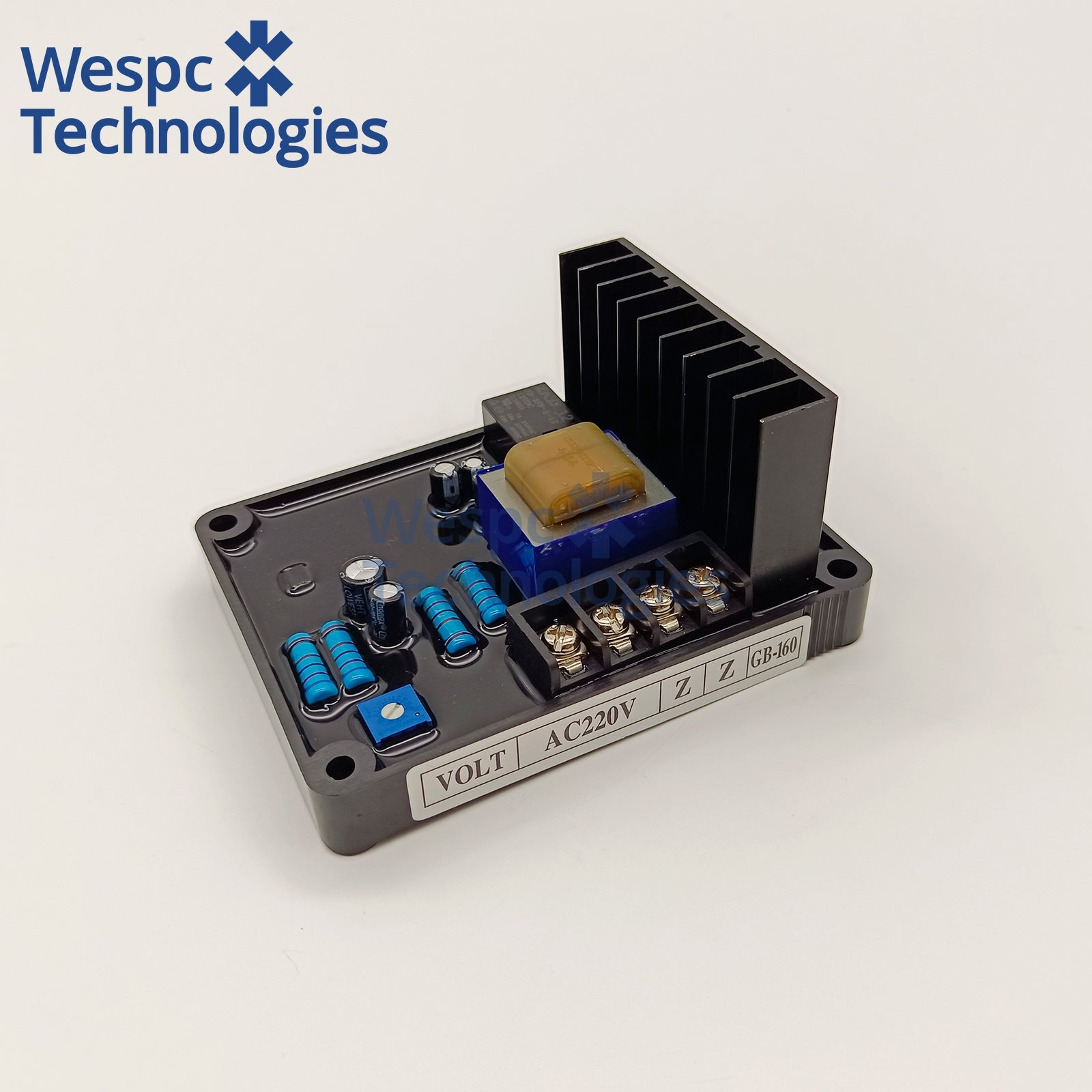

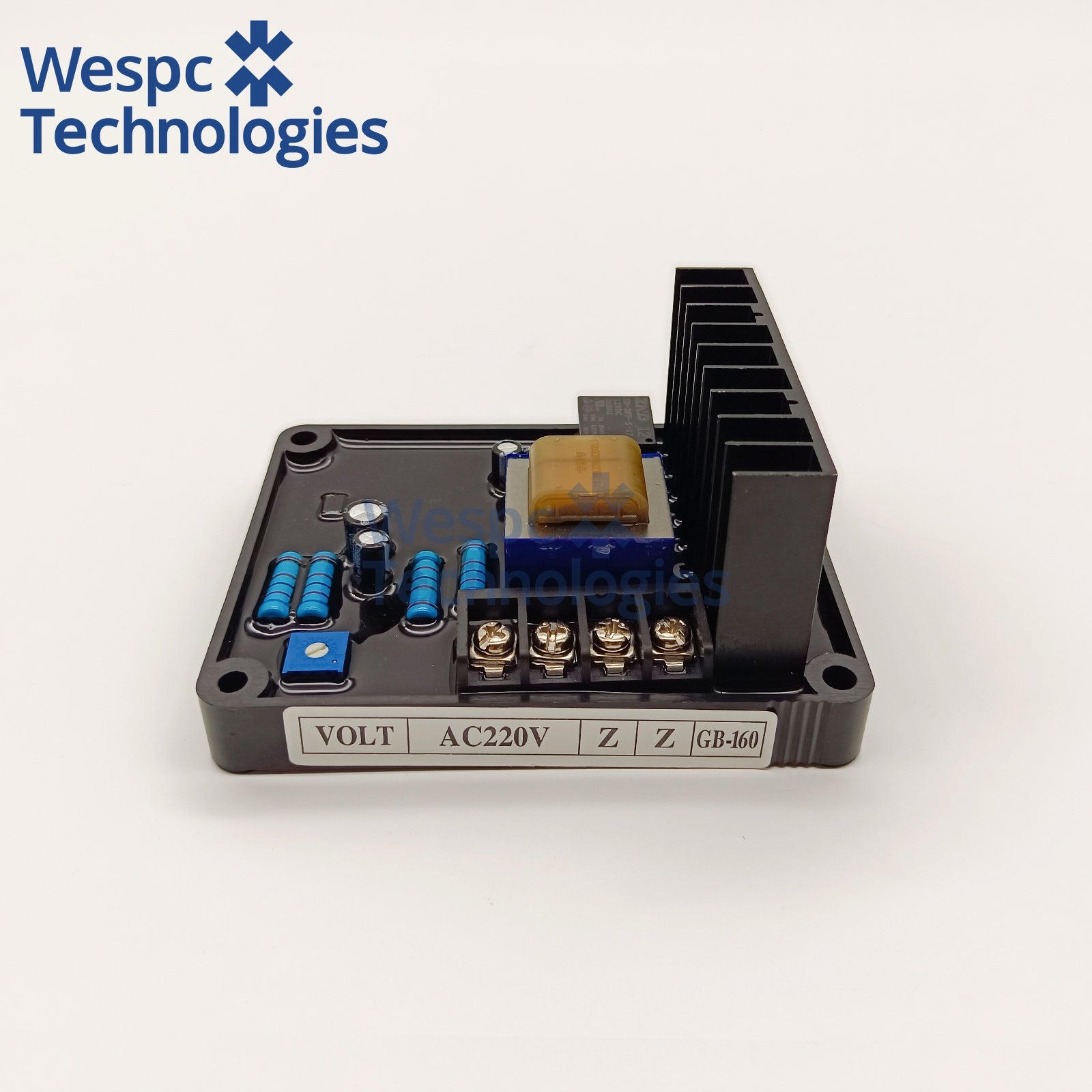

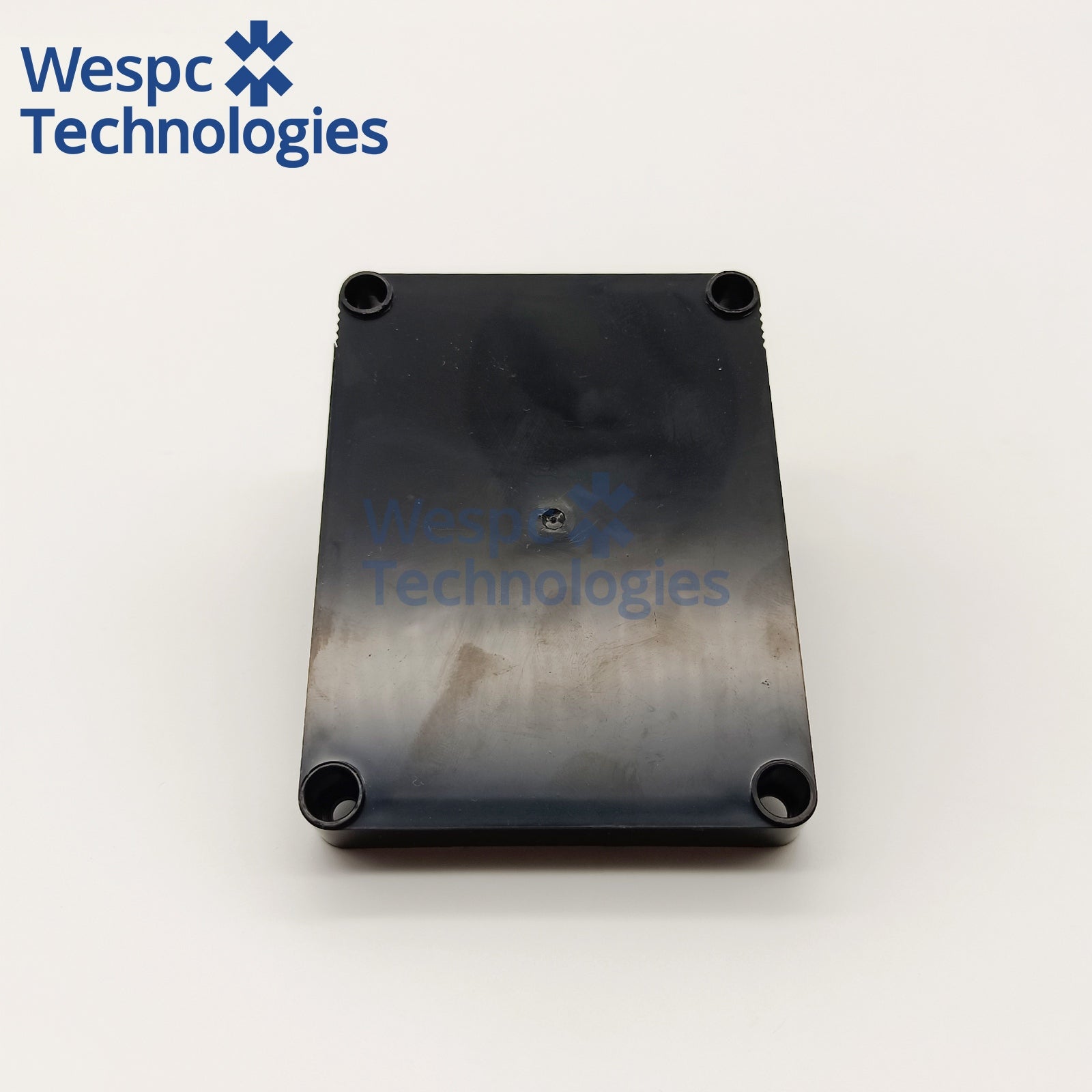

GB-160 220V AVR Automatic Voltage Regulator Replacement Spare Part Fits STC Series Brush Excited Diesel Generator Set

Cross Reference Part Numbers

Compatible Generator Models

Wide Application Range

• Household single-phase emergency diesel generator sets, residential backup power equipment
• Farm agricultural irrigation, livestock breeding standby power generator units
• Small ship, yacht marine single-phase brush generator power supply equipment
• Construction engineering site temporary lighting and small machinery power supply generator
• Small factory, supermarket, retail commercial standby power generation equipment

Key Product Features

1. Single-Phase 220V Dedicated Design, Perfect STC Brush Generator Compatibility



   Consistent with original wiring terminal definition, plug-and-play installation without complicated circuit modification, greatly shortening equipment maintenance downtime.
2. High Precision Voltage Regulation Performance



   Voltage regulation accuracy reaches ±1%, effectively suppress instantaneous voltage surge and drop caused by sudden load change, avoiding electrical equipment burnout.

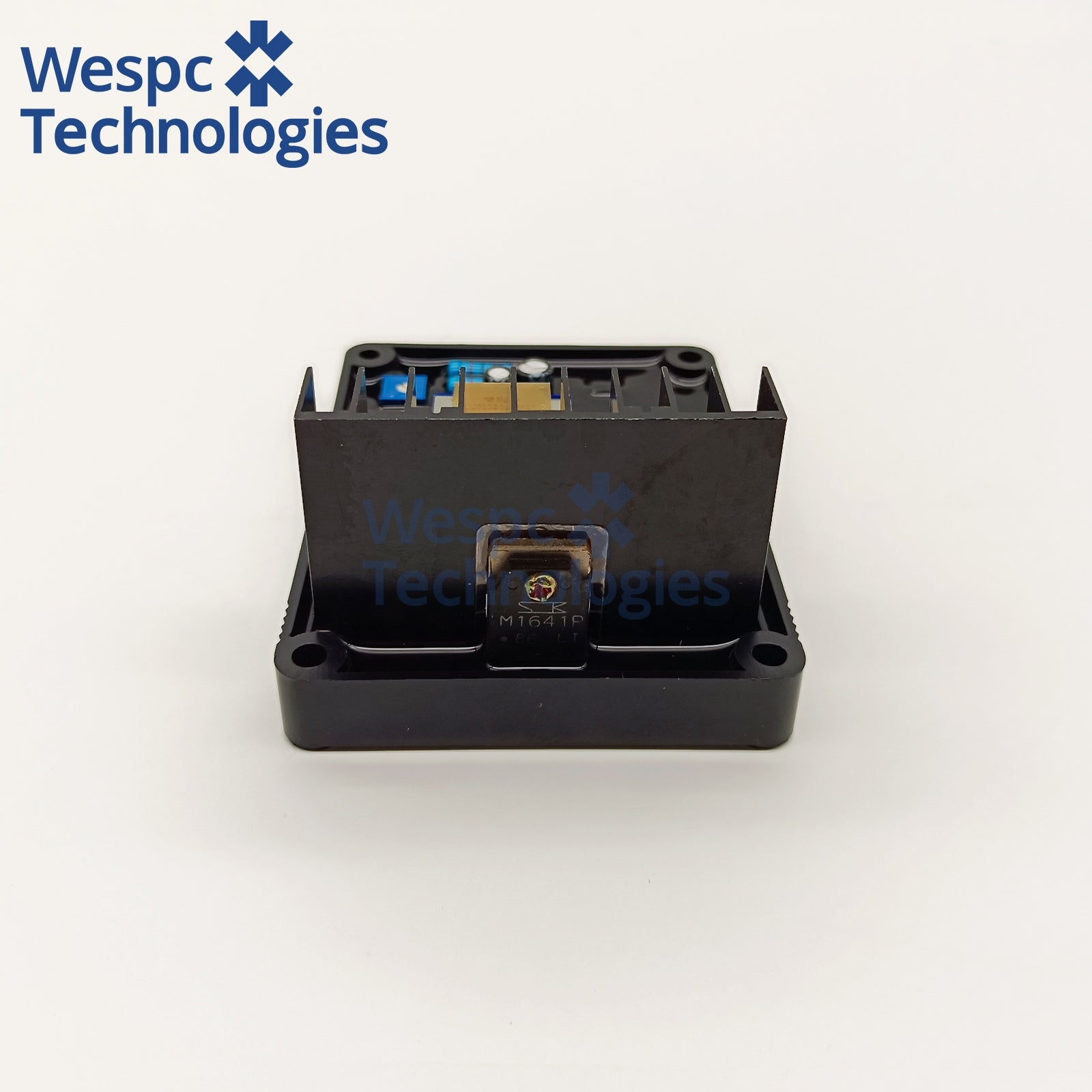

3. Large Thickened Aluminum Alloy Heat Sink



   Fast heat dissipation during long-time high-load continuous operation, preventing the AVR module from overheating burnout and extending service life.
4. Wide Excitation Input Voltage Range (20~130VDC)



   Compatible with different residual voltages of various single-phase brush generators during startup, ensuring reliable voltage build-up and smooth generator startup.
5. External Manual Voltage Fine-Tuning Potentiometer



   Supports ±10% output voltage adjustment, which can flexibly meet different regional single-phase voltage standard requirements.
6. Insulating Glue Sealed Circuit Board Technology

   Dustproof, moisture-proof, anti-vibration and anti-electromagnetic interference, no voltage drift after long-term continuous operation, suitable for harsh outdoor working conditions.


Common Equipment Failures Solved

• Generator single-phase output voltage unstable, sharp voltage fluctuation when switching load
• Overvoltage fault frequently burns light bulbs, household appliances and small precision electrical equipment
• Undervoltage leads to equipment startup failure, weak motor operation and frequent shutdown
• Original AVR burnout results in no voltage output, generator cannot supply power normally
• Long-time running causes voltage drift, unable to maintain rated 220V stable output voltage
