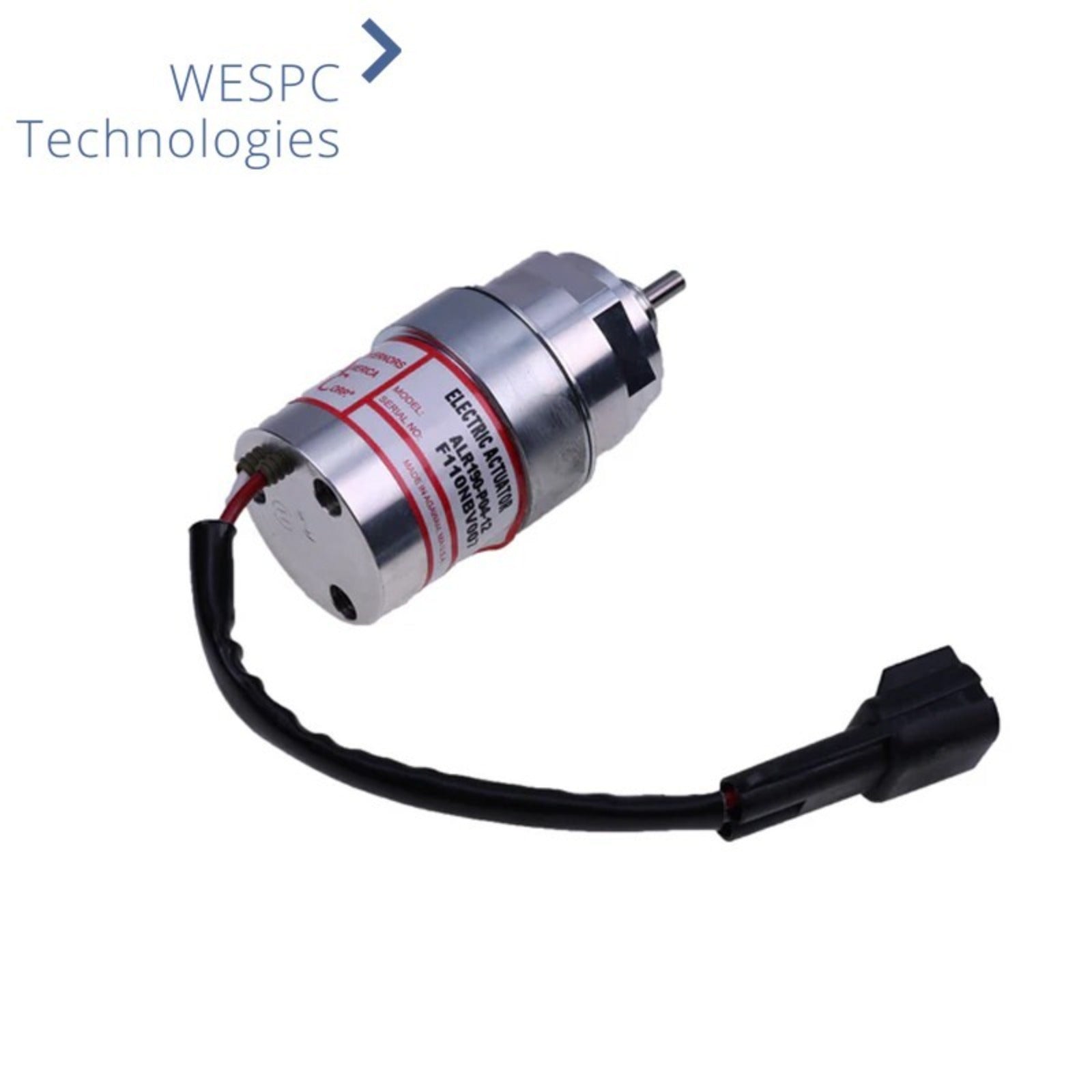

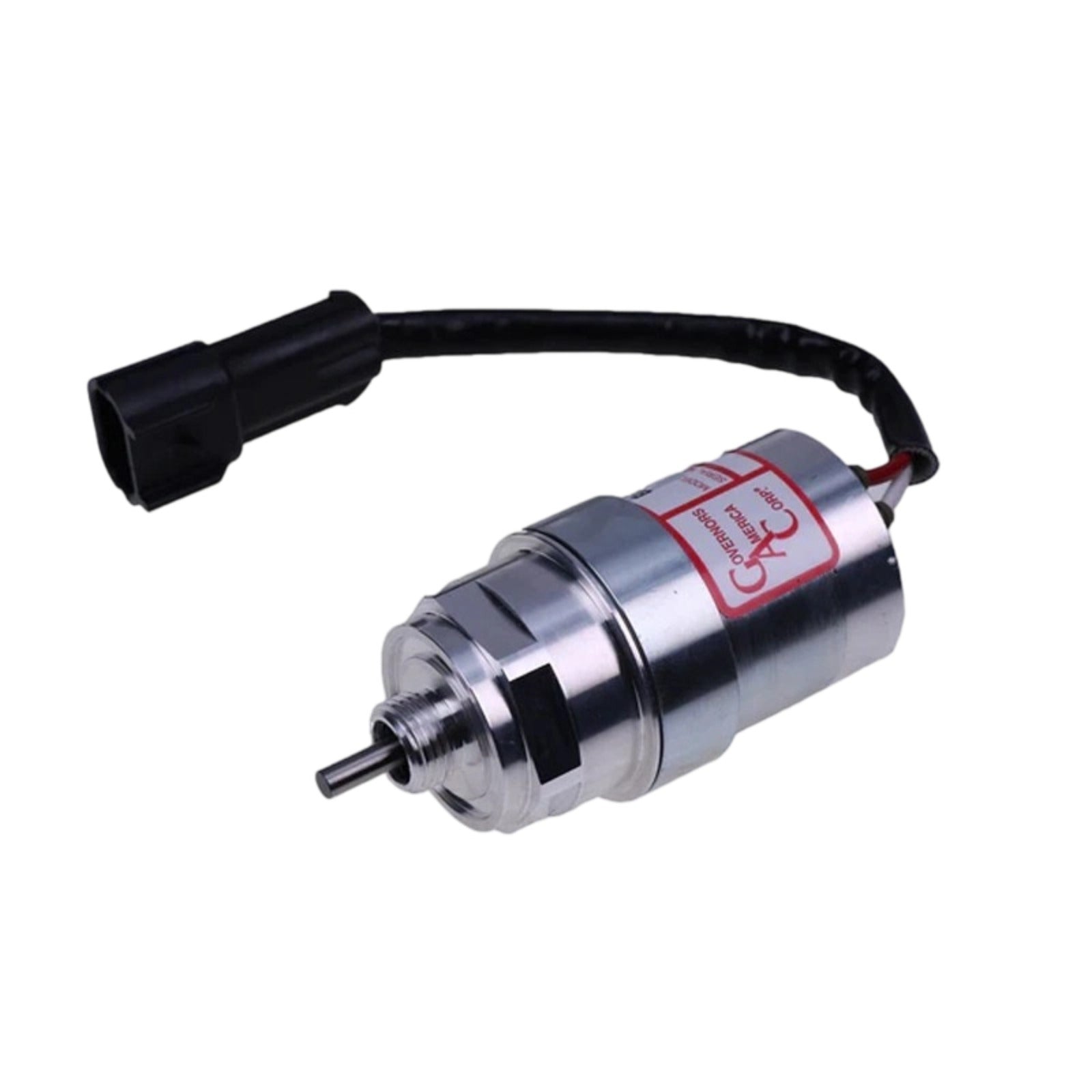

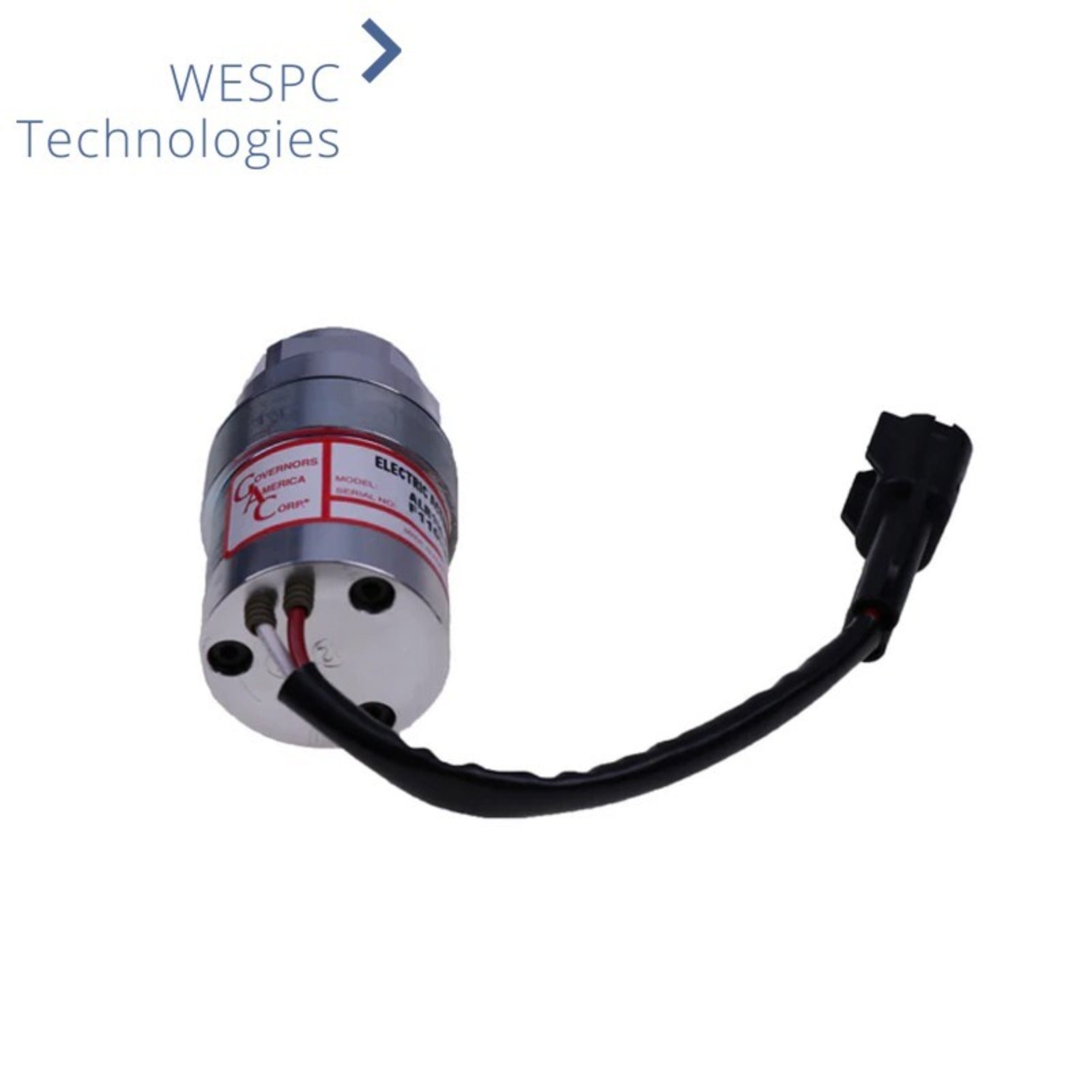

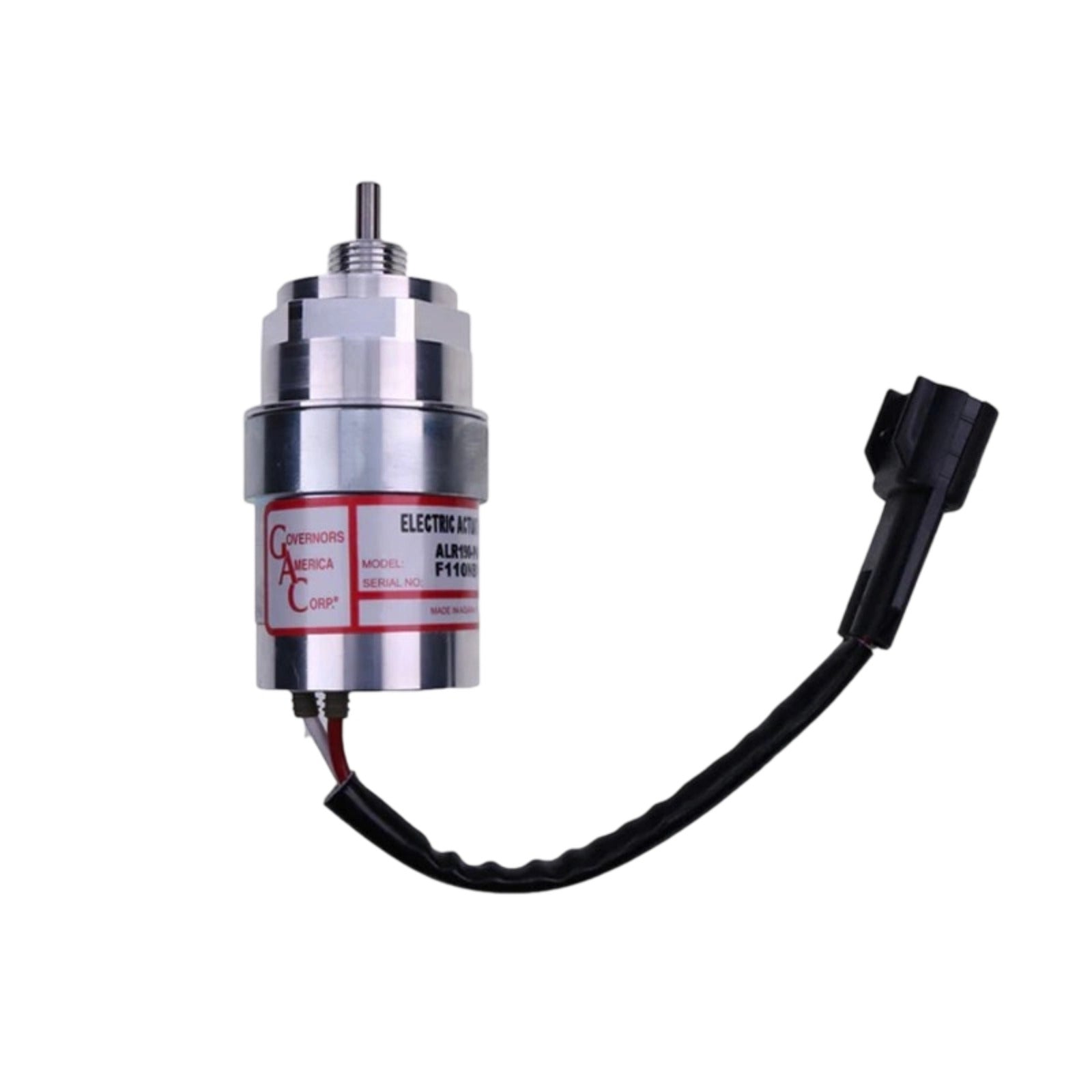

Genuine GAC ALR190-P04-12 Linear Pull type Actuator for Perkins 404D-15 404D-22



The ALR Series Electronic Linear Integral Actuators are designed to mount directly to the engine’s fuel pump in place of the electronic stop solenoids. The ALR Series high-quality construction is designed for high-temperature operation. GAC’s unique linear electromechanical technology provides proportional actuator movement based on actuator coil current. GAC uses precision linear ball bearings instead of bushings giving the ALR Series a minimum number of moving parts, improving response, precision and reliability.



The ALR Series Actuator is designed to replace the OEM equipped shut down solenoid. To properly install the ALR actuator, a precise measurement must be obtained from the removed OEM equipped shutdown solenoid. Before beginning the installation of the ALR actuator, remove all DC battery power from the equipment being serviced.



Section 2 lists the common engine models ALRs are used with. See your GAC representative for other makes and models.



ALR190-P04 Electronic Linear Pull-type Actuator

• 12/24 V DC
• Supports Perkins 404D-15, 404D-22, and Caterpillar C2.2T, C3.4
• Spring return to minimum fuel
• Maintenance-free/cost-effective
• High-temperature design
• Male Push-On Terminals
• Compact design, Simple to install
• Precise governing control‍
• Linear ball bearings

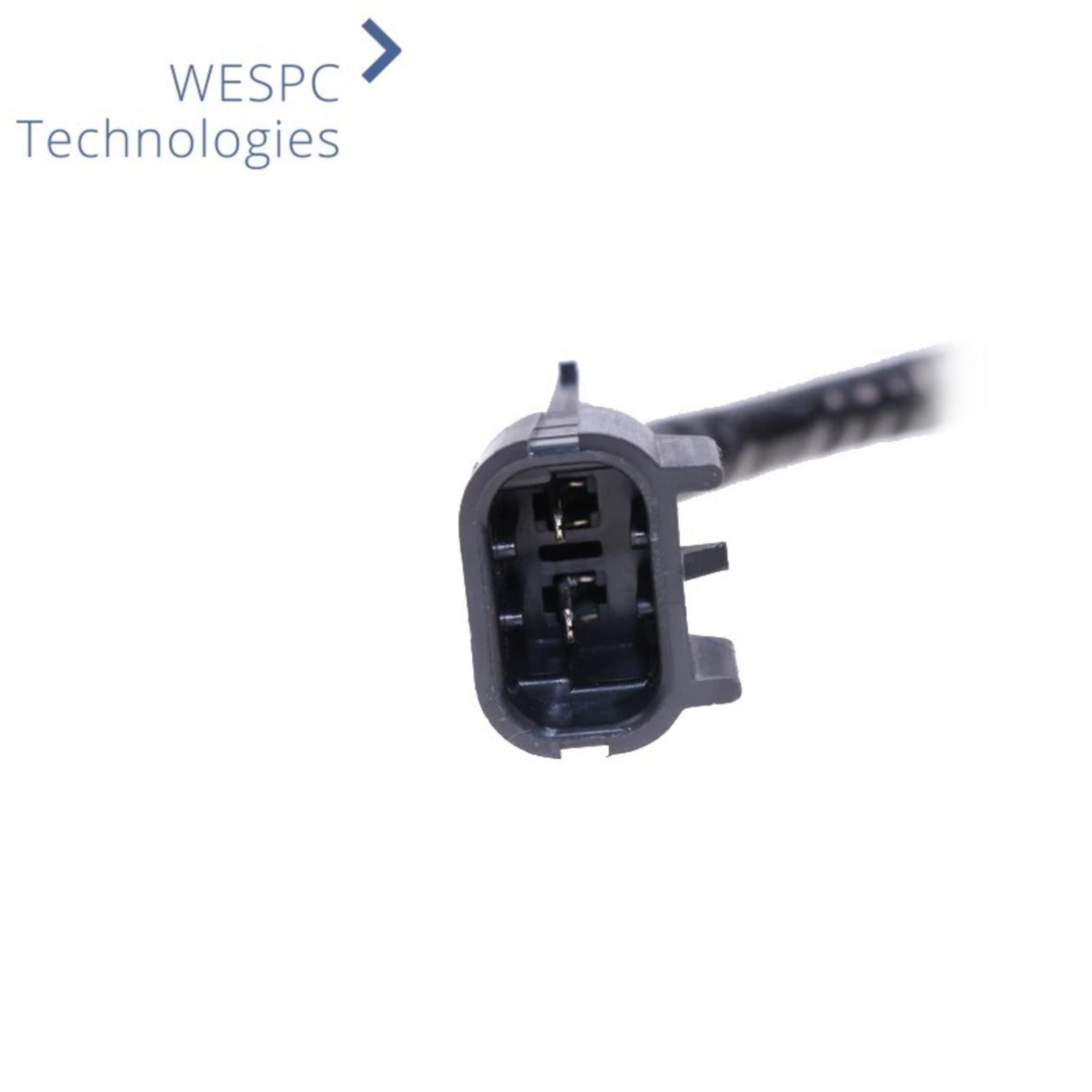

• Includes Packard Connector without mating connector
• Perfect replacement for a fuel pump stop solenoid
