Genuine Gv59 Digital Meter Current Voltage Gauge Original MEBAY Generator Dc 165-265v

Genuine MEBAY Gv59 Digital Meter Current Voltage Gauge Generator Dc 165-265v





Overview

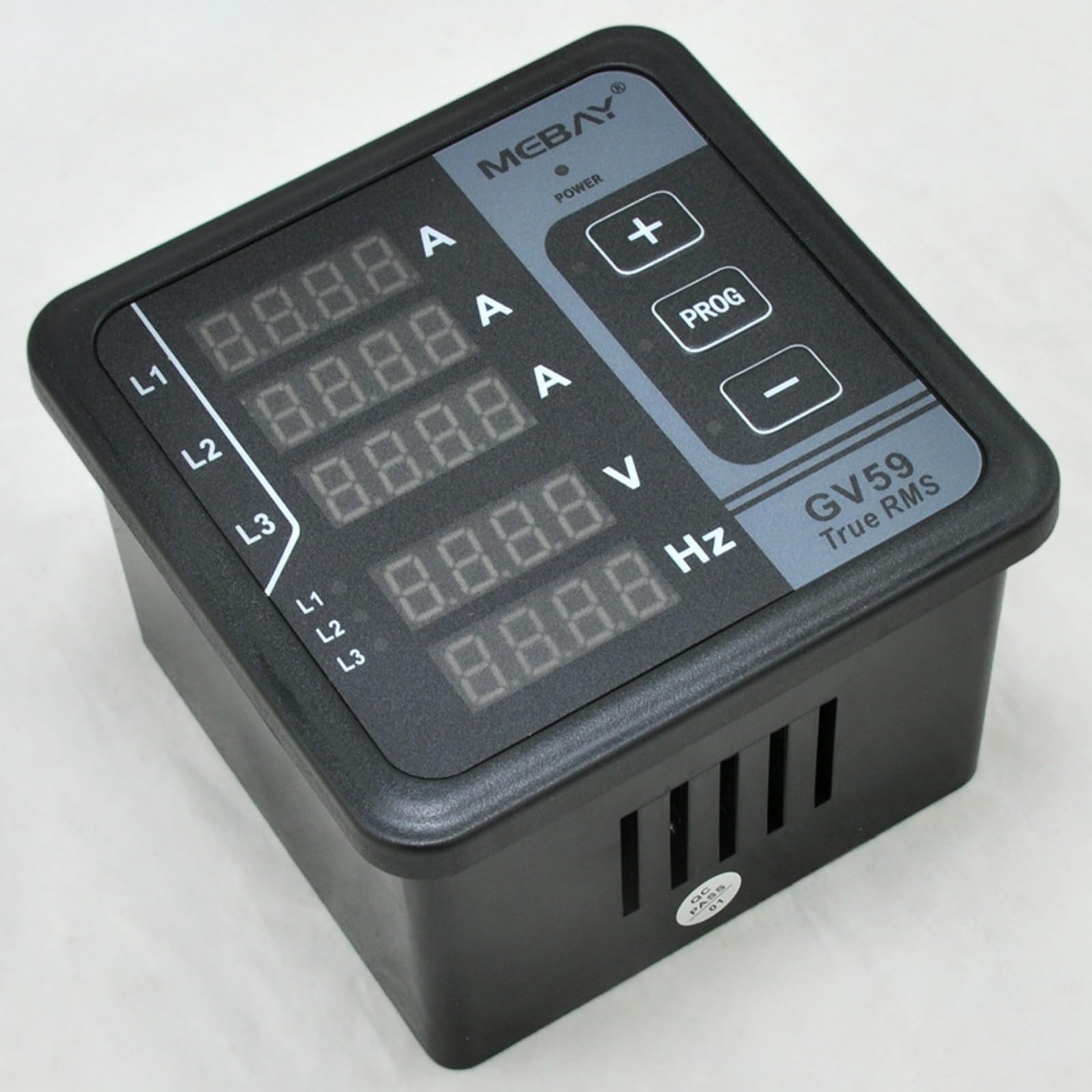

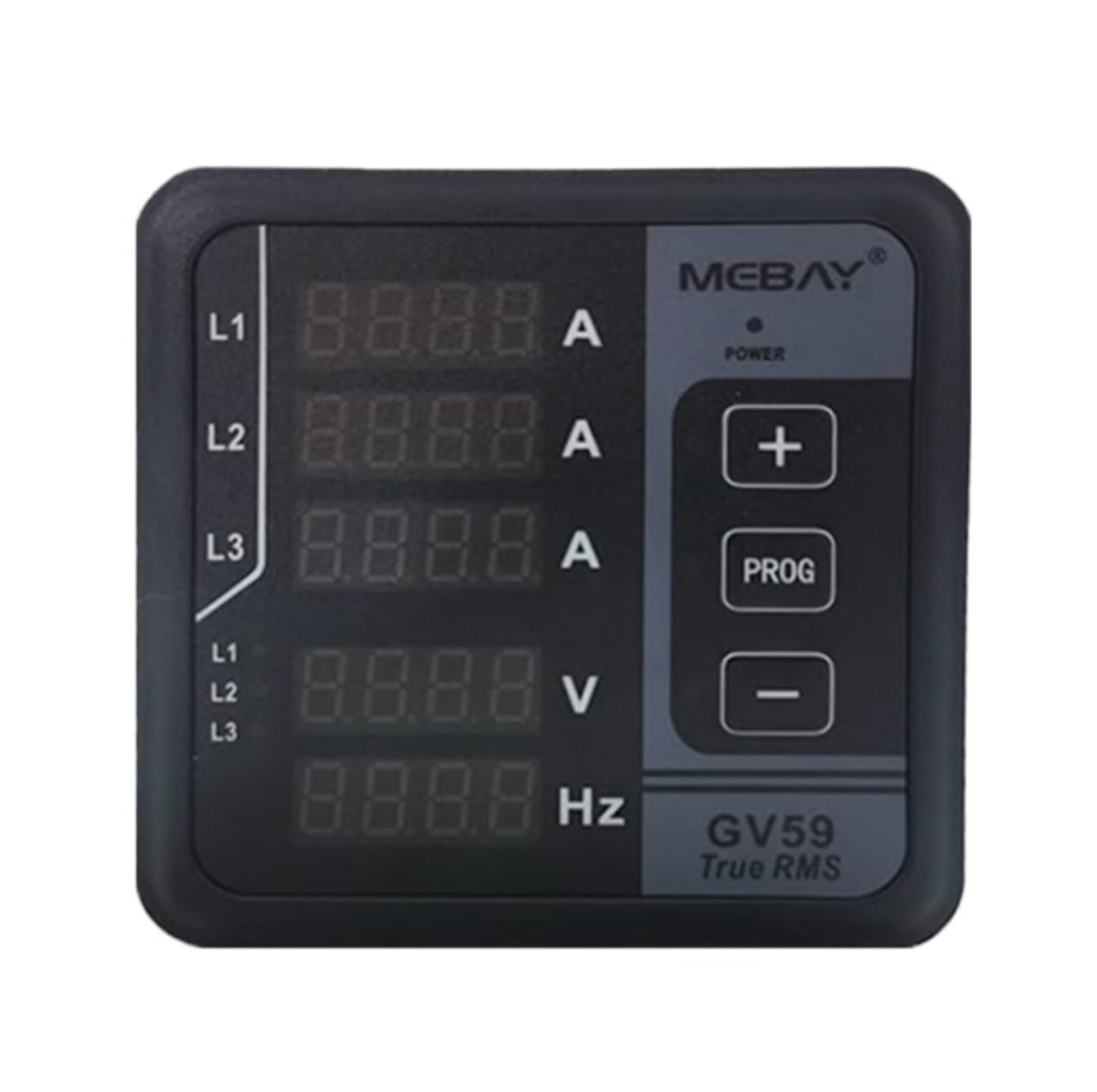

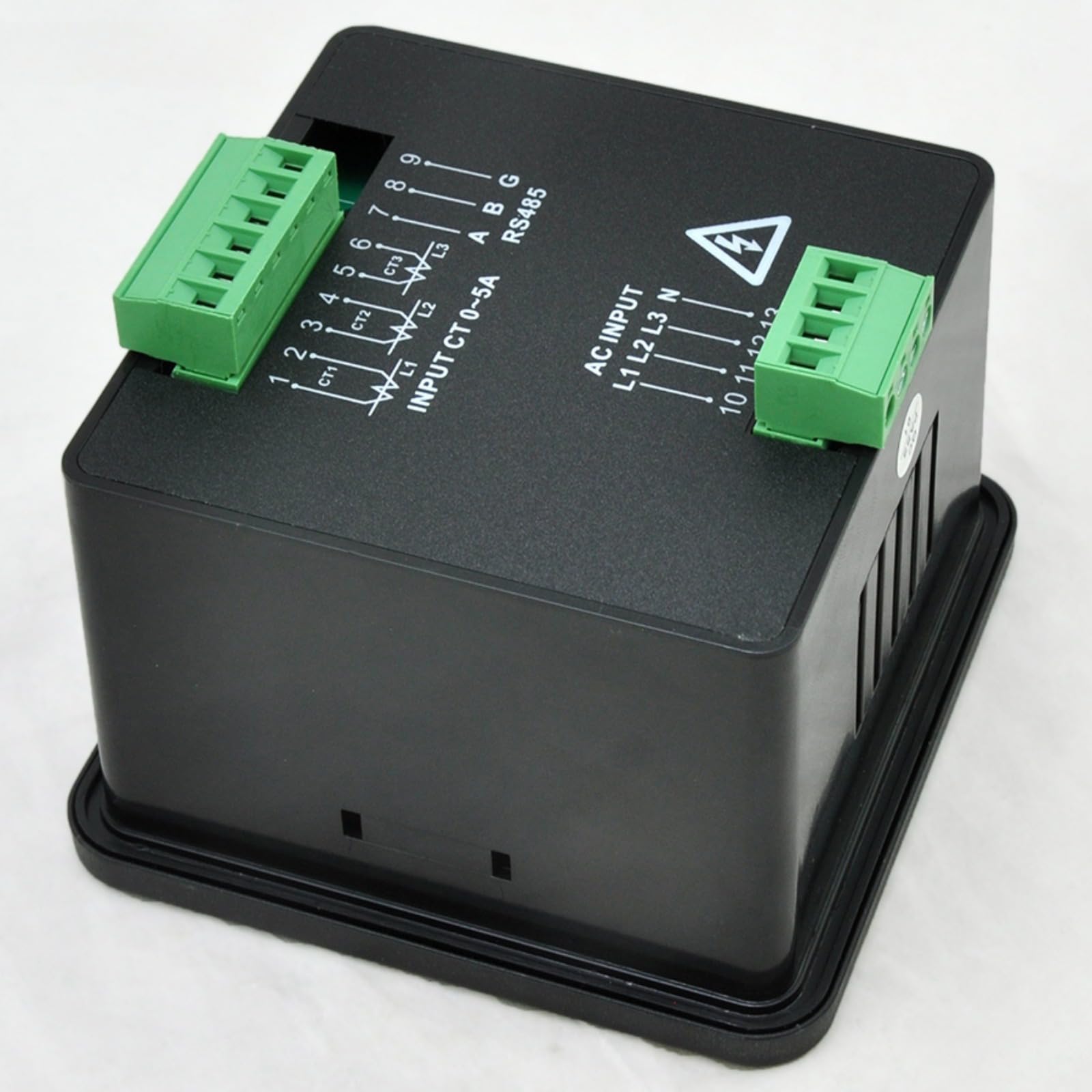

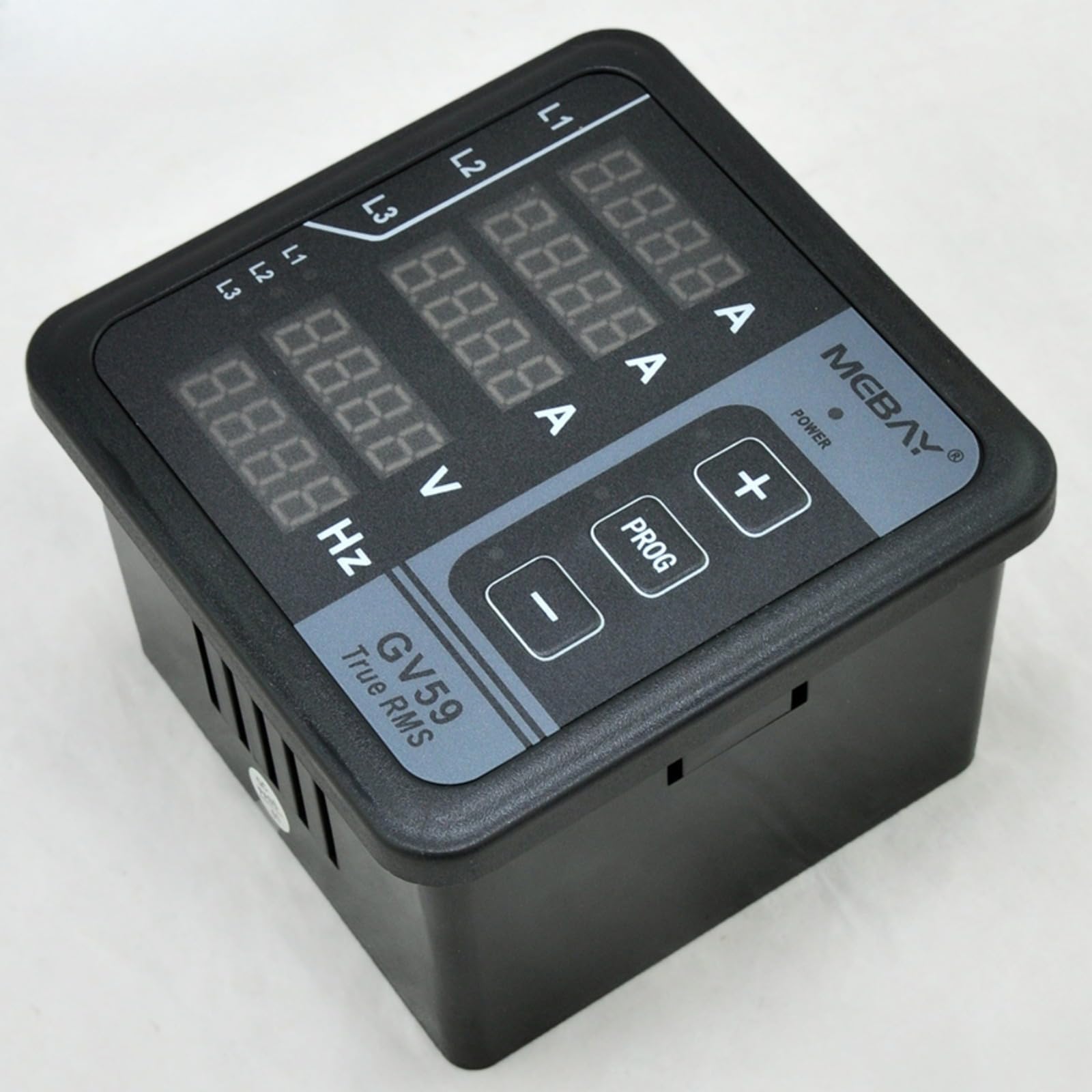

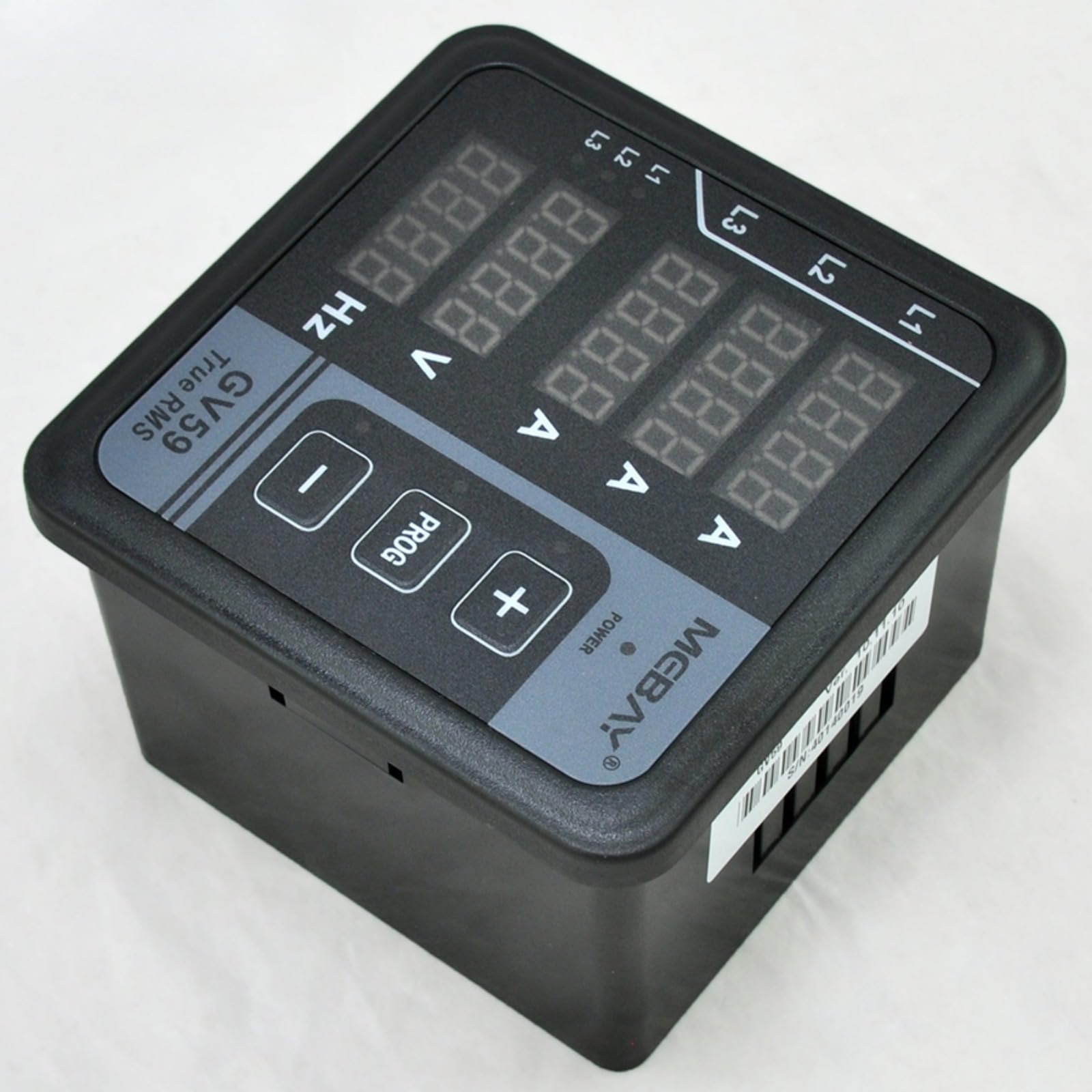

GV59 is a voltage and current detection instrument for three-phase generators. It has 5 high-brightness LEDs to display relevant parameters. It can also use RS485 communication port to read more parameters. System parameters can be set according to the buttons to meet the application of different occasions.



There are two models of GV59 series instruments:



GV59: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;



GV59R: Based on GV59, RS485 interface is added, and relevant parameters can be monitored and set through PC software.



Features



High-brightness LED digital tube displays measured values;



5-screen parameter display;



AC power supply;



AC transformer ratio can be set;



Wide voltage operating range.



Specifications



Working power supply voltage: AC165-275V;



Power consumption: MAX 3W;



Operating ambient temperature: -25～65℃;



Storage ambient temperature: -40～85℃;



Protection level: IP65 (front panel after installation);



Dimensions: 100mm*100mm*77mm



Opening size: 91mm*91mm;



Weight: 320g
