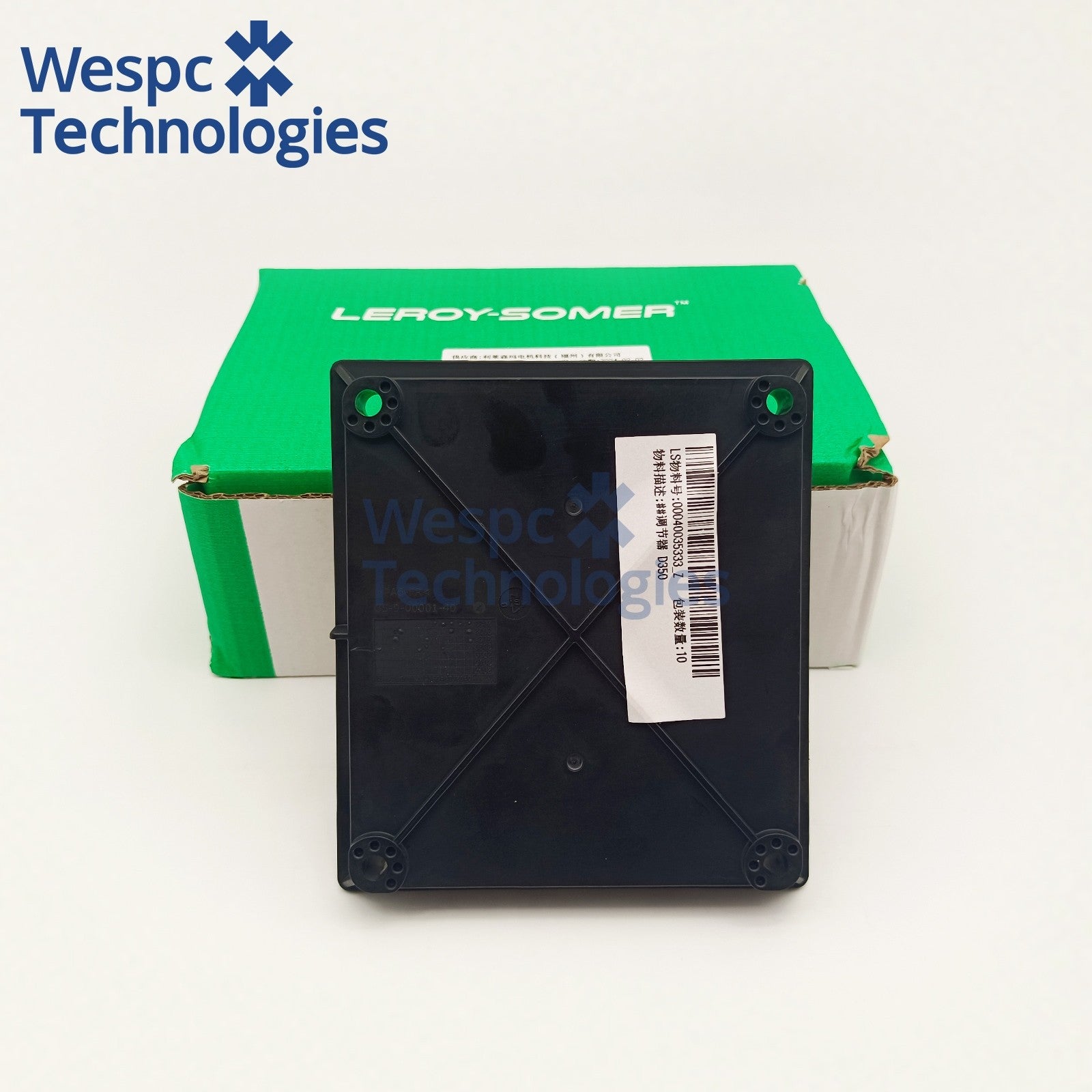

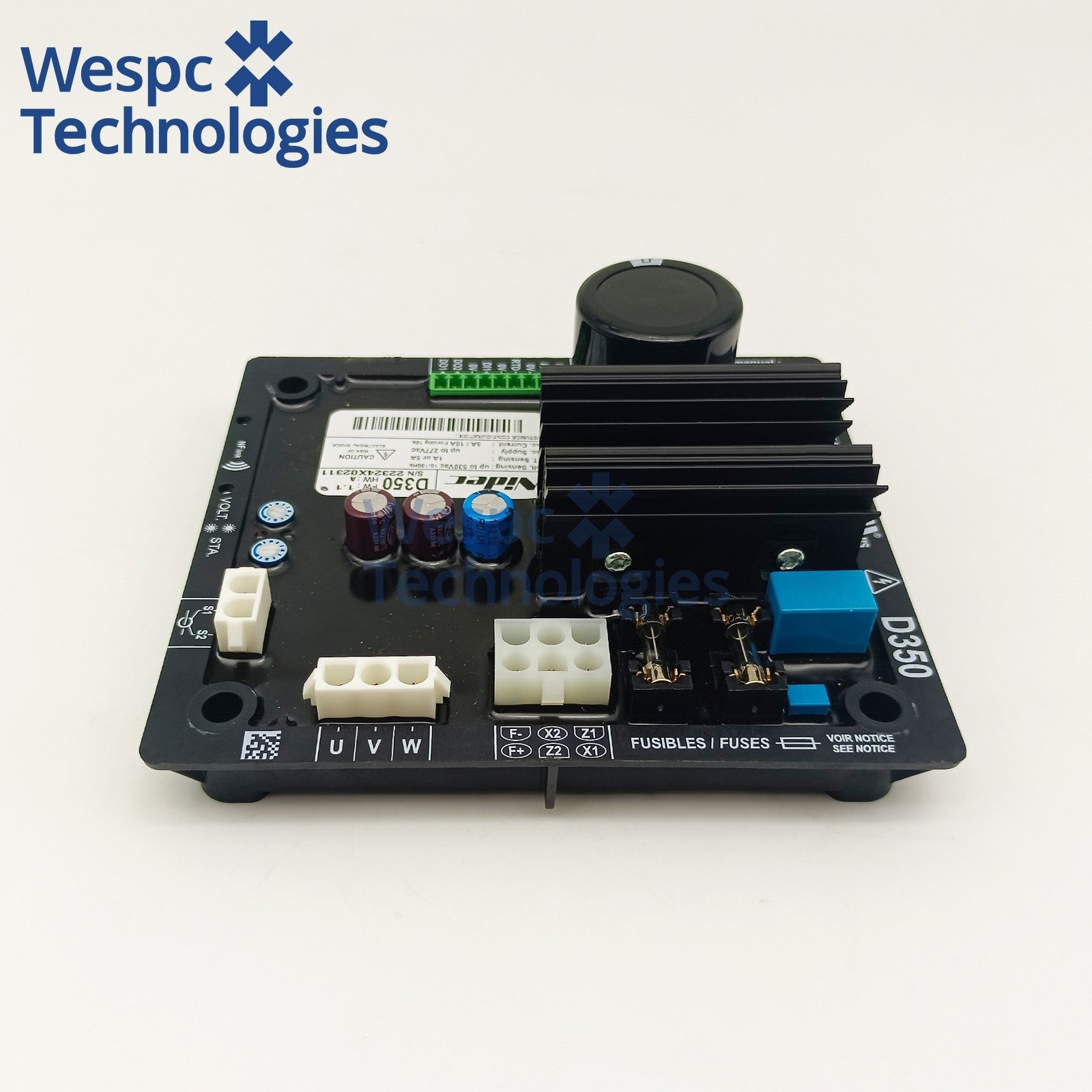

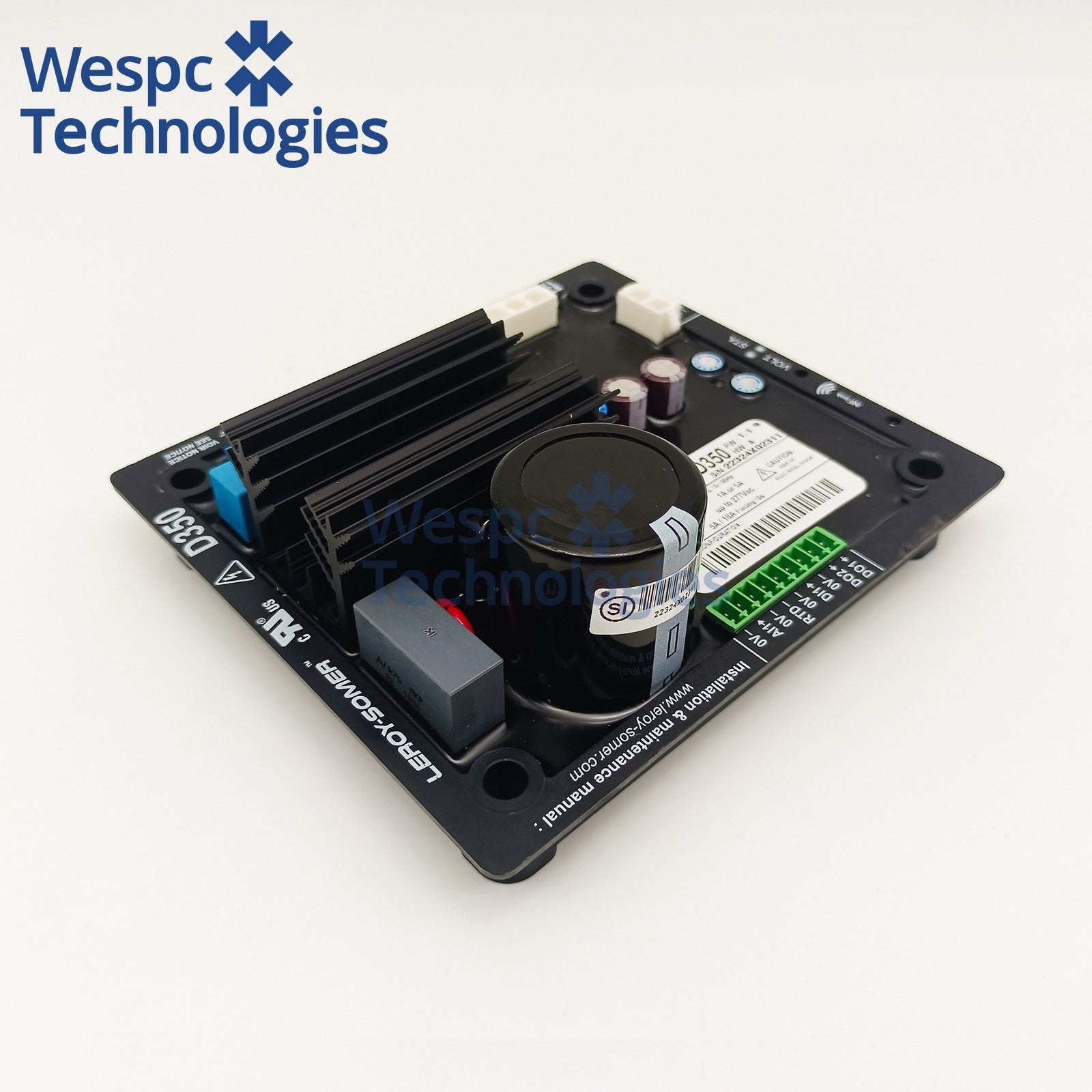

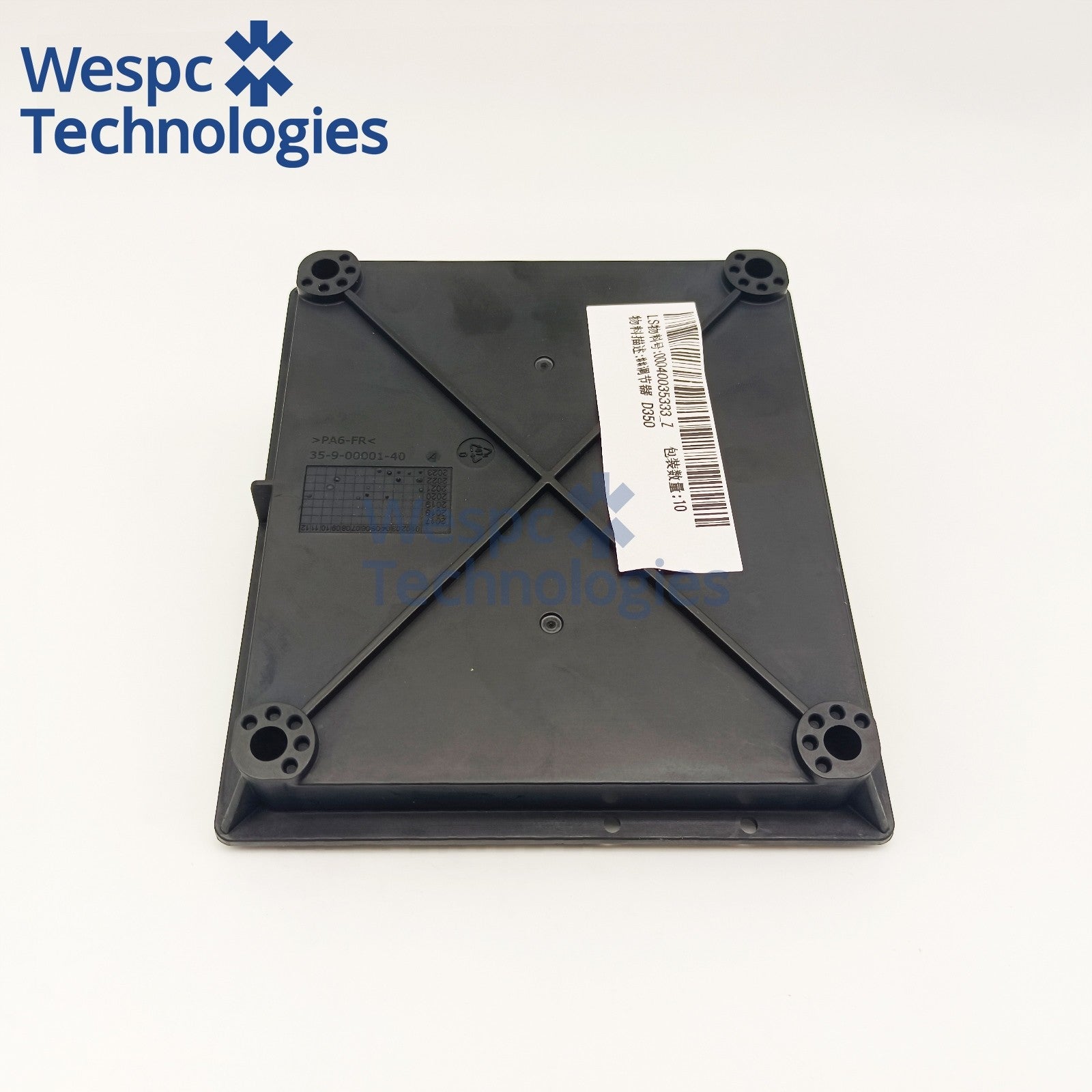

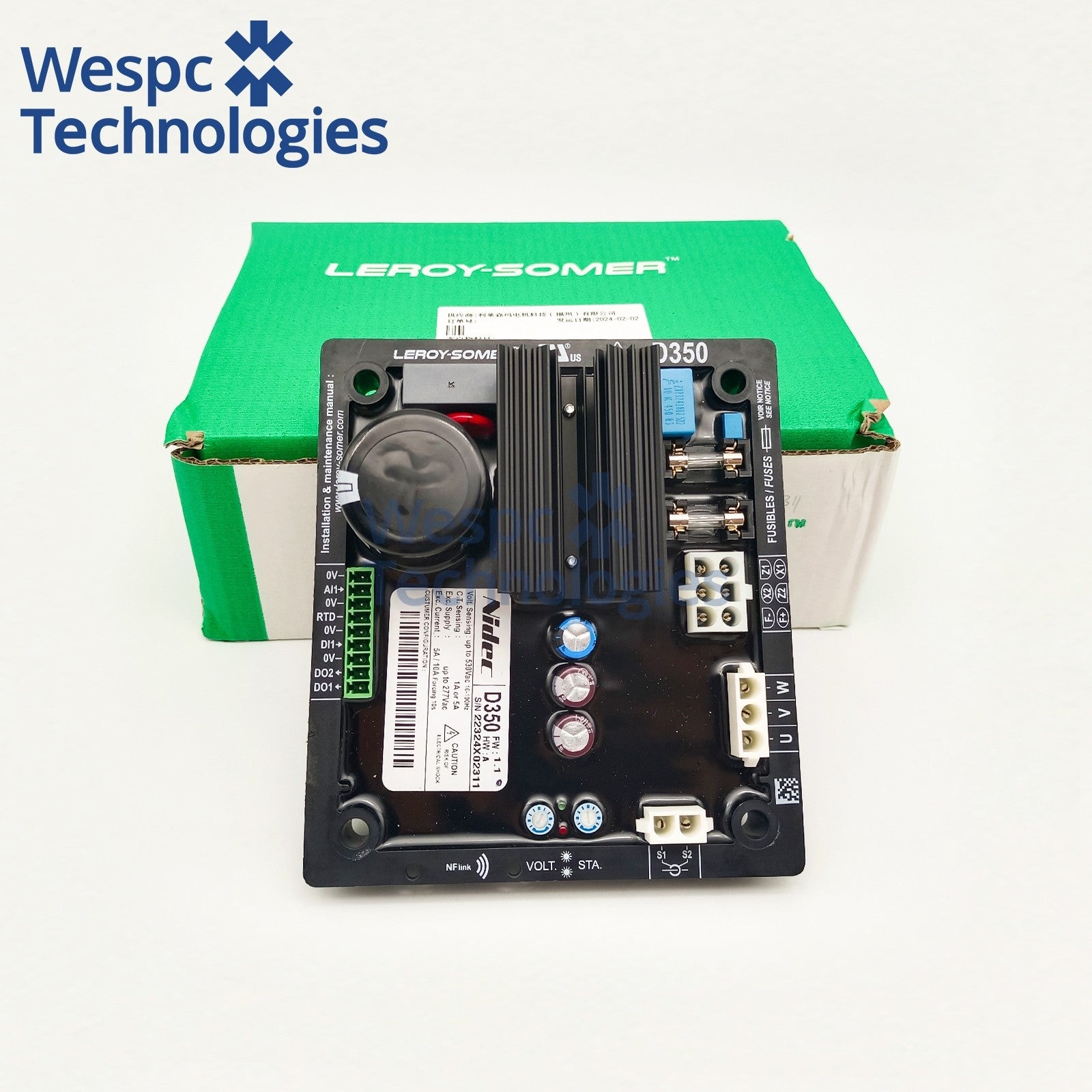

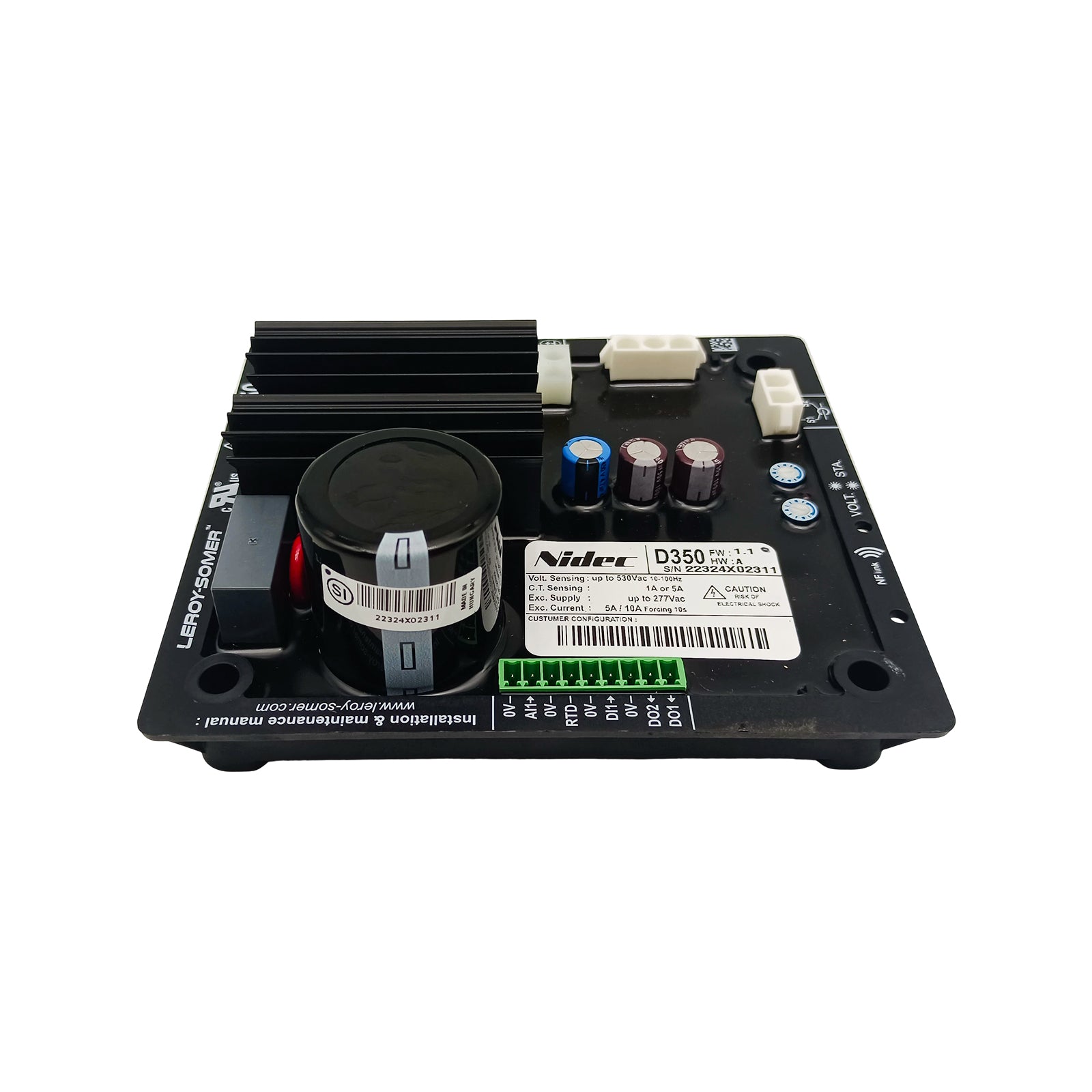

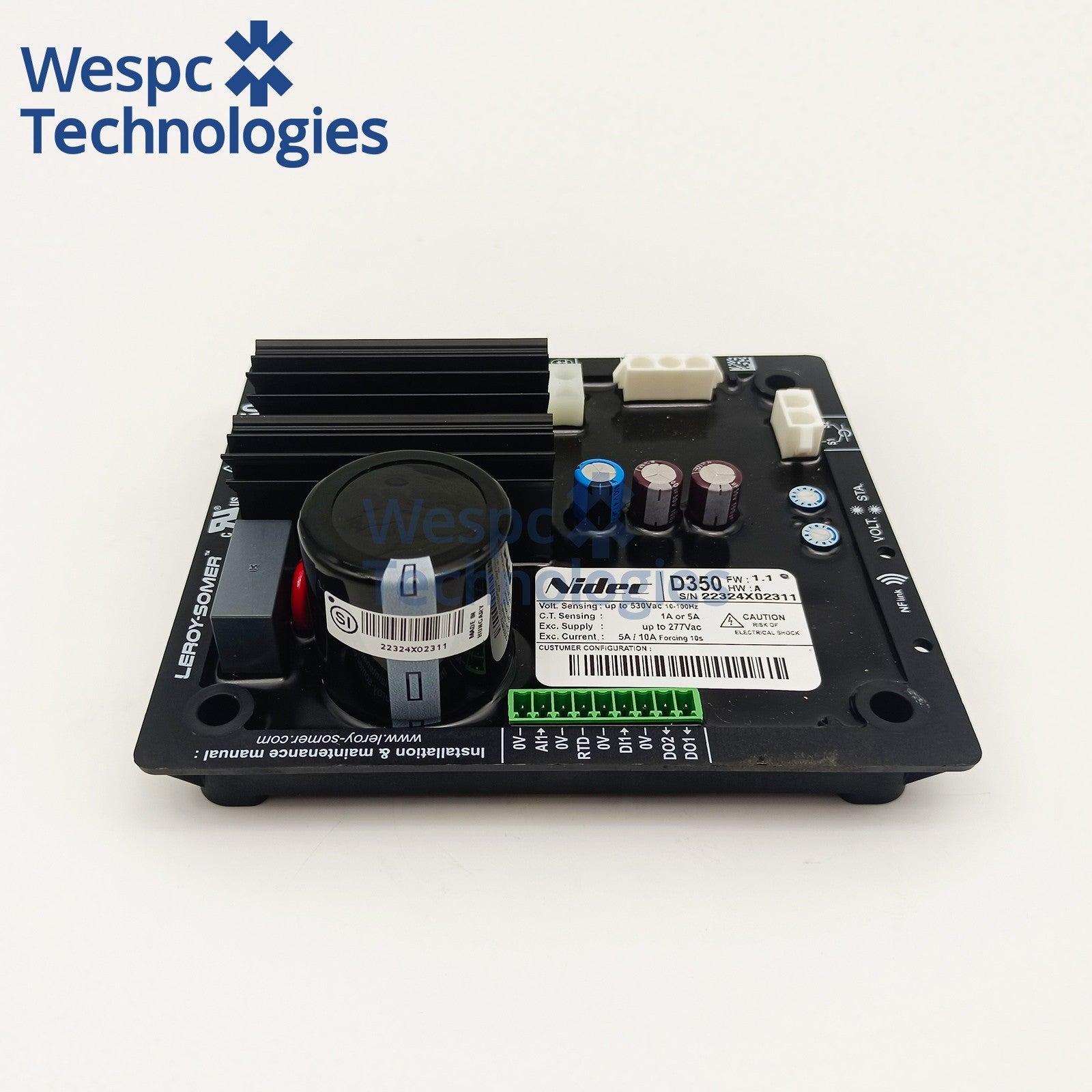

Genuine Leroy Somer D350 AVR Alternators Digital Automatic Voltage Regulator

Genuine Leroy Somer D350 AVR Alternators Digital Automatic Voltage Regulator

$945.00 USD
$0.00 USD $945.00 USD
Sale Sold out
Shipping calculated at checkout.
Genuine D350 AVR Alternators Digital Automatic Voltage Regulator Leroy Somer


Product Specifications

· Model: Genuine Nidec Leroy Somer D350 Digital Automatic Voltage Regulator
  • · Compatible Excitation: Shunt Self-Excited / AREP Auxiliary Winding / PMG Permanent Magnet
  • · Excitation Output: Continuous 5A DC, 10A 10s Overload Forcing Current
  • · Sampling Range: 16–530VAC, 16–100Hz Wide Frequency & Voltage
  • · Core Functions: Digital PID True RMS Regulation, CT Reactive Droop Parallel, PT100 Winding Temp Protection, Event Fault Log, EasyReg PC Configuration, NFLink Wireless Communication Expansion, Full Multi-Layer Fault Protection
  • · Versions: Made in France Genuine Original / Generic Aftermarket Compatible Clone, Direct Drop-In Replacement
  • · Mounting: Four-Hole Wall Mount Aluminum Heat Sink Housing
  • · Net Weight：0.6KG
  • · Packaging: Carton Packaging
  • · Warranty: 6 Months Factory Warranty


Cross Reference Matching

  • · Main Model: D350 Digital AVR
  • · Analog predecessor replacement: R438, R448
  • · Matching alternator series: LSA40, LSA42.3, LSA44.3, LSA46.3, LSA47.3, LSA49.3, LSAH42.3, LSAH44.3
  • · Supporting excitation: Shunt self-excited / AREP / PMG
  • · Matching debug tool: EasyReg Advanced PC software, NFLink wireless module
  • · Optional accessory: 1A/5A CT current transformer for parallel droop


Wide Application Range

  1. Leroy Somer LSA series medium-large brushless diesel/gas generator sets (100–1000kW)
  2. Industrial park multi-unit parallel power stations, ABS certified marine auxiliary gensets, mining prime power units
  3. Old analog R438/R448 AVR aging, voltage hunting, parallel reactive unbalance, no temperature monitoring fault upgrade replacement
  4. Leroy Somer OEM complete genset supporting, global power rental & maintenance shop genuine spare parts stocking


Common Equipment Failures Solved

  • · Old analog R448 voltage hunting under harmonic UPS/VFD heavy loads, large voltage dip when load suddenly applied
  • · Multi-generator parallel cannot evenly distribute reactive power, large circulating current leads to AVR overheating trip
  • · No winding temperature monitoring, generator overheating easily damages insulation winding
  • · No fault history record, difficult to judge root cause after generator shutdown
  • · Need PC batch parameter setting for mass OEM genset production, analog AVR only manual knob adjustment low efficiency
