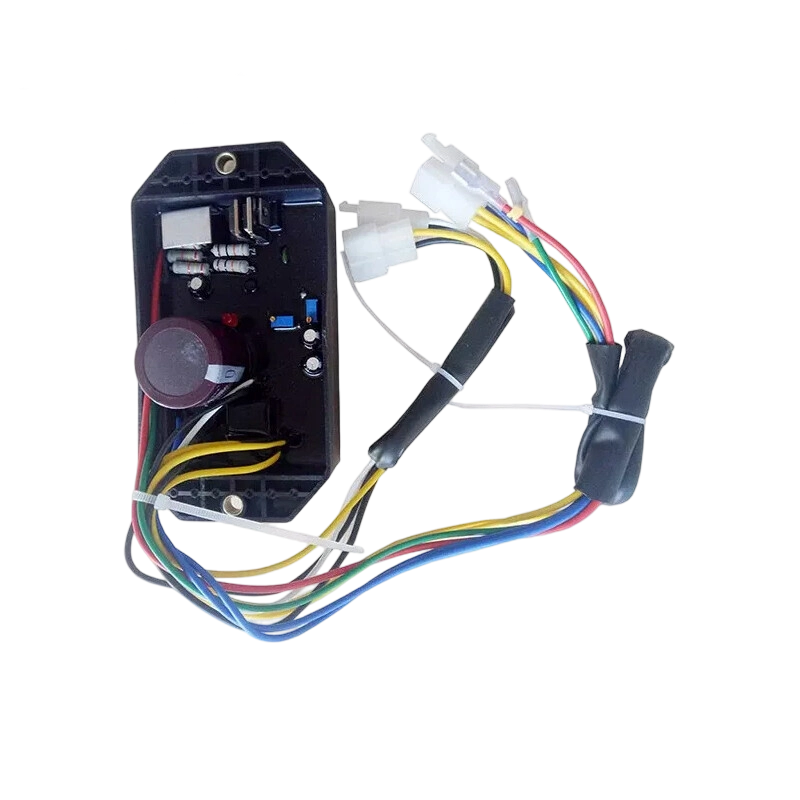

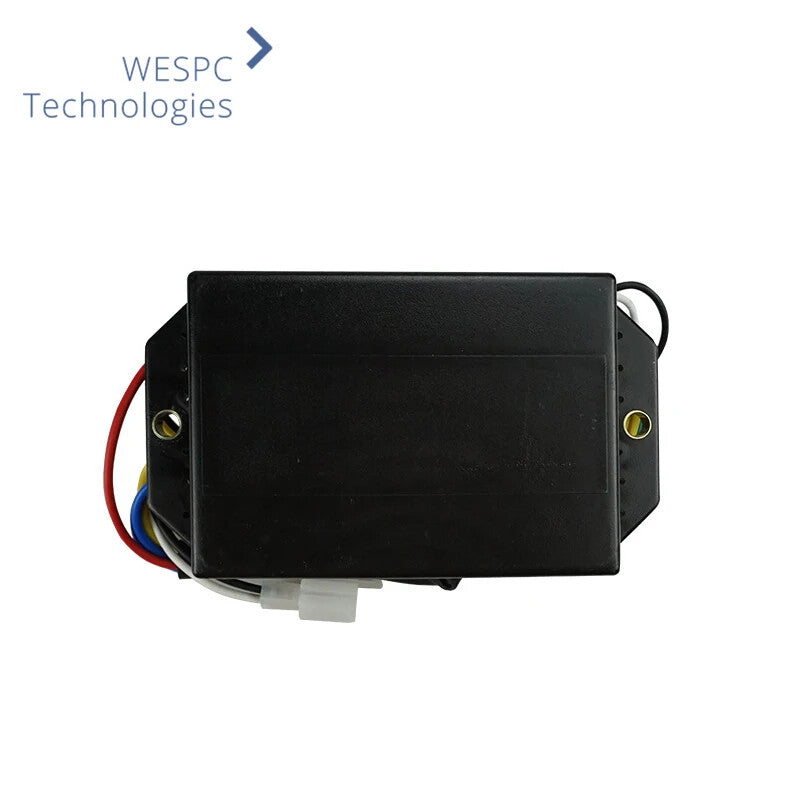

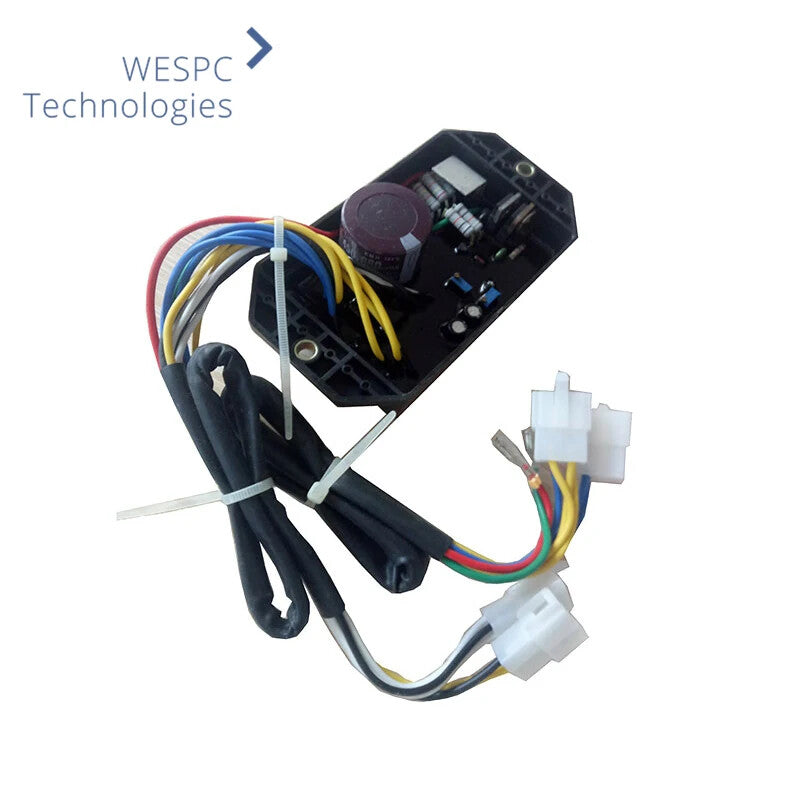

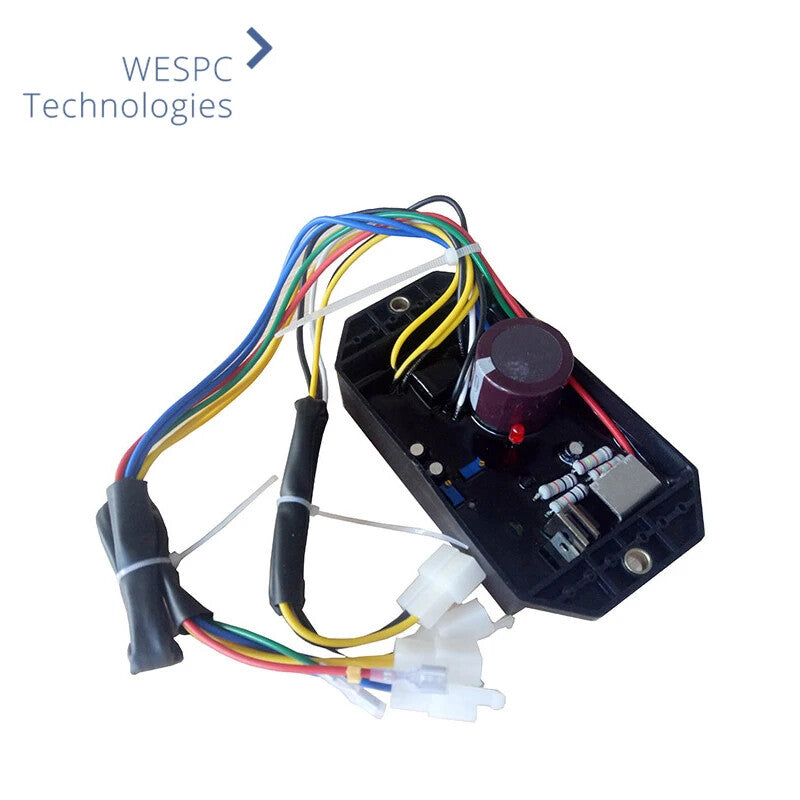

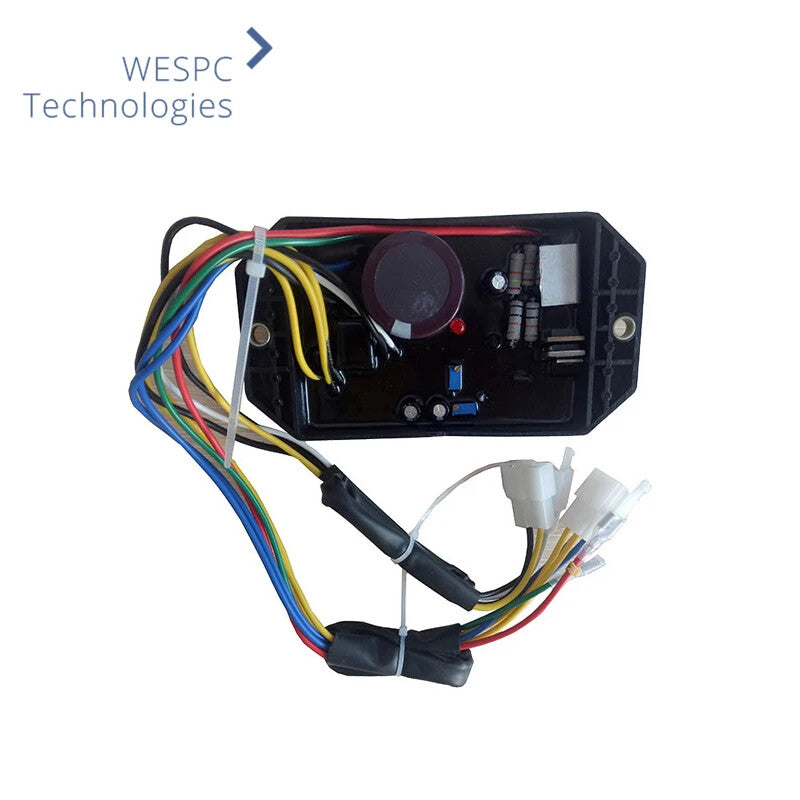

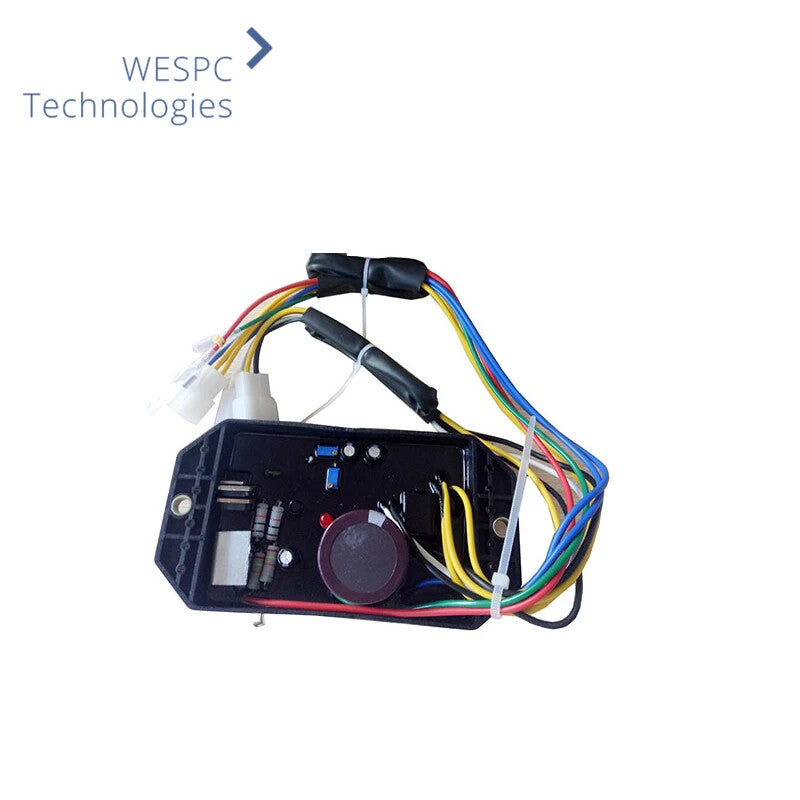

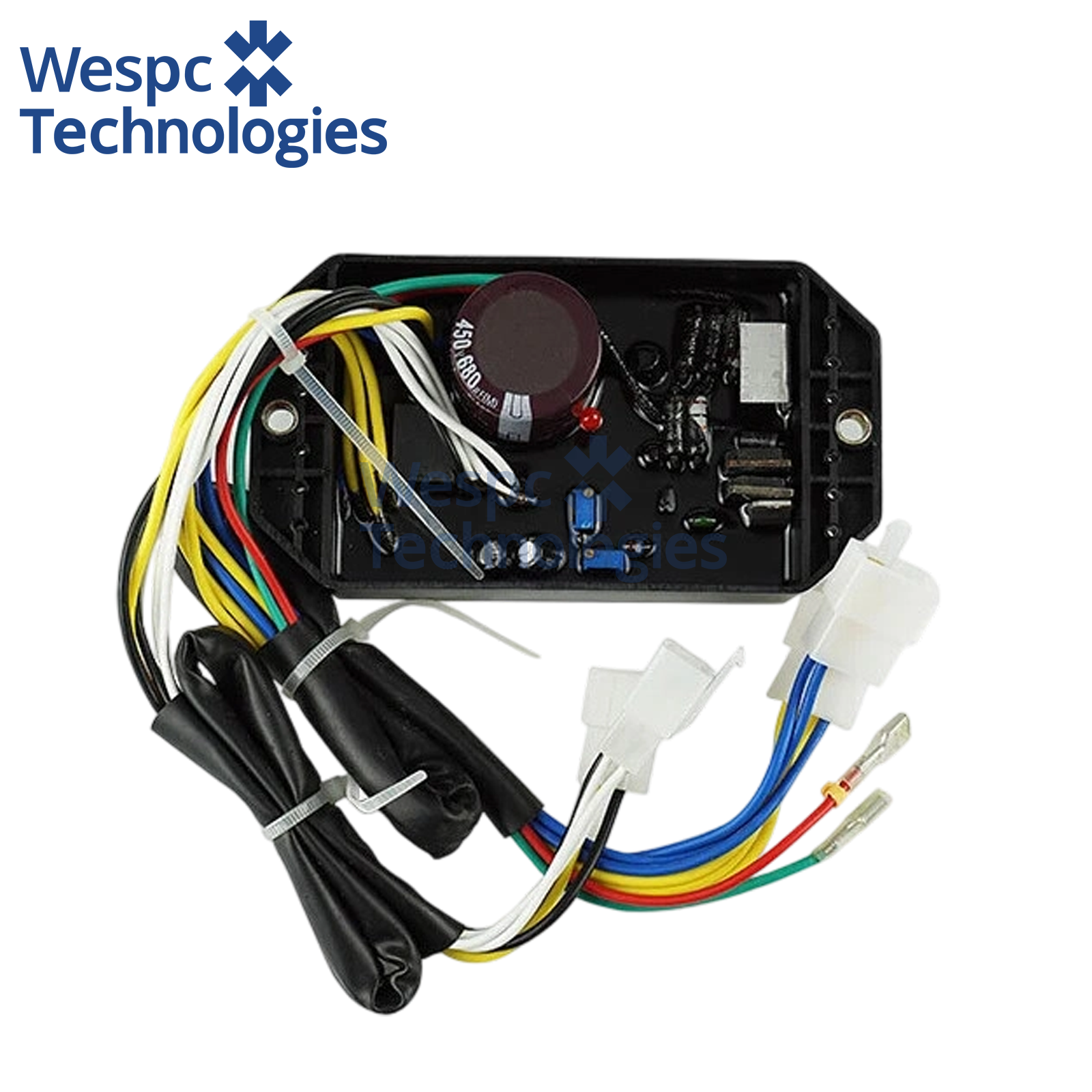

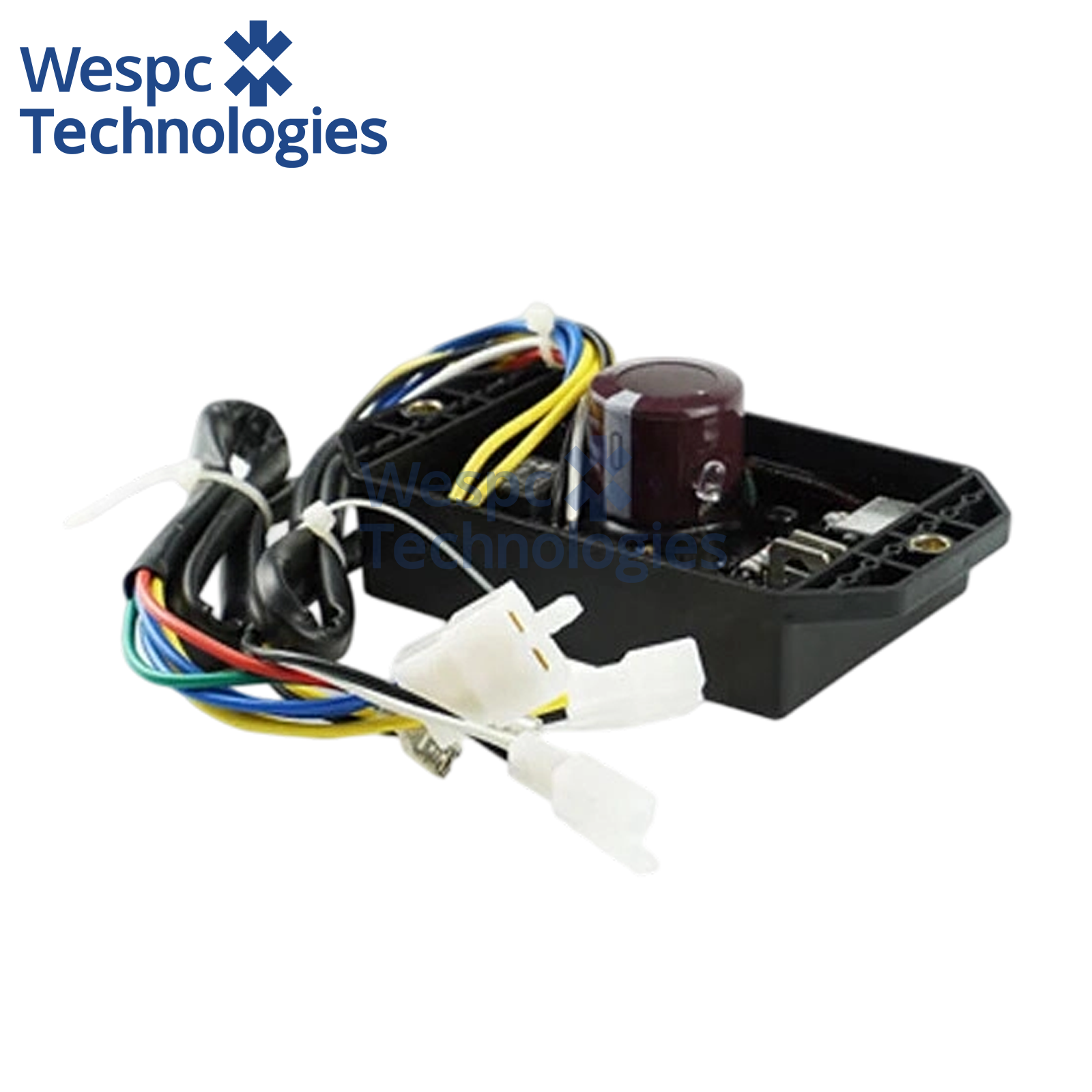

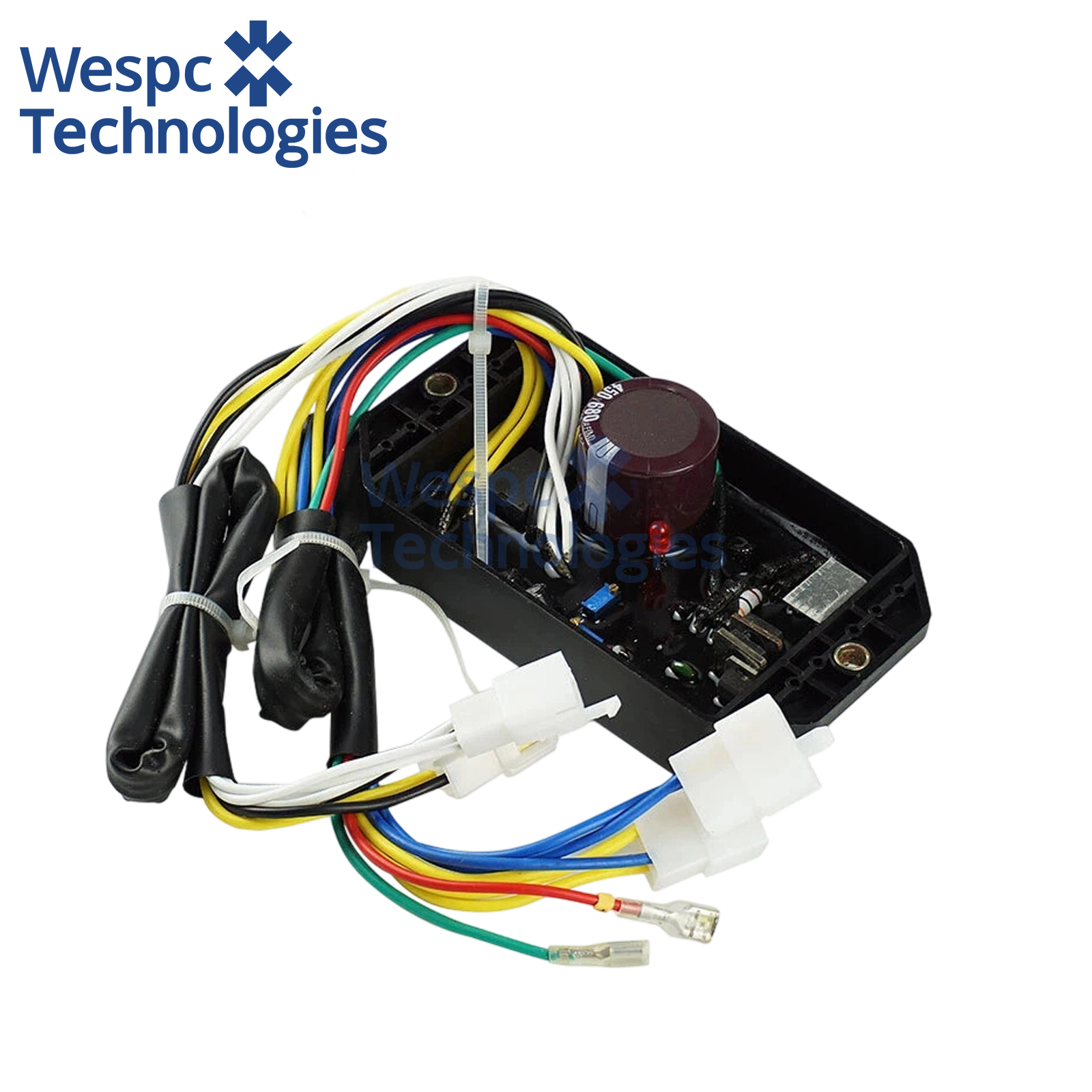

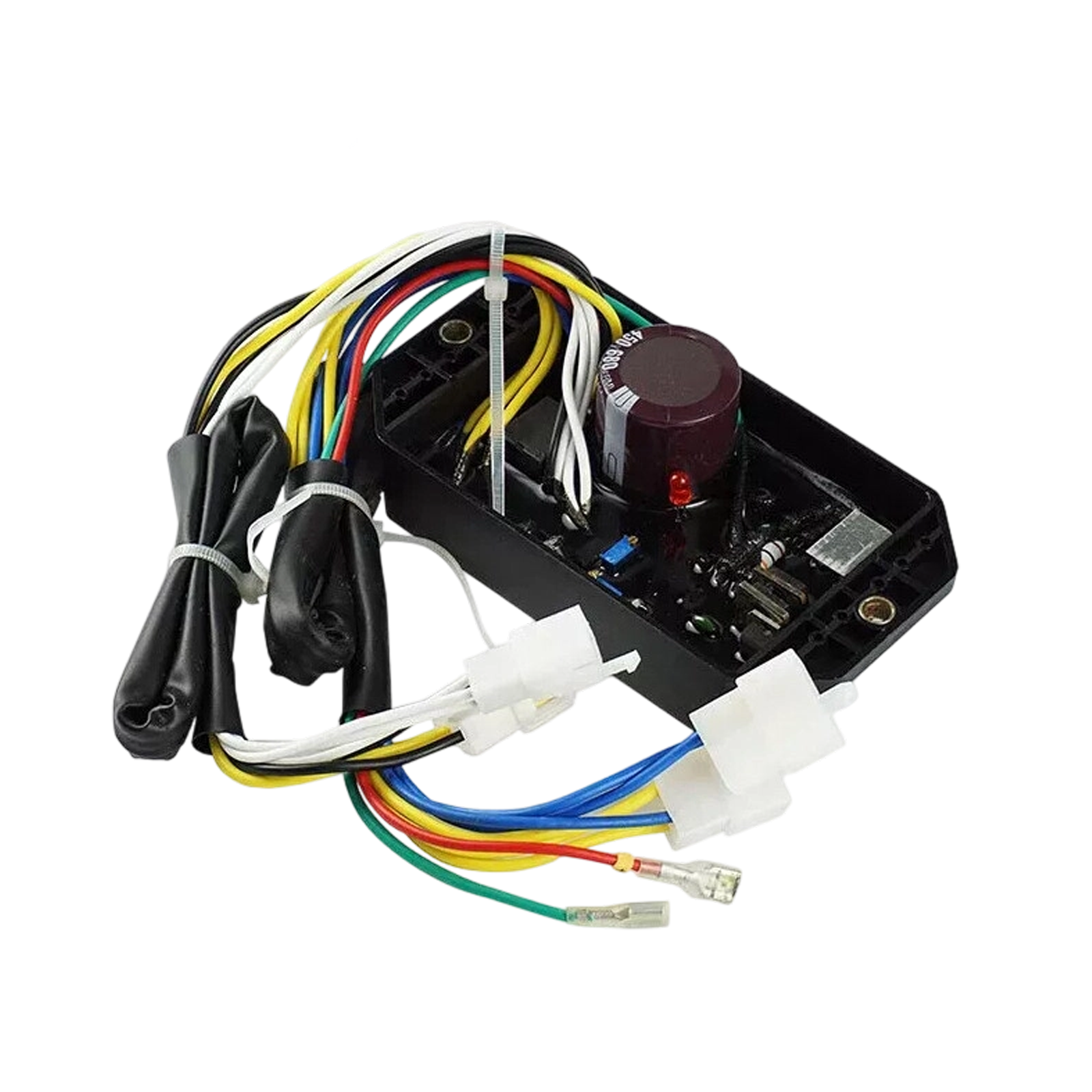

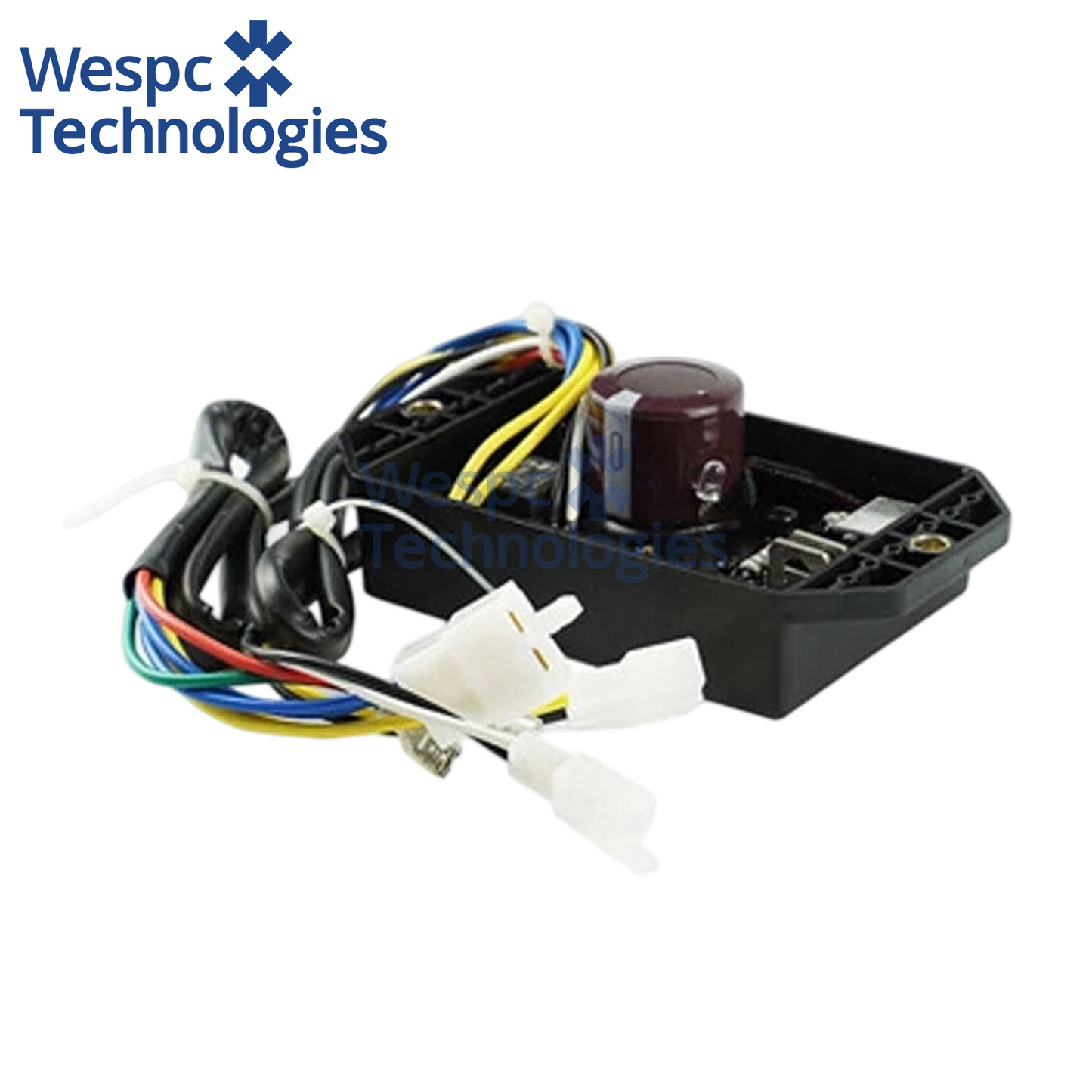

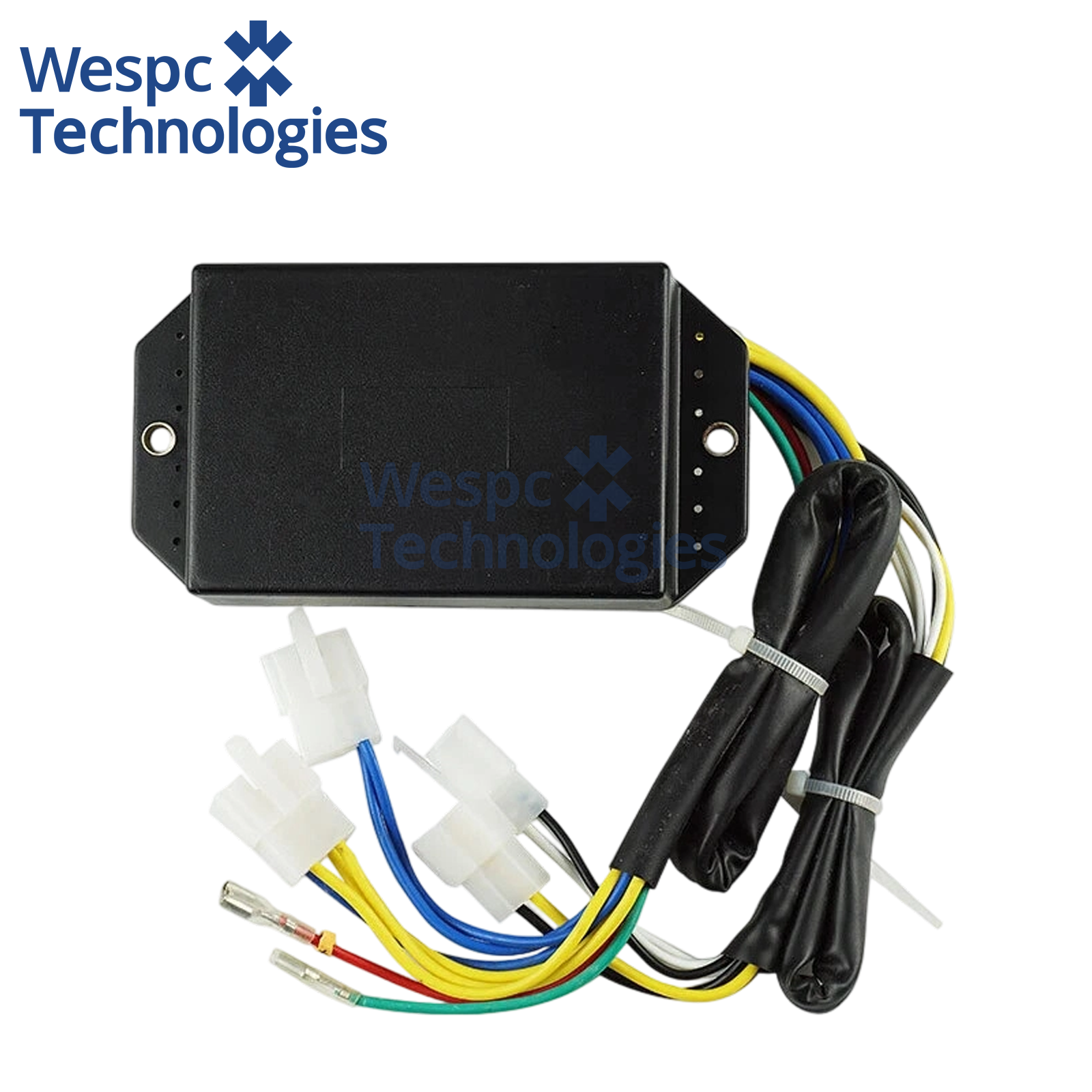

KI-DAVR 50S AVR Generator Automatic Voltage Regulator 5KW Single Phase 50s

KI-DAVR 50S AVR Generator Automatic Voltage Regulator 5KW Single Phase 50s 10 wires 5kw For Kipor

Specifications
AVR Automatic Voltage Regulator KI-DAVR-50S For KIPOR Generator 1phase 5kw
The item has 5 connectors, and 10 cables ( 2 single-wire connectors,2 double-wire connectors,1 four-wire connectors ).

Technical specifications
model name PLY-DAVR-50S or KI-DAVR-50S
rated exciting current 2.5A
excitation voltage 80-120V
sampling voltage 16-20V
Frequency 50/60Hz
application scope 3.5KW -5.5KW diesel generator unit
AC Voltage output: 120V/240V
Auto Voltage Adjusting Accuracy ≤ ±1%
Maximum tempeterature rise 130℃ or 266F
Installation center disdance: 134±0.5mm
