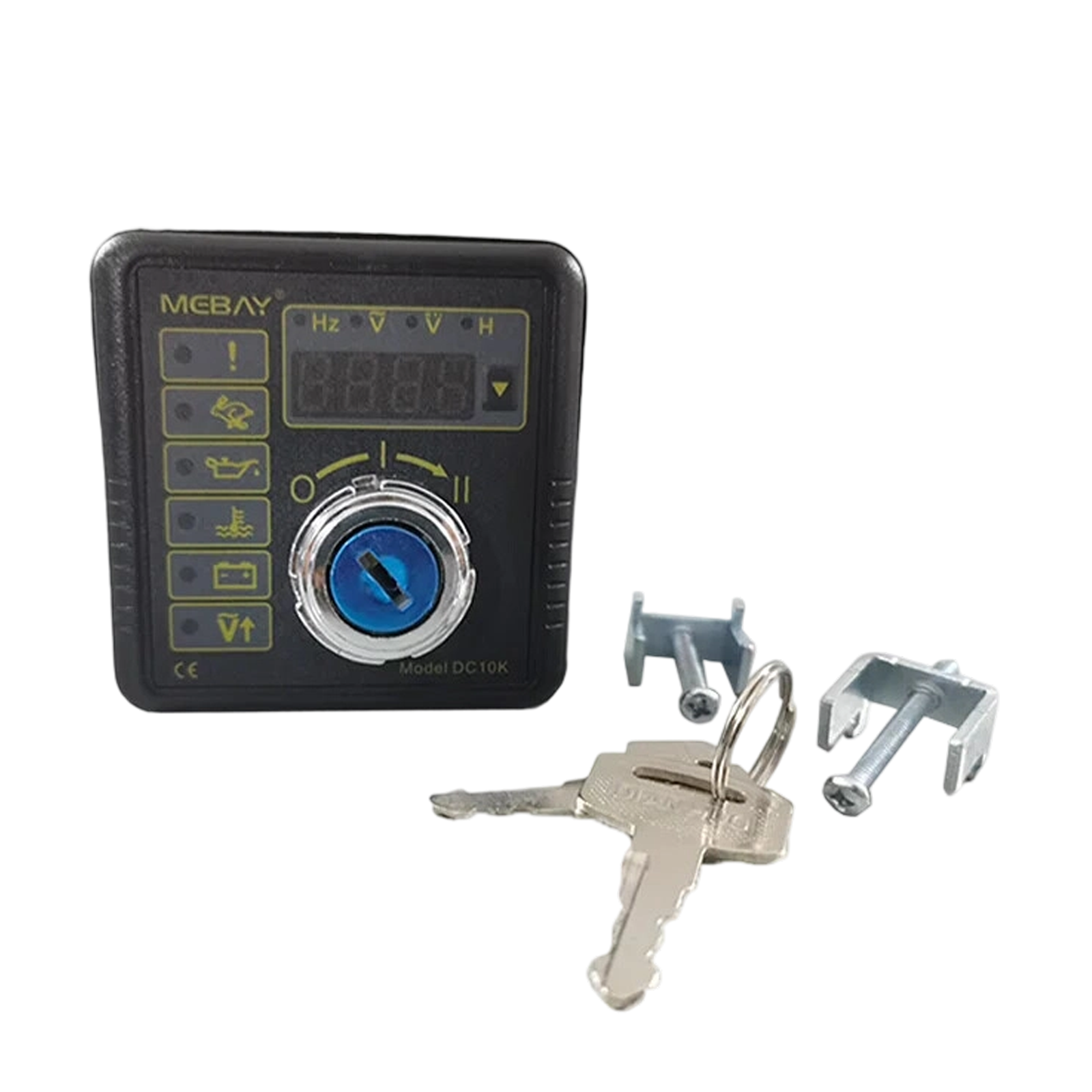

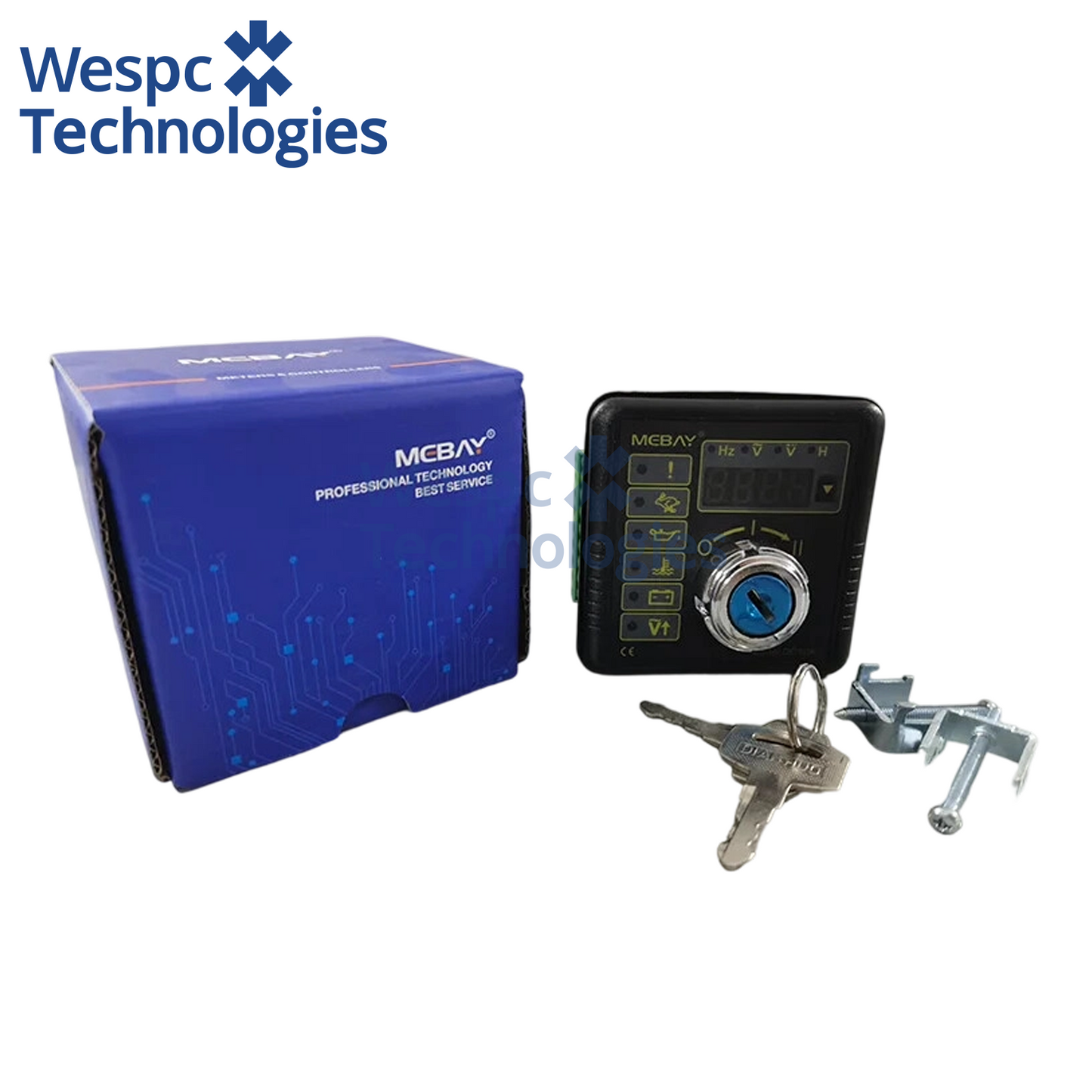

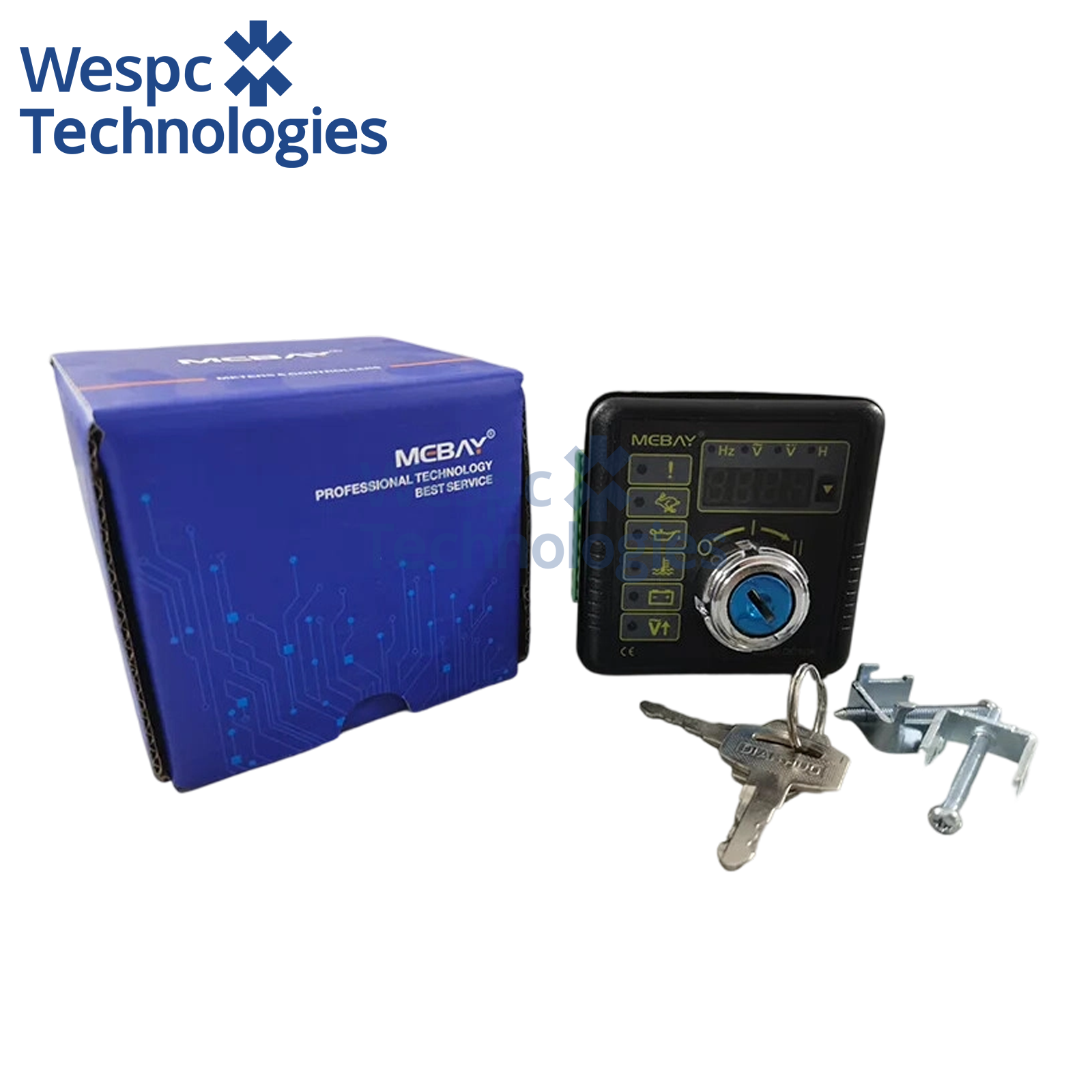

Mebay DC10K Manual Start Diesel Generator Controller Key Start Control Module LED Display Voltage Frequency Replacement Spare Part

Product Specifications

• Model: Mebay DC10K Manual Key Start Generator Controller
• Power Supply: DC 8~33V Wide Voltage (12V/24V Universal)
• Display: Red LED Digital Tube Multi-Parameter Display
• Core Functions: Key Start Control, Multi-Parameter Monitoring, Full Safety Protection, PC Parameter Programming
• Protection: Overspeed / Low Oil Pressure / High Temp / Charge Fault / Emergency Stop Shutdown

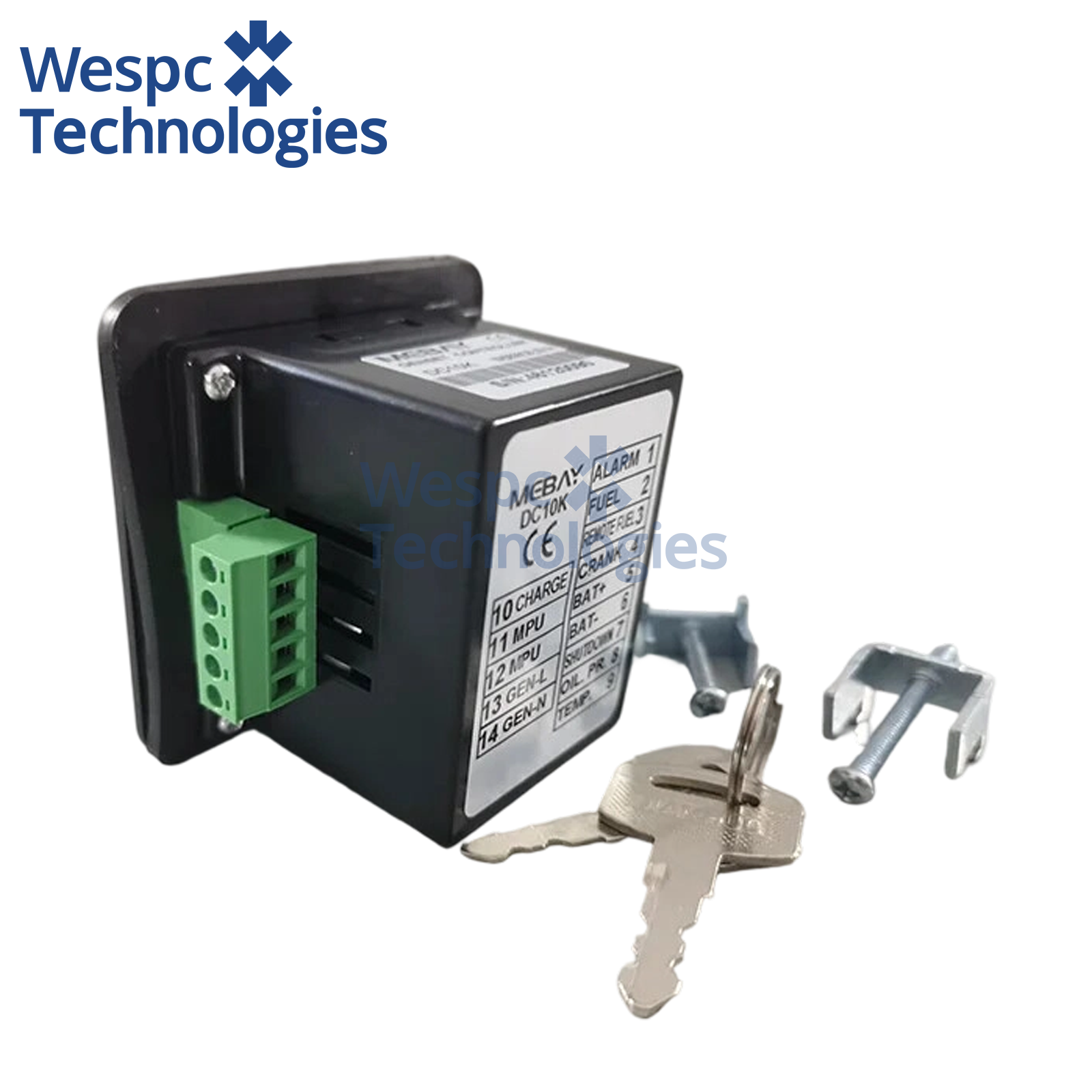

• Mounting: Standard Embedded Panel Installation
• Operating Temperature: -35℃ ~ +70℃
• Net Weight: 0.28KG
• Package: Carton Packaging
• Warranty: 6 Months Factory Warranty
•

Wide Application Range

• 3KW~15KW portable single-phase diesel & gasoline generator control panel
• Agricultural irrigation water pump fixed diesel power unit control cabinet
• Construction site temporary mobile generator, rental genset equipment renovation
• Small fire emergency, residential backup power manual generator control system
• Marine auxiliary small generator, outdoor field mobile power equipment
•

Key Product Features

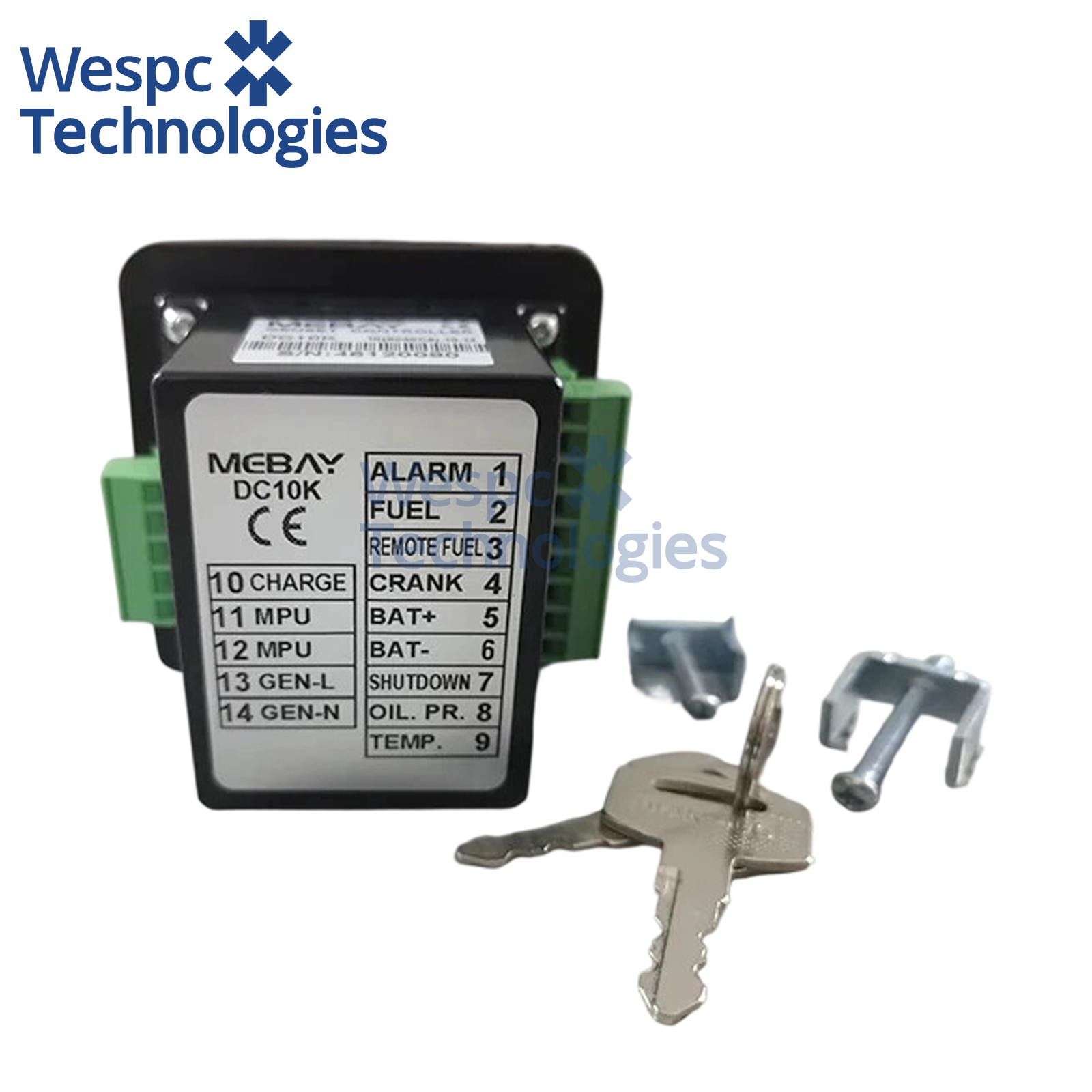

1. 1:1 Pin & Installation Compatible With DSE501K, Direct Replacement
   Consistent with DSE501K panel size, mounting hole position, terminal wiring sequence and function definition, no need to modify wiring or cabinet, quickly complete on-site fault replacement to reduce equipment downtime loss.

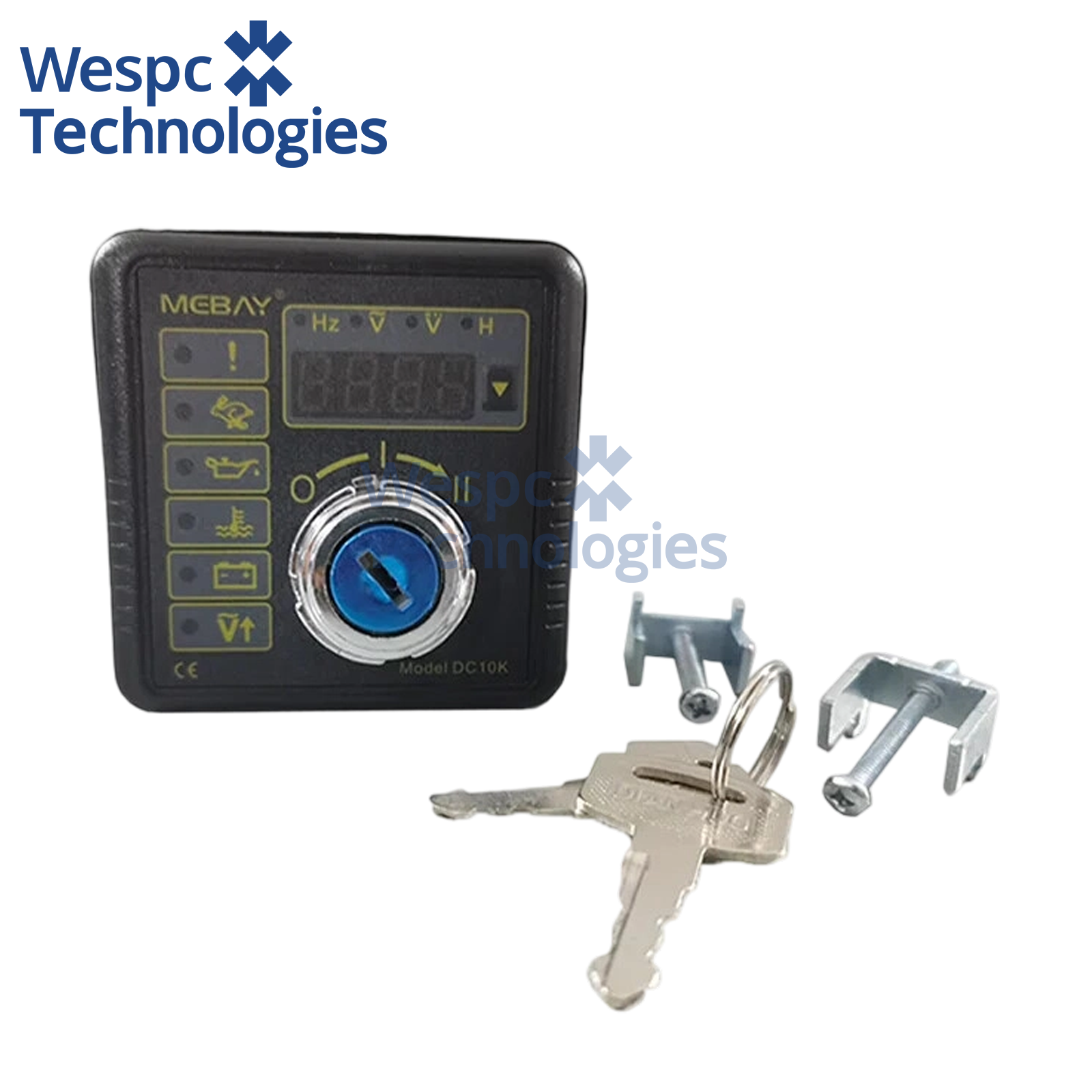

2. Integrated Key Ignition Switch + Multi-Parameter LED Real-Time Monitoring
   Three-position lock key realizes power-off, manual startup and engine preheating one-key operation; digital tube displays four core operating parameters, multiple fault indicator lights clearly remind abnormal status, convenient for operators to quickly judge unit working condition.

3. Full-Range Engine Safety Shutdown Protection Mechanism
   When the engine has low lubricating oil pressure, high water temperature, overspeed, startup failure, charging system fault, the controller will immediately trigger fuel cut-off shutdown and lock the fault indicator light, effectively preventing engine dry grinding, over-temperature cylinder pulling and other irreversible damage.

4. PC Programmable Flexible Parameter Calibration
   Through RS232 communication connecting computer configuration software, users can freely set overspeed threshold, preheating duration, sensor resistance range, start delay and other parameters, adapting to various types of mechanical and electronically controlled diesel engines.

5. Industrial Anti-Vibration & Anti-Interference Circuit Design
   Flame retardant high-strength plastic shell + surge suppression circuit, stable operation in high-temperature, dusty, humid and strong vibration engine room and field working environments, strong durability and low failure rate.

6. Cost-Effective Upgrading Solution For Manual Generator Control
   Integrates ignition switch, multi-function meter and protection controller in one unit, replacing separate key switch, voltmeter, hour meter and protection module, simplifying cabinet wiring, reducing spare parts procurement cost and hidden danger of line failure.


Common Equipment Failures Solved

• Discrete key switch, voltmeter and protection components are damaged with complicated wiring, high fault probability and difficult maintenance
• Original DSE501K imported controller has long delivery cycle and high purchase cost, DC10K realizes low-cost emergency replacement
• Lack of overspeed, low oil pressure and high temperature protection, engine often runs with faults leading to overhaul scrapping
• Traditional single-function meters cannot record total running hours, unable to formulate regular maintenance plans, resulting in accelerated engine wear
• Old controller cannot adjust protection parameters, incompatible with modified engine speed sensors, frequent protection misoperation
