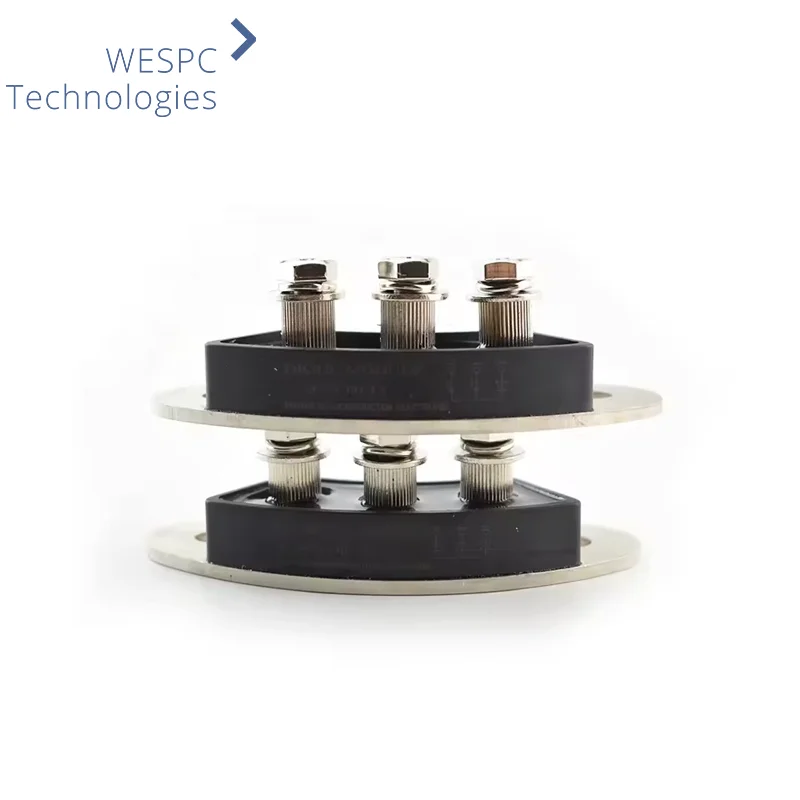

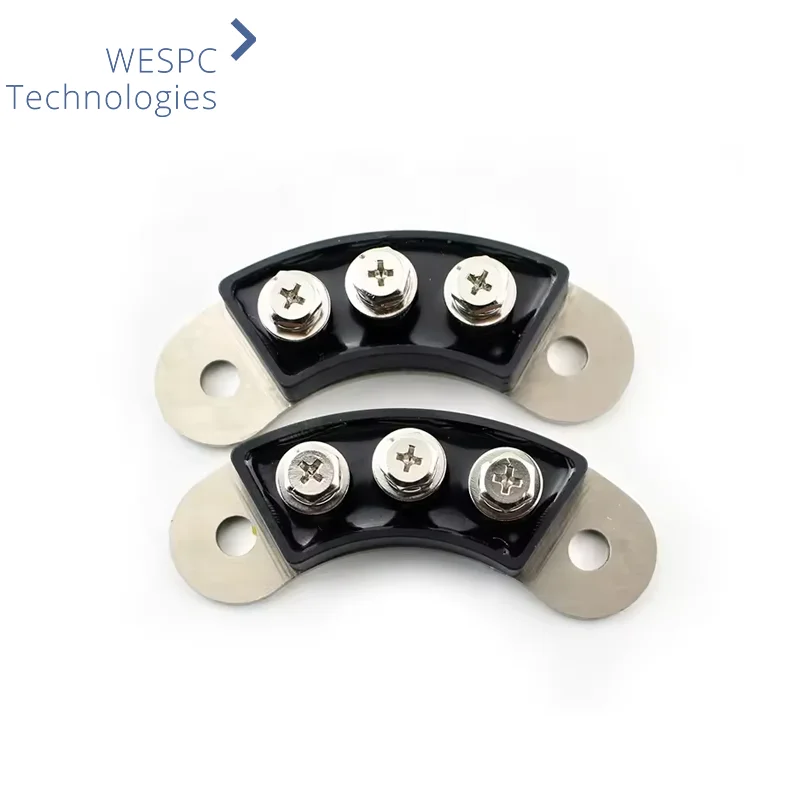

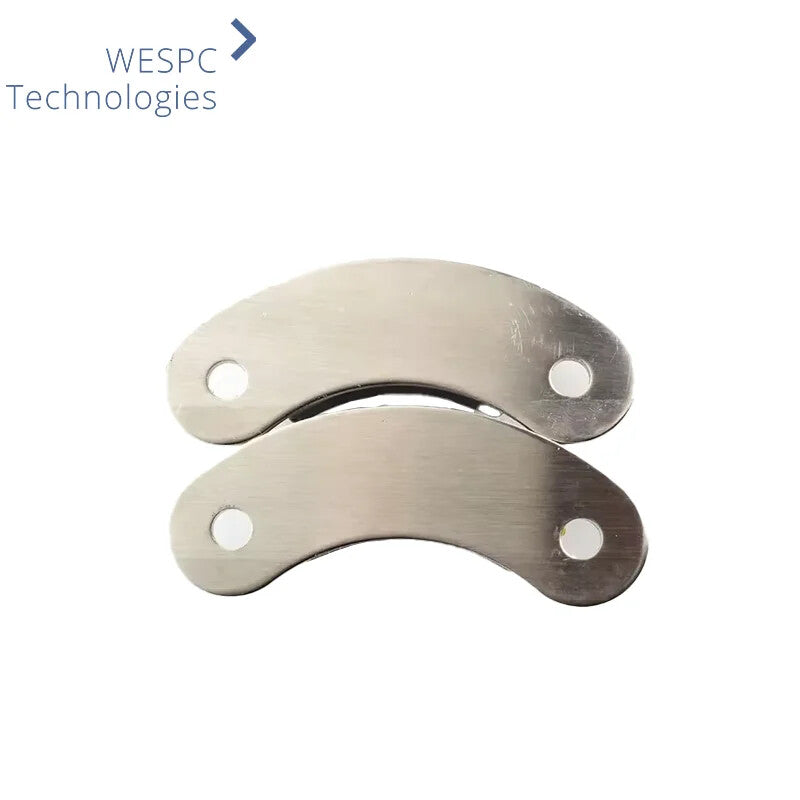

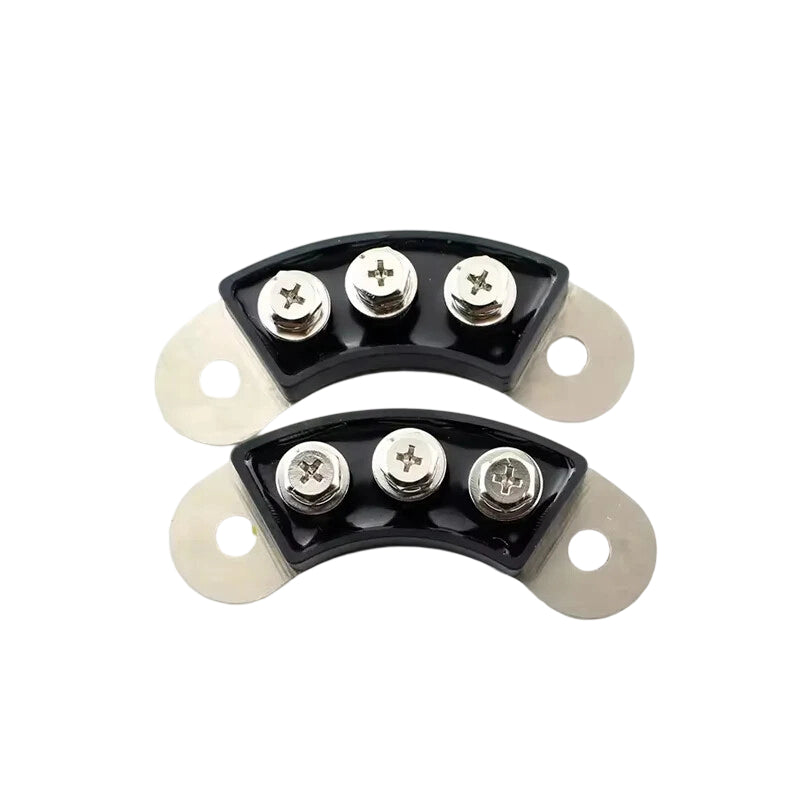

MXG(Y)60-12 MXY60-12 Rectifier Diode Set Generator Rotation Rectifier Module

MXG(Y)60-12 MXY60-12 MXG60-12 Rectifier Diode Set Generator Rotation Rectifier Module

The MXG/Y series of rotary diode bridge rectifier modules are rectifier modules used for brushless generators, primarily for converting the AC output of a brushless generator into DC for use by loads. These modules use high-performance silicon-controlled rectifiers and fast recovery diodes to achieve high efficiency, low leakage current, low voltage drop, and high reliability, while also providing various protection features such as overcurrent, overvoltage, and overtemperature protection to ensure safe operation of the brushless generator.

Features
– Non-insulation
– Baseplate communal electrode
– International standard packing
– Excellent temperature feature
– High IFSM (ITSM )
– Low VFM (VTM )

Applications
– Welding Power
– DC Power
– Frequency transformer
