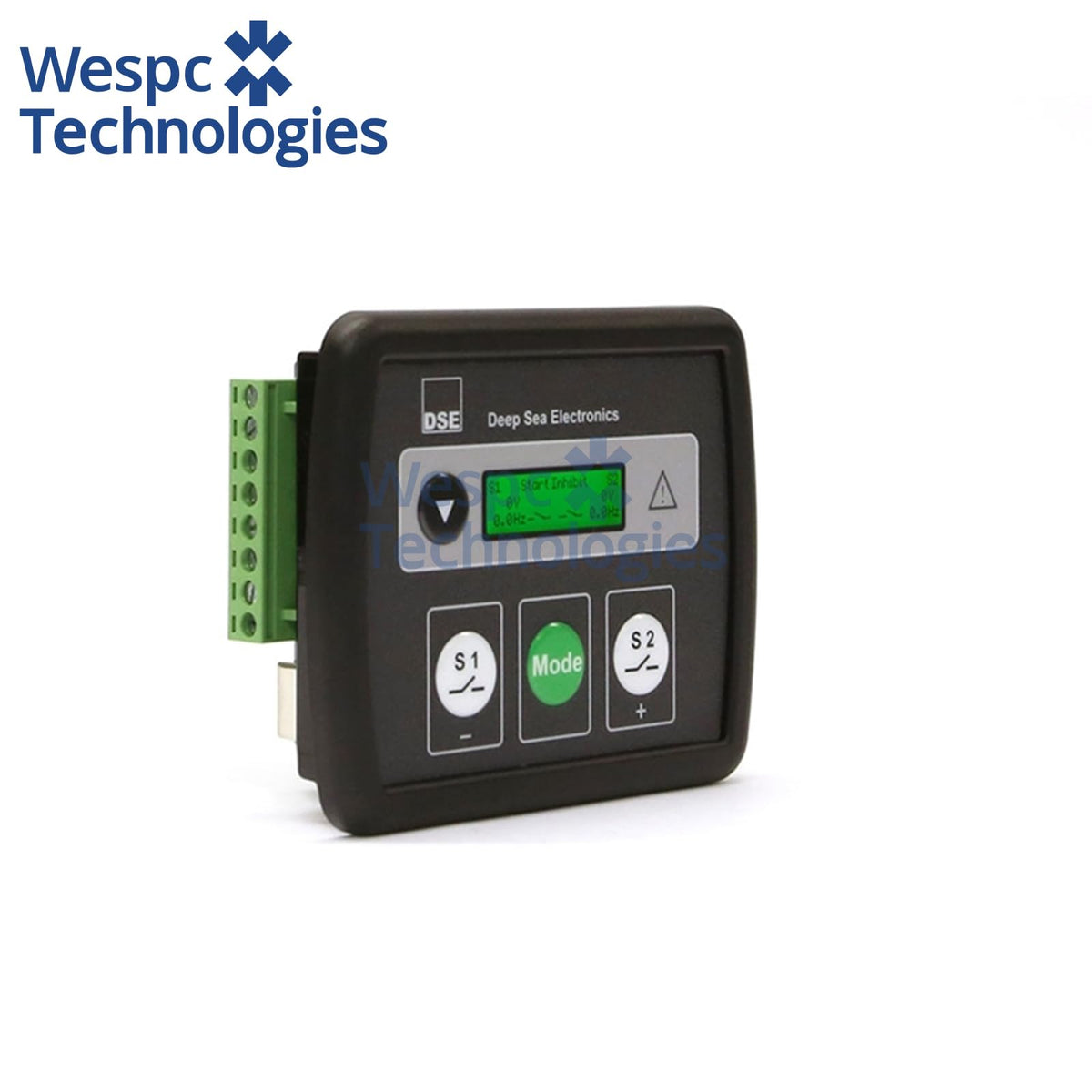

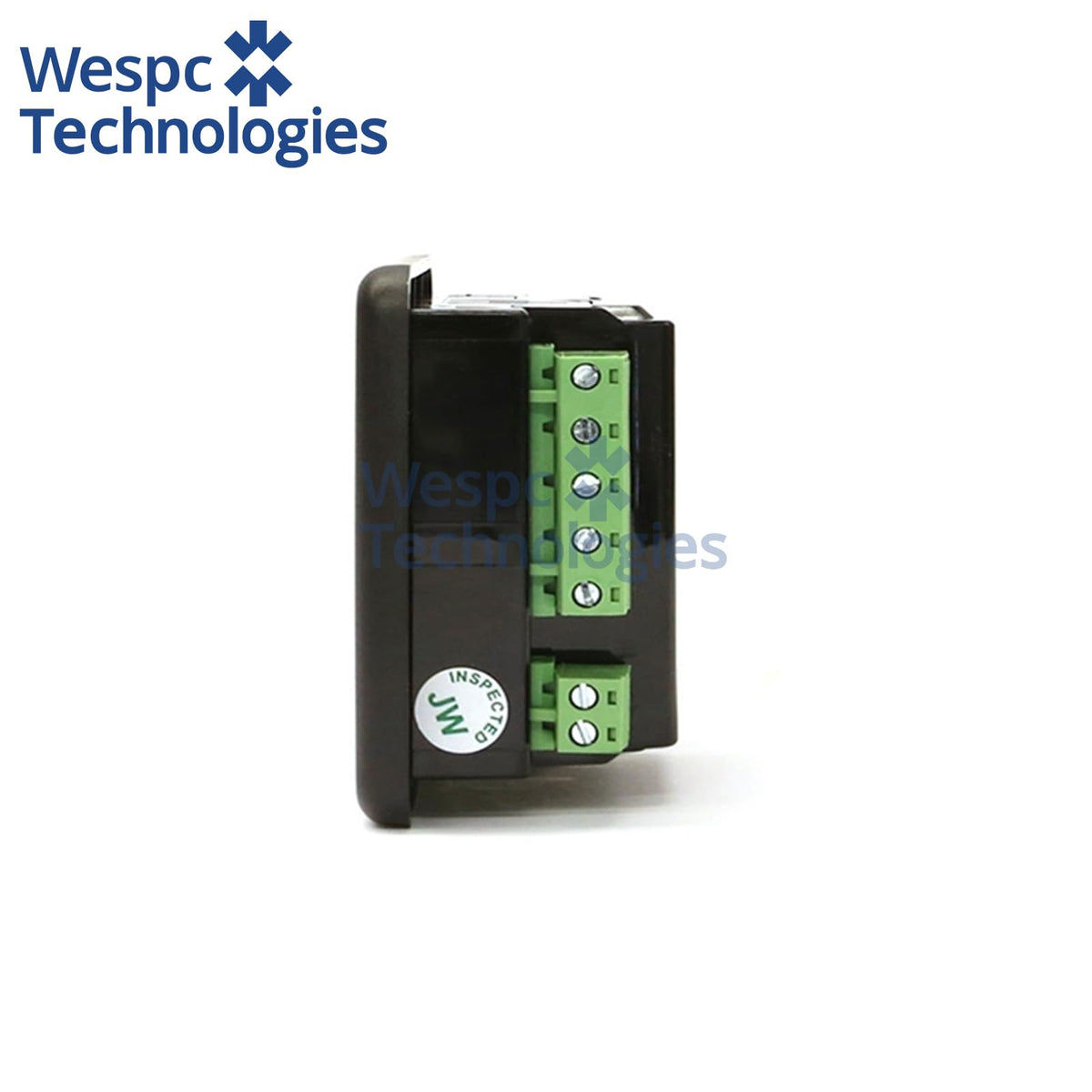

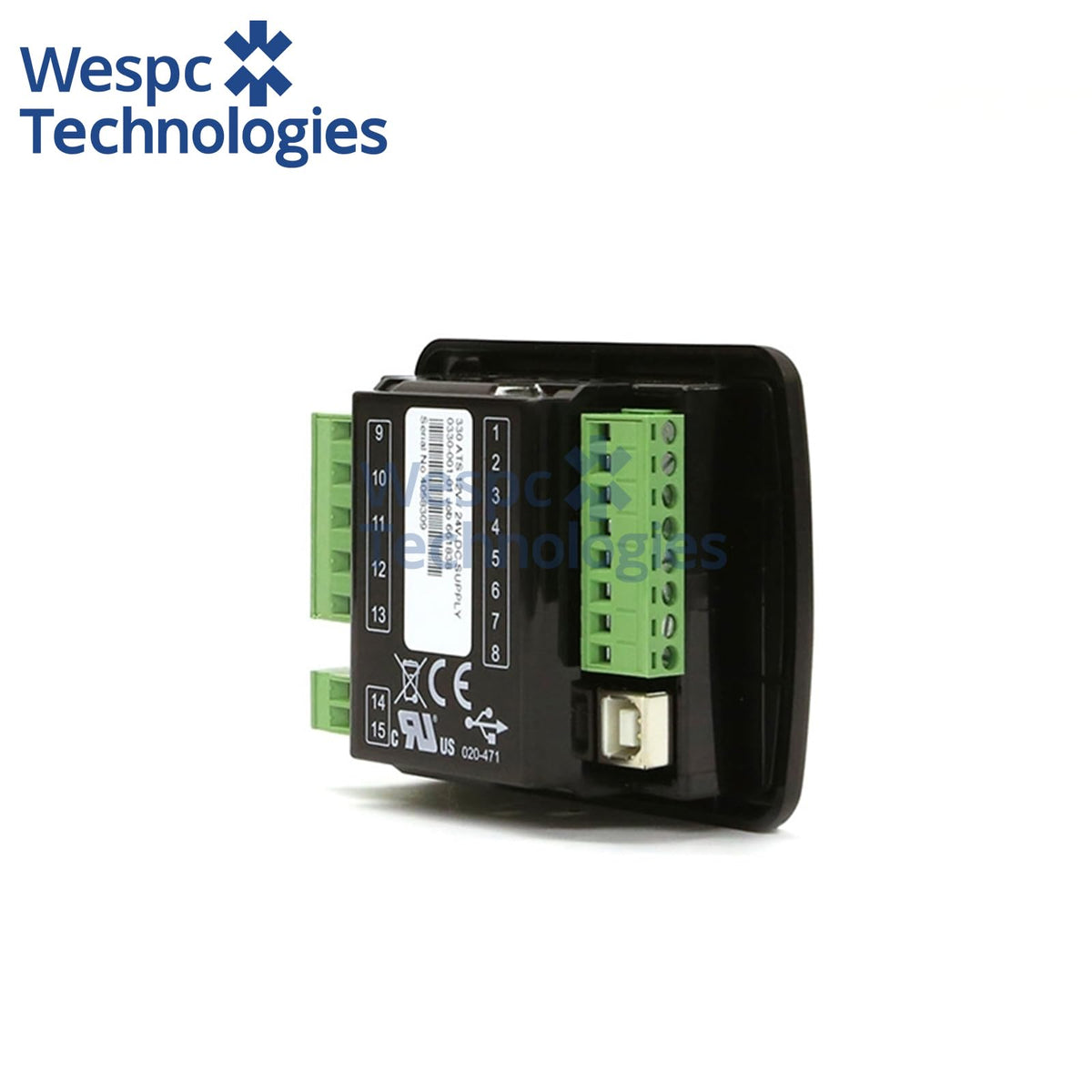

Original Deep Sea DSE330 Single Phase ATS Automatic Transfer Switch Controller Replaced By DSE331

Overview:
The DSE330 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.

The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.

Specification

• Model: DSE330
• Brand: Deep Sea Electronics (DSE)
• Type: DSEAts ATS Automatic Transfer Switch Controller
• Status: Obsolete / Discontinued, original stock for replacement
• Monitoring: Voltage + Frequency for S1 & S2 AC sources
• Supported Configurations: Mains + Genset, Dual Mains, Dual Genset
• Operation Mode: Auto / Manual transfer test

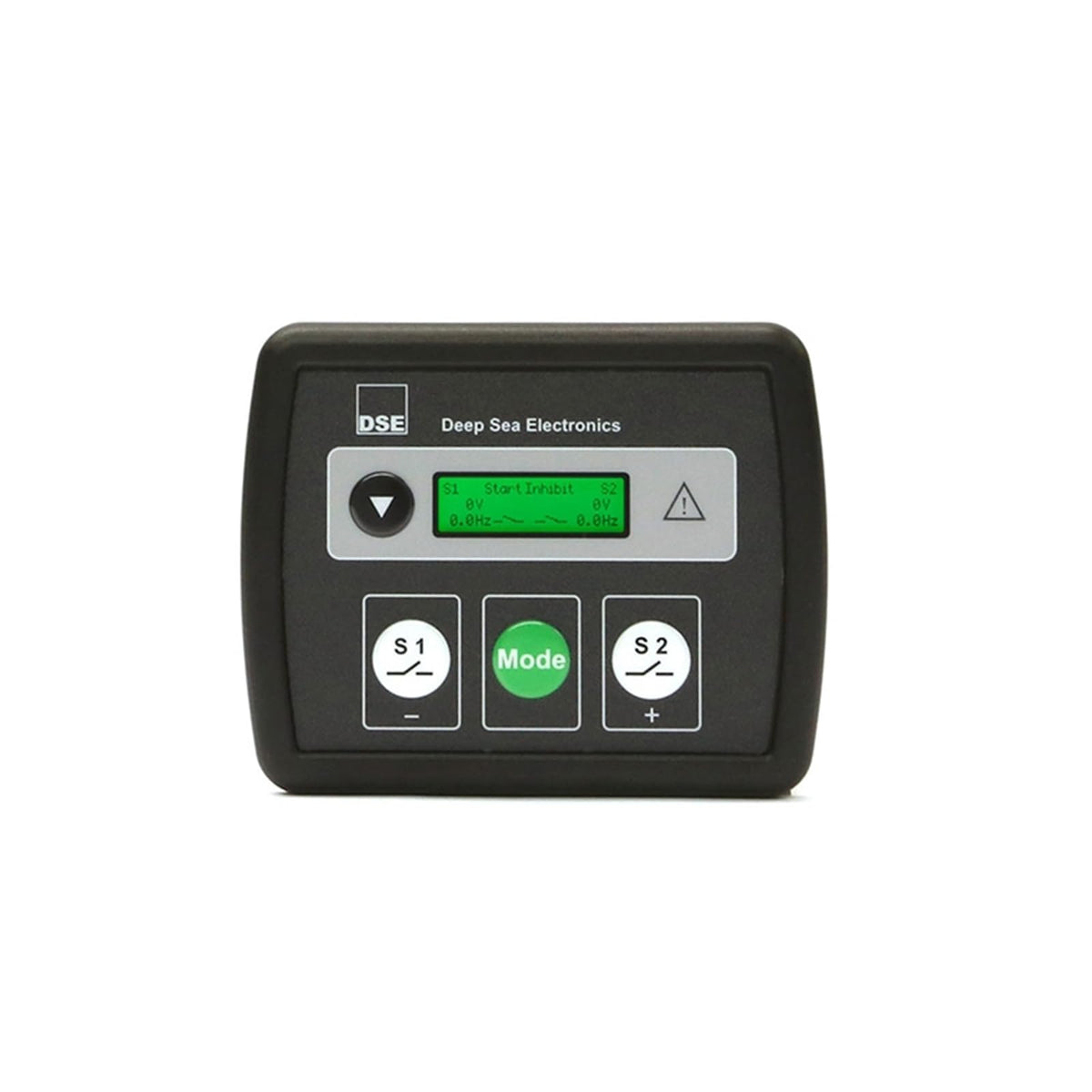

• Display: Small LCD screen + S1 / Mode / S2 push buttons
• Power Supply: AC sensing powered variant
• Panel Cut-out: 80mm × 68mm
• Overall Dimension: 98mm × 79mm × 40mm
• Max Panel Thickness: 8mm
• Weight: 0.16kg
• Mounting: Front panel cut-out mounting
• Core Function: Source failure detection, genset start signal, auto load transfer & re-transfer
• Application: Legacy ATS panel repair, genset backup power retrofit, telecom standby power
• Warranty: 12 months genuine factory warranty

PRODUCT VARIANTS
0330-01 - 330 Auto Transfer Switch Control Module - 12/24 Volt DC Supply
