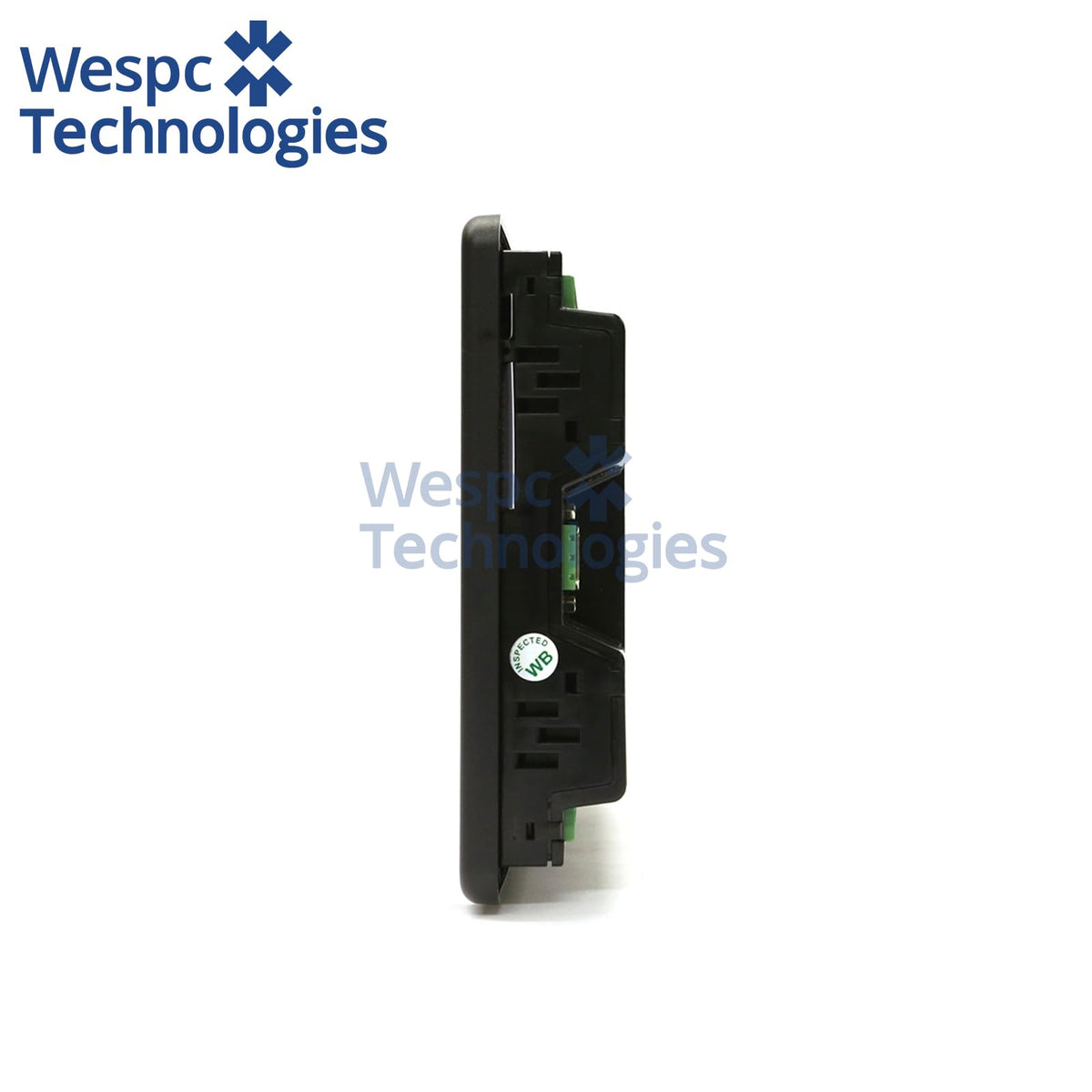

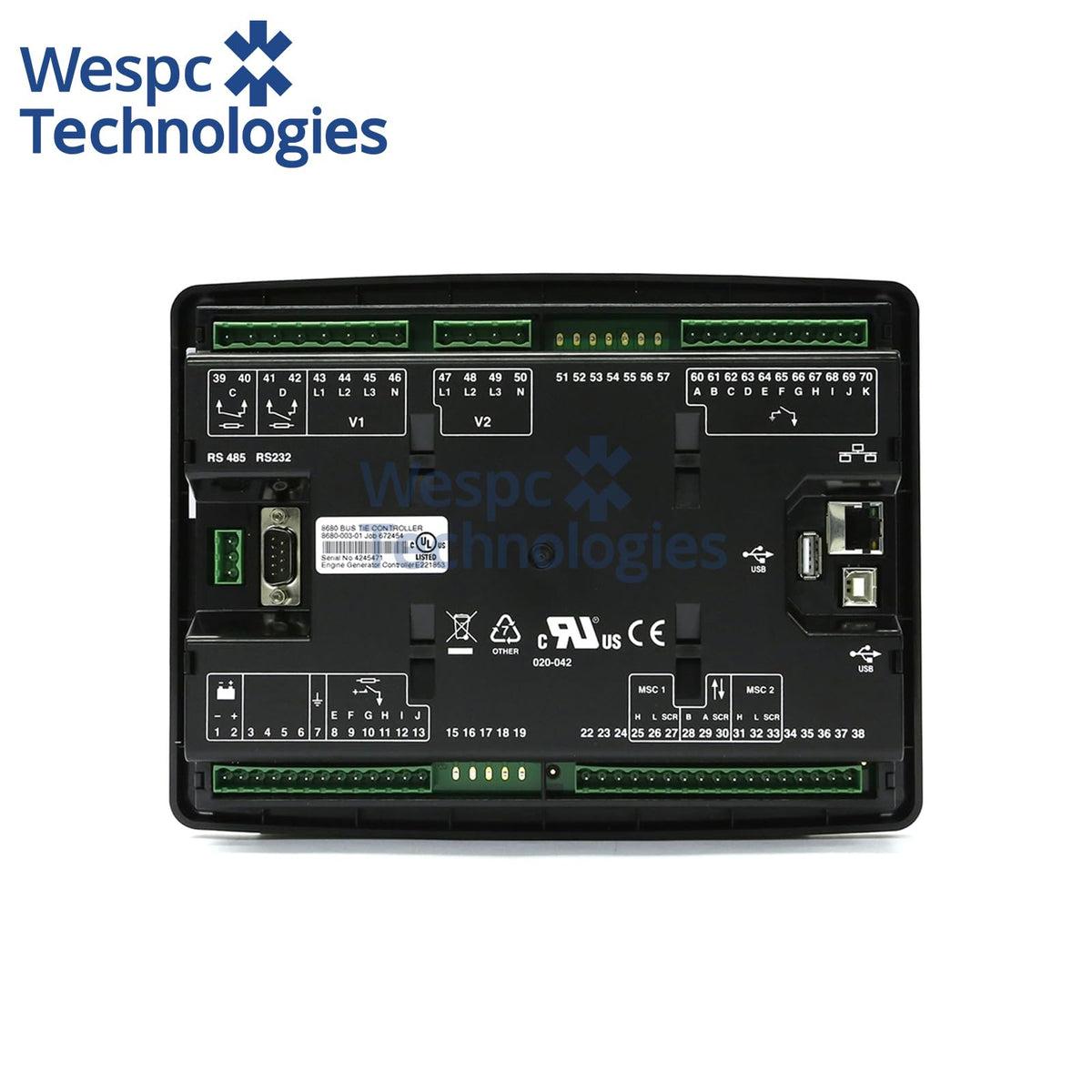

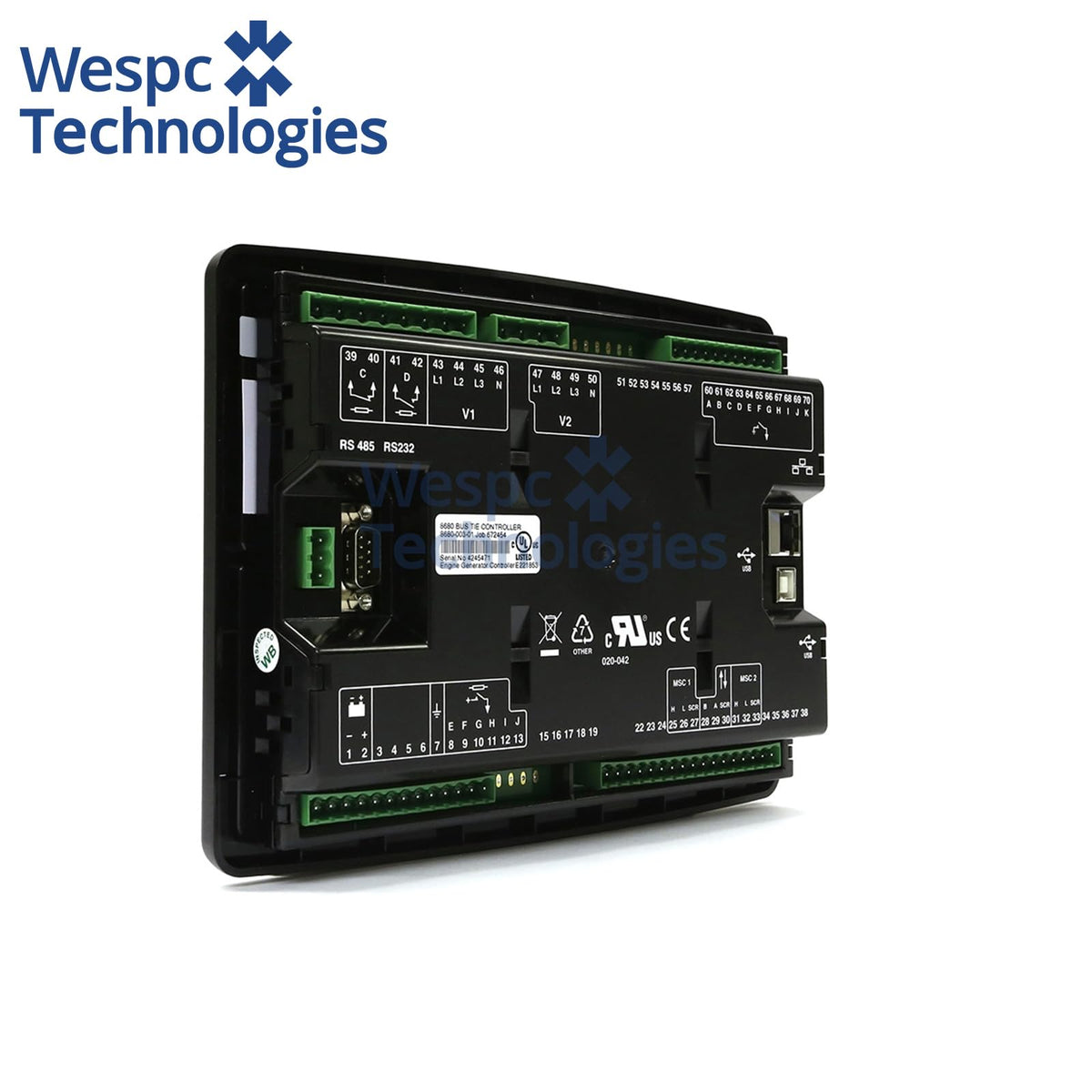

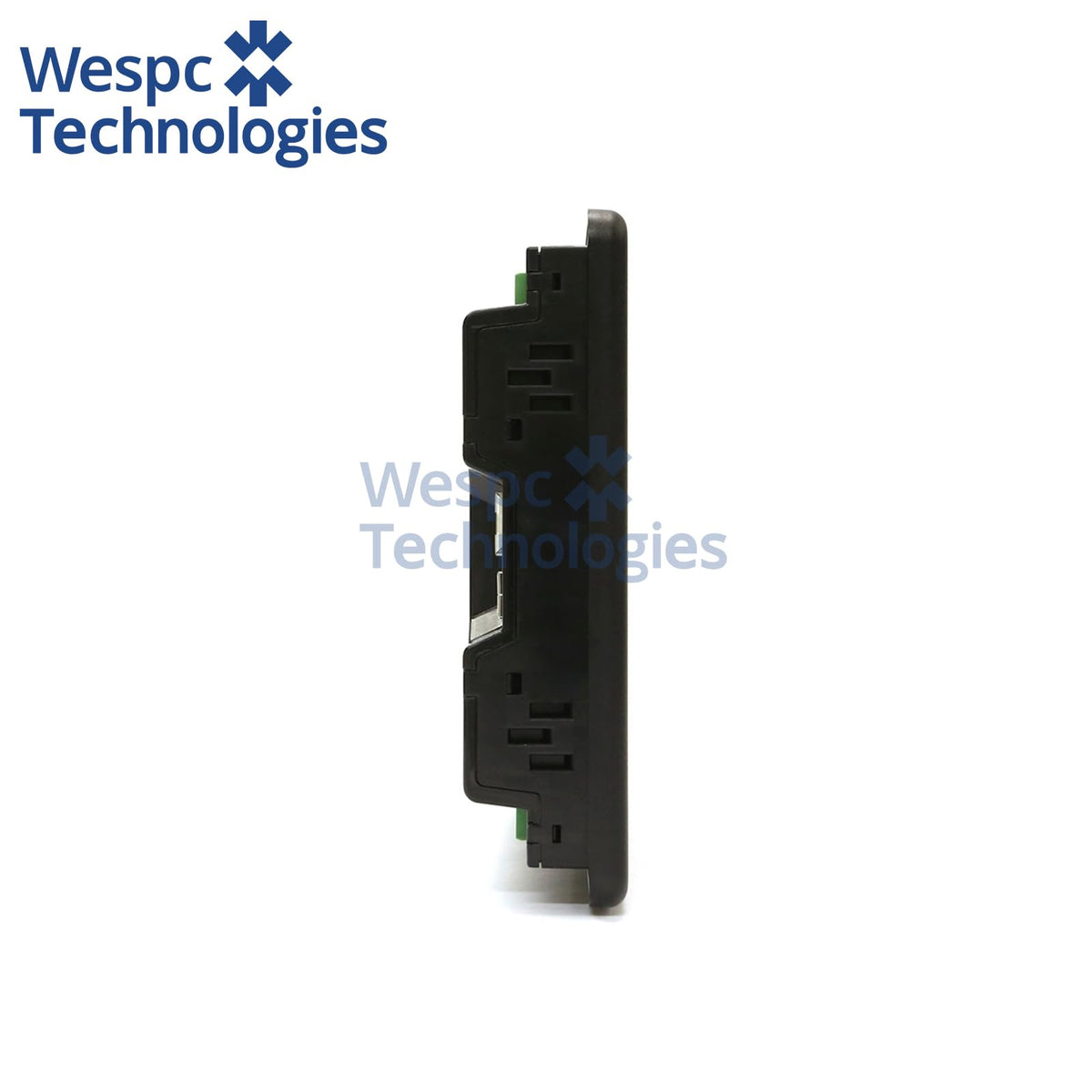

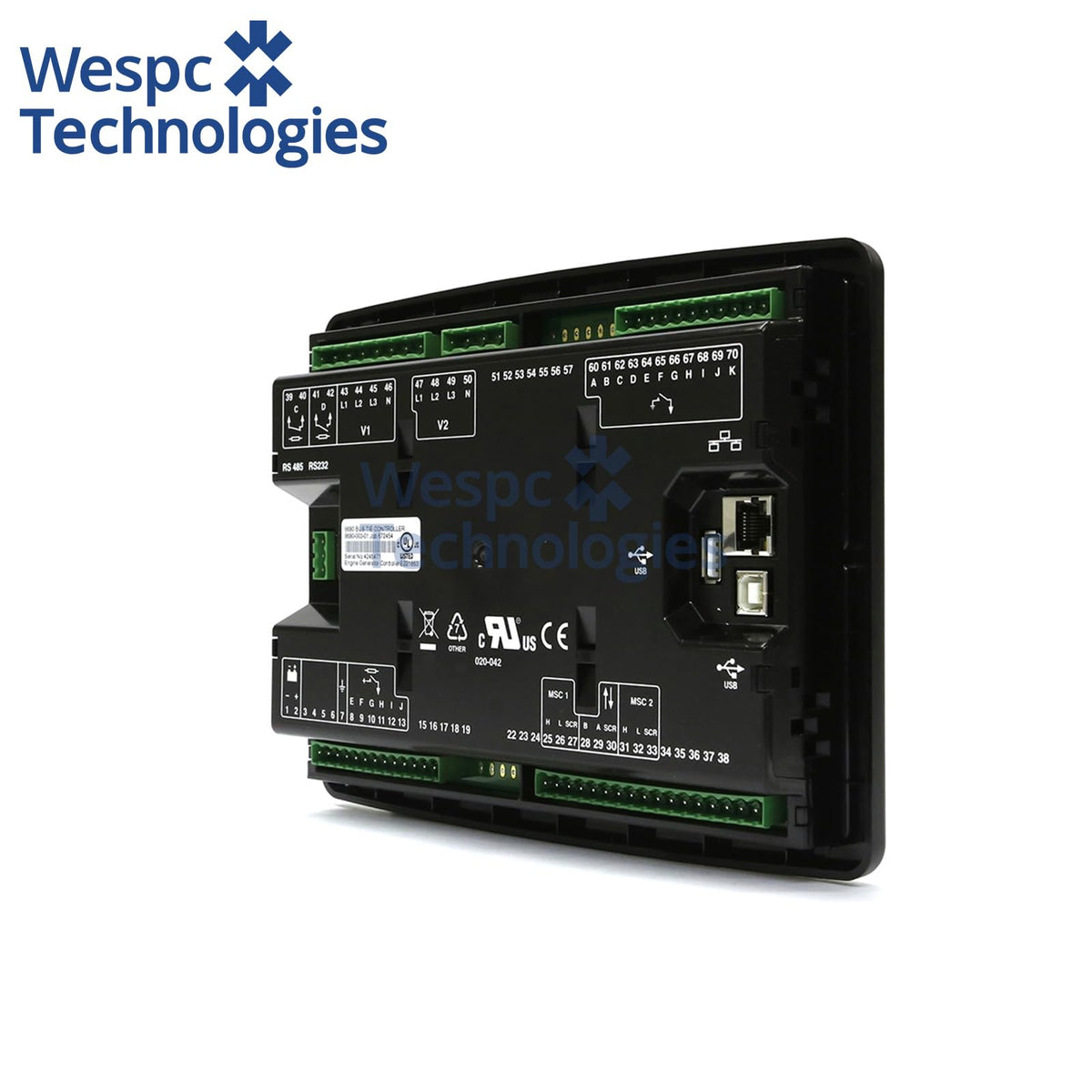

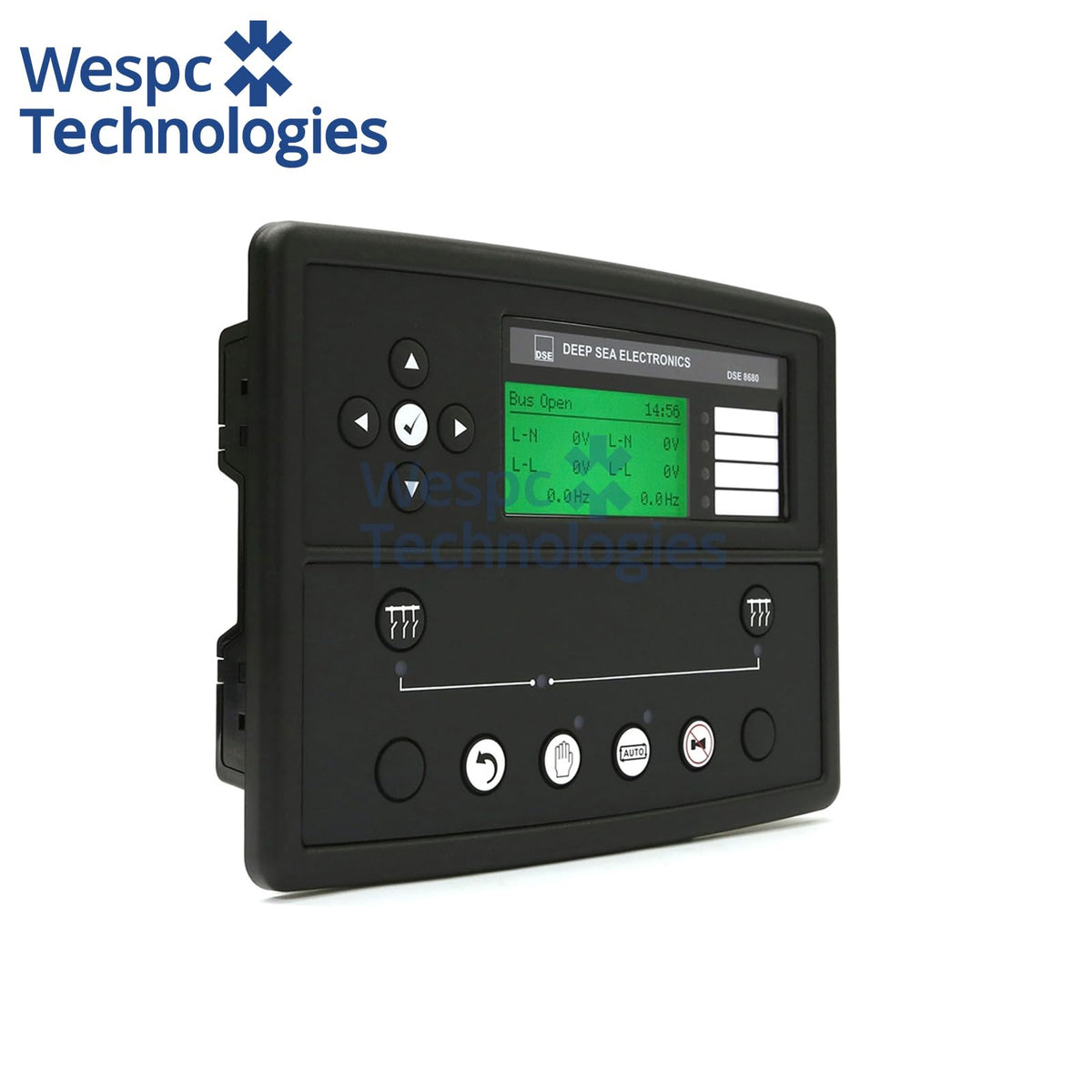

Original Deep Sea DSE8680 Synchronising Controller Generator Bus Tie Control Module
Original Deep Sea DSE8680 Synchronising Controller Generator Bus Tie Control Module
Regular price
$1,540.00 USD
Regular price
$2,760.00 USD
Sale price
$1,540.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Genuine Deep Sea DSE8680 Bus Tie Synchronising Controller Generator Bus-Tie Breaker Control Module for DSE8610 MKII Parallel System
Overview:
The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.
8680-01 - 8680 Synchronising Generator Bus Tie Control Module
Overview:
The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.
Specification
- Model: DSE8680
- Brand: Deep Sea Electronics (DSE), Original
- Type: Bus Tie / Bus Sectionalising Synchronising Controller
- Core Function: Bus tie breaker control, synchronisation & check-sync, dual MSC link management

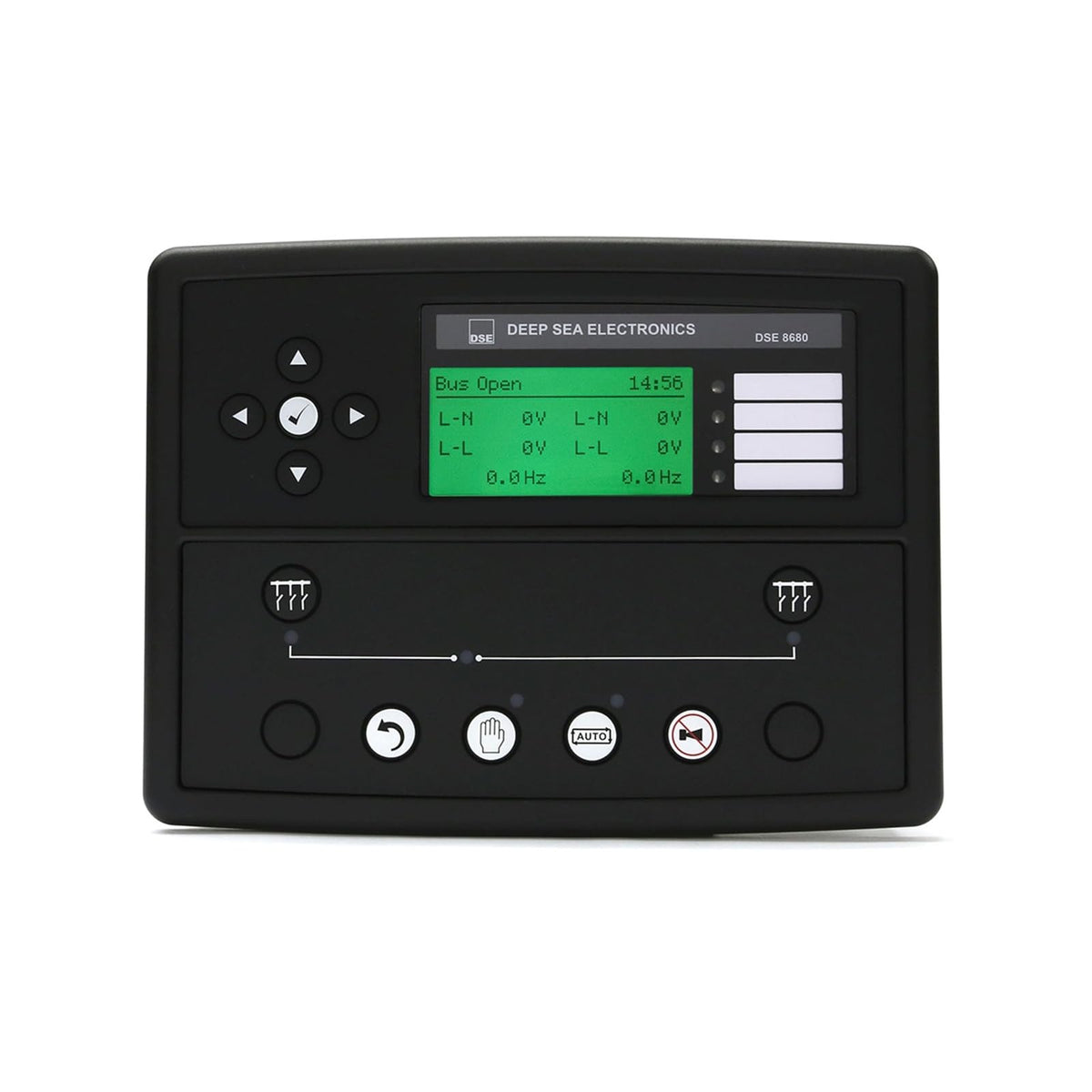

- Display: 4-line backlit multi-language LCD, optional heated screen
- Front Panel Rating: IP65 (with gasket)
- Supply Voltage: DC 8V ~ 35V
- Communication: USB, RS232, Dual RS485 Modbus RTU, Ethernet Modbus TCP & SNMP, Dual MSC bus
- I/O: 11 configurable digital/analogue inputs, 8 configurable outputs (2 x 8A volt-free relay, 6 DC outputs)
- AC Sensing: 15V–333V AC L-N, frequency 3.5Hz–75Hz
- Dimension: 240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
- Panel Cutout: 220 mm x 160 mm (8.7" x 6.3")
- Maximum Panel Thickness: 8.0 mm (0.3”)
- Weight: 0.86kg
- Compatible controllers: DSE8610 MKII, DSE8620 MKII, DSE8660 MKII
- Warranty: 12 monthe genuine factory warranty
8680-01 - 8680 Synchronising Generator Bus Tie Control Module
