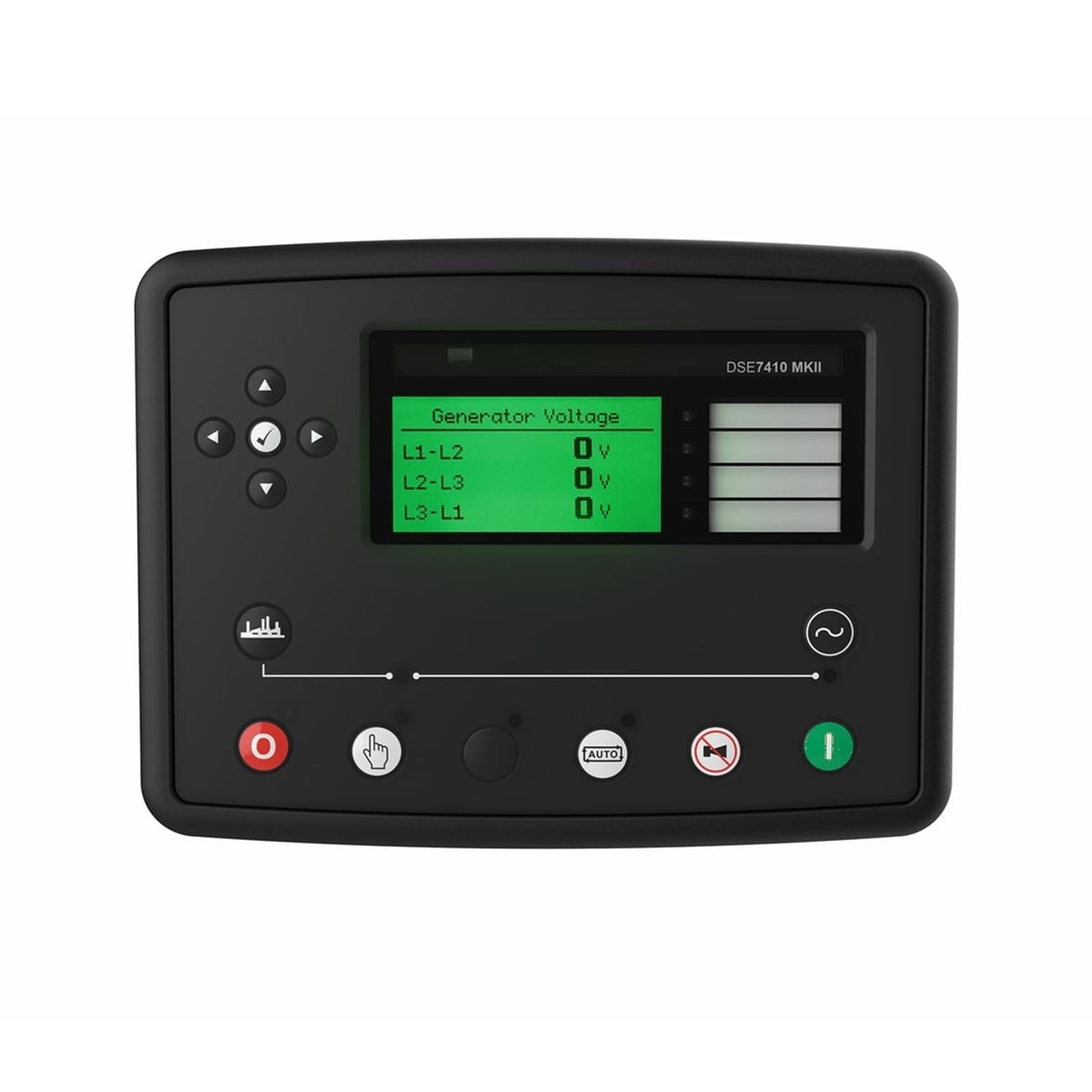

Original DeepSea DSE7410 MKII Auto Start Control Module Ethernet Modbus TCP Generator Controller

Genuine Deep Sea DSE7410 MKII Auto Start Generator Controller Ethernet Modbus TCP Single Genset Control Module

Overview:
The DSE7410 MKII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module includes USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.


Specification

• Model: DSE7410 MKII
• Brand: Original Deep Sea Electronics (DSE)
• Type: Auto Start Generator Controller (No Mains Monitoring)
• Display: 4-line backlit LCD, multi-language, optional heated display
• Power Supply: 8V – 35V DC, reverse polarity protection
• Measurement: True RMS, 3-phase generator voltage, current, kW, kVA, kVAr, PF
• Engine Interface: CAN J1939, MPU magnetic pick-up, alternator frequency
• Communication: USB, RS232, RS485 Modbus RTU, Ethernet (Web Server, Modbus TCP, SNMP), DSENet®
• I/O: 8 digital inputs, 6 configurable analogue/digital inputs, 6 DC outputs, 2 volt-free relay outputs
• Core Function: Manual / auto start, preheat, idle control, built-in PLC, load shedding, fuel monitoring, 250 event logs
• Protection: Overspeed, low oil pressure, high temperature, over/under voltage, overload, reverse power, earth fault, unbalanced load
• Software: DSE Configuration Suite / DSE Assistant
• Front Panel Rating: IP65
• Operating Temp: -30°C ~ +70°C
• Application: Single diesel / gas prime power genset, pump drive engine, remote auto-start equipment
• Warranty: 12 monhs genuine factory warranty

OVERALL SIZE
250.0 mm x 189.0 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”

PANEL CUTOUT SIZE
220.0 mm x 160.0 mm / 8.66 " x 6.30 "

MAXIMUM PANEL THICKNESS
8.0 mm / 0.3 ”

PRODUCT VARIANTS
7410-03
