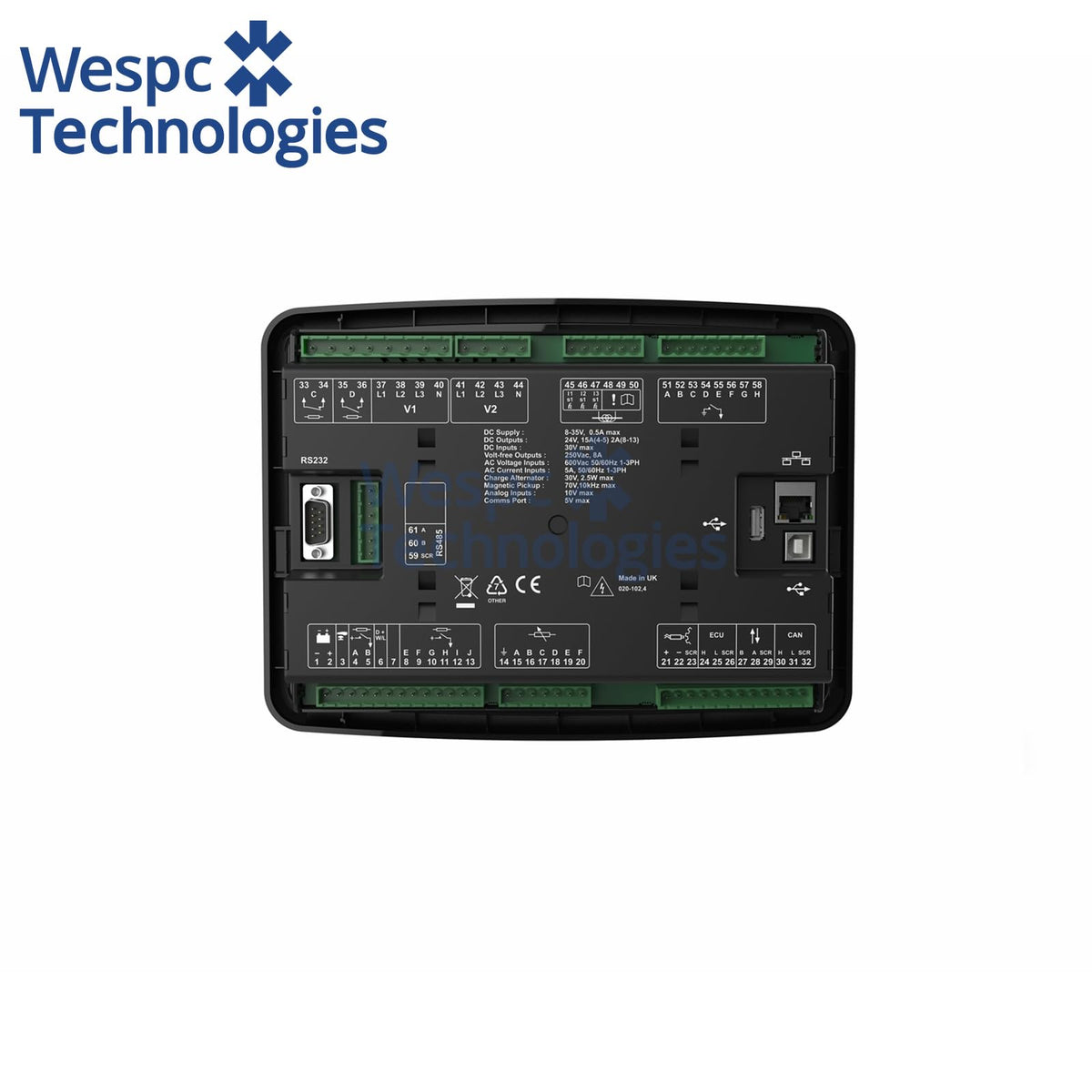

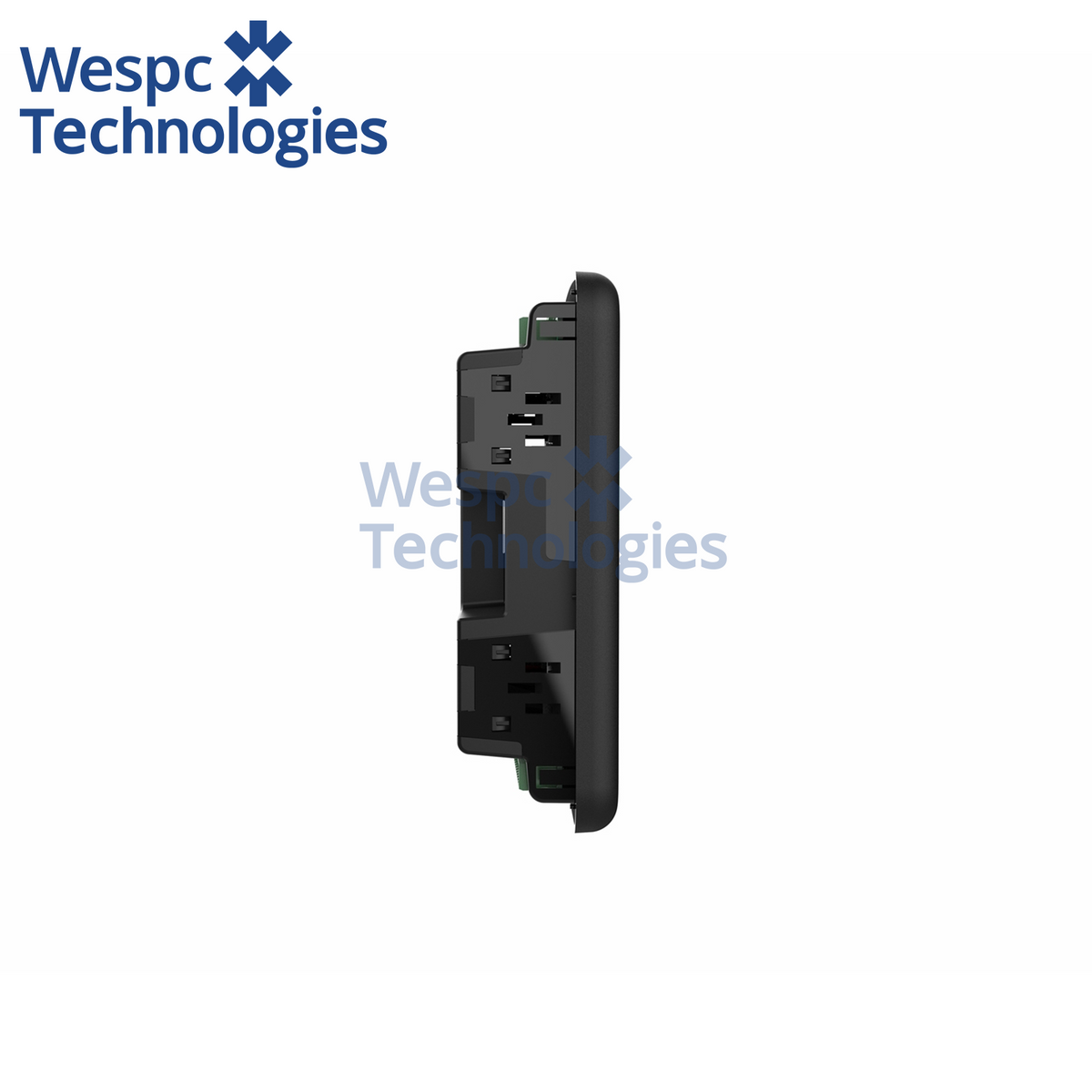

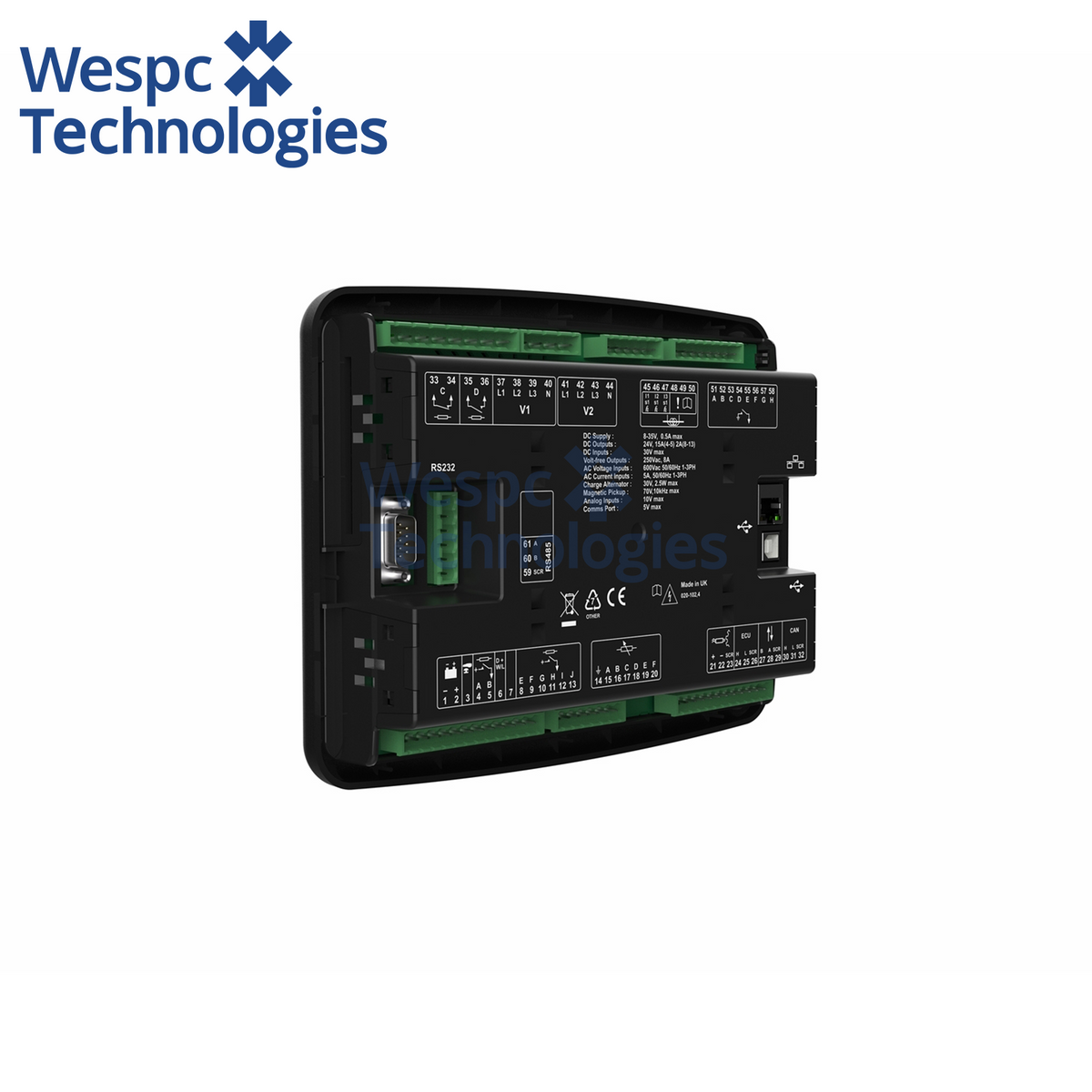

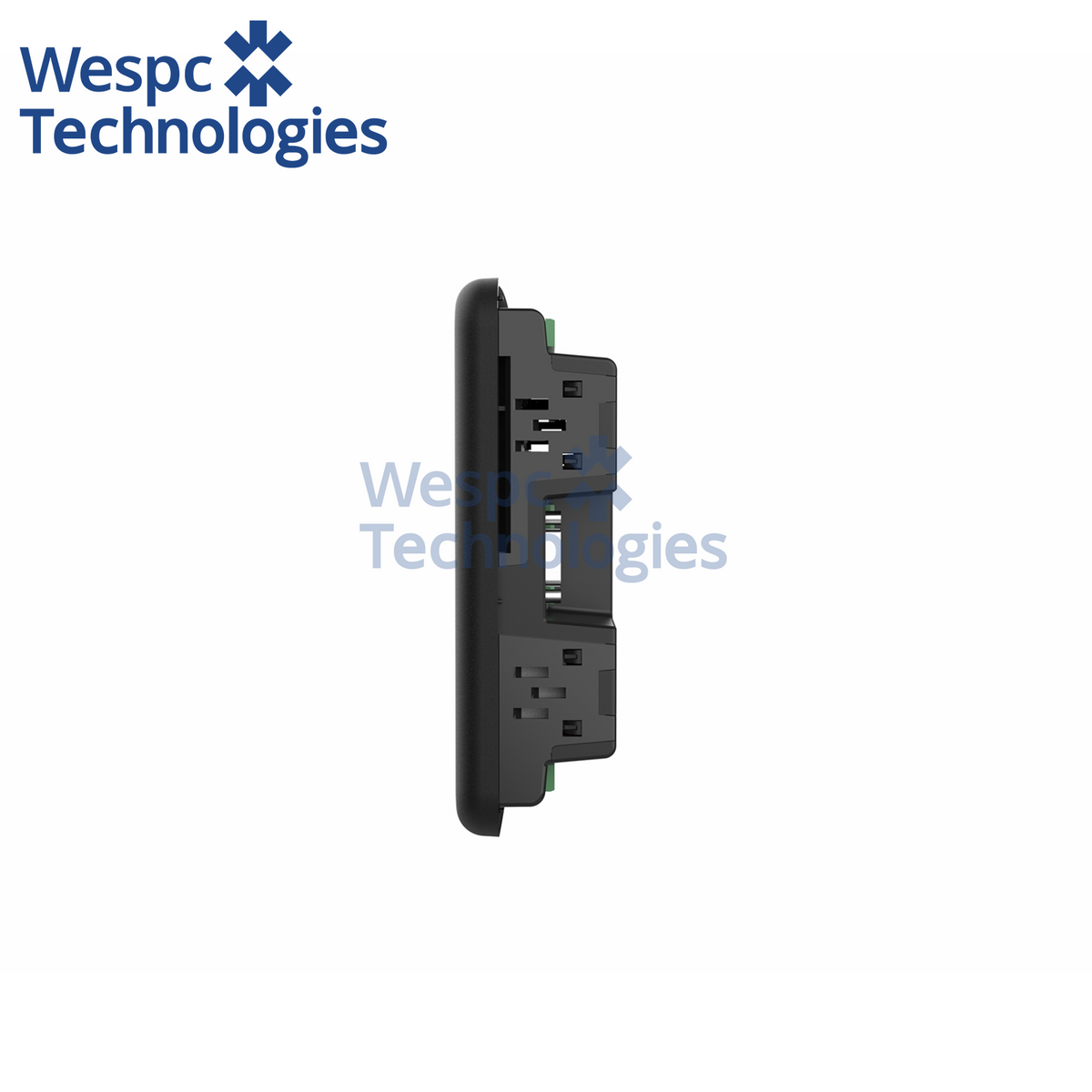

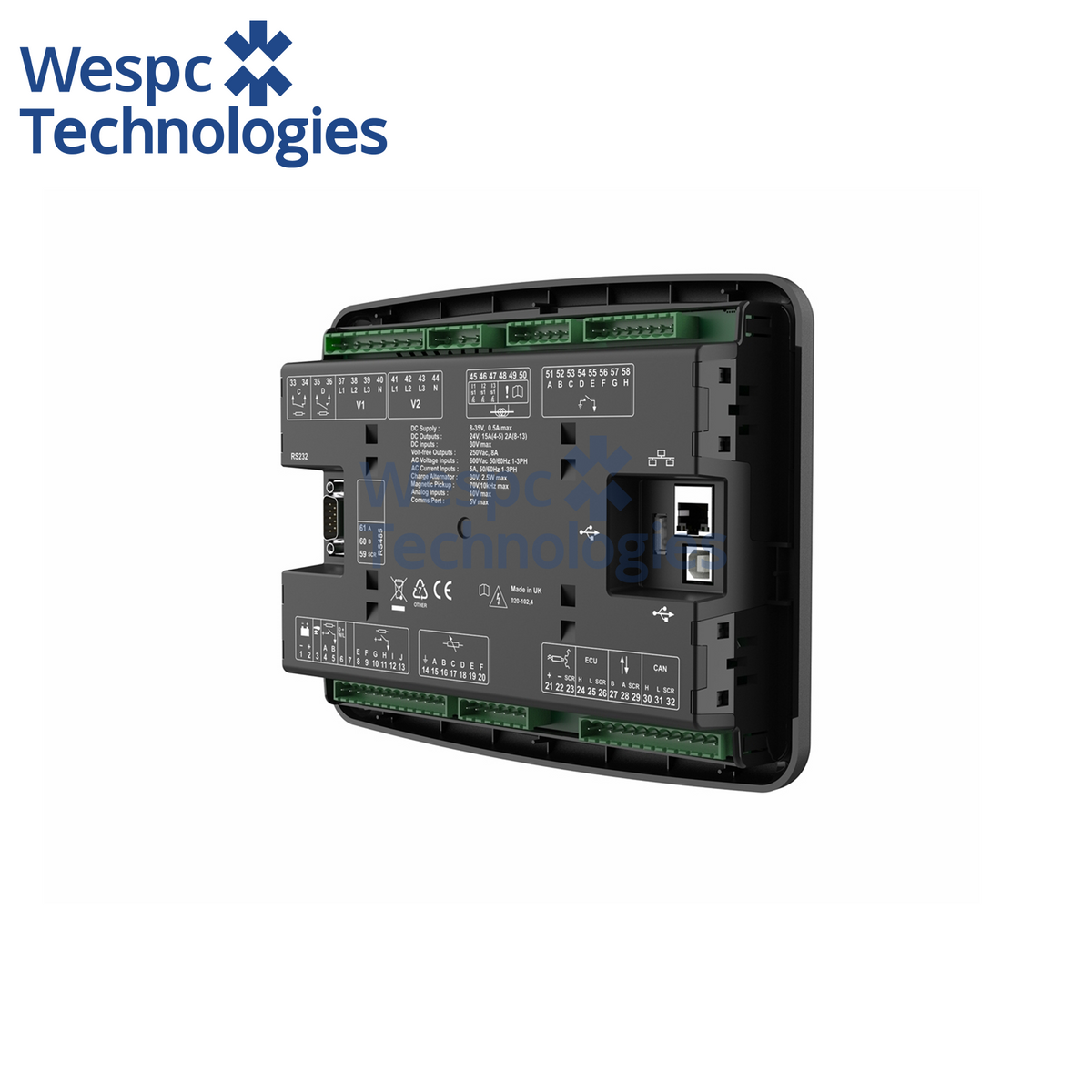

Original DeepSea DSE7420 MKII Auto Mains Failure Control Module Diesel Engine Genset Panel Controller
Original DeepSea DSE7420 MKII Auto Mains Failure Control Module Diesel Engine Genset Panel Controller
Regular price
$775.00 USD
Regular price
$0.00 USD
Sale price
$775.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original Diesel Engine Genset Control Panel Module Controller DSE7420 MKII
Overview:
The DSE7420 MKII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.
The DSE7420 MKII will also monitor the mains (utility) supply. The module include USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.
The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7420 MKII using RS232 or RS485 communications.
OVERALL SIZE
250.0 mm x 189.0 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
PANEL CUTOUT SIZE
220.0 mm x 160.0 mm / 8.66 " x 6.30 "
MAXIMUM PANEL THICKNESS
8.0 mm / 0.3 ”
PRODUCT VARIANTS
7420-03
Overview:
The DSE7420 MKII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.
The DSE7420 MKII will also monitor the mains (utility) supply. The module include USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.
The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7420 MKII using RS232 or RS485 communications.
Specification
- Model: DSE7420 MKII
- Brand: Deep Sea Electronics (DSE)
- Type: Auto Mains Failure (AMF) Generator Controller

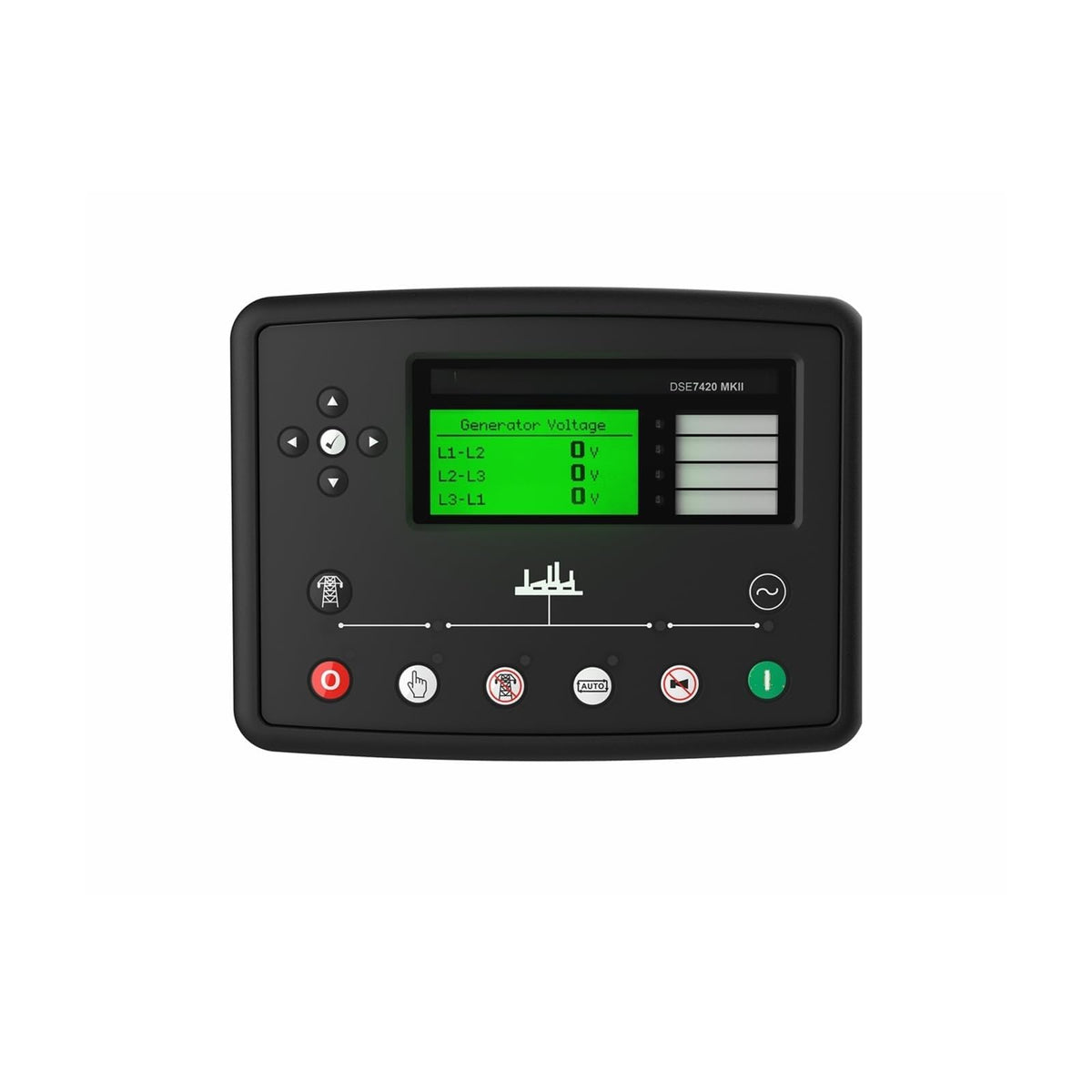

- Display: 4-line backlit LCD, multi-language
- Power Supply: 8V – 35V DC, reverse polarity protection
- Measurement: True RMS, 3-phase mains + 3-phase generator voltage, current, kW, kVA, kVAr, PF
- Engine Interface: CAN J1939, MPU, alternator frequency sensing
- Communication: USB, RS232, RS485 Modbus RTU, Ethernet (Web Server, Modbus TCP, SNMP), DSENet®
- I/O: 8 digital inputs, 6 configurable analogue/digital inputs, 6 DC outputs, 2 volt-free relay outputs
- Core Function: Auto start, auto load transfer, open/closed sync transition, built-in PLC, load shedding, dual mutual standby
- Protection: Overspeed, low oil pressure, high temperature, over/under voltage, overload, reverse power, earth fault, unbalanced load
- Software: DSE Configuration Suite PC software
- Mounting: Front panel mounting
- Application: Single diesel / gas standby genset, BMS integrated backup power
- Warranty: 12 months genuine factory warranty
OVERALL SIZE
250.0 mm x 189.0 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
PANEL CUTOUT SIZE
220.0 mm x 160.0 mm / 8.66 " x 6.30 "
MAXIMUM PANEL THICKNESS
8.0 mm / 0.3 ”
PRODUCT VARIANTS
7420-03
