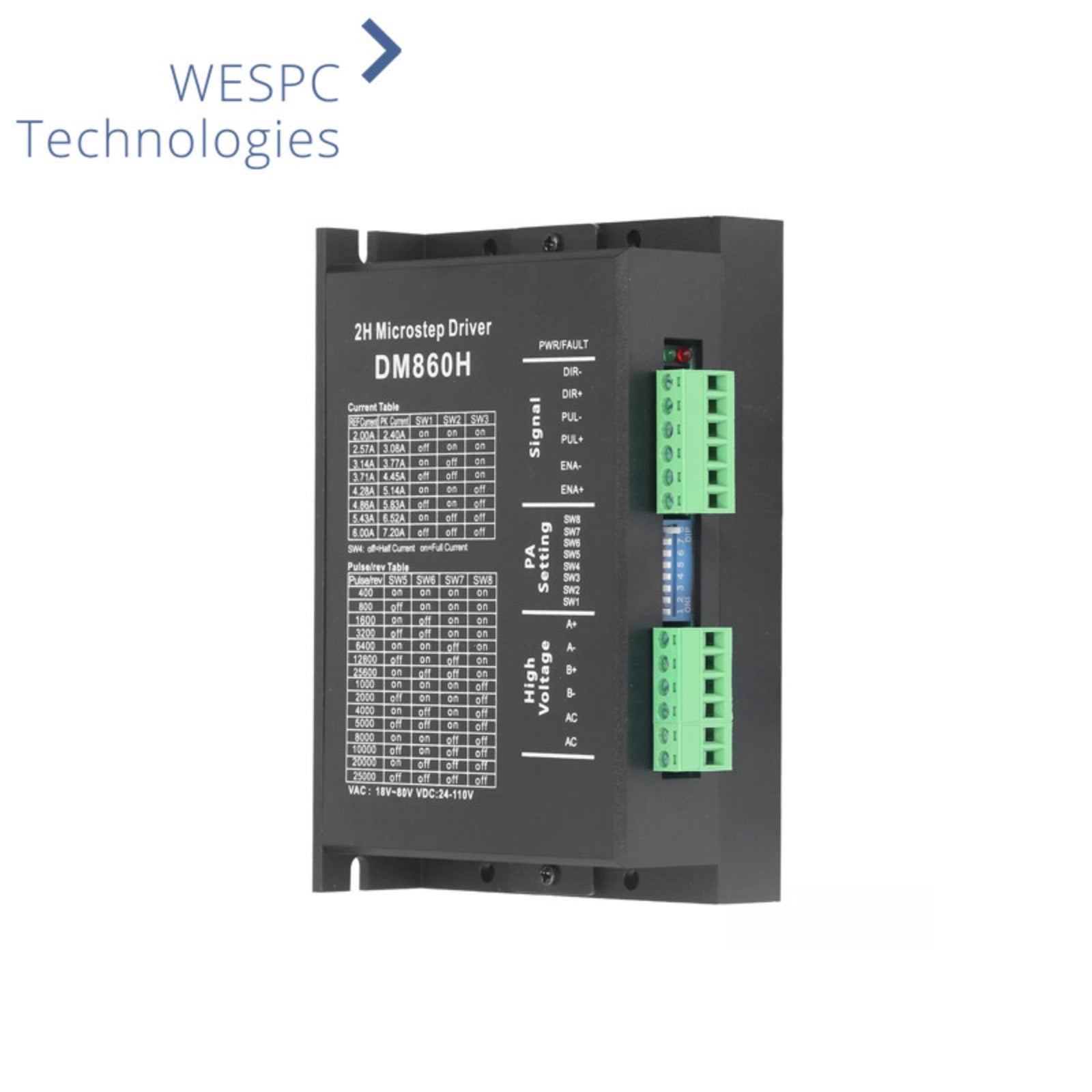

Original DM860H Stepper Motor Driver PWM Motor Driver Controller Nema 34 2 Phase
Features:
This driver is a for DSP digital DM860H stepper motor driver. The subdivision is increased to 128 subdivisions, which is suitable for high subdivision applications. Applicable stepper motors: 57, 86 type 2-phase 4-phase (4 wires, 6 wires, 8 wires)
1. 24V-110V DC/18V-80V AC for power supply
2. H-bridge bipolar constant phase current drive
3. Eight output currents up to 7.2A are available.
4. 15 subdivision modes up to 128 subdivisions are available.
5. Input signal high-speed photoelectric isolation
6. Standard single pulse interface
7. Offline retention function

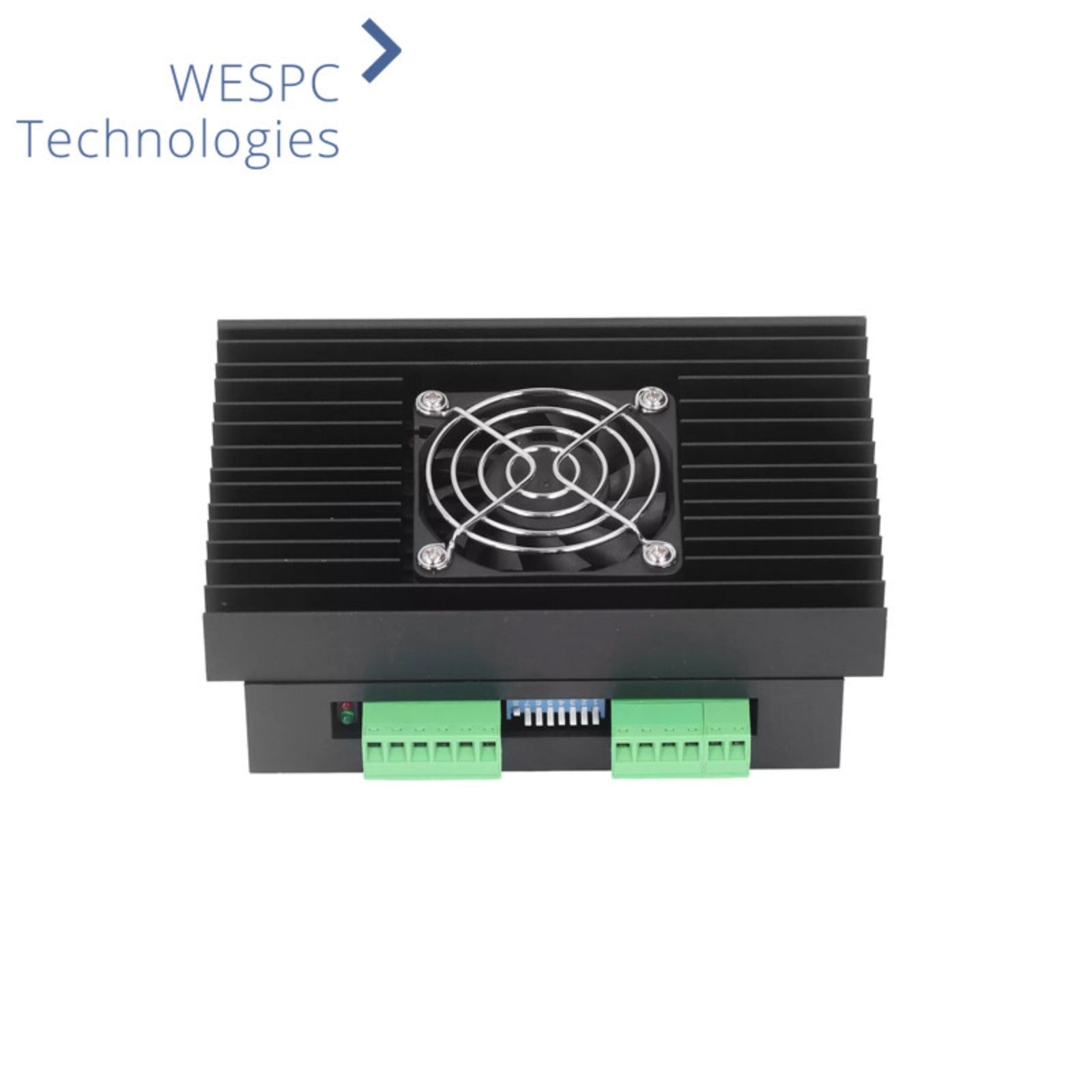

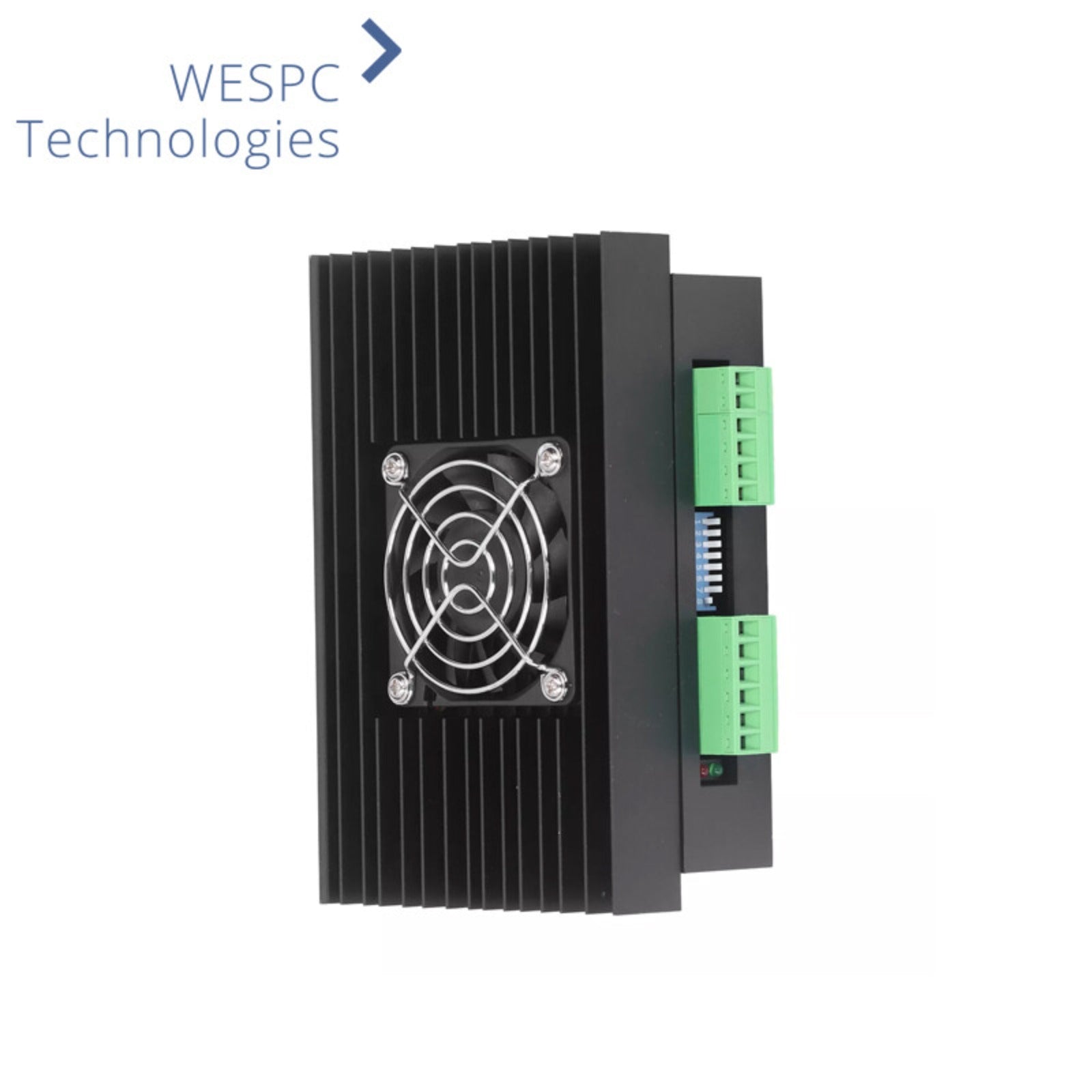

8. Large cooling fan for efficient heat dissipation
9. Provide energy-saving semi-automatic current locking function
10. Built-in temperature protection and over-current protection
11. Common to 5V and 24V signals
Specification:
Model: DM860H
Name: Digital stepper motor driver
Voltage: 24V-110V DC/18V-80V AC power supply
Maximum output current: 7.2A
Applicable stepper motors: 57, 86 type 2-phase 4-phase (4 wires, 6 wires, 8 wires)
Size: 98*150*53cm
Weight: 550g
Packing list:
1*Motor driver
Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
