Original DSE2152 DSENet Analogue Output Expansion Module Deep Sea Genset IO Expansion


Overview:
The DSE2152 Analogue Output Expansion Module is used in conjunction with supported DSENet® controllers to provide 6 additional outputs. The outputs can be individually configured as 0 to 10 V or 4 to 20 mA, via the ‘host controller’. LED indication is provided for ‘power on’ and ‘link lost’

The DSE2152 is designed to be mounted within a control panel, either on the panel DIN rail utilising the integral mounts, or chassis mounted, utilising the mounting holes. Up to four DSE2152 modules can be linked together to provide up to 24 additional outputs. An ID switch is provided on the module for identification.

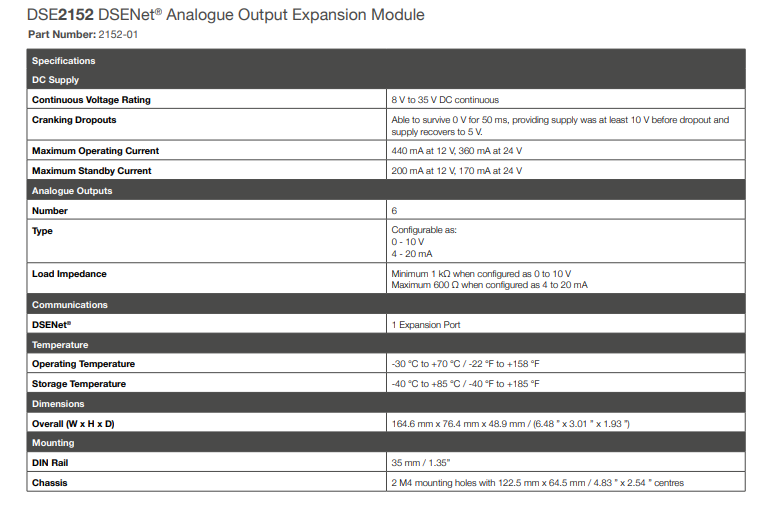

Specifications:

  • Part Number: DSE2152
  • Brand: Original UK Deep Sea Genuine
  • Product Type: DSENet Analogue Output Expansion Module

    Warranty: 12 months genuine factory warranty
Key Features
• Analogue output expansion module for supported DSENet® controllers
• 6 outputs configurable as 4 to 20 mA (0 to 20 mA) and 0 to 10 V DC
• Power on / link lost LED
• A maximum of 4 modules can be connected to 1 host control module to provide up to 24 additional configurable outputs
• Works up to 1.2 km (0.75 miles) from the host controller
• Terminal strip connection for quick and easy set up
• Simplified configuration using DSE PC Configuration Suite Software through host controller
