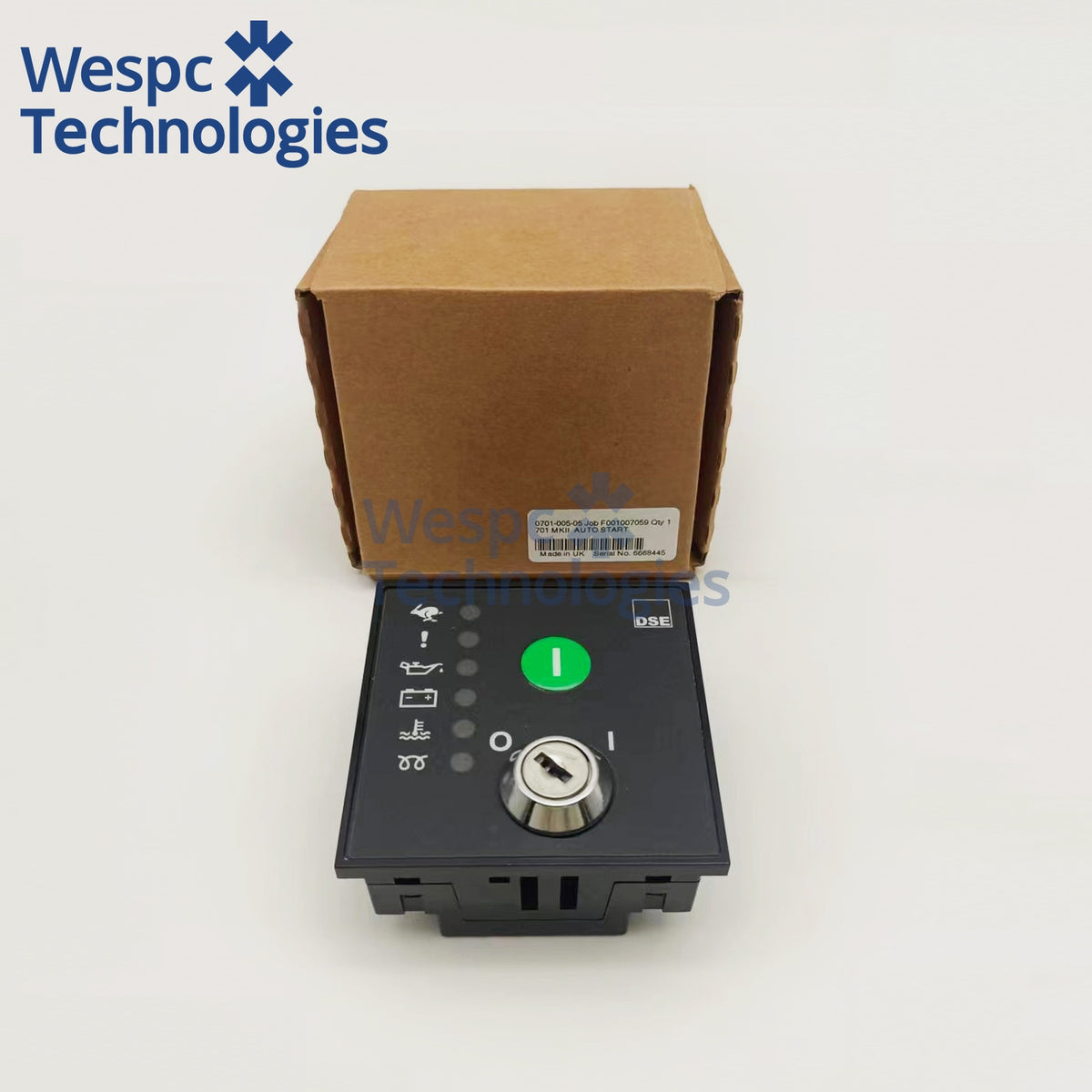

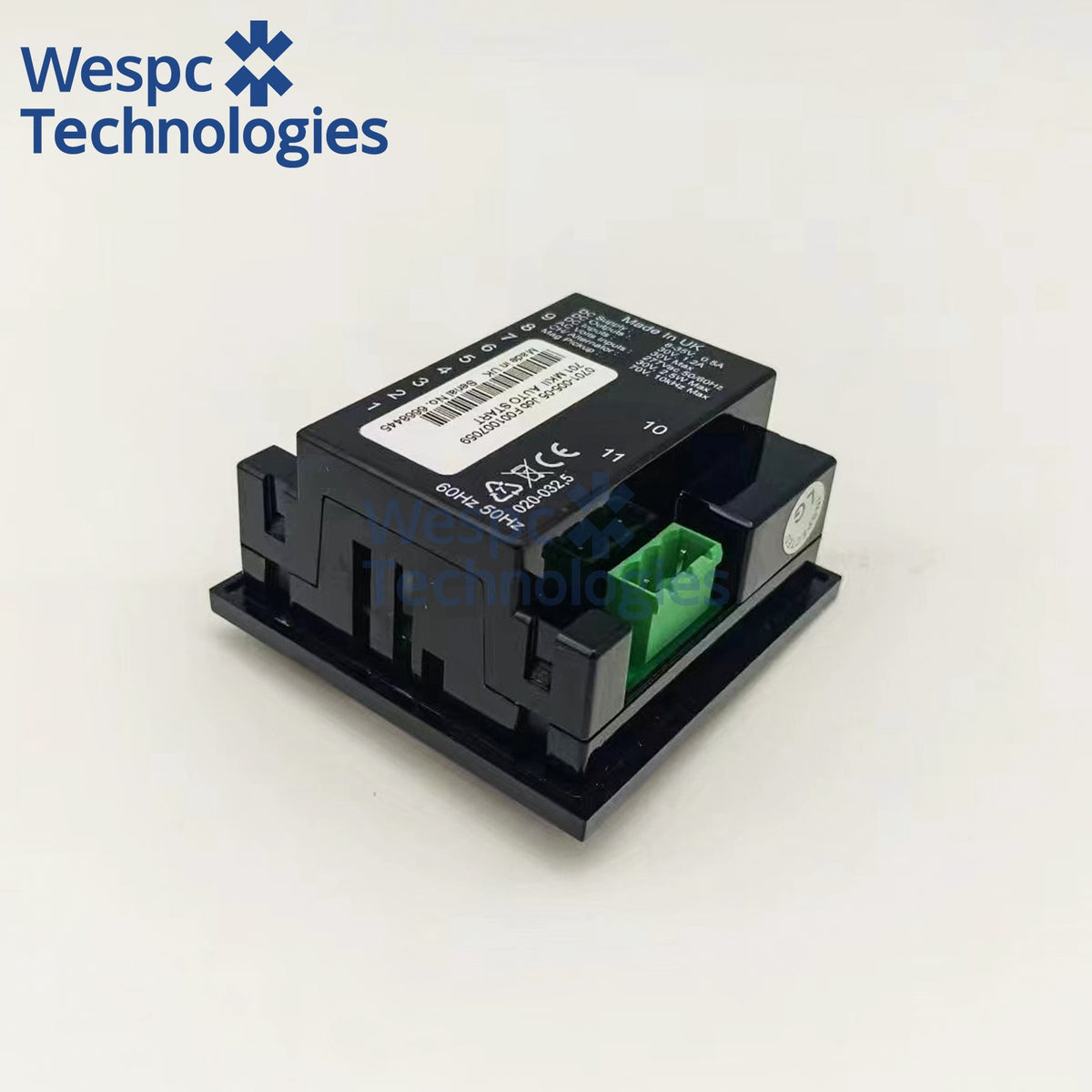

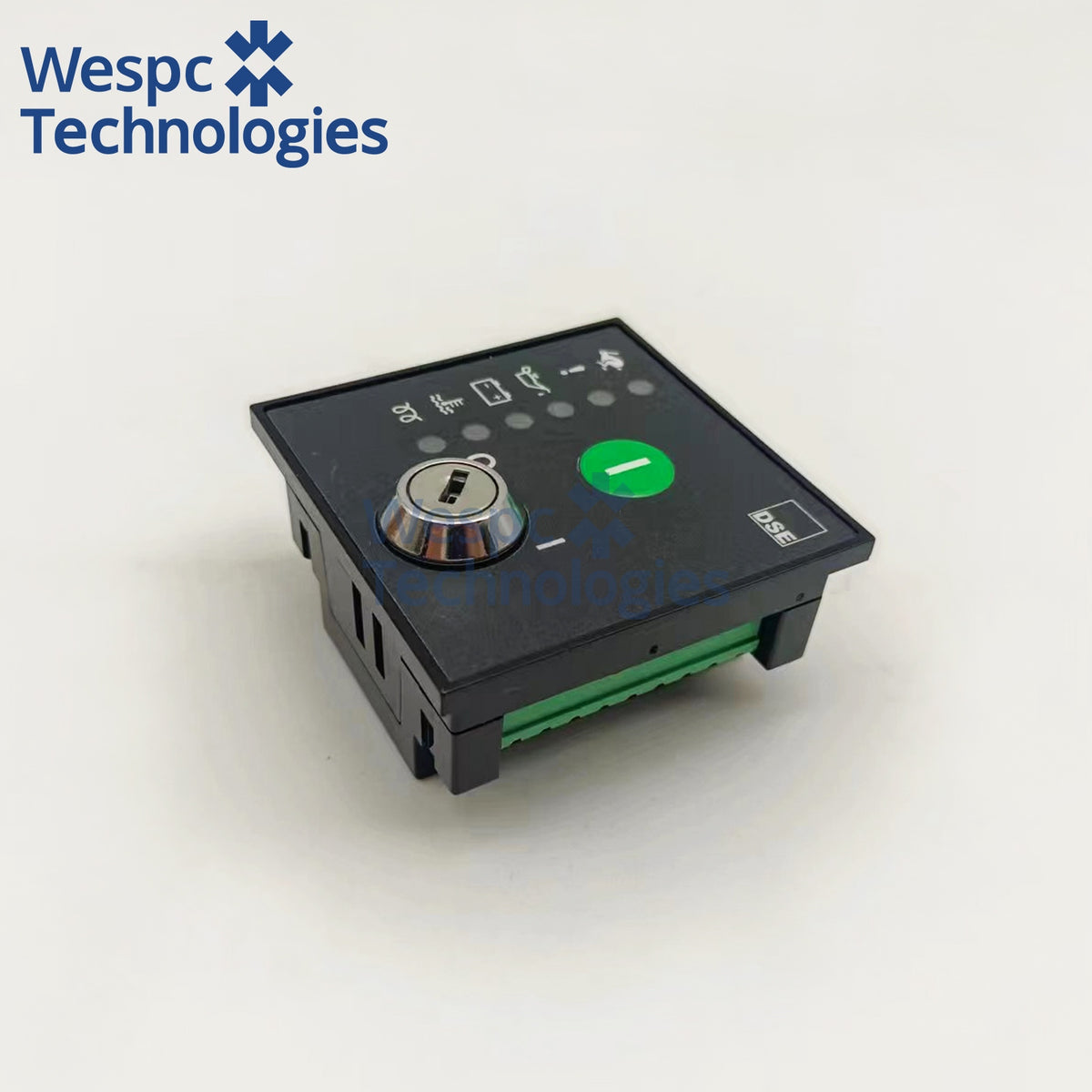

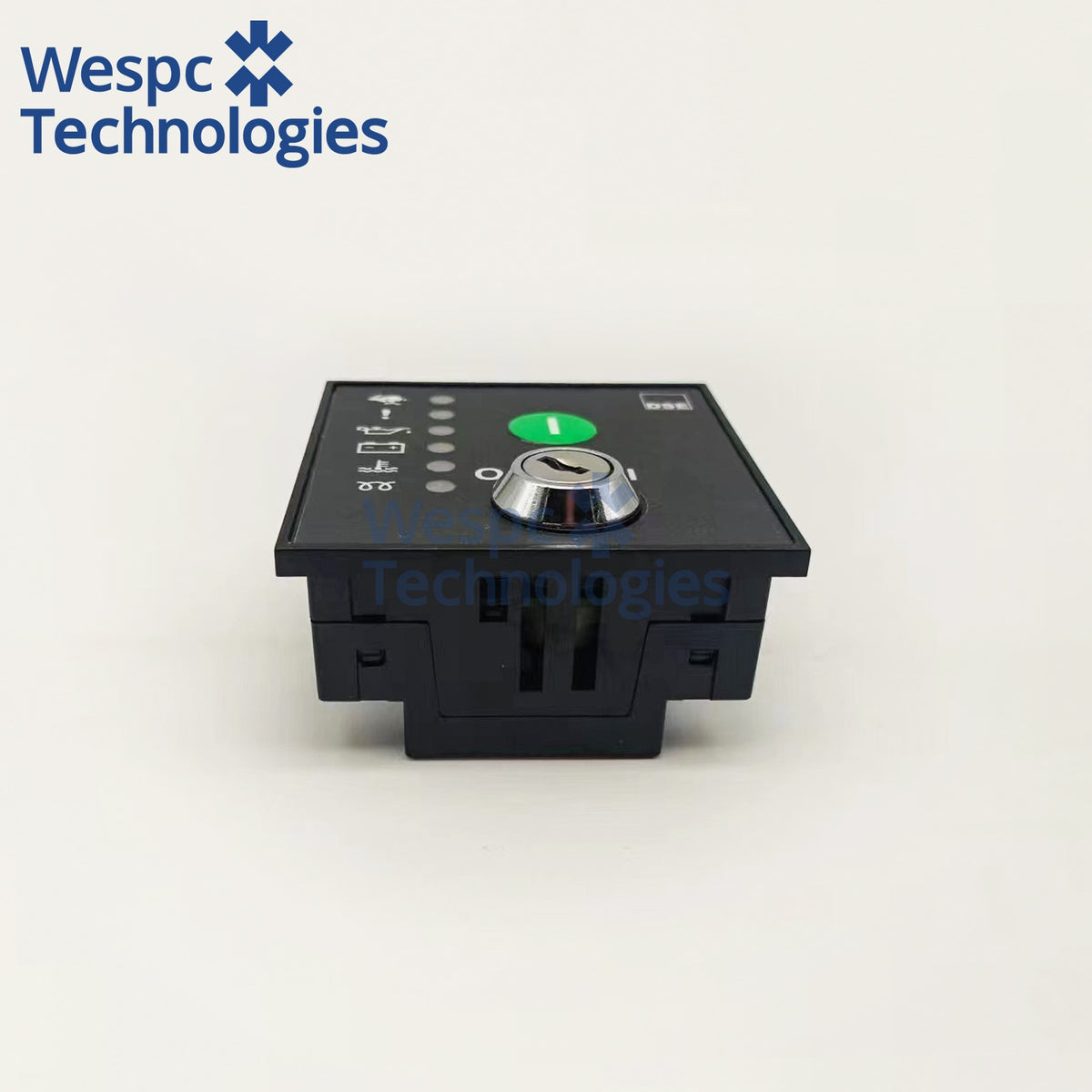

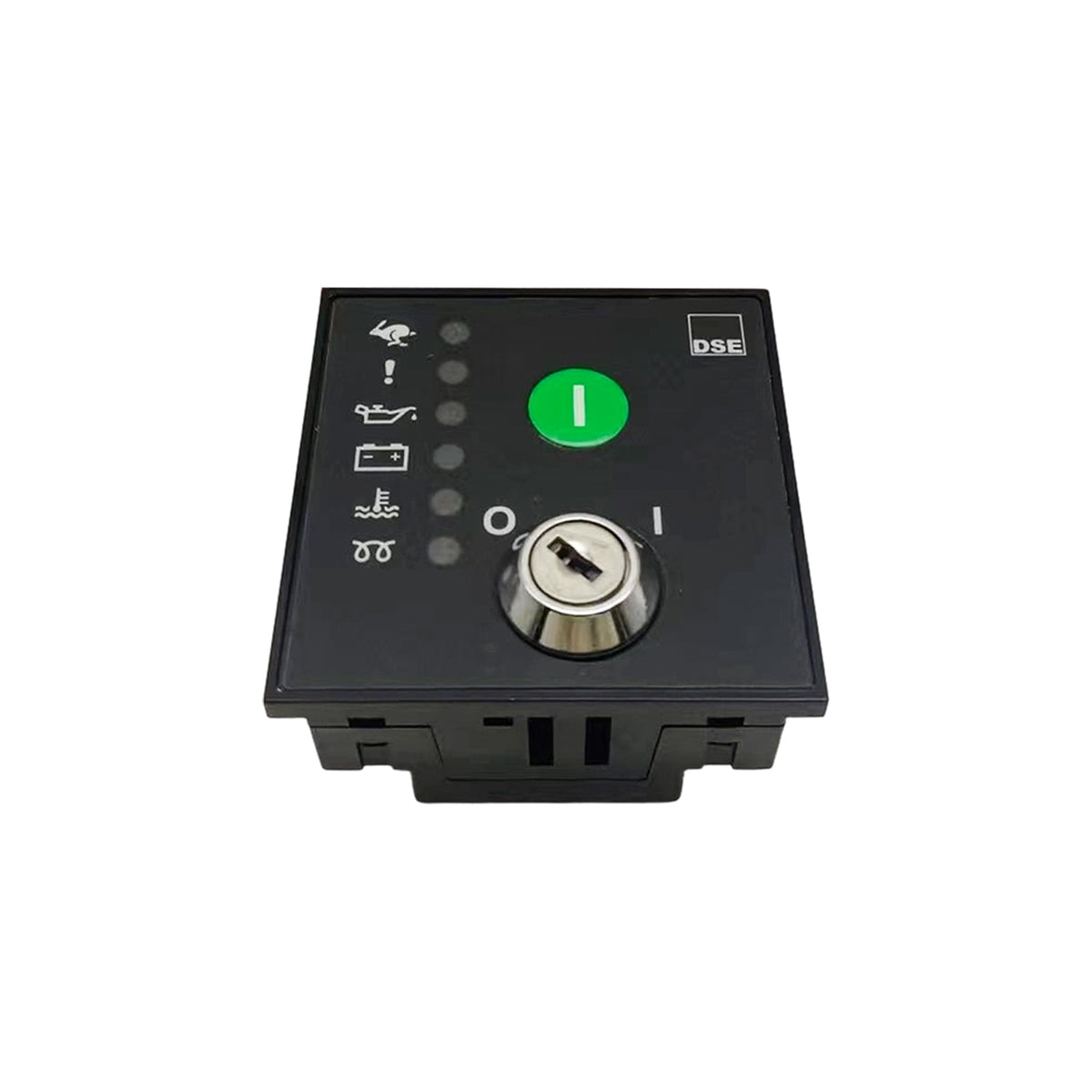

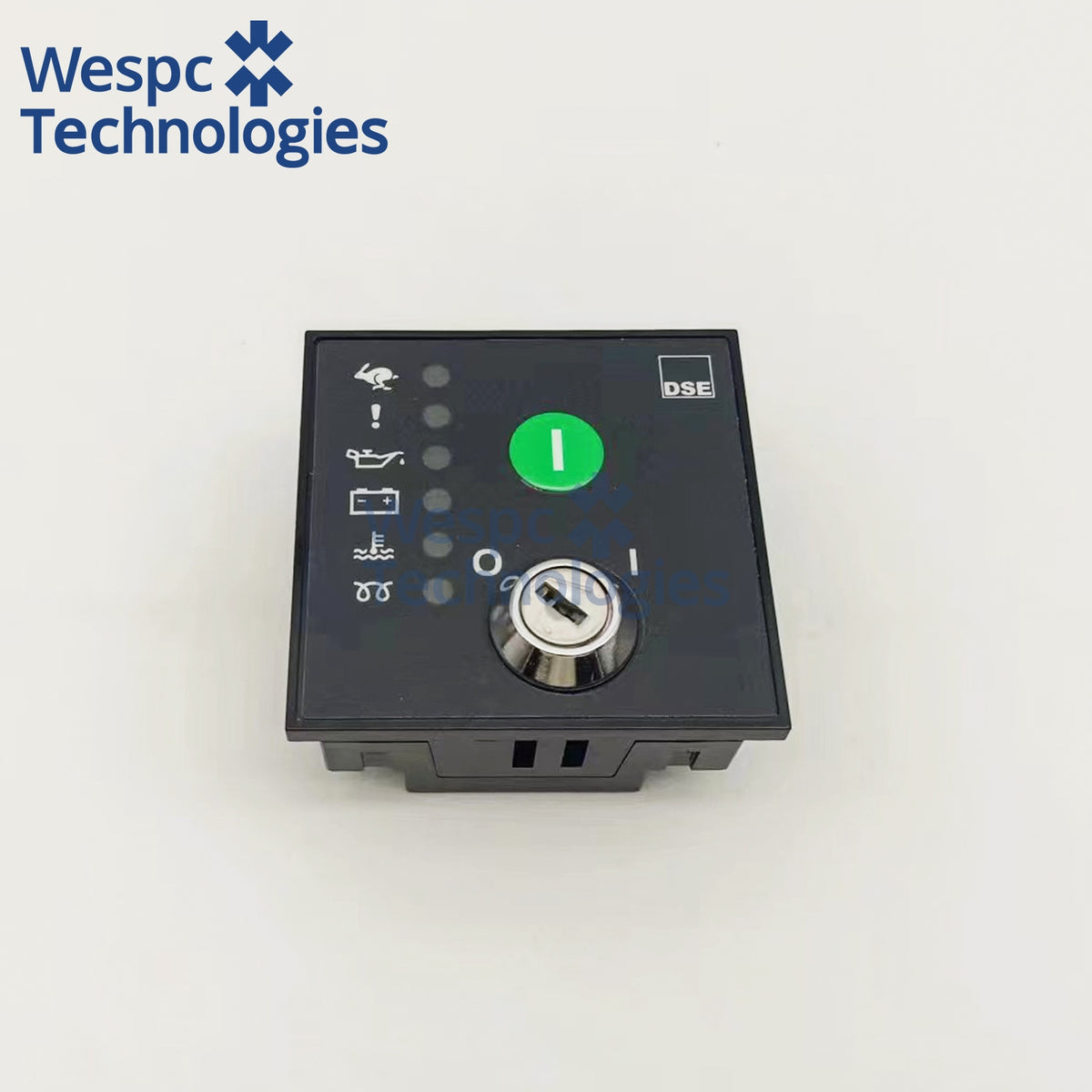

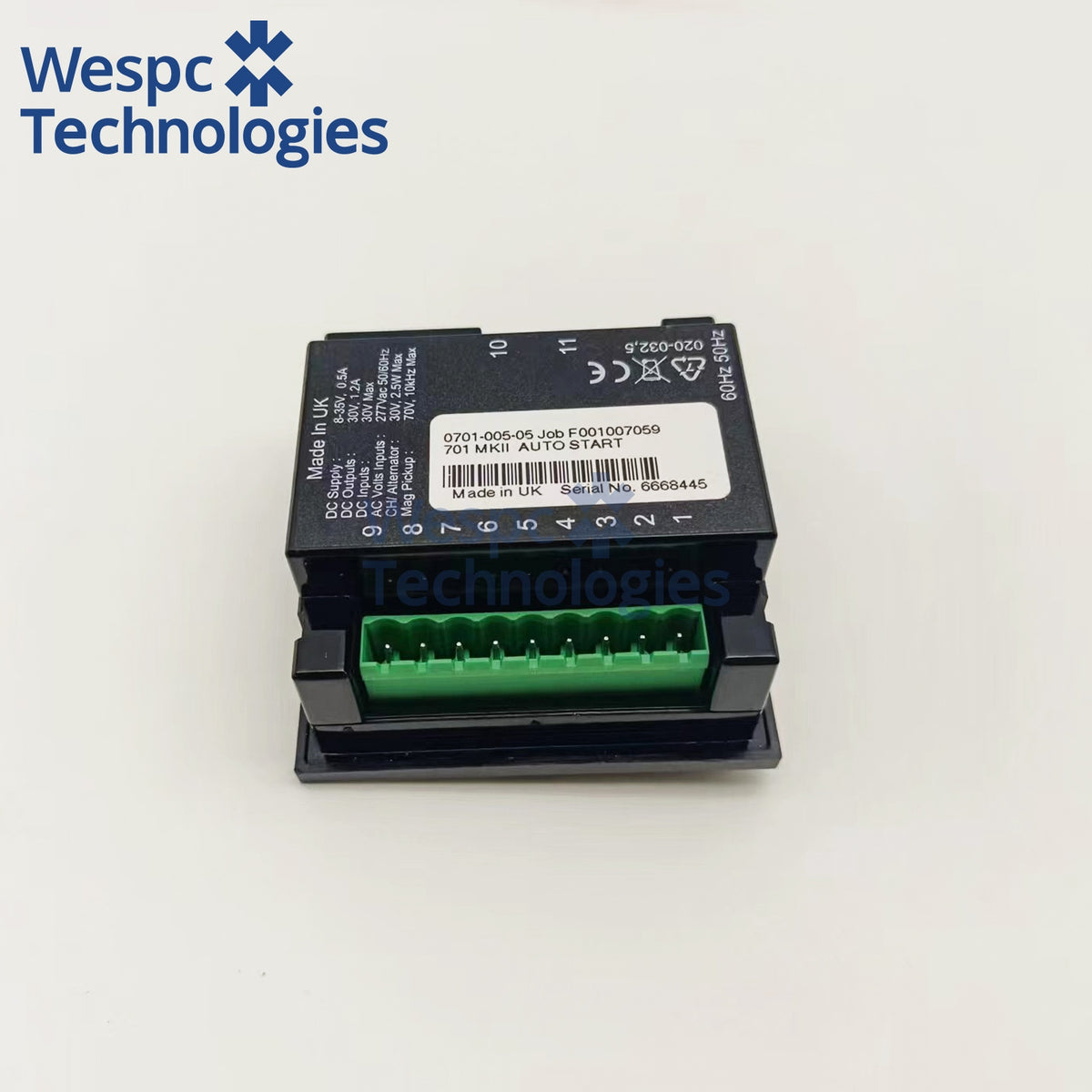

Original DSE701 MKII Auto‑Start Diesel Generator Controller Module

• Part Number: DSE701 MKII
• Brand: Original UK Deep Sea Genuine
• Product Type: Genset Auto‑Start Controller (Non‑AMF)

DC Supply

• Continuous Voltage Rating: 8 V to 35 V continuous
• Cranking Dropouts: Able to survive 0 V for 50 mS (supply must be ≥10 V before dropout, recovers to ≥5 V). Achieved without internal batteries.
• Maximum Operating Current: 26 mA @ 12 V, 27 mA @ 24 V
• Maximum Standby Current: 20 mA @ 12 V, 21 mA @ 24 V
• Charge/Fail Excitation Range: 0 V to 35 V

Outputs

• START: Solid state, 1.2 A negative grounding terminal
• RUN: Solid state, 1.2 A negative grounding terminal
• PRE-HEAT: Solid state, 1.2 A negative grounding terminal

Measurement

• Generator Voltage Range: 15 V – 333 V AC (L-N)
• Frequency Range: 3.5 Hz – 75 Hz

Dimensions

• Overall (excl. key switch): 72 × 72 × 38 mm (2.8" × 2.8" × 1.5")
• Panel Cut-out: 68 × 68 mm (2.7" × 2.7")
• Maximum Panel Thickness: 8 mm (0.3")
