Original GEC6120-485 AMF Generator Controller RS485 Modbus RTU Communication Multi-Language LCD Auto Start Stop Genset Control Module With Full Safety Protection
Original GEC6120-485 AMF Generator Controller RS485 Modbus RTU Communication Multi-Language LCD Auto Start Stop Genset Control Module With Full Safety Protection
Couldn't load pickup availability
Original GEC6120-485 diesel generator set self starting controller Automatic switching when mains fails control panel RS485
I. Overview

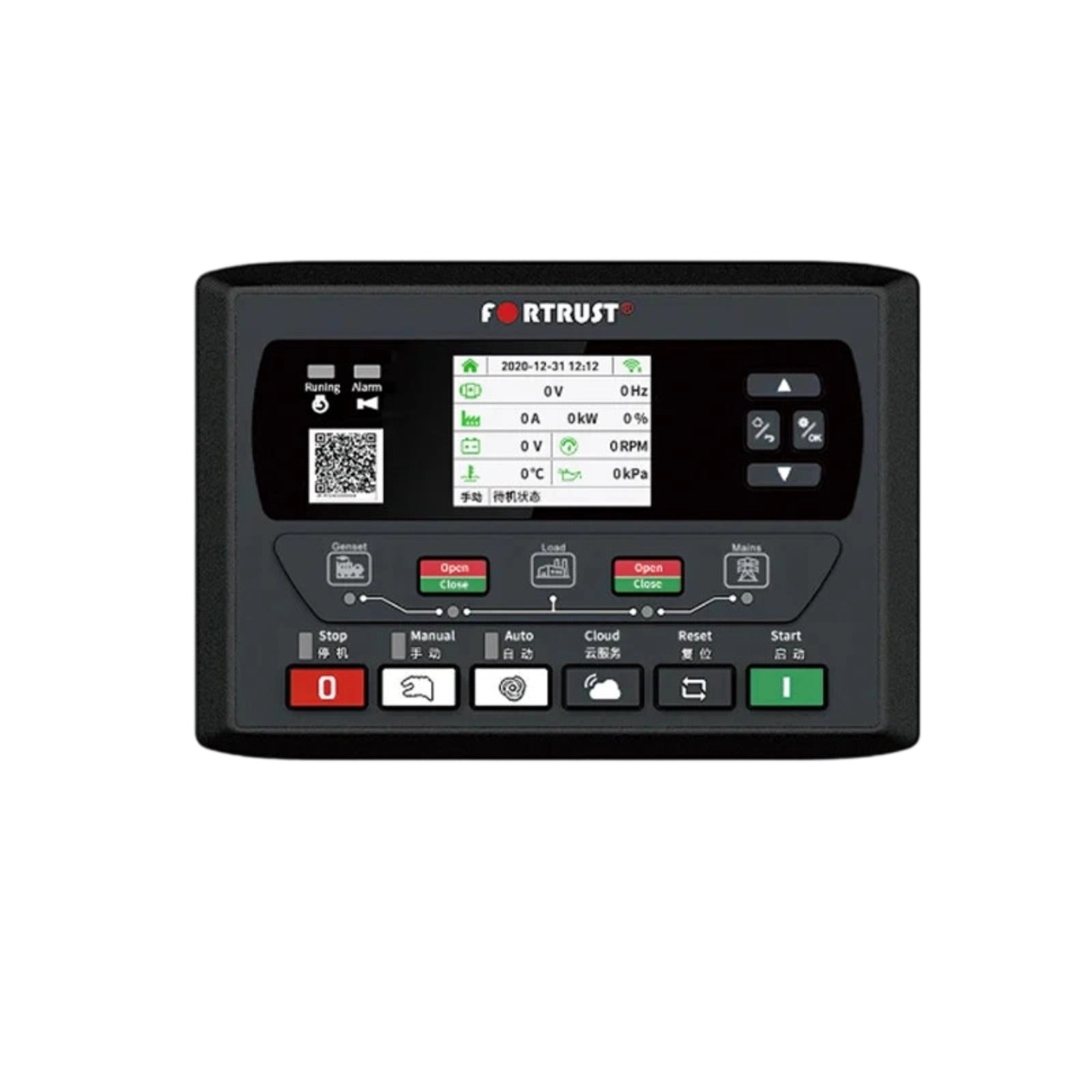

GEC6100D power station automation controller is used in the automation and monitoring system of a single diesel generator set to realize automatic start/stop, data measurement, alarm protection and "three remote" functions of conventional generator sets. The controller adopts a color liquid crystal (LCD) graphic display, which can display Chinese and English. It is easy to operate and reliable in operation.
GEC6100D power station automation controller adopts 32-bit microprocessor technology to realize functions such as precise measurement, fixed value adjustment, timing and threshold setting of various parameters. Most parameters can be adjusted from the front panel of the controller, and all parameters can be used using a PC. The machine monitors and adjusts through the 485 interface or USB interface of the module. It has compact structure, simple wiring and high reliability, and can be widely used in various types of generator set automation systems.
Core Original Technical Specifications
- Model: Original GEC6120-485 (AMF Automatic Mains Failure Type)
- Working Power Supply: DC 8V ~ 35V wide voltage, compatible with 12V/24V generator battery systems
- Communication Interface: Standard RS485, supports Modbus RTU industrial protocol for SCADA, PLC, touch screen centralized networking monitoring
- Sampling Voltage Range: AC 30V ~ 276V single/three-phase adaptive, auto identify 50Hz/60Hz frequency
- Working Modes: Manual / Auto / Test three selectable operation modes
- Relay Output: 6 programmable high-current relays, each contact rated 16A, directly drive starter, fuel actuator and auxiliary equipment
- Protection Functions: Over/under voltage, over/under frequency, overcurrent, overload, high coolant temperature, low oil pressure, overspeed, emergency stop, charging failure, battery undervoltage protection, all faults latch and store historical records
- Parameter Configuration: Local panel setting + USB offline parameter upload/download for batch project debugging
- Maintenance Reminder: Customizable running hour maintenance cycle reminder function
- Operating Temperature: -20℃ ~ +70℃
- Installation: Standard DIN embedded panel mounting
- Panel Cutout Size: 132mm × 87mm
