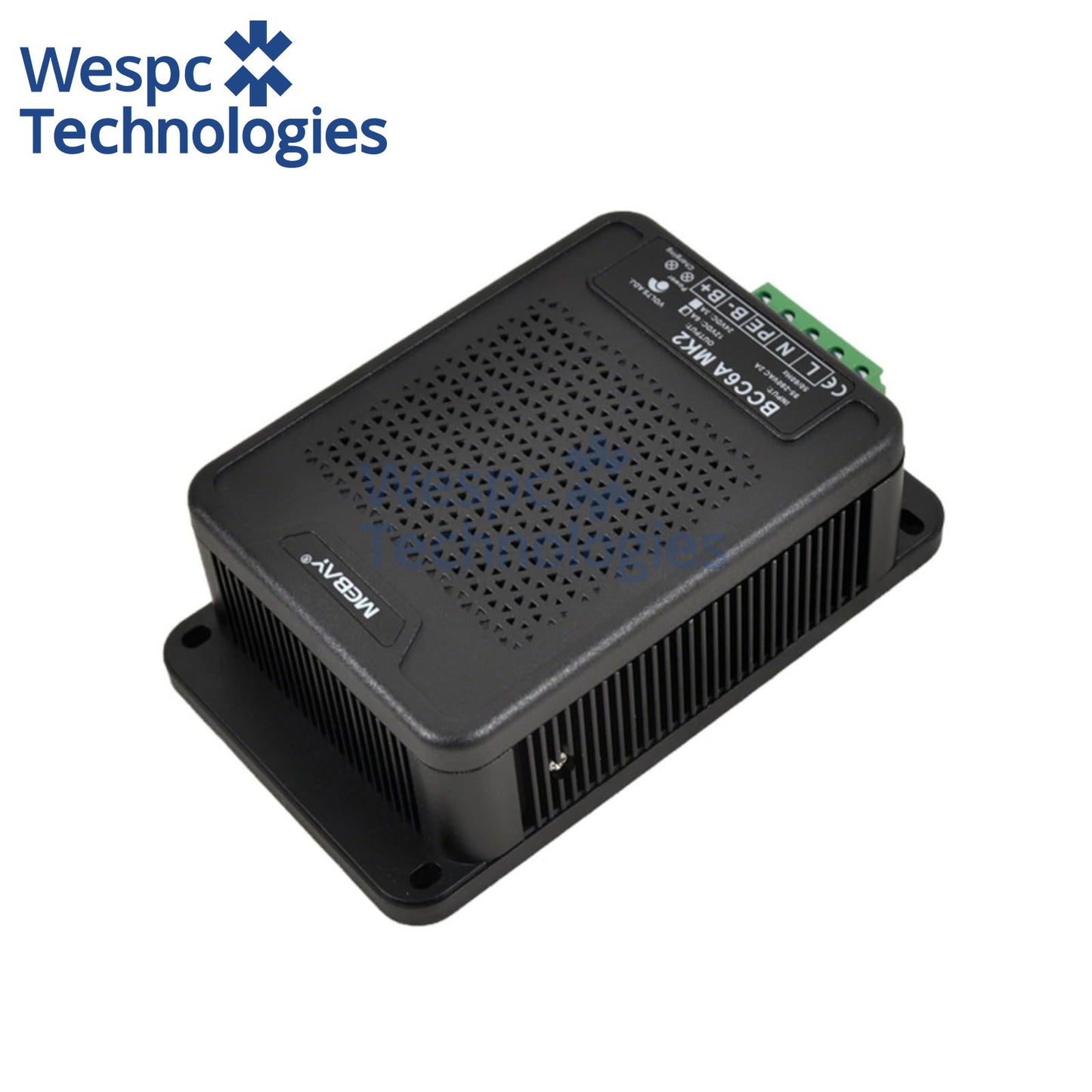

Original Genuine Mebay BCC6A MK2 Intelligent Float Battery Charger Max 3A Output For 24V Lead Acid Battery

Wide Application Range

24V silent diesel generator control cabinet, industrial multi-unit fixed power station, data center backup 24V parallel genset, communication base station standby power, marine 24V auxiliary generator set, construction machinery 24V diesel engine unit, commercial building ATS power distribution cabinet, all 24V lead-acid battery generator equipment.

Product Specifications

• Brand: Mebay
• Model: BCC6A MK2 (Max 3A Output For 24V Battery)
• Rated Charging Current: 3A max constant current under 24V system; 6A max for 12V auto mode
• Auto Battery Identification: Automatically detect 12VDC / 24VDC lead-acid battery
• AC Input Range: AC 95V ~ 280V 50/60Hz, transient withstand AC90~305V
• Charging Mode: 3-stage Bulk-Absorption-Float intelligent charging curve
• Exclusive Upgrade: External VOLT ADJ voltage fine-tuning knob, -30℃ low temperature operation
• Multi Safety Protection: Reverse polarity, short circuit, overheat, overload, overcharge full protection
• Housing Material: Aluminum alloy honeycomb heat dissipation shell with built-in silent cooling fan
• Protection Class: IP30 dustproof
• Operating Temperature: -30℃ ~ +55℃
• Storage Temperature: -40℃ ~ +85℃
• Overall Dimension: 155 × 95 × 51 mm
• Mounting Method: Wall mounting with reserved fixing holes
• Warranty: 12 months genuine factory warranty

Common Equipment Failures Solved

• 24V generator cannot auto start after mains loss: 24V starting battery insufficient power, install BCC6A MK2 3A charger to maintain full floating charge permanently
• Charger no output after reverse wiring: Built-in reverse polarity protection, correct positive and negative wiring to recover automatically
• Charger overheat and stop working: Fan air duct blocked by dust, clean dust and reserve sufficient heat dissipation space around unit
• 24V battery aging fast, frequent replacement: Ordinary single-stage charger or fixed-voltage BCC6A overcharge battery, MK2 three-stage adjustable charging effectively extend battery service life
• DT1000 cloud DTU frequent offline on 24V genset cabinet: Unstable battery voltage, BCC6A MK2 stable floating output provides constant DC power for cloud module
• Need to match special gel 24V battery: Rotate VOLT ADJ potentiometer to lower absorption and float voltage to adapt gel lead-acid battery characteristics
