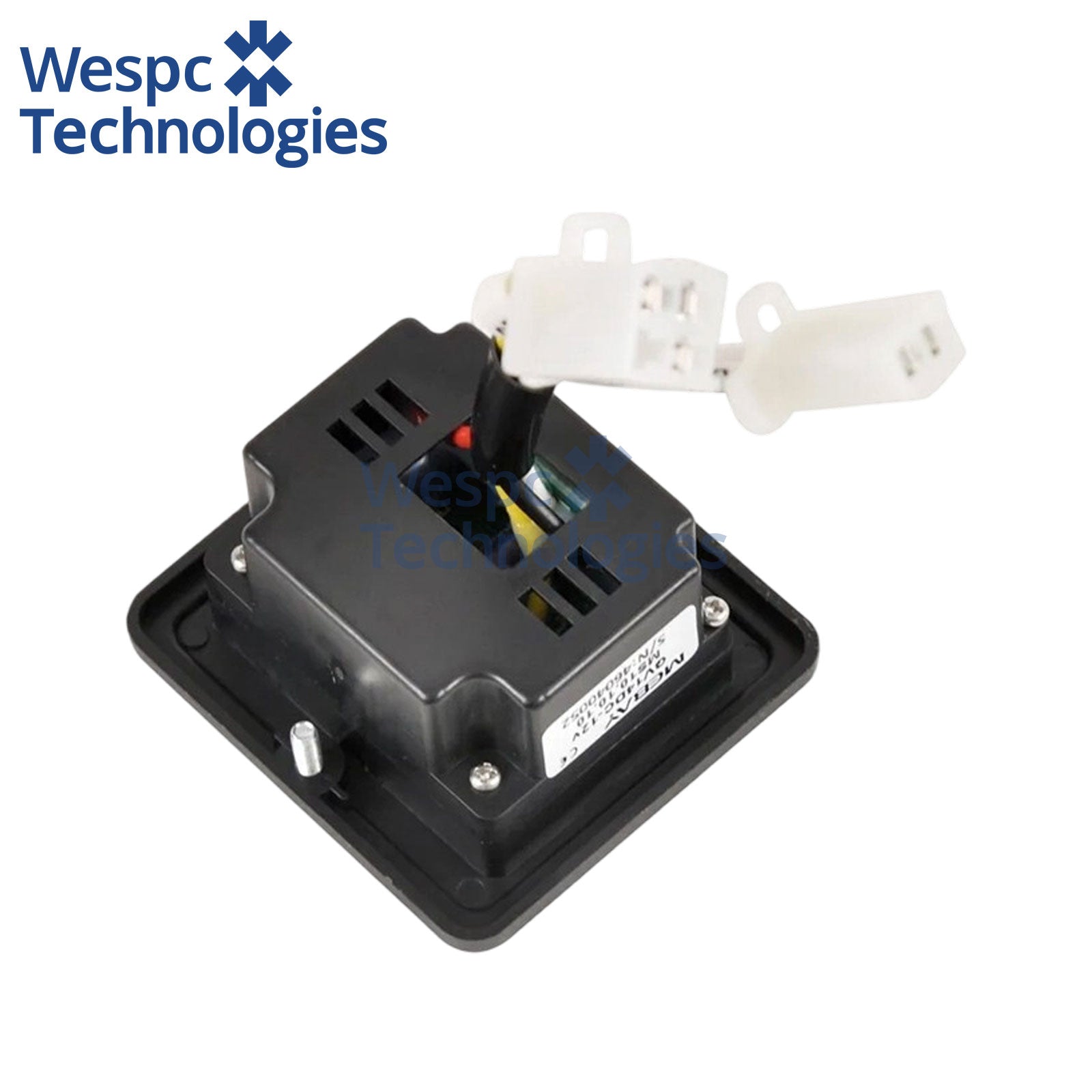

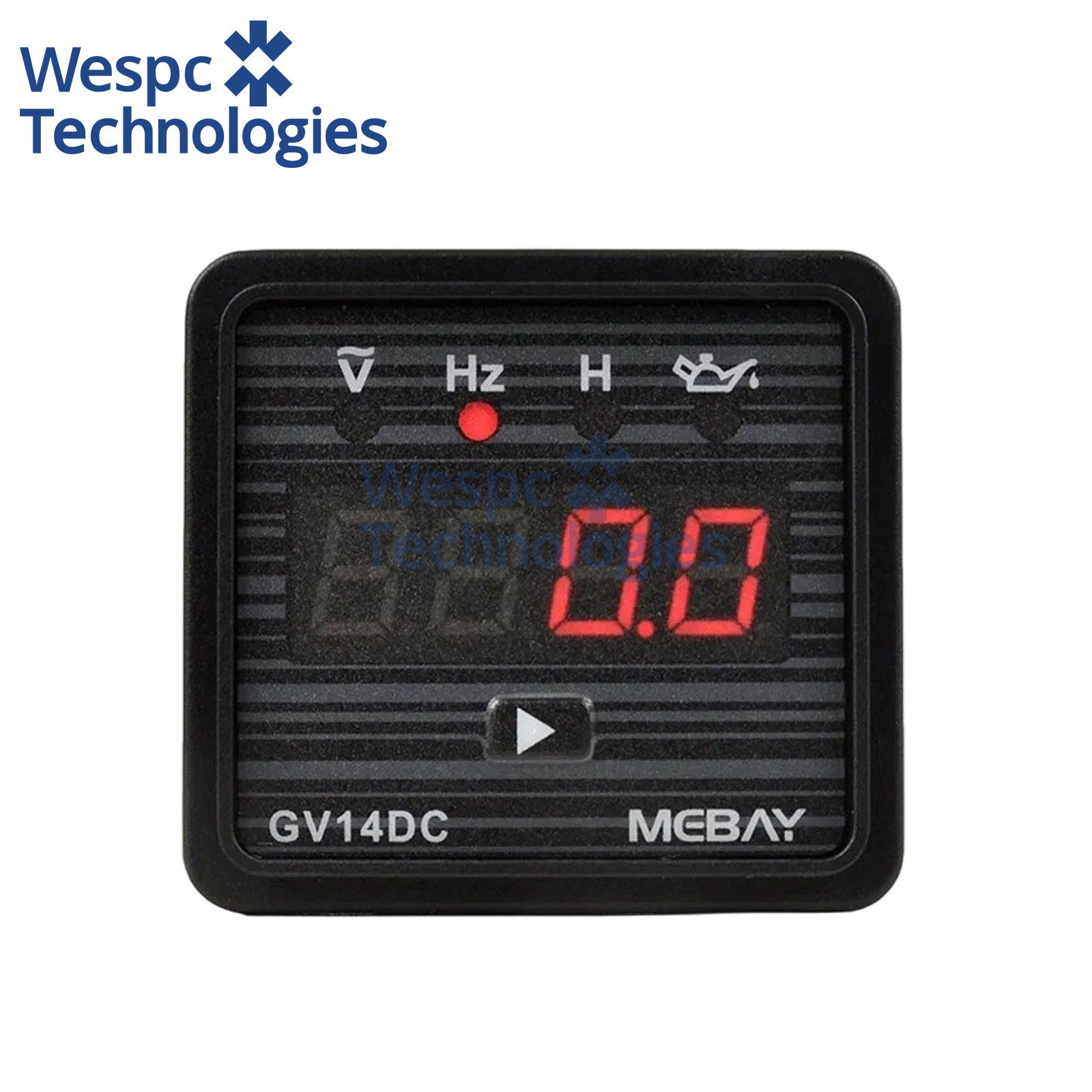

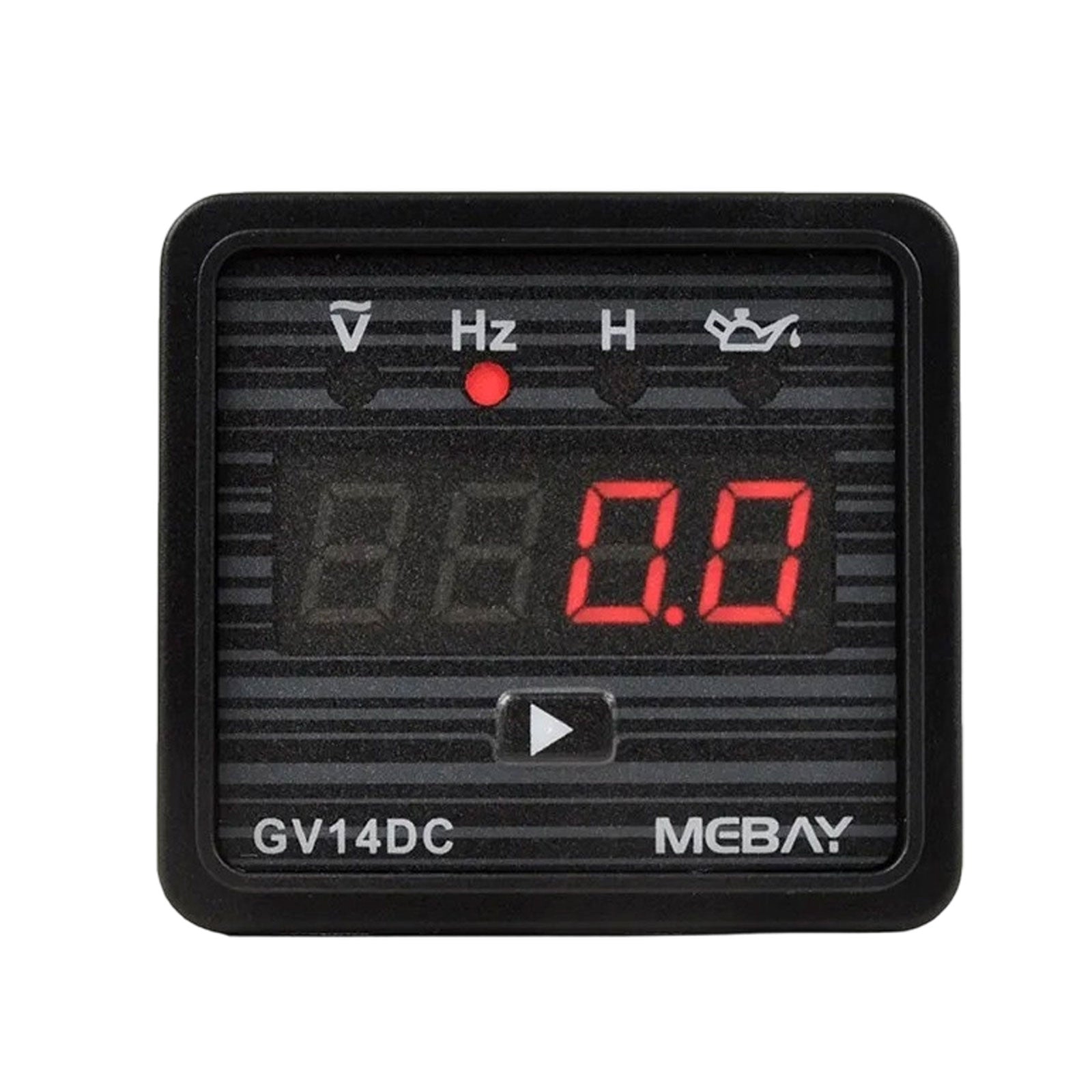

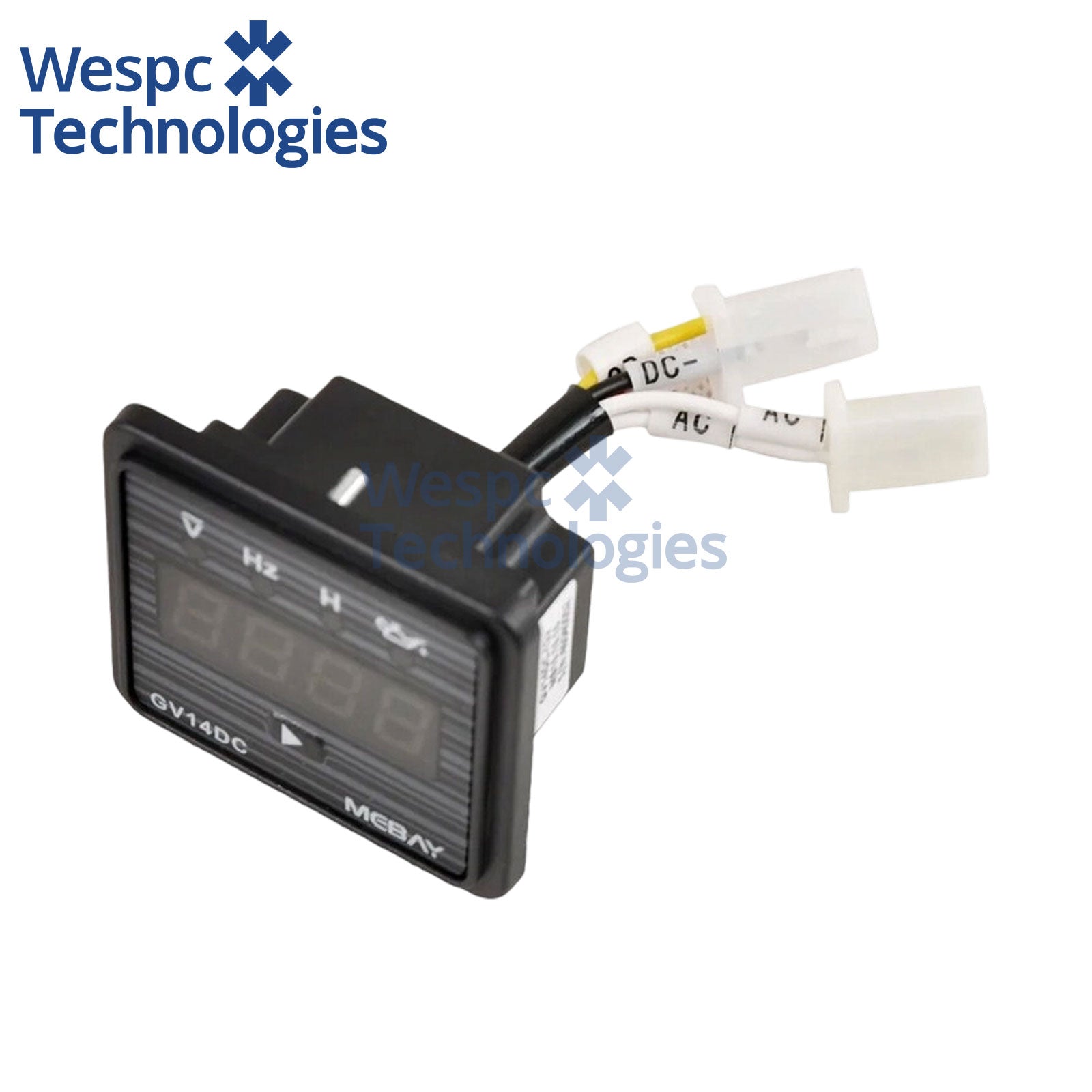

Original GV14DC Mebay Digital Generator Phase Voltage Meter Voltmeter Auto Panel
Original GV14DC Mebay Digital Generator Phase Voltage Meter Voltmeter Auto Panel
Regular price
$21.00 USD
Regular price
$0.00 USD
Sale price
$21.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Original GV14DC Mebay Digital Generator Phase Voltage Meter Voltmeter Auto Panel
AC voltage, frequency, accumulated working time, low oil pressure alarm indicator, 4 meters in 1, working time is permanently saved and displayed. With screen change button. Working voltage DC8V-36V.
*Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
*Results shown by 4-position digital LED tube
*Self-recycling of parameters
*with Page Turning Buttons
*DC voltage supply
*Results shown by 4-position digital LED tube
*Self-recycling of parameters
*with Page Turning Buttons
*DC voltage supply
Parameter Demonstration
*Phase voltage
*Phase voltage
*Frequency
*Cumulative running time
*Low oil pressure alarm switch indication
Measuring range and accuracy
Measuring range and accuracy
*Voltage: ac30-450v, error ≤± 1%
*Frequency: 20-70hz, error ≤± 0.5%
*Cumulative operation time:
0-9999h
0-9999h
|
Specification of GV14DC
|
|
|
Power supply
|
DC8~36V
|
|
Consuming Power
|
MAX: 1w
|
|
Working condition
|
-30~70ºC
|
|
Overall dimension
|
58mm×54mm×41mm
|
|
Panel cutout
|
47mm×37mm
|
|
Weight
|
55g
|
