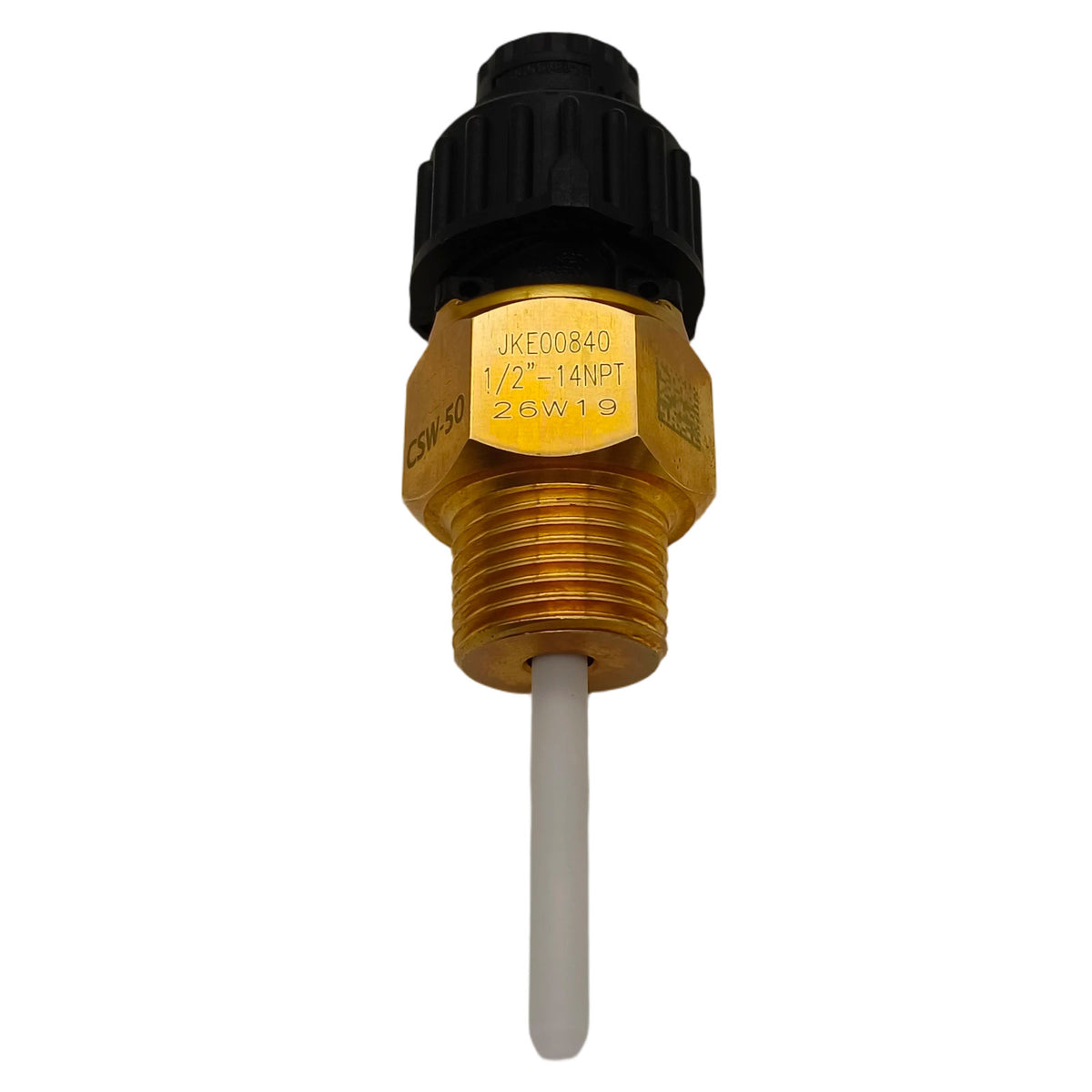

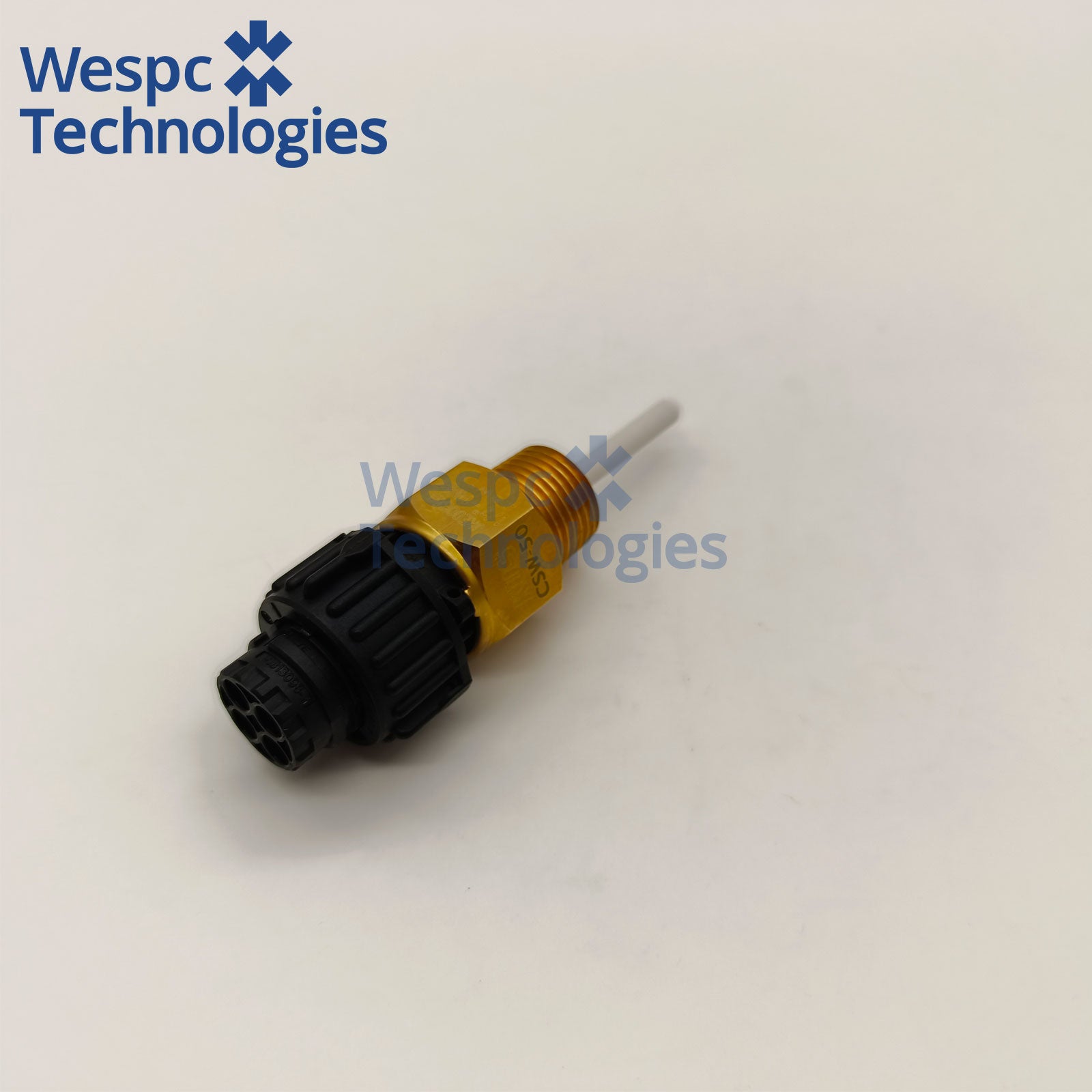

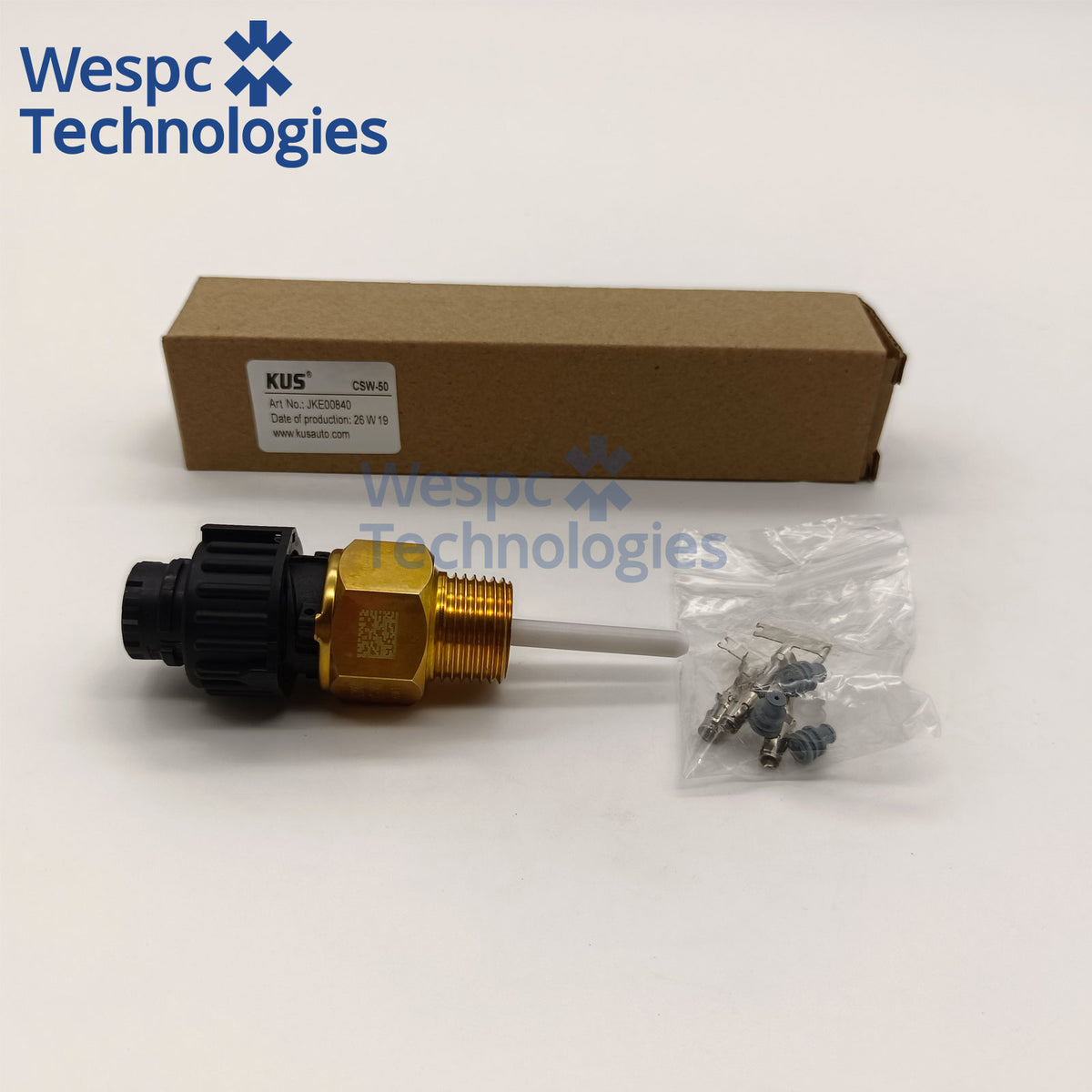

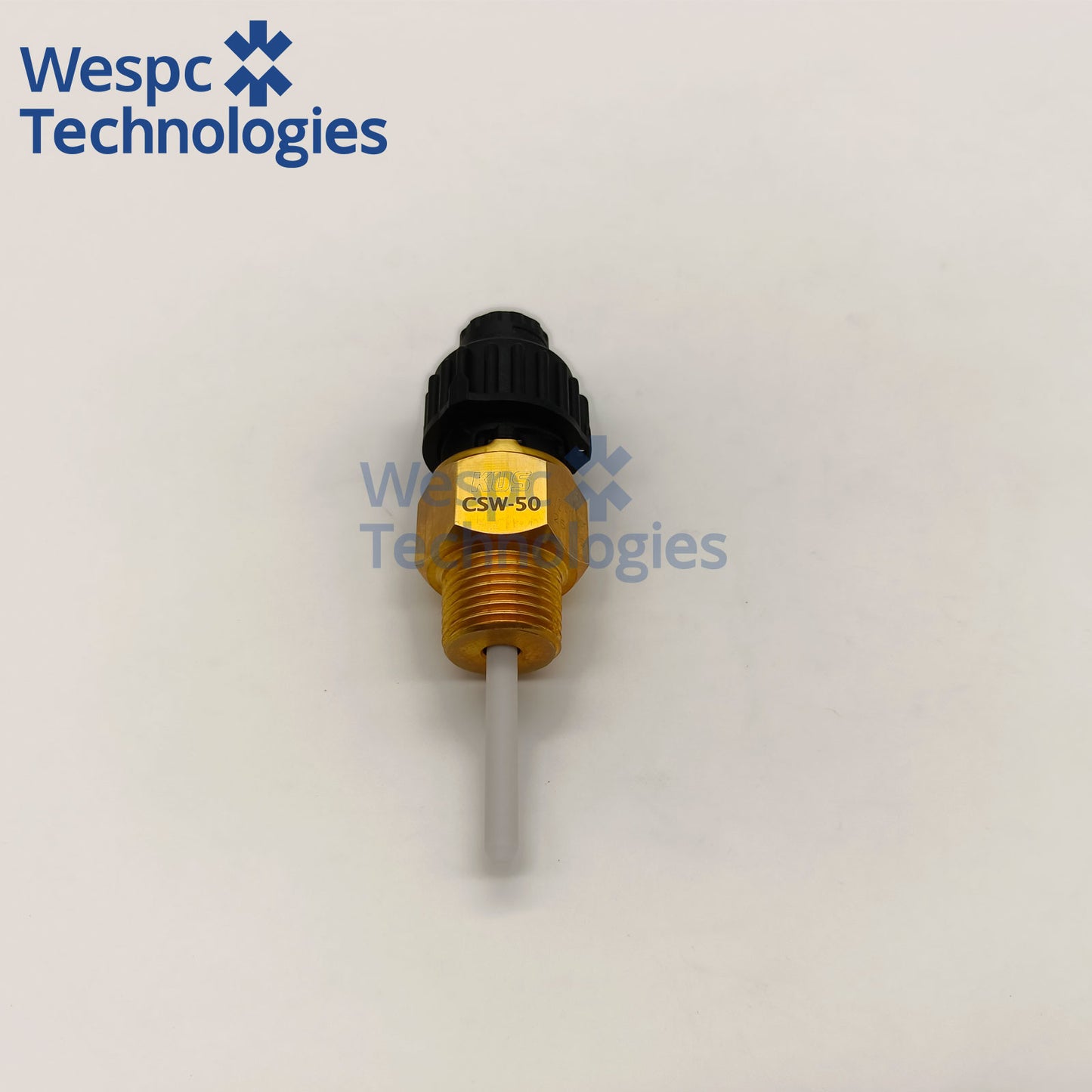

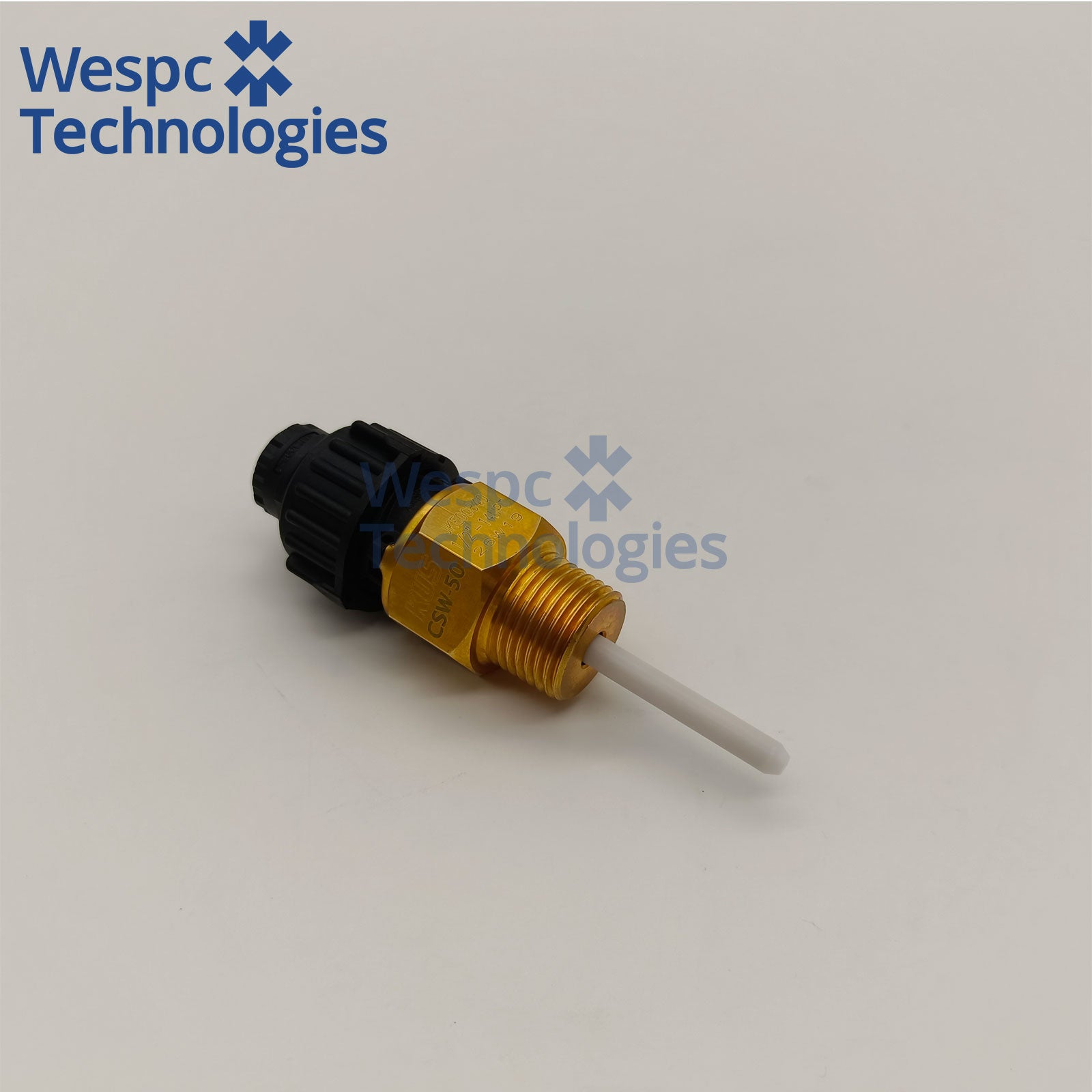

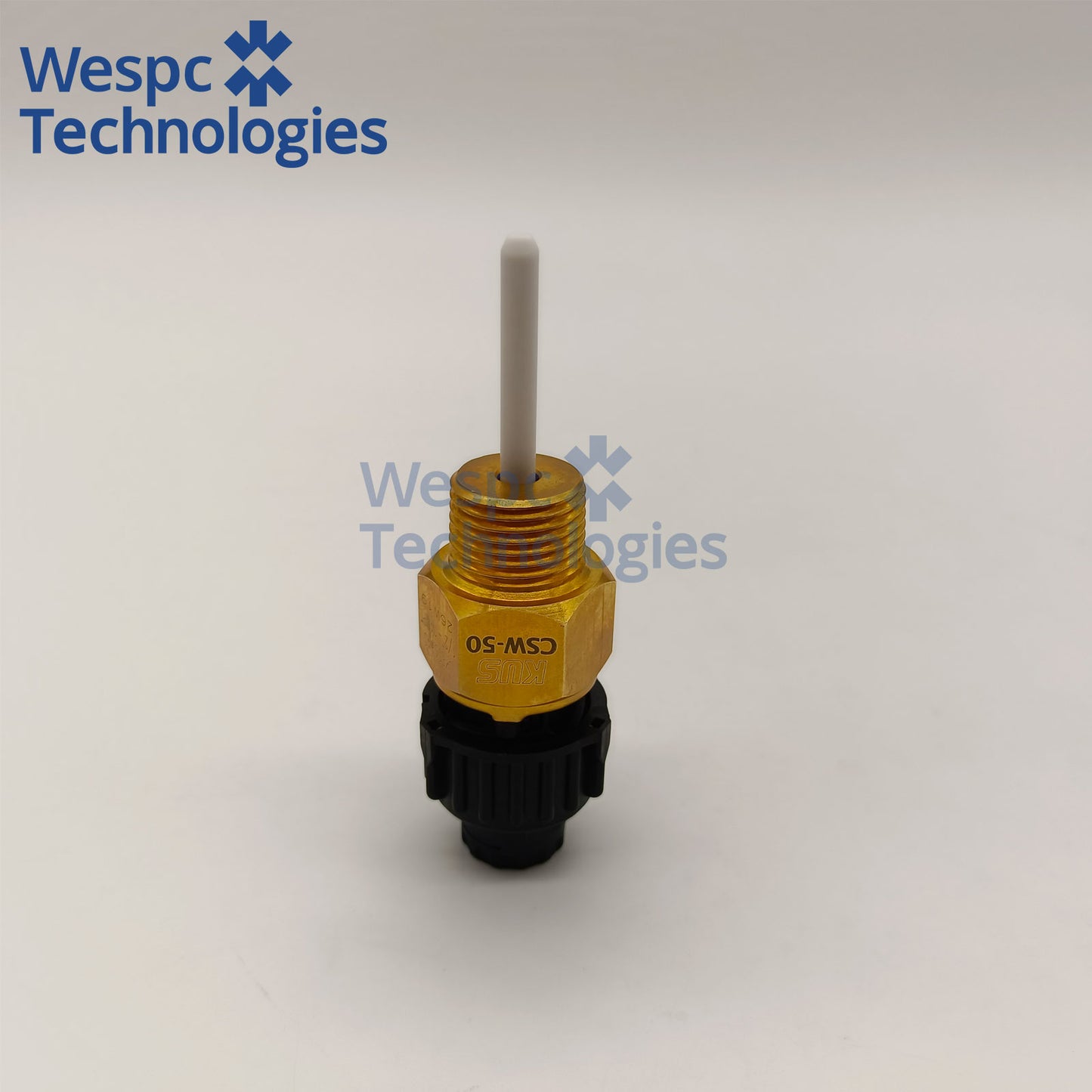

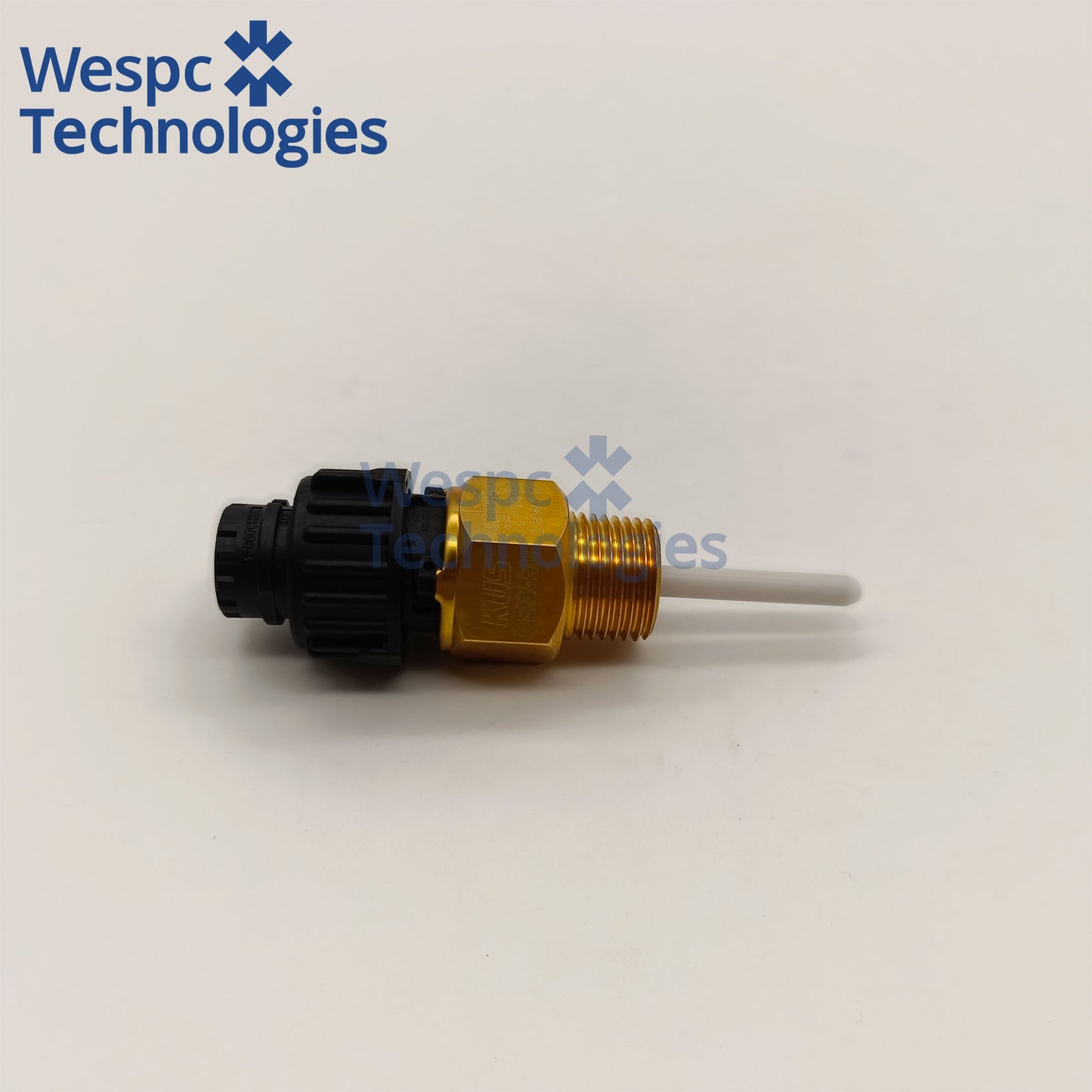

Original KUS JKE00840 Low Alarm Water Level Switch CSW-50 Sensor M14x1.5

1. Operating voltage range: 10-32VDC;

2. Operating current: ≤ 15mA;

3. Load current: ≤ 0.5A;

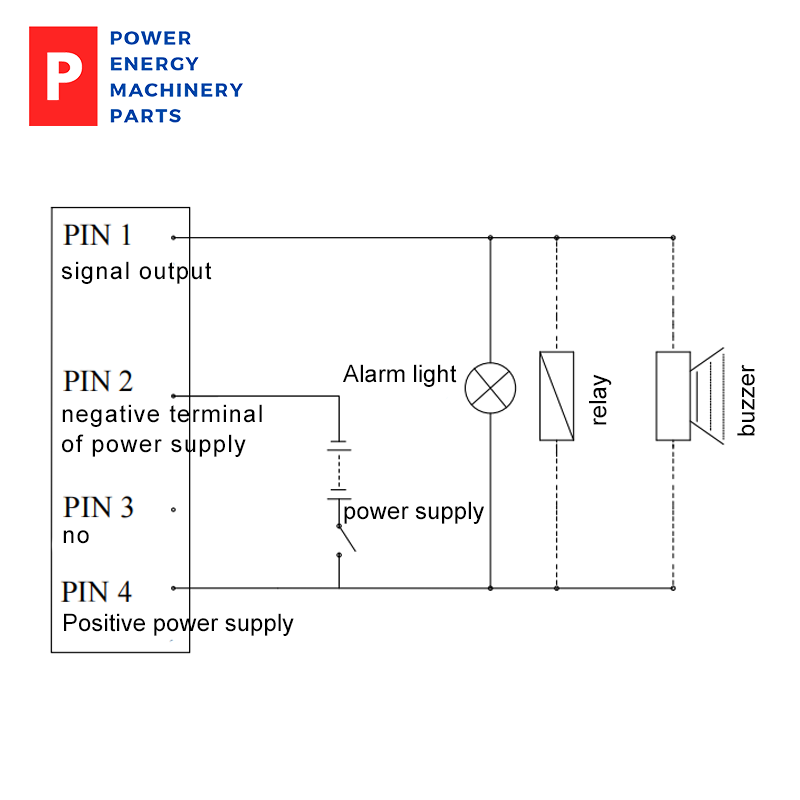

4. Signal output: Switch on when liquid level is below probe (switching signal);

5. Operating temperature: -40℃ -- +125℃;

6. Storage temperature: -40℃ -- +140℃;

7. Applicable to: Water, cooling water, etc.;

8. Sealing: No air leakage is allowed between the O-ring and the body under 1.2Bar pressure;

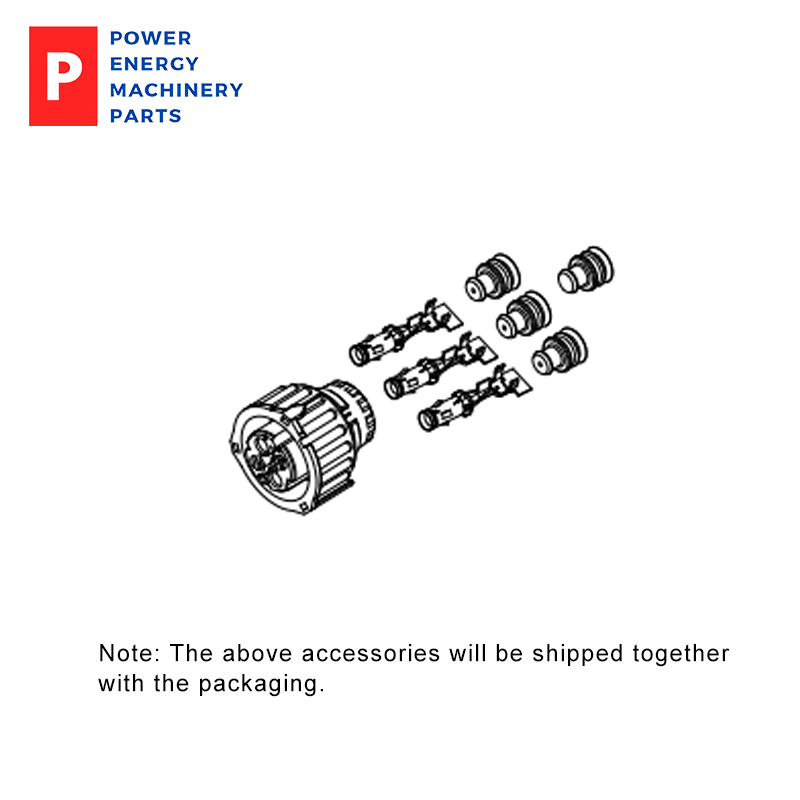

9. Connectors: AMP: 1-1813099-1, 2438861-1 828920-1;

10. Cleanliness: All parts must be free of burrs, dust, corrosion, and rust;

11. Protection Rating: IP67

12. Terminal Plating: Tin

13. Product Net Weight: 0.076±0.0050kg;

14. Areas marked with special symbols are critical characteristics and must be carefully controlled.

Basic Product Functions:

This sensor has a low liquid level alarm function. When the liquid level is lower than the preset position, an alarm will be issued after a 10-second delay. A switch signal is provided to external devices; the delayed alarm is to prevent false alarms caused by liquid surface sloshing.
