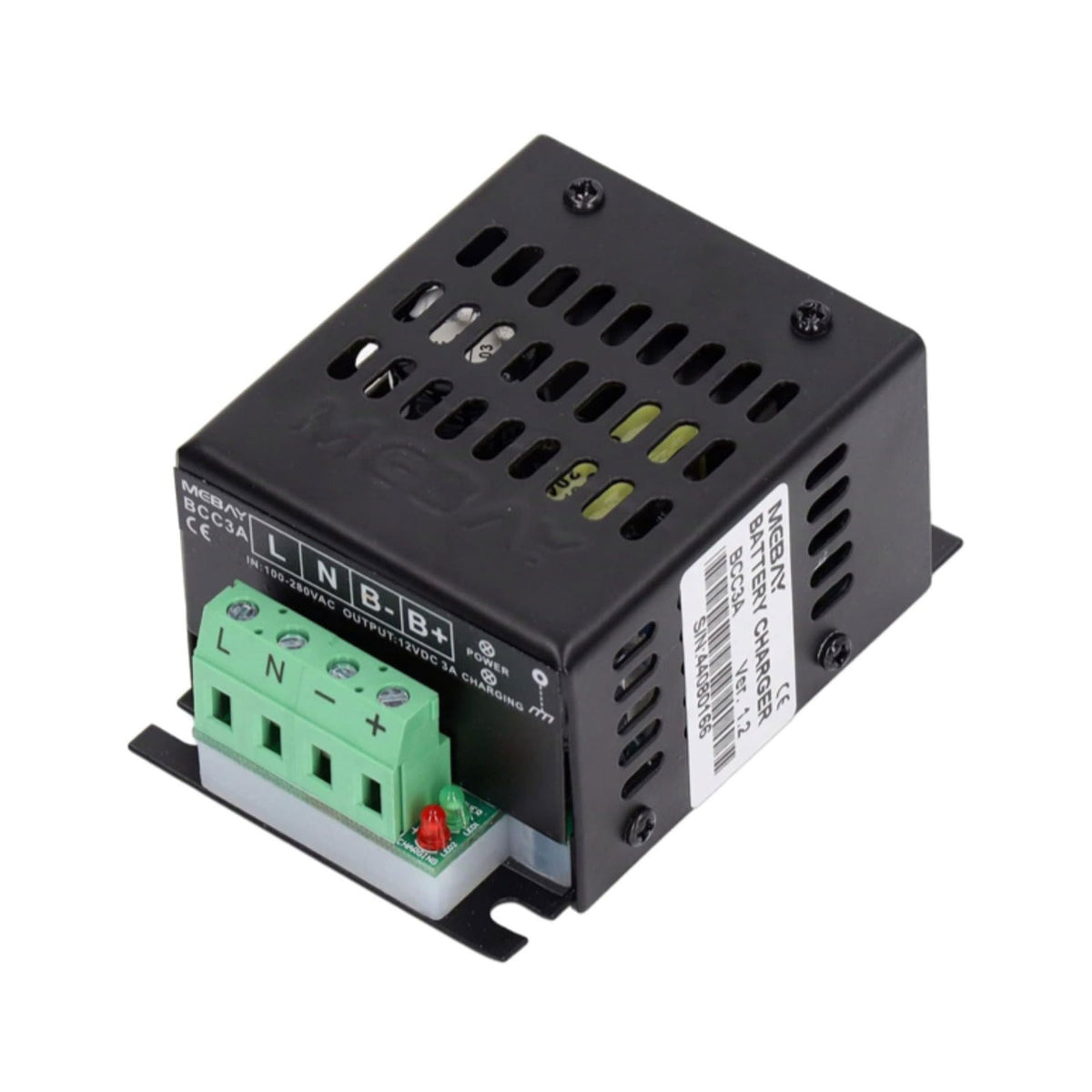

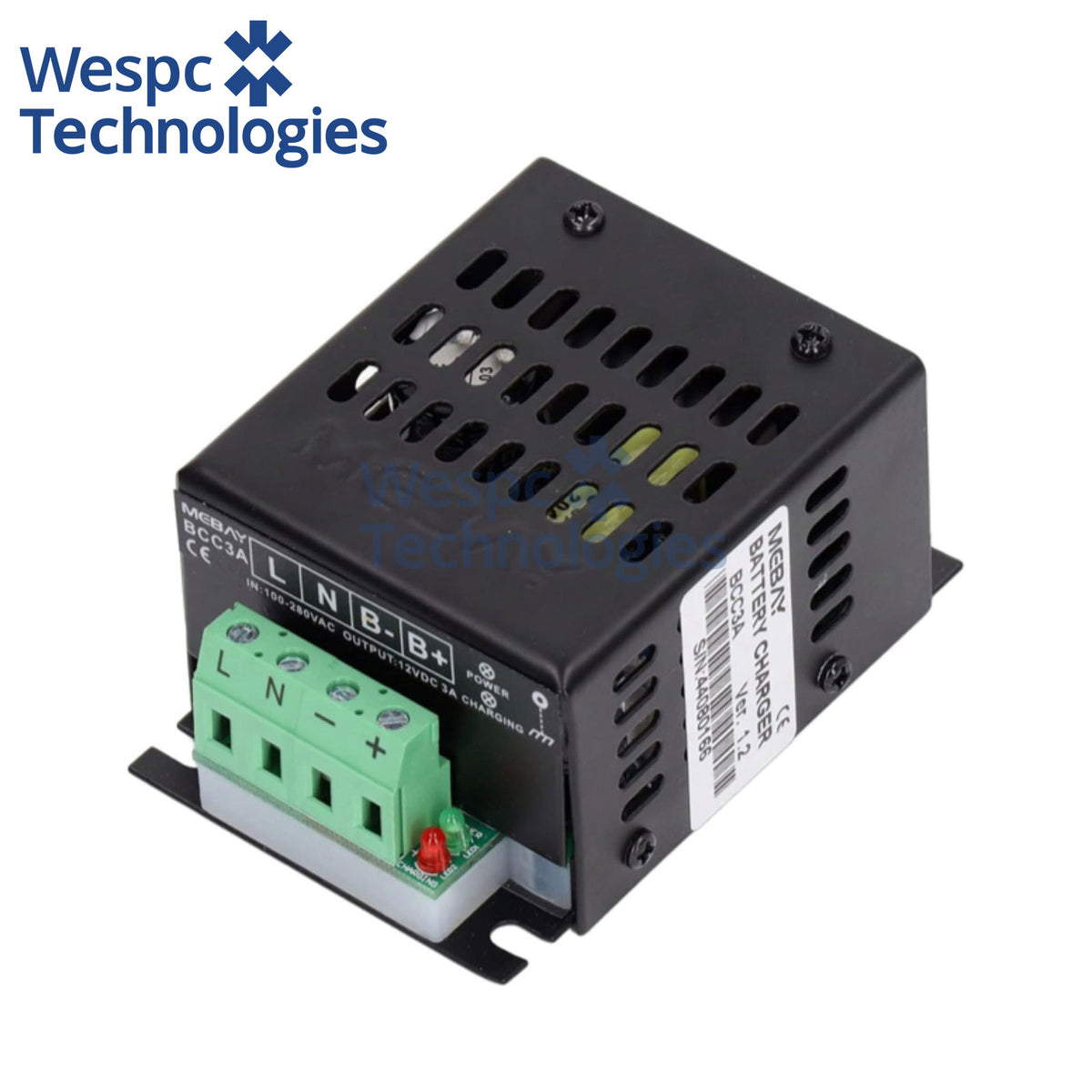

Original Mebay BCC3A 12V 3A Intelligent 3-Stage Battery Float Charger For Diesel Genset Starter Battery

Specification

• Product: Original Mebay BCC3A Intelligent Battery Float Charger
• Brand: Mebay
• Type: 3-stage automatic charger (CC fast → CV equalize → float)
• Battery Type: Lead-acid starter / standby batteries
• Output: 12 V / 3 A or 24 V / 2 A (version selected by output rating)
• Float Voltage: 13.5 V (12 V) / 27 V (24 V), ±2 %
• Equalization Voltage: 14.4 V (12 V) / 28.8 V (24 V), ±2 %
• Charge Current Accuracy: ±2 %
• Input: AC 95–280 V continuous (max 90–305 V), 50/60 Hz, ≤1 A input
• Efficiency: >85 %; No-load consumption <0.5 W
• Max Output Power: 43 W (12 V) / 58 W (24 V)

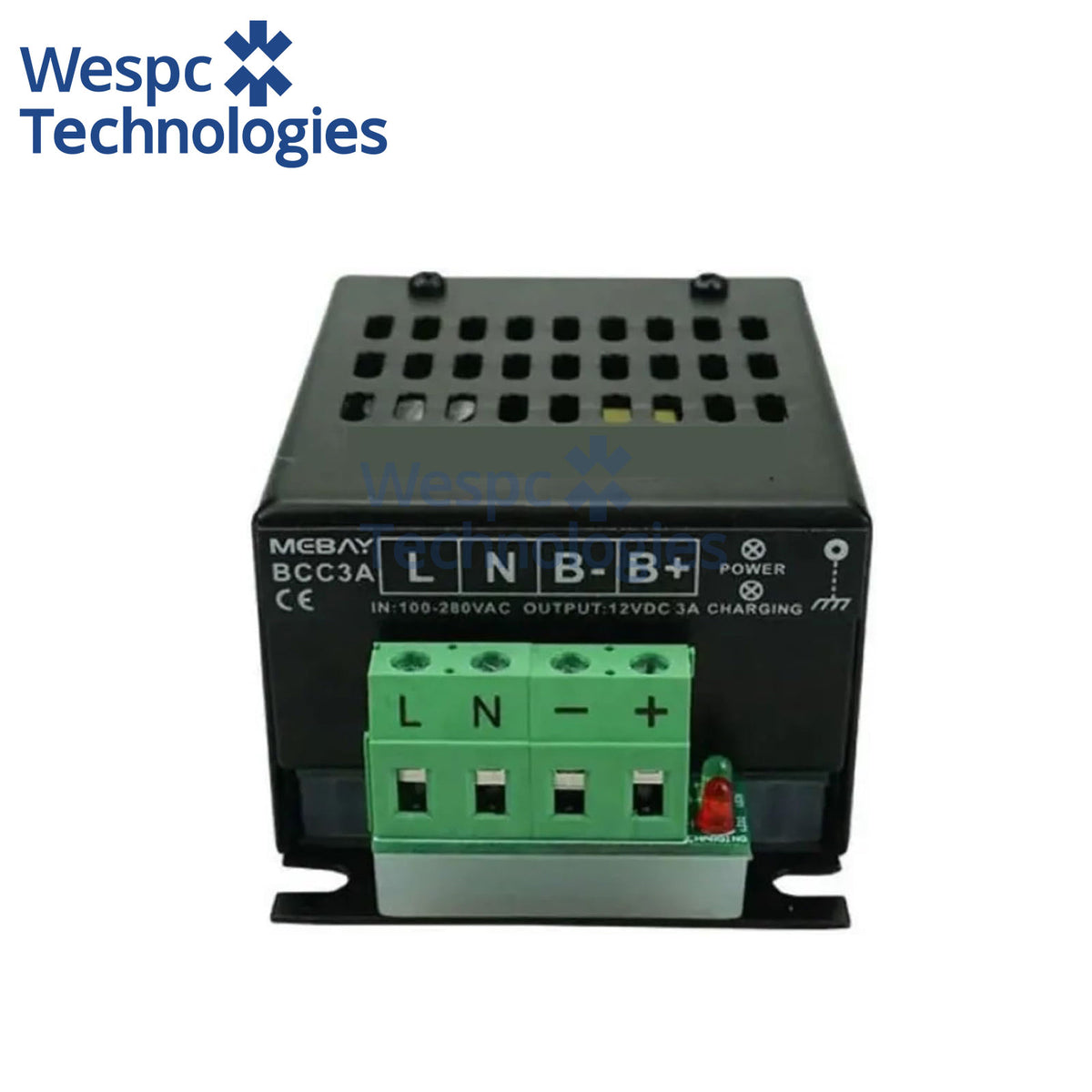

• Indication: LED CHARGING / LED FULL
• Protections: Output overcurrent, output short circuit; reinforced isolation (DC 500 V / 500 MΩ; DC 1500 V hipot)

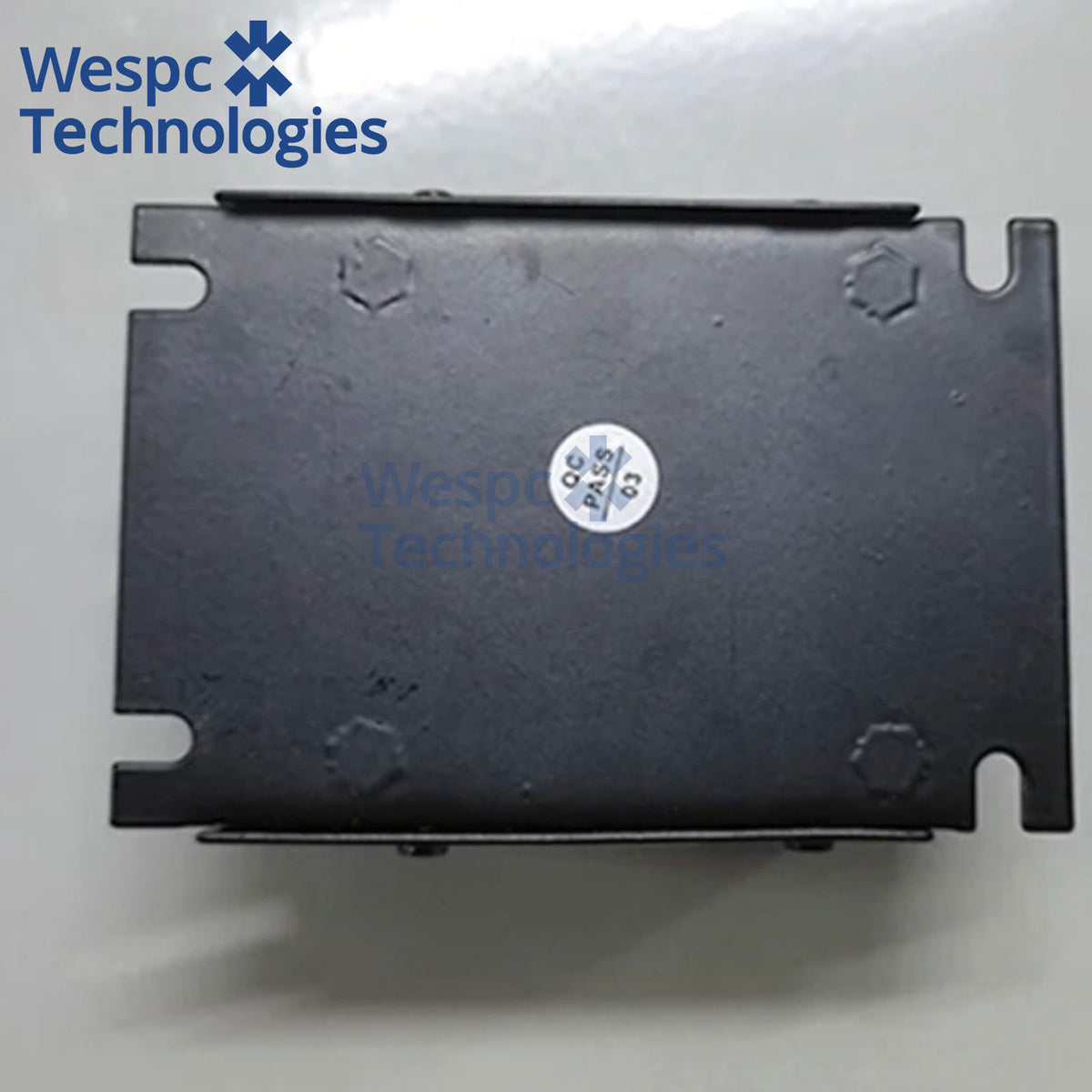

• Mounting: Metal housing, mounting holes 77 × 44 mm
• Dimensions: 88 × 64 × 42 mm
• Net Weight: 0.3 kg
• Working Temp: ‑30 °C to +55 °C; Humidity ≤95 % RH non-condensing
• Application: Genset starter battery, alarm / emergency systems, telecom radio, control-panel backup, parallel with engine alternator
• Condition: 100% Original Mebay factory new
• Warranty: 12 months genuine factory warranty
