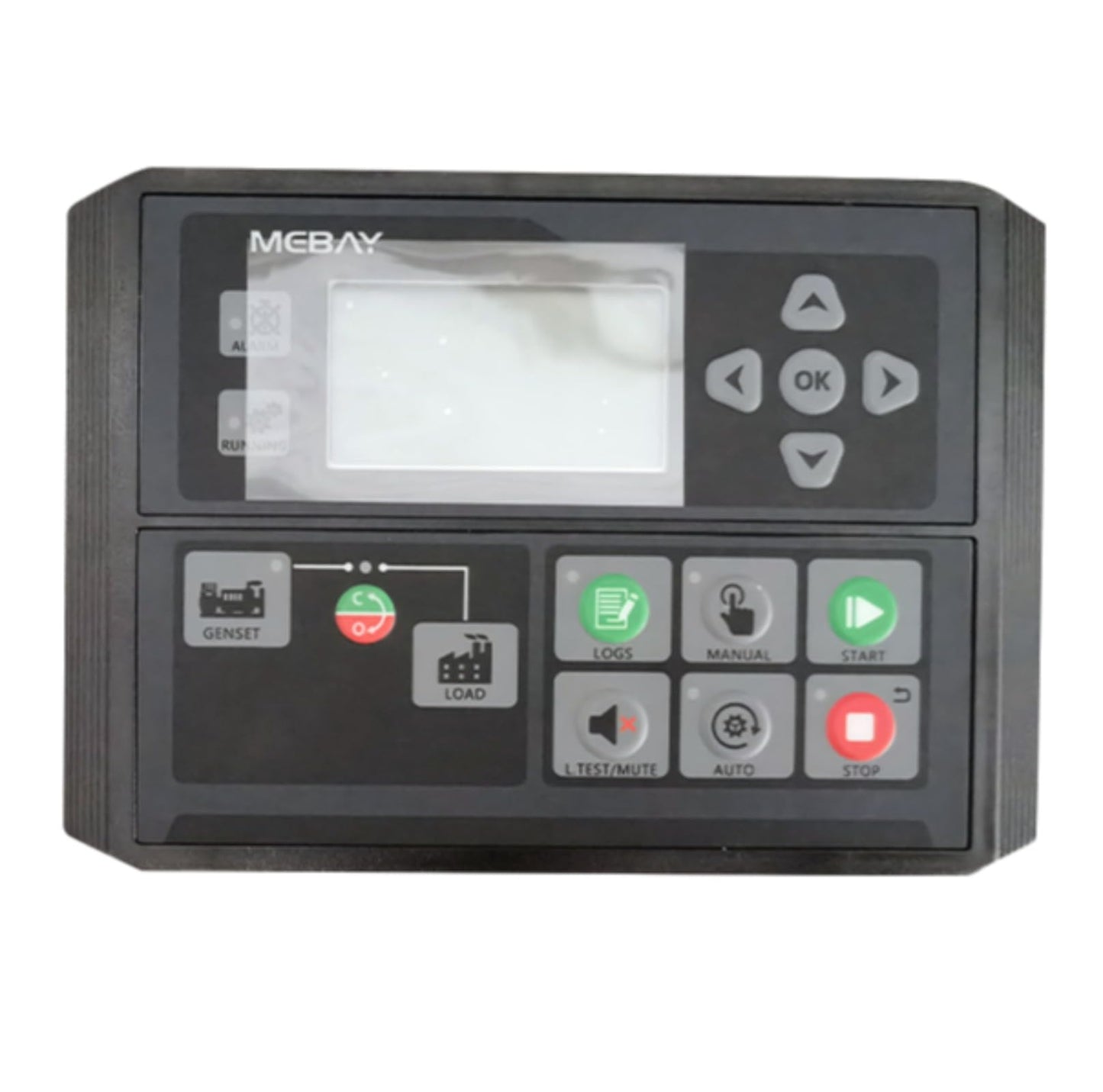

Original Mebay DC40D MK4 Controller Diesel Generator Control Module Genset Parameters LCD Display Monitoring

Original Mebay DC40D MK4 Controller Diesel Generator Control Module Genset Parameters LCD Display Monitoring



This series of controllers is designed for the start, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and has parameter setting functions.



This controller uses a 3.0-inch large-screen dot matrix LCD to display the relevant parameters of the generator set. The LCD screen can simultaneously display multiple current fault states, and can effectively implement protective parking when the generator set is not working properly.



The controller has built-in display interfaces such as simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC through a USB or RS485 interface (equipped with some models). It can be widely used in various types of generator set automation systems.



The main features are as follows:



32-bit high-performance single-chip microcomputer control;



3.0-inch large-screen dot matrix LCD display, with 16 language switches, can be customized according to customer needs;



PC panel, effective waterproof, oil-proof, UV-proof, good operation feel, long service life;



AMF function: AC monitoring and AC/generator automatic switching control (AMF) function, suitable for a single-machine automation system consisting of one AC power and one generator set;



ABF function: Automatically start and stop the generator set by monitoring the backup battery pack;



A variety of starting conditions (speed, frequency, oil pressure) combinations are available;



Collect and display a variety of engine and generator parameters;
