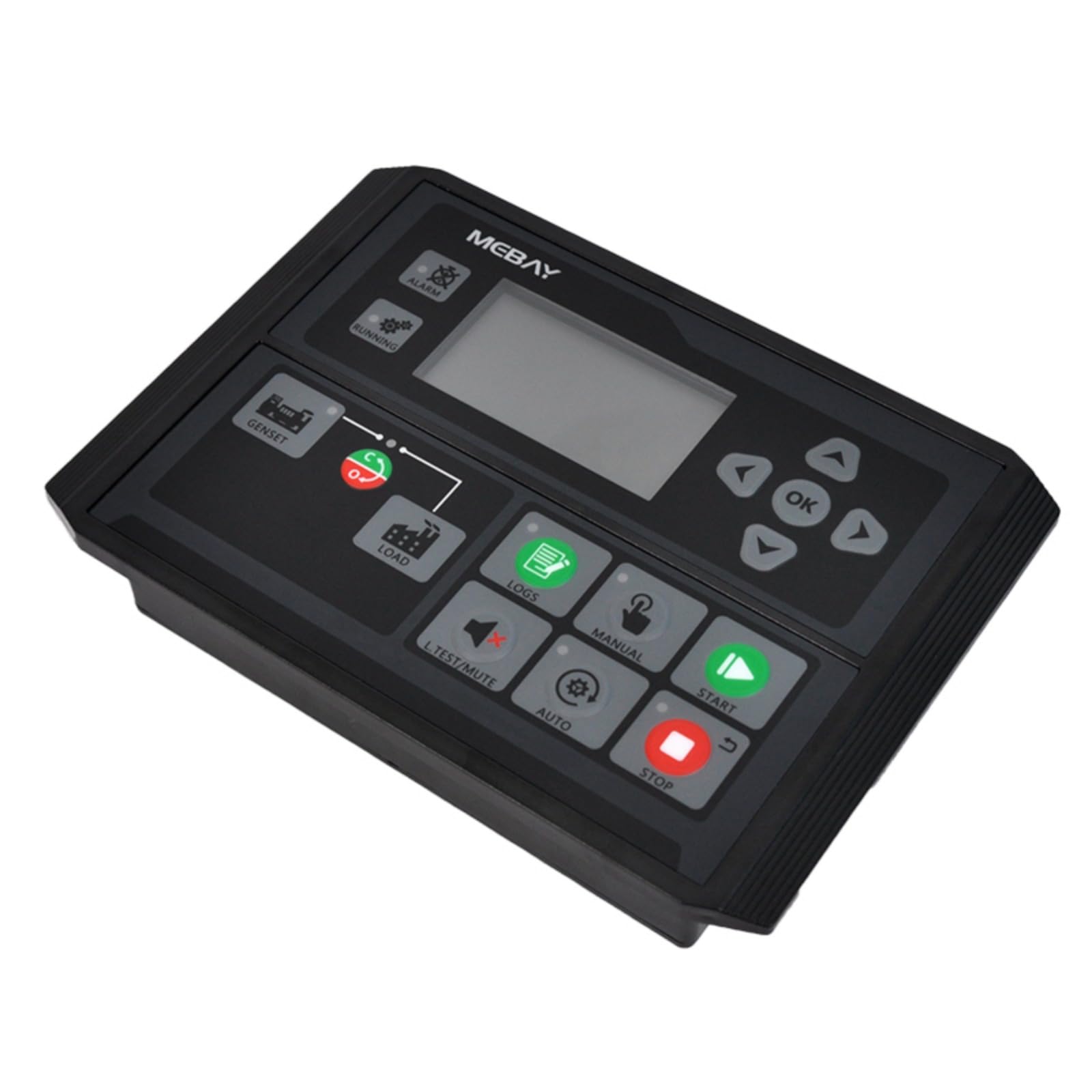

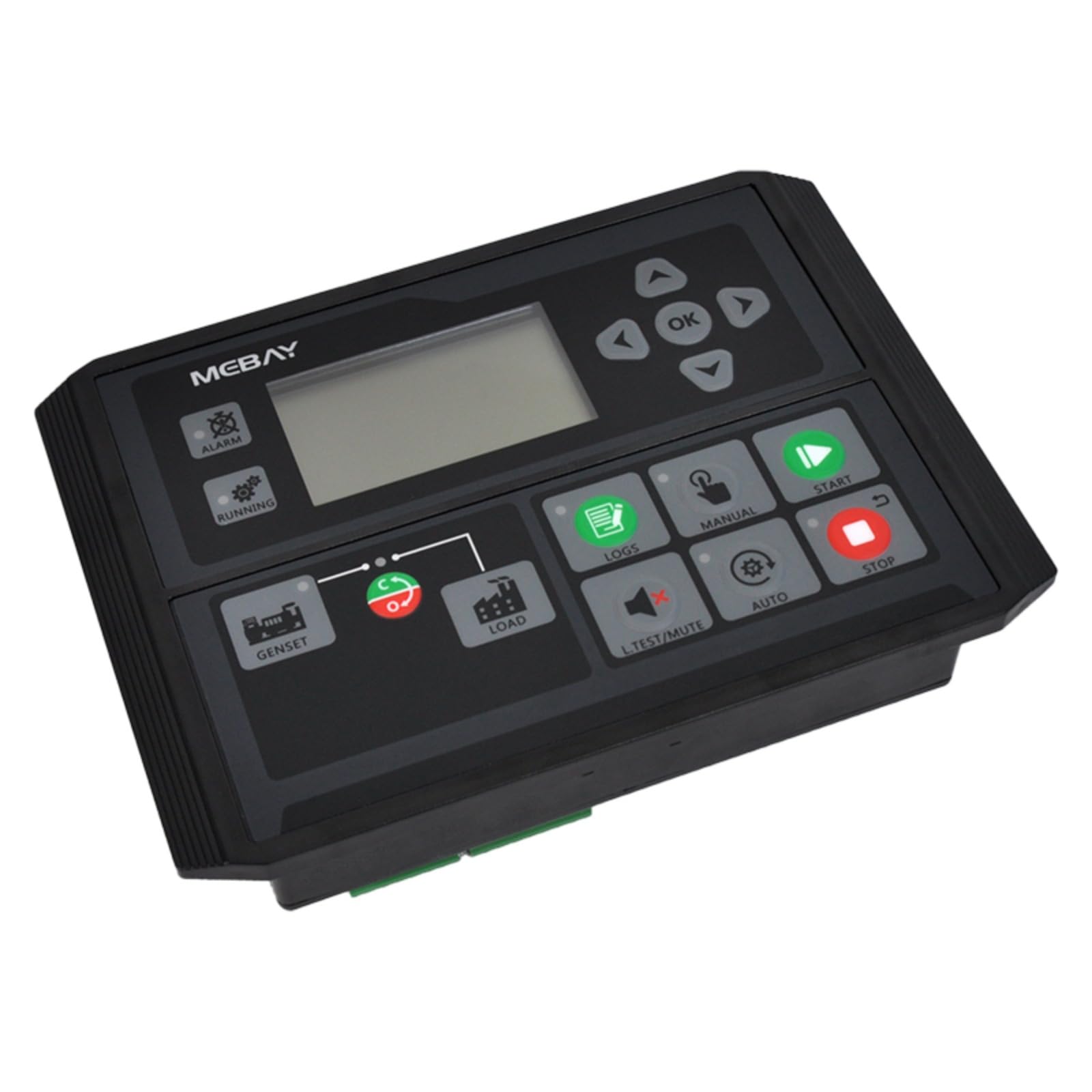

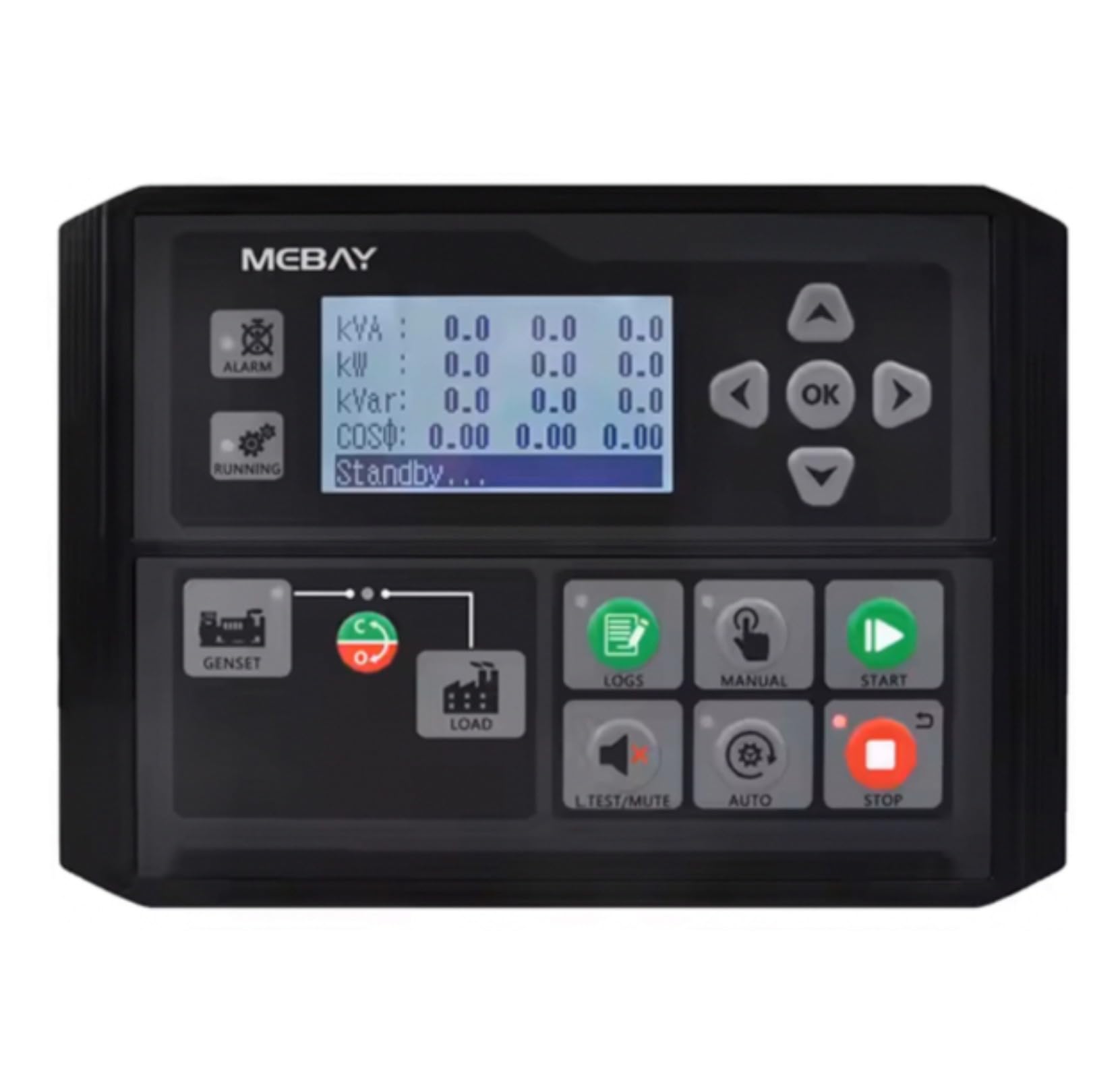

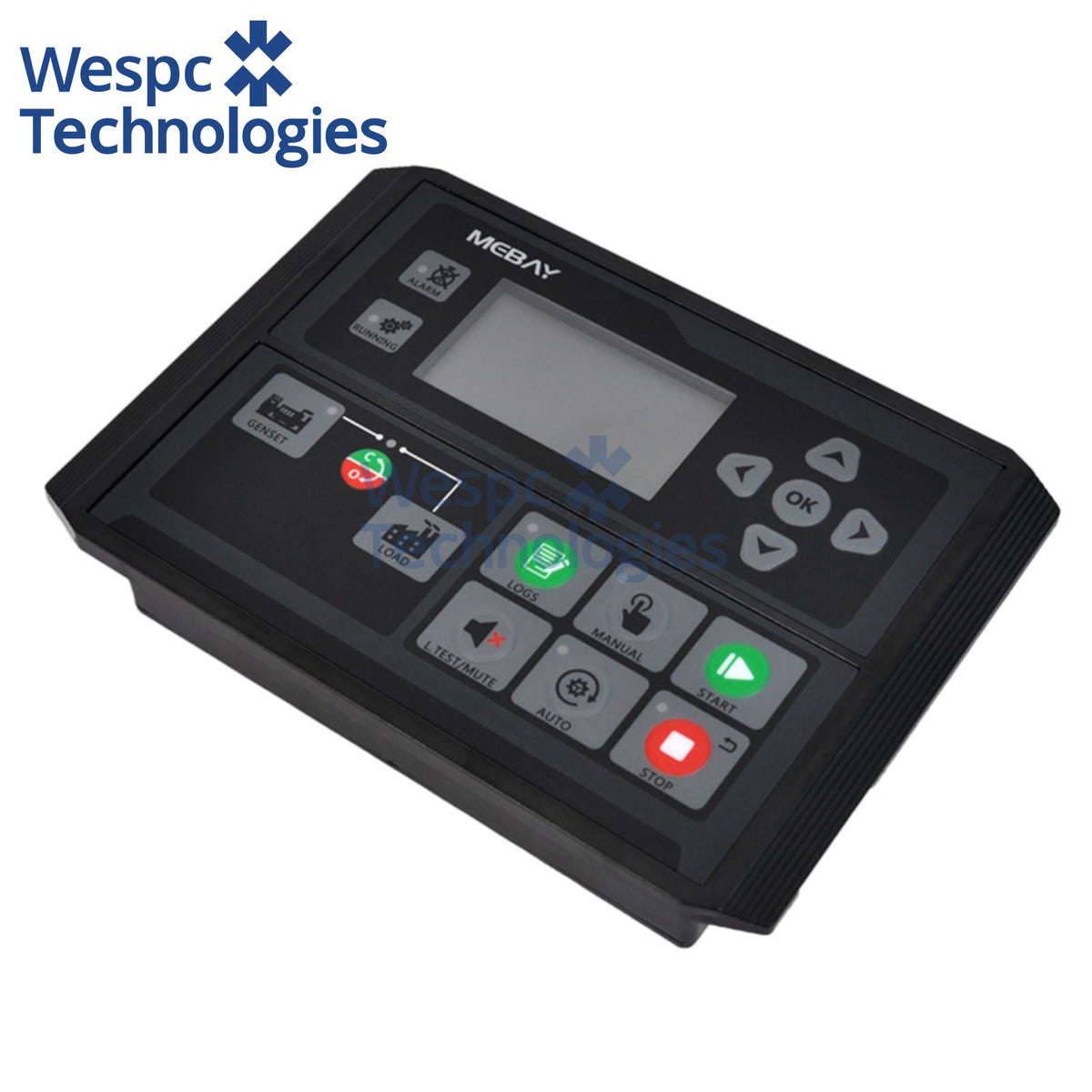

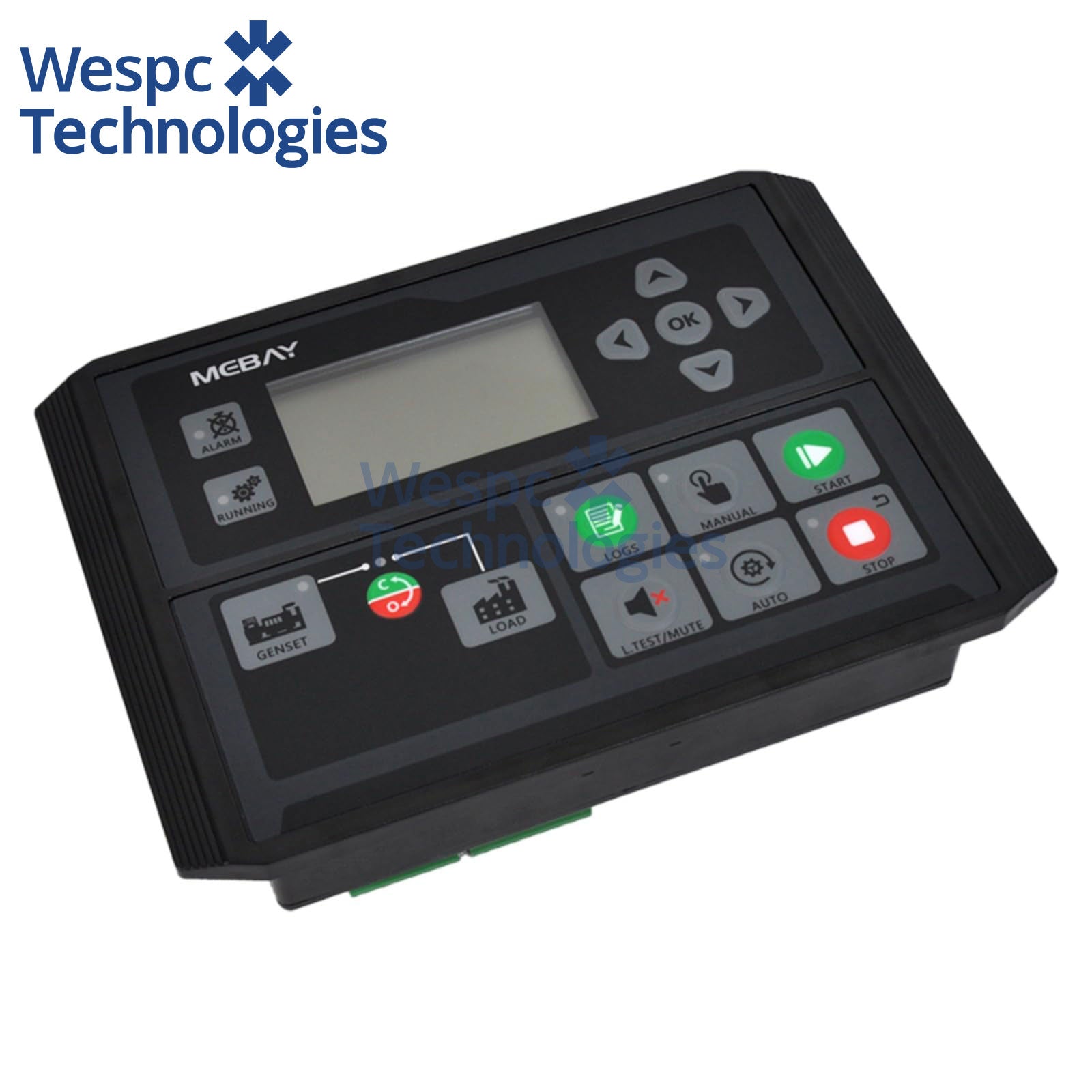

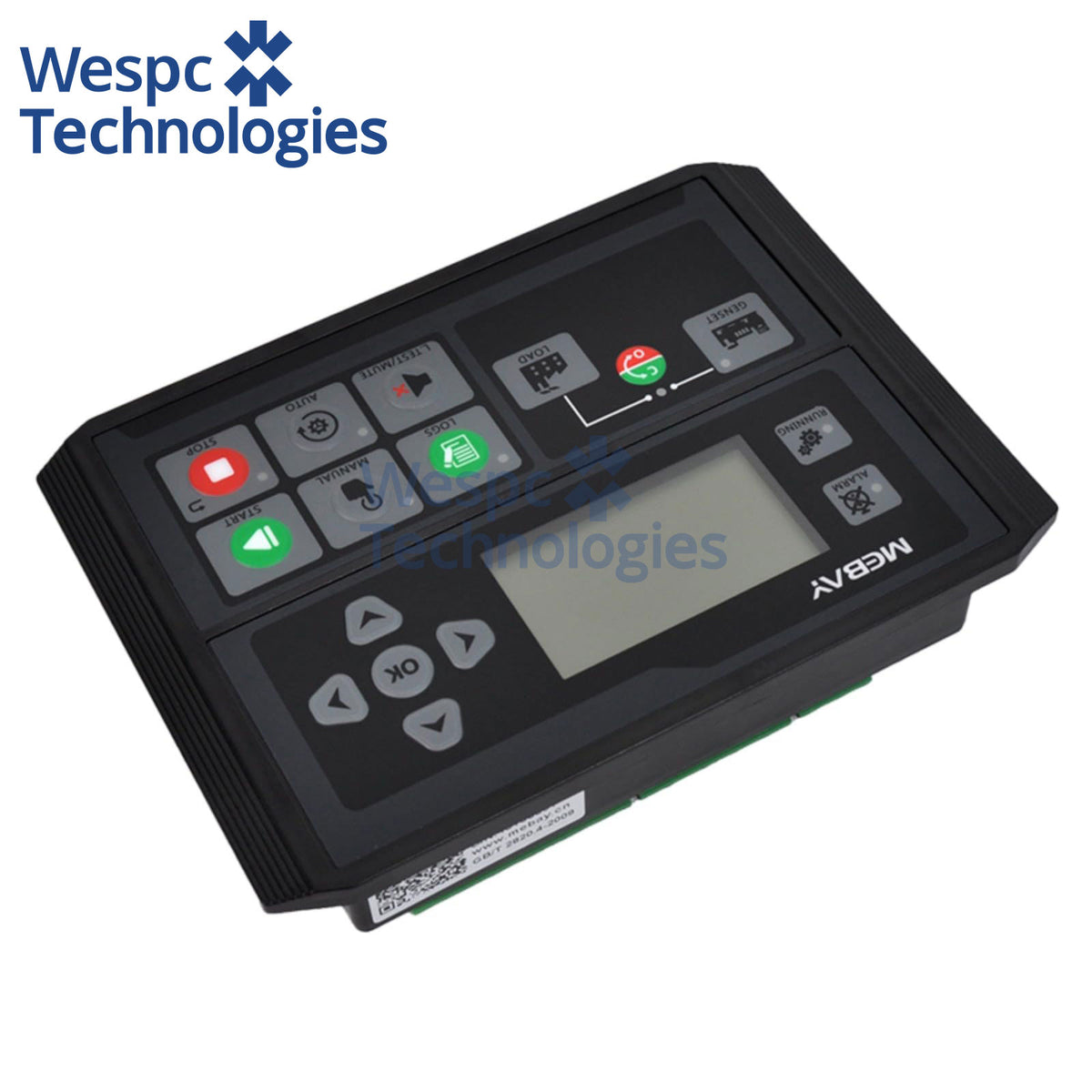

Original Mebay DC40DR MK4 Genset Controller Diesel Generator Parts Module Panal

Wide Application Range

Off-grid silent diesel generator control cabinet, construction engineering temporary power distribution box, light marine auxiliary genset, agricultural irrigation independent power station, generator factory OEM complete machine assembly, old cabinet replacement for DSE4620/HGM401 mechanical pump controllers, all off-grid mechanical pump genset projects requiring automatic start-stop function, local USB rapid debugging and remote cloud running data statistics.

Product Specifications

• Brand: Mebay
• Model: DC40DR MK4
• Core Function: 4th generation mechanical pump single-unit genset automatic controller, dual USB+RS485 communication upgrade model (No AMF mains ATS sampling, No CAN J1939 ECU bus, Off-grid dedicated)
• Working Power Supply: DC8V ~ 36V universal 12V/24V genset battery wide voltage
• Sampling Standard: 1P2W/2P3W/3P4W adaptive generator AC sampling, match 5A CT current transformer

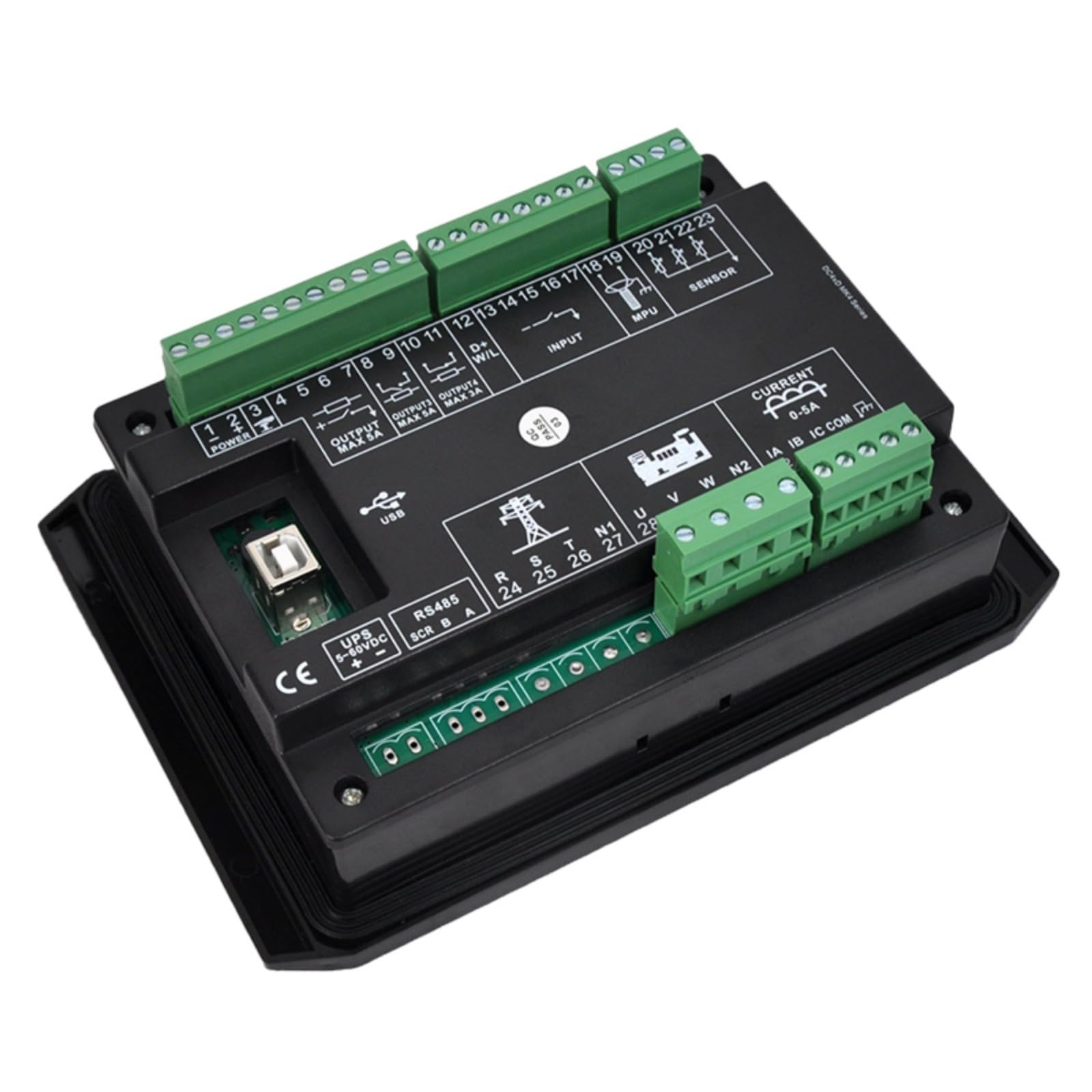

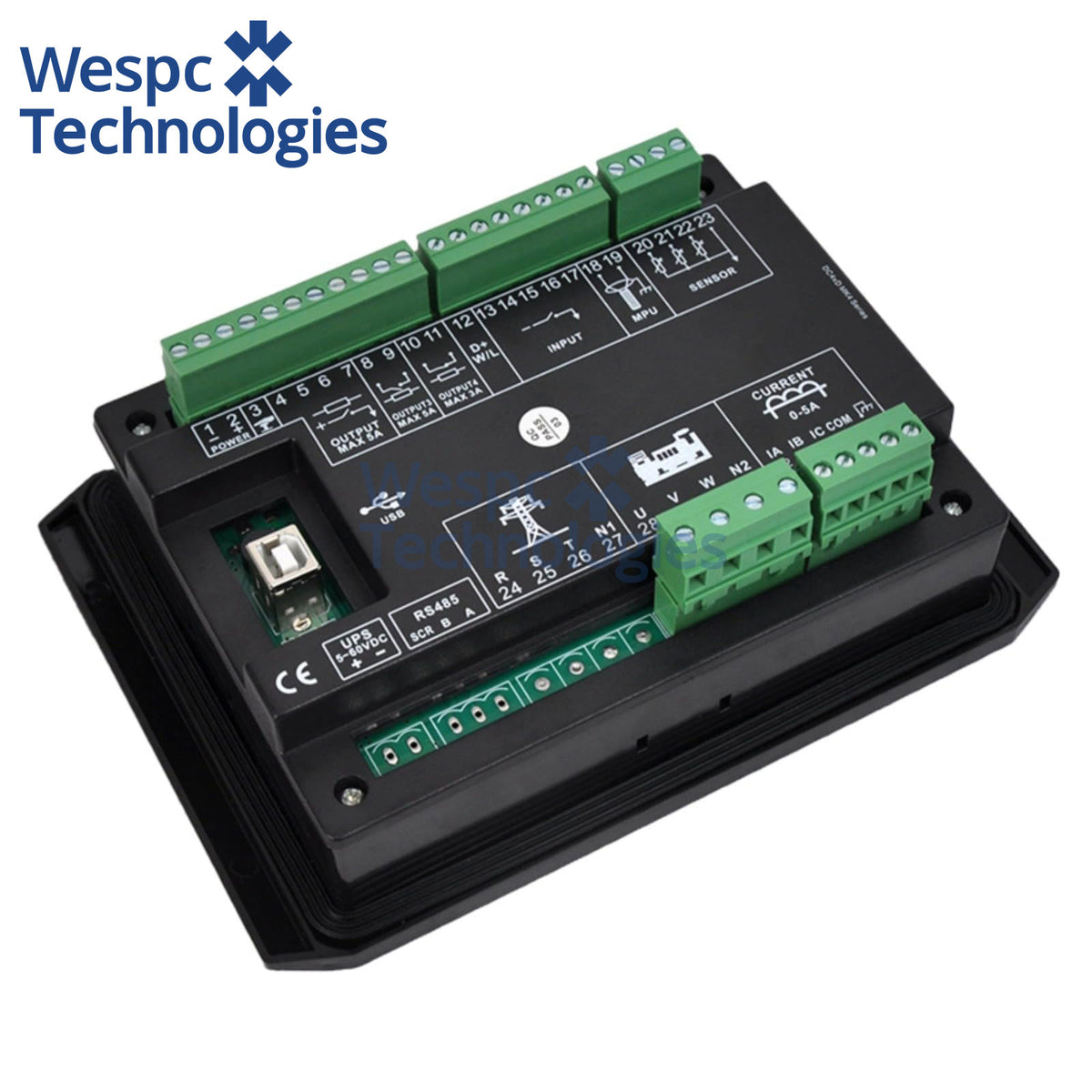

• Communication Interfaces: Front USB debug port + Rear isolated RS485 A/B Modbus RTU port (No CAN bus)

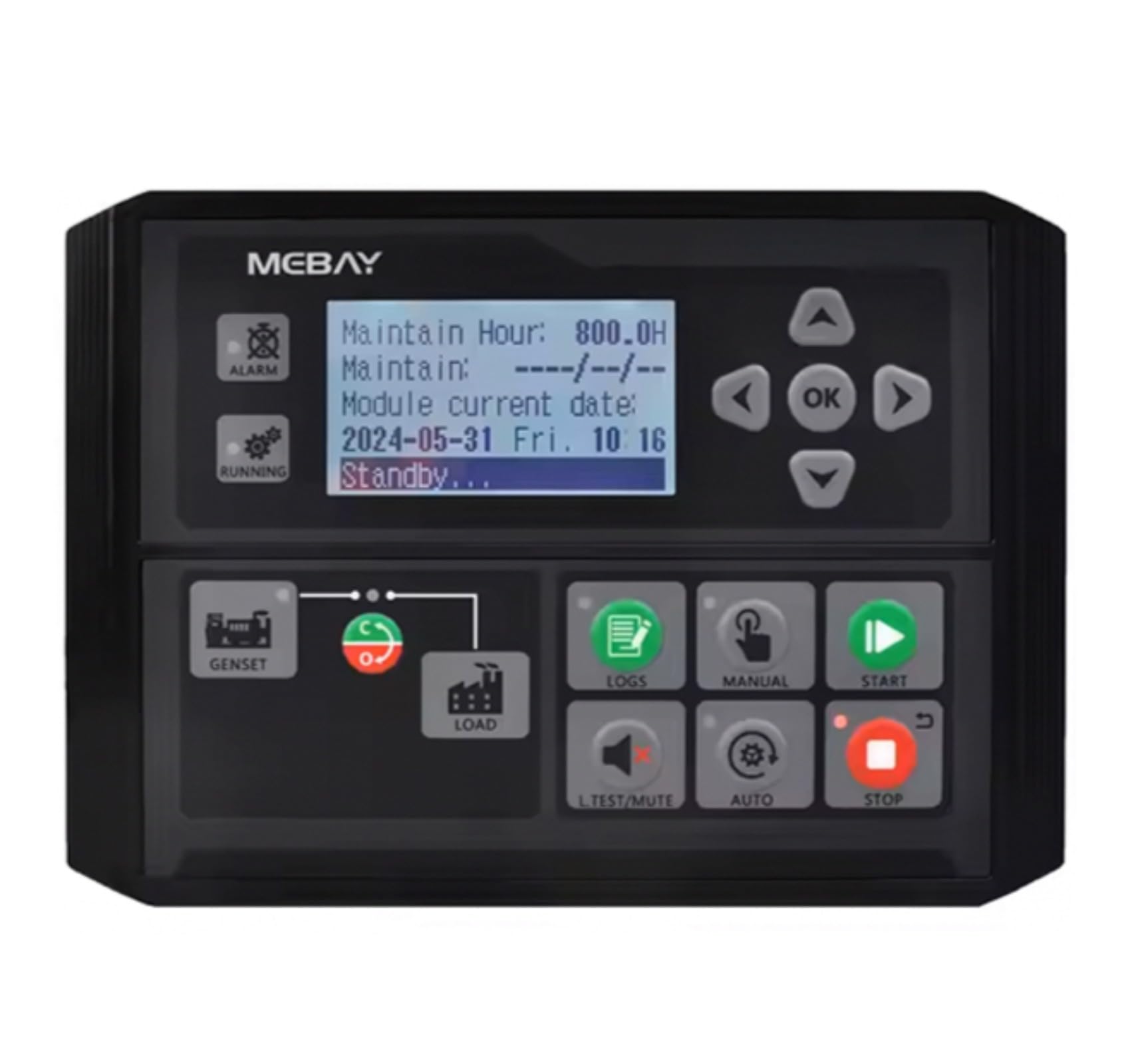

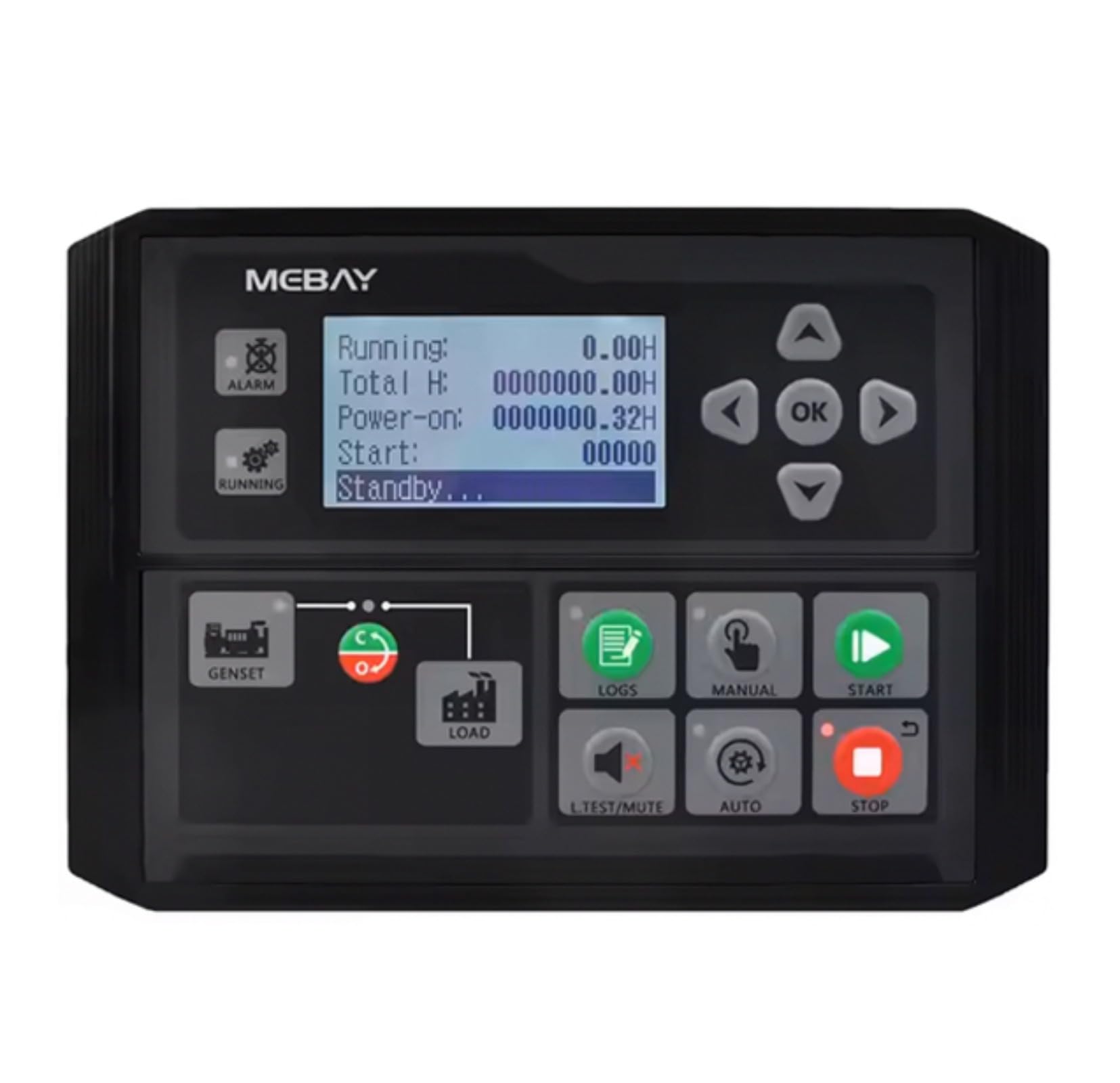

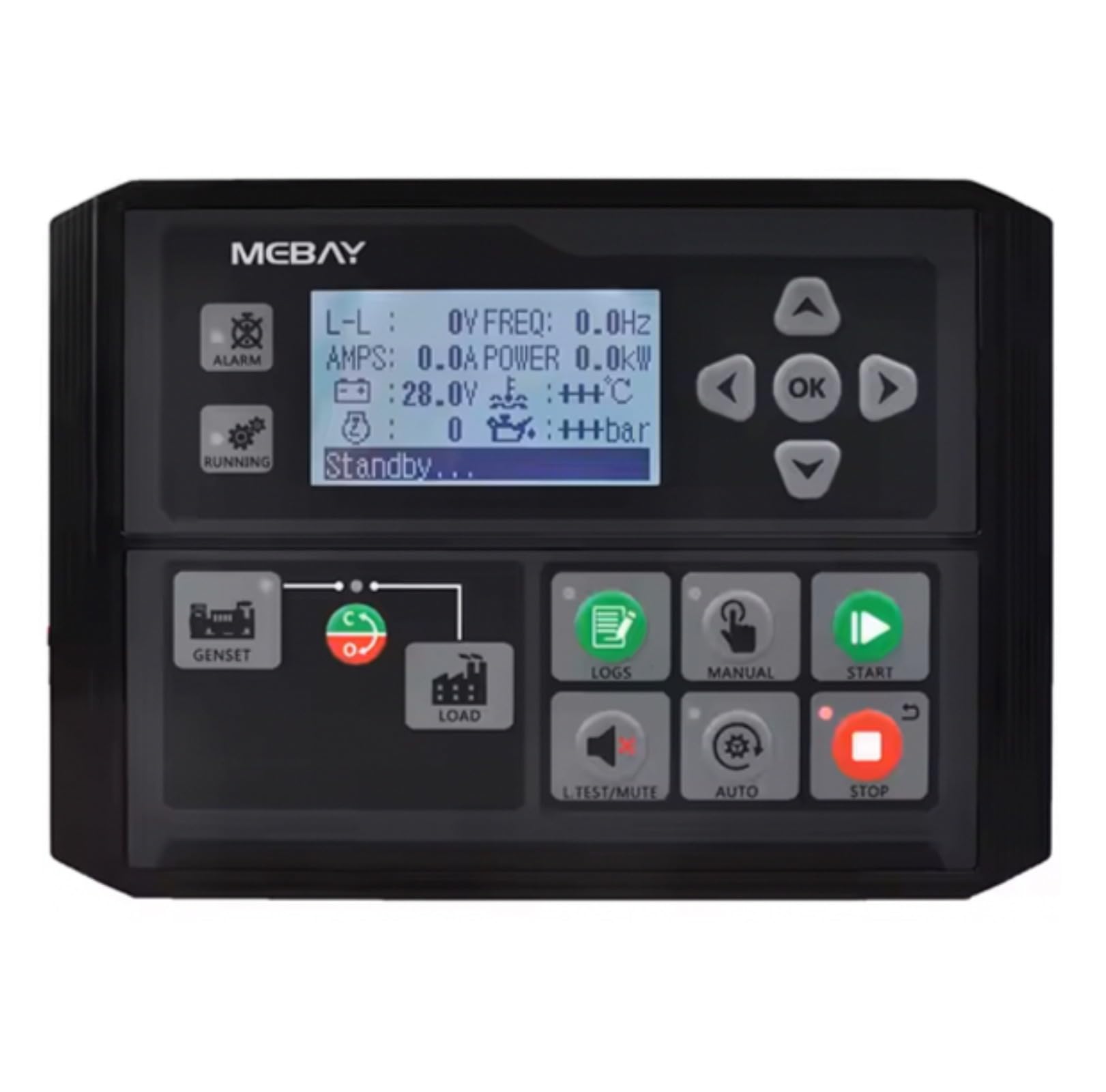

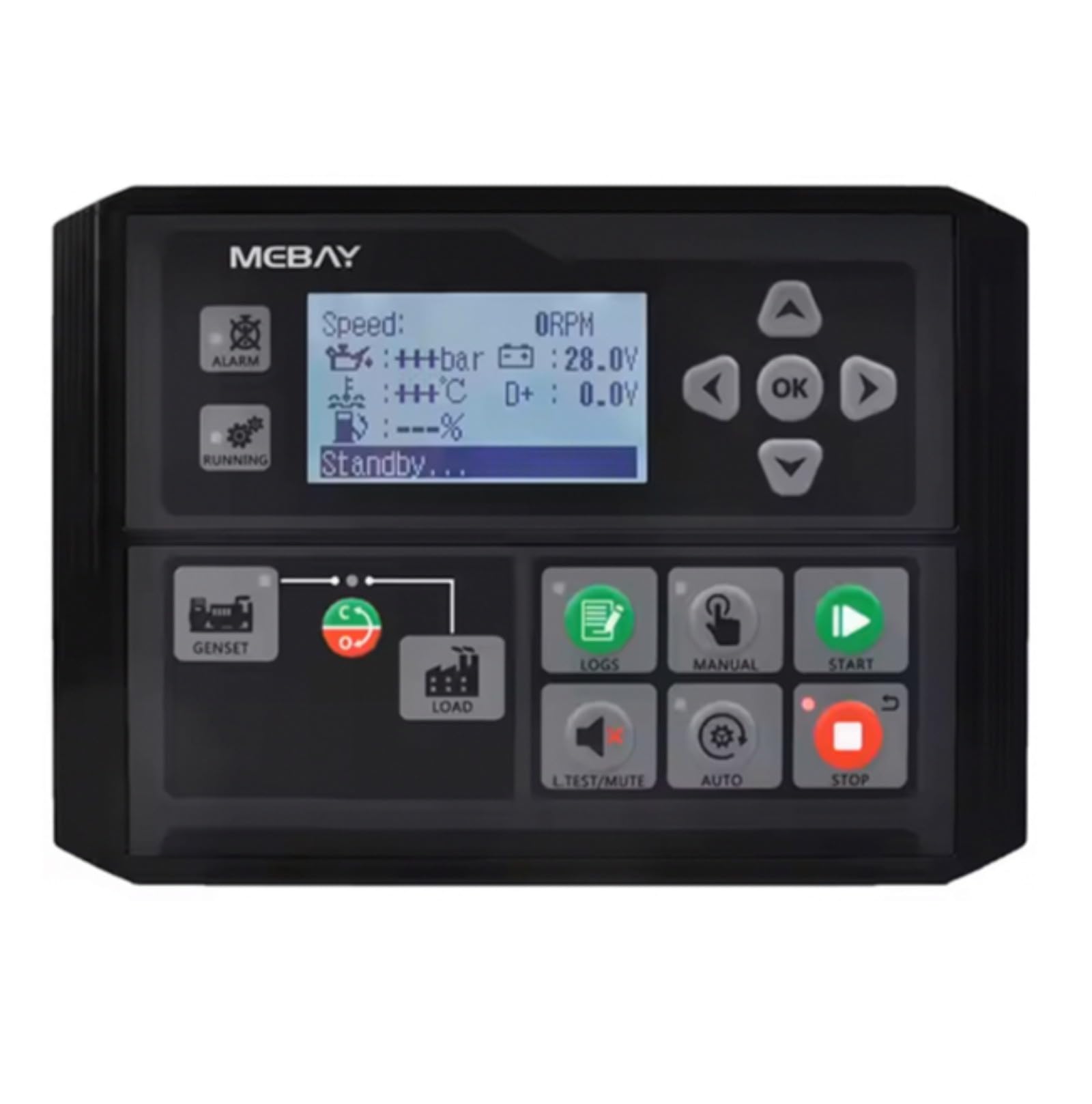

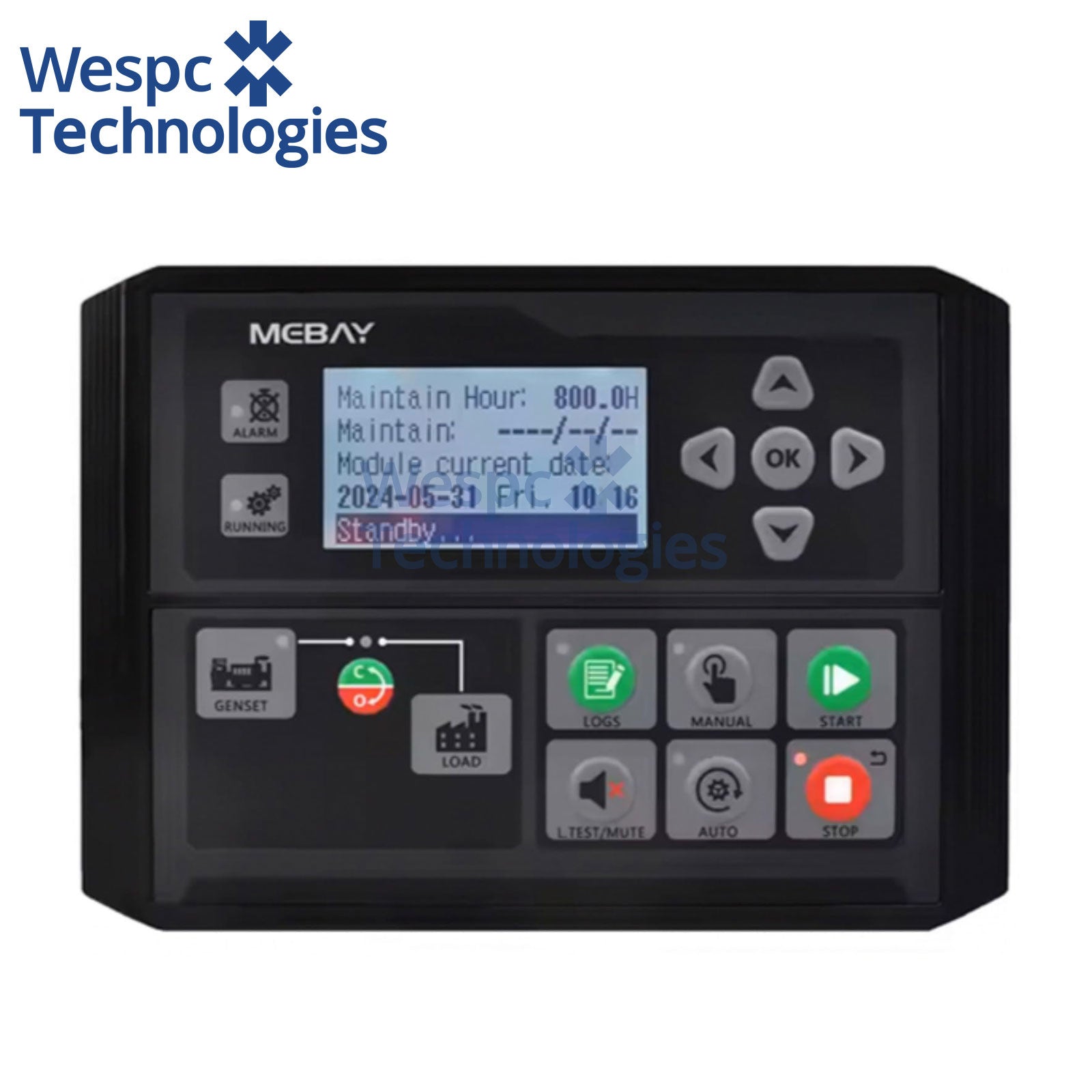

• Display: 3.0-inch 128×64 20-language switchable backlight LCD screen, OEM custom startup logo support
• Panel Cutout Size: 160 × 120 mm, overall dimension 189 × 134 × 50 mm
• Front Panel Protection Grade: IP54 dustproof, waterproof, oil-proof industrial PC panel
• Operating Temperature: -25℃ ~ +70℃
• Warranty: 12 months genuine factory warranty
• Certifications: CE, ISO9001, EMC EN55032 IEC61000-4

Common Equipment Failures Solved

• LCD screen no display after genset startup: Check DC battery wiring, confirm battery voltage within DC8~36V working range
• PC cannot connect via front USB: Replace standard USB data cable, confirm controller not in fault locked state
• PC cannot connect via SG72A RS485 adapter: Confirm RS485 A/B wiring sequence, match Modbus communication address and baud rate
• No remote data upload to DT1000: Adjust controller baud rate consistent with DTU module setting, add 120Ω terminal resistance at bus terminal
• No automatic startup under AUTO mode: Check remote start signal wiring, re-calibrate startup delay parameters via panel buttons
• Need mains automatic ATS transfer function: Upgrade to DC42DR MK4 with mains sampling circuit
• Need to monitor EFI engine ECU fault data: Replace with DC40C MK4 with CAN J1939 bus
• Need independent cumulative kWh energy statistics: Match GV59R three-phase power meter for separate power monitoring
• Old DC40DR MK3 cabinet upgrade for local debug + remote monitoring: Direct replacement DC40DR MK4 same installation size and wiring definition, no cabinet modification needed
