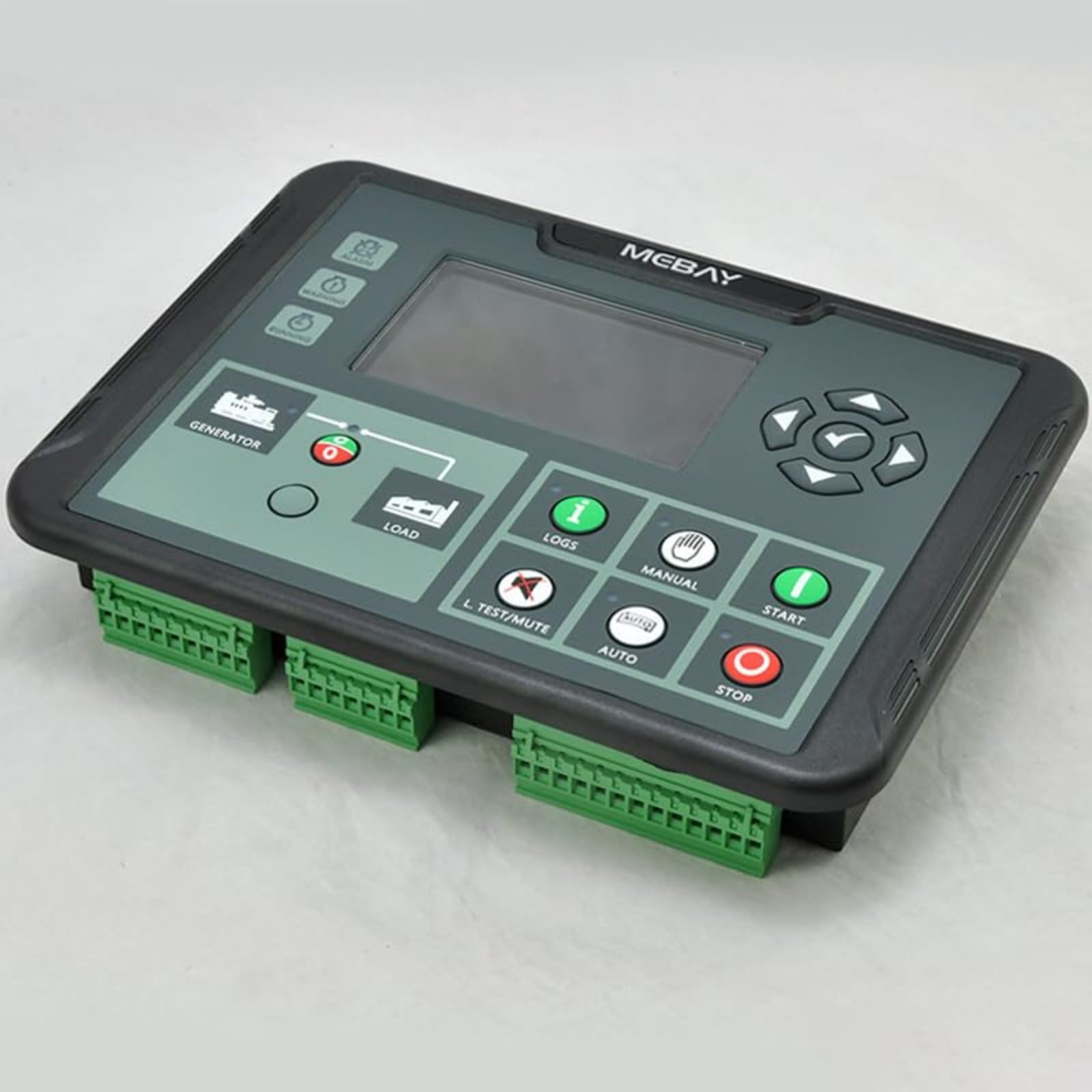

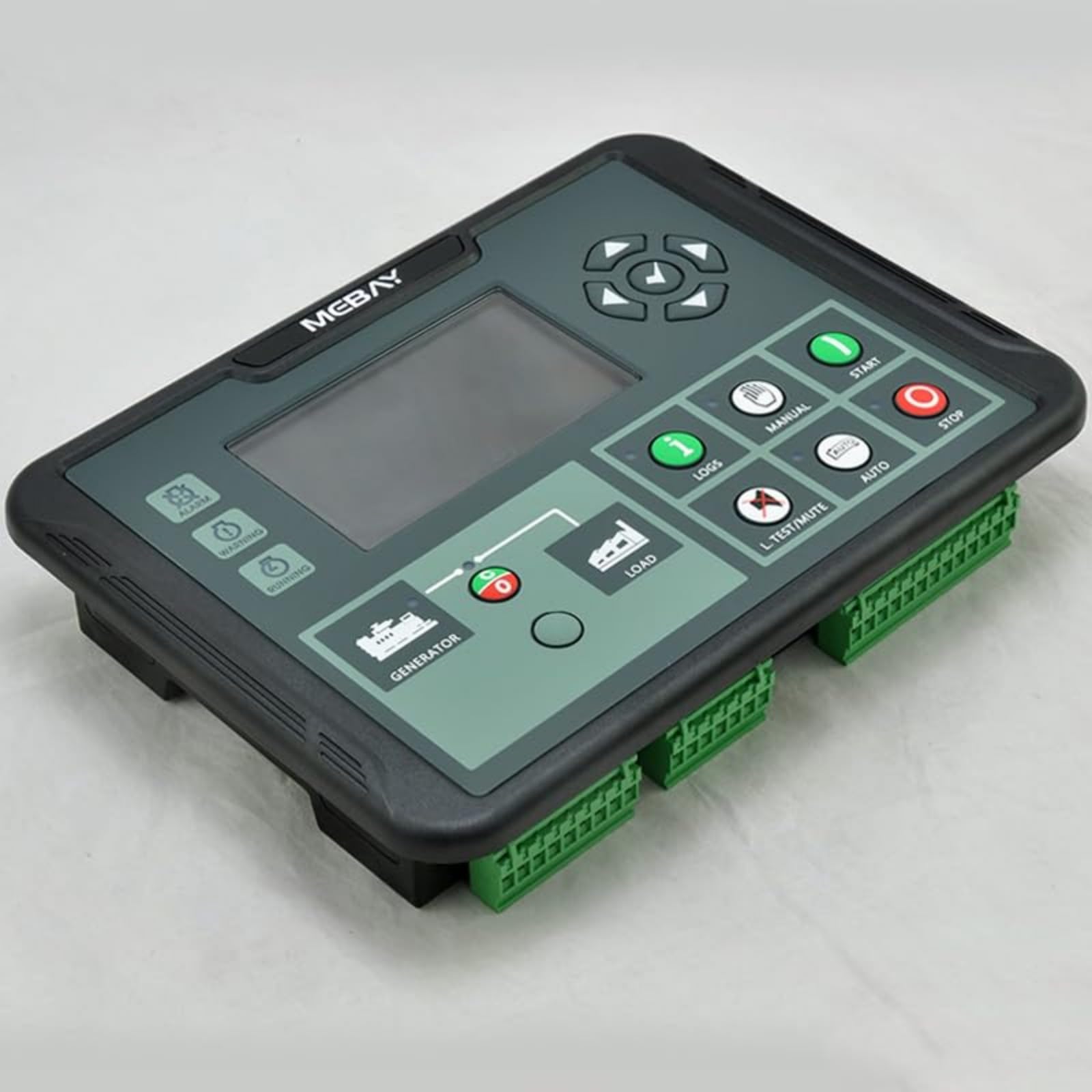

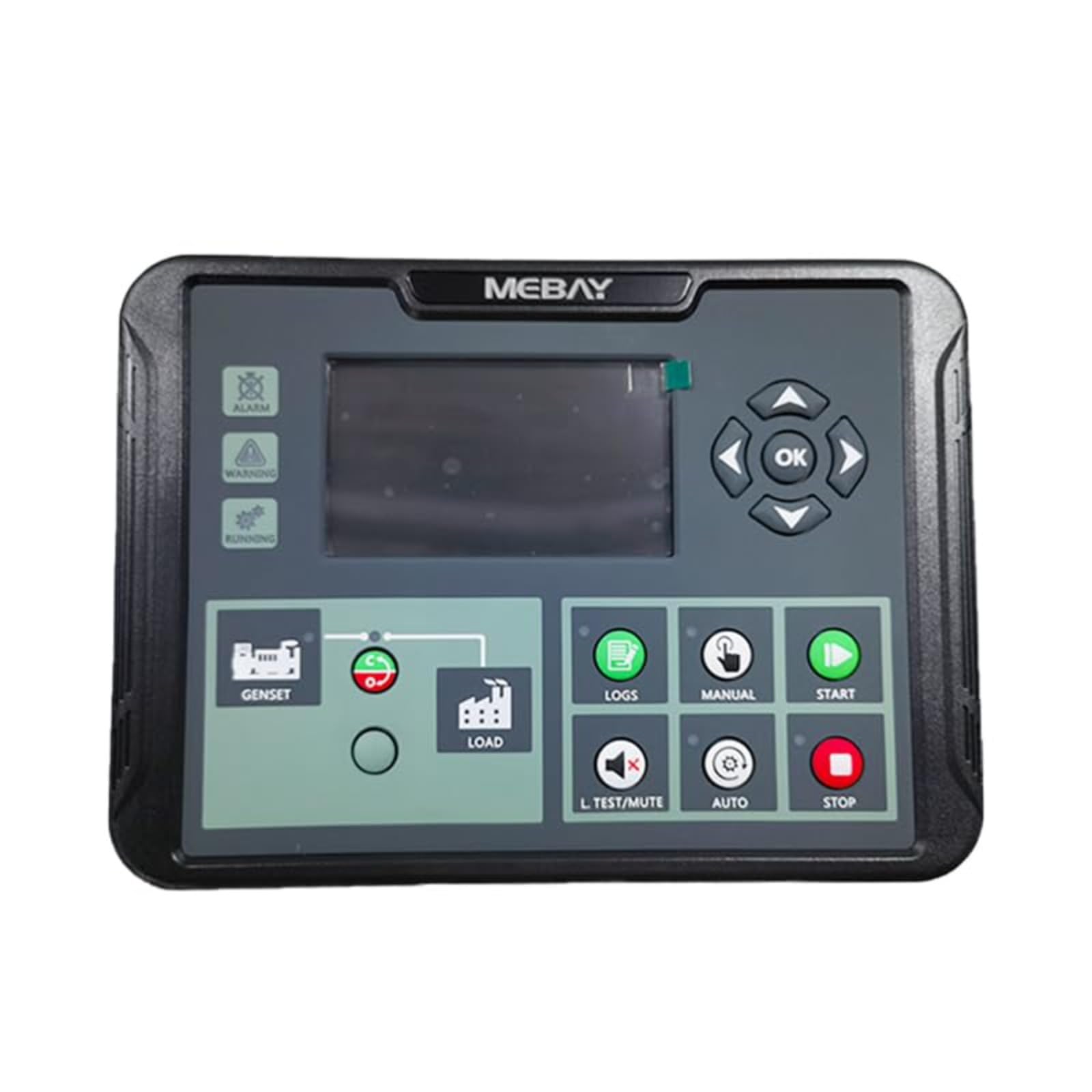

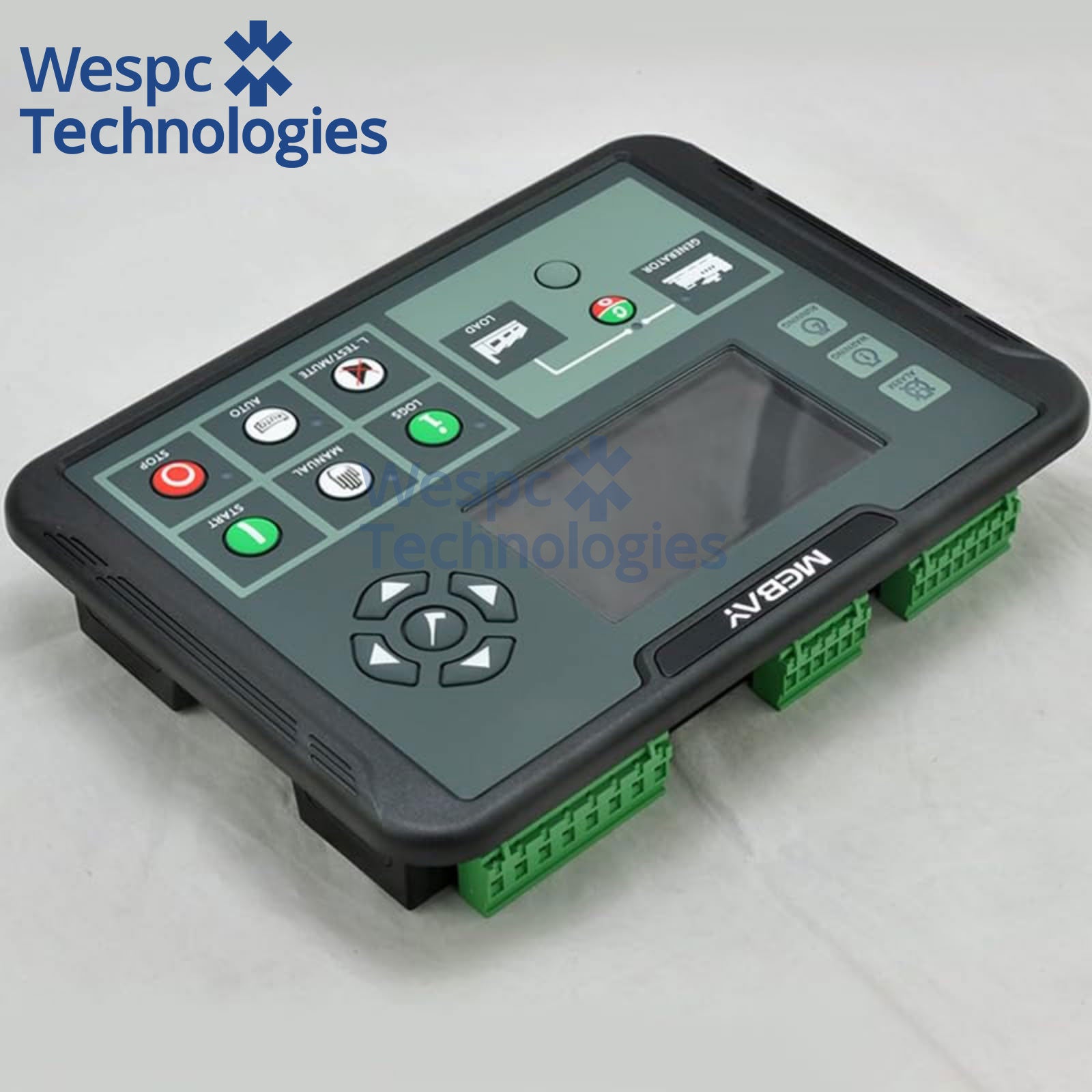

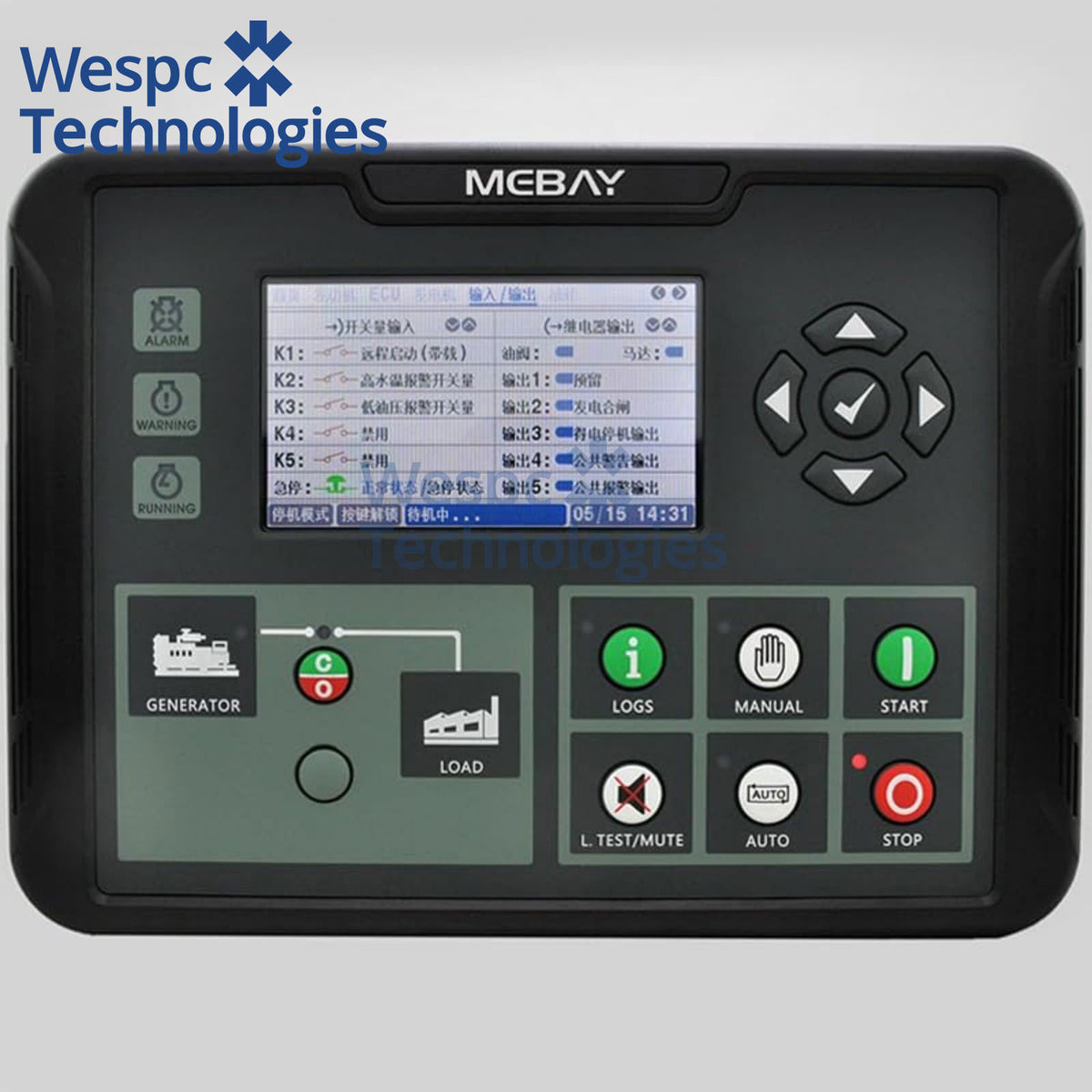

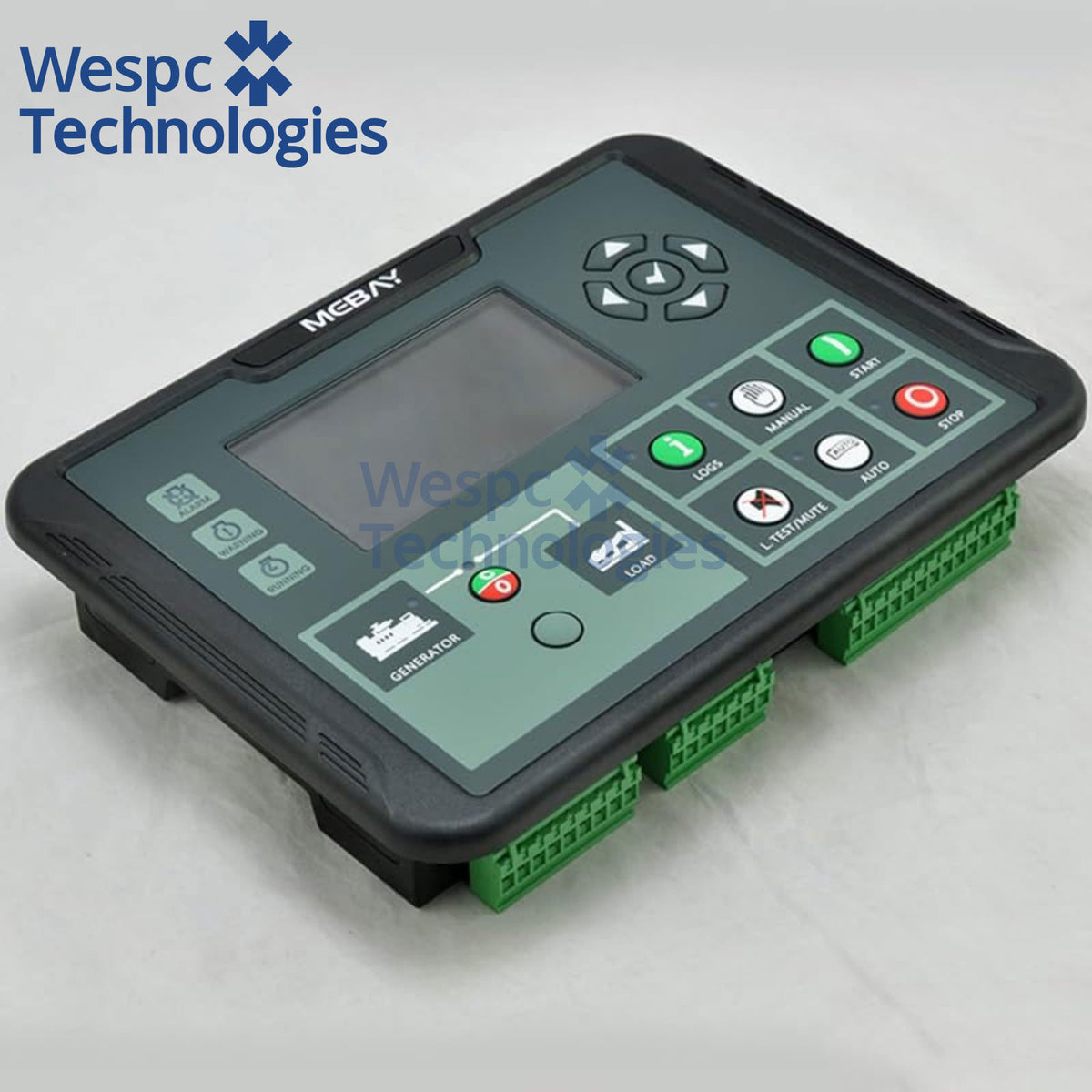

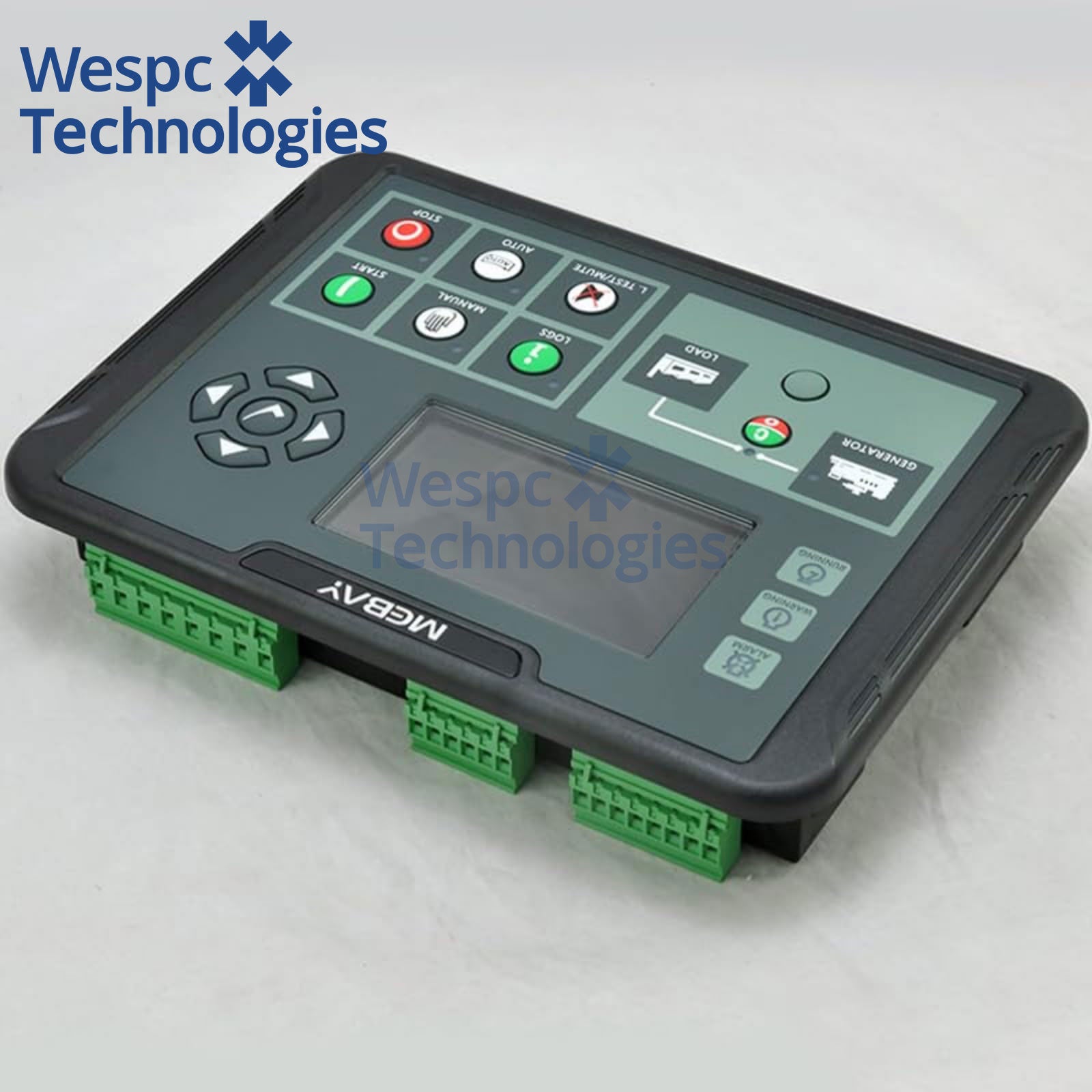

Original Mebay DC90DR replaced by DC92DR MK3 Diesel Gasoline Gas Genset Generator Controller with CAN/RS485 Port

Original Mebay DC90DR replaced by DC92DR MK3 Diesel Gasoline Gas Genset Generator Controller with CAN/RS485 Port

1.Summary
  This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.

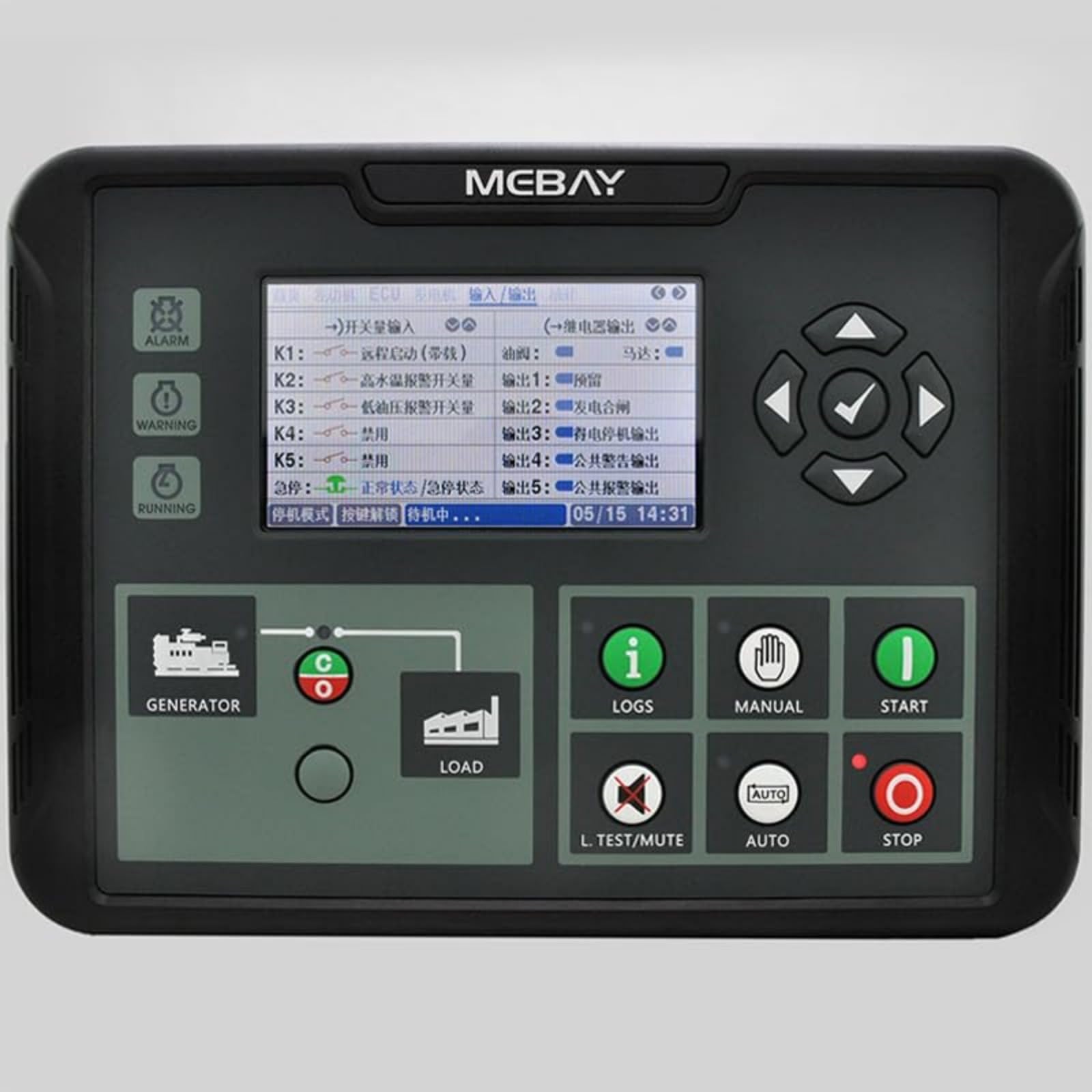

  4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can"t work smoothly.
  There are Chinese/English interface options, more language can be set according to user"s request. All the parameters can be configured through the front face buttons or use programmable interface by USB\RS485\ETHERNET to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

2.Main Features
  There are three  Models under DC92x series.
DC92D MK3
DC92DR MK3
DC92MR

  32bit high performance single chip microcomputer.
  4.3inch TFT colorful big screen LCD, Available in 16 languages, user"s language set if necessary.
  Wide temperature working range (-40-70℃), suitable for harsh working environment. (Only for DC92MR)
  Indicator and number display through UI surface.
  Acrylic material is adapted to protect the screen.
  Silicone panels;
  AMF: Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
  USB Port: parameters can be set even without power through USB port to monitor in real time.
  With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.
  Standard CAN communication port, built-in J1939 protocol, has matched more than 40 kinds of engines;
  The standard ETHERNET communication interface can be connected to the GSCLOUD generator cloud control platform, and the status of the generator set can be monitored remotely through the WEB platform and mobile APP; the ETHERNET interface supports the Modbus-RTU protocol, and the controller parameters can be set through the PC;
  Equipped with MBC communication interface, which can be used for master and backup power-on communication and connection of expansion modules;
  Various kinds of parameters display.
  Input/output function, status can be shown directly.
  More categories of surface setting.
  Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
  Three class protection countdown function, which can set the maintenance time or date.
  With event recording function, it can save 100 groups of alarm records, including relevant parameters of the unit in case of fault alarm; 5000 system logs can be saved to find the cause of failure;
  Totally 10 relay"s output, among which 8 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.
  With 8 switches input, up to 40 functions optional;
  6 sensor simulation input connectors, 6 input types is configurable and various kinds of units can be set.
  Battery charging control function,which can protect the battery according to battery voltage status.
  Sensor can be self-defined by front face button or PC software.
  Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
  Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
  Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
  Standard water-proof rubber gasket. The waterproof can reach IP65.
  Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
